深入CSS | 青训营笔记

190 阅读4分钟

这是我参与「第五届青训营 」笔记创作活动的第3天

重点内容

  • CSS 选择器的特异度
  • CSS 继承
  • CSS 求值过程解析
  • CSS 布局方式及相关技术
  • CSS 盒模型 - 行级
  • CSS 盒模型 - 块级

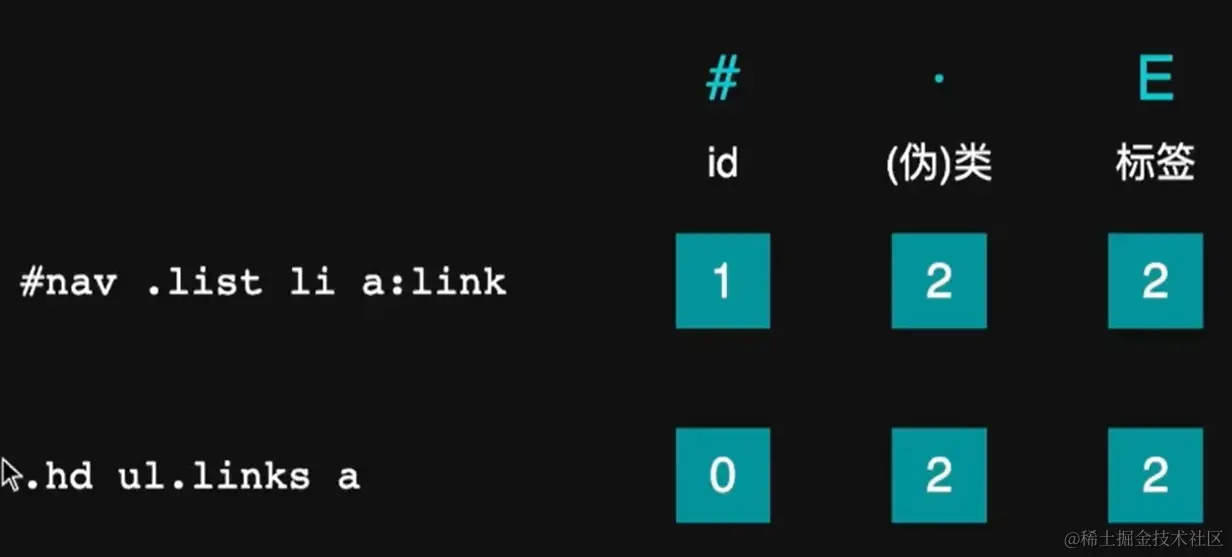

一、选择器的特异度(Specificity)

  • 当不同选择器定位到同一种元素时,通过计算特异度来判断优先级
  • 将选择器分成id、(伪)类和标签三类分别计数

image.png - 示例代码:.btn.primary 优先级高于 .btn,样式会进行覆盖

<button class="btn">普通按钮</button>
<button class="btn primary">主要按钮</button>
<style>
  .btn {
    display: inline-block;
    padding: .36em .8em;
    margin-right: .5em;
    line-height: 1.5;
    text-align: center;
    cursor: pointer;
    border-radius: .3em;
    border: none;
    background: #e6e6e6;
    color: #333;
  }
  .btn.primary {
    color: #fff;
    background: #218de6;
  }
</style>

二、 继承

  • 某些属性会自动继承其父元素的计算值,除非显式指定一个值
  • 示例代码:<strong> 没有设置样式,则继承父元素 <p> 的样式
<p>This is a <em>test</em> of <strong>inherit</strong></p>

<style>
  body {
    font-size: 20px;
  }
  p {
    color: blue;
  }
  em {
    color: red;
  }
</style>
  • 显式继承:某些元素不可继承父元素时,可以使用 inherit 表示该元素样式继承父元素的


三、初始值

  • CSS中,每个属性都会有一个初始值
    • background 的初始值为 transparent
    • margin-left 的初始值为 0
  • 可以使用 initial 关键字显式重置为初始值
    • background-color:initial

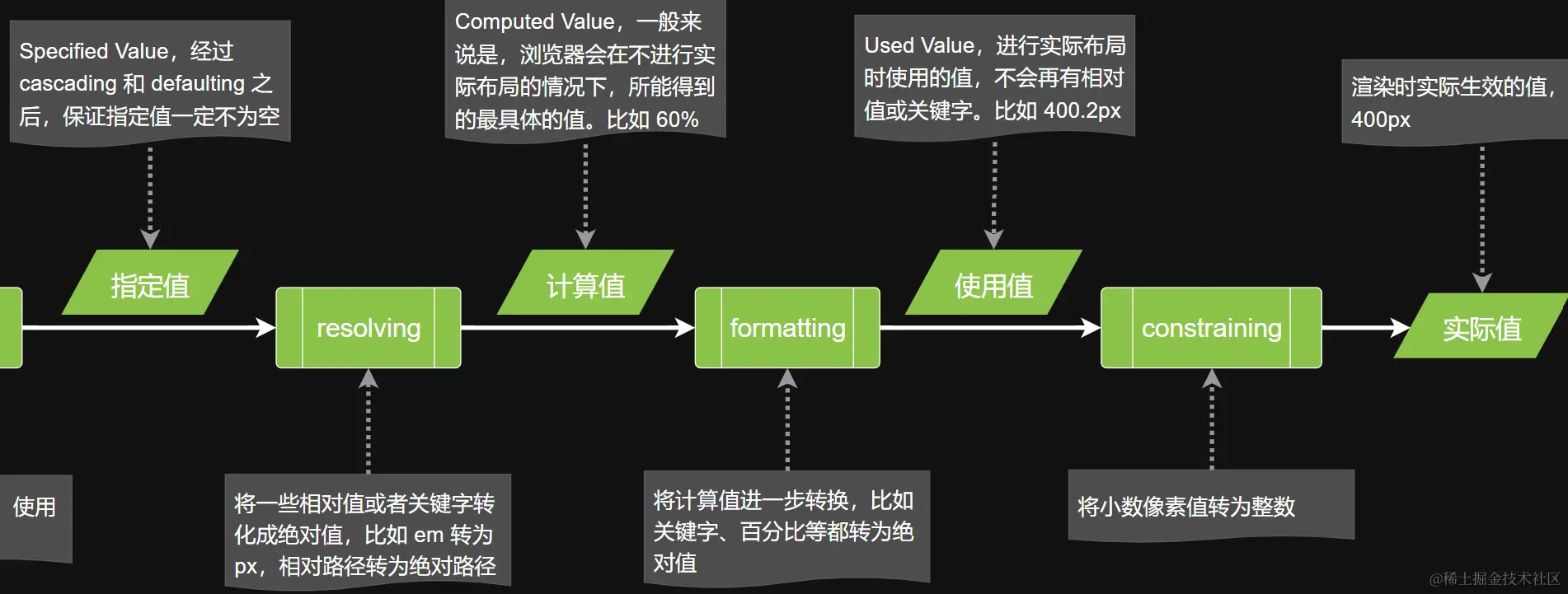

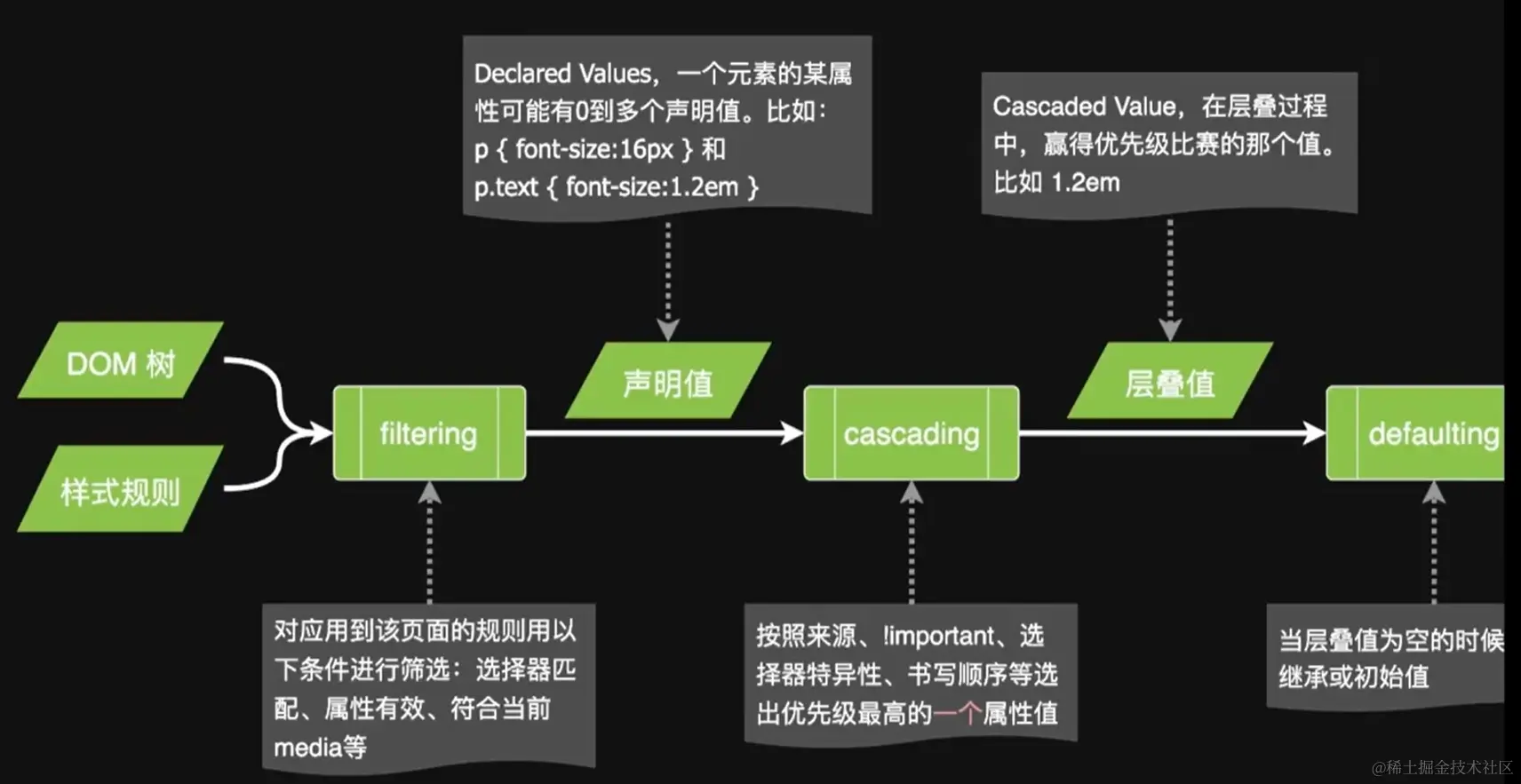

四、CSS求值过程



五、 布局(Layout)

  • 确定内容大小的位置的算法
  • 依据元素、容器、兄弟节点和内容等信息来计算

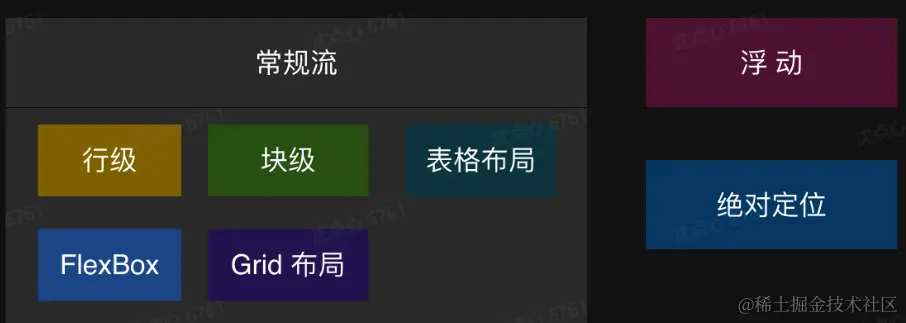

1. 布局相关技术

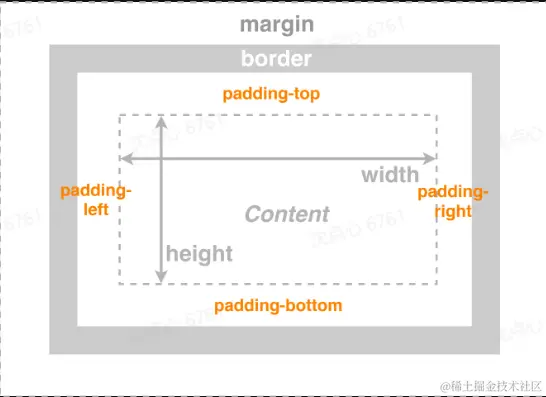

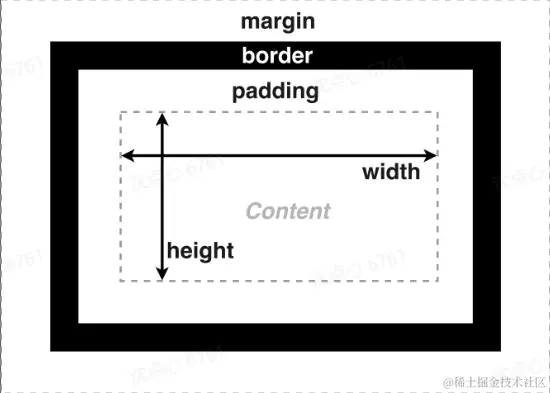

2. 盒模型


width

  • 指定 content box 宽度
  • 取值为 长度百分数auto
  • auto 由浏览器根据其它属性确定
  • 百分数相对于容器的 content box 宽度

height

  • 指定 content box 宽度
  • 取值为 长度百分数auto
  • auto 由内容计算得来
  • 百分数相对于容器的 content box 宽度
  • 容器有指定的高度时,百分数才生效

padding

  • 指定元素四个方向的内边距
  • 百分数相对于容器 宽度 image.png

border

  • 指定容器边框样式、粗细及颜色
  • 三种属性
    • border-width
    • border-style
    • border-color
  • 四个方向
    • border-top
    • border-right
    • border-bottom
    • border-left
  • 示例:cdpn.io/webzhao/deb…

margin

  • 指定元素四个方向的外边距
  • 取值可以是 长度百分数auto
  • 百分数相对于容器的 content box 宽度
  • auto 表示水平居中
  • 示例:codepen.io/webzhao/emb…

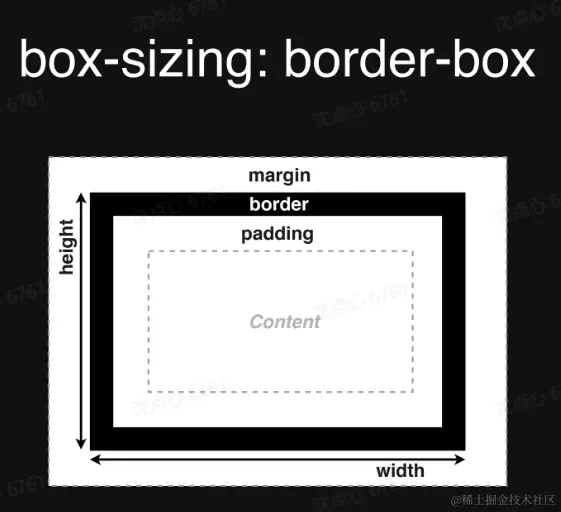

box-sizing

overflow

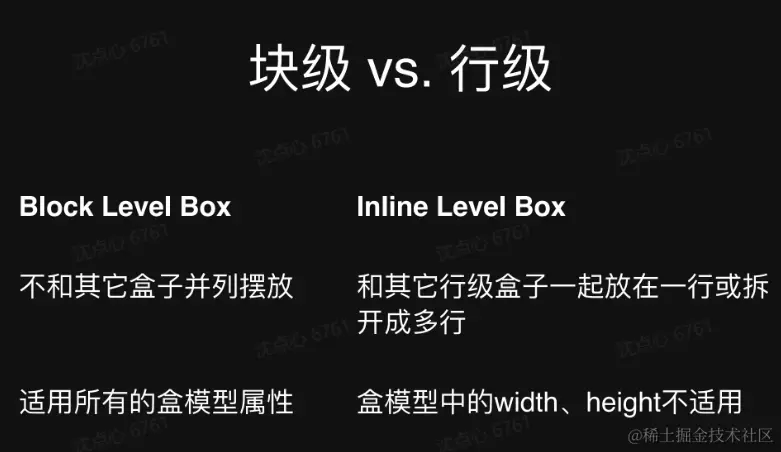

3. 块级和行级

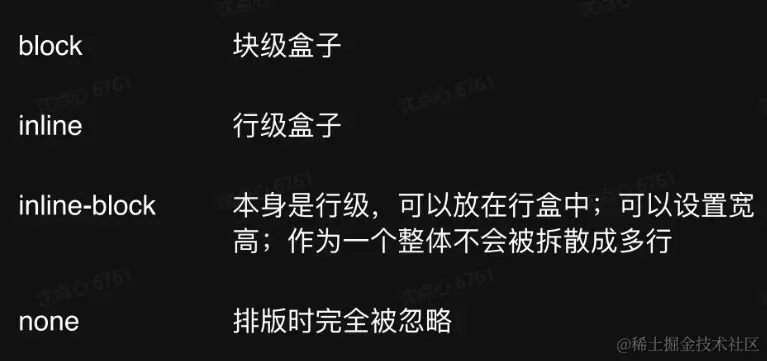

display属性


行级排版上下文

  • Inline Formatting Context(IFC)
  • 只包含行级盒子 的容器会创建一个IFC
  • IFC内的排版规则
    • 盒子在一行内水平摆放
    • 一行放不下时,换行显示
    • text-align 决定一行内盒子的水平对齐
    • vertical-align 决定一个盒子在行内的垂直对齐
    • 避开浮动(float)元素
  • 示例代码
<div>
 This is a paragraph of text with long word Honorificabilitudinitatibus. Here is an image
 <img src="https://assets.codepen.io/59477/cat.png" alt="cat">
 And <em>Inline Block</em>
</div>

<style>
 div {
   width: 10em;
   //overflow-wrap: break-word;
   background: #411;
 }

 em {
   display: inline-block;
   width: 3em;
   background: #33c;
 }
</style>

块级排版上下文

  • Block Formatting Context(BFC)
  • 某些容器会创建一个BFC
    • 根元素
    • 浮动、绝对定位、inline-block
    • Flex子项和Grid子项
    • overflow值不是 visible 的块盒
    • display: flow-root;
  • BFC内的排版规则
    • 盒子从上到下摆放
    • 垂直 margin 合并
    • BFC 内盒子的 margin 不会与外面的合并
    • BFC 不会和浮动元素重叠
  • 示例代码
<span>
This is a text and
<div>block</div>
and other text.
</span>

<style>
span {
 line-height: 3;
 border: 2px solid red;
 background: coral;
}

div {
 line-height: 1.5;
 background: lime;
}
</style>

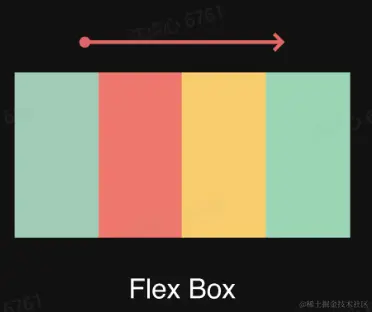

4. Flex Box 是什么?

  • 一种新的排版上下文
  • 它可以控制子级盒子的:
    • 摆放的流向(↑ ↓ ← →)
    • 摆放顺序
    • 盒子宽度和高度
    • 水平和垂直方向的对齐
    • 是否允许折行


  • 示例代码
<div class="container">
 <div class="a">A</div>
 <div class="b">B</div>
 <div class="c">C</div>
</div>
<style>
 .container {
   display: flex;
   border: 2px solid #966;
 }

 .a, .b, .c {
   text-align: center;
   padding: 1em;
 }

 .a {
   background: #fcc;
 }

 .b {
   background: #cfc;
 }

 .c {
   background: #ccf;
 }
</style>

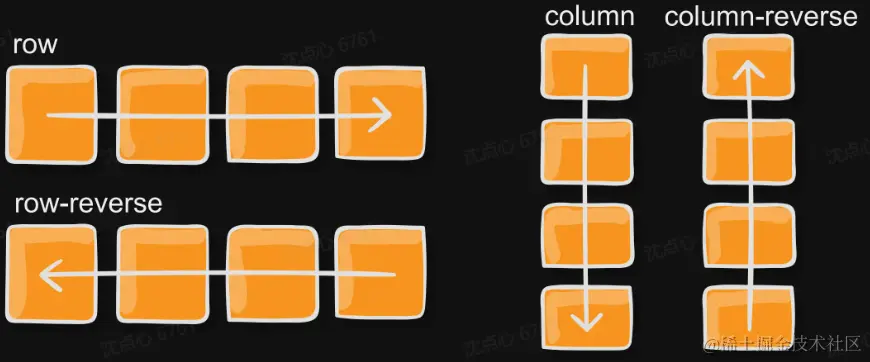

flex-direction

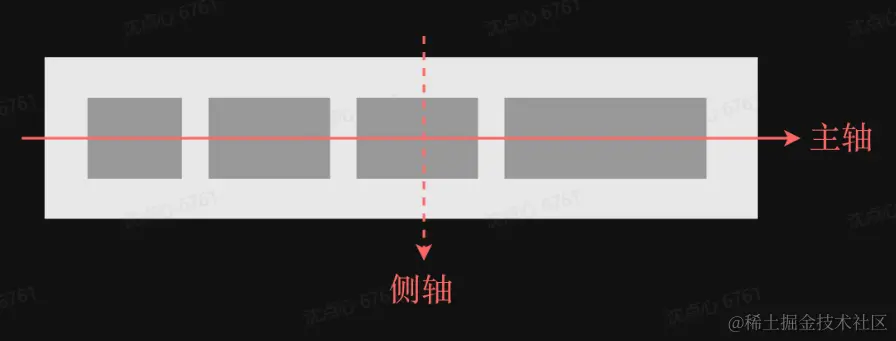

主轴与侧轴


justify-content

  • 控制主轴方向上不同元素间的空白 image.png

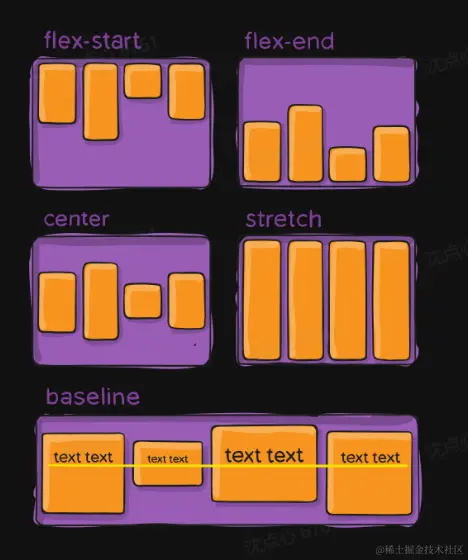

align-items

  • 控制侧轴方向上不同元素间的空白 image.png

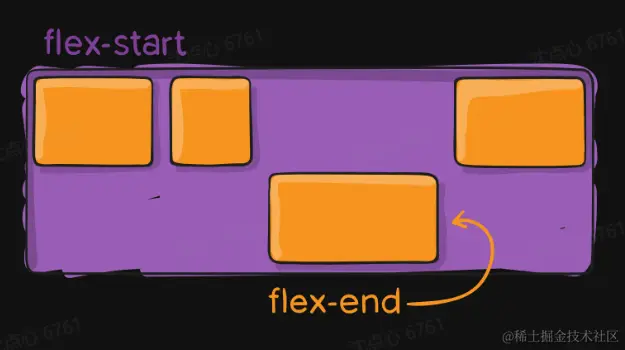

align-self

  • 单独设置某个元素


order

  • 从小到大排序
  • 通过CSS控制页面摆放的顺序 image.png

Flexibility

  • 可以设置子项的弹性:当容器有剩余空间时,会伸展;容器空间不够时,会收缩。
  • flex-grow :有剩余空间时的伸展能力
  • flex-shrink : 容器空间不足时收缩的能力
  • flex-basis :没有伸展或收缩时的基础长度

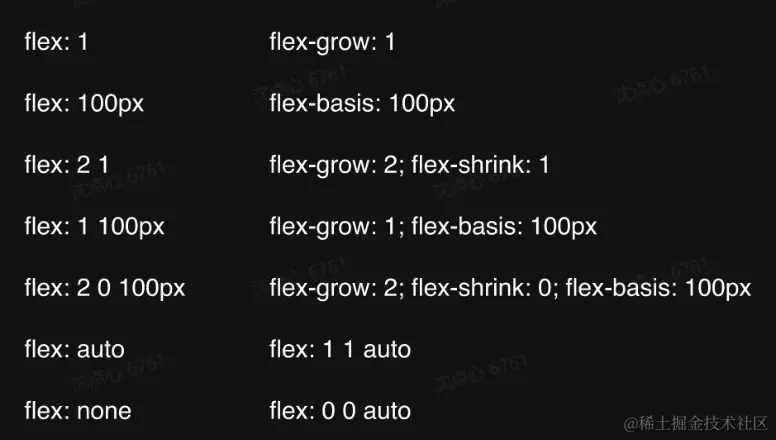

flex

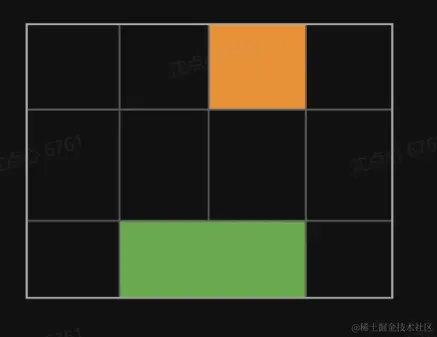

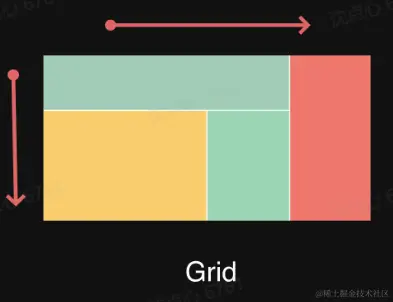

5. Grid 布局


display: grid

  • display: grid 使元素生成一个块级的 Grid 容器
  • 使用 grid-template 相关属性将容器划分为网格
  • 设置每一个子项占哪些行/列

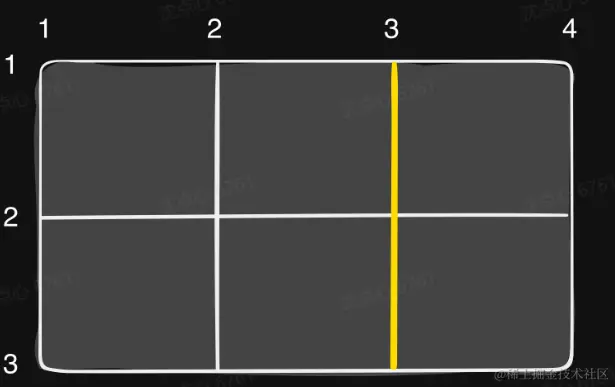

grid line 网格线

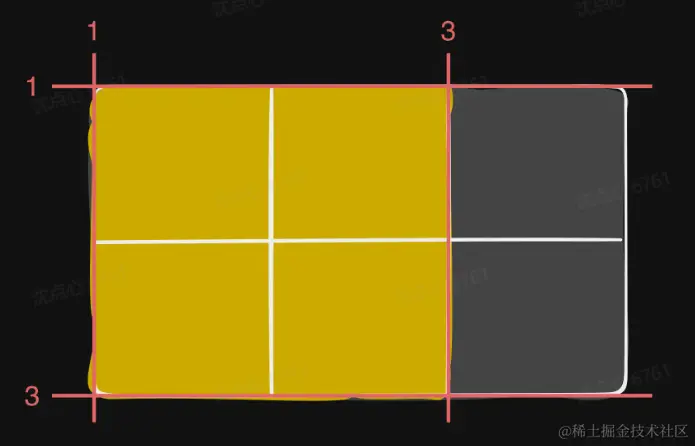

grid area 网格区域


float 浮动

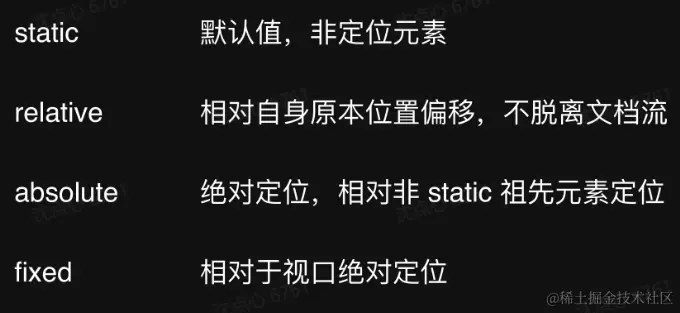

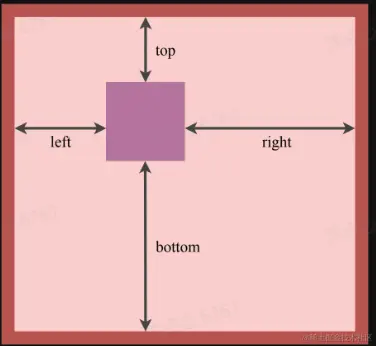

position 属性


position: relative

  • 在常规流里布局
  • 相对于自己本应该在的位置进行偏移
  • 使用topleftbottomright设置偏移长度
  • 流内其它元素当它没有偏移一样布局


position: absolute

  • 脱离常规流
  • 相对于 最近的非 static 祖先 定位
  • 不会对流内元素布局造成影响
