用Docker-compose 安装gitlab、gitlab-runner
源码地址 如果您觉得有用请STAR
安装docker
如果有已安装旧版docker需要先卸载
sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine
安装
yum install docker #安装docker
systemctl start docker #启动docker
systemctl enable docker #开启启动
若是启动报错，需要重新安装：
启动报错，错误如下：
Failed to start docker.service: Unit docker.service not found.
错误分析：CentOS 8 中安装 docker 和 Podman 冲突
解决方式：
1.查看是否安装 Podman
rpm -q podman
2.删除podman(输入yes，然后等待...)
dnf remove podman
3.重装docker(分别执行如下命令)
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum install docker-ce docker-ce-cli containerd.io
yum install docker-ce docker-ce-cli docker-compose-plugin
docker-compose-plugin 貌似就是docker-compose,这样也许不用单独安装python3了，也是在其他机器装docker时才发现。感兴趣的可以试试。
安装Python3(docker-compose需要python3)
wget https://www.python.org/ftp/python/3.7.0/Python-3.7.0.tgz
tar -zxvf Python-3.7.0.tgz
cd Python3.7.0
./configure --prefix=/usr/local/python3
make && make install
#添加环境变量
echo PATH='/usr/local/python/bin:$PATH' >> /etc/profile # 将python安装路径追加到配置文件中
source /etc/profile # 让配置文件重载生效
# 修改原有的python软连接名称
mv /usr/bin/python /usr/bin/python2.7.5
# 建立python3的软连接
ln -s /usr/local/python/bin/python3.7 /usr/bin/python
遇到的问题
在安装python3.xx版本后，通过yum去安装软件会出现问题
yum install -y epel-release
File "/usr/bin/yum", line 30
except KeyboardInterrupt, e:
^
SyntaxError: invalid syntax
解决方式：
# vi /usr/bin/yum
将第一行"#!/usr/bin/python" 改为 "#!/usr/bin/python2"
另一个问题:
File "/usr/libexec/urlgrabber-ext-down", line 28
except OSError, e:
^
SyntaxError: invalid syntax
解决方式：
vi /usr/libexec/urlgrabber-ext-down
将第一行"#!/usr/bin/python" 改为 "#!/usr/bin/python2"
安装Docker-compose
sudo yum install epel-release #安装依赖
pip install --upgrade --force pip #更新一下pip,避免版本不对报错
sudo pip install docker-compose #安装compose
docker-compose version #查看版本信息

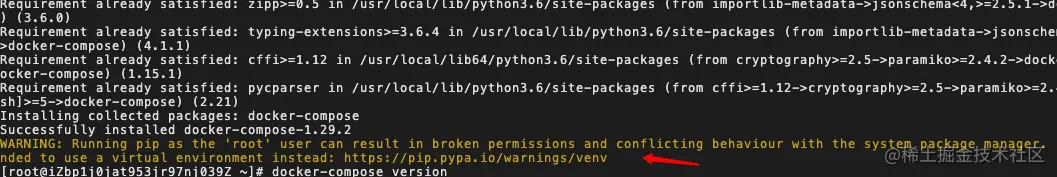

安装时，会有waring，说是在root用户下安装会导致包管理混乱，查了一下解决方式：通过安装Python3虚拟环境处理，解决过程中会有一系列依赖包报错。但想想安装虚拟环境，似乎就要在虚拟环境中装Docker-compose，有点不太对，于是直接忽略了警告信息，继续安装:
安装gitlab、gitlab-runner容器
在 /user/local/ 下新建目录 dockerCompse mkdir dockerCompse vim docker-compose.yml //新建文件
version: "3"
services:
gitlab:
image: 'gitlab/gitlab-ce:latest'
container_name: GitLab
restart: always
environment:
GITLAB_OMNIBUS_CONFIG: |
external_url 'http://47.97.97.114:3143'
gitlab_rails['gitlab_shell_ssh_port'] = 3122
nginx['listen_port'] = 443
nginx['redirect_http_to_https'] = true
nginx['ssl_certificate'] = "/etc/ssl/certs/gitlab/server-cert.pem"
nginx['ssl_certificate_key'] = "/etc/ssl/certs/gitlab/server-key.pem"
registry_external_url 'http://47.97.97.114:4567'
registry_nginx['enable'] = true
registry_nginx['ssl_certificate'] = "/etc/ssl/certs/gitlab/server-cert.pem"
registry_nginx['ssl_certificate_key'] = "/etc/ssl/certs/gitlab/server-key.pem"
gitlab_rails['backup_keep_time'] = 172800
ports:
- '4567:4567'
- '3143:443'
- '3122:22'
volumes:
- '/srv/gitlab/config:/etc/gitlab'
- '/srv/gitlab/logs:/var/log/gitlab'
- '/srv/gitlab/ssl:/etc/ssl/certs/gitlab'
- '/srv/gitlab/data:/var/opt/gitlab'
networks:
dev-net:
aliases:
- my.gitlab
runner:
image: 'gitlab/gitlab-runner:latest'
container_name: gitlab-runner
restart: always
volumes:
- '/srv/gitlab-runner:/etc/gitlab-runner'
- '/var/run/docker.sock:/var/run/docker.sock'
networks:
- dev-net
networks:
dev-net:
external:
name: development
按esc建，:wq, 启动docker
docker-compose up
如果提示没有development网络，按照提示执行命令即可。
注册runner
docker exec -it gitlab-runner gitlab-runner register
Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/):`
http://47.97.97.114:3143/
Please enter the gitlab-ci token for this runner:
# 登录这个地址： http://47.97.97.114:3143/admin/runners 右上角下拉按钮可以查看
Please enter the gitlab-ci description for this runner:
[1297529a8a58]: Docker Runner
Please enter the gitlab-ci tags for this runner (comma separated):
docker
Registering runner... succeeded runner=RQ-XuZwP
Please enter the executor: docker-ssh, virtualbox, docker+machine, docker-ssh+machine, docker, parallels, shell, ssh, kubernetes:
docker
Please enter the default Docker image (e.g. ruby:2.1):
docker:stable
Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!
浏览器重新访问gitlab地址，应该可以看到runner已经注册，如果地址访问不成功，重启docker-compose
docker-compose down
docker-compose up
打包前端镜像
安装 registry
此时修改docker-compose.yml
services:
# 增加registry
registry:
image: 'registry'
container_name: registry
restart: always
ports:
- '4567:5000'
volumes:
- './registry:/var/lib/registry'
gitlab:
image: 'gitlab/gitlab-ce:latest'
container_name: GitLab
restart: always
environment:
GITLAB_OMNIBUS_CONFIG: |
external_url 'http://47.97.97.114:3143'
gitlab_rails['gitlab_shell_ssh_port'] = 3122
nginx['listen_port'] = 443
nginx['redirect_http_to_https'] = false
registry_external_url 'http://47.97.97.114:4567'
registry_nginx['enable'] = false
gitlab_rails['registry_api_url'] = "http://47.97.97.114:4567"
gitlab_rails['registry_enabled'] = true
gitlab_rails['backup_keep_time'] = 172800
ports:
- '3143:443'
- '3122:22'
volumes:
- '/srv/gitlab/config:/etc/gitlab'
- '/srv/gitlab/logs:/var/log/gitlab'
- '/srv/gitlab/ssl:/etc/ssl/certs/gitlab'
- '/srv/gitlab/data:/var/opt/gitlab'
23,1 5%
这里删掉了一部分https的配置，让配置文件简洁一些，删除了原有gitlab镜像中的端口'4567:4567'， 重启docker-compos
docker-compose down
docker-compose up

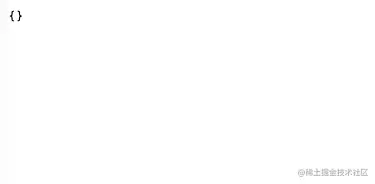

访问该地址：http://47.97.97.114:4567/v2/， 返回
说明registry启动成功，
配置socket binding , 让gitlab-runner 可以使用host主机的docker命令，构建镜像

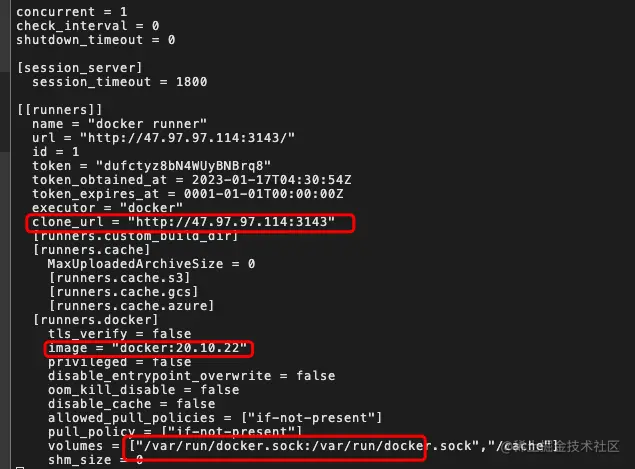

vim /srv/gitlab-runner/config.toml
重启docker-compose
docker-compose down
docker-compose up
在gitlab上增加变量Settings->CICD->Viriables：
CI_REGISTRY http://47.97.97.114:4567/
CI_REGISTRY_PASSWORD yourpassword
CI_REGISTRY_USER yourusername
这些变量可以在 gitlab-ci.yml上使用。
前端项目根目录下修改.gitlab-ci.yml，构建容器镜像并上传到gitlab的registry
image: docker:20.10.22 #注意版本是否有影响
variables:
GIT_SSL_NO_VERIFY: "1"
stages:
- test
- build
before_script:
- export PACKAGE_VERSION=$(grep '"version":' package.json | cut -d\" -f4)
- export NODE_ENV=production
# building:
# image: node:10 # 指定运行环境
# stage: build # 当前stage阶段为build
# tags:
# - docker
# script: # build阶段运行的脚本
# - npm --registry=https://registry.npm.taobao.org install express
# - npm i
# - npm run build
# artifacts:
# paths:
# - dist
# cache: # 缓存
# paths: # 路径
# - node_modules/ # 缓存node_mudules将大大提高ci运行的速度
build-docker:
stage: build
tags:
- docker
script:
- echo $CI_REGISTRY_IMAGE
- echo $CI_REGISTRY
- docker login -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD" $CI_REGISTRY
- echo "docker build"
- docker build -t $CI_REGISTRY_IMAGE:$PACKAGE_VERSION .
- docker tag $CI_REGISTRY_IMAGE:$PACKAGE_VERSION $CI_REGISTRY_IMAGE
- docker push $CI_REGISTRY_IMAGE:$PACKAGE_VERSION
- docker push $CI_REGISTRY_IMAGE
- docker image rm $CI_REGISTRY_IMAGE
- docker image rm $CI_REGISTRY_IMAGE:$PACKAGE_VERSION
only:
- main
CI_REGISTRY_IMAGE 是gitlab CICD内置变量，可以直接使用。
docker tag CI_REGISTRY_IMAGE:version CI_REGISTRY_IMAGE,第二个tag名只传路径会默认为latest
docker 登录时http报错解决方式：
If the daemon.json file does not exist, create it. Assuming there are no other settings in the file, it should have the following contents:
{
"insecure-registries" : ["http://myregistrydomain.com:xxxx"]
}
然后重启docker: systemctl restart docker
打包生成镜像
前一个阶段已经可以成功使用 registry, 并且能使用docker命令打包，此时我们再来修改.gitlab-ci.yml 文件，stages增加build-docker,并且修改上一个阶段的artifacts。
image: docker:20.10.22
variables:
GIT_SSL_NO_VERIFY: "1"
stages:
- test
- build
- build-docker #这里很重要，和下面的state保持一致，不然没法使用artifacts
before_script:
- export PACKAGE_VERSION=$(grep '"version":' package.json | cut -d\" -f4)
- export NODE_ENV=production
building:
image: node:10 # 指定运行环境
stage: build # 当前stage阶段为build
tags:
- docker
script: # build阶段运行的脚本
- npm --registry=https://registry.npm.taobao.org install express
- npm i
- npm run build
artifacts:
paths:
- dist # 导出dist
cache: # 缓存
paths: # 路径
- node_modules/ # 缓存node_mudules将大大提高ci运行的速度
build-docker:
stage: build-docker
tags:
- docker
script:
- ls
- echo $CI_REGISTRY_IMAGE
- echo $CI_REGISTRY
- docker login -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD" $CI_REGISTRY
- echo "docker build"
- docker build -t $CI_REGISTRY_IMAGE:$PACKAGE_VERSION .
- docker tag $CI_REGISTRY_IMAGE:$PACKAGE_VERSION $CI_REGISTRY_IMAGE
- docker push $CI_REGISTRY_IMAGE:$PACKAGE_VERSION
- docker push $CI_REGISTRY_IMAGE
- docker image rm $CI_REGISTRY_IMAGE
- docker image rm $CI_REGISTRY_IMAGE:$PACKAGE_VERSION
only:
- main

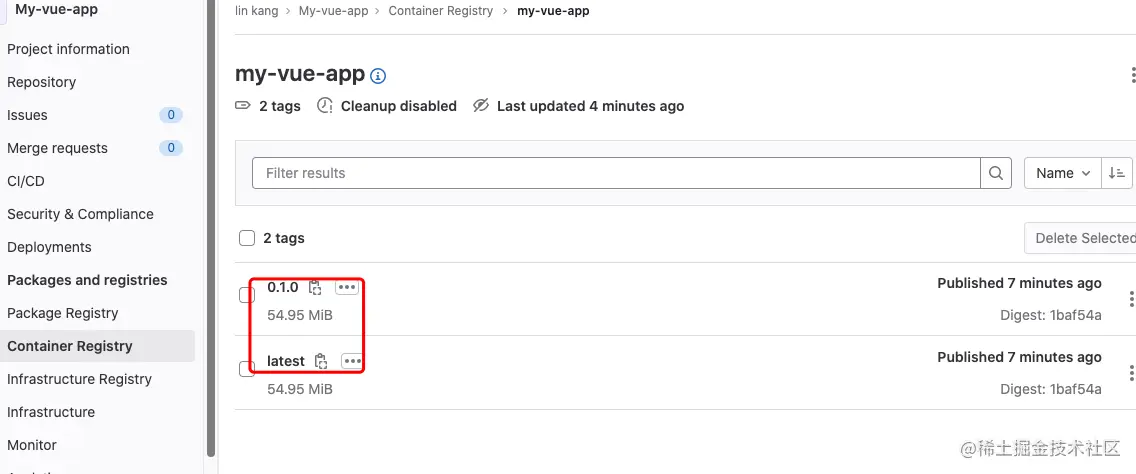

再次提交到gitlab，此时应该会编译成功并且，上传镜像到gitlab
将打包镜像在onLine环境下发布
OnLine 环境只需安装docker即可，具体安装步骤和上面一样。
docker login -u "yourusername" -p "yourpassword" http://47.97.97.114:4567/ #登录registry
docker run --init -p 8000:80 -d 47.97.97.114:4567/klbest1/my-vue-app
# 运行镜像
-p 绑定端口号，-d 表示后台运行。 如果是在云上环境，需要在安全组中开放8000端口，协议为tcp.
访问发布的地址：http:yourdomain:8000, 查看前端页面是否成功。
遇到的问题

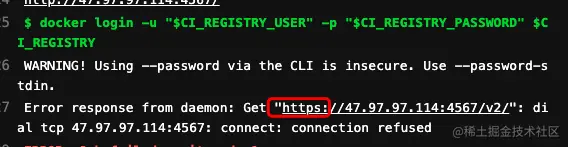

若是登录时登录地址变为https，和上面处理过程一样
