MediaPlayer的核心-NuPlayer

MediaPlayer的核心-NuPlayer

之前整理过Android MediaPlayer源码分析，知道MediaPlayer的核心是NuPlayer实现视频的解码、渲染、同步、输出，这篇深入分析NuPlayer相关的知识体系

整体设计架构

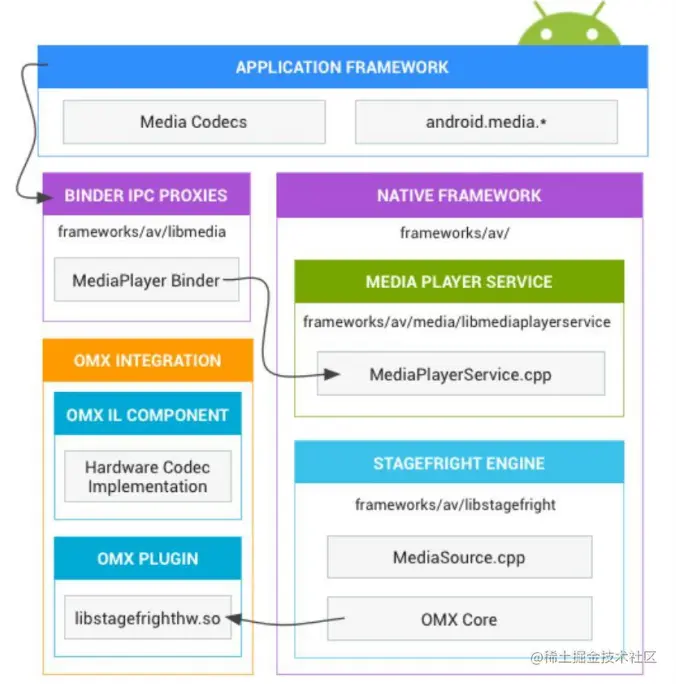

下图是MediaPlayer在Android架构中的工作流程

下图是NuPlayer的工作流程

可以看到Android当中采用NuPlayer作为主流播放器，NuPlayer采用StageFright引擎，StageFright内部集成了OpenMAX编解码器，会话管理、时间同步、渲染、传输控制和DRM(Digital Rights Management)

AHandler机制

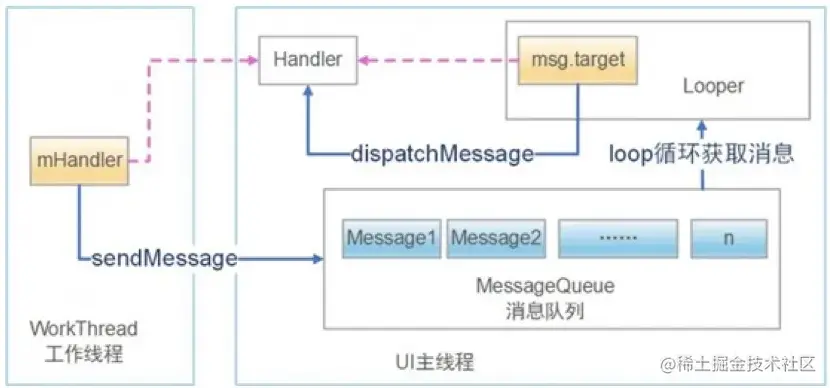

在NuPlayer源码当中到处能看到AHandler的影子，NuPlayer就是通过AHandler建立各个成员之间的通信和交互，类似Android Java层中的Handler一样，AHandler是Android native层实现的一个异步消息机制，在这个机制中所有的处理都是异步的，将变量封装到一个消息AMessage结构体中，然后放到队列中去，后台专门有一个线程会从这个队列中取出消息然后执行，执行函数就是onMessageReceived。 原理如下图：

AHandler机制包括以下几个核心类

• AMessage

  消息类，用于构造消息，通过deliver()方法使用AHandler发送出去，通过post方法使用ALooper投递给AHandler处理

  //使用AHandler发送消息
  void AMessage::deliver() {
      sp<AHandler> handler = mHandler.promote();
      if (handler == NULL) {
          ALOGW("failed to deliver message as target handler %d is gone.", mTarget);
          return;
      }

      handler->deliverMessage(this);
  }

  //使用ALooper投递给AHandler处理
  status_t AMessage::post(int64_t delayUs) {
      sp<ALooper> looper = mLooper.promote();
      if (looper == NULL) {
          ALOGW("failed to post message as target looper for handler %d is gone.", mTarget);
          return -ENOENT;
      }

      looper->post(this, delayUs);
      return OK;
  }


• AHandler

  消息处理类，一般当做父类，继承该类的子类需要实现onMessageReceived方法，类似于java层Handler中的handleMessage(msg)方法

  void AHandler::deliverMessage(const sp<AMessage> &msg) {
      //交由该方法处理，该方法是一个虚函数，由AHandler的子类来实现该方法，NuPlayer继承自AHandler，里面实现了该方法的功能
      onMessageReceived(msg);
      mMessageCounter++;
  //省略部分代码
  }


• ALooper

  与Ahander一一对应，负责存储消息并分发Ahandler的消息，与AMessage一对多关系

  // posts a message on this looper with the given timeout
  void ALooper::post(const sp<AMessage> &msg, int64_t delayUs) {
      Mutex::Autolock autoLock(mLock);

      int64_t whenUs;
      if (delayUs > 0) {
          whenUs = GetNowUs() + delayUs;
      } else {
          whenUs = GetNowUs();
      }

      List<Event>::iterator it = mEventQueue.begin();
      while (it != mEventQueue.end() && (*it).mWhenUs <= whenUs) {
          ++it;
      }

      Event event;
      event.mWhenUs = whenUs;
      event.mMessage = msg;

      if (it == mEventQueue.begin()) {
          mQueueChangedCondition.signal();
      }
      //将消息插入到消息队列当中，mEventQueue是一个List<Event>集合
      mEventQueue.insert(it, event);
  }

  status_t ALooper::start(
          bool runOnCallingThread, bool canCallJava, int32_t priority) {
      if (runOnCallingThread) {
          {
              Mutex::Autolock autoLock(mLock);

              if (mThread != NULL || mRunningLocally) {
                  return INVALID_OPERATION;
              }

              mRunningLocally = true;
          }
          //循环取出消息，方法体为空，取消息动作在loop()方法中
          do {
          } while (loop());

          return OK;
      }

      Mutex::Autolock autoLock(mLock);

      if (mThread != NULL || mRunningLocally) {
          return INVALID_OPERATION;
      }

      mThread = new LooperThread(this, canCallJava);

      status_t err = mThread->run(
              mName.empty() ? "ALooper" : mName.c_str(), priority);
      if (err != OK) {
          mThread.clear();
      }

      return err;
  }
  bool ALooper::loop() {
      Event event;

      {
          Mutex::Autolock autoLock(mLock);
          if (mThread == NULL && !mRunningLocally) {
              return false;
          }
          if (mEventQueue.empty()) {
              mQueueChangedCondition.wait(mLock);
              return true;
          }
          int64_t whenUs = (*mEventQueue.begin()).mWhenUs;
          int64_t nowUs = GetNowUs();

          if (whenUs > nowUs) {
              int64_t delayUs = whenUs - nowUs;
              mQueueChangedCondition.waitRelative(mLock, delayUs * 1000ll);

              return true;
          }

          event = *mEventQueue.begin();
          mEventQueue.erase(mEventQueue.begin());
      }

      event.mMessage->deliver();
  //省略部分代码
  }


NuPlayer

NuPlayer本身继承自AHandler，具备发送/处理消息的能力

struct NuPlayer : public AHandler {
    explicit NuPlayer(pid_t pid, const sp<MediaClock> &mediaClock);

    void setUID(uid_t uid);

    void init(const wp<NuPlayerDriver> &driver);

    void setDataSourceAsync(const sp<IStreamSource> &source);

    virtual void setDataSourceAsync(
            const sp<IMediaHTTPService> &httpService,
            const char *url,
            const KeyedVector<String8, String8> *headers);

    void setDataSourceAsync(int fd, int64_t offset, int64_t length);

    void setDataSourceAsync(const sp<DataSource> &source);
//省略部分代码
}

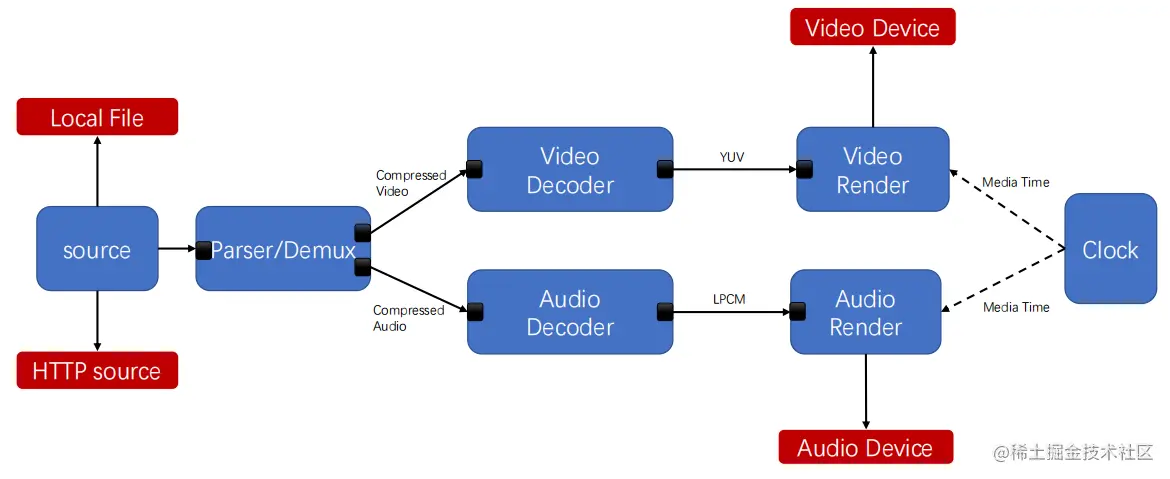

下图是正常播放器的执行流程

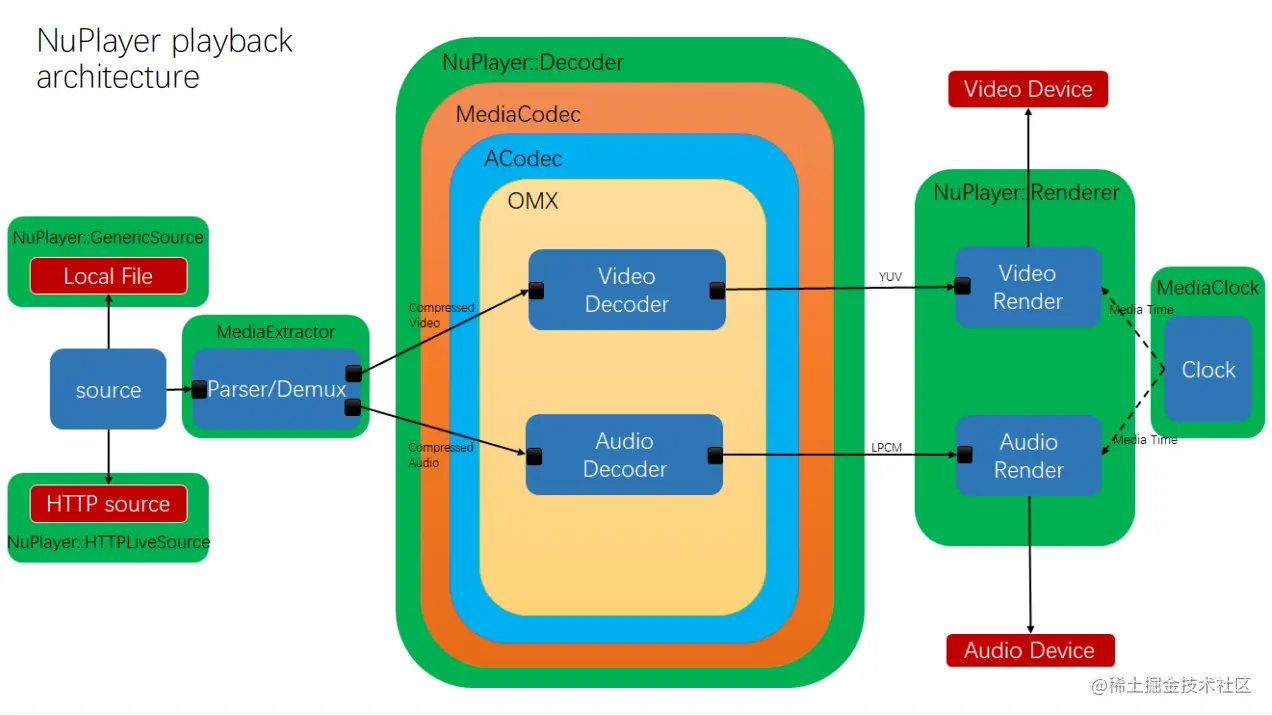

下图是NuPlayer的架构设计

NuPlayer的创建过程在之前的文章中已经梳理过了，见Android MediaPlayer源码分析，创建过程中涉及到几个重要的成员，逐一分析下

• NuPlayerDriver

  NuPlayerDriver是对NuPlayer的封装，继承MediaPlayerInterface接口。通过NuPlayer来实现播放的功能。看这部分代码的方法就是先看NuPlayerDriver里面干了啥，转头就去找NuPlayer里面的实现，一般都要再去NuPlayer的onMessageReceive中看消息的响应，最后回到NuPlayerDriver的各种notify中看流程的周转，下面是播放器状态机流转图



struct NuPlayerDriver : public MediaPlayerInterface {
    explicit NuPlayerDriver(pid_t pid);

    virtual status_t initCheck();

    virtual status_t setUID(uid_t uid);

    virtual status_t setDataSource(
            const sp<IMediaHTTPService> &httpService,
            const char *url,
            const KeyedVector<String8, String8> *headers);

    virtual status_t setDataSource(int fd, int64_t offset, int64_t length);

    virtual status_t setDataSource(const sp<IStreamSource> &source);

    virtual status_t setDataSource(const sp<DataSource>& dataSource);

    virtual status_t setVideoSurfaceTexture(
            const sp<IGraphicBufferProducer> &bufferProducer);

    virtual status_t getBufferingSettings(
            BufferingSettings* buffering /* nonnull */) override;
    virtual status_t setBufferingSettings(const BufferingSettings& buffering) override;

    virtual status_t prepare();
    virtual status_t prepareAsync();
    virtual status_t start();
    virtual status_t stop();
    virtual status_t pause();
    virtual bool isPlaying();
    virtual status_t setPlaybackSettings(const AudioPlaybackRate &rate);
    virtual status_t getPlaybackSettings(AudioPlaybackRate *rate);
    virtual status_t setSyncSettings(const AVSyncSettings &sync, float videoFpsHint);
    virtual status_t getSyncSettings(AVSyncSettings *sync, float *videoFps);
    virtual status_t seekTo(
            int msec, MediaPlayerSeekMode mode = MediaPlayerSeekMode::SEEK_PREVIOUS_SYNC);
    virtual status_t getCurrentPosition(int *msec);
    virtual status_t getDuration(int *msec);
    virtual status_t reset();
    virtual status_t notifyAt(int64_t mediaTimeUs) override;
    virtual status_t setLooping(int loop);
    virtual player_type playerType();
    virtual status_t invoke(const Parcel &request, Parcel *reply);
    virtual void setAudioSink(const sp<AudioSink> &audioSink);
    virtual status_t setParameter(int key, const Parcel &request);
    virtual status_t getParameter(int key, Parcel *reply);

    virtual status_t getMetadata(
            const media::Metadata::Filter& ids, Parcel *records);

    virtual status_t dump(int fd, const Vector<String16> &args) const;

    void notifySetDataSourceCompleted(status_t err);
    void notifyPrepareCompleted(status_t err);
    void notifyResetComplete();
    void notifySetSurfaceComplete();
    void notifyDuration(int64_t durationUs);
    void notifyMorePlayingTimeUs(int64_t timeUs);
    void notifyMoreRebufferingTimeUs(int64_t timeUs);
    void notifyRebufferingWhenExit(bool status);
    void notifySeekComplete();
    void notifySeekComplete_l();
    void notifyListener(int msg, int ext1 = 0, int ext2 = 0, const Parcel *in = NULL);
    void notifyFlagsChanged(uint32_t flags);

    // Modular DRM
    virtual status_t prepareDrm(const uint8_t uuid[16], const Vector<uint8_t> &drmSessionId);
    virtual status_t releaseDrm();
//省略部分代码
}

• AVNuFactory

  负责关键组件的创建，包括decoder，renderer，通过它能看到数据流从Source-Decoder-Renderer，中间由AMessages驱动

  struct AVNuFactory {
      virtual sp<NuPlayer> createNuPlayer(pid_t pid, const sp<MediaClock> &mediaClock);

      virtual sp<NuPlayer::DecoderBase> createPassThruDecoder(
              const sp<AMessage> &notify,
              const sp<NuPlayer::Source> &source,
              const sp<NuPlayer::Renderer> &renderer);

      virtual sp<NuPlayer::DecoderBase> createDecoder(
              const sp<AMessage> &notify,
              const sp<NuPlayer::Source> &source,
              pid_t pid,
              uid_t uid,
              const sp<NuPlayer::Renderer> &renderer);

      virtual sp<NuPlayer::Renderer> createRenderer(
              const sp<MediaPlayerBase::AudioSink> &sink,
              const sp<MediaClock> &mediaClock,
              const sp<AMessage> &notify,
              uint32_t flags);

      // ----- NO TRESSPASSING BEYOND THIS LINE ------
      DECLARE_LOADABLE_SINGLETON(AVNuFactory);
  };


• Source

  表示数据源，同时里面包含解析模块MediaExtractor，功能类似FFmpeg的avformat，并且Source继承自AHandler，同样拥有发送/处理消息的能力

  struct NuPlayer::Source : public AHandler {
      enum Flags {
          FLAG_CAN_PAUSE          = 1,
          FLAG_CAN_SEEK_BACKWARD  = 2,  // the "10 sec back button"
          FLAG_CAN_SEEK_FORWARD   = 4,  // the "10 sec forward button"
          FLAG_CAN_SEEK           = 8,  // the "seek bar"
          FLAG_DYNAMIC_DURATION   = 16,
          FLAG_SECURE             = 32, // Secure codec is required.
          FLAG_PROTECTED          = 64, // The screen needs to be protected (screenshot is disabled).
      };
  //省略部分代码
  }


  数据源一般分三种，在NuPlayer::setDataSourceAsync()中会对数据源进行判断区分，不同的数据源需要用到对应的解析模块

  void NuPlayer::setDataSourceAsync(
          const sp<IMediaHTTPService> &httpService,
          const char *url,
          const KeyedVector<String8, String8> *headers) {

      sp<AMessage> msg = new AMessage(kWhatSetDataSource, this);
      size_t len = strlen(url);

      sp<AMessage> notify = new AMessage(kWhatSourceNotify, this);

      sp<Source> source;
      //判断数据源的类型
      if (IsHTTPLiveURL(url)) {
          //流媒体
          source = new HTTPLiveSource(notify, httpService, url, headers);
          ALOGV("setDataSourceAsync HTTPLiveSource %s", url);
          mDataSourceType = DATA_SOURCE_TYPE_HTTP_LIVE;
      } else if (!strncasecmp(url, "rtsp://", 7)) {
          //直播
          source = new RTSPSource(
                  notify, httpService, url, headers, mUIDValid, mUID);
          ALOGV("setDataSourceAsync RTSPSource %s", url);
          mDataSourceType = DATA_SOURCE_TYPE_RTSP;
      } else if ((!strncasecmp(url, "http://", 7)
                  || !strncasecmp(url, "https://", 8))
                      && ((len >= 4 && !strcasecmp(".sdp", &url[len - 4]))
                      || strstr(url, ".sdp?"))) {
          //直播
          source = new RTSPSource(
                  notify, httpService, url, headers, mUIDValid, mUID, true);
          ALOGV("setDataSourceAsync RTSPSource http/https/.sdp %s", url);
          mDataSourceType = DATA_SOURCE_TYPE_RTSP;
      } else {
          //本地视频
          ALOGV("setDataSourceAsync GenericSource %s", url);

          sp<GenericSource> genericSource =
                  new GenericSource(notify, mUIDValid, mUID, mMediaClock);

          status_t err = genericSource->setDataSource(httpService, url, headers);

          if (err == OK) {
              source = genericSource;
          } else {
              ALOGE("Failed to set data source!");
          }

          // regardless of success/failure
          mDataSourceType = DATA_SOURCE_TYPE_GENERIC_URL;
      }
      msg->setObject("source", source);
      msg->post();
  }


  • GenericSource：表示本地数据源

    struct NuPlayer::GenericSource : public NuPlayer::Source,
                                     public MediaBufferObserver // Modular DRM
    {
        GenericSource(const sp<AMessage> &notify, bool uidValid, uid_t uid,
                      const sp<MediaClock> &mediaClock);

        status_t setDataSource(
                const sp<IMediaHTTPService> &httpService,
                const char *url,
                const KeyedVector<String8, String8> *headers);

        status_t setDataSource(int fd, int64_t offset, int64_t length);

        status_t setDataSource(const sp<DataSource>& dataSource);

        virtual status_t getBufferingSettings(
                BufferingSettings* buffering /* nonnull */) override;
        virtual status_t setBufferingSettings(const BufferingSettings& buffering) override;

        virtual void prepareAsync();

        virtual void start();
        virtual void stop();
        virtual void pause();
        virtual void resume();

        virtual void disconnect();

        virtual status_t feedMoreTSData();

        virtual sp<MetaData> getFileFormatMeta() const;

        virtual status_t dequeueAccessUnit(bool audio, sp<ABuffer> *accessUnit);

        virtual status_t getDuration(int64_t *durationUs);
        virtual size_t getTrackCount() const;
        virtual sp<AMessage> getTrackInfo(size_t trackIndex) const;
        virtual ssize_t getSelectedTrack(media_track_type type) const;
        virtual status_t selectTrack(size_t trackIndex, bool select, int64_t timeUs);
        virtual status_t seekTo(
            int64_t seekTimeUs,
            MediaPlayerSeekMode mode = MediaPlayerSeekMode::SEEK_PREVIOUS_SYNC) override;

    //省略部分代码
    }


  • HTTPLiveSource：表示网络数据源，一般指流媒体

    struct NuPlayer::HTTPLiveSource : public NuPlayer::Source {
        HTTPLiveSource(
                const sp<AMessage> &notify,
                const sp<IMediaHTTPService> &httpService,
                const char *url,
                const KeyedVector<String8, String8> *headers);

        virtual status_t getBufferingSettings(
                BufferingSettings* buffering /* nonnull */) override;
        virtual status_t setBufferingSettings(const BufferingSettings& buffering) override;

        virtual void prepareAsync();
        virtual void start();

        virtual status_t dequeueAccessUnit(bool audio, sp<ABuffer> *accessUnit);
        virtual sp<MetaData> getFormatMeta(bool audio);
        virtual sp<AMessage> getFormat(bool audio);

        virtual status_t feedMoreTSData();
        virtual status_t getDuration(int64_t *durationUs);
        virtual size_t getTrackCount() const;
        virtual sp<AMessage> getTrackInfo(size_t trackIndex) const;
        virtual ssize_t getSelectedTrack(media_track_type /* type */) const;
        virtual status_t selectTrack(size_t trackIndex, bool select, int64_t timeUs);
        virtual status_t seekTo(
                int64_t seekTimeUs,
                MediaPlayerSeekMode mode = MediaPlayerSeekMode::SEEK_PREVIOUS_SYNC) override;
     //省略部分代码
    }


  • RTSPSource：表示直播数据源

    struct NuPlayer::RTSPSource : public NuPlayer::Source {
        RTSPSource(
                const sp<AMessage> &notify,
                const sp<IMediaHTTPService> &httpService,
                const char *url,
                const KeyedVector<String8, String8> *headers,
                bool uidValid = false,
                uid_t uid = 0,
                bool isSDP = false);

        virtual status_t getBufferingSettings(
                BufferingSettings* buffering /* nonnull */) override;
        virtual status_t setBufferingSettings(const BufferingSettings& buffering) override;

        virtual void prepareAsync();
        virtual void start();
        virtual void stop();

        virtual status_t feedMoreTSData();

        virtual status_t dequeueAccessUnit(bool audio, sp<ABuffer> *accessUnit);

        virtual status_t getDuration(int64_t *durationUs);
        virtual status_t seekTo(
                int64_t seekTimeUs,
                MediaPlayerSeekMode mode = MediaPlayerSeekMode::SEEK_PREVIOUS_SYNC) override;

        void onMessageReceived(const sp<AMessage> &msg);

    //省略部分代码
    }


• Decoder

  解码器，功能类似FFmpeg的avcodec，封装了用于AVC、AAC解码的接口，通过ACodec实现解码（包含OMX硬解码和软解码），它的初始化在NuPlayer::onMessageReceived()方法中

  void NuPlayer::onMessageReceived(const sp<AMessage> &msg) {
  //省略部分代码
   case kWhatPause:
          {
              onPause();
              mPausedByClient = true;
              break;
          }

          case kWhatSourceNotify:
          {
              //在此处创建Decoder
              onSourceNotify(msg);
              break;
          }

          case kWhatClosedCaptionNotify:
          {
              onClosedCaptionNotify(msg);
              break;
          }
  //省略部分代码
  }
  ---------------------------------------------------------------
  void NuPlayer::onSourceNotify(const sp<AMessage> &msg) {
  //省略部分代码
      switch (what) {
          case Source::kWhatInstantiateSecureDecoders:
          {
              if (mSource == NULL) {
                  // This is a stale notification from a source that was
                  // asynchronously preparing when the client called reset().
                  // We handled the reset, the source is gone.
                  break;
              }

              sp<AMessage> reply;
              CHECK(msg->findMessage("reply", &reply));
              //此处创建decoder
              status_t err = onInstantiateSecureDecoders();
              reply->setInt32("err", err);
              reply->post();
              break;
          }
  //省略部分代码
  }
  ---------------------------------------------------------------
  status_t NuPlayer::onInstantiateSecureDecoders() {
      status_t err;
      if (!(mSourceFlags & Source::FLAG_SECURE)) {
          return BAD_TYPE;
      }

      if (mRenderer != NULL) {
          ALOGE("renderer should not be set when instantiating secure decoders");
          return UNKNOWN_ERROR;
      }

      // TRICKY: We rely on mRenderer being null, so that decoder does not start requesting
      // data on instantiation.
      if (mSurface != NULL) {
          //创建VideoDecoder
          err = instantiateDecoder(false, &mVideoDecoder);
          if (err != OK) {
              return err;
          }
      }

      if (mAudioSink != NULL) {
           //创建AudioDecoder
          err = instantiateDecoder(true, &mAudioDecoder);
          if (err != OK) {
              return err;
          }
      }
      return OK;
  }
  ---------------------------------------------------------------
  status_t NuPlayer::instantiateDecoder(
          bool audio, sp<DecoderBase> *decoder, bool checkAudioModeChange) {
  //省略部分代码
      if (audio) {
          //创建音频解码器
          sp<AMessage> notify = new AMessage(kWhatAudioNotify, this);
          ++mAudioDecoderGeneration;
          notify->setInt32("generation", mAudioDecoderGeneration);

          if (checkAudioModeChange) {
              determineAudioModeChange(format);
          }
          if (mOffloadAudio) {
              mSource->setOffloadAudio(true /* offload */);

              const bool hasVideo = (mSource->getFormat(false /*audio */) != NULL);
              format->setInt32("has-video", hasVideo);
              *decoder = AVNuFactory::get()->createPassThruDecoder(notify, mSource, mRenderer);
              ALOGV("instantiateDecoder audio DecoderPassThrough hasVideo: %d", hasVideo);
          } else {
              AVNuUtils::get()->setCodecOutputFormat(format);
              mSource->setOffloadAudio(false /* offload */);

              *decoder = AVNuFactory::get()->createDecoder(notify, mSource, mPID, mUID, mRenderer);
              ALOGV("instantiateDecoder audio Decoder");
          }
          mAudioDecoderError = false;
      } else {
          //创建视频解码器
          sp<AMessage> notify = new AMessage(kWhatVideoNotify, this);
          ++mVideoDecoderGeneration;
          notify->setInt32("generation", mVideoDecoderGeneration);

          *decoder = new Decoder(
                  notify, mSource, mPID, mUID, mRenderer, mSurface, mCCDecoder);
          mVideoDecoderError = false;

          // enable FRC if high-quality AV sync is requested, even if not
          // directly queuing to display, as this will even improve textureview
          // playback.
          {
              if (property_get_bool("persist.sys.media.avsync", false)) {
                  format->setInt32("auto-frc", 1);
              }
          }
      }
      (*decoder)->init();
  //省略部分代码
  }


• Renderer

  渲染器，功能类似声卡驱动和显卡驱动，主要用于音视频渲染和同步，与NativeWindow有关，创建过程在NuPlayer::onStart()中

  void NuPlayer::onStart(int64_t startPositionUs, MediaPlayerSeekMode mode) {
  //省略部分代码
      sp<AMessage> notify = new AMessage(kWhatRendererNotify, this);
      ++mRendererGeneration;
      notify->setInt32("generation", mRendererGeneration);
      //创建renderer
      mRenderer = AVNuFactory::get()->createRenderer(mAudioSink, mMediaClock, notify, flags);
      mRendererLooper = new ALooper;
      mRendererLooper->setName("NuPlayerRenderer");
      mRendererLooper->start(false, false, ANDROID_PRIORITY_AUDIO);
      mRendererLooper->registerHandler(mRenderer);
  //省略部分代码
  }


  数据的输入在NuPlayer:Decoder::handleAnOutputBuffer()中

  bool NuPlayer::Decoder::handleAnOutputBuffer(
          size_t index,
          size_t offset,
          size_t size,
          int64_t timeUs,
          int32_t flags) {
  //省略部分代码
  if (mRenderer != NULL) {
          // send the buffer to renderer.把Buffer送到Renderer
          mRenderer->queueBuffer(mIsAudio, buffer, reply);
          if (eos && !isDiscontinuityPending()) {
              mRenderer->queueEOS(mIsAudio, ERROR_END_OF_STREAM);
          }
      }
  //省略部分代码
  }


  数据的输出在NuPlayer::Renderer::postDrainVideoQueue()中

  void NuPlayer::Renderer::postDrainVideoQueue() {
  //省略部分代码
      sp<AMessage> msg = new AMessage(kWhatDrainVideoQueue, this);
      msg->setInt32("drainGeneration", getDrainGeneration(false /* audio */));
  //省略部分代码
  }
  --------------------------------------------------------
  case kWhatDrainVideoQueue:
          {
              int32_t generation;
              CHECK(msg->findInt32("drainGeneration", &generation));
              if (generation != getDrainGeneration(false /* audio */)) {
                  break;
              }

              mDrainVideoQueuePending = false;
              //输出视频缓冲队列的内容
              onDrainVideoQueue();

              postDrainVideoQueue();
              break;
          }
  --------------------------------------------------------
   void NuPlayer::Renderer::onDrainVideoQueue() {
      //省略部分代码
     mVideoSampleReceived = true;

      if (!mPaused) {
          if (!mVideoRenderingStarted) {
              mVideoRenderingStarted = true;
            //通知Renderer开始渲染
              notifyVideoRenderingStart();
          }
          Mutex::Autolock autoLock(mLock);
          notifyIfMediaRenderingStarted_l();
      }
  }
  --------------------------------------------------------
  void NuPlayer::Renderer::notifyVideoRenderingStart() {
      sp<AMessage> notify = mNotify->dup();
      notify->setInt32("what", kWhatVideoRenderingStart);
      notify->post();
  }


  void NuPlayer::onMessageReceived(const sp<AMessage> &msg) {
      switch (msg->what()) {
      //省略部分代码
      case kWhatRendererNotify:
          //处理Renderer发送过来的消息
          {
              int32_t requesterGeneration = mRendererGeneration - 1;
              CHECK(msg->findInt32("generation", &requesterGeneration));
              if (requesterGeneration != mRendererGeneration) {
                  ALOGV("got message from old renderer, generation(%d:%d)",
                          requesterGeneration, mRendererGeneration);
                  return;
              }

              int32_t what;
              CHECK(msg->findInt32("what", &what));

              if (what == Renderer::kWhatEOS) {
                 //省略部分代码
              } else if (what == Renderer::kWhatFlushComplete) {
            //省略部分代码
              } else if (what == Renderer::kWhatVideoRenderingStart) {
                  //这里处理kWhatVideoRenderingStart消息
                  notifyListener(MEDIA_INFO, MEDIA_INFO_RENDERING_START, 0);
              } else if (what == Renderer::kWhatMediaRenderingStart) {
                  ALOGV("media rendering started");
                  notifyListener(MEDIA_STARTED, 0, 0);
              } else if (!mPaused && what == Renderer::kWhatVideoPrerollComplete) {
                  // If NuPlayer is paused too, don't resume renderer. The pause may be called by
                  // client, wait for client to resume NuPlayer
                  ALOGI("NOTE: Video preroll complete.. resume renderer..");
                  mRenderer->resume();
              } else if (what == Renderer::kWhatAudioTearDown) {
            //省略部分代码
              }
              break;
          }
      }
  }
