老婆大人一早发了两份pdf,需要将pdf的文件内容转成图片,上传到某网站,手头的PDF软件都提示要登录,为了这么一个小功能要注册一个网站,有点不值当,于是准备自己搞一个.

准备工作

python是第一利器,有太多的开源包可用,网上找了一下,准备用PyMuPDF包,简单实现下这个功能.

pip install PyMuPDF

PyMuPDF有个好处,依赖包比较少,安装也比较顺利,安装完测试一下

import fitz
print(fitz.__doc__)

fitz就是PyMuPDF,网上有关于这个包的由来,就不多说了,目前我使用的版本情况如下

小试一把

知乎上有对这个包的详细介绍(Python处理PDF神器：PyMuPDF的安装与使用 - 知乎 (zhihu.com)),由于我只想将PDF转成图片,匆匆试一把

import fitz
import os

def pdf2png(pdf_path, image_path):
	pdf_doc = fitz.open(pdf_path)
	for page_counts in range(pdf_doc.page_count):
		page = pdf_doc[page_counts]
		rotate = int(0)
		zoom_x = 2
		zoom_y = 2
		mat = fitz.Matrix(zoom_x, zoom_y).prerotate(rotate)
		pix = page.get_pixmap(matrix=mat, alpha=False)
		if not os.path.exists(image_path):
			os.mkdir(image_path)


		pix.save(image_path+"/"+"image_%s.png"%page_counts)

pdf_path = r"C:\test.pdf"
image_path = r"C:\image"
pdf2png(pdf_path, image_path)

简单试了一下,速度挺快,效果还不错,其中zoom_x和zoom_y可以用于调整图片像素大小,测试的PDF在2倍的参数下,效果不错.

封装成小应用

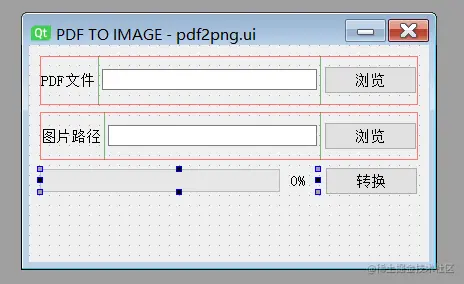

简单的给这串代码封装个界面吧.用QT给画个简单的界面,比如下面

uic转化成py

pyuic6.exe  -o ui_pdf2png.py pdf2png.ui

转换按钮的slot调用pdf2png的方法,进度条算是一个无伤大雅的装饰吧,对美化这块不熟,调用系统自带的fusion风格,聊胜于无,整体代码如下

import os
import sys

import fitz
from PyQt6.QtCore import pyqtSlot
from PyQt6.QtWidgets import QDialog, QApplication, QFileDialog

from ui_pdf2png import Ui_pdf2img


class Pdf2Png(QDialog, Ui_pdf2img):

    def __init__(self):
        super(Pdf2Png, self).__init__()

        self.cwd = os.getcwd()
        self.setupUi(self)

    @pyqtSlot()
    def on_pushButton_pdf_scan_clicked(self):
        filename, _ = QFileDialog.getOpenFileName(self, "选择PDF文件", self.cwd, "PDF文件(*.pdf)")

        if filename != '':
            self.lineEdit_pdf.setText(filename)

        return

    @pyqtSlot()
    def on_pushButton_image_scan_clicked(self):
        directory = QFileDialog.getExistingDirectory(self, "选择文件夹", self.cwd)
        if directory != '':
            self.lineEdit_image.setText(directory)

    @pyqtSlot()
    def on_pushButton_translate_clicked(self):
        pdf_path = self.lineEdit_pdf.text().strip()
        image_path = self.lineEdit_image.text().strip()

        self.pdf2png(pdf_path, image_path)
        self.progressBar.setValue(100)
        self.label_result.setText(f"{os.path.basename(pdf_path)} 转换图片成功")

    def pdf2png(self, pdf_path, image_path):
        pdf_doc = fitz.open(pdf_path)
        pdf_name = os.path.basename(pdf_path).split(".")[0]
        pdf_pages = pdf_doc.page_count

        for page_counts in range(pdf_pages):
            page = pdf_doc[page_counts]
            rotate = 0
            zoom_x = 2
            zoom_y = 2
            mat = fitz.Matrix(zoom_x, zoom_y).prerotate(rotate)
            pix = page.get_pixmap(matrix=mat, alpha=False)
            if not os.path.exists(image_path):
                os.mkdir(image_path)
            pix.save(image_path + "/" + f"{pdf_name}_{page_counts}.png")
            self.progressBar.setValue(int((page_counts / pdf_pages) * 100))

        return 0

def main():
    app = QApplication(sys.argv)
    app.setStyle("Fusion")
    l = Pdf2Png()
    l.show()
    sys.exit(app.exec())


if __name__ == '__main__':
    main()

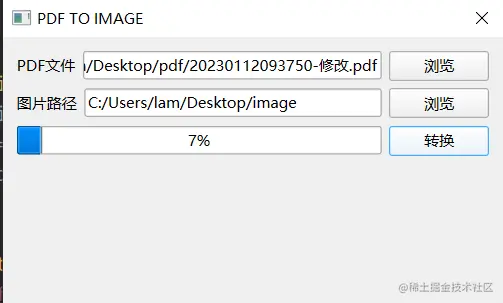

需要注意的是,调用slot的时候需要明确指明pyqtSlot装饰器,否则会同一个操作会执行两次,比如调用文件对话框时,没有装饰器的时候会出现两次文件对话框,整体效果如下图

源码找时间再上传吧
