背景
继续你不知道的 Popperjs 上篇来解析 Popperjs。
版本
0.5.2
实现原理
扩展不同场景
保存原有的 DOM 上下文

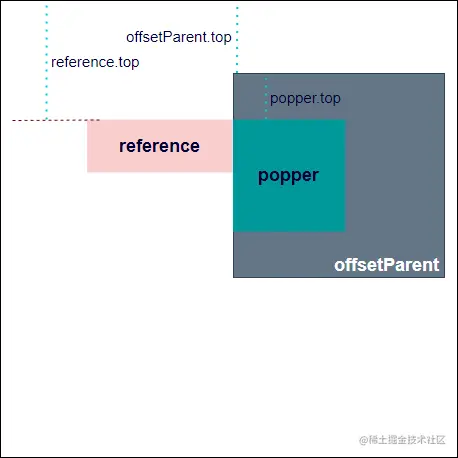

popper 元素是 absolute（绝对定位）：绝对定位的元素的位置相对于最近的已定位父元素，如果元素没有已定位的父元素，那么它的位置相对于根元素。
Popperjs 并没有改变 popper（定位元素）的 html 结构位置，所以 popper 元素的 top 和 left 是相对已定位父元素的位置。当父元素不是根元素的时候之前计算 popper 的 top 和 left 就会有偏差，多出 offsetParent（相对已定位父元素）的 top 和 left。
计算 popper 位置的时候要减去它的已定位的父元素 offsetParent 的偏移量。
/**
* Given an element and one of its parents, return the offset
* 给定一个元素和他们的一个父元素，返回偏移量
* @function
* @ignore
* @param {HTMLElement} element
* @param {HTMLElement} parent
* @return {Object} rect
*/
function getOffsetRectRelativeToCustomParent(element, parent, fixed) {
var elementRect = getBoundingClientRect(element);
var parentRect = getBoundingClientRect(parent);
var rect = {
top: elementRect.top - parentRect.top,
left: elementRect.left - parentRect.left,
bottom: (elementRect.top - parentRect.top) + elementRect.height,
right: (elementRect.left - parentRect.left) + elementRect.width,
width: elementRect.width,
height: elementRect.height
};
return rect;
}
获取 popper 最近的已定位父元素
/**
* Returns the offset parent of the given element
* 返回给定元素的定位父元素
* @function
* @ignore
* @argument {Element} element
* @returns {Element} offset parent
*/
function getOffsetParent(element) {
// NOTE: 1 DOM access here
var offsetParent = element.offsetParent;
//判断父元素是否为body，如果是返回dom中的root 节点，如果不是返回父元素
return offsetParent === window.document.body || !offsetParent
? window.document.documentElement
: offsetParent;
}
HTMLElement.offsetParent是一个只读属性，返回一个指向最近的（指包含层级上的最近）包含该元素的定位元素或者最近的table,td,th,body元素。当元素的style.display设置为 "none" 时，offsetParent返回null。offsetParent很有用，因为offsetTop和offsetLeft都是相对于其内边距边界的。元素的
offsetParent可能值：null，body元素，该元素的某个父级定位元素。为
null的情况：body元素、元素的display为none、元素尚未添加到DOM、元素的position为fixed。为
body元素的情况：该元素不是任何一个定位元素的后代，也不是null。
popper 元素 display 为 none，那么 popper.offsetPatent 值为null，getOffsetParent 返回的是window.document.documentElement ，也就是相对根元素计算偏移量，那么计算的偏移量似乎会有偏差。
写个例子验证下：
<div id="scroll" style="position: relative; top: 100px; height: 200px;" >
<button id="reference" style="position: relative; top: 100px; left: 100px" >
reference
</button>
<div id="popper" style="background-color: red; width: 300px; height: 200px; display: none;" >
popper
</div>
</div>
document.getElementById("reference").onclick = function () {
new Popper(document.getElementById("reference"), document.getElementById("popper"),
{ placement: "left-start", gpuAcceleration: false }
);
document.getElementById("popper").style.display="block"
};

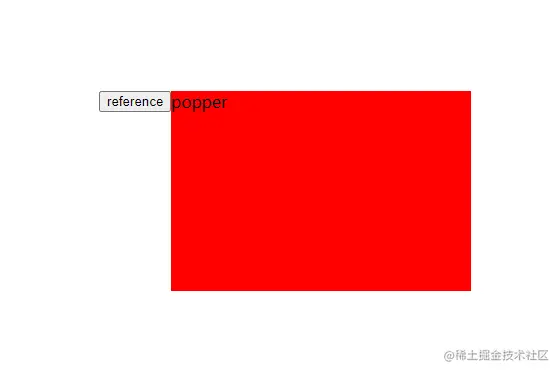

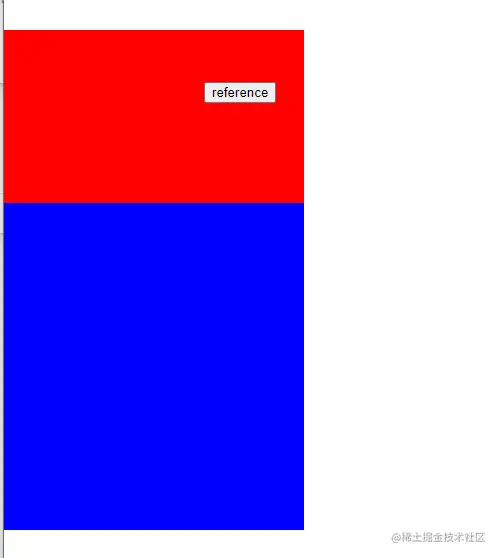

第一次点击按钮效果如下：

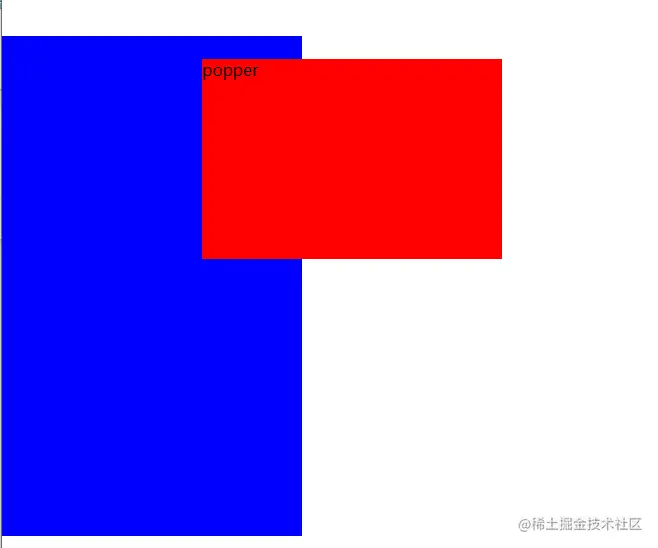

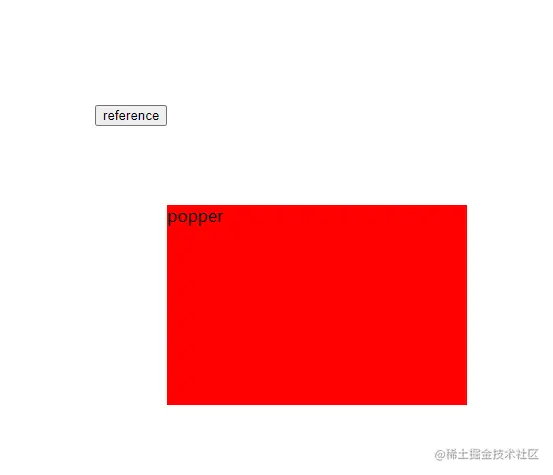

第二次点击按钮才能准确定位：
这里配置了gpuAcceleration为false，在试下启用css3 硬件加速试试。
<div id="scroll" style="position: relative; top: 100px; height: 200px;" >
<button id="reference" style="position: relative; top: 100px; left: 100px" >
reference
</button>
<div id="popper" style="background-color: red; width: 300px; height: 200px; display: none;" >
popper
</div>
</div>
document.getElementById("reference").onclick = function () {
new Popper(document.getElementById("reference"), document.getElementById("popper"),
{ placement: "left-start", gpuAcceleration: true }
);
document.getElementById("popper").style.display="block"
};
也是有同样的问题。
这个问题如果不注意的话会经常出现，而为什么 elementUI 的 Tooltip 组件没有这个问题呢？ 因为 Tooltip 组件把提示元素（也就是 popper 元素）放置在 body 下面，所以提示元素一直是相对根元素定位的。
因此 Popperjs 在保持原有 DOM 上下文的特性上是有 bug 的，解决也不难，就是在获取 popper 尺寸的地方一起获取 offsetParent 就可以了，这个问题先记下来，看看后面迭代有没有修复这个问题。
判断已定位父元素是否是 body，是的话返回文档根元素。之所以这么处理是因为 getBoundingClientRect 用在根元素会有一些兼容性问题。
document.documentElement.getBoundingClientRect()是获取窗口位置，但在IE8以下返回的top、left值为 -2px，因为 IE8 以下浏览器是以窗口的 (2, 2) 坐标为原点坐标的。这里坐标原点的位置不影响算相对距离。- 浏览器默认窗口和 body 有 8px 的间隙，所以使用
document.body.getBoundingClientRect()得到的top、left值为 8px，因此如果offsetParent是document.body要换成document.documentElement来获取位置。
调用 getOffsetRectRelativeToCustomParent 获取 popper 已定位父元素的偏移量。
var referenceOffsets = getOffsetRectRelativeToCustomParent(reference, getOffsetParent(popper));
完整代码：
/**
* Get bounding client rect of given element
* 获取给定元素绑定的窗口矩形
* @function
* @ignore
* @param {HTMLElement} element
* @return {Object} client rect
*/
function getBoundingClientRect(element) {
var rect = element.getBoundingClientRect();
return {
left: rect.left,
top: rect.top,
right: rect.right,
bottom: rect.bottom,
width: rect.right - rect.left,
height: rect.bottom - rect.top,
};
}
/**
* Given an element and one of its parents, return the offset
* 给定一个元素和他们的一个父元素，返回偏移量
* @function
* @ignore
* @param {HTMLElement} element
* @param {HTMLElement} parent
* @return {Object} rect
*/
function getOffsetRectRelativeToCustomParent(
element,
parent,
fixed,
transformed
) {
var elementRect = getBoundingClientRect(element);
var parentRect = getBoundingClientRect(parent);
var rect = {
top: elementRect.top - parentRect.top,
left: elementRect.left - parentRect.left,
bottom: elementRect.top - parentRect.top + elementRect.height,
right: elementRect.left - parentRect.left + elementRect.width,
width: elementRect.width,
height: elementRect.height,
};
return rect;
}
/**
* Set the style to the given popper
* 给指定的popper设置样式
* @function
* @ignore
* @argument {Element} element - Element to apply the style to
* @argument {Object} styles - Object with a list of properties and values which will be applied to the element
*/
function setStyle(element, styles) {
function is_numeric(n) {
return n !== "" && !isNaN(parseFloat(n)) && isFinite(n);
}
Object.keys(styles).forEach(function (prop) {
var unit = "";
// add unit if the value is numeric and is one of the following
if (
["width", "height", "top", "right", "bottom", "left"].indexOf(prop) !==
-1 &&
is_numeric(styles[prop])
) {
unit = "px";
}
element.style[prop] = styles[prop] + unit;
});
}
/**
* Returns the offset parent of the given element
* 返回给定元素的定位父元素
* @function
* @ignore
* @argument {Element} element
* @returns {Element} offset parent
*/
function getOffsetParent(element) {
// NOTE: 1 DOM access here
var offsetParent = element.offsetParent;
//判断父元素是否为body，如果是返回html，如果不是返回父元素
return offsetParent === window.document.body || !offsetParent
? window.document.documentElement
: offsetParent;
}
/**
* Get the prefixed supported property name
* 获取支持属性名称的前缀
* @function
* @ignore
* @argument {String} property (camelCase)
* @returns {String} prefixed property (camelCase)
*/
function getSupportedPropertyName(property) {
var prefixes = ["", "ms", "webkit", "moz", "o"];
for (var i = 0; i < prefixes.length; i++) {
var toCheck = prefixes[i]
? prefixes[i] + property.charAt(0).toUpperCase() + property.slice(1)
: property;
if (typeof window.document.body.style[toCheck] !== "undefined") {
return toCheck;
}
}
return null;
}
Popper.prototype.modifiers = {};
/**
* Apply the computed styles to the popper element
* 将计算属性应用于popper元素
* @method
* @memberof Popper.modifiers
* @argument {Object} data - The data object generated by `update` method
* @returns {Object} The same data object
*/
Popper.prototype.modifiers.applyStyle = function (data) {
// apply the final offsets to the popper
// 将最后的偏移量应用于popper元素
// NOTE: 1 DOM access here
// 注意:这里有1个DOM访问
var styles = {
position: data.offsets.popper.position,
};
// round top and left to avoid blurry text
// 四舍五入top和left以避免模糊文本
var left = Math.round(data.offsets.popper.left);
var top = Math.round(data.offsets.popper.top);
// if gpuAcceleration is set to true and transform is supported, we use `translate3d` to apply the position to the popper
// 如果gpuAcceleration设置为true并且transform支持，我们用translate3d应用于popper位置上
// we automatically use the supported prefixed version if needed
// 如果有需要，我们自动使用支持的前缀版本
var prefixedProperty;
if (
this._options.gpuAcceleration &&
(prefixedProperty = getSupportedPropertyName("transform"))
) {
styles[prefixedProperty] = "translate3d(" + left + "px, " + top + "px, 0)";
styles.top = 0;
styles.left = 0;
}
// othwerise, we use the standard `left` and `top` properties
//否则我们使用标准的left和top属性
else {
styles.left = left;
styles.top = top;
}
// any property present in `data.styles` will be applied to the popper,
// data.styles 中的每一个实时属性都将被应用到popper元素上
// in this way we can make the 3rd party modifiers add custom styles to it
// 用这种方法我们可以用第三方修饰器添加自定义的样式
// Be aware, modifiers could override the properties defined in the previous
// 了解到，修饰符可以覆盖调之前定义的属性
// lines of this modifier!
Object.assign(styles, data.styles);
setStyle(this._popper, styles);
// set an attribute which will be useful to style the tooltip (use it to properly position its arrow)
// 是在一个属性。将有助于设置工具提示的样式
// NOTE: 1 DOM access here
// 注意：一个访问DOM的地方
this._popper.setAttribute("x-placement", data.placement);
return data;
};
/**
* Given the popper offsets, generate an output similar to getBoundingClientRect
* @function
* @ignore
* @argument {Object} popperOffsets
* @returns {Object} ClientRect like output
*/
function getPopperClientRect(popperOffsets) {
var offsets = Object.assign({}, popperOffsets);
offsets.right = offsets.left + offsets.width;
offsets.bottom = offsets.top + offsets.height;
return offsets;
}
/**
* Modifier used to shift the popper on the start or end of its reference element side
* 被用于设置popper放在reference的方位的修饰符
* @method
* @memberof Popper.modifiers
* @argument {Object} data - The data object generated by `update` method
* @returns {Object} The data object, properly modified
*/
Popper.prototype.modifiers.shift = function (data) {
var placement = data.placement;
var basePlacement = placement.split("-")[0];
var shiftVariation = placement.split("-")[1];
// if shift shiftVariation is specified, run the modifier
if (shiftVariation) {
var reference = data.offsets.reference;
var popper = getPopperClientRect(data.offsets.popper);
var shiftOffsets = {
y: {
start: { top: reference.top },
end: { top: reference.top + reference.height - popper.height },
},
x: {
start: { left: reference.left },
end: { left: reference.left + reference.width - popper.width },
},
};
var axis = ["bottom", "top"].indexOf(basePlacement) !== -1 ? "x" : "y";
data.offsets.popper = Object.assign(
popper,
shiftOffsets[axis][shiftVariation]
);
}
return data;
};
/**
* Get the outer sizes of the given element (offset size + margins)
* 获取给定元素的外部尺寸（偏移量+边距）
* @function
* @ignore
* @argument {Element} element
* @returns {Object} object containing width and height properties
*/
function getOuterSizes(element) {
// NOTE: 1 DOM access here
// 注意:这里有1个DOM访问
var _display = element.style.display,
_visibility = element.style.visibility;
element.style.display = "block";
element.style.visibility = "hidden";
var calcWidthToForceRepaint = element.offsetWidth;
// original method
// 原始的方法
var styles = window.getComputedStyle(element);
var x = parseFloat(styles.marginTop) + parseFloat(styles.marginBottom);
var y = parseFloat(styles.marginLeft) + parseFloat(styles.marginRight);
var result = {
width: element.offsetWidth + y,
height: element.offsetHeight + x,
};
// reset element styles
// 重置元素样式
element.style.display = _display;
element.style.visibility = _visibility;
return result;
}
/**
* Get offsets to the popper
* 获取popper的偏移量
* @method
* @memberof Popper
* @access private
* @param {Element} popper - the popper element
* @param {Element} reference - the reference element (the popper will be relative to this)
* @returns {Object} An object containing the offsets which will be applied to the popper
*/
Popper.prototype._getOffsets = function (popper, reference, placement) {
placement = placement.split("-")[0];
var popperOffsets = { position: "absolute" };
//
// Get reference element position
//
var referenceOffsets = getOffsetRectRelativeToCustomParent(reference, getOffsetParent(popper));
//
// Get popper sizes
//
var popperRect = getOuterSizes(popper);
//
// Compute offsets of popper
//
// depending by the popper placement we have to compute its offsets slightly differently
if (["right", "left"].indexOf(placement) !== -1) {
popperOffsets.top = referenceOffsets.top + referenceOffsets.height / 2 - popperRect.height / 2;
if (placement === "left") {
popperOffsets.left = referenceOffsets.left - popperRect.width;
} else {
popperOffsets.left = referenceOffsets.right;
}
} else {
popperOffsets.left =
referenceOffsets.left + referenceOffsets.width / 2 - popperRect.width / 2;
if (placement === "top") {
popperOffsets.top = referenceOffsets.top - popperRect.height;
} else {
popperOffsets.top = referenceOffsets.bottom;
}
}
// Add width and height to our offsets object
popperOffsets.width = popperRect.width;
popperOffsets.height = popperRect.height;
return {
popper: popperOffsets,
reference: referenceOffsets,
};
};
function Popper(popper, reference, options) {
options.gpuAcceleration = options.gpuAcceleration || true;
this.modifiers._options = options;
this.modifiers._popper = popper;
var data = { instance: this, styles: {} };
data.placement = options.placement || "right-start";
data.offsets = this._getOffsets(popper, reference, data.placement);
data = this.modifiers.shift(data);
data = this.modifiers.applyStyle(data);
}
滚动条场景
如果最近已定位的父元素有滚动条的话也会影响 popper 位置的计算，出现滚动条有以下几种情况
- popper 和 reference 有同一个父元素并且已定位，父元素出现滚动条
- popper 开始显示在文档中，设置为绝对定位后父元素的滚动计算重新计算。
- popper 开始 display 为 none，设置为绝对定位后父元素的滚动不影响
- popper 和 reference 不同级。即 popper 最近已定位元素有滚动条不是 reference 的父元素。
Popperjs 并没有处理 absolute 下最近已定位父元素有滚动条下 scrollTop 导致定位出错的情况。 写个 demo 测试一下
<div id="scroll" style="position: relative; top: 100px; height: 500px;overflow: auto;" >
<button id="reference" style="position: relative; top: 100px; left: 200px" >
reference
</button>
<div id="popper" style="background-color: red; width: 300px; height: 200px;" >
popper
</div>
<div style="background-color: blue; width: 300px; height: 700px;" >
</div>
</div>
document.getElementById("scroll").scrollTop=50
document.getElementById("reference").onclick = function () {
new Popper(document.getElementById("reference"), document.getElementById("popper"),
{ placement: "top-start", gpuAcceleration: false }
);
};
效果如下：
点击按钮后：
popper 定位忽略了 scrollTop 为 50，原因是 getBoundingClientRect 是相对可视窗口的定位，而 top 和 left 是相对最近以定位的父元素
避免裁剪和溢出
裁剪和溢出其实是当 popper 定位到 reference 附近位置的时候超出最近已定位父元素的尺寸导致裁剪或者溢出， 所以这里要计算 popper 定位的边界。
/**
* Computed the boundaries limits and return them
* 计算边界限制并且返回
* @method
* @memberof Popper
* @access private
* @param {Object} data - Object containing the property "offsets" generated by `_getOffsets`
* @param {Number} padding - Boundaries padding
* @param {Element} boundariesElement - Element used to define the boundaries
* @returns {Object} Coordinates of the boundaries
*/
Popper.prototype._getBoundaries = function (data, padding, boundariesElement) {
// NOTE: 1 DOM access here
// 注意：一个dom读取的地方
var boundaries = {};
var width, height;
// 边界元素是window
if (boundariesElement === 'window') {
var body = root.document.body,
html = root.document.documentElement;
//为了兼容浏览器使用此方法获取文档高度和宽度
height = Math.max(body.scrollHeight, body.offsetHeight, html.clientHeight, html.scrollHeight, html.offsetHeight);
width = Math.max(body.scrollWidth, body.offsetWidth, html.clientWidth, html.scrollWidth, html.offsetWidth);
boundaries = {
top: 0,
right: width,
bottom: height,
left: 0
};
} else if (boundariesElement === 'viewport') { //边界元素是最近定位的祖先元素视口
var offsetParent = getOffsetParent(this._popper);
var scrollParent = getScrollParent(this._popper);
var offsetParentRect = getOffsetRect(offsetParent);
// Thanks the fucking native API, `document.body.scrollTop` & `document.documentElement.scrollTop`
// 感谢该死的原生API，`document.body.scrollTop` 和 `document.documentElement.scrollTop`
var getScrollTopValue = function (element) {
return element == document.body ? Math.max(document.documentElement.scrollTop, document.body.scrollTop) : element.scrollTop;
}
var getScrollLeftValue = function (element) {
return element == document.body ? Math.max(document.documentElement.scrollLeft, document.body.scrollLeft) : element.scrollLeft;
}
// if the popper is fixed we don't have to substract scrolling from the boundaries
// 如果popper是固定定位，我们不用从边界上减去滚动条的宽高
var scrollTop = data.offsets.popper.position === 'fixed' ? 0 : getScrollTopValue(scrollParent);
var scrollLeft = data.offsets.popper.position === 'fixed' ? 0 : getScrollLeftValue(scrollParent);
boundaries = {
top: 0 - (offsetParentRect.top - scrollTop),
right: root.document.documentElement.clientWidth - (offsetParentRect.left - scrollLeft),
bottom: root.document.documentElement.clientHeight - (offsetParentRect.top - scrollTop),
left: 0 - (offsetParentRect.left - scrollLeft)
};
} else {
if (getOffsetParent(this._popper) === boundariesElement) {
boundaries = {
top: 0,
left: 0,
right: boundariesElement.clientWidth,
bottom: boundariesElement.clientHeight
};
} else {
boundaries = getOffsetRect(boundariesElement);
}
}
boundaries.left += padding;
boundaries.right -= padding;
boundaries.top = boundaries.top + padding;
boundaries.bottom = boundaries.bottom - padding;
return boundaries;
};
代码中对 boundariesElement 进行判断，如果是 window 获取浏览器可视区域的边界；如果是 viewport 获取边界元素是最近定位的祖先元素视口；如果是一个 dom 对象获取这个对象的视口作为边界。 计算边界的代码是：
boundaries = {
top: 0 - (offsetParentRect.top - scrollTop),
right: root.document.documentElement.clientWidth - (offsetParentRect.left - scrollLeft),
bottom: root.document.documentElement.clientHeight - (offsetParentRect.top - scrollTop),
left: 0 - (offsetParentRect.left - scrollLeft)
};
浏览器视口边界相对offsetParent的位置，0 - offsetParentRect.top再把滚动条的情况算进去就是0 - offsetParentRect.top + scrollTop), 这里计算最近定位的祖先元素视口的定位用的是 getOffsetRect，而不是相对浏览器视口的距离。
/**
* Get the position of the given element, relative to its offset parent
* @function
* @ignore
* @param {Element} element
* @return {Object} position - Coordinates of the element and its `scrollTop`
*/
function getOffsetRect(element) {
var elementRect = {
width: element.offsetWidth,
height: element.offsetHeight,
left: element.offsetLeft,
top: element.offsetTop
};
elementRect.right = elementRect.left + elementRect.width;
elementRect.bottom = elementRect.top + elementRect.height;
// position
return elementRect;
}
这里获取的是 offsetParent 元素的实际 left 和top 值，如果 offsetParent 还有一个父元素，offsetParent 的top 是相对父元素的定位，那这里计算边界就有误差。写个 demo 试试：
<div id="scrollParent" style="position: relative; top: 100px; height: 500px;overflow: auto;" >
<div id="scroll" style="position: relative; top: 100px; height: 500px;" >
<button id="reference" style="position: relative; top: 100px; left: 200px" >
reference
</button>
<div id="popper" style="background-color: red; width: 300px; height: 200px;" >
popper
</div>
<div style="background-color: blue; width: 300px; height: 700px;" >
</div>
</div>
</div>
document.getElementById("reference").onclick = function () {
new Popper(document.getElementById("reference"), document.getElementById("popper"),
{ placement: "top-start", gpuAcceleration: false }
);
};
demo 中算出来的边界 top 是 -100，也就是计算的边界是 scrollParent 元素而不是浏览器的可视区域。但是 bottom 的值是 root.document.documentElement.clientHeight - (offsetParentRect.top - scrollTop) 为1197，却又是浏览器的可视区域作为边界计算考虑了 scroll 的 top 但没有考虑scrollParent 的 top。计算边界 top 是按照 scrollParent 元素作为边界，计算 bottom 是按照浏览器的可视区域作为边界，边界元素有点混乱。
判断 popper 的位置是否超出边界
/**
* Modifier used to make sure the popper does not overflows from it's boundaries
* 被用于确定popper在边界内没有溢出的修饰器
* @method
* @memberof Popper.modifiers
* @argument {Object} data - The data object generated by `update` method
* @returns {Object} The data object, properly modified
*/
Popper.prototype.modifiers.preventOverflow = function (data) {
var order = this._options.preventOverflowOrder;
var popper = getPopperClientRect(data.offsets.popper);
var check = {
left: function () {
var left = popper.left;
if (popper.left < data.boundaries.left) {
left = Math.max(popper.left, data.boundaries.left);
}
return { left: left };
},
right: function () {
var left = popper.left;
if (popper.right > data.boundaries.right) {
left = Math.min(popper.left, data.boundaries.right - popper.width);
}
return { left: left };
},
top: function () {
var top = popper.top;
if (popper.top < data.boundaries.top) {
top = Math.max(popper.top, data.boundaries.top);
}
return { top: top };
},
bottom: function () {
var top = popper.top;
if (popper.bottom > data.boundaries.bottom) {
top = Math.min(popper.top, data.boundaries.bottom - popper.height);
}
return { top: top };
}
};
order.forEach(function (direction) {
data.offsets.popper = Object.assign(popper, check[direction]());
});
return data;
};
preventOverflowOrder 来配置遍历顺序，默认是 ['left', 'right', 'top', 'bottom'] 判断是否超出边界，超出的话设为边界值。这样 popper 和 reference 就会出现重叠，就要进行下一步翻转
翻转
popper 和 reference 就会出现重叠，popper 进行另一面翻转，比如 let 出现重叠就翻转为 right。
/**
* Modifier used to flip the placement of the popper when the latter is starting overlapping its reference element.
* 装饰器被用于翻转popper的位置当popper和他的reference元素重叠的时候
* Requires the `preventOverflow` modifier before it in order to work.
* 确保preventOverflow装饰器要在之前执行
* **NOTE:** This modifier will run all its previous modifiers everytime it tries to flip the popper!
* 每次装饰器翻转popper时它都会执行它之前的装饰器
* @method
* @memberof Popper.modifiers
* @argument {Object} data - The data object generated by _update method
* @returns {Object} The data object, properly modified
*/
Popper.prototype.modifiers.flip = function (data) {
// check if preventOverflow is in the list of modifiers before the flip modifier.
// 检查preventOverflow是否在flip之前的列表中
// otherwise flip would not work as expected.
// 否则filp无法正常工作
if (!this.isModifierRequired(this.modifiers.flip, this.modifiers.preventOverflow)) {
console.warn('WARNING: preventOverflow modifier is required by flip modifier in order to work, be sure to include it before flip!');
return data;
}
if (data.flipped && data.placement === data._originalPlacement) {
// seems like flip is trying to loop, probably there's not enough space on any of the flippable sides
return data;
}
var placement = data.placement.split('-')[0];
var placementOpposite = getOppositePlacement(placement);
var variation = data.placement.split('-')[1] || '';
var flipOrder = [];
if (this._options.flipBehavior === 'flip') {
flipOrder = [
placement,
placementOpposite
];
} else {
flipOrder = this._options.flipBehavior;
}
flipOrder.forEach(function (step, index) {
if (placement !== step || flipOrder.length === index + 1) {
return;
}
placement = data.placement.split('-')[0];
placementOpposite = getOppositePlacement(placement);
var popperOffsets = getPopperClientRect(data.offsets.popper);
// this boolean is used to distinguish right and bottom from top and left
// they need different computations to get flipped
var a = ['right', 'bottom'].indexOf(placement) !== -1;
// using Math.floor because the reference offsets may contain decimals we are not going to consider here
if (
a && Math.floor(data.offsets.reference[placement]) > Math.floor(popperOffsets[placementOpposite]) ||
!a && Math.floor(data.offsets.reference[placement]) < Math.floor(popperOffsets[placementOpposite])
) {
// we'll use this boolean to detect any flip loop
data.flipped = true;
data.placement = flipOrder[index + 1];
if (variation) {
data.placement += '-' + variation;
}
data.offsets.popper = this._getOffsets(this._popper, this._reference, data.placement).popper;
data = this.runModifiers(data, this._options.modifiers, this._flip);
}
}.bind(this));
return data;
};
/**
* Get the opposite placement of the given one/
* @function
* @ignore
* @argument {String} placement
* @returns {String} flipped placement
*/
function getOppositePlacement(placement) {
var hash = { left: 'right', right: 'left', bottom: 'top', top: 'bottom' };
return placement.replace(/left|right|bottom|top/g, function (matched) {
return hash[matched];
});
}
从 getOppositePlacement 代码中可以看到翻转只能在 x 轴或 y 轴翻转，不能从 x 轴翻到 y 轴。可以设置 flipBehavior 来配置翻转规则。翻转之后再执行 _getOffsets 和 runModifiers 来重新计算定位和判断是否超出边界。如果左右两边都超出边界，就要设置 flipBehavior 来自定义翻转规则。
监听滚动条和页面视图改变
/**
* Setup needed event listeners used to update the popper position
* 设置所需的事件监听器用于更新弹出器位置
* @method
* @memberof Popper
* @access private
*/
Popper.prototype._setupEventListeners = function () {
// NOTE: 1 DOM access here
// 注意:这里有1个DOM访问
this.state.updateBound = this.update.bind(this);
root.addEventListener('resize', this.state.updateBound);
// if the boundariesElement is window we don't need to listen for the scroll event
// 如果boundariesElement是window，我们不需要监听滚动事件
if (this._options.boundariesElement !== 'window') {
var target = getScrollParent(this._reference);
// here it could be both `body` or `documentElement` thanks to Firefox, we then check both
// 这里target可能是body或者documentElement，感谢Firefox，然后我们检查这两个
if (target === root.document.body || target === root.document.documentElement) {
target = root;
}
target.addEventListener('scroll', this.state.updateBound);
this.state.scrollTarget = target;
}
};
这里没有对 resize 和 scroll 事件做节流处理，再看看 update 的代码。
/**
* Updates the position of the popper, computing the new offsets and applying the new style
* 更新popper的定位，计算新的偏移量和应用新的样式
* @method
* @memberof Popper
*/
Popper.prototype.update = function () {
var data = { instance: this, styles: {} };
// store placement inside the data object, modifiers will be able to edit `placement` if needed
// 位置数据放在data对象中，如果有需要modifiers将会修改`placement`字段
// and refer to _originalPlacement to know the original value
// 并参考_originalPlacement了解原始值
data.placement = this._options.placement;
data._originalPlacement = this._options.placement;
// compute the popper and reference offsets and put them inside data.offsets
// 计算popper和refernce的偏移量并放到data.offsets中
data.offsets = this._getOffsets(this._popper, this._reference, data.placement);
// get boundaries
// 获取边界
data.boundaries = this._getBoundaries(data, this._options.boundariesPadding, this._options.boundariesElement);
data = this.runModifiers(data, this._options.modifiers);
if (typeof this.state.updateCallback === 'function') {
this.state.updateCallback(data);
}
};
总结
Popperjs 在保持 DOM 上下文上没有考虑 popper 元素 display 为 none 的情况和滚动条的情况。elementUI 通过把 popper 元素放到 boy 里面来避免上述情况。 Popperjs 处理溢出情况是先定位在边界内，然后判断 popper 元素和 reference 是否重叠而进行翻转。在获取边界元素的方位值时出现边界元素混乱的情况。 由此看出 Popperjs 0.5 版本还有些问题，还不是很成熟，所以 elementUI 把代码放到本地来方便后期维护。
待续
本来打算只做上、下两篇，后面发现内容有点多，就决定分为上、中、下篇。下一篇的内容是 Popperjs 其他配置项的实现和 elementUI 在 Popperjs 的基础上做了哪些修改。
