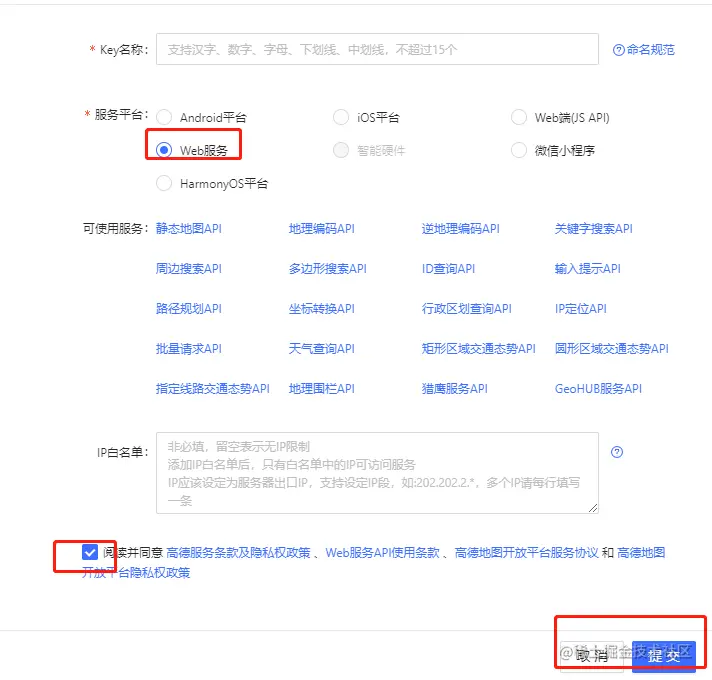

获取key

通过console.amap.com/dev/key/app 获取高德认证的key

得到key

测试key

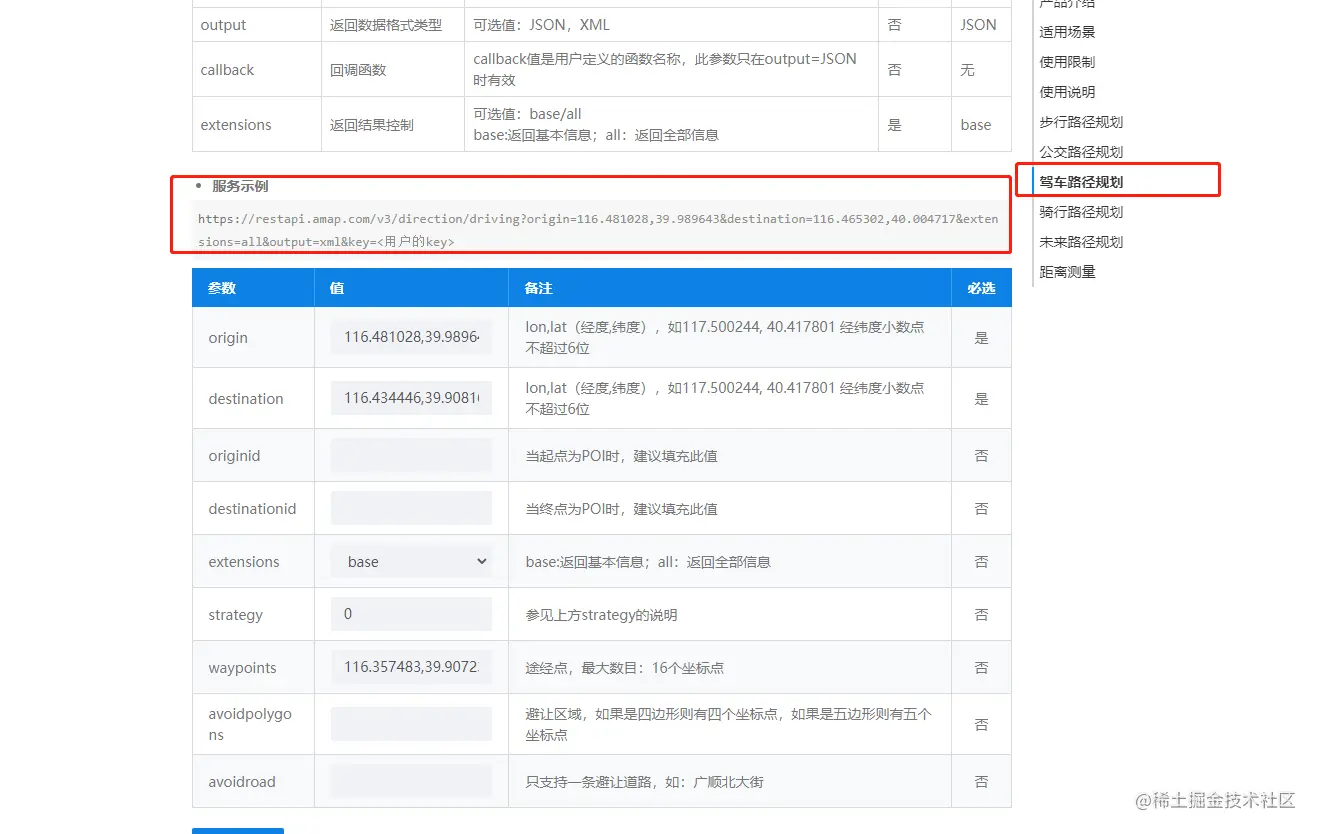

测试地址

lbs.amap.com/api/webserv…

找到

然后将自己的复制上去，并根据自己的需要的格式将链接中的output设置为xml或者JSON

测试成功

调用地图服务

实现业务

根据起点和终点经纬度获取距离（米）和时长（分钟）

前期准备

1. 将前文中获取的key写入.yml配置文件

amap:
  key: 9edd7a0c343d993fc971ad2afda94dd5

2. 并且在启动类中注入RestTemplate

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }

3. 创建实体类常量用来保存url

public class AMapConfigConstant {
      /**
     * 路径规划地址
     */
    public static final String mapUrl="https://restapi.amap.com/v3/direction/driving";

    /**
     * 路径规划 json key 值
     */
    public static final String STATUS = "status";

    public static final String ROUTE = "route";

    public static final String PATHS = "paths";

    public static final String DISTANCE = "distance";

    public static final String DURATION = "duration";
}

编写MapDirectionClient类

在remote包下创建MapDirectionClient类来调用高德地图接口

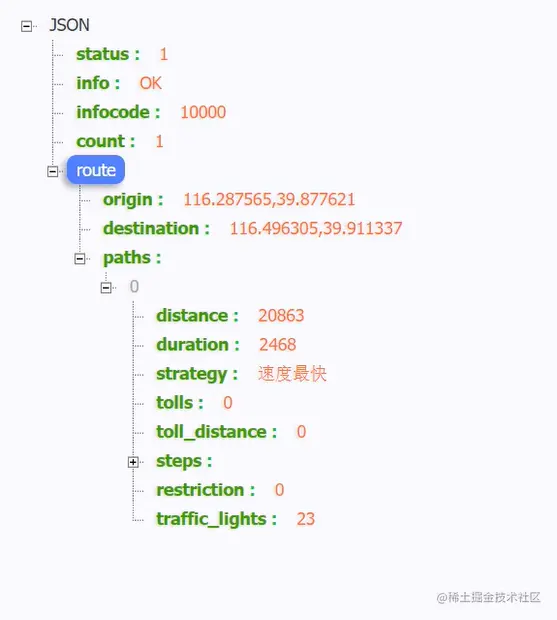

其中，方法parseDirectionEntity()解析JSON的过程可以根据此图来参考

package com.whj.servicemap.remote;

import com.whj.internalcommon.constant.AMapConfigConstant;
import com.whj.internalcommon.response.DirectionResponse;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;


/**
 * @Auther: wanghaijun
 * @Date: 2023/1/6 - 01 - 06 - 15:10
 * @Description: com.whj.servicemap.remote
 */

@Service
@Slf4j
public class MapDirectionClient {

    @Value("${amap.key}")
    private String amapKey;

    @Autowired
    private RestTemplate restTemplate;

    /**
     * 根据出发的经纬度获取距离和时间
     * @param depLongitude
     * @param depLatitude
     * @param desLongitude
     * @param desLatitude
     * @return
     */
    public DirectionResponse direction(String depLongitude, String depLatitude, String desLongitude, String desLatitude) {

        //组装url
        StringBuilder urlBuild = new StringBuilder();
        urlBuild.append(AMapConfigConstant.mapUrl);
        urlBuild.append("?");
        urlBuild.append("origin=" + depLongitude + "," + depLatitude);
        urlBuild.append("&");
        urlBuild.append("destination=" + desLongitude + "," + desLatitude);
        urlBuild.append("&");
        urlBuild.append("extensions=all");
        urlBuild.append("&");
        urlBuild.append("output=json");
        urlBuild.append("&");
        urlBuild.append("key=" + amapKey); //key 9edd7a0c343d993fc971ad2afda94dd5
        //urlBuild = https://restapi.amap.com/v3/direction/driving?origin=116.481028,39.989643&destination=116.465302,40.004717&extensions=all&output=json&key=9edd7a0c343d993fc971ad2afda94dd5
        log.info(urlBuild.toString());

        //调用高德的接口
        ResponseEntity<String> directionForEntity = restTemplate.getForEntity(urlBuild.toString(), String.class);
        String directionString = directionForEntity.getBody();
        log.info("高德地图，路径规划，返回信息" + directionString);

        //解析接口
        DirectionResponse directionResponse = parseDirectionEntity(directionString);
        return directionResponse;
    }

     /**
     * 根据传来的字符串获取指定的参数的数据 解析数据
     * @param directionString
     * @return
     */
    private DirectionResponse parseDirectionEntity(String directionString) {

        DirectionResponse directionResponse = null;

        try {
            //将获取的对象转化为JSON格式
            JSONObject result = JSONObject.fromObject(directionString);
            if(result.has(AMapConfigConstant.STATUS)){
                int status = result.getInt(AMapConfigConstant.STATUS);
                if(status==1){
                    if(result.has(AMapConfigConstant.ROUTE)){
                        JSONObject routeObject = result.getJSONObject(AMapConfigConstant.ROUTE);
                        JSONArray pathsArray = routeObject.getJSONArray(AMapConfigConstant.PATHS);
                        //获取ROUTE 数组中的第一个json
                        JSONObject pathObject = pathsArray.getJSONObject(0);
                        //创建接收对象
                        directionResponse = new DirectionResponse();
                        //设置距离
                        if(pathObject.has(AMapConfigConstant.DISTANCE)){
                            int distance = pathObject.getInt(AMapConfigConstant.DISTANCE);
                            directionResponse.setDistance(distance);
                        }
                        //设置时间
                        if (pathObject.has(AMapConfigConstant.DURATION)){
                            int duration = pathObject.getInt(AMapConfigConstant.DURATION);
                            directionResponse.setDuration(duration);
                        }
                    }
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return directionResponse;
    }
}

service层

@Service
public class DirectionServiceImpl implements DirectionService {

    @Autowired
    private MapDirectionClient mapDirectionClient;

    /**
     * 根据起点和终点经纬度获取距离（米）和时长（分钟）
     *
     * @param depLongitude
     * @param depLatitude
     * @param desLongitude
     * @param desLatitude
     * @return
     */
    @Override
    public ResponseResult driving(String depLongitude, String depLatitude, String desLongitude, String desLatitude) {

        //调用第三方地图接口
        DirectionResponse directionResponse = mapDirectionClient.direction(depLongitude, depLatitude, desLongitude, desLatitude);
        return ResponseResult.success(directionResponse);
    }
}

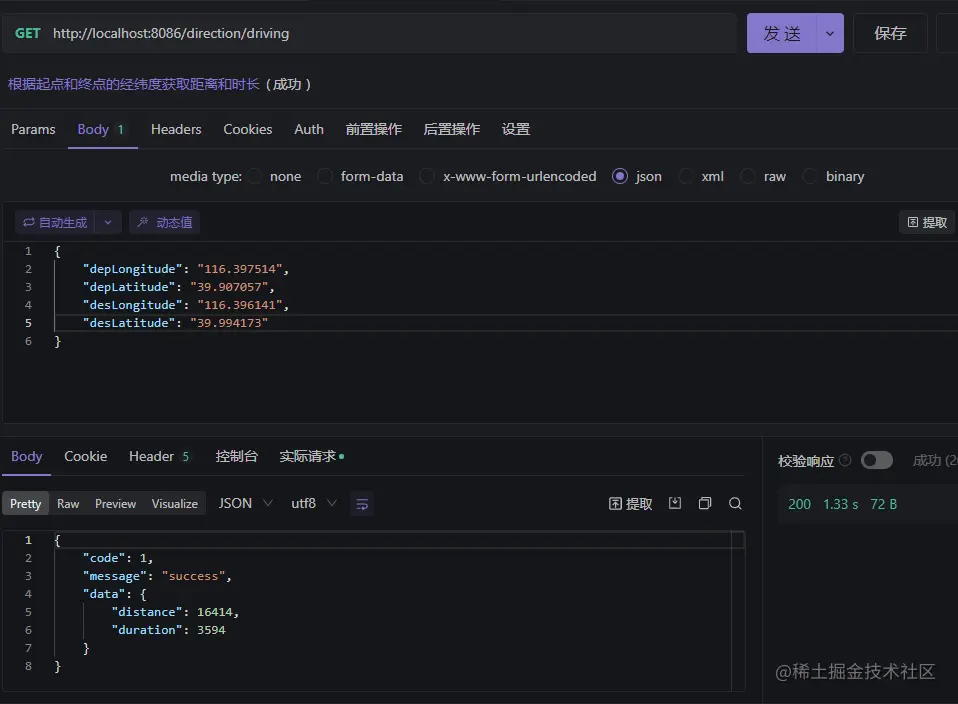

测试结果
