【Maven从入门到精通】07、idea搭建一个SSM项目

工藤新一丶
147 阅读10分钟

7、idea搭建一个SSM项目

1、先构建一个maven的webapp项目

2、导入相关依赖

  • spring依赖
  • mybatis依赖
  • MYSQL依赖
  • Druid依赖
  • Jackjson依赖
  • pagehelper依赖
  • junit依赖
  • …..

3、在resources下新建springmvc.xml文件

4、在web.xml中配置springmvc的servlet

5、在resources目录下新建applicationContent.xml整合mybatis项目的service

6、在resources目录下新建jdbc.properties管理数据连接信息

7、在src目录下新建对应的domain，service，controller，dao，完成用户相关业务的查询和工作

8、定义Mapper.xml文件在resources下，对用户表进行管理

9、发布和部署项目

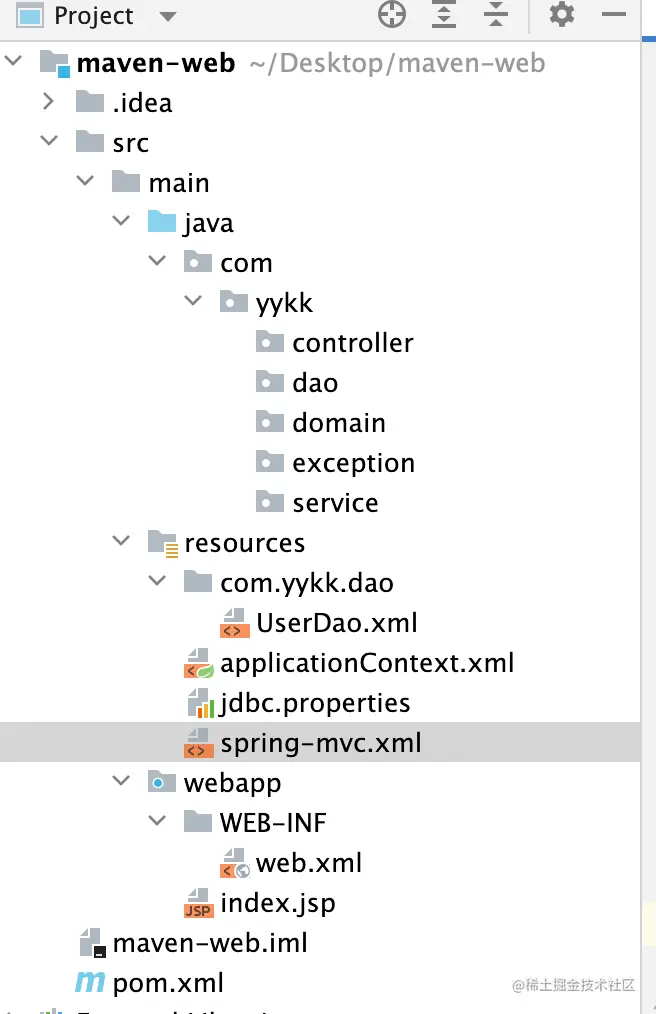

整体架构如下：

image20220721120812674png

1、创建一个maven项目

pom.xml如下所示：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.yykk</groupId>
  <artifactId>maven-web</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>maven-web Maven Webapp</name>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>

      <!--spring核心-->
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-webmvc</artifactId>
          <version> 5.3.20</version>
      </dependency>
      <!--mybatis依赖 -->
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis-spring</artifactId>
          <version>2.0.7</version>
      </dependency>
      <!-- 导入 druid 的 jar 包 -->
      <dependency>
          <groupId>com.alibaba</groupId>
          <artifactId>druid</artifactId>
          <version>1.2.11</version>
      </dependency>

      <!-- 导入 mysql 的 jar 包 -->
      <dependency>
          <groupId>mysql</groupId>
          <artifactId>mysql-connector-java</artifactId>
          <version>8.0.27</version>
      </dependency>
      <dependency>
          <groupId>com.fasterxml.jackson.core</groupId>
          <artifactId>jackson-databind</artifactId>
          <version>2.13.3</version>
      </dependency>
      <dependency>
          <groupId>org.mybatis</groupId>
          <artifactId>mybatis</artifactId>
          <version> 3.2.1</version>
      </dependency>

      <dependency>
          <groupId>com.github.pagehelper</groupId>
          <artifactId>pagehelper</artifactId>
          <version>5.3.0</version>
      </dependency>
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-test</artifactId>
          <version>5.3.20</version>
      </dependency>
      <dependency>
          <groupId>javax.servlet</groupId>
          <artifactId>javax.servlet-api</artifactId>
          <version>4.0.1</version>
      </dependency>
      <dependency>
          <groupId>org.springframework</groupId>
          <artifactId>spring-jdbc</artifactId>
          <version>5.3.20</version>
      </dependency>

  </dependencies>


  <build>
    <finalName>maven-web</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
          <!-- 配置Tomcat插件 -->
          <plugin>
              <groupId>org.apache.tomcat.maven</groupId>
              <artifactId>tomcat7-maven-plugin</artifactId>
              <version>2.2</version>
              <configuration>
                  <!-- 指定端口 -->
                  <port>80</port>
                  <!-- 请求路径 -->
                  <path>/</path>
                  <update>true</update>
                  <uriEncoding>UTF-8</uriEncoding>
              </configuration>
          </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

2、新建jdbc.properties

新建一个数据库：ssm_db，新建一个表

kss_user.sql

CREATE TABLE `kss_user` (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `username` varchar(255) DEFAULT NULL,
    `password` varchar(255) DEFAULT NULL,
    `realName` varchar(255) DEFAULT NULL,
    `gender` int DEFAULT NULL,
    `birthday` date DEFAULT NULL,
    PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8mb4

新建jdbc.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm_db?serverTimezone-GMT%2b8&useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.username=root
jdbc.password=123456

3、spring整合mybatis

新建applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">
    <!--开启bean注解扫描-->
    <context:component-scan base-package="com.yykk">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <tx:annotation-driven transaction-manager="txManager"/>

    <!--引入db.properties文件-->
    <context:property-placeholder location="classpath*:jdbc.properties"/>

    <!--配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>


    <!--配置SqlSessionFactoryBean 对象-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="typeAliasesPackage" value="com.yykk.domain"/>
        <!--绑定mybatis的核心配置文件-->
        <property name="mapperLocations" value="classpath*:/com.yykk.dao/*.xml"/>
        <!--分页插件-->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <props>
                            <prop key="helperDialect">mysql</prop>
                            <prop key="reasonable">true</prop>
                        </props>
                    </property>
                </bean>
            </array>
        </property>
    </bean>


    <!-- 映射扫描  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 待扫描的mapper 接口的包名 多个之间使用逗号分隔 -->
        <property name="basePackage" value="com.yykk.dao"/>
    </bean>

    <!--事务管理器-->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>


</beans>

4、整合springmvc

在resources目录下新建一个spring-mvc.xml文件即可！

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <mvc:annotation-driven />
    <context:component-scan base-package="com.yykk.controller" />

</beans>

5、在web.xml配置springmvc的核心servlet

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:applicationContext.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath*:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>

6、建立用户相关的业务！SSM整合

User.java

package com.yykk.domain;

import java.io.Serializable;
import java.util.Date;

public class User implements Serializable {

    private Integer id;
    private String username;
    private String password;
    private String realName;
    private Integer gender;
    private Date birthday;

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + ''' +
                ", password='" + password + ''' +
                ", realName='" + realName + ''' +
                ", gender=" + gender +
                ", birthday=" + birthday +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    public Integer getGender() {
        return gender;
    }

    public void setGender(Integer gender) {
        this.gender = gender;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    public User(Integer id, String username, String password, String realName, Integer gender, Date birthday) {
        this.id = id;
        this.username = username;
        this.password = password;
        this.realName = realName;
        this.gender = gender;
        this.birthday = birthday;
    }

    public User() {
    }
}

UserDao

package com.yykk.dao;

import com.yykk.domain.User;
import org.apache.ibatis.annotations.Param;

import java.util.List;

public interface UserDao {

    /**
     * 添加用户
     * @param user
     * @return
     */
    public boolean save(User user);

    /**
     * 修改用户
     * @param user
     * @return
     */
    public boolean update(User user);

    /**
     * 删除用户
     * @param id
     * @return
     */
    public boolean delete(Integer id);

    /**
     * 查询单个用户信息
     * @param id
     * @return
     */
    public User get(Integer id);

    /**
     * 查询全部用户信息
     * @return
     */
    public List<User> getAll();

    /**
     * 根据用户名或者密码查询个人信息
     * @param userName 用户名
     * @param password 密码信息
     * @return
     */
    // 注意：数据层操作不要和业务层操作的名称混淆，通常数据层只反映与数据库的信息交换，不体现业务逻辑！
    public User getByUserNameAndPassword(@Param("userName")String userName,@Param("password")String password);

}

UserDao.xml

在resources目录下新建一个com.yykk.dao的目录新建UserDao.xml文件，如下：

 <?xml version="1.0" encoding="UTF-8" ?>
 <!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

 <mapper namespace="com.kuang.dao.BookMapper">

    <!--增加一个Book-->
    <insert id="addBook" parameterType="Books">
       insert into ssmbuild.books(bookName,bookCounts,detail)
       values (#{bookName}, #{bookCounts}, #{detail})
    </insert>

    <!--根据id删除一个Book-->
    <delete id="deleteBookById" parameterType="int">
       delete from ssmbuild.books where bookID=#{bookID}
    </delete>

    <!--更新Book-->
    <update id="updateBook" parameterType="Books">
       update ssmbuild.books
       set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
       where bookID = #{bookID}
    </update>

    <!--根据id查询,返回一个Book-->
    <select id="queryBookById" resultType="Books">
       select * from ssmbuild.books
       where bookID = #{bookID}
    </select>

    <!--查询全部Book-->
    <select id="queryAllBook" resultType="Books">
       SELECT * from ssmbuild.books
    </select>

 </mapper>

UserService

package com.yykk.service;

import com.github.pagehelper.PageInfo;
import com.yykk.domain.User;
import org.apache.ibatis.annotations.Param;
import org.springframework.transaction.annotation.Transactional;

@Transactional(readOnly = true)
public interface UserService {


    /**
     * 添加用户
     * @param user
     * @return
     */
    @Transactional(readOnly = false)
    public boolean save(User user);

    /**
     * 修改用户
     * @param user
     * @return
     */
    @Transactional(readOnly = false)
    public boolean update(User user);

    /**
     * 删除用户
     * @param id
     * @return
     */
    @Transactional(readOnly = false)
    public boolean delete(Integer id);

    /**
     * 查询单个用户信息
     * @param id
     * @return
     */
    public User get(Integer id);

    /**
     * 查询全部用户信息
     * @return
     */
    public PageInfo<User> getAll(int page,int size);

    /**
     * 根据用户名或者密码查询个人信息
     * @param userName 用户名
     * @param password 密码信息
     * @return
     */
    public User login(@Param("userName")String userName, @Param("password")String password);

}

UserServiceImpl

package com.yykk.service.impl;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.yykk.dao.UserDao;
import com.yykk.domain.User;
import com.yykk.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    @Override
    public boolean save(User user) {
        return userDao.save(user);
    }

    @Override
    public boolean update(User user) {
        return userDao.update(user);
    }

    @Override
    public boolean delete(Integer id) {
        return userDao.delete(id);
    }

    @Override
    public User get(Integer id) {
        return userDao.get(id);
    }

    @Override
    public PageInfo<User> getAll(int page, int size) {
        PageHelper.startPage(page,size);
        List<User> all = userDao.getAll();
        return new PageInfo<User>(all);
    }

    @Override
    public User login(String userName, String password) {
        return userDao.getByUserNameAndPassword(userName,password);
    }
}

UserController

package com.yykk.controller;


import com.github.pagehelper.PageInfo;
import com.yykk.config.exception.BusinessException;
import com.yykk.config.results.Code;
import com.yykk.config.results.Result;
import com.yykk.domain.User;
import com.yykk.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @PostMapping
    public Result save(User user){
        boolean flag = userService.save(user);
        return new Result(flag ? Code.SAVE_OK:Code.SAVE_ERROR);
    }

    @PutMapping
    public Result update(User user){
        boolean flag = userService.update(user);
        return new Result(flag ? Code.UPDATE_OK:Code.UPDATE_ERROR);
    }

    @DeleteMapping("/{id}")
    public Result delete(Integer id){
        boolean flag = userService.delete(id);
        return new Result(flag ? Code.DELETE_OK:Code.DELETE_ERROR);
    }

    @GetMapping("/{id}")
    public Result get(@PathVariable("id")Integer id) throws BusinessException {
        User user = userService.get(id);
        // 模拟出现异常，使用条件控制，便于测试结果
        if (id == 10) {
            throw new BusinessException("查询出错了，请重试！",Code.GET_ERROR);
        }
        return new Result(null != user ? Code.GET_OK :Code.GET_ERROR,user);
    }

    @GetMapping("/{page}/{size}")
    public Result getAll(@PathVariable Integer page,@PathVariable Integer size){
        PageInfo<User> all = userService.getAll(page, size);
        return new Result(null != all ? Code.GET_OK :Code.GET_ERROR,all);
    }

      @PostMapping("/login")
    public Result login(String username,String password){
        User user = userService.login(username,password);
        return new Result(null != user ? Code.GET_OK :Code.GET_ERROR,user);
    }
}

Config配置类

config/exception/BusinessException.java

统一异常的处理

package com.yykk.config.exception;

public class BusinessException extends RuntimeException {

    // 自定义异常中封装对应的错误编码，用于处理异常时获取对应的操作编码
    private Integer code;

    public BusinessException(Integer code) {
        this.code = code;
    }

    public BusinessException(String message, Integer code) {
        super(message);
        this.code = code;
    }

    public BusinessException(String message, Throwable cause, Integer code) {
        super(message, cause);
        this.code = code;
    }

    public BusinessException(Throwable cause, Integer code) {
        super(cause);
        this.code = code;
    }

    public BusinessException(String message, Throwable cause, boolean enableSuppression, boolean writableStackTrace, Integer code) {
        super(message, cause, enableSuppression, writableStackTrace);
        this.code = code;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }
}

config/interceptor/ProjectExceptionAdvice

package com.yykk.config.interceptor;

import com.yykk.config.exception.BusinessException;
import com.yykk.config.results.Result;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

@Component
@ControllerAdvice
public class ProjectExceptionAdvice {

    @ExceptionHandler(BusinessException.class)
    @ResponseBody
    // 对出现异常的情况进行拦截，并将其处理成统一的页面数据结果格式
    public Result doBusinessException(BusinessException e) {
        return new Result(e.getCode(),e.getMessage());
    }

}

config/Code

package com.yykk.config.results;

public class Code {

    //  操作结果编码
    public static final Integer SAVE_OK = 20011;
    public static final Integer UPDATE_OK = 20021;
    public static final Integer DELETE_OK = 20031;
    public static final Integer GET_OK = 20041;

    public static final Integer SAVE_ERROR = 20010;
    public static final Integer UPDATE_ERROR = 20020;
    public static final Integer DELETE_ERROR = 20030;
    public static final Integer GET_ERROR = 20040;

}

config/Result

package com.yykk.config.results;

public class Result {

    // 操作结果编码
    private Integer code;

    // 操作数据结果
    private Object data;

    // 消息
    private String message;

    public Result(Integer code, Object data) {
        this.code = code;
        this.data = data;
    }

    public Result(Integer code) {
        this.code = code;
    }

    @Override
    public String toString() {
        return "Result{" +
                "code=" + code +
                ", data=" + data +
                ", message='" + message + ''' +
                '}';
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

对于dependencyManagement 与 depencies区别就是如果你选择了前者他不会为你下载依赖，按需导入，后者会为你全部子模块添加一遍！前者可以做版本控制管理！在pom.xml中这两者可以同时存在，然后第一个做版本管理，第二个导入每个模块会用到的依赖！

7、SSM模块化开发：

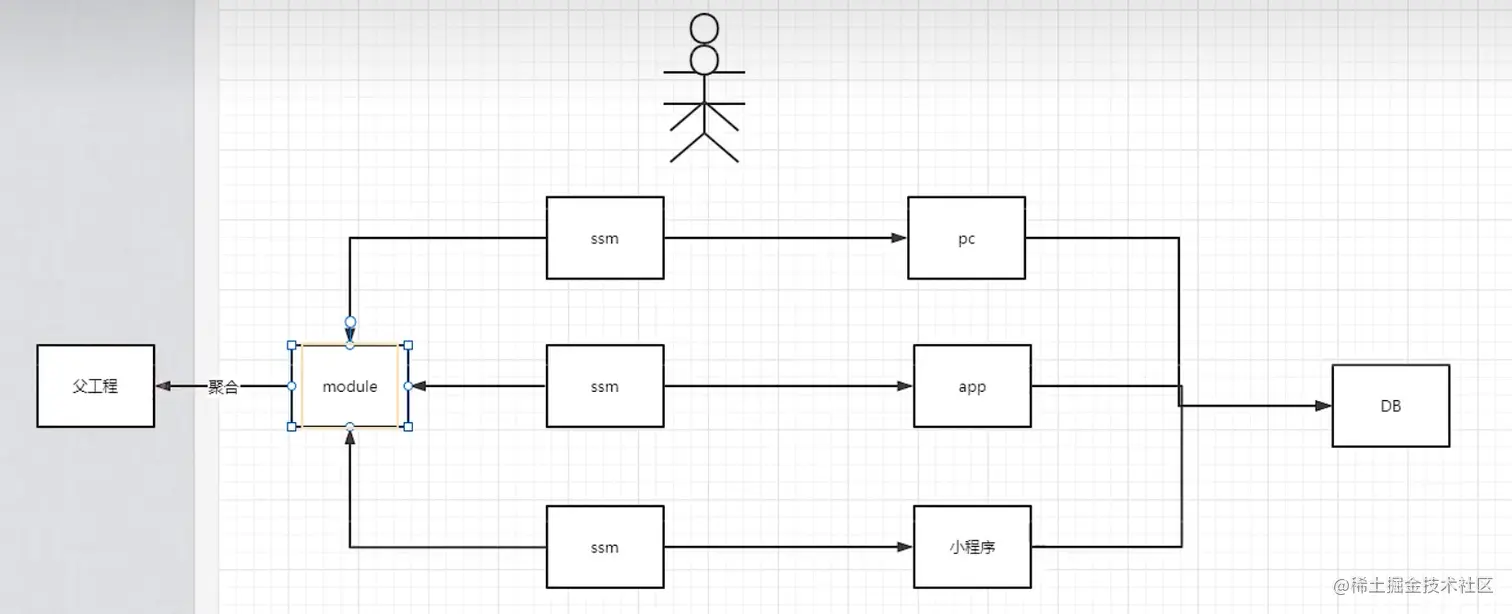

因为在我们的开发中有很多问题，例如我们很多的模块都是一样的代码，但是我们开发不同的东西都要重新编写或者复制，对于这种重复的事情相信你们也会也厌烦，所以进行了模块化开发，如下图所示！

image20220722173458770png

1、搭建父项目工程

在这里要注意一定要建立一个maven空项目！

  • pug-ssm-parent

src目录要删掉，因为这里只是用来管理以下子模块的开发，配置pom.xml！

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.yykk</groupId>
    <artifactId>pug-ssm-parent</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!--子模块-->
    <modules>
        <module>pug-ssm-pojo</module>
        <module>pug-ssm-dao</module>
        <module>pug-ssm-service</module>
        <module>pug-ssm-config</module>
        <module>pug-ssm-webpc</module>
    </modules>
    <!--代表当前工程是一个聚合工程或者父工程-->
    <packaging>pom</packaging>
    <!--
        这个父工程的作用：
            1、集中管理所有子项目的jar的版本升级或者降级处理
            2、统一打包和编译所有项目（思考：如果你的子项目有100个，你就需要一个个去打包和编译是不是很可怕）
                统一打包我只需要你们是父子关系，我只需要打包父工程就可以把所有子进行打包和编译，一劳永逸，是一个很好的机制！
    -->

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencyManagement>
        <dependencies>

            <!--spring核心-->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>5.3.20</version>
            </dependency>

            <!-- 导入 druid 的 jar 包 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.2.11</version>
            </dependency>

            <!-- 导入 mysql 的 jar 包 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>8.0.27</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>2.13.3</version>
            </dependency>
            <!--mybatis-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>3.5.4</version>
            </dependency>

            <!--mybatis-spring-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis-spring</artifactId>
                <version>2.0.2</version>
            </dependency>

            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper</artifactId>
                <version>5.3.0</version>
            </dependency>

            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-test</artifactId>
                <version>5.3.20</version>
            </dependency>
            <dependency>
                <groupId>javax.servlet</groupId>
                <artifactId>javax.servlet-api</artifactId>
                <version>4.0.1</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jdbc</artifactId>
                <version>5.3.20</version>
            </dependency>

        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <!-- 配置Tomcat插件 -->
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <!-- 指定端口 -->
                    <port>80</port>
                    <!-- 请求路径 -->
                    <path>/</path>
                    <update>true</update>
                    <uriEncoding>UTF-8</uriEncoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

2、搭建子项目！（对于子模块中所有的依赖不要导入版本，因为父项目进行了整体的依赖聚合！）

  • pug-ssm-pojo

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pug-ssm-parent</artifactId>
        <groupId>com.yykk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pug-ssm-pojo</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

domain/User

package com.yykk.domain;

import java.io.Serializable;
import java.util.Date;


public class User implements Serializable {

    private Integer id;
    private String username;
    private String password;
    private String realName;
    private Integer gender;
    private Date birthday;

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", username='" + username + ''' +
                ", password='" + password + ''' +
                ", realName='" + realName + ''' +
                ", gender=" + gender +
                ", birthday=" + birthday +
                '}';
    }

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    public Integer getGender() {
        return gender;
    }

    public void setGender(Integer gender) {
        this.gender = gender;
    }

    public Date getBirthday() {
        return birthday;
    }

    public void setBirthday(Date birthday) {
        this.birthday = birthday;
    }

    public User(Integer id, String username, String password, String realName, Integer gender, Date birthday) {
        this.id = id;
        this.username = username;
        this.password = password;
        this.realName = realName;
        this.gender = gender;
        this.birthday = birthday;
    }

    public User() {
    }
}
  • pug-ssm-dao

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pug-ssm-parent</artifactId>
        <groupId>com.yykk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pug-ssm-dao</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.yykk</groupId>
            <artifactId>pug-ssm-pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
        </dependency>
    </dependencies>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

</project>

dao/UserDao

package com.yykk.dao;

import com.yykk.domain.User;
import org.apache.ibatis.annotations.Param;

import java.util.List;

public interface UserDao {

    /**
     * 添加用户
     * @param user
     * @return
     */
    public boolean save(User user);

    /**
     * 修改用户
     * @param user
     * @return
     */
    public boolean update(User user);

    /**
     * 删除用户
     * @param id
     * @return
     */
    public boolean delete(Integer id);

    /**
     * 查询单个用户信息
     * @param id
     * @return
     */
    public User get(Integer id);

    /**
     * 查询全部用户信息
     * @return
     */
    public List<User> getAll();

    /**
     * 根据用户名或者密码查询个人信息
     * @param userName 用户名
     * @param password 密码信息
     * @return
     */
    // 注意：数据层操作不要和业务层操作的名称混淆，通常数据层只反映与数据库的信息交换，不体现业务逻辑！
    public User getByUserNameAndPassword(@Param("userName")String userName,@Param("password")String password);

}
  • pug-ssm-service

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pug-ssm-parent</artifactId>
        <groupId>com.yykk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pug-ssm-service</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.yykk</groupId>
            <artifactId>pug-ssm-dao</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.yykk</groupId>
            <artifactId>pug-ssm-config</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

service/UserService 以及 UserServiceImpl

package com.yykk.service;

import com.github.pagehelper.PageInfo;
import com.yykk.domain.User;
import org.apache.ibatis.annotations.Param;
import org.springframework.transaction.annotation.Transactional;

@Transactional(readOnly = true)
public interface UserService {


    /**
     * 添加用户
     * @param user
     * @return
     */
    @Transactional(readOnly = false)
    public boolean save(User user);

    /**
     * 修改用户
     * @param user
     * @return
     */
    @Transactional(readOnly = false)
    public boolean update(User user);

    /**
     * 删除用户
     * @param id
     * @return
     */
    @Transactional(readOnly = false)
    public boolean delete(Integer id);

    /**
     * 查询单个用户信息
     * @param id
     * @return
     */
    public User get(Integer id);

    /**
     * 查询全部用户信息
     * @return
     */
    public PageInfo<User> getAll(int page,int size);

    /**
     * 根据用户名或者密码查询个人信息
     * @param userName 用户名
     * @param password 密码信息
     * @return
     */
    public User login(@Param("userName")String userName, @Param("password")String password);

}

package com.yykk.service.impl;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.yykk.dao.UserDao;
import com.yykk.domain.User;
import com.yykk.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    @Override
    public boolean save(User user) {
        return userDao.save(user);
    }

    @Override
    public boolean update(User user) {
        return userDao.update(user);
    }

    @Override
    public boolean delete(Integer id) {
        return userDao.delete(id);
    }

    @Override
    public User get(Integer id) {
        return userDao.get(id);
    }

    @Override
    public PageInfo<User> getAll(int page, int size) {
        PageHelper.startPage(page,size);
        List<User> all = userDao.getAll();
        return new PageInfo<User>(all);
    }

    @Override
    public User login(String userName, String password) {
        return userDao.getByUserNameAndPassword(userName,password);
    }
}
  • pug-ssm-config

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pug-ssm-parent</artifactId>
        <groupId>com.yykk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pug-ssm-config</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--spring核心-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
        </dependency>
    </dependencies>

</project>

config/exception

package com.yykk.config.exception;

public class BusinessException extends RuntimeException {

    // 自定义异常中封装对应的错误编码，用于处理异常时获取对应的操作编码
    private Integer code;

    public BusinessException(Integer code) {
        this.code = code;
    }

    public BusinessException(String message, Integer code) {
        super(message);
        this.code = code;
    }

    public BusinessException(String message, Throwable cause, Integer code) {
        super(message, cause);
        this.code = code;
    }

    public BusinessException(Throwable cause, Integer code) {
        super(cause);
        this.code = code;
    }

    public BusinessException(String message, Throwable cause, boolean enableSuppression, boolean writableStackTrace, Integer code) {
        super(message, cause, enableSuppression, writableStackTrace);
        this.code = code;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }
}

config/interceptor

package com.yykk.config.interceptor;

import com.yykk.config.exception.BusinessException;
import com.yykk.config.results.Result;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;

@Component
@ControllerAdvice
public class ProjectExceptionAdvice {

    @ExceptionHandler(BusinessException.class)
    @ResponseBody
    // 对出现异常的情况进行拦截，并将其处理成统一的页面数据结果格式
    public Result doBusinessException(BusinessException e) {
        return new Result(e.getCode(),e.getMessage());
    }

}

config/results/Code

package com.yykk.config.results;

public class Code {

    //  操作结果编码
    public static final Integer SAVE_OK = 20011;
    public static final Integer UPDATE_OK = 20021;
    public static final Integer DELETE_OK = 20031;
    public static final Integer GET_OK = 20041;

    public static final Integer SAVE_ERROR = 20010;
    public static final Integer UPDATE_ERROR = 20020;
    public static final Integer DELETE_ERROR = 20030;
    public static final Integer GET_ERROR = 20040;

}

config/results/Result

package com.yykk.config.results;

public class Result {

    // 操作结果编码
    private Integer code;

    // 操作数据结果
    private Object data;

    // 消息
    private String message;

    public Result(Integer code, Object data) {
        this.code = code;
        this.data = data;
    }

    public Result(Integer code) {
        this.code = code;
    }

    @Override
    public String toString() {
        return "Result{" +
                "code=" + code +
                ", data=" + data +
                ", message='" + message + ''' +
                '}';
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

3、以上就对模块进行了拆分，对于我们具体的业务而言，我们需要建立一个webapp的模块进行开发！

  • pug-ssm-webpc

在这里进行数据库的依赖导入是为了后期开发其他可以随意切换数据源！

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>pug-ssm-parent</artifactId>
        <groupId>com.yykk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>pug-ssm-webpc</artifactId>
    <packaging>war</packaging>

    <name>pug-ssm-webpc Maven Webapp</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.yykk</groupId>
            <artifactId>pug-ssm-service</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- 导入 druid 的 jar 包 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>

        <!-- 导入 mysql 的 jar 包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
    </dependencies>

    <build>
        <finalName>pug-ssm-webpc</finalName>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-war-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

controller/UserController

package com.yykk.controller;


import com.github.pagehelper.PageInfo;
import com.yykk.config.exception.BusinessException;
import com.yykk.config.results.Code;
import com.yykk.config.results.Result;
import com.yykk.domain.User;
import com.yykk.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @PostMapping
    public Result save(User user){
        boolean flag = userService.save(user);
        return new Result(flag ? Code.SAVE_OK:Code.SAVE_ERROR);
    }

    @PutMapping
    public Result update(User user){
        boolean flag = userService.update(user);
        return new Result(flag ? Code.UPDATE_OK:Code.UPDATE_ERROR);
    }

    @DeleteMapping("/{id}")
    public Result delete(Integer id){
        boolean flag = userService.delete(id);
        return new Result(flag ? Code.DELETE_OK:Code.DELETE_ERROR);
    }

    @GetMapping("/{id}")
    public Result get(@PathVariable("id")Integer id) throws BusinessException {
        User user = userService.get(id);
        // 模拟出现异常，使用条件控制，便于测试结果
        if (id == 10) {
            throw new BusinessException("查询出错了，请重试！",Code.GET_ERROR);
        }
        return new Result(null != user ? Code.GET_OK :Code.GET_ERROR,user);
    }

    @GetMapping("/{page}/{size}")
    public Result getAll(@PathVariable Integer page,@PathVariable Integer size){
        PageInfo<User> all = userService.getAll(page, size);
        return new Result(null != all ? Code.GET_OK :Code.GET_ERROR,all);
    }

      @PostMapping("/login")
    public Result login(String username,String password){
        User user = userService.login(username,password);
        return new Result(null != user ? Code.GET_OK :Code.GET_ERROR,user);
    }
}

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:applicationContext.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath*:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

</web-app>

jdbc.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm_db?serverTimezone-GMT%2b8&useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.username=root
jdbc.password=123456

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">
    <!--开启bean注解扫描-->
    <context:component-scan base-package="com.yykk">
        <!--解决为什么要这样配置？因为controller不属于spring容器的管理，属于springmvc子容器管理-->
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <tx:annotation-driven transaction-manager="txManager"/>

    <!--引入db.properties文件-->
    <context:property-placeholder location="classpath*:jdbc.properties"/>

    <!--配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"></property>
        <property name="url" value="${jdbc.url}"></property>
        <property name="username" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>


    <!--配置SqlSessionFactoryBean 对象-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="typeAliasesPackage" value="com.yykk.domain"/>
        <!--绑定mybatis的核心配置文件-->
        <property name="mapperLocations" value="classpath*:/com.yykk.dao/*.xml"/>
        <!--分页插件-->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <props>
                            <prop key="helperDialect">mysql</prop>
                            <prop key="reasonable">true</prop>
                        </props>
                    </property>
                </bean>
            </array>
        </property>
    </bean>


    <!-- 映射扫描  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 待扫描的mapper 接口的包名 多个之间使用逗号分隔 -->
        <property name="basePackage" value="com.yykk.dao"/>
    </bean>

    <!--事务管理器-->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>


</beans>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    https://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <mvc:annotation-driven />

    <context:component-scan base-package="com.yykk.controller" />

</beans>

以及业务代码com.yykk.dao/UserDao.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.yykk.dao.UserDao">

    <!--添加-->
    <insert id="save" parameterType="com.yykk.domain.User">
        insert into ssm_db.kss_user(username, password, realName, gender, birthday)
        VALUES (#{userName},#{password},#{realName},#{gender},#{birthday})
    </insert>

    <!--删除-->
    <delete id="delete" parameterType="int">
        delete
        from ssm_db.kss_user where id = #{id};
    </delete>

    <!--更新-->
    <update id="update" parameterType="com.yykk.domain.User">
        update ssm_db.kss_user set
            username = #{userName},password = #{password},realName = #{realName},gender = #{gender},birthday = #{birthday}
        where id = #{id}
    </update>

    <!--查询单个-->
    <select id="get" resultType="com.yykk.domain.User">
        select * from ssm_db.kss_user where id = #{id}
    </select>

    <!--查询全部-->
    <select id="getAll" resultType="com.yykk.domain.User">
        SELECT * from ssm_db.kss_user
    </select>

    <!--登录-->
    <select id="getByUserNameAndPassword" resultType="com.yykk.domain.User">
        select * from ssm_db.kss_user where username=#{userName} and password = #{password}
    </select>

</mapper>

以上就是对模块化开发的全部整合内容，然后就可以尝试tomcat进行测试了，虽然配置了tomcat7 插件但是可能会因为部分原因不能进行使用，根据自己情况进行处理！

如果你勾选了这个小闪电，会让你打包的时候跳过test，提升速度！

image20220722184743402png

对于打包，你的pom.xml中如果有filename你可以自定义名字，就是你打包成功后的war/jar，如果不写就是你的 artifactId+version ！

avatar
文章
阅读
粉丝
