Swagger Knife4j动态替换文档中的响应参数和隐藏文档中的请求参数

土桥浪子
2,385 阅读9分钟

背景介绍

最近在使用swagger knife4j这个在线api文档工具的过程中，遇到了两个问题。

  1. 接口根据不同的入参返回不同类型对象，希望在api文档中展示出所有响应结果的文档
  2. 接口的请求参数对象中，部分属性是由后端填充的，所以希望在接口api文档中把这些入参隐藏掉。

为了解决上面提到的两个问题，我的第一反应是去网上查资料。但是找了一圈，也没有找到现成的解决方法。故而通过参考knife4j的某些扩展方式自己实现，并把自己的实现方法分享出来，以便有类似需求的小伙儿参考。

第2个问题其实knife4j的@ApiOperationSupport注解也能实现隐藏请求参数的效果，但是呢它有一个缺陷（或者说是bug），那就是一旦给方法加上该注解之后，如果请求参数中存在嵌套的对象，那么文档中生成的请求示例将会缺少部分参数。

实现思路

通过springfox的扩展机制，利用javassist动态创建类的方式来替换原接口的响应参数或请求参数对应的类 用到的扩展点如下：

// 替换响应结果中的类
springfox.documentation.spi.service.OperationBuilderPlugin
// 替换请求参数中的类
springfox.documentation.spi.service.ParameterBuilderPlugin
// 将javassist动态生成的类解析为Model，以便在knife4j页面中可以正常展示api文档
springfox.documentation.spi.service.OperationModelsProviderPlugin

利用以下两种注解提供接口的响应类型，兼容v2/v3

io.swagger.v3.oas.annotations.responses.ApiResponse
io.swagger.v3.oas.annotations.responses.ApiResponses

io.swagger.annotations.ApiResponses
io.swagger.annotations.ApiResponse

利用自定义注解来提供需要隐藏的参数信息

效果展示

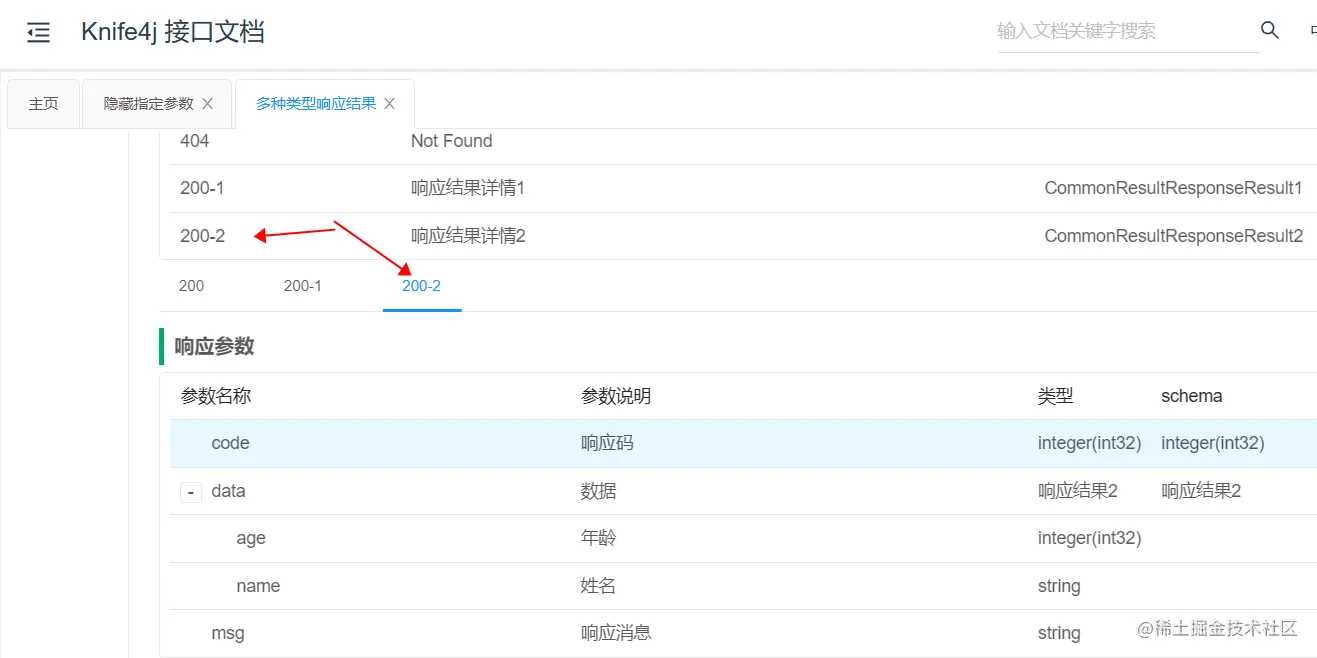

响应结果只能通过将状态码定义为类似200-1这种方式，因为所有状态都定义为200，则只会展示一种结果，就达不到目的了。当然这也算是这种解决方式的一个缺陷吧，但总归时实现了将所有响应类型的属性文档均展示出来了，更加方便对接的同学开发使用


image.png image.png

代码实现

工具类

import java.util.Set;
import java.util.function.Consumer;

import javassist.ClassClassPath;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtField;
import javassist.LoaderClassPath;
import javassist.Modifier;
import javassist.NotFoundException;
import javassist.bytecode.AnnotationsAttribute;
import javassist.bytecode.ClassFile;
import javassist.bytecode.ConstPool;
import javassist.bytecode.FieldInfo;
import javassist.bytecode.annotation.Annotation;
import javassist.bytecode.annotation.AnnotationMemberValue;
import javassist.bytecode.annotation.ArrayMemberValue;
import javassist.bytecode.annotation.BooleanMemberValue;
import javassist.bytecode.annotation.ByteMemberValue;
import javassist.bytecode.annotation.CharMemberValue;
import javassist.bytecode.annotation.ClassMemberValue;
import javassist.bytecode.annotation.DoubleMemberValue;
import javassist.bytecode.annotation.EnumMemberValue;
import javassist.bytecode.annotation.FloatMemberValue;
import javassist.bytecode.annotation.IntegerMemberValue;
import javassist.bytecode.annotation.LongMemberValue;
import javassist.bytecode.annotation.MemberValueVisitor;
import javassist.bytecode.annotation.ShortMemberValue;
import javassist.bytecode.annotation.StringMemberValue;
import lombok.extern.slf4j.Slf4j;

/**
 * javassist工具类
 */
@Slf4j
public class JavassistUtil {

	private static volatile ClassPool classPool;

	/**通过追加当前类加载器，解决springboot项目打包之后javassist提示找不到类的问题
	 * @return
	 */
	public static ClassPool getClassPool() {
		if(classPool!=null) {
			return classPool;
		}
		synchronized (JavassistUtil.class) {
			if(classPool==null) {
				ClassPool cp = ClassPool.getDefault();
				cp.appendClassPath(new LoaderClassPath(JavassistUtil.class.getClassLoader()));
				classPool = cp;
			}
		}
		return classPool;
	}

	/**获取属性类型
	 * @param propetyType
	 * @return
	 */
	public static CtClass getFieldType(Class<?> propetyType)  {
        CtClass fieldType= null;
        try{
            if (!propetyType.isAssignableFrom(Void.class)){
                fieldType=classPool.get(propetyType.getName());
            }else{
                fieldType=classPool.get(String.class.getName());
            }
        }catch (NotFoundException e){
            //抛异常
            ClassClassPath path=new ClassClassPath(propetyType);
            classPool.insertClassPath(path);
            try {
                fieldType=classPool.get(propetyType.getName());
            } catch (NotFoundException e1) {
            	 log.error(e1.getMessage(),e1);
                //can't find
            }
        }
        return fieldType;
    }

	/**获取属性的指定注解
	 * @param originClass
	 * @param fieldName
	 * @param annType
	 * @return
	 * @throws Exception
	 */
	public static Annotation getFieldAnnotation(Class<?> originClass, String fieldName, Class<? extends java.lang.annotation.Annotation> annType) throws Exception {
		CtClass sourceCtClass = JavassistUtil.getClassPool().get(originClass.getName());
		CtField oriCf = sourceCtClass.getField(fieldName);
		FieldInfo oriFi = oriCf.getFieldInfo();
		AnnotationsAttribute annAttr = (AnnotationsAttribute) oriFi.getAttribute(AnnotationsAttribute.visibleTag);
		return annAttr.getAnnotation(annType.getName());
	}

	/**获取类的指定注解
	 * @param originClass
	 * @param annType
	 * @return
	 * @throws Exception
	 */
	public static Annotation getClassAnnotation(Class<?> originClass, Class<? extends java.lang.annotation.Annotation> annType) throws Exception {
		CtClass sourceCtClass = JavassistUtil.getClassPool().get(originClass.getName());
		ClassFile classFile = sourceCtClass.getClassFile();
		AnnotationsAttribute annAttr = (AnnotationsAttribute) classFile.getAttribute(AnnotationsAttribute.visibleTag);
		return annAttr.getAnnotation(annType.getName());
	}

	/**向目标类中插入属性
	 * @param fieldName	属性名称
	 * @param fieldType	属性类型
	 * @param targetCtClass	目标类
	 * @param originAnns	原始注解
	 * @throws Exception
	 */
	public static void addField(String fieldName, Class<?> fieldType, CtClass targetCtClass, Annotation... originAnns) throws Exception {
		CtField field = new CtField(getFieldType(fieldType), fieldName, targetCtClass);
		field.setModifiers(Modifier.PUBLIC);
		addFieldAnnotation(field, originAnns);
		targetCtClass.addField(field);
	}

	/**给属性添加注解
	 * @param field
	 * @param originAnns
	 */
	public static void addFieldAnnotation(CtField field, Annotation... originAnns) {
		if(originAnns!=null && originAnns.length>0) {
			ConstPool targetCp = field.getFieldInfo().getConstPool();
			AnnotationsAttribute attr = new AnnotationsAttribute(targetCp, AnnotationsAttribute.visibleTag);
			for(Annotation originAnn : originAnns) {
				attr.addAnnotation(copyAnnotation(originAnn, targetCp));
			}
			field.getFieldInfo().addAttribute(attr);
		}
	}

	/** 向类添加注解
	 * @param targetCtClass
	 * @param modifier
	 * @param originAnns
	 */
	public static void addClassAnnotation(CtClass targetCtClass, Consumer<Annotation> modifier, Annotation... originAnns) {
		if(originAnns==null || originAnns.length==0) {
			return;
		}
		AnnotationsAttribute attr = new AnnotationsAttribute(targetCtClass.getClassFile().getConstPool(), AnnotationsAttribute.visibleTag);
		for (Annotation oriAnnotation : originAnns) {
			Annotation copyAnnotation = JavassistUtil.copyAnnotation(oriAnnotation, targetCtClass);
			modifier.accept(copyAnnotation);
			attr.addAnnotation(copyAnnotation);
		}
		targetCtClass.getClassFile().addAttribute(attr);
	}

	/**复制注解信息
	 * @param originAnn
	 * @param targetCtClass
	 * @return
	 */
	public static Annotation copyAnnotation(Annotation originAnn, CtClass targetCtClass) {
		ConstPool targetCp = targetCtClass.getClassFile().getConstPool();
		return copyAnnotation(originAnn, targetCp);
	}
	/**复制注解信息
	 * @param originAnn
	 * @param targetCp
	 * @return
	 */
	public static Annotation copyAnnotation(Annotation originAnn, ConstPool targetCp) {
		Annotation ann = new Annotation(originAnn.getTypeName(), targetCp);
		Set<String> memberNames = originAnn.getMemberNames();
		for (String memberName : memberNames) {
			originAnn.getMemberValue(memberName).accept(getVisitor(targetCp, ann, memberName));
		}
		return ann;
	}

	private static MemberValueVisitor getVisitor(ConstPool cp, Annotation ann, String memberName) {
		return new MemberValueVisitor() {
			@Override
			public void visitStringMemberValue(StringMemberValue node) {
				ann.addMemberValue(memberName, new StringMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitShortMemberValue(ShortMemberValue node) {
				ann.addMemberValue(memberName, new ShortMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitLongMemberValue(LongMemberValue node) {
				ann.addMemberValue(memberName, new LongMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitIntegerMemberValue(IntegerMemberValue node) {
				ann.addMemberValue(memberName, new IntegerMemberValue(cp, node.getValue()));
			}

			@Override
			public void visitFloatMemberValue(FloatMemberValue node) {
				ann.addMemberValue(memberName, new FloatMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitEnumMemberValue(EnumMemberValue node) {
				EnumMemberValue emv = new EnumMemberValue(cp);
				emv.setType(node.getType());
				emv.setValue(node.getValue());
				ann.addMemberValue(memberName, emv);
			}

			@Override
			public void visitDoubleMemberValue(DoubleMemberValue node) {
				ann.addMemberValue(memberName, new DoubleMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitClassMemberValue(ClassMemberValue node) {
				ann.addMemberValue(memberName, new ClassMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitCharMemberValue(CharMemberValue node) {
				ann.addMemberValue(memberName, new CharMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitByteMemberValue(ByteMemberValue node) {
				ann.addMemberValue(memberName, new ByteMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitBooleanMemberValue(BooleanMemberValue node) {
				ann.addMemberValue(memberName, new BooleanMemberValue(node.getValue(), cp));
			}

			@Override
			public void visitArrayMemberValue(ArrayMemberValue node) {
				ArrayMemberValue amv = new ArrayMemberValue(cp);
				amv.setValue(node.getValue());
				ann.addMemberValue(memberName, amv);
			}

			@Override
			public void visitAnnotationMemberValue(AnnotationMemberValue node) {
				ann.addMemberValue(memberName, new AnnotationMemberValue(node.getValue(), cp));
			}
		};
	}
}

展示多种响应结果

统一响应类

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String msg;
    private T data;
}

替换文档响应结果的类型

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.Optional;
import java.util.function.Consumer;
import java.util.function.Function;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.core.annotation.Order;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;

import com.fasterxml.classmate.ResolvedType;
import com.fasterxml.classmate.TypeResolver;
import com.github.xiaoymin.knife4j.spring.util.ByteUtils;

import cn.hutool.core.collection.CollUtil;
import io.swagger.v3.oas.annotations.media.Content;
import io.swagger.v3.oas.annotations.media.Schema;
import io.swagger.v3.oas.annotations.responses.ApiResponse;
import io.swagger.v3.oas.annotations.responses.ApiResponses;
import springfox.documentation.builders.RepresentationBuilder;
import springfox.documentation.builders.ResponseBuilder;
import springfox.documentation.schema.ModelSpecification;
import springfox.documentation.schema.ModelSpecificationProvider;
import springfox.documentation.schema.ResolvedTypes;
import springfox.documentation.schema.TypeNameExtractor;
import springfox.documentation.schema.plugins.SchemaPluginsManager;
import springfox.documentation.schema.property.PackageNames;
import springfox.documentation.service.Response;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.schema.ViewProviderPlugin;
import springfox.documentation.spi.schema.contexts.ModelContext;
import springfox.documentation.spi.service.OperationBuilderPlugin;
import springfox.documentation.spi.service.contexts.OperationContext;
import springfox.documentation.swagger.common.SwaggerPluginSupport;

@ConditionalOnProperty(prefix = "swagger", name = "enable", havingValue = "true")
@Component
@Order(SwaggerPluginSupport.OAS_PLUGIN_ORDER+1)
public class ApiResponseSchemaModelReader implements OperationBuilderPlugin {

	private final TypeNameExtractor typeNameExtractor;
	private final SchemaPluginsManager pluginsManager;
	private final ModelSpecificationProvider modelProvider;

	@Autowired
	private TypeResolver typeResolver;

	@Autowired
	public ApiResponseSchemaModelReader(TypeNameExtractor typeNameExtractor, SchemaPluginsManager pluginsManager,
			@Qualifier("cachedModels") ModelSpecificationProvider modelProvider) {
		super();
		this.typeNameExtractor = typeNameExtractor;
		this.pluginsManager = pluginsManager;
		this.modelProvider = modelProvider;
	}

	@Override
	public boolean supports(DocumentationType delimiter) {
		return true;
	}

	@Override
	public void apply(OperationContext operationContext) {
		if(applyV3(operationContext)) {
			return;
		}
		applyV2(operationContext);
	}
        /**
         * 解析v3版本注解中的响应类
         */
	private boolean applyV3(OperationContext context) {
		Optional<ApiResponses> apiResponses = context.findAnnotation(ApiResponses.class);
		List<ApiResponse> list = new ArrayList<>();
		if (apiResponses.isPresent()) {
			CollUtil.addAll(list, apiResponses.get().value());
		} else {
			Optional<ApiResponse> apiResponse = context.findAnnotation(ApiResponse.class);
			if (apiResponse.isPresent()) {
				list.add(apiResponse.get());
			}
		}
		if (list.isEmpty()) {
			return false;
		}
		for (ApiResponse apiResponse : list) {
			replaceResponse(context, apiResponse);
		}
		return list.size()>0;
	}
        /**
         * 解析v2版本注解中的响应类
         */
	private boolean applyV2(OperationContext context) {
		Optional<io.swagger.annotations.ApiResponses> apiResponses = context.findAnnotation(io.swagger.annotations.ApiResponses.class);
		List<io.swagger.annotations.ApiResponse> list = new ArrayList<>();
		if (apiResponses.isPresent()) {
			CollUtil.addAll(list, apiResponses.get().value());
		} else {
			Optional<io.swagger.annotations.ApiResponse> apiResponse = context.findAnnotation(io.swagger.annotations.ApiResponse.class);
			if (apiResponse.isPresent()) {
				list.add(apiResponse.get());
			}
		}
		if (list.isEmpty()) {
			return false;
		}
		for (io.swagger.annotations.ApiResponse apiResponse : list) {
			Class<?> clazz = apiResponse.response();
			replace(context, clazz, String.valueOf(apiResponse.code()), apiResponse.message());
		}
		return list.size()>0;
	}

	private void replaceResponse(OperationContext operationContext, ApiResponse apiResponse) {
		Content[] contents = apiResponse.content();
		if (contents == null || contents.length == 0) {
			return;
		}
		for (Content content : contents) {
			Schema schema = content.schema();
			Class<?> target = schema.implementation();
			replace(operationContext, target, apiResponse.responseCode(), apiResponse.description());
		}
	}

	private void replace(OperationContext operationContext, Class<?> target, String code, String description) {
		if (target == Void.class || target == null || CommonResult.class.isAssignableFrom(target)) {
			return;
		}
		ResponseBuilder responseBuilder = new ResponseBuilder();
                //动态生成的类名，须保证唯一性，避免被覆盖
		String clazzName = CommonResult.class.getName() + target.getSimpleName();
                // 利用knife4j中的工具类动态创建新的Class
		Class<?> loadClass = ByteUtils.load(clazzName);
		if (loadClass == null) {
			return;
		}
		ResolvedType returnType = operationContext.alternateFor(typeResolver.resolve(loadClass));
		if (ResolvedTypes.isVoid(returnType)) {
			return;
		}
		ModelContext modelContext = modelContext(operationContext, returnType);
		Optional<ModelSpecification> modelSpecificationsFor = modelProvider.modelSpecificationsFor(modelContext);
                // 创建api文档响应结果对应的Model
		modelSpecificationsFor.ifPresent((mds -> {
			String typeName = typeNameExtractor.typeName(ModelContext.fromParent(modelContext, returnType));
			Function<Consumer<RepresentationBuilder>, ResponseBuilder> function = responseBuilder.representation(MediaType.ALL);
			function.apply(builder -> {
				builder.model(mdsBuilder -> {
					mdsBuilder.name(mds.getName()).referenceModel(rm->{
						rm.key(m -> m.qualifiedModelName(q -> q.namespace(PackageNames.safeGetPackageName(returnType)).name(typeName))
								.viewDiscriminator(modelContext.getView().orElse(null))
								.validationGroupDiscriminators(modelContext.getValidationGroups()).isResponse(modelContext.isReturnType()).build());
					});
				});
			});
			Response response = responseBuilder.code(code).description(description).build();
			operationContext.operationBuilder().responses(Arrays.asList(response));
		}));
	}

	private ModelContext modelContext(OperationContext operationContext, ResolvedType returnType) {
		ViewProviderPlugin viewProvider = pluginsManager.viewProvider(operationContext.getDocumentationContext().getDocumentationType());
		return operationContext.operationModelsBuilder().addReturn(returnType, viewProvider.viewFor(operationContext));
	}
}

替换文档响应结果中的model

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.LinkedHashSet;
import java.util.List;
import java.util.Map;
import java.util.Optional;
import java.util.Set;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

import com.fasterxml.classmate.ResolvedType;
import com.fasterxml.classmate.TypeResolver;

import cn.hutool.core.collection.CollUtil;
import io.swagger.annotations.ApiModelProperty;
import io.swagger.v3.oas.annotations.media.Content;
import io.swagger.v3.oas.annotations.media.Schema;
import io.swagger.v3.oas.annotations.responses.ApiResponse;
import io.swagger.v3.oas.annotations.responses.ApiResponses;
import javassist.CannotCompileException;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtField;
import javassist.Modifier;
import javassist.NotFoundException;
import javassist.bytecode.AnnotationsAttribute;
import javassist.bytecode.ConstPool;
import javassist.bytecode.annotation.Annotation;
import javassist.bytecode.annotation.BooleanMemberValue;
import javassist.bytecode.annotation.StringMemberValue;
import lombok.extern.slf4j.Slf4j;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.OperationModelsProviderPlugin;
import springfox.documentation.spi.service.contexts.RequestMappingContext;

@Slf4j
@ConditionalOnProperty(prefix = "swagger", name = "enable", havingValue = "true")
@Component
@Order(Ordered.HIGHEST_PRECEDENCE+14)
public class ApiResponseSchemaModelsProvider implements OperationModelsProviderPlugin {

	@Autowired
    private TypeResolver typeResolver;

	private Map<Class<?>, ResolvedType> cache = new HashMap<>();

	@Override
	public boolean supports(DocumentationType delimiter) {
		return true;
	}

	@Override
	public void apply(RequestMappingContext context) {
		Set<Class<?>> modelClazzes = findV3SchemaModels(context);
		if(CollUtil.isEmpty(modelClazzes)) {
			modelClazzes = findSchemaModels(context);
		}

		for (Class<?> clazz : modelClazzes) {
			if(clazz==Void.class || clazz==null || CommonResult.class.isAssignableFrom(clazz)) {
				continue;
			}
			ResolvedType modelType = cache.get(clazz);
			if(modelType==null) {
				Class<?> dynamicModelClass = createDynamicModelClass(clazz);
				modelType=context.alternateFor(typeResolver.resolve(dynamicModelClass==null ?clazz : dynamicModelClass));
				cache.put(clazz, modelType);
			}
                        context.operationModelsBuilder().addReturn(modelType);
		}
	}

	private Set<Class<?>> findV3SchemaModels(RequestMappingContext context) {
		Optional<ApiResponses> apiResponses = context.findAnnotation(ApiResponses.class);
		List<ApiResponse> list = new ArrayList<>();
		if(apiResponses.isPresent()) {
			CollUtil.addAll(list, apiResponses.get().value());
		}else {
			Optional<ApiResponse> apiResponse = context.findAnnotation(ApiResponse.class);
			if(apiResponse.isPresent()) {
				list.add(apiResponse.get());
			}
		}
		if(list.isEmpty()) {
			return Collections.emptySet();
		}
		Set<Class<?>> modelClazzes = new LinkedHashSet<>();
		for (ApiResponse apiResponse : list) {
			Content[] contents = apiResponse.content();
			if(contents==null || contents.length==0) {
				continue;
			}
			for (Content content : contents) {
				Schema schema = content.schema();
				modelClazzes.add(schema.implementation());
			}
		}
		return modelClazzes;
	}

	private Set<Class<?>> findSchemaModels(RequestMappingContext context) {
		Optional<io.swagger.annotations.ApiResponses> apiResponses = context.findAnnotation(io.swagger.annotations.ApiResponses.class);
		List<io.swagger.annotations.ApiResponse> list = new ArrayList<>();
		if(apiResponses.isPresent()) {
			CollUtil.addAll(list, apiResponses.get().value());
		}else {
			Optional<io.swagger.annotations.ApiResponse> apiResponse = context.findAnnotation(io.swagger.annotations.ApiResponse.class);
			if(apiResponse.isPresent()) {
				list.add(apiResponse.get());
			}
		}
		if(list.isEmpty()) {
			return Collections.emptySet();
		}
		Set<Class<?>> modelClazzes = new LinkedHashSet<>();
		for (io.swagger.annotations.ApiResponse apiResponse : list) {
			Class<?> clazz = apiResponse.response();
			modelClazzes.add(clazz);
		}
		return modelClazzes;
	}

    /**
     * createModel
     * @param name 类名
     * @param parameters 属性集合
     * @return 动态生成类
     */
    public static Class<?> createDynamicModelClass(Class<?> target){
        String clazzName= CommonResult.class.getName() + target.getSimpleName();
        ClassPool classPool = JavassistUtil.getClassPool();
        try {
            CtClass tmp=classPool.getCtClass(clazzName);
            if (tmp!=null){
                tmp.detach();
            }
        } catch (NotFoundException e) {
        }
        CtClass ctClass=classPool.makeClass(clazzName);
        try{
        	ctClass.addField(createField("code", int.class, "响应码", ctClass));
        	ctClass.addField(createField("msg", String.class, "响应消息", ctClass));
        	ctClass.addField(createField("data", target, "数据", ctClass));
        	return ctClass.toClass();
        }catch (Throwable e){
            log.error(e.getMessage());
        }
        return null;
    }

    private static CtField createField(String name, Class<?> type, String remark, CtClass ctClass) throws NotFoundException, CannotCompileException {
        CtField field=new CtField(JavassistUtil.getFieldType(type),name,ctClass);
        field.setModifiers(Modifier.PUBLIC);
        ConstPool constPool=ctClass.getClassFile().getConstPool();
        AnnotationsAttribute attr = new AnnotationsAttribute(constPool, AnnotationsAttribute.visibleTag);
        Annotation ann = new Annotation(ApiModelProperty.class.getName(), constPool);
        ann.addMemberValue("value", new StringMemberValue(remark, constPool));
        ann.addMemberValue("required", new BooleanMemberValue(false,constPool));
        attr.addAnnotation(ann);
        field.getFieldInfo().addAttribute(attr);
        return field;
    }
}

隐藏输入参数

自定义注解

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 * 忽略某些请求参数
 */
@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ApiIgnoreInParam {

	/** 指定的类型
	 * @return
	 */
	Class<?> value() default Void.class;

	/** 指定的类型的属性名称
	 * @return
	 */
	String[] names();

	@Target(ElementType.METHOD)
	@Retention(RetentionPolicy.RUNTIME)
	@Documented
	public @interface ApiIgnoreInParams {
		ApiIgnoreInParam[] value();
	}
}

替换请求参数类

import java.lang.reflect.Field;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.HashSet;
import java.util.List;
import java.util.Map;
import java.util.Optional;
import java.util.Set;
import java.util.UUID;
import java.util.concurrent.atomic.AtomicInteger;

import org.apache.commons.collections4.keyvalue.MultiKey;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

import com.fasterxml.classmate.ResolvedType;
import com.fasterxml.classmate.TypeResolver;

import cn.hutool.core.text.CharSequenceUtil;
import cn.hutool.core.util.ReflectUtil;
import cn.hutool.json.JSONUtil;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import javassist.CtClass;
import javassist.bytecode.annotation.Annotation;
import javassist.bytecode.annotation.StringMemberValue;
import lombok.extern.slf4j.Slf4j;
import springfox.documentation.service.ResolvedMethodParameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.service.OperationModelsProviderPlugin;
import springfox.documentation.spi.service.contexts.RequestMappingContext;

@Slf4j
@ConditionalOnProperty(prefix = "swagger", name = "enable", havingValue = "true")
@Component
@Order(Ordered.HIGHEST_PRECEDENCE + 15)
public class ApiIgnoreSchemaModelsProvider implements OperationModelsProviderPlugin {

	private static Map<MultiKey<String>, ResolvedType> cache = new HashMap<>();

	private static AtomicInteger num = new AtomicInteger();

	@Autowired
	private TypeResolver typeResolver;

	static ResolvedType getCachedResolvedType(Class<?> rawType, Set<String> names) {
		List<String> sortedNames = new ArrayList<>(names);
		Collections.sort(sortedNames);
		MultiKey<String> key = new MultiKey<String>(rawType.getName(), JSONUtil.toJsonStr(sortedNames));
		return cache.get(key);
	}

	@Override
	public boolean supports(DocumentationType delimiter) {
		return true;
	}

	@Override
	public void apply(RequestMappingContext context) {
		Map<Class, Set<String>> ignores = getIgnoreFieldNames(context);
		if (ignores.isEmpty()) {
			return;
		}
		List<ResolvedMethodParameter> parameters = context.getParameters();
		for (ResolvedMethodParameter methodParameter : parameters) {
			Class<?> originClass = methodParameter.getParameterType().getErasedType();
			Set<String> nestedNames = ignores.get(originClass);
			if (nestedNames == null) {
				return;
			}
			List<String> sortedNames = new ArrayList<>(nestedNames);
			Collections.sort(sortedNames);
			MultiKey<String> key = new MultiKey<String>(originClass.getName(), JSONUtil.toJsonStr(sortedNames));
			if (cache.containsKey(key)) {
				continue;
			}
			// 忽略指定的属性
			Field[] fields = ReflectUtil.getFields(originClass, f -> f.isAnnotationPresent(ApiModelProperty.class) && !nestedNames.contains(f.getName()));
			if (fields == null || fields.length == 0) {
				return;
			}
			Set<Class> processed = new HashSet<>();
			Map<Class, List<Field>> validFieldMap = new HashMap<>();
			filterField(originClass, ignores, validFieldMap, processed);

			// 创建忽略指定属性的Model类
			String targetClassName = getDynClassName(originClass);
			Class<?> modelClass = createModelClass(targetClassName, originClass, validFieldMap);
			if (modelClass == null) {
				return;
			}
			ResolvedType resolvedType = context.alternateFor(typeResolver.resolve(modelClass));
			context.operationModelsBuilder().addInputParam(resolvedType);
			cache.put(key, resolvedType);
		}
	}

	private Class<?> createModelClass(String targetClassName, Class<?> originClass, Map<Class, List<Field>> validFieldMap) {
		List<Field> fields = validFieldMap.get(originClass);
		if (fields == null) {
			return null;
		}
		try {
			CtClass targetCtClass = JavassistUtil.getClassPool().makeClass(targetClassName);

			// 为动态创建的类添加@ApiModel注解
			Annotation oriAnnotation = JavassistUtil.getClassAnnotation(originClass, ApiModel.class);
			JavassistUtil.addClassAnnotation(targetCtClass, ca->{
				// 使用唯一名称覆盖原来的Model名称，避免引用到原始Model
				StringMemberValue smv = (StringMemberValue) ca.getMemberValue("value");
				smv.setValue(smv.getValue() + "_" + num.incrementAndGet());
			}, oriAnnotation);

			// 添加类属性
			for (Field field : fields) {
				Class<?> ft = field.getType();
				if (validFieldMap.containsKey(ft)) {
					ft = createModelClass(getDynClassName(ft), ft, validFieldMap);
					if (ft == null) {
						continue;
					}
				}
				Annotation originAnn = JavassistUtil.getFieldAnnotation(originClass, field.getName(), ApiModelProperty.class);
				JavassistUtil.addField(field.getName(), ft, targetCtClass, originAnn);
			}

			return targetCtClass.toClass();
		} catch (Exception e) {
			log.error("动态隐藏接口参数出错", e);
			return null;
		}
	}

	private String getDynClassName(Class<?> clazz) {
		return clazz.getName() + "_" + UUID.randomUUID().toString().replace('-', '_');
	}

	private void filterField(Class<?> originClass, Map<Class, Set<String>> ignores, Map<Class, List<Field>> validFieldMap, Set<Class> processed) {
		if (!processed.add(originClass)) {
			return;
		}
		Field[] fields = ReflectUtil.getFields(originClass, f -> f.isAnnotationPresent(ApiModelProperty.class));
		if (fields == null || fields.length == 0) {
			return;
		}
		List<Field> validFields = new ArrayList<>(fields.length);
		validFieldMap.put(originClass, validFields);
		Set<String> names = ignores.get(originClass);
		for (Field field : fields) {
			if (names != null && names.contains(field.getName())) {
				continue;
			}
			validFields.add(field);
			Class<?> ft = field.getType();
			if (!ft.isAnnotationPresent(ApiModel.class)) {
				continue;
			}
			filterField(ft, ignores, validFieldMap, processed);
		}
	}

	private Map<Class, Set<String>> getIgnoreFieldNames(RequestMappingContext context) {
		Optional<ApiIgnoreInParams> more = context.findAnnotation(ApiIgnoreInParams.class);
		List<ApiIgnoreInParam> inParams = new ArrayList<>();
		more.ifPresent(ps -> Arrays.stream(ps.value()).forEach(inParams::add));
		Optional<ApiIgnoreInParam> one = context.findAnnotation(ApiIgnoreInParam.class);
		one.ifPresent(inParams::add);
		Map<Class, Set<String>> map = new HashMap<>(inParams.size(), 1);
		for (ApiIgnoreInParam apiIgnoreInParam : inParams) {
			Set<String> names = map.get(apiIgnoreInParam.value());
			if (names == null) {
				names = new HashSet<>();
				map.put(apiIgnoreInParam.value(), names);
			}
			for (String name : apiIgnoreInParam.names()) {
				if (CharSequenceUtil.isNotBlank(name)) {
					names.add(name);
				}
			}
			if (!names.isEmpty()) {
				map.put(apiIgnoreInParam.value(), names);
			}
		}
		return map;
	}
}

替换文档中的请求参数Model

import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashMap;
import java.util.HashSet;
import java.util.List;
import java.util.Map;
import java.util.Optional;
import java.util.Set;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

import com.fasterxml.classmate.ResolvedType;

import cn.hutool.core.text.CharSequenceUtil;
import javassist.ClassPool;
import springfox.documentation.schema.ModelSpecification;
import springfox.documentation.schema.ModelSpecificationProvider;
import springfox.documentation.schema.plugins.SchemaPluginsManager;
import springfox.documentation.schema.property.ModelSpecificationFactory;
import springfox.documentation.service.ResolvedMethodParameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spi.schema.ViewProviderPlugin;
import springfox.documentation.spi.schema.contexts.ModelContext;
import springfox.documentation.spi.service.ParameterBuilderPlugin;
import springfox.documentation.spi.service.contexts.OperationContext;
import springfox.documentation.spi.service.contexts.ParameterContext;

@SuppressWarnings("deprecation")
@Component
@Order(Ordered.HIGHEST_PRECEDENCE + 101)
public class ApiIgnoreParameterBuilderPlugin implements ParameterBuilderPlugin {

	static final ClassPool classPool = ClassPool.getDefault();

	@Autowired
	private SchemaPluginsManager pluginsManager;
	@Autowired
	private ModelSpecificationFactory models;
	@Autowired
	@Qualifier("cachedModels")
	private ModelSpecificationProvider modelProvider;

	@Override
	public boolean supports(DocumentationType delimiter) {
		return true;
	}

	@Override
	public void apply(ParameterContext parameterContext) {
		Map<Class, Set<String>> ignores = getIgnoreFieldNames(parameterContext);
		if (ignores.isEmpty()) {
			return;
		}
		ResolvedMethodParameter methodParameter = parameterContext.resolvedMethodParameter();
		Optional<String> defaultName = methodParameter.defaultName();
		Set<String> names = ignores.get(Void.class);
		// 未明确指定类型，则当作全局数据处理
		if (names != null && defaultName.isPresent() && names.contains(defaultName.get())) {
			parameterContext.parameterBuilder().hidden(true);
			return;
		}
		Class<?> originClass = methodParameter.getParameterType().getErasedType();
		Set<String> nestedNames = ignores.get(originClass);
		if (nestedNames == null) {
			return;
		}
		ResolvedType resolvedType = ApiIgnoreSchemaModelsProvider.getCachedResolvedType(originClass, nestedNames);
		if(resolvedType==null) {
			return;
		}
                // 替换参数对应的Model
		ResolvedType parameterType = parameterContext.alternateFor(resolvedType);
		ModelContext modelContext = modelContext(parameterContext, methodParameter, parameterType);
		ModelSpecification parameterModel = models.create(modelContext, parameterType);
		parameterContext.requestParameterBuilder().contentModel(parameterModel);
	}

	private Map<Class, Set<String>> getIgnoreFieldNames(ParameterContext parameterContext) {
		OperationContext operationContext = parameterContext.getOperationContext();
		Optional<ApiIgnoreInParams> more = operationContext.findAnnotation(ApiIgnoreInParams.class);
		List<ApiIgnoreInParam> inParams = new ArrayList<>();
		more.ifPresent(ps -> Arrays.stream(ps.value()).forEach(inParams::add));
		Optional<ApiIgnoreInParam> one = operationContext.findAnnotation(ApiIgnoreInParam.class);
		one.ifPresent(inParams::add);
		Map<Class, Set<String>> map = new HashMap<>(inParams.size(), 1);
		for (ApiIgnoreInParam apiIgnoreInParam : inParams) {
			Set<String> names = map.get(apiIgnoreInParam.value());
			if (names == null) {
				names = new HashSet<>();
				map.put(apiIgnoreInParam.value(), names);
			}
			for (String name : apiIgnoreInParam.names()) {
				if (CharSequenceUtil.isNotBlank(name)) {
					names.add(name);
				}
			}
			if (!names.isEmpty()) {
				map.put(apiIgnoreInParam.value(), names);
			}
		}
		return map;
	}

	private ModelContext modelContext(ParameterContext context, ResolvedMethodParameter methodParameter, ResolvedType parameterType) {
		ViewProviderPlugin viewProvider = pluginsManager.viewProvider(context.getDocumentationContext().getDocumentationType());
		return context.getOperationContext().operationModelsBuilder().addInputParam(parameterType, viewProvider.viewFor(methodParameter), new HashSet<>());
	}
}

应用示例

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import io.swagger.annotations.Api;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.media.Content;
import io.swagger.v3.oas.annotations.media.Schema;
import io.swagger.v3.oas.annotations.responses.ApiResponse;
import io.swagger.v3.oas.annotations.responses.ApiResponses;

@Api(value = "演示接口", tags = "演示接口")
@RestController
@RequestMapping("/demo")
public class DemoController {

	@Operation(summary = "多种类型响应结果", description = "多种类型响应结果")
	@ApiResponses({
		@ApiResponse(responseCode = "200-1", description = "响应结果详情1", content = @Content(schema = @Schema(implementation = ResponseResult1.class)))
		,@ApiResponse(responseCode = "200-2", description = "响应结果详情2", content = @Content(schema = @Schema(implementation = ResponseResult2.class)))
	})
	@GetMapping("/multiTypeResponse")
	public CommonResult<Object> multiTypeResponse() {
		return CommonResult.success(null);
	}

        //若要隐藏请求参数中某个类型的某些属性，那么需使用@ApiIgnoreInParams
        //@ApiIgnoreInParams({
        //@ApiIgnoreInParam(value = RequestParams.class, names = {"param1"}),
        //@ApiIgnoreInParam(value = Nested.class, names = {"field1"}),
        //})
        //上面的用法，将会隐藏RequestParams类型的param1属性，以及Nested类型的field1属性
        //不区分RequestParams嵌套Nested，还是Nested嵌套RequestParams
	@ApiIgnoreInParam(value = RequestParams.class, names = {"param1", "param2", "param3"})
	@Operation(summary = "隐藏指定参数", description = "隐藏指定参数")
	@PostMapping("/hideRequestParams")
	public CommonResult<Boolean> hideRequestParams(@RequestBody RequestParams param) {
		return CommonResult.success(true);
	}
}

@ApiModel("响应结果1")
@Getter
@Setter
public class ResponseResult1 {

	@ApiModelProperty("id")
	private String id;
	@ApiModelProperty("名称")
	private String name;
}

@ApiModel("响应结果2")
@Getter
@Setter
public class ResponseResult2 {

	@ApiModelProperty("姓名")
	private String name;
	@ApiModelProperty("年龄")
	private int age;
}

@ApiModel("请求参数")
@Getter
@Setter
public class RequestParams {

	@ApiModelProperty("参数1")
	private String param1;
	@ApiModelProperty("参数2")
	private String param2;
	@ApiModelProperty("参数3")
	private String param3;
	@ApiModelProperty("姓名")
	private String name;
	@ApiModelProperty("地址")
	private String address;
}
avatar
文章
阅读
粉丝
