前文传送门

《从零开始｜构建 Flutter 多引擎渲染组件：先导篇》《从零开始｜构建 Flutter 多引擎渲染组件：Flutter 工程篇》《从零开始｜构建 Flutter 多引擎渲染组件：Flutter 代码篇》

(本文代码较多，分为 iOS、Android 两部分)

前文讲了如何一步步构建 Flutter 侧多引擎渲染组件框架，本文则会深入探讨下在 iOS、Android 源生侧我们是怎样思考实现调用端代码。

实现目标上着重这两个方向：

抹平：像使用原生组件一样的去使用 Flutter 组件，减少 Native 开发同学对 Flutter 代码的感知。

灾备：一旦 Flutter 组件出现异常，也可以内部实现改为原生替代，无需更改外部调用。

iOS

思考

虽然我们构建的 Flutter 多引擎渲染组件是很独立的，但对于 Flutter 整体架构，在 iOS 上， Flutter 打包成 framework 后，有且只有一个 main.dart 入口。所以业务代码和组件代码只能打包在一起（如果有可以分开打包实现不同的 App.xcframework 的方式，请评论告知，感激～）。

在多业务多项目的实际情况下，依赖关系就变得十分逆向，组件调用层代码去依赖业务层混合的 Flutter Framework，这在工程层面是不允许出现的。

那我们有什么方式可以解开吗？不然整个方案就没有什么意义。

好在 iOS 是运行时语言，可以用动态反射来做很多事。

整体结构

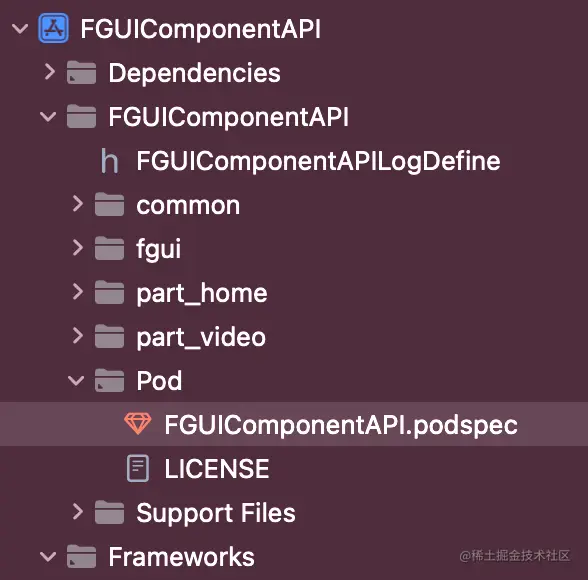

FGUIComponentAPI 是我们独立的组件调用层库。可以看到它的组成也是跟前文组件建设一致，分为 fgui、part_home、part_video 这几部分。

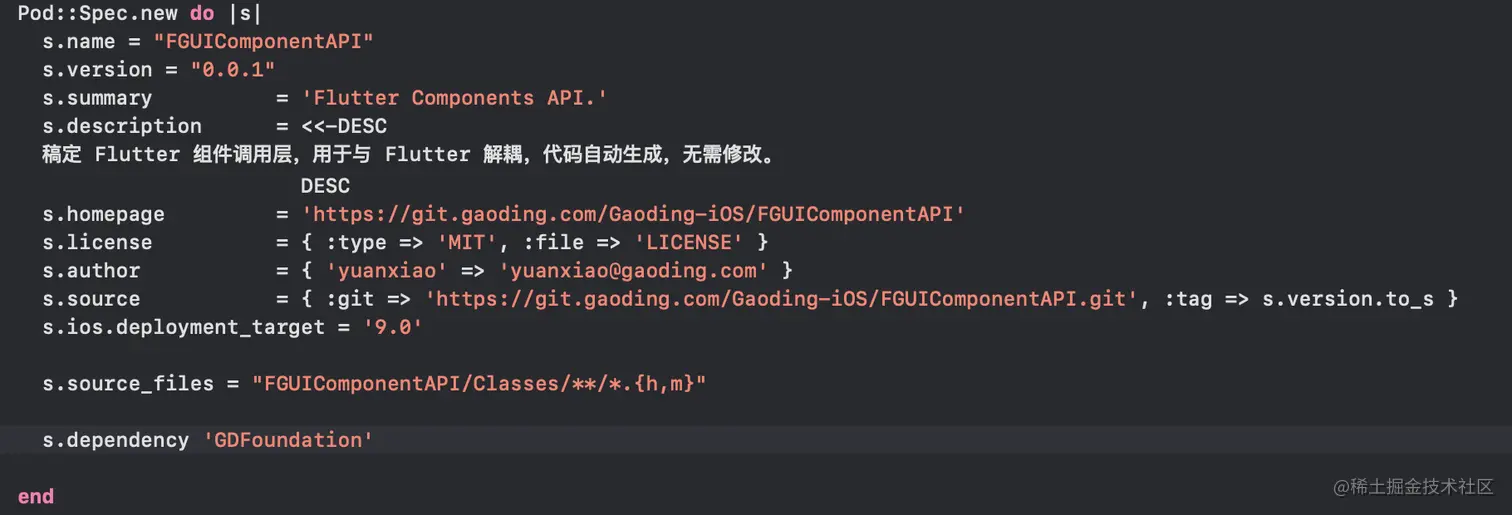

可以看它的 podspec 文件:

除了依赖一个项目基础库 GDFoudation 外，不再依赖任何库。看上去跟 Flutter 一点关系也没有。

common

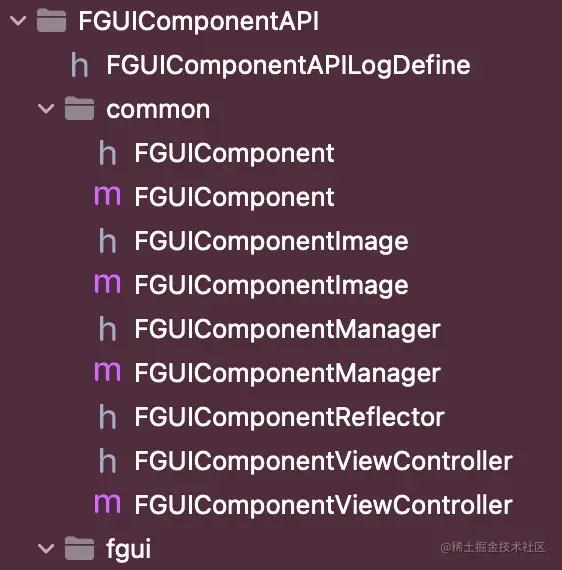

仔细的同学可能看到了我们多了一个 common group，这里面存放的是一些基类，用于简化整个反射流程：

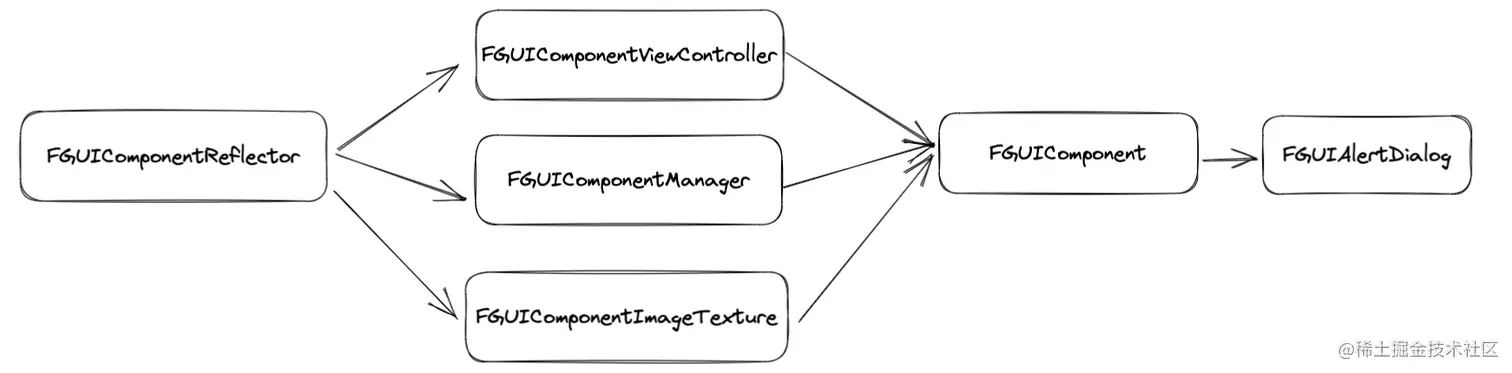

简单画一个他们的依赖关系图：

FGUIComponentReflector

FGUIComponentReflector 只是一个声明头文件，把 Flutter 用到的类型都声明一遍，更优雅的使用反射～

/// 映射 FlutterEngine 及其内部属性方法
@protocol FGUIComponentFlutterEngine <NSObject>

@property (nonatomic, strong, nullable) id binaryMessenger;

@property (nonatomic) NSDictionary *registrars;

- (NSObject<FGUIComponentFlutterPluginRegistrar> *)registrarForPlugin:(NSString *)pluginKey;

- (void)destroyContext;

@end

/// 映射 FlutterEngineGroup 及其内部属性方法
@protocol FGUIComponentFlutterEngineGroup <NSObject>

- (instancetype)initWithName:(NSString *)labelPrefix project:(nullable id)project;

@optional
- (id)makeEngineWithEntrypoint:(nullable NSString *)entrypoint
                    libraryURI:(nullable NSString *)libraryURI;

@end

FGUIComponentManager

提供多引擎组件管理，直接看代码。

FGUIComponentManager.h

// 伪造一个 FlutterEngineGroup，让外部优雅的使用
@interface FGUIComponentFlutterEngineGroup : NSObject <FGUIComponentFlutterEngineGroup>

@end

// 提供给外部使用的多引擎管理类
@interface FGUIComponentManager : NSObject

// 声明是一个单例
AS_SINGLETON(GDFlutterComponentManager)

// 声明一个只读的 FlutterEngineGroup
@property (nonatomic, strong, readonly) FGUIComponentFlutterEngineGroup *engineGroup;

// 生产 FlutterEngine 实例
- (id<FGUIComponentFlutterEngine>)makeEngineWithEntrypoint:(nullable NSString *)entrypoint
                                                libraryURI:(nullable NSString *)libraryURI;

@end

FGUIComponentManager.m

@implementation FGUIComponentFlutterEngineGroup

// 这里通过类名反射来初始化真实的 FlutterEngineGroup
- (nonnull instancetype)initWithName:(nonnull NSString *)labelPrefix project:(nullable id)project {
    Class class = NSClassFromString(@"FlutterEngineGroup");
    GDAssert(NSStringFromClass(class).length, @"FlutterEngineGroup is not found");
    // 这里 self = FlutterEngineGroup 的真实实例，而不是 FGUIComponentFlutterEngineGroup 这个空壳类
    self = [[class alloc] initWithName:labelPrefix project:project];
    GDAssert(self, @"FlutterEngineGroup is not initialized");
    return self;
}

@end

@interface FGUIComponentManager ()

/// flutter 多引擎
@property (nonatomic, strong, readwrite) id<FGUIComponentFlutterEngineGroup> engineGroup;

@end

@implementation FGUIComponentManager

DEF_SINGLETON(GDFlutterComponentManager) // 单例实现，宏具体在 `GDFoundation` 中，这里不体现

- (instancetype)init {
    // 这里定义一个 components 作为模块名，让所有多引擎组件都使用同一组线程，方便调试定位问题。
    return [self initWithModuleName:@"components"];
}

- (instancetype)initWithModuleName:(NSString *)moduleName {
    self = [super init];
    if (self) {
        // 通过 FGUIComponentFlutterEngineGroup 构造一个 FlutterEngineGroup 实例
        self.engineGroup = [[FGUIComponentFlutterEngineGroup alloc] initWithName:moduleName project:nil];
    }
    return self;
}

- (id<FGUIComponentFlutterEngine>)makeEngineWithEntrypoint:(NSString *)entrypoint libraryURI:(NSString *)libraryURI {
    // 构造一个 FlutterEngine
    id engine = [self.engineGroup makeEngineWithEntrypoint:entrypoint libraryURI:libraryURI];
    return engine;
}

@end

FGUIComponentViewController

这一个 FlutterViewController 的控制类，本来试了也用 FGUIComponentFlutterEngineGroup 的方式做个伪装，但在 View 上不好处理，毕竟我们需要在 View 上加点料，最后是用组合的方式来实现。

FGUIComponentViewController.h

@interface FGUIComponentViewController : NSObject

// 返回真实的 FlutterViewController
@property (nonatomic, strong, readonly) UIViewController *flutterViewController;

// 使用 FlutterEngine 来初始化
- (instancetype)initWithEngine:(id<FGUIComponentFlutterEngine>)engine;

// 从内存中清理
- (void)clear;

@end

FGUIComponentViewController.m

// 伪造 FlutterViewController
@protocol FGUIComponentViewController <NSObject>

// 提供初始化方法
@optional
- (instancetype)initWithEngine:(id<FGUIComponentFlutterEngine>)engine
                       nibName:(nullable NSString*)nibName
                        bundle:(nullable NSBundle*)nibBundle;

@end

@interface FGUIComponentViewController () <FGUIComponentViewController>

@property (nonatomic, strong, readwrite) UIViewController *flutterViewController;

// 弱引用 FlutterEngine
@property (nonatomic, weak) id<FGUIComponentFlutterEngine> engine;

@end

@implementation FGUIComponentViewController

- (instancetype)initWithEngine:(id<FGUIComponentFlutterEngine>)engine {
    self = [super init];
    if (self) {
        self.engine = engine;
        [self setupFlutterView];
        [self setupGestureRecognizer];
    }
    return self;
}

- (void)setupFlutterView {
    Class class = NSClassFromString(@"FlutterViewController");
    GDAssert(NSStringFromClass(class).length, @"Flutter.framework is not dependent");
    // viewController 即是一个 FlutterViewController
    UIViewController *viewController = [[class alloc] initWithEngine:self.engine nibName:nil bundle:nil];
    GDAssert(viewController, @"flutterVC is not initialized");
    [self warmUpEngine:viewController];
    viewController.view.backgroundColor = UIColor.clearColor;
    self.flutterViewController = viewController;
}

// 增加手势竞争，防止被 Native 代码拦截
- (void)setupGestureRecognizer {
    UIPanGestureRecognizer *panGestureRecognizer = [[UIPanGestureRecognizer alloc] init];
    panGestureRecognizer.cancelsTouchesInView = NO;
    [self.flutterViewController.view addGestureRecognizer:panGestureRecognizer];

    UITapGestureRecognizer *tapGestureRecognizer = [[UITapGestureRecognizer alloc] init];
    tapGestureRecognizer.cancelsTouchesInView = NO;
    [self.flutterViewController.view addGestureRecognizer:tapGestureRecognizer];
}

// 强制清理
- (void)clear {
    [self.flutterViewController.view removeFromSuperview];
    [self.flutterViewController removeFromParentViewController];
    self.flutterViewController = nil;
}

/// 构建即预热引擎
- (void)warmUpEngine:(UIViewController *)viewController {
    [viewController beginAppearanceTransition:YES animated:NO];
    [viewController endAppearanceTransition];
    [viewController beginAppearanceTransition:NO animated:NO];
    [viewController endAppearanceTransition];
}

@end

FGUIComponentImage

这是 UIImage 外接纹理实现，不在这里做代码详述，有兴趣的同学看这篇，传送门《Flutter 多引擎渲染，外接纹理实践》

FGUIComponent

FGUIComponent 组合以上的反射使用类，提供给外部一个封装的入口。

FGUIComponent.h

// 提供一些通用的参数，本本不涉及，忽略
@protocol FGUIComponentFuncProtocol <NSObject>

...

@end

@interface FGUIComponent : NSObject <FGUIComponentFuncProtocol>

/// 当前宿主 VC（只读）
@property (nonatomic, weak, readonly) UIViewController *hostVC;

/// 当前 FlutterVC (只读)
@property (nonatomic, strong, readonly) FGUIComponentViewController *flutterVC;

/// 提供初始化方法
- (instancetype)initWithHostVC:(UIViewController *)hostVC
                  flutterClass:(Class)flutterClass
                    entrypoint:(NSString *)entrypoint
                    libraryURI:(NSString *)libraryURI;

/// 返回 FlutterView 视图
- (UIView *)view;

/// 清理
- (void)clear;

// 禁用无参初始化方法
- (instancetype)init NS_UNAVAILABLE;
+ (instancetype)new NS_UNAVAILABLE;

@end

FGUIComponent.m

@interface FGUIComponent ()

...

@end

@implementation FGUIComponent

- (instancetype)initWithHostVC:(UIViewController *)hostVC
                  flutterClass:(Class)flutterClass
                    entrypoint:(NSString *)entrypoint
                    libraryURI:(NSString *)libraryURI {
    self = [super init];
    if (self) {
        ...
        self.hostVC = hostVC;
        self.engine = [FGUIComponentManager.sharedInstance makeEngineWithEntrypoint:entrypoint libraryURI:libraryURI]; // 构建 FlutterEngine
        [self registrarPlugins]; // 插件注册
        self.flutterVC = [[flutterClass alloc] initWithEngine:self.engine]; // 构建 FlutterVC
        // 宿主 VC 用 addChild 的方式把 FlutterViewController 加入到页面上
        [hostVC addChildViewController:self.flutterVC.flutterViewController];
    }
    return self;
}

- (void)clear {
    ...
    [self.flutterVC clear];
    self.flutterVC = nil;
    self.engine = nil;
}

- (void)registrarPlugins {
    [NSClassFromString(@"FLTPathProviderPlugin") registerWithRegistrar:[self.engine registrarForPlugin:@"FLTPathProviderPlugin"]];
    [NSClassFromString(@"SqflitePlugin") registerWithRegistrar:[self.engine registrarForPlugin:@"SqflitePlugin"]];
}

/// 返回 FlutterViewController.view
- (UIView *)view {
    return self.flutterVC.flutterViewController.view;
}

@end

里面有一个插件注册的过程，这里也不做详述，有兴趣的同学看这篇，传送门《Flutter 多引擎渲染，组件支持 FlutterPlugin》

示例

还是以前文的 alert_dialog 组件为例，介绍一下我们最终暴露给组件使用方是什么样的。

构造

FGUIAlertDialog.h


@interface FGUIAlertDialogInitConfig : NSObject

/// 对话框标题
@property(nonatomic, nullable, copy) NSString *title;

/// 对话框内容
@property(nonatomic, nullable, copy) NSString *content;

/// 确认按钮文案
@property(nonatomic, nullable, copy) NSString *confirmText;

/// 是否显示取消
@property(nonatomic, assign) BOOL showCancel;

/// 取消按钮文案
@property(nonatomic, nullable, copy) NSString *cancelText;

@end

/// [Flutter]: 可选对话框
@interface FGUIAlertDialog : FGUIComponent

// 对外提供唯一的初始化方法
// 通过参数工厂 FGUIAlertDialogInitConfig 注入初始化参数
// 必须传入宿主 VC，可以是某个页面的 VC，也可以是全局 window 的根 VC
- (instancetype)initWithMaker:(void(^)(FGUIAlertDialogInitConfig *make))block hostVC:(UIViewController *)hostVC;

/// 点击确定
@property (nonatomic, copy) void(^onClickConfirmBlock)(void);

/// 点击取消
@property (nonatomic, copy) void(^onClickCancelBlock)(void);

// MARK: - Public Methods

/// 关闭弹窗
- (void)dismiss;

@end

可以看到，对外提供的是一个 FGUIAlertDialog 对象，它继承于 FGUIComponent，这样它也具备了 - (UIView *)view。

FGUIAlertDialog.m

(m 文件比较多，我们一部分一部分的讲一下）

@implementation FGUIAlertDialogInitConfig

- (instancetype)init {
    self = [super init];
    if (self) {
        self.title = @"";
        self.content = @"";
        self.align = 2;
        self.confirmText = @"";
        self.showCancel = false;
        self.cancelText = @"";
    }
    return self;
}

@end

FGUIAlertDialogInitConfig 工厂参数的实现，并且设置默认值，外部使用的时候就可以可选传参。


// 映射 FGUIAlertDialogConfig
@protocol FGUIAlertDialogConfigProtocol <NSObject>

/// 对话框标题
@property(nonatomic, copy) NSString *title;

/// 对话框内容
@property(nonatomic, copy) NSString *content;

/// 确认按钮文案
@property(nonatomic, copy) NSString *confirmText;

/// 是否显示取消
@property(nonatomic, strong) NSNumber *showCancel;

/// 取消按钮文案
@property(nonatomic, copy) NSString *cancelText;

@end

// 映射 FGUIAlertDialogFlutterAPI
@protocol FGUIAlertDialogFlutterAPIProtocol <NSObject>

- (instancetype)initWithBinaryMessenger:(id)binaryMessenger;
- (void)configMaker:(id)maker completion:(void(^)(NSError *error))completion;
- (void)dismissWithCompletion:(void(^)(NSError *error))completion;

@end

映射前文讲到的，Flutter pigeon 生成的 iOS 代码，FGUIAlertDialogConfig 和 FGUIAlertDialogFlutterAPI。


// 实现 FGUIAlertDialog 回调
@interface FGUIAlertDialogCallBack : NSObject

/// 点击确定
@property (nonatomic, copy) void(^onClickConfirmBlock)(void);

/// 点击取消
@property (nonatomic, copy) void(^onClickCancelBlock)(void);

@end

@implementation FGUIAlertDialogCallBack

- (instancetype)initWithEngine:(id<FGUIComponentFlutterEngine>)engine {
    self = [super init];
    if (self) {
        // 注意这里的反射形式，反射获得类方法
        void (*FGUIAlertDialogHostAPISetup)(id, id) = dlsym(RTLD_DEFAULT, "FGUIAlertDialogHostAPISetup");
        // 调用 setup 类方法
        FGUIAlertDialogHostAPISetup(engine.binaryMessenger, self);
    }
    return self;
}

// MARK: - FGUIAlertDialogHostAPI

// 实现 onClickConfirm
- (BOOL)onClickConfirmWithError:(NSError *_Nullable *_Nonnull)error {
    GDBlockCallInMain(self.onClickConfirmBlock);
    return YES;
}

// 实现 onClickCancel
- (BOOL)onClickCancelWithError:(NSError *_Nullable *_Nonnull)error {
    GDBlockCallInMain(self.onClickCancelBlock);
    return YES;
}

@end

这里是实现 FGUIAlertDialogHostAPISetup 类方法中必须重写的方法，再回调给 FGUIAlertDialog。

@interface FGUIAlertDialogViewController : FGUIComponentViewController

@property (nonatomic, strong) id<FGUIAlertDialogFlutterAPIProtocol> api;

@property (nonatomic, strong) FGUIAlertDialogCallBack *cb;

@end

@implementation FGUIAlertDialogViewController

- (instancetype)initWithEngine:(id<FGUIComponentFlutterEngine>)engine {
    self = [super initWithEngine:engine];
    if (self) {
        // 实现 FGUIAlertDialogCallBack
        self.cb = [[FGUIAlertDialogCallBack alloc] initWithEngine:engine];
        // 反射获取 FGUIAlertDialogFlutterAPI 类名，这是由 pigeon 生成的，在 Flutter framework 里
        Class class = NSClassFromString(@"FGUIAlertDialogFlutterAPI");
        GDAssert(NSStringFromClass(class).length, @"FGUIAlertDialogFlutterAPI is not found");
        self.api = [[class alloc] initWithBinaryMessenger:engine.binaryMessenger];
    }
    return self;
}

@end

上面代码就是实现 FGUIAlertDialog 的 FGUIComponentViewController

@interface FGUIAlertDialog ()

@property (nonatomic, strong) FGUIAlertDialogInitConfig *maker;

@end

@implementation FGUIAlertDialog

- (instancetype)initWithMaker:(void(^)(FGUIAlertDialogInitConfig *make))block hostVC:(UIViewController *)hostVC {
    // 这里初始化传入 componentAlertDialog 终节点
    self = [super initWithHostVC:hostVC
                    flutterClass:FGUIAlertDialogViewController.class
                      entrypoint:@"componentAlertDialog"
                      libraryURI:@"package:fgui/ui_components.dart"];
    if (self) {
        self.maker = [[FGUIAlertDialogInitConfig alloc] init];
        block(self.maker);

        // 初始化 maker 入参
        id<FGUIAlertDialogConfigProtocol> maker = [[NSClassFromString(@"FGUIAlertDialogConfig") alloc] init];
        maker.title = self.maker.title;
        maker.content = self.maker.content;
        maker.confirmText = self.maker.confirmText;
        maker.showCancel = @(self.maker.showCancel);
        maker.cancelText = self.maker.cancelText;

        // 调用初始化方法
        [self.flutterController.api configMaker:maker completion:^(NSError *error) {}];

        __weak typeof(self)weakSelf = self;
        // 实现 onClick 回调
        [self.flutterController.cb setOnClickConfirmBlock:^() {
            __strong typeof(weakSelf)strongSelf = weakSelf;
            GDBlockCallInMain(strongSelf.onClickConfirmBlock);
        }];
        // 实现 onCancel 回调
        [self.flutterController.cb setOnClickCancelBlock:^() {
            __strong typeof(weakSelf)strongSelf = weakSelf;
            GDBlockCallInMain(strongSelf.onClickCancelBlock);
        }];
    }
    return self;
}

- (FGUIAlertDialogViewController *)flutterController {
    return (FGUIAlertDialogViewController *)self.flutterVC;
}

- (void)dismiss {
    // 调用 api 的 dismiss
    [self.flutterController.api dismissWithCompletion:^(NSError *error) {}];
}

@end

以上就是整个 alert_dialog 组件的构造全过程了，代码比较多，需要耐心的看一下～

当然这实在是太多代码了，在下一篇“跨端工具链”中我们会把上面整个过程都自动生成。

调用

列一下关键代码，因为 Alert 比较特殊，可以封装成一个类方法来直接调用。


@implementation GUIAlert

...

+ (instancetype)showWithTitle:(nullable NSString *)title
                      content:(nullable NSString *)content
                   buttonText:(nullable NSString *)buttonText
                   showCancel:(BOOL)showCancel
             cancelButtonText:(nullable NSString *)cancelButtonText
                    linkBlock:(nullable void(^)(NSString *url))linkBlock
                  cancelBlock:(nullable void(^)(void))cancelBlock
                completeBlock:(void(^)(void))completeBlock {
    GUIAlert *instance = [[GUIAlert alloc] initWithMaker:^(FGUIAlertDialogInitConfig *make) {
        make.title = title ?: @"";
        make.content = content ?: @"";
        make.confirmText = buttonText ?: @"确定";
        make.cancelText = cancelButtonText ? : @"取消";
        make.showCancel = showCancel;
    }];
    instance.cancelBlock = cancelBlock;
    instance.completeBlock = completeBlock;
    [instance show];
    return instance;
}

// MARK: - Private

- (instancetype)initWithMaker:(void(^)(FGUIAlertDialogInitConfig *make))maker {
    self = [super init];
    if (self) {
        // getCurrentVC 为当前 VC
        self.alertDialog = [[FGUIAlertDialog alloc] initWithMaker:maker hostVC:[self getCurrentVC]];
        GDWeakify(self);
        [self.alertDialog setOnClickConfirmBlock:^(void) {
            GDStrongify(self);
            [self dismiss:^(void) {
                GDBlockCallInMain(self.completeBlock);
            }];
        }];
        [self.alertDialog setOnClickCancelBlock:^(void) {
            GDStrongify(self);
            [self dismiss:^(void) {
                GDBlockCallInMain(self.cancelBlock);
            }];
        }];
    }
    return self;
}

// 显示
- (void)show {
    self.backgroundColor = UIColor.clearColor;

    [self.alertDialog.hostVC.view addSubview:self];
    self.frame = self.alertDialog.hostVC.view.bounds;

    [self addSubview:self.alertDialog.view];
    self.alertDialog.view.frame = self.frame;

    // 背景蒙层显示动画
    [UIView animateWithDuration:0.25 delay:0 options:UIViewAnimationOptionCurveEaseInOut animations:^{
        self.backgroundColor = [UIColor colorWithRed:0 green:0 blue:0 alpha:0.6];
    } completion:nil];
}

// 隐藏
- (void)dismiss:(void(^)(void))completeBlock {
    [self.alertDialog dismiss];
    // 背景蒙层消失动画
    [UIView animateWithDuration:0.25 delay:0 options:UIViewAnimationOptionCurveEaseInOut animations:^{
        self.backgroundColor = UIColor.clearColor;
        [self layoutIfNeeded];
    } completion:^(BOOL finished) {
        [self.alertDialog clear];
        [self removeFromSuperview];
        GDBlockCallInMain(completeBlock);
    }];
}

那使用上，即可 [GUIAlert showWithTile:] 来直接显示警告框。

Android

实现方式

Android 实现上比较简单，最初也是采用反射的形式来规避依赖的问题。但是有制约性，因为 Android 没办法像 iOS 用 interface 完全当成 protocol。interface 必须提供实现，而实现就必须产生依赖。那基于 Model 的入参就没办法处理。

幸运的是，Flutter 在 Android 上打包是根据插件分包的，所以我们可以直接依赖所需要的包即可。

build.gradle

dependencies {
    ...
    api "com.gaoding.part_home:part_home_${rootProject.ext.flutter_env}:${rootProject.ext.flutter_aar_version}"
    api "com.gaoding.fgui:fgui_${rootProject.ext.flutter_env}:${rootProject.ext.flutter_aar_version}"
    api "com.gaoding.part_video:part_video_${rootProject.ext.flutter_env}:${rootProject.ext.flutter_aar_version}"
}

构造

那可以直接依赖，就不需要反射代码了，整体相对 iOS 精简很多。对外提供的是 FrameLayout 方便使用 xml 布局（这里据 Android 同事讲，FrameLayout 的生命周期上在一些情况下会有问题）。

FGUIEngine

还是要构造一个单例 FlutterEngineGroup 用于统一管理。

class FGUIEngine {
    companion object {
        val group: FlutterEngineGroup = FlutterEngineGroup(GaodingApplication.getContext())
    }
}

FGUIAlertDialogBinding

跟 Flutter Demo 工程保持一致，提供一个 binding 类来处理跟 FlutterEngine 的交互。

FGUIAlertDialogBinding.kt

internal class FGUIAlertDialogBinding(
    // 上下文
    context: Context,
    // 终节点
    entrypoint: String,
    // 工厂入参
    private val config: AlertDialogConfig
) {
    var mEngine: FlutterEngine
        private set

    var mFlutterApi: AlertDialogFlutterAPI? = null
        private set

    var mCallback: AlertDialogHostAPI? = null

    init {
        // FlutterEngineGroup
        val group = FGUIEngine.group
        // 获取终节点
        val dartEntrypoint =
            DartExecutor.DartEntrypoint(
                FlutterInjector.instance().flutterLoader().findAppBundlePath(),
                "package:fgui/ui_components.dart", // 注意要写入口
                entrypoint
            )
        // 构建 FlutterEngine
        mEngine = group.createAndRunEngine(context, dartEntrypoint)
    }

    fun attach() {
        val binaryMessenger = mEngine.dartExecutor.binaryMessenger
        // 拿到 AlertDialogFlutterAPI
        mFlutterApi = AlertDialogFlutterAPI(binaryMessenger)
        // 调用初始化 config
        mFlutterApi?.config(config, mReplyCallback);
        // 绑定回调
        AlertDialogHostAPI.setup(binaryMessenger, mCallback)
    }

    fun detach() {
        // 销毁引擎
        mEngine.destroy()
    }

    fun dismiss() {
        mFlutterApi?.dismiss(mReplyCallback)
    }

    // 这个是 pigeon 要求的必须有 callback，可以提供一个通用的即可。
    private val mReplyCallback by lazy {
        AlertDialogFlutterAPI.Reply<Void> { }
    }
}

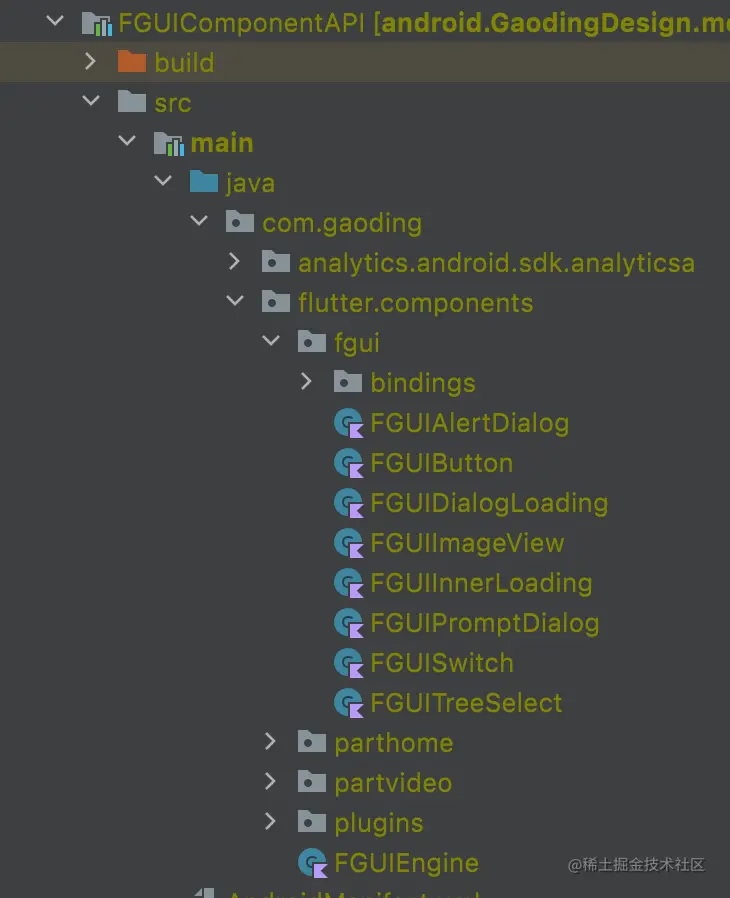

FGUIAlertDialog

使用上面的 FGUIAlertDialogBinding 构造一个 FrameLayout 给 XML 布局。

/**
 * 可选对话框
 */
class FGUIAlertDialog : FrameLayout {
    private var mFragmentManager: FragmentManager? = null

    private val mEngineId = UUID.randomUUID().toString()
    private var mEngineBinding: FGUIAlertDialogBinding? = null

    private val entryPoint = "componentAlertDialog"

    var mCallback: Callback? = null

    constructor(context: Context) : super(context)

    constructor(context: Context, attrs: AttributeSet?) : super(context, attrs)

    constructor(context: Context, attrs: AttributeSet?, defStyleAttr: Int) : super(
        context,
        attrs,
        defStyleAttr
    )

    /**
     * 初始化
     * @param title 对话框标题
     * @param content 对话框内容
     * @param confirmText 确认按钮文案
     * @param showCancel 是否显示取消
     * @param cancelText 取消按钮文案
     */
    fun init(
        fragmentManager: FragmentManager,
        title: String = "",
        content: String = "",
        confirmText: String = "",
        showCancel: Boolean = false,
        cancelText: String = "",
    ) {
        if (mFragmentManager != null) {
            return
        }
        mFragmentManager = fragmentManager

        // 构建配置
        val config = initConfig(title, content, confirmText, showCancel, cancelText) ?: return

        // 构建 bindings
        val engineBindings =
            FGUIAlertDialogBinding(context = context, entrypoint = entryPoint, config)
        mEngineBinding = engineBindings

        val invokeHandler = AlertDialogHostAPIHandler()
        engineBindings.mCallback = invokeHandler

        // engine
        val engine = engineBindings.mEngine
        FlutterEngineCache.getInstance().put(mEngineId, engine)

        // 添加 fragment
        val flutterFragment = FlutterFragment.withCachedEngine(mEngineId).renderMode(RenderMode.texture).build<FlutterFragment>()
        flutterFragment.lifecycle.addObserver(object : LifecycleEventObserver {
            override fun onStateChanged(source: LifecycleOwner, event: Lifecycle.Event) {
                if (event == Lifecycle.Event.ON_DESTROY) {
                    FlutterEngineCache.getInstance().remove(mEngineId)
                    mEngineBinding?.detach()
                }
            }
        })
        fragmentManager.beginTransaction().add(id, flutterFragment).commitAllowingStateLoss()

        // attach bindings
        engineBindings.attach()
    }

    ...

    interface Callback {
        fun onClickConfirm() {}

        fun onClickCancel() {}
    }

    /**
     * 关闭弹窗
     */
    fun dismiss() {
        mEngineBinding?.dismiss()
    }


    inner class AlertDialogHostAPIHandler: AlertDialogHostAPI {

        override fun onClickConfirm() {
            mCallback?.onClickConfirm()
        }
        override fun onClickCancel() {
            mCallback?.onClickCancel()
        }

    }

总结

调用端代码并不难理解，就是十分的繁琐，构建出一个 Flutter 多引擎渲染组件后，要考虑的就是如何批量生产多个组件，减少开发投入的时间。下一篇就着重于如何优雅的建设跨端工具链，让组件开发者只关注 Flutter UI 代码。

预告

《从零开始｜构建 Flutter 多引擎渲染组件：跨端工具链篇》

感谢阅读，如果对你有用请点个赞 ❤️


从零开始｜构建 Flutter 多引擎渲染组件：Native 调用篇

iOS

思考
