前言
我们在很多场景为了保证程序的健壮性会涉及多通道选择的问题，比如消息中心，签约中心等等有多供应商的情况。
graph TD
消息中心 --> 阿里云
消息中心 --> Ucloud
消息中心 --> ...
消息中心 --> 腾讯云
此时会基于业务或权重、轮询等路由规则选择供应商，并执行具体第三方接口，但在上层代码（例如face层）应不需要关心路由逻辑，因为最终都会基于系统的模型进行逻辑处理。
public CodeDTO createCode(Param param) {
// 参数校验(重要)
this.checkParam(param);
// 根据路由规则获取供应商
Server server = roundRule.choose();
// 调用供应商的具体方法生成
String code = server.nextId(param);
// 存储签署节点
nodeService.saveNode(param, code);
// 响应
return new CodeDTO(code);
}
改进目标
隐藏路由逻辑，上层只需要关心调用模型中的某个具体方法。
public CodeDTO createCode(Param param) {
// 参数校验(重要)
this.checkParam(param);
// 负载均衡器执行具体方法
String code = iLoadBalancer.execute((iServer) -> iServer.nextId(param));
// 存储签署节点
nodeService.saveNode(param, code);
// 响应
return new CodeDTO(code);
}

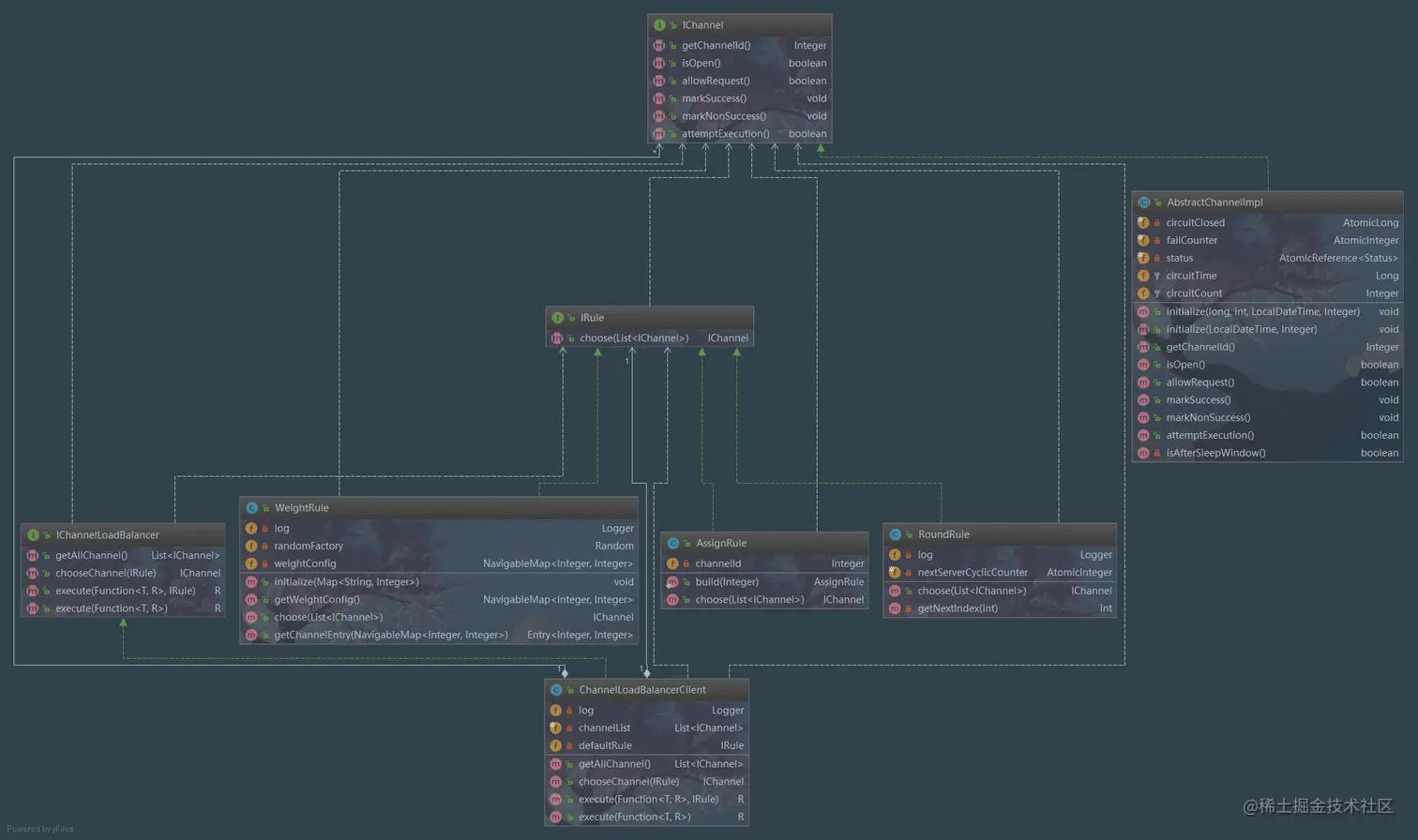

具体实现
熔断器
借鉴了Hystrix的半开、全开思想，当异常次数大于阈值的时候会触发熔断，当now() > 熔断时间 + 熔断时长后会进入半开状态，此时允许请求通过，但当又失败时会继续熔断一个时间窗口，成功则重置熔断参数。
/**
* @author wdl
* @ClassName AbstractChannelImpl.java
* @Description 通道实现抽象类
* @createTime 2022-12-17 11:32
*/
public abstract class AbstractChannelImpl implements IChannel {
/**
* 熔断时间点
*/
private final AtomicLong circuitClosed = new AtomicLong(-1);
/**
* 失败次数
*/
private final AtomicInteger failCounter = new AtomicInteger(0);
/**
* 通道状态
*/
private final AtomicReference<Status> status = new AtomicReference<>(Status.OPEN);
/**
* 熔断时长
*/
protected Long circuitTime = 10L * 60 * 1000;
/**
* 触发熔断的失败次数上限
*/
protected Integer circuitCount = 10;
enum Status {
CLOSED, OPEN;
}
/**
* 通道初始化
* @param circuitTime 熔断时长,必传
* @param circuitCount 熔断连续失败次数,必传
* @param circuitClosed 熔断时间点
* @param failCounter 连续失败次数
*/
public void initialize(long circuitTime, int circuitCount, LocalDateTime circuitClosed, Integer failCounter) {
this.circuitTime = circuitTime;
this.circuitCount = circuitCount;
if (circuitClosed != null) {
this.circuitClosed.set(circuitClosed.toInstant(ZoneOffset.of("+8")).toEpochMilli());
}
if (failCounter != null) {
this.failCounter.set(failCounter);
}
}
public abstract void initialize(LocalDateTime circuitClosed, Integer failCounter);
/**
* 获取当前通道id
* @return
*/
@Override
public abstract Integer getChannelId();
@Override
public boolean isOpen() {
return status.get().equals(Status.OPEN);
}
@Override
public boolean allowRequest() {
return isOpen() || isAfterSleepWindow();
}
@Override
public void markSuccess() {
status.set(Status.OPEN);
failCounter.set(0);
circuitClosed.set(-1L);
}
@Override
public void markNonSuccess() {
status.set(Status.CLOSED);
circuitClosed.set(System.currentTimeMillis());
}
@Override
public boolean attemptExecution() {
Integer failCount = failCounter.incrementAndGet();
if (failCount > circuitCount) {
this.markNonSuccess();
}
return true;
}
/**
* 是否到熔断时间后
* @return
*/
private boolean isAfterSleepWindow() {
return System.currentTimeMillis() > circuitClosed.get() + circuitTime;
}
}
路由规则
轮询路由
路由对象中通过Atomic incr记录路由次数，再通过 atomic % server数组长度 进行取余计算获取数组下标。
/**
* @author wdl
* @ClassName RoundRule.java
* @Description 轮询路由规则
* list = [A, B, C, D]
* choose() => count.incr
* index = count % list.size
* channel = list.get(index)
* @createTime 2022-12-17 22:51
*/
public class RoundRule implements IRule{
private Logger log = LoggerFactory.getLogger(this.getClass());
/**
* 计数器，用来计算索引
*/
private final AtomicInteger nextServerCyclicCounter = new AtomicInteger(0);
@Override
public IChannel choose(List<IChannel> channelList) {
int count = 0;
IChannel iChannel = null;
while (iChannel == null && count++ < 10) {
iChannel = channelList.get(getNextIndex(channelList.size()));
if (iChannel != null && iChannel.allowRequest()) {
break;
}
log.debug("channel：{} interrupt，afresh load", iChannel == null ? null : iChannel.getChannelId());
iChannel = null;
}
return Optional.ofNullable(iChannel).orElse(channelList.get(0));
}
/**
* 计算下个通道的索引值(绝对值，防止计数溢出)
* @param modulo
* @return
*/
private int getNextIndex(int modulo) {
return Math.abs((nextServerCyclicCounter.getAndIncrement() % modulo));
}
}
权重路由
根据通道的权重进行分段，并在[0, 总和)范围中获取随机数，再判断落在那个区间中。
/**
* @author wdl
* @ClassName WeightRule.java
* @Description 权重路由规则
* A(wt=10), B(wt=30), C(wt=40), D(wt=20).
* [0, 10) A'wt region = (A's weight)
* [11, 40) B'wt region = (A's weight + B's weight)
* [41, 80) C'wt region = (A's weight + B's weight + C's weight)
* [81, 100) D'wt region = (A's weight + B's weight + C's weight + D's weight)
* randomFactory.nextInt(total weight) => random
* random=10 => B; random=0 => A; random=40 => C; random=85 => D;
* @createTime 2022-12-17 11:08
*/
public class WeightRule implements IRule {
private Logger log = LoggerFactory.getLogger(WeightRule.class);
/**
* 随机器
*/
private Random randomFactory = new Random();
/**
* 权重配置<channelId, 权重数值>
*/
private NavigableMap<Integer, Integer> weightConfig;
public WeightRule(){}
public WeightRule(Map<String, Integer> weightConfigMap) {
initialize(weightConfigMap);
}
/**
* 权重配置初始化
* @param weightConfig
*/
public void initialize(Map<String, Integer> weightConfig) {
NavigableMap<Integer, Integer> config = new TreeMap<>();
int total = 0;
for(Map.Entry<String, Integer> entry : weightConfig.entrySet()) {
config.putIfAbsent(total+=entry.getValue(), Integer.valueOf(entry.getKey()));
}
this.weightConfig = config;
}
public NavigableMap<Integer, Integer> getWeightConfig() {
return this.weightConfig;
}
/**
* 根据权重从集合中随机选择通道<br/>
* 1、选择通道后会判断通道状态
* 2、熔断通道会被剔除权重配置，其余通道参与下一次分配
* 当权重配置为空时,返回channelList第一个元素
* @param channelList
* @return
*/
@Override
public IChannel choose(List<IChannel> channelList) {
NavigableMap<Integer, Integer> localWeightConfig = new TreeMap(this.weightConfig);
IChannel iChannel = null;
while (iChannel == null && !localWeightConfig.isEmpty()) {
Map.Entry<Integer, Integer> entry = getChannelEntry(localWeightConfig);
iChannel = channelList.stream() .filter(channel -> entry.getValue().equals(channel.getChannelId()))
.findFirst().orElse(null);
if (iChannel != null && iChannel.allowRequest()) {
break;
}
log.debug("channel：{} interrupt，afresh load", iChannel == null ? null : iChannel.getChannelId());
iChannel = null;
localWeightConfig.remove(entry.getKey());
}
return Optional.ofNullable(iChannel).orElse(channelList.get(0));
}
public Map.Entry<Integer, Integer> getChannelEntry(NavigableMap<Integer, Integer> localWeightConfig) {
Integer totalWeight = localWeightConfig.keySet().stream().mapToInt(Integer::valueOf).max().getAsInt();
int random = randomFactory.nextInt(totalWeight);
Map.Entry<Integer, Integer> entry = localWeightConfig.higherEntry(random);
log.debug("NavigableMap-elements:{} {}-{}-{}", localWeightConfig, totalWeight, random, entry);
return entry;
}
}
负载均衡器

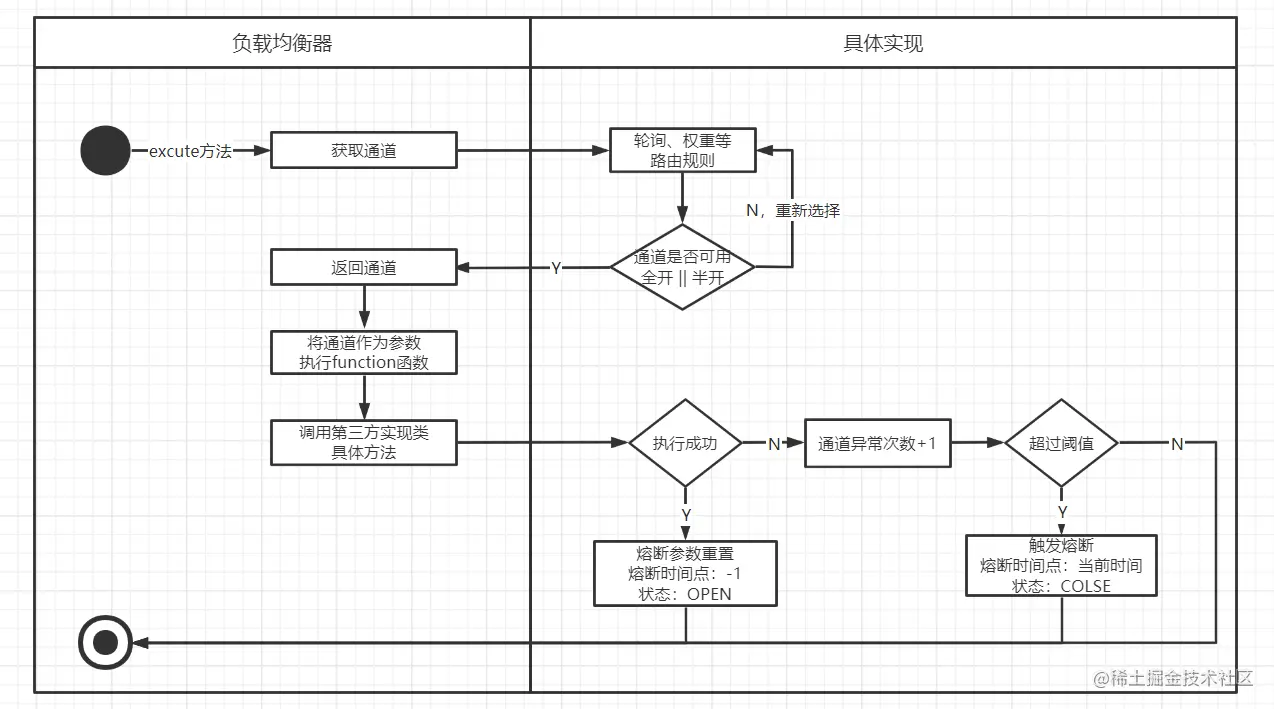

基于Ribbon负载思想，通过默认的Rule或者方法参数的Rule获取实际通道，再将通道作为参数执行function方法，调用具体通道的实际方法。
/**
* @author wdl
* @ClassName LoadBalancerClient.java
* @Description 负载均衡客户端
* @createTime 2022-12-17 16:47
*/
public class ChannelLoadBalancerClient implements IChannelLoadBalancer {
private Logger log = LoggerFactory.getLogger(this.getClass());
/**
* 通道集合
*/
private final List<IChannel> channelList = new ArrayList<>();
/**
* 默认路由规则
*/
private IRule defaultRule;
public ChannelLoadBalancerClient(IChannel... channels) {
Collections.addAll(channelList, channels);
}
public ChannelLoadBalancerClient(IRule rule, IChannel... channels) {
this(channels);
this.defaultRule = rule;
}
@Override
public List<IChannel> getAllChannel() {
return new ArrayList<>(channelList);
}
@Override
public IChannel chooseChannel(IRule rule) {
return rule.choose(getAllChannel());
}
@Override
public <T extends IChannel, R> R execute(Function<T, R> function, IRule rule) {
IChannel channel = this.chooseChannel(rule);
log.debug("channel:{}", channel.getChannelId());
return function.apply((T) channel);
}
@Override
public <T extends IChannel, R> R execute(Function<T, R> function) {
return execute(function, defaultRule);
}
}
