一、Container 简介
flutter 开发中最核心的是用最少的组件（层次）完成功能开发；Container & AnimatedContainer 对应是前端的变异盒子模型，类似 div 标签，掌握其他组件前，深入学习理解 Container 的使用是必要的。
Container是一个组合类容器，由DecoratedBox、ConstrainedBox、Transform、Padding、Align等组件组合的一个多功能容器，所以我们只需通过一个Container组件可以实现同时需要装饰、变换、约束限制的场景。
2、Container 示例

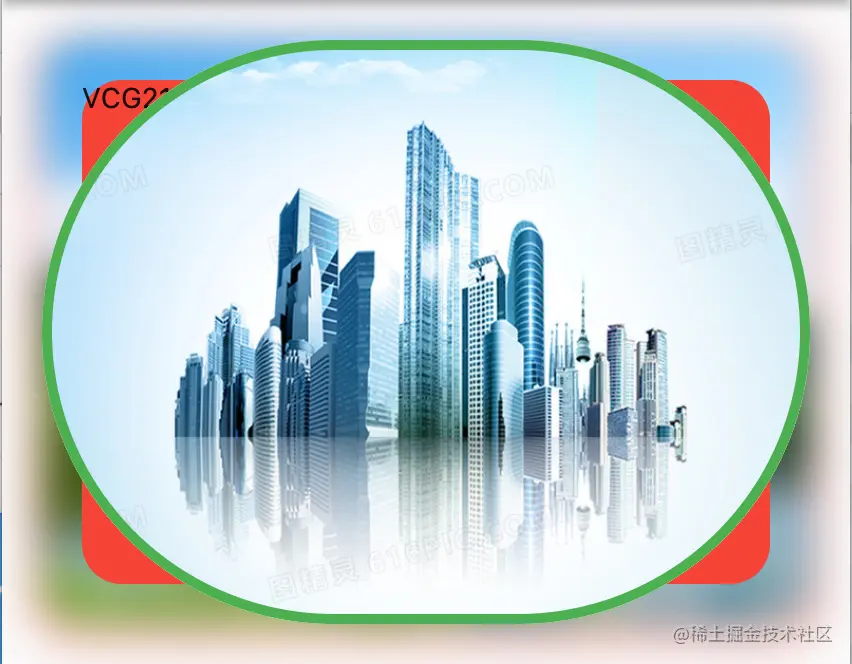

- 示例包含透明度，背景装饰，前景装饰，child 模糊度，红色部分是 child；
buildSection() {
return Opacity(
opacity: 1,
child: Container(
margin: EdgeInsets.all(20),
padding: EdgeInsets.all(20),
decoration: BoxDecoration(
borderRadius: BorderRadius.all(Radius.circular(20)),
gradient: LinearGradient(
colors: [Colors.green, Colors.yellow],
begin: Alignment.topCenter,
end: Alignment.bottomCenter,
),
boxShadow: [
BoxShadow(
color: Colors.red.withOpacity(0.5),
spreadRadius: 5,
blurRadius: 7,
offset: Offset(0, 3), // changes position of shadow
),
],
image: DecorationImage(
image: NetworkImage('https://tenfei02.cfp.cn/creative/vcg/800/new/VCG21409037867.jpg'),
fit: BoxFit.cover,
),
),
foregroundDecoration: BoxDecoration(
color: Colors.yellow,
border: Border.all(color: Colors.green, width: 5),
borderRadius: BorderRadius.all(Radius.circular(400)),
image: DecorationImage(
image: NetworkImage('https://pic.616pic.com/bg_w1180/00/04/08/G5Bftx5ZDI.jpg'),
fit: BoxFit.cover,
),
),
child: BackdropFilter(
filter: ui.ImageFilter.blur(sigmaX: 10.0, sigmaY: 10.0),
child: Container(
constraints: BoxConstraints.expand(),
decoration: BoxDecoration(
borderRadius: BorderRadius.all(Radius.circular(20)),
color: Colors.red,
),
child: Text('VCG21409037867'),
),
),
),
);
}
- 实现背景图 background-repeat 显示，flutter支持四种类型：
enum ImageRepeat {
repeat,
repeatX,
repeatY,
noRepeat,
}
这里以第一种 ImageRepeat.repeat 为例：
Container(
decoration: BoxDecoration(
image: DecorationImage(
image: AssetImage('images/img_update.png'),
repeat: ImageRepeat.repeat,
alignment: Alignment.topLeft,
)
),
child: Container(
constraints: BoxConstraints.expand(),
child: OutlinedButton(
onPressed: () { print("ImageRepeat.repeat"); },
child: Text('ImageRepeat.repeat',
style: TextStyle(fontWeight: FontWeight.bold, color: Colors.red),
),
),
),
),

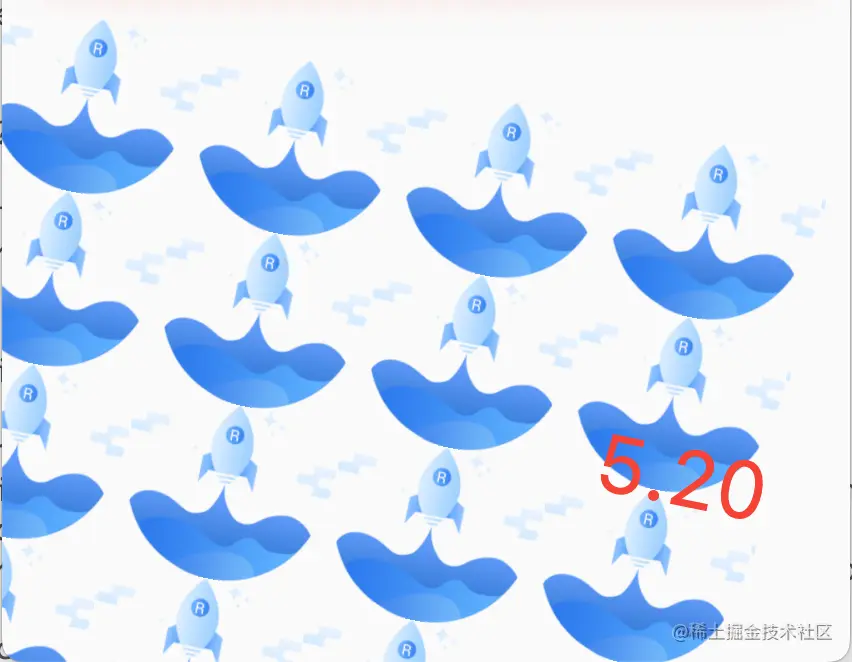

- transform && alignment
Container(
decoration: BoxDecoration(
image: DecorationImage(
image: AssetImage('images/img_update.png'),
repeat: ImageRepeat.repeat,
alignment: Alignment.topLeft,
)
),
transform: Matrix4.rotationZ(.2),//变化
alignment: Alignment.centerRight, //卡片文字对齐
child: Text(
"5.20", style: TextStyle(color: Colors.red, fontSize: 40.0),
),
),

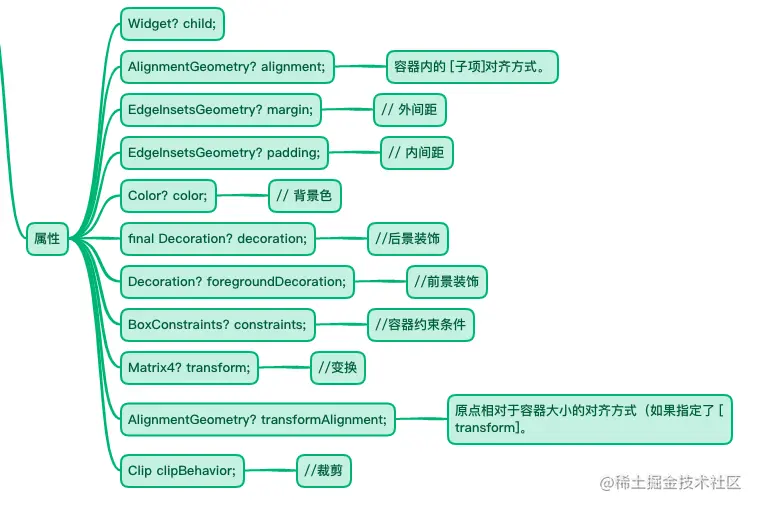

3、Container 源码
class Container extends StatelessWidget {
Container({
Key? key,
this.alignment,
this.padding,
this.color,
this.decoration,
this.foregroundDecoration,
double? width,
double? height,
BoxConstraints? constraints,
this.margin,
this.transform,
this.transformAlignment,
this.child,
this.clipBehavior = Clip.none,
})：super(key: key);
// 子项
final Widget? child;
// 内边距
final EdgeInsetsGeometry? padding;
// 背景色，和 decoration 只能二选一
final Color? color;
// 背景装饰
final Decoration? decoration;
// 前景装饰（在 child 之上）
final Decoration? foregroundDecoration;
// 约束条件
final BoxConstraints? constraints;
// 外边距
final EdgeInsetsGeometry? margin;
// 变化
final Matrix4? transform;
// 变化之后 child 对齐方式
final AlignmentGeometry? transformAlignment;
// 裁剪方式
final Clip clipBehavior;
EdgeInsetsGeometry? get _paddingIncludingDecoration {
if (decoration == null || decoration!.padding == null)
return padding;
final EdgeInsetsGeometry? decorationPadding = decoration!.padding;
if (padding == null)
return decorationPadding;
return padding!.add(decorationPadding!);
}
@override
Widget build(BuildContext context) {
Widget? current = child;
if (child == null && (constraints == null || !constraints!.isTight)) {
current = LimitedBox(
maxWidth: 0.0,
maxHeight: 0.0,
child: ConstrainedBox(constraints: const BoxConstraints.expand()),
);
}
if (alignment != null)
current = Align(alignment: alignment!, child: current);
final EdgeInsetsGeometry? effectivePadding = _paddingIncludingDecoration;
if (effectivePadding != null)
current = Padding(padding: effectivePadding, child: current);
if (color != null)
current = ColoredBox(color: color!, child: current);
if (clipBehavior != Clip.none) {
assert(decoration != null);
current = ClipPath(
clipper: _DecorationClipper(
textDirection: Directionality.maybeOf(context),
decoration: decoration!,
),
clipBehavior: clipBehavior,
child: current,
);
}
if (decoration != null)
current = DecoratedBox(decoration: decoration!, child: current);
if (foregroundDecoration != null) {
current = DecoratedBox(
decoration: foregroundDecoration!,
position: DecorationPosition.foreground,
child: current,
);
}
if (constraints != null)
current = ConstrainedBox(constraints: constraints!, child: current);
if (margin != null)
current = Padding(padding: margin!, child: current);
if (transform != null)
current = Transform(transform: transform!, alignment: transformAlignment, child: current);
return current!;
}
...
}
二、动画盒子模型 AnimatedContainer

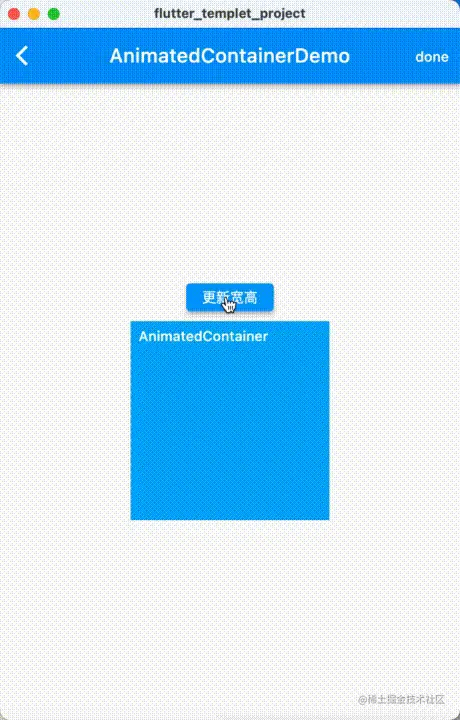

1、使用示例
import 'package:flutter/material.dart';
import 'package:flutter_templet_project/extension/change_notifier_ext.dart';
class AnimatedContainerDemo extends StatefulWidget {
const AnimatedContainerDemo({
Key? key,
this.title
}) : super(key: key);
final String? title;
@override
_AnimatedContainerDemoState createState() => _AnimatedContainerDemoState();
}
class _AnimatedContainerDemoState extends State<AnimatedContainerDemo> {
final sizeStart = Size(200, 200);
final sizeEnd = Size(400, 400);
final _width = 0.0.vn;
final _height = 0.0.vn;
final _alignment = Alignment.topLeft.vn;
final _color = Colors.lightBlue.vn;
@override
void initState() {
_width.value = sizeStart.width;
_height.value = sizeStart.height;
// TODO: implement initState
super.initState();
}
@override
Widget build(BuildContext context) {
dynamic arguments = ModalRoute.of(context)!.settings.arguments;
return Scaffold(
appBar: AppBar(
title: Text(widget.title ?? "$widget"),
actions: ['done',].map((e) => TextButton(
onPressed: onPressed,
child: Text(e,
style: TextStyle(color: Colors.white),
),
)).toList(),
),
body: buildBody()
);
}
Widget buildBody() {
return Center(
child: Wrap(
direction: Axis.vertical,
crossAxisAlignment: WrapCrossAlignment.center,
children: <Widget>[
ElevatedButton(
onPressed: _changeSize,
child: const Text('更新宽高'),
),
const SizedBox(height: 10,),
buildAnimatedContainer(),
],
),
);
}
Widget buildAnimatedContainer() {
return AnimatedBuilder(
animation: Listenable.merge([
_width,
_height,
_color,
_alignment,
]),
builder: (context, child) {
return AnimatedContainer(
duration: const Duration(seconds: 1),
curve: Curves.fastOutSlowIn,
width: _width.value,
height: _height.value,
color: _color.value,
alignment: _alignment.value,
onEnd: onEnd,
child: TextButton(
onPressed: () { debugPrint("AnimatedContainer"); },
child: Text("AnimatedContainer", style: TextStyle(color: Colors.white),),
),
);
}
);
}
void onEnd() {
debugPrint('End');
}
onPressed(){
_changeSize();
}
void _changeSize() {
_width.value = _width.value == sizeStart.width ? sizeEnd.width : sizeStart.width;
_height.value = _height.value == sizeStart.height ? sizeEnd.height : sizeStart.height;
_color.value = _color.value == Colors.green ? Colors.lightBlue : Colors.green;
_alignment.value = _alignment.value == Alignment.topLeft ? Alignment.center : Alignment.topLeft;
}
}
2、AnimatedContainer 源码
AnimatedContainer({
Key? key,
this.alignment,
this.padding,
Color? color,
Decoration? decoration,
this.foregroundDecoration,
double? width,
double? height,
BoxConstraints? constraints,
this.margin,
this.transform,
this.transformAlignment,
this.child,
this.clipBehavior = Clip.none,
Curve curve = Curves.linear,
required Duration duration,
VoidCallback? onEnd,
}) : assert(margin == null || margin.isNonNegative),
源码很简单，组件层层包裹，但是我们必须清楚每一个参数的作用和使用场景。它可以帮你用更少的层级完成功能，这很重要。
