10.安装Calico
[root@k8s-master01 ~]# cat calico-etcd.yaml
---
# Source: calico/templates/calico-etcd-secrets.yaml
# The following contains k8s Secrets for use with a TLS enabled etcd cluster.
# For information on populating Secrets, see http://kubernetes.io/docs/user-guide/secrets/
apiVersion: v1
kind: Secret
type: Opaque
metadata:
name: calico-etcd-secrets
namespace: kube-system
data:
# Populate the following with etcd TLS configuration if desired, but leave blank if
# not using TLS for etcd.
# The keys below should be uncommented and the values populated with the base64
# encoded contents of each file that would be associated with the TLS data.
# Example command for encoding a file contents: cat <file> | base64 -w 0
# etcd-key: null
# etcd-cert: null
# etcd-ca: null
---
# Source: calico/templates/calico-config.yaml
# This ConfigMap is used to configure a self-hosted Calico installation.
kind: ConfigMap
apiVersion: v1
metadata:
name: calico-config
namespace: kube-system
data:
# Configure this with the location of your etcd cluster.
etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"
# If you're using TLS enabled etcd uncomment the following.
# You must also populate the Secret below with these files.
etcd_ca: "" # "/calico-secrets/etcd-ca"
etcd_cert: "" # "/calico-secrets/etcd-cert"
etcd_key: "" # "/calico-secrets/etcd-key"
# Typha is disabled.
typha_service_name: "none"
# Configure the backend to use.
calico_backend: "bird"
# Configure the MTU to use for workload interfaces and tunnels.
# - If Wireguard is enabled, set to your network MTU - 60
# - Otherwise, if VXLAN or BPF mode is enabled, set to your network MTU - 50
# - Otherwise, if IPIP is enabled, set to your network MTU - 20
# - Otherwise, if not using any encapsulation, set to your network MTU.
veth_mtu: "1440"
# The CNI network configuration to install on each node. The special
# values in this config will be automatically populated.
cni_network_config: |-
{
"name": "k8s-pod-network",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "calico",
"log_level": "info",
"etcd_endpoints": "__ETCD_ENDPOINTS__",
"etcd_key_file": "__ETCD_KEY_FILE__",
"etcd_cert_file": "__ETCD_CERT_FILE__",
"etcd_ca_cert_file": "__ETCD_CA_CERT_FILE__",
"mtu": __CNI_MTU__,
"ipam": {
"type": "calico-ipam"
},
"policy": {
"type": "k8s"
},
"kubernetes": {
"kubeconfig": "__KUBECONFIG_FILEPATH__"
}
},
{
"type": "portmap",
"snat": true,
"capabilities": {"portMappings": true}
},
{
"type": "bandwidth",
"capabilities": {"bandwidth": true}
}
]
}
---
# Source: calico/templates/calico-kube-controllers-rbac.yaml
# Include a clusterrole for the kube-controllers component,
# and bind it to the calico-kube-controllers serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-kube-controllers
rules:
# Pods are monitored for changing labels.
# The node controller monitors Kubernetes nodes.
# Namespace and serviceaccount labels are used for policy.
- apiGroups: [""]
resources:
- pods
- nodes
- namespaces
- serviceaccounts
verbs:
- watch
- list
- get
# Watch for changes to Kubernetes NetworkPolicies.
- apiGroups: ["networking.k8s.io"]
resources:
- networkpolicies
verbs:
- watch
- list
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-kube-controllers
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: calico-kube-controllers
subjects:
- kind: ServiceAccount
name: calico-kube-controllers
namespace: kube-system
---
---
# Source: calico/templates/calico-node-rbac.yaml
# Include a clusterrole for the calico-node DaemonSet,
# and bind it to the calico-node serviceaccount.
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: calico-node
rules:
# The CNI plugin needs to get pods, nodes, and namespaces.
- apiGroups: [""]
resources:
- pods
- nodes
- namespaces
verbs:
- get
- apiGroups: [""]
resources:
- endpoints
- services
verbs:
# Used to discover service IPs for advertisement.
- watch
- list
# Pod CIDR auto-detection on kubeadm needs access to config maps.
- apiGroups: [""]
resources:
- configmaps
verbs:
- get
- apiGroups: [""]
resources:
- nodes/status
verbs:
# Needed for clearing NodeNetworkUnavailable flag.
- patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: calico-node
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: calico-node
subjects:
- kind: ServiceAccount
name: calico-node
namespace: kube-system
---
# Source: calico/templates/calico-node.yaml
# This manifest installs the calico-node container, as well
# as the CNI plugins and network config on
# each master and worker node in a Kubernetes cluster.
kind: DaemonSet
apiVersion: apps/v1
metadata:
name: calico-node
namespace: kube-system
labels:
k8s-app: calico-node
spec:
selector:
matchLabels:
k8s-app: calico-node
updateStrategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
template:
metadata:
labels:
k8s-app: calico-node
spec:
nodeSelector:
kubernetes.io/os: linux
hostNetwork: true
tolerations:
# Make sure calico-node gets scheduled on all nodes.
- effect: NoSchedule
operator: Exists
# Mark the pod as a critical add-on for rescheduling.
- key: CriticalAddonsOnly
operator: Exists
- effect: NoExecute
operator: Exists
serviceAccountName: calico-node
# Minimize downtime during a rolling upgrade or deletion; tell Kubernetes to do a "force
# deletion": https://kubernetes.io/docs/concepts/workloads/pods/pod/#termination-of-pods.
terminationGracePeriodSeconds: 0
priorityClassName: system-node-critical
initContainers:
# This container installs the CNI binaries
# and CNI network config file on each node.
- name: install-cni
image: docker.io/calico/cni:v3.15.3
command: ["/install-cni.sh"]
env:
# Name of the CNI config file to create.
- name: CNI_CONF_NAME
value: "10-calico.conflist"
# The CNI network config to install on each node.
- name: CNI_NETWORK_CONFIG
valueFrom:
configMapKeyRef:
name: calico-config
key: cni_network_config
# The location of the etcd cluster.
- name: ETCD_ENDPOINTS
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_endpoints
# CNI MTU Config variable
- name: CNI_MTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Prevents the container from sleeping forever.
- name: SLEEP
value: "false"
volumeMounts:
- mountPath: /host/opt/cni/bin
name: cni-bin-dir
- mountPath: /host/etc/cni/net.d
name: cni-net-dir
- mountPath: /calico-secrets
name: etcd-certs
securityContext:
privileged: true
# Adds a Flex Volume Driver that creates a per-pod Unix Domain Socket to allow Dikastes
# to communicate with Felix over the Policy Sync API.
- name: flexvol-driver
image: docker.io/calico/pod2daemon-flexvol:v3.15.3
volumeMounts:
- name: flexvol-driver-host
mountPath: /host/driver
securityContext:
privileged: true
containers:
# Runs calico-node container on each Kubernetes node. This
# container programs network policy and routes on each
# host.
- name: calico-node
image: docker.io/calico/node:v3.15.3
env:
# The location of the etcd cluster.
- name: ETCD_ENDPOINTS
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_endpoints
# Location of the CA certificate for etcd.
- name: ETCD_CA_CERT_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_ca
# Location of the client key for etcd.
- name: ETCD_KEY_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_key
# Location of the client certificate for etcd.
- name: ETCD_CERT_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_cert
# Set noderef for node controller.
- name: CALICO_K8S_NODE_REF
valueFrom:
fieldRef:
fieldPath: spec.nodeName
# Choose the backend to use.
- name: CALICO_NETWORKING_BACKEND
valueFrom:
configMapKeyRef:
name: calico-config
key: calico_backend
# Cluster type to identify the deployment type
- name: CLUSTER_TYPE
value: "k8s,bgp"
# Auto-detect the BGP IP address.
- name: IP
value: "autodetect"
# Enable IPIP
- name: CALICO_IPV4POOL_IPIP
value: "Always"
# Enable or Disable VXLAN on the default IP pool.
- name: CALICO_IPV4POOL_VXLAN
value: "Never"
# Set MTU for tunnel device used if ipip is enabled
- name: FELIX_IPINIPMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Set MTU for the VXLAN tunnel device.
- name: FELIX_VXLANMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# Set MTU for the Wireguard tunnel device.
- name: FELIX_WIREGUARDMTU
valueFrom:
configMapKeyRef:
name: calico-config
key: veth_mtu
# The default IPv4 pool to create on startup if none exists. Pod IPs will be
# chosen from this range. Changing this value after installation will have
# no effect. This should fall within `--cluster-cidr`.
# - name: CALICO_IPV4POOL_CIDR
# value: "192.168.0.0/16"
# Disable file logging so `kubectl logs` works.
- name: CALICO_DISABLE_FILE_LOGGING
value: "true"
# Set Felix endpoint to host default action to ACCEPT.
- name: FELIX_DEFAULTENDPOINTTOHOSTACTION
value: "ACCEPT"
# Disable IPv6 on Kubernetes.
- name: FELIX_IPV6SUPPORT
value: "false"
# Set Felix logging to "info"
- name: FELIX_LOGSEVERITYSCREEN
value: "info"
- name: FELIX_HEALTHENABLED
value: "true"
securityContext:
privileged: true
resources:
requests:
cpu: 250m
livenessProbe:
exec:
command:
- /bin/calico-node
- -felix-live
- -bird-live
periodSeconds: 10
initialDelaySeconds: 10
failureThreshold: 6
readinessProbe:
exec:
command:
- /bin/calico-node
- -felix-ready
- -bird-ready
periodSeconds: 10
volumeMounts:
- mountPath: /lib/modules
name: lib-modules
readOnly: true
- mountPath: /run/xtables.lock
name: xtables-lock
readOnly: false
- mountPath: /var/run/calico
name: var-run-calico
readOnly: false
- mountPath: /var/lib/calico
name: var-lib-calico
readOnly: false
- mountPath: /calico-secrets
name: etcd-certs
- name: policysync
mountPath: /var/run/nodeagent
volumes:
# Used by calico-node.
- name: lib-modules
hostPath:
path: /lib/modules
- name: var-run-calico
hostPath:
path: /var/run/calico
- name: var-lib-calico
hostPath:
path: /var/lib/calico
- name: xtables-lock
hostPath:
path: /run/xtables.lock
type: FileOrCreate
# Used to install CNI.
- name: cni-bin-dir
hostPath:
path: /opt/cni/bin
- name: cni-net-dir
hostPath:
path: /etc/cni/net.d
# Mount in the etcd TLS secrets with mode 400.
# See https://kubernetes.io/docs/concepts/configuration/secret/
- name: etcd-certs
secret:
secretName: calico-etcd-secrets
defaultMode: 0400
# Used to create per-pod Unix Domain Sockets
- name: policysync
hostPath:
type: DirectoryOrCreate
path: /var/run/nodeagent
# Used to install Flex Volume Driver
- name: flexvol-driver-host
hostPath:
type: DirectoryOrCreate
path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec/nodeagent~uds
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: calico-node
namespace: kube-system
---
# Source: calico/templates/calico-kube-controllers.yaml
# See https://github.com/projectcalico/kube-controllers
apiVersion: apps/v1
kind: Deployment
metadata:
name: calico-kube-controllers
namespace: kube-system
labels:
k8s-app: calico-kube-controllers
spec:
# The controllers can only have a single active instance.
replicas: 1
selector:
matchLabels:
k8s-app: calico-kube-controllers
strategy:
type: Recreate
template:
metadata:
name: calico-kube-controllers
namespace: kube-system
labels:
k8s-app: calico-kube-controllers
spec:
nodeSelector:
kubernetes.io/os: linux
tolerations:
# Mark the pod as a critical add-on for rescheduling.
- key: CriticalAddonsOnly
operator: Exists
- key: node-role.kubernetes.io/master
effect: NoSchedule
serviceAccountName: calico-kube-controllers
priorityClassName: system-cluster-critical
# The controllers must run in the host network namespace so that
# it isn't governed by policy that would prevent it from working.
hostNetwork: true
containers:
- name: calico-kube-controllers
image: docker.io/calico/kube-controllers:v3.15.3
env:
# The location of the etcd cluster.
- name: ETCD_ENDPOINTS
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_endpoints
# Location of the CA certificate for etcd.
- name: ETCD_CA_CERT_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_ca
# Location of the client key for etcd.
- name: ETCD_KEY_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_key
# Location of the client certificate for etcd.
- name: ETCD_CERT_FILE
valueFrom:
configMapKeyRef:
name: calico-config
key: etcd_cert
# Choose which controllers to run.
- name: ENABLED_CONTROLLERS
value: policy,namespace,serviceaccount,workloadendpoint,node
volumeMounts:
# Mount in the etcd TLS secrets.
- mountPath: /calico-secrets
name: etcd-certs
readinessProbe:
exec:
command:
- /usr/bin/check-status
- -r
volumes:
# Mount in the etcd TLS secrets with mode 400.
# See https://kubernetes.io/docs/concepts/configuration/secret/
- name: etcd-certs
secret:
secretName: calico-etcd-secrets
defaultMode: 0400
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: calico-kube-controllers
namespace: kube-system
---
# Source: calico/templates/calico-typha.yaml
---
# Source: calico/templates/configure-canal.yaml
---
# Source: calico/templates/kdd-crds.yaml
修改calico-etcd.yaml的以下位置
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"
[root@k8s-master01 ~]# sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379"#g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379"
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
# etcd-key: null
# etcd-cert: null
# etcd-ca: null
[root@k8s-master01 ~]# ETCD_KEY=`cat /etc/kubernetes/pki/etcd/etcd-key.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CERT=`cat /etc/kubernetes/pki/etcd/etcd.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CA=`cat /etc/kubernetes/pki/etcd/etcd-ca.pem | base64 | tr -d '\n'`
[root@k8s-master01 ~]# sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
etcd-key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBcGh0ejhrbzRURnV4T2VVTDBoSWpFdHBmcC9BRGYrcGR3SWNkeVA2QnV5dGxmSzJECjF4eEpRUGVhOFNwMGlFaVBxTEdNWkl5bjNjbHd4Mm9TYkpJd1ZzeEt6N2RybFErdUx2Qzl3Y3lPUktOZVpEd24KMTNDemk4eURENkZmL3NLcXhzNXVEMnNsNWNBMGdPK3orMkdOeUh5YkhOTytodG93bnh0MjhuNHFKWmRnK2l5VQp3R3psT0xQblY5UlJESWJLTW9YT3FLUUt1WWVhMm8rU2E4Rkp1anlvT2Uyc0t5UndTQk5xcjYyZnRTK0ZWSHFxCmVKalJYS245NFM0TDFwd2I5cUxnUDJmaU41bFRadk4va1dkZnMxd2RXVElWUVNaZE92TmhhZGp4b0Y5TWlsSGEKZ0l4NzZaNU1YL2lNZWpQb3Z4M2pDTXJzdWFUS0tnSGt6eTRLU3dJREFRQUJBb0lCQUFlVi8yQ1VWU2ZmbENOeAp1MjEzbUpSMjFxR0R5NVVlN2ZNcCtJbENYa2hlL2Y2SXFobTcxL2lZbGtIblQzVWQ0em13Q2hwWmRoMGg0djJvCmNYajE0REZHbVRBTlQyTjZXTmtaODRDVFIvZ0lnZm9QNlQza2pyNldzM0dXVEIwRlpPazVhanRZQ0Y0S3Zoc1oKVjEzbW9hUURWTTRuT1c5TkxhVkdpdE1lUWV4L2YzV1ZSc2M2TWdaUlVvRGU5THR4bk5nb1hWZmVYcVpZbElzVQplSFJQb1JGYnpXYi9UdEduTnFRMzJkemtyYTNNWnFzd1R4QjdMMGNWUW0xTGxMUXQ1KzkvWnRLd3Zwa0w0QTUvCldwUEYvWGhSSTBBQ0dhUEo3YWNlRUlwUlRSellzbnQ0dlZHNHNob3Y3MEQrYjdLT1lhN1FyU2FmNUlLRVlydFkKV3pjM0tQa0NnWUVBd1dwQk41enFxTWllVWpVODhLVVVDTkhNdUxMSHp5TTZQQ29OZXMrWGNIY1U1L1kxZUV0TwpMd3Z6djd3QVR5UW92RU8ycldtNEF2RXRSaG1QUFc2YU52ZUpPc2FZNnlXaVJ2R0RiN2dzb093eW9DYVlKd08vCnF5MEVLM29qTy9XRVZhNFpyTUlXOUxNWEkwajlKeldpUWI4NytNaENJcVpoZnYvUUhuWW5VU1VDZ1lFQTI5c2cKRzFJZ1hXamVyNHhiTWdMVkFnOXk1K3g1NlQ1RTZWNE5vdUJUZUlhUStob1cvU0w2UFMyS2ZjLzJweXVweFd3egp3aVRXdSt2L1NIUTVudlMrRHAzU0J5U0NqMEJJalg3N2VXS2g0SW1Hd2NoVzV5WnVBM3BVS3paSnV2VXpIdUFNCnFRc0NnR0ZnZGo4Zm1qYWV6ZENOVTI2TUhSZTRNaUJ2cHhSUHFxOENnWUFQamxNMmZObG12OVB6K3JJdkRLZmkKMmJUa2VnU1dCVmhPdEhjbkZJRXltM0ZFQXNwa0pYSmhXRTIvY3doM1ZRb3RzaWlFSkFlWHZQd09Na29SLzg1SgpjM2xIRCtnR3FaMDJwWUFUd1RWZHNBR1dYZVJJNXdWSWFETjRwN2Nqd0doblY3eGE1N1ZlOHZSK2N3VmhYTy95CjU4V1VDYzgvNkMvWlBndm9GMHFzUFFLQmdBaHNjZU42RnhGZEprTVZucHpnN09aaVR5WEJzcjRVQzdIaFQ2WncKNytITFRoeTNDVEJ6dWFERWNPejNIZDB6MkJKZlhmQlBWd2JtT09hK3hVSm80Q3RSTXEzaFlUczUzRTNIa3IwSQo0V2puL0FqS3MwR3lBRDhUM2N1MkRjY2pBKzFuNmpSRDNybXFnWGFtWG9DYkhTU0huQktaUnJjS3BKMFBEeGdZCnVDQ3pBb0dBSjh0SXk1UHRya3lUN3ExZURJNTF1Q2YwWDhrRWJoeFZ1RC9oVW82SkFURkRnRG0vN0Z5UFNvMnAKSFZVaEtpZmtQNUVoYTBYTDMrK3VxOWhITXJvNHVuaksrZSs2Y3VrZkhOWkk4MFVHazBOWUY3WGd1VTdETlJ1aApHQ1dJRkNhcjB0TE9lK1pBRzJQaHFQMno4cXlmNVNEckk0bmJtUHlabjZPMVFYZ0Q1REU9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
etcd-cert: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUVKakNDQXc2Z0F3SUJBZ0lVVHNTUDBUVlZqaE9UZEFUNnlncFpXcERRb0dJd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1p6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeERUQUxCZ05WQkFvVEJHVjBZMlF4RmpBVUJnTlZCQXNURFVWMFkyUWdVMlZqZFhKcGRIa3hEVEFMCkJnTlZCQU1UQkdWMFkyUXdJQmNOTWpJd01USXlNRGd4TkRBd1doZ1BNakV5TVRFeU1qa3dPREUwTURCYU1HY3gKQ3pBSkJnTlZCQVlUQWtOT01SQXdEZ1lEVlFRSUV3ZENaV2xxYVc1bk1SQXdEZ1lEVlFRSEV3ZENaV2xxYVc1bgpNUTB3Q3dZRFZRUUtFd1JsZEdOa01SWXdGQVlEVlFRTEV3MUZkR05rSUZObFkzVnlhWFI1TVEwd0N3WURWUVFECkV3UmxkR05rTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUFwaHR6OGtvNFRGdXgKT2VVTDBoSWpFdHBmcC9BRGYrcGR3SWNkeVA2QnV5dGxmSzJEMXh4SlFQZWE4U3AwaUVpUHFMR01aSXluM2Nsdwp4Mm9TYkpJd1ZzeEt6N2RybFErdUx2Qzl3Y3lPUktOZVpEd24xM0N6aTh5REQ2RmYvc0txeHM1dUQyc2w1Y0EwCmdPK3orMkdOeUh5YkhOTytodG93bnh0MjhuNHFKWmRnK2l5VXdHemxPTFBuVjlSUkRJYktNb1hPcUtRS3VZZWEKMm8rU2E4Rkp1anlvT2Uyc0t5UndTQk5xcjYyZnRTK0ZWSHFxZUpqUlhLbjk0UzRMMXB3YjlxTGdQMmZpTjVsVApadk4va1dkZnMxd2RXVElWUVNaZE92TmhhZGp4b0Y5TWlsSGFnSXg3Nlo1TVgvaU1lalBvdngzakNNcnN1YVRLCktnSGt6eTRLU3dJREFRQUJvNEhITUlIRU1BNEdBMVVkRHdFQi93UUVBd0lGb0RBZEJnTlZIU1VFRmpBVUJnZ3IKQmdFRkJRY0RBUVlJS3dZQkJRVUhBd0l3REFZRFZSMFRBUUgvQkFJd0FEQWRCZ05WSFE0RUZnUVU5cXI4N3RsZApyTGJPdGxMUEYvT0xBN1QvcEVFd0h3WURWUjBqQkJnd0ZvQVVpbkFQc1JrQ3pPenZ6N3ZwWmdQdUhUNGt3QTR3ClJRWURWUjBSQkQ0d1BJSUthemh6TFdWMFkyUXdNWUlLYXpoekxXVjBZMlF3TW9JS2F6aHpMV1YwWTJRd000Y0UKZndBQUFZY0VyQjhEYkljRXJCOERiWWNFckI4RGJqQU5CZ2txaGtpRzl3MEJBUXNGQUFPQ0FRRUFlb28rL0NVYQpTa2hkVEY0ekJLa3ExREs0cFFaVEdhQUNHNEUvWUUwNXFNWS9QcTlpam5nNGtRdFB0d2lXaE5WN1JZWGl5QnhjCitIMTBDc3JVSTQrTFVjVjI0T1d5UFA2Q09yY2sycDBDZUhTL0E0ZEhYaEhReC8rZFRoUGxWcno1RzdlblhKRE0KaTlhZGxOR21BSWVlZEE4ekNENlVvbHFOOVdrZ29jTWw0ckdFZDJ3WFZMcFA5ZzhybGlyNVJrSy9seHFmQ1dBWgpBeDZPejJTYTNEbEVGdXpNdGxYejBobnRPdGpBdUJ6eEdIdlJVMllDdlcyL3pDUTJTQ0ZodkJXMGtPVCtiUVc1CkkrVTZGeVpCSU1XQlBPQmZsNm03M2pkNjdiSzRreVJXTEhQUnl0T2w1N3RMdlljOEgybFBQbS9VS3BWYkx5NjkKdXBuNHhOZUhaYXZ5ckE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
etcd-ca: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUR4RENDQXF5Z0F3SUJBZ0lVSW02eEIzNlN2dXE1TDhUaks5cHV5bjJHWEp3d0RRWUpLb1pJaHZjTkFRRUwKQlFBd1p6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeERUQUxCZ05WQkFvVEJHVjBZMlF4RmpBVUJnTlZCQXNURFVWMFkyUWdVMlZqZFhKcGRIa3hEVEFMCkJnTlZCQU1UQkdWMFkyUXdJQmNOTWpJd01USXlNRGd4TXpBd1doZ1BNakV5TVRFeU1qa3dPREV6TURCYU1HY3gKQ3pBSkJnTlZCQVlUQWtOT01SQXdEZ1lEVlFRSUV3ZENaV2xxYVc1bk1SQXdEZ1lEVlFRSEV3ZENaV2xxYVc1bgpNUTB3Q3dZRFZRUUtFd1JsZEdOa01SWXdGQVlEVlFRTEV3MUZkR05rSUZObFkzVnlhWFI1TVEwd0N3WURWUVFECkV3UmxkR05rTUlJQklqQU5CZ2txaGtpRzl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUF1cDRWVEQzS1JaRWgKcXA2TW0wTXF3amFrVkFKTFJ0YlFjd3FLNWsvQ2s4MEFjTDUyOGl6YldSdGRXcDVpNk9td241M3BGNGdpZG9EYQphOUpadEF4ZUl0RmNkbExxRzZrdjFCU3pyVVlMMXZyOFZNckRZd0VrYW9RdlZ3cHFrZDJiR3pUd21oVnJXZ3AxCmMrMjcwSWI1L2NVa25mWmtubEVTcWlyQzI5Z09oZnh0OFNrc1FTSUNtcXhuajFDVnltL3dML3AwMDUzNE5BNjAKeXk5aDdkZjU1R0ZFbjdLaytzOEdkbUVmL3ludXVsT1VUY25mTXppeWVoQW5uUStZMjZMWGJzSWw3eHg3YzRpZgpManFPN3d1Qm5WS3M2WllENzI0V1Z0QUY0VWllL1NqRXVabE5GWGNIdTg0Ly9jNHBLL1Avb0dxNklUaVZYWUJyClY1TW1jdTRPV3dJREFRQUJvMll3WkRBT0JnTlZIUThCQWY4RUJBTUNBUVl3RWdZRFZSMFRBUUgvQkFnd0JnRUIKL3dJQkFqQWRCZ05WSFE0RUZnUVVpbkFQc1JrQ3pPenZ6N3ZwWmdQdUhUNGt3QTR3SHdZRFZSMGpCQmd3Rm9BVQppbkFQc1JrQ3pPenZ6N3ZwWmdQdUhUNGt3QTR3RFFZSktvWklodmNOQVFFTEJRQURnZ0VCQUpmNWJwd2FJYjFTCmtiRUcyVDlRb3d4WU52VGRYSGllbzkwazlPSEFqN3A3RGdzekk0alUwUnkxOHN4c1h0aW5TMCtNU3U5L2d1VHYKZEprK3c4TnhyNHNZZEt3N2VSVVpUbUREQ2l0VldkY0JHNk14Y1BTTDJaQnVJMi8wOTRnN0ZNd2ZIc09lVEdHZgpScVVrV1lTRjRRbU9iRTZwNTA3QWlxRlZqMEhzUHRmTTdpQjZ3ZXRyYzlTVzlZd3R5Tm9PVFhnZEdDdDc5akNBCllUTG9TaHFxcGRvUWEwd0hzYWZqSDd5N2VIZEdRRmZtSWo2RVFQU1ZRSFhQUmhFOXVadDgxbDByeENseUQxa3kKOEhVYTJpOFpHblF0cVJxd3JORHRHeEdlYUdMbCtNYkZVb1N4SW9nTTNaK2x0a2NNbUVZK3hxc3dBbVlMUTJnTwpNMUtoRVJxT1JsMD0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "" # "/calico-secrets/etcd-ca"
etcd_cert: "" # "/calico-secrets/etcd-cert"
etcd_key: "" # "/calico-secrets/etcd-key"
[root@k8s-master01 ~]# sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "/calico-secrets/etcd-ca" # "/calico-secrets/etcd-ca"
etcd_cert: "/calico-secrets/etcd-cert" # "/calico-secrets/etcd-cert"
etcd_key: "/calico-secrets/etcd-key" # "/calico-secrets/etcd-key"
# 更改此处为自己的pod网段
[root@k8s-master01 ~]# POD_SUBNET="192.168.0.0/12"
# 注意下面的这个步骤是把calico-etcd.yaml文件里面的CALICO_IPV4POOL_CIDR下的网段改成自己的Pod网段，也就是把192.168.x.x/16改成自己的集群网段，并打开注释：
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
# - name: CALICO_IPV4POOL_CIDR
# value: "192.168.0.0/16"
[root@k8s-master01 ~]# sed -i 's@# - name: CALICO_IPV4POOL_CIDR@- name: CALICO_IPV4POOL_CIDR@g; s@# value: "192.168.0.0/16"@ value: '"${POD_SUBNET}"'@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
- name: CALICO_IPV4POOL_CIDR
value: 192.168.0.0/12
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: docker.io/calico/cni:v3.15.3
image: docker.io/calico/pod2daemon-flexvol:v3.15.3
image: docker.io/calico/node:v3.15.3
image: docker.io/calico/kube-controllers:v3.15.3
下载calico镜像并上传harbor
[root@k8s-master01 ~]# cat download_calico_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_calico_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' calico-etcd.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Calico镜像"${END}
for i in ${images};do
docker pull registry.cn-beijing.aliyuncs.com/raymond9/$i
docker tag registry.cn-beijing.aliyuncs.com/raymond9/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.cn-beijing.aliyuncs.com/raymond9/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Calico镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_calico_images.sh
[root@k8s-master01 ~]# docker images|grep calico
harbor.raymonds.cc/calico/node v3.15.3 d45bf977dfbf 16 months ago 262MB
harbor.raymonds.cc/calico/pod2daemon-flexvol v3.15.3 963564fb95ed 16 months ago 22.8MB
harbor.raymonds.cc/calico/cni v3.15.3 ca5564c06ea0 16 months ago 110MB
harbor.raymonds.cc/calico/kube-controllers v3.15.3 0cb2976cbb7d 16 months ago 52.9MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) docker.io/calico(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/kube-controllers:v3.15.3
[root@k8s-master01 ~]# kubectl apply -f calico-etcd.yaml
secret/calico-etcd-secrets created
configmap/calico-config created
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created
clusterrole.rbac.authorization.k8s.io/calico-node created
clusterrolebinding.rbac.authorization.k8s.io/calico-node created
daemonset.apps/calico-node created
serviceaccount/calico-node created
deployment.apps/calico-kube-controllers created
serviceaccount/calico-kube-controllers created
#查看容器状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep calico
calico-kube-controllers-5d8579866c-lb9jt 1/1 Running 0 32s
calico-node-2bn8v 1/1 Running 0 32s
calico-node-bz8gh 1/1 Running 0 32s
calico-node-jbvm7 1/1 Running 0 32s
calico-node-mch4p 1/1 Running 0 32s
calico-node-qpxd7 1/1 Running 0 32s
calico-node-v7v4h 1/1 Running 0 32s
#查看集群状态
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready <none> 4m23s v1.21.8
k8s-master02.example.local Ready <none> 4m20s v1.21.8
k8s-master03.example.local Ready <none> 4m20s v1.21.8
k8s-node01.example.local Ready <none> 2m36s v1.21.8
k8s-node02.example.local Ready <none> 2m36s v1.21.8
k8s-node03.example.local Ready <none> 2m36s v1.21.8
11.安装CoreDNS
[root@k8s-master01 ~]# cat coredns.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: coredns
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
kubernetes.io/bootstrapping: rbac-defaults
name: system:coredns
rules:
- apiGroups:
- ""
resources:
- endpoints
- services
- pods
- namespaces
verbs:
- list
- watch
- apiGroups:
- discovery.k8s.io
resources:
- endpointslices
verbs:
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
labels:
kubernetes.io/bootstrapping: rbac-defaults
name: system:coredns
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:coredns
subjects:
- kind: ServiceAccount
name: coredns
namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
name: coredns
namespace: kube-system
data:
Corefile: |
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
fallthrough in-addr.arpa ip6.arpa
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
loop
reload
loadbalance
}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: coredns
namespace: kube-system
labels:
k8s-app: kube-dns
kubernetes.io/name: "CoreDNS"
spec:
# replicas: not specified here:
# 1. Default is 1.
# 2. Will be tuned in real time if DNS horizontal auto-scaling is turned on.
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 1
selector:
matchLabels:
k8s-app: kube-dns
template:
metadata:
labels:
k8s-app: kube-dns
spec:
priorityClassName: system-cluster-critical
serviceAccountName: coredns
tolerations:
- key: "CriticalAddonsOnly"
operator: "Exists"
nodeSelector:
kubernetes.io/os: linux
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchExpressions:
- key: k8s-app
operator: In
values: ["kube-dns"]
topologyKey: kubernetes.io/hostname
containers:
- name: coredns
image: registry.aliyuncs.com/google_containers/coredns:1.8.3
imagePullPolicy: IfNotPresent
resources:
limits:
memory: 170Mi
requests:
cpu: 100m
memory: 70Mi
args: [ "-conf", "/etc/coredns/Corefile" ]
volumeMounts:
- name: config-volume
mountPath: /etc/coredns
readOnly: true
ports:
- containerPort: 53
name: dns
protocol: UDP
- containerPort: 53
name: dns-tcp
protocol: TCP
- containerPort: 9153
name: metrics
protocol: TCP
securityContext:
allowPrivilegeEscalation: false
capabilities:
add:
- NET_BIND_SERVICE
drop:
- all
readOnlyRootFilesystem: true
livenessProbe:
httpGet:
path: /health
port: 8080
scheme: HTTP
initialDelaySeconds: 60
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 5
readinessProbe:
httpGet:
path: /ready
port: 8181
scheme: HTTP
dnsPolicy: Default
volumes:
- name: config-volume
configMap:
name: coredns
items:
- key: Corefile
path: Corefile
---
apiVersion: v1
kind: Service
metadata:
name: kube-dns
namespace: kube-system
annotations:
prometheus.io/port: "9153"
prometheus.io/scrape: "true"
labels:
k8s-app: kube-dns
kubernetes.io/cluster-service: "true"
kubernetes.io/name: "CoreDNS"
spec:
selector:
k8s-app: kube-dns
clusterIP: 192.168.0.10
ports:
- name: dns
port: 53
protocol: UDP
- name: dns-tcp
port: 53
protocol: TCP
- name: metrics
port: 9153
protocol: TCP
#如果更改了k8s service的网段需要将coredns的serviceIP改成k8s service网段的第十个IP
[root@k8s-master01 ~]# sed -i "s#10.96.0.10#10.96.0.10#g" coredns.yaml
安装coredns
[root@k8s-master01 ~]# grep "image:" coredns.yaml
image: registry.aliyuncs.com/google_containers/coredns:1.8.3
[root@k8s-master01 ~]# cat download_coredns_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_metrics_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' coredns.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Coredns镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Coredns镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_coredns_images.sh
[root@k8s-master01 ~]# docker images |grep coredns
harbor.raymonds.cc/google_containers/coredns 1.8.3 bfe3a36ebd25 19 months ago 45.2MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) registry.aliyuncs.com(/.*)@\1 harbor.raymonds.cc\2@g' coredns.yaml
[root@k8s-master01 ~]# grep "image:" coredns.yaml
image: harbor.raymonds.cc/google_containers/coredns:1.8.3
[root@k8s-master01 ~]# kubectl create -f coredns.yaml
serviceaccount/coredns created
clusterrole.rbac.authorization.k8s.io/system:coredns created
clusterrolebinding.rbac.authorization.k8s.io/system:coredns created
configmap/coredns created
deployment.apps/coredns created
service/kube-dns created
#查看状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep coredns
coredns-7cd47cd6db-gz9vb 1/1 Running 0 14s
ubuntu会出现如下问题：
root@k8s-master01:~# kubectl get pod -A -o wide|grep coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-9jqq5 0/1 CrashLoopBackOff 1 8s 192.171.30.65 k8s-master02.example.local <none> <none>
#由于ubuntu系统有dns本地缓存,造成coredns不能正常解析
#具体问题请参考官方https://coredns.io/plugins/loop/#troubleshooting
root@k8s-master01:~# kubectl edit -n kube-system cm coredns
...
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
.:53 {
errors
health {
lameduck 5s
}
ready
kubernetes cluster.local in-addr.arpa ip6.arpa {
fallthrough in-addr.arpa ip6.arpa
}
prometheus :9153
forward . /etc/resolv.conf {
max_concurrent 1000
}
cache 30
loop #将loop插件直接删除，避免内部循环
reload
loadbalance
}
root@k8s-master01:~# kubectl get pod -A -o wide |grep coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-r9tsd 0/1 CrashLoopBackOff 4 3m4s 192.170.21.195 k8s-node03.example.local <none> <none>
root@k8s-master01:~# kubectl delete pod coredns-847c895554-r9tsd -n kube-system
pod "coredns-847c895554-r9tsd" deleted
root@k8s-master01:~# kubectl get pod -A -o wide |greo coredns
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-847c895554-cqwl5 1/1 Running 0 13s 192.167.195.130 k8s-node02.example.local <none> <none>
#现在就正常了
12.安装Metrics Server
在新版的Kubernetes中系统资源的采集均使用Metrics-server，可以通过Metrics采集节点和Pod的内存、磁盘、CPU和网络的使用率。
安装metrics server
[root@k8s-master01 ~]# cat components.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
rbac.authorization.k8s.io/aggregate-to-admin: "true"
rbac.authorization.k8s.io/aggregate-to-edit: "true"
rbac.authorization.k8s.io/aggregate-to-view: "true"
name: system:aggregated-metrics-reader
rules:
- apiGroups:
- metrics.k8s.io
resources:
- pods
- nodes
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
rules:
- apiGroups:
- ""
resources:
- pods
- nodes
- nodes/stats
- namespaces
- configmaps
verbs:
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server-auth-reader
namespace: kube-system
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: metrics-server:system:auth-delegator
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:auth-delegator
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
labels:
k8s-app: metrics-server
name: system:metrics-server
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: system:metrics-server
subjects:
- kind: ServiceAccount
name: metrics-server
namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
ports:
- name: https
port: 443
protocol: TCP
targetPort: https
selector:
k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
k8s-app: metrics-server
name: metrics-server
namespace: kube-system
spec:
selector:
matchLabels:
k8s-app: metrics-server
strategy:
rollingUpdate:
maxUnavailable: 0
template:
metadata:
labels:
k8s-app: metrics-server
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --metric-resolution=30s
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 3
httpGet:
path: /livez
port: https
scheme: HTTPS
periodSeconds: 10
name: metrics-server
ports:
- containerPort: 4443
name: https
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /readyz
port: https
scheme: HTTPS
periodSeconds: 10
securityContext:
readOnlyRootFilesystem: true
runAsNonRoot: true
runAsUser: 1000
volumeMounts:
- mountPath: /tmp
name: tmp-dir
nodeSelector:
kubernetes.io/os: linux
priorityClassName: system-cluster-critical
serviceAccountName: metrics-server
volumes:
- emptyDir: {}
name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
labels:
k8s-app: metrics-server
name: v1beta1.metrics.k8s.io
spec:
group: metrics.k8s.io
groupPriorityMinimum: 100
insecureSkipTLSVerify: true
service:
name: metrics-server
namespace: kube-system
version: v1beta1
versionPriority: 100
修改下面内容：
[root@k8s-master01 ~]# vim components.yaml
...
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --metric-resolution=30s
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
#添加下面内容
- --kubelet-insecure-tls
- --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem #注意二进制包证书文件是front-proxy-ca.pem
- --requestheader-username-headers=X-Remote-User
- --requestheader-group-headers=X-Remote-Group
- --requestheader-extra-headers-prefix=X-Remote-Extra-
...
volumeMounts:
- mountPath: /tmp
name: tmp-dir
#添加下面内容
- name: ca-ssl
mountPath: /etc/kubernetes/pki
...
volumes:
- emptyDir: {}
name: tmp-dir
#添加下面内容
- name: ca-ssl
hostPath:
path: /etc/kubernetes/pki
...
下载镜像并修改镜像地址
[root@k8s-master01 ~]# grep "image:" components.yaml
image: registry.aliyuncs.com/google_containers/metrics-server:v0.4.1
[root@k8s-master01 ~]# cat download_metrics_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_metrics_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' components.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Metrics镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Metrics镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_metrics_images.sh
[root@k8s-master01 ~]# docker images |grep metrics
harbor.raymonds.cc/google_containers/metrics-server v0.4.1 9759a41ccdf0 14 months ago 60.5MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) registry.aliyuncs.com(/.*)@\1 harbor.raymonds.cc\2@g' components.yaml
[root@k8s-master01 ~]# grep "image:" components.yaml
image: harbor.raymonds.cc/google_containers/metrics-server:v0.4.1
安装metrics server
[root@k8s-master01 ~]# kubectl apply -f components.yaml
serviceaccount/metrics-server created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
clusterrolebinding.rbac.authorization.k8s.io/metrics-server:system:auth-delegator created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created
service/metrics-server created
deployment.apps/metrics-server created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
查看状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep metrics
metrics-server-7869ccfd68-lgdtm 1/1 Running 0 15s
[root@k8s-master01 ~]# kubectl top node
W0305 16:31:00.921693 30314 top_node.go:119] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
k8s-master01.example.local 730m 36% 1614Mi 42%
k8s-master02.example.local 184m 9% 1426Mi 37%
k8s-master03.example.local 468m 23% 1465Mi 38%
k8s-node01.example.local 61m 3% 663Mi 17%
k8s-node02.example.local 60m 3% 660Mi 17%
k8s-node03.example.local 70m 3% 679Mi 17%
[root@k8s-master01 ~]# kubectl top node --use-protocol-buffers
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
k8s-master01.example.local 730m 36% 1614Mi 42%
k8s-master02.example.local 184m 9% 1426Mi 37%
k8s-master03.example.local 468m 23% 1465Mi 38%
k8s-node01.example.local 61m 3% 663Mi 17%
k8s-node02.example.local 60m 3% 660Mi 17%
k8s-node03.example.local 70m 3% 679Mi 17%
13.安装dashboard
13.1 Dashboard部署
Dashboard用于展示集群中的各类资源，同时也可以通过Dashboard实时查看Pod的日志和在容器中执行一些命令等。
[root@k8s-master01 ~]# cat recommended.yaml
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: Namespace
metadata:
name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-csrf
namespace: kubernetes-dashboard
type: Opaque
data:
csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-key-holder
namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-settings
namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
rules:
# Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
resources: ["secrets"]
resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
verbs: ["get", "update", "delete"]
# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
resources: ["configmaps"]
resourceNames: ["kubernetes-dashboard-settings"]
verbs: ["get", "update"]
# Allow Dashboard to get metrics.
- apiGroups: [""]
resources: ["services"]
resourceNames: ["heapster", "dashboard-metrics-scraper"]
verbs: ["proxy"]
- apiGroups: [""]
resources: ["services/proxy"]
resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
rules:
# Allow Metrics Scraper to get metrics from the Metrics server
- apiGroups: ["metrics.k8s.io"]
resources: ["pods", "nodes"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: kubernetes-dashboard
template:
metadata:
labels:
k8s-app: kubernetes-dashboard
spec:
containers:
- name: kubernetes-dashboard
image: kubernetesui/dashboard:v2.2.0
imagePullPolicy: Always
ports:
- containerPort: 8443
protocol: TCP
args:
- --auto-generate-certificates
- --namespace=kubernetes-dashboard
# Uncomment the following line to manually specify Kubernetes API server Host
# If not specified, Dashboard will attempt to auto discover the API server and connect
# to it. Uncomment only if the default does not work.
# - --apiserver-host=http://my-address:port
volumeMounts:
- name: kubernetes-dashboard-certs
mountPath: /certs
# Create on-disk volume to store exec logs
- mountPath: /tmp
name: tmp-volume
livenessProbe:
httpGet:
scheme: HTTPS
path: /
port: 8443
initialDelaySeconds: 30
timeoutSeconds: 30
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
volumes:
- name: kubernetes-dashboard-certs
secret:
secretName: kubernetes-dashboard-certs
- name: tmp-volume
emptyDir: {}
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
ports:
- port: 8000
targetPort: 8000
selector:
k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: dashboard-metrics-scraper
template:
metadata:
labels:
k8s-app: dashboard-metrics-scraper
annotations:
seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
spec:
containers:
- name: dashboard-metrics-scraper
image: kubernetesui/metrics-scraper:v1.0.6
ports:
- containerPort: 8000
protocol: TCP
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 8000
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- mountPath: /tmp
name: tmp-volume
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
volumes:
- name: tmp-volume
emptyDir: {}
[root@k8s-master01 ~]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort #添加这行
ports:
- port: 443
targetPort: 8443
nodePort: 30005 #添加这行
selector:
k8s-app: kubernetes-dashboard
...
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: kubernetesui/dashboard:v2.2.0
image: kubernetesui/metrics-scraper:v1.0.6
下载镜像并上传到harbor
[root@k8s-master01 ~]# cat download_dashboard_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_dashboard_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' recommended.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Dashboard镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Dashboard镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_dashboard_images.sh
[root@k8s-master01 ~]# sed -ri 's@(.*image:) kubernetesui(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' recommended.yaml
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: harbor.raymonds.cc/google_containers/dashboard:v2.2.0
image: harbor.raymonds.cc/google_containers/metrics-scraper:v1.0.6
[root@k8s-master01 ~]# kubectl create -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
创建管理员用户admin.yaml
[root@k8s-master01 ~]# vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kube-system
[root@k8s-master01 ~]# kubectl apply -f admin.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
13.2 登录dashboard
在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考图1-1：
--test-type --ignore-certificate-errors
图1-1 谷歌浏览器 Chrome的配置
[root@k8s-master01 ~]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.106.189.113 <none> 443:30005/TCP 18s

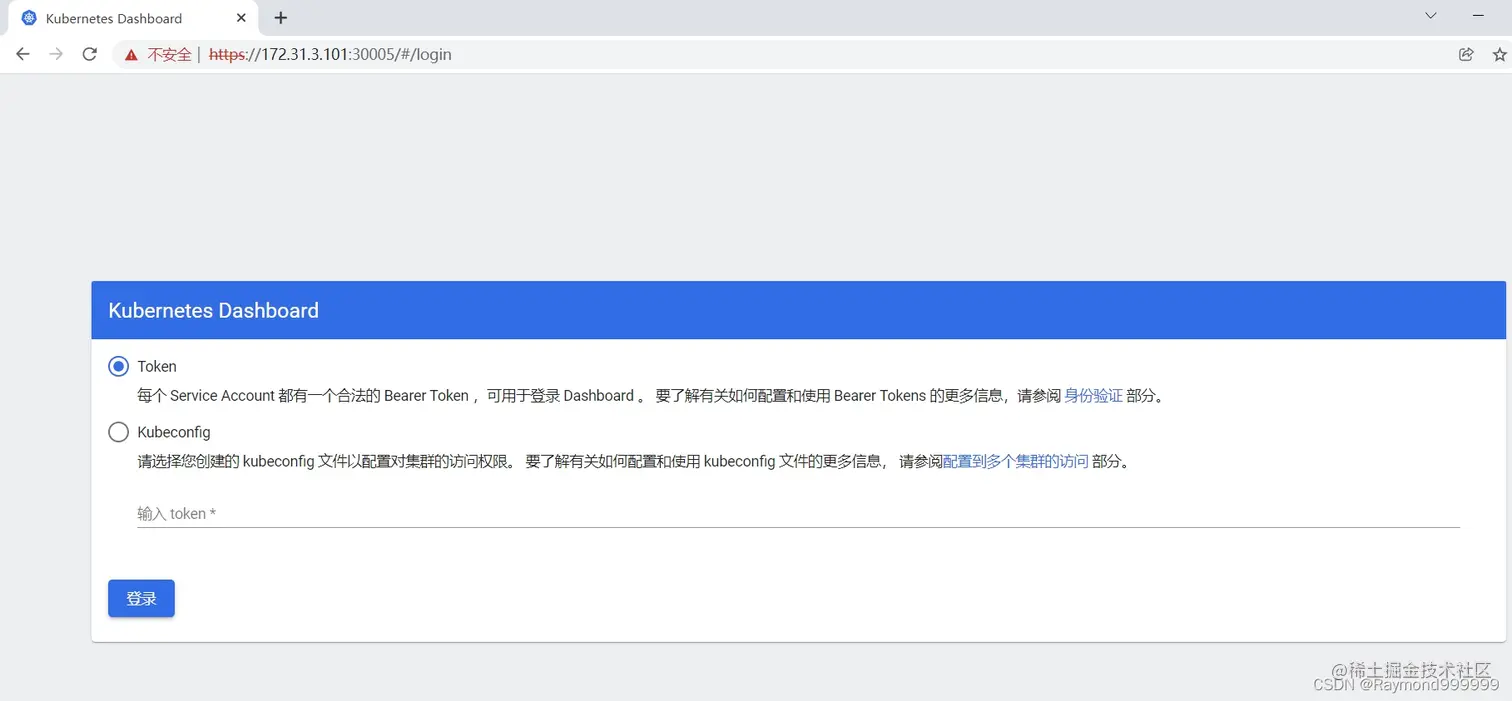

访问Dashboard：https://172.31.3.101:30005，参考图1-2
图1-2 Dashboard登录方式
13.2.1 token登录
查看token值：
[root@k8s-master01 ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name: admin-user-token-9dmsd
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin-user
kubernetes.io/service-account.uid: 7d0d71d5-8454-40c1-877f-63e56e4fceda
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1411 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6InhpRVlPQzVJRER0TUR2OURobHI4Wnh0Z192eVo1SndMOGdfaEprNFg2RmMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTlkbXNkIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI3ZDBkNzFkNS04NDU0LTQwYzEtODc3Zi02M2U1NmU0ZmNlZGEiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.AfUDqSA8YtMo7UJdQ_NMMU5BylS_fbf7jb_vTuYKsqVlxVjWe_1AgnaicyG0pO4UnL6_vkzqY3MigTqwlyuYKXrDb58F4MwjzHjMKMLHlesjo9WkzMptdq83fIU_8FQ731TROGaZsXGuBu1zOppiWqag-43d0Lqv2BBVl70-6-F5BAJ_XM5NSbFz7slxIUjbWJ4szauNCnUhy8z89bH4JIwVCD_lqvsC0rvCM8kgEaHHv9qIYL1uFfK8Y5bFy7BMXWHhJo5VwRvQ6-8Nz4bXgfDKWeBgovrnkR71WrgGtK0LZHPYZZo-GrxkVn4ixb0AOdgYxruXgkjs1otwoNvoig

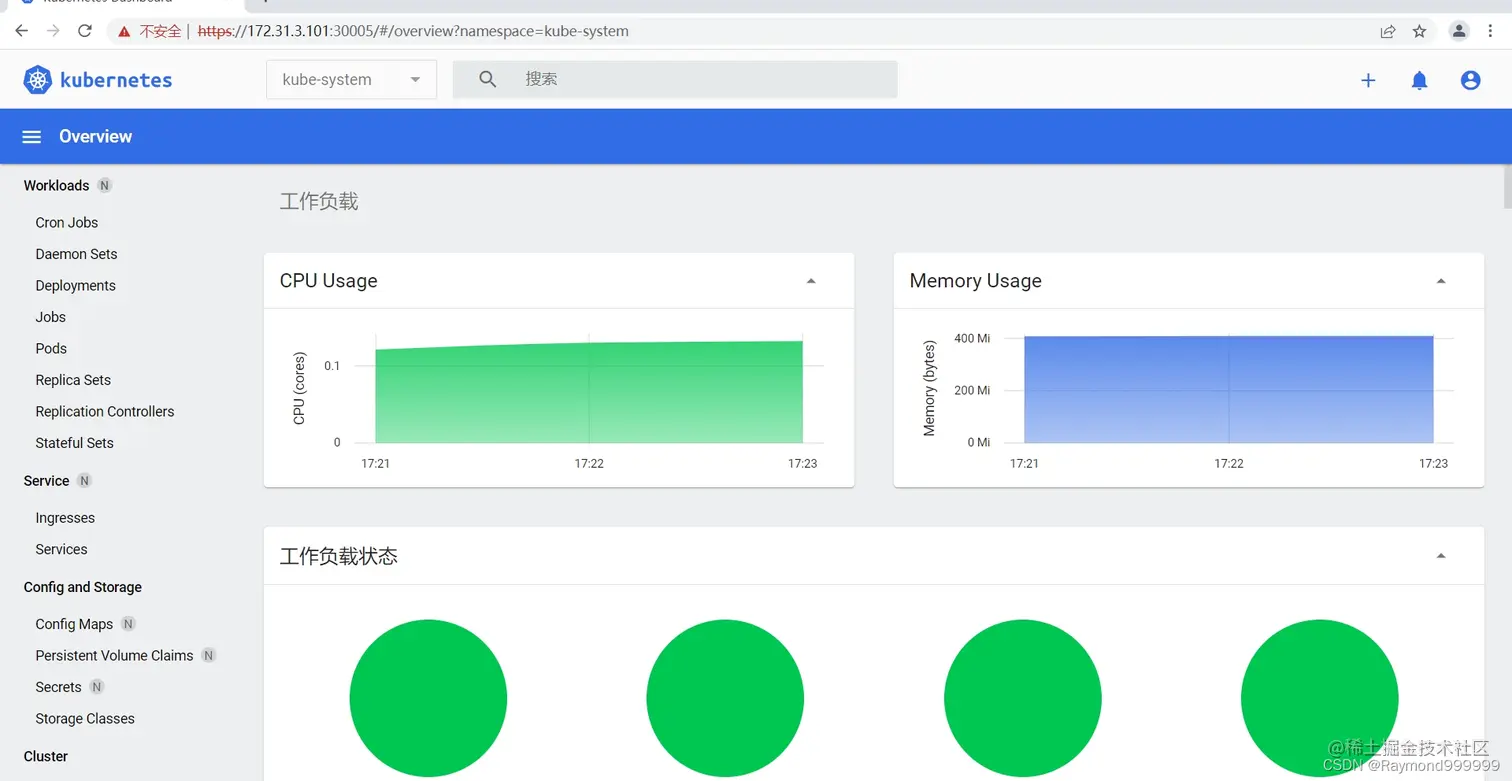

将token值输入到令牌后，单击登录即可访问Dashboard，参考图1-3：

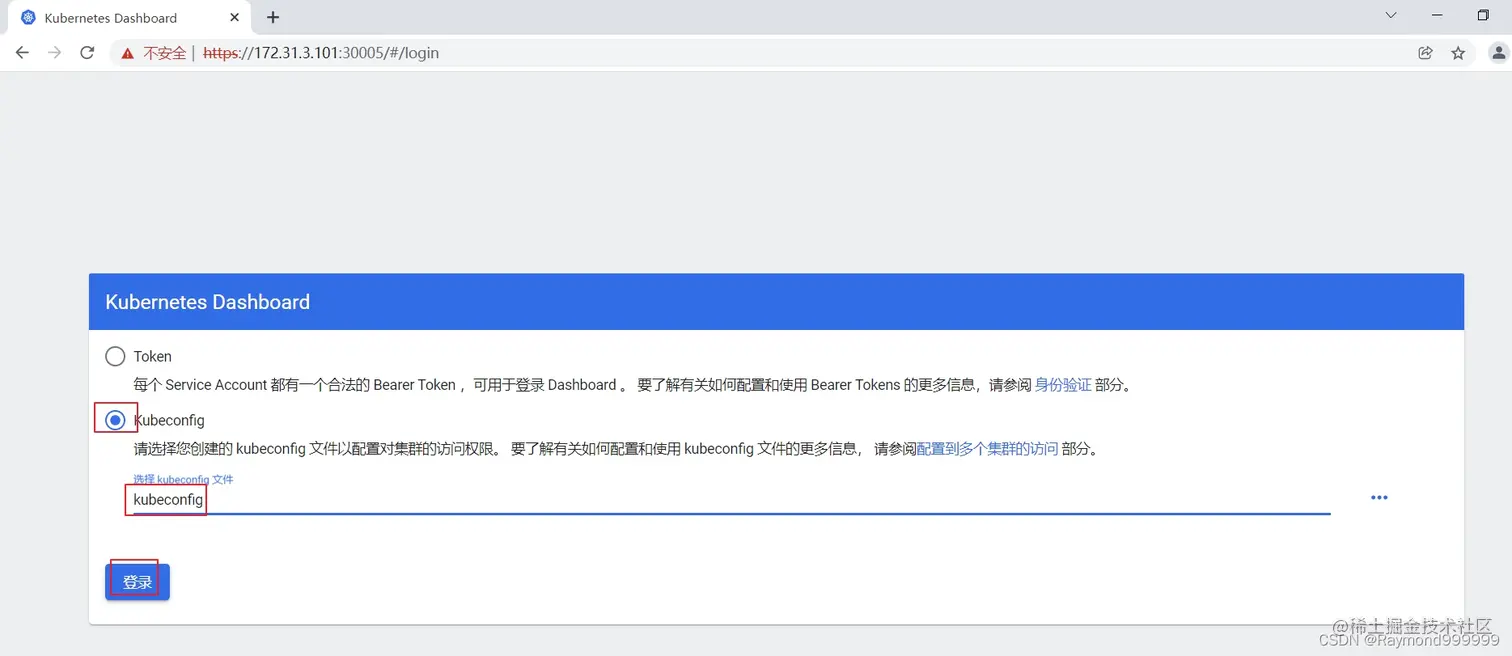

13.2.2 使用kubeconfig文件登录dashboard
[root@k8s-master01 ~]# cp /etc/kubernetes/admin.kubeconfig kubeconfig
[root@k8s-master01 ~]# vim kubeconfig
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQ1RENDQXN5Z0F3SUJBZ0lVTExMRWFmWUZtT256NFFZOHMzcWNOTTFFWUFFd0RRWUpLb1pJaHZjTkFRRUwKQlFBd2R6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEV6QVJCZ05WQkFvVENrdDFZbVZ5Ym1WMFpYTXhHakFZQmdOVkJBc1RFVXQxWW1WeWJtVjBaWE10CmJXRnVkV0ZzTVJNd0VRWURWUVFERXdwcmRXSmxjbTVsZEdWek1DQVhEVEl5TURFeE5qRXpORE13TUZvWUR6SXgKTWpFeE1qSXpNVE0wTXpBd1dqQjNNUXN3Q1FZRFZRUUdFd0pEVGpFUU1BNEdBMVVFQ0JNSFFtVnBhbWx1WnpFUQpNQTRHQTFVRUJ4TUhRbVZwYW1sdVp6RVRNQkVHQTFVRUNoTUtTM1ZpWlhKdVpYUmxjekVhTUJnR0ExVUVDeE1SClMzVmlaWEp1WlhSbGN5MXRZVzUxWVd3eEV6QVJCZ05WQkFNVENtdDFZbVZ5Ym1WMFpYTXdnZ0VpTUEwR0NTcUcKU0liM0RRRUJBUVVBQTRJQkR3QXdnZ0VLQW9JQkFRQzV1S3F2S1RsK3V3SHg3cGZLSGtHd0o0cFoxOXVkZ0xpZApjY0xBemFjSldoNTlIbnVJSzQ4SWQyVXQzenNNbmpWUktkMzR0NUNFQldkMmNQeVFveGl3ck5EdkNySnJBNmdoCkdTY0VMa0dpSldnYzNjN0lKSXlhM3d3akxITVBCbHp3RC80aitqWFFwTTltWElWeE5ndVk0dW1NeStXYzNBTGwKdE8yMEllUzVzTDlOWi9yc0F4MU8wOWtlc3ZYYXl4cWVXTXRJUStKQ1lqUzNETk95R1M1WERwTkRSaExRdUxJUApRUktHVGVvVm1vL0FvNHlIVFcyL0JJSXFJN1p6OGdMRUNWZlFPV3E0Q2JTMWRTbkJJYUZVc3RKRjNoMEd3UWRuCnc4NHBmV25DRlEzMkhFN0N2SVdMckcweFcyTmc3djhyWGIrdGZHQ2FSVEtLREVZQjNzU0RBZ01CQUFHalpqQmsKTUE0R0ExVWREd0VCL3dRRUF3SUJCakFTQmdOVkhSTUJBZjhFQ0RBR0FRSC9BZ0VDTUIwR0ExVWREZ1FXQkJRbApsNW1MUVlLdWw5SGJRNFplc1lKMGc5TDIrekFmQmdOVkhTTUVHREFXZ0JRbGw1bUxRWUt1bDlIYlE0WmVzWUowCmc5TDIrekFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBVHgyVUZSY0xFNzl1YXVpSTRGajBoNldSVndkTHhxMWsKZk90QWRuL0F5bmhHcjVoV09UVW5OS05OMG14NFM1WHZQTmptdVNHRGFCcjJtb3NjSU9pYmVDbHdUNWFSRG56YwpzS3loc2ZhNi9CcTVYNHhuMjdld0dvWjNuaXNSdExOQllSWHNjWTdHZ2U4c1V4eXlPdGdjNTRVbWRWYnJPN1VMCkRJV3VlYVdtT2FxOUxvNzlRWTdGQlFteEZab1lFeDY4ODMxNVZMNEY2bC83cVVKZ1FhOXBVV2Qwb0RDeExEaEwKUFhnZkEyakNBZmVpQVl6RFh3T1BwaURqN3lYSmZQVGlCSXFEQS9lYmYzOXFiTXhGMmtGdTdkOXNNaXNIYXZabgpsYUJqbHlCYTRBQ0d1eE9xTzlLaFc1cG04ZkE5NlBDRmh0eERPUmtURTVmNkcrZHBqWmpUNnc9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://172.31.3.188:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQvRENDQXVTZ0F3SUJBZ0lVTTJNRVRqTnFFRFVlVzkxQWVacUxJVE5rNTlRd0RRWUpLb1pJaHZjTkFRRUwKQlFBd2R6RUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEV6QVJCZ05WQkFvVENrdDFZbVZ5Ym1WMFpYTXhHakFZQmdOVkJBc1RFVXQxWW1WeWJtVjBaWE10CmJXRnVkV0ZzTVJNd0VRWURWUVFERXdwcmRXSmxjbTVsZEdWek1DQVhEVEl5TURFeE5qRXpOVEF3TUZvWUR6SXgKTWpFeE1qSXpNVE0xTURBd1dqQjJNUXN3Q1FZRFZRUUdFd0pEVGpFUU1BNEdBMVVFQ0JNSFFtVnBhbWx1WnpFUQpNQTRHQTFVRUJ4TUhRbVZwYW1sdVp6RVhNQlVHQTFVRUNoTU9jM2x6ZEdWdE9tMWhjM1JsY25NeEdqQVlCZ05WCkJBc1RFVXQxWW1WeWJtVjBaWE10YldGdWRXRnNNUTR3REFZRFZRUURFd1ZoWkcxcGJqQ0NBU0l3RFFZSktvWkkKaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFNd3M0U0pjOXlxMGI5OTRoUUc4Sis3a2wwenQ4dmxVY3k5RwpZMnhGbWFqU3dsYmFEOG13YmtqU05BckdrSjF4TC9Pd1FkTWxYUTJMT3dnSERqTERRUzlLa2QwZ2FWY2M3RjdvCm8xZGE1TEJWQW5uSzVzWUFwSjJ5ZHpZcFFqc3IwZkFEdjNkS3d2OWIwaXZkZCt1cGQ0cWU2cFVmK0IxalozV1IKTVpSSnFmN2hCWTdoR3BUU09ZR2dlTGFDUXFNTDBhMzJmVVZHaHJ3WmFveWVQSzBab2dTSi9HVHRmQTltWnFEaQorOW4xa1pwQlBhN2xCd3h1eng4T1hweUpwWmZYSEh0Zis2MTNoVDV6RnkxZUpQQnZHQkhnMXhVZXNmT0xDazZ5Cm9penFOSjYxaVk1Y0plTWU5U2NvR2VXQ0xPNGV1eU14MVRjMzVvUUlsMzlqUEhkVzdkOENBd0VBQWFOL01IMHcKRGdZRFZSMFBBUUgvQkFRREFnV2dNQjBHQTFVZEpRUVdNQlFHQ0NzR0FRVUZCd01CQmdnckJnRUZCUWNEQWpBTQpCZ05WSFJNQkFmOEVBakFBTUIwR0ExVWREZ1FXQkJRSWdua25wWW5xRzFKNmpUY3ROZHhnYXRtZCt6QWZCZ05WCkhTTUVHREFXZ0JRbGw1bUxRWUt1bDlIYlE0WmVzWUowZzlMMit6QU5CZ2txaGtpRzl3MEJBUXNGQUFPQ0FRRUEKUUJXVCs0TmZNT3ZDRyt6ZTBzZjZTRWNSNGR5c2d6N2wrRUJHWGZRc015WWZ2V1IzdlVqSXFDbVhkdGdRVGVoQQpCenFjdXRnU0NvQWROM05oamF5eWZ2WWx5TGp1dFN4L1llSFM2N2IxMG5oY3FQV2ZRdiswWnB3dW1Tblp1R2JzCm8xdDF4aUhRRFFJeGxnNnZ6NjV2TXM0RDhYMGIrNkZlYVE2QVhJU0FFNENla0V6aTBGVjFFUUZuV2FOU24yT1AKNERoR2VsajJHRWpValNybDNQY0JnWG1Za1hMSHMvMFB5a3JjVnI0WWtudHJ4Wkp1WWd6cURTS1NJQk91WkpXVwpabkZXb0x1aWZEWXJZVjI1WXUzVXoyY2JYSUxDaVRvc1BRUDBhU3hMV25vMXJlV0VZWVFnNTdHbHBWVkxHcXVWCjNTRndWQjJwTE1NKy9WYi9JRGJWa0E9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBekN6aElsejNLclJ2MzNpRkFid243dVNYVE8zeStWUnpMMFpqYkVXWnFOTENWdG9QCnliQnVTTkkwQ3NhUW5YRXY4N0JCMHlWZERZczdDQWNPTXNOQkwwcVIzU0JwVnh6c1h1aWpWMXJrc0ZVQ2Vjcm0KeGdDa25iSjNOaWxDT3l2UjhBTy9kMHJDLzF2U0s5MTM2NmwzaXA3cWxSLzRIV05uZFpFeGxFbXAvdUVGanVFYQpsTkk1Z2FCNHRvSkNvd3ZScmZaOVJVYUd2Qmxxako0OHJSbWlCSW44Wk8xOEQyWm1vT0w3MmZXUm1rRTlydVVICkRHN1BIdzVlbkltbGw5Y2NlMS83clhlRlBuTVhMVjRrOEc4WUVlRFhGUjZ4ODRzS1RyS2lMT28wbnJXSmpsd2wKNHg3MUp5Z1o1WUlzN2g2N0l6SFZOemZtaEFpWGYyTThkMWJ0M3dJREFRQUJBb0lCQVFDSmZWOU5xSlM0cVREOApwMGZKMTA1OHpHb21YOFhTcUUrNGNnblppelRpUHFxbm1jZ3Y1U01lM280MUEybTIyOVdTb0FwemlTR1VVVUc3Ck1pVVpnZXFQVWdQUGlGZm5WWTdHaXBvVDVSMUNzTHd1RDdnL2RZZGt1aDBVMTh2RjFNaFdlKytmQVRVMmlEcUwKVjJPOXlpeTVxRElIb2JPTzlyVmdzaGxVNWhZWGozTzY0UHdhanltSlVCNjZkK25RYVNnVXdtNGFMNzdVOCtyeApTQlFkOG16Vy8xMGgxQ3RXMkozYVcxbGwyaDJvZTlEUGVmWHhwUElsamhWbkZBRzZQQkhvb1Bna0hDOXM3OWJnCkpPck1IcGxneVRmeGxRNi82VU9wcEd0ZjlzOElsdnVMQkd0bDQvMEt6UVo2L2VRcXJONCsyelFOSkhVUmM1YXgKNVBvOVd5YmhBb0dCQU5qVU1jeG03N0VnbHFKWk5KWDFtVHJ3STFrMDhLR1J6UlZDMU83ZzhIWUZ3ekgveWJuNgpVTlUraTFqMDJMdXB2SVhFQ1ZRblJIcy81Tk00TXFqOE9xQ0l5L0pkUWFCeCtwcUQ3TlhJcnZhaEkyMzI0WE1ICjRuQzRzZHc0Rm5oWlNJTTg1d0VnU3hkVG1wNzBCdlNPckFwOGVsT2wzbG4yOWljb0pGaE56OFY3QW9HQkFQRVAKZk8vME9yb3JrWjhzSk5YY2RvM0FNenRKVzZxMlorWXBXcVBlaTlDNnBxZE9GMmhFMERXdy9uSG4vaDRiL2hZZwpUVmJscUxkYUtTSUZGVE9FUWkxREFieDdSZ3U2SHdvL1ZnRlpaYWNwM016YUlkMDYwOXBnR2drYW5MLzJ4MkI1ClVoMjNrK0RsYmlZTEFLcU5WbmcrL1pBTFpTOGx2cWJLT0JHYWhPSHRBb0dBUzY2TkR6Wml0V1dWam1jcWxxa1oKNmR1Rnl3NVNhMkt6dlpjTk1hL3IzcFlXVXE1Z1gvekNHQnh6a1FJdFlCdFh4U3p1d0tQUUlHRGw0dCs3dHdZTApCSnVhN0NhbTBIVFlMdlNiUnVkOFFuTnVKV1RGdmx2aktzc2NzYXdXRTcyK05LaWVUT05Uc25tby81QlhtU2J2Clg5Mmc2Tzk5VTlPQ2lacFdUVWdqbkY4Q2dZQkx1RnU4Vy9FZWpaVCtkTFZWWUJ6MVJjeFI4U2NVSnB2WVZtRWMKWEVsNjFVYUlBeVdqSVFwdDh4eloxcytoMFpVc2loVUJHTDY0YVYvR1NlWncramgzVXpiMlo1cUhFSDJ6a0ZXSgpzdlVWWHpiMk9nYXRJVTl1cHdWR21zOW1GVFJuZjNSbDFVWmtQRzB2RWdHeGtSZjZTWDhJZ2l2VWRYeS9rNEd0Ck5lWkx1UUtCZ0NjNkdseE9TNDhhRWRlSmZtQVR2OXY5eVhHWW1Ta2w5YnRpV25iL2dud1RFOHlTaTFPdXY5a3EKNllaellwNmNQN0FUNUQvc29yb25pTFRsanlOUXJ3bUh1WjhKUkJFbzExc3dMZlRoTlB2R2ZHSEFBRTJ6eDZBMQpQZXhQd2lwczhOVFl6ZG5JczA0VkZ2YVI0V2lidUFXZmxCRUFiUUVtYnhnM1A2MmYwbnBvCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
token: eyJhbGciOiJSUzI1NiIsImtpZCI6InhpRVlPQzVJRER0TUR2OURobHI4Wnh0Z192eVo1SndMOGdfaEprNFg2RmMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTlkbXNkIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI3ZDBkNzFkNS04NDU0LTQwYzEtODc3Zi02M2U1NmU0ZmNlZGEiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.AfUDqSA8YtMo7UJdQ_NMMU5BylS_fbf7jb_vTuYKsqVlxVjWe_1AgnaicyG0pO4UnL6_vkzqY3MigTqwlyuYKXrDb58F4MwjzHjMKMLHlesjo9WkzMptdq83fIU_8FQ731TROGaZsXGuBu1zOppiWqag-43d0Lqv2BBVl70-6-F5BAJ_XM5NSbFz7slxIUjbWJ4szauNCnUhy8z89bH4JIwVCD_lqvsC0rvCM8kgEaHHv9qIYL1uFfK8Y5bFy7BMXWHhJo5VwRvQ6-8Nz4bXgfDKWeBgovrnkR71WrgGtK0LZHPYZZo-GrxkVn4ixb0AOdgYxruXgkjs1otwoNvoig
14.集群验证
安装busybox
cat<<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: busybox
namespace: default
spec:
containers:
- name: busybox
image: busybox:1.28
command:
- sleep
- "3600"
imagePullPolicy: IfNotPresent
restartPolicy: Always
EOF
-
Pod必须能解析Service
-
Pod必须能解析跨namespace的Service
-
每个节点都必须要能访问Kubernetes的kubernetes svc 443和kube-dns的service 53
-
Pod和Pod之前要能通
a) 同namespace能通信
b) 跨namespace能通信
c) 跨机器能通信
验证解析
[root@k8s-master01 ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h9m
#Pod必须能解析Service
[root@k8s-master01 ~]# kubectl exec busybox -n default -- nslookup kubernetes
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local
#Pod必须能解析跨namespace的Service
[root@k8s-master01 ~]# kubectl exec busybox -n default -- nslookup kube-dns.kube-system
Server: 10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
Name: kube-dns.kube-system
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local
每个节点都必须要能访问Kubernetes的kubernetes svc 443和kube-dns的service 53
[root@k8s-master01 ~]# telnet 10.96.0.1 443
Trying 10.96.0.1...
Connected to 10.96.0.1.
Escape character is '^]'.
[root@k8s-master02 ~]# telnet 10.96.0.1 443
[root@k8s-master03 ~]# telnet 10.96.0.1 443
[root@k8s-node01 ~]# telnet 10.96.0.1 443
[root@k8s-node02 ~]# telnet 10.96.0.1 443
[root@k8s-node03 ~]# telnet 10.96.0.1 443
[root@k8s-master01 ~]# kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 23h
metrics-server ClusterIP 10.109.243.246 <none> 443/TCP 23h
[root@k8s-master01 ~]# telnet 10.96.0.10 53
Trying 10.96.0.10...
Connected to 10.96.0.10.
Escape character is '^]'.
Connection closed by foreign host.
[root@k8s-master02 ~]# telnet 10.96.0.10 53
[root@k8s-master03 ~]# telnet 10.96.0.10 53
[root@k8s-node01 ~]# telnet 10.96.0.10 53
[root@k8s-node02 ~]# telnet 10.96.0.10 53
[root@k8s-node03 ~]# telnet 10.96.0.10 53
[root@k8s-master01 ~]# curl 10.96.0.10:53
curl: (52) Empty reply from server
[root@k8s-master02 ~]# curl 10.96.0.10:53
[root@k8s-master03 ~]# curl 10.96.0.10:53
[root@k8s-node01 ~]# curl 10.96.0.10:53
[root@k8s-node02 ~]# curl 10.96.0.10:53
[root@k8s-node03 ~]# curl 10.96.0.10:53
Pod和Pod之前要能通
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-5d8579866c-lb9jt 1/1 Running 1 23h 172.31.3.102 k8s-master02.example.local <none> <none>
calico-node-2bn8v 1/1 Running 1 23h 172.31.3.101 k8s-master01.example.local <none> <none>
calico-node-bz8gh 1/1 Running 1 23h 172.31.3.102 k8s-master02.example.local <none> <none>
calico-node-jbvm7 1/1 Running 1 23h 172.31.3.112 k8s-node02.example.local <none> <none>
calico-node-mch4p 1/1 Running 3 23h 172.31.3.113 k8s-node03.example.local <none> <none>
calico-node-qpxd7 1/1 Running 2 23h 172.31.3.111 k8s-node01.example.local <none> <none>
calico-node-v7v4h 1/1 Running 1 23h 172.31.3.103 k8s-master03.example.local <none> <none>
coredns-7cd47cd6db-gz9vb 1/1 Running 1 23h 192.170.21.194 k8s-node03.example.local <none> <none>
metrics-server-7869ccfd68-lgdtm 1/1 Running 1 23h 192.165.109.66 k8s-master03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
busybox 1/1 Running 0 3m54s 192.162.55.65 k8s-master01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl exec -it busybox
error: you must specify at least one command for the container
[root@k8s-master01 ~]# kubectl exec -it busybox -- sh
/ # ping 192.162.55.65
PING 192.162.55.65 (192.162.55.65): 56 data bytes
64 bytes from 192.162.55.65: seq=0 ttl=64 time=0.032 ms
64 bytes from 192.162.55.65: seq=1 ttl=64 time=0.045 ms
64 bytes from 192.162.55.65: seq=2 ttl=64 time=0.060 ms
64 bytes from 192.162.55.65: seq=3 ttl=64 time=0.056 ms
64 bytes from 192.162.55.65: seq=4 ttl=64 time=0.088 ms
^C
--- 192.162.55.65 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.032/0.056/0.088 ms
/ # exit
[root@k8s-master01 ~]# kubectl create deploy nginx --image=nginx --replicas=3
deployment.apps/nginx created
[root@k8s-master01 ~]# kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
nginx 3/3 3 3 93s
[root@k8s-master01 ~]# kubectl get pod -o wide|grep nginx
nginx-6799fc88d8-j8hbq 1/1 Running 0 64s 192.162.55.66 k8s-master01.example.local <none> <none>
nginx-6799fc88d8-r5snm 1/1 Running 0 64s 192.165.109.67 k8s-master03.example.local <none> <none>
nginx-6799fc88d8-wd9bx 1/1 Running 0 64s 192.167.195.131 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl delete deploy nginx
deployment.apps "nginx" deleted
[root@k8s-master01 ~]# kubectl delete pod busybox
pod "busybox" deleted
15.生产环境关键性配置
docker参数配置：
vim /etc/docker/daemon.json
{
"registry-mirrors": [ #docker镜像加速
"https://registry.docker-cn.com",
"http://hub-mirror.c.163.com",
"https://docker.mirrors.ustc.edu.cn"
],
"exec-opts": ["native.cgroupdriver=systemd"], #k8s需要systemd启动docker
"max-concurrent-downloads": 10, #并发下载线程数
"max-concurrent-uploads": 5, #并发上传线程数
"log-opts": {
"max-size": "300m", #docker日志文件最大300m
"max-file": "2" #最大2个文件
},
"live-restore": true #docker服务重启，容器不会重启
}
controller-manager 参数配置：
[root@k8s-master01 ~]# vim /lib/systemd/system/kube-controller-manager.service
# --feature-gates=RotateKubeletClientCertificate=true,RotateKubeletServerCertificate=true \ #这个是bootstrap自动颁发证书，新版默认就是true，不用设置
--cluster-signing-duration=876000h0m0s \ #用来控制签发证书的有效期限。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp -o StrictHostKeyChecking=no /lib/systemd/system/kube-controller-manager.service $NODE:/lib/systemd/system/; done
kube-controller-manager.service 100% 1113 670.4KB/s 00:00
kube-controller-manager.service 100% 1113 1.0MB/s 00:00
[root@k8s-master01 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl restart kube-controller-manager
10-kubelet.conf 参数配置：
[root@k8s-master01 ~]# vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' --tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 --image-pull-progress-deadline=30m"
#--tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 #更改k8s的加密算法
#--image-pull-progress-deadline=30m #如果在该参数值所设置的期限之前没有拉取镜像的进展，镜像拉取操作将被取消。仅当容器运行环境设置为 docker 时，此特定于 docker 的参数才有效。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02 k8s-node03; do scp -o StrictHostKeyChecking=no /etc/systemd/system/kubelet.service.d/10-kubelet.conf $NODE:/etc/systemd/system/kubelet.service.d/ ;done
kubelet-conf.yml 参数配置：
[root@k8s-master01 ~]# vim /etc/kubernetes/kubelet-conf.yml
#添加如下配置
rotateServerCertificates: true
allowedUnsafeSysctls: #允许容器设置内核，有安全风险，根据实际需求设置
- "net.core*"
- "net.ipv4.*"
kubeReserved: #k8s预留资源
cpu: "1"
memory: 1Gi
ephemeral-storage: 10Gi
systemReserved: #系统预留资源
cpu: "1"
memory: 1Gi
ephemeral-storage: 10Gi
#rotateServerCertificates: true #当证书即将过期时自动从 kube-apiserver 请求新的证书进行轮换。要求启用 RotateKubeletServerCertificate 特性开关，以及对提交的 CertificateSigningRequest 对象进行批复（approve）操作。
[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02 k8s-node03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done
[root@k8s-master01 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node01 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl restart kubelet
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl restart kubelet
添加label：
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready <none> 23h v1.21.8
k8s-master02.example.local Ready <none> 23h v1.21.8
k8s-master03.example.local Ready <none> 23h v1.21.8
k8s-node01.example.local Ready <none> 23h v1.21.8
k8s-node02.example.local Ready <none> 23h v1.21.8
k8s-node03.example.local Ready <none> 23h v1.21.8
[root@k8s-master01 ~]# kubectl get node --show-labels
NAME STATUS ROLES AGE VERSION LABELS
k8s-master01.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-master01.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
k8s-master02.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-master02.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
k8s-master03.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-master03.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
k8s-node01.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node01.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
k8s-node02.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node02.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
k8s-node03.example.local Ready <none> 23h v1.21.8 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/arch=amd64,kubernetes.io/hostname=k8s-node03.example.local,kubernetes.io/os=linux,node.kubernetes.io/node=
[root@k8s-master01 ~]# kubectl label node k8s-master01.example.local node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/k8s-master01.example.local labeled
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 23h v1.21.8
k8s-master02.example.local Ready <none> 23h v1.21.8
k8s-master03.example.local Ready <none> 23h v1.21.8
k8s-node01.example.local Ready <none> 23h v1.21.8
k8s-node02.example.local Ready <none> 23h v1.21.8
k8s-node03.example.local Ready <none> 23h v1.21.8
[root@k8s-master01 ~]# kubectl label node k8s-master02.example.local node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/k8s-master02.example.local labeled
[root@k8s-master01 ~]# kubectl label node k8s-master03.example.local node-role.kubernetes.io/control-plane='' node-role.kubernetes.io/master=''
node/k8s-master03.example.local labeled
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 23h v1.21.8
k8s-master02.example.local Ready control-plane,master 23h v1.21.8
k8s-master03.example.local Ready control-plane,master 23h v1.21.8
k8s-node01.example.local Ready <none> 23h v1.21.8
k8s-node02.example.local Ready <none> 23h v1.21.8
k8s-node03.example.local Ready <none> 23h v1.21.8
安装总结：
1、 kubeadm
2、 二进制
3、 自动化安装
a) Ansible
i. Master节点安装不需要写自动化。
ii. 添加Node节点，playbook。
4、 安装需要注意的细节
a) 上面的细节配置
b) 生产环境中etcd一定要和系统盘分开，一定要用ssd硬盘。
c) Docker数据盘也要和系统盘分开，有条件的话可以使用ssd硬盘
