网络层容器
nn.Sequential
nn.Sequential是nn.module的容器，用于按顺序包装一组网络层
- 顺序性：各网络层之间严格按照顺序构建
- 自带forward()：自带的forward里，通过for循环依次执行前向传播运算
class LeNetSequential(nn.Module):
def __init__(self, classes):
super(LeNetSequential, self).__init__()
self.features = nn.Sequential(
nn.Conv2d(3, 6, 5),
nn.ReLU(),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.Conv2d(6, 16, 5),
nn.ReLU(),
nn.MaxPool2d(kernel_size=2, stride=2),)
self.classifier = nn.Sequential(
nn.Linear(16*5*5, 120),
nn.ReLU(),
nn.Linear(120, 84),
nn.ReLU(),
nn.Linear(84, classes),)
def forward(self, x):
x = self.features(x)
x = x.view(x.size()[0], -1)
x = self.classifier(x)
return x
class LeNetSequentialOrderDict(nn.Module):
def __init__(self, classes):
super(LeNetSequentialOrderDict, self).__init__()
self.features = nn.Sequential(OrderedDict({
'conv1': nn.Conv2d(3, 6, 5),
'relu1': nn.ReLU(inplace=True),
'pool1': nn.MaxPool2d(kernel_size=2, stride=2),
'conv2': nn.Conv2d(6, 16, 5),
'relu2': nn.ReLU(inplace=True),
'pool2': nn.MaxPool2d(kernel_size=2, stride=2),
}))
self.classifier = nn.Sequential(OrderedDict({
'fc1': nn.Linear(16*5*5, 120),
'relu3': nn.ReLU(),
'fc2': nn.Linear(120, 84),
'relu4': nn.ReLU(inplace=True),
'fc3': nn.Linear(84, classes),
}))
def forward(self, x):
x = self.features(x)
x = x.view(x.size()[0], -1)
x = self.classifier(x)
return x
nn.ModuleList
nn.ModuleList是nn.module的容器，用于包装一组网络层，以迭代方式调用网络层主要方法：
- append()：在ModuleList后面添加网络层
- extend()：拼接两个ModuleList
- insert()：指定在ModuleList中位置插入网络层
class ModuleList(nn.Module):
def __init__(self):
super(ModuleList, self).__init__()
self.linears = nn.ModuleList([nn.Linear(10, 10) for i in range(20)])
def forward(self, x):
for i, linear in enumerate(self.linears):
x = linear(x)
return x
nn.ModuleDict
nn.ModuleDict是nn.module的容器，用于包装一组网络层，以索引方式调用网络层主要方法：
- clear()：清空ModuleDict
- items()：返回可迭代的键值对(key-valuepairs)
- keys()：返回字典的键(key)
- values()：返回字典的值(value)
- pop()：返回一对键值，并从字典中删除
class ModuleDict(nn.Module):
def __init__(self):
super(ModuleDict, self).__init__()
self.choices = nn.ModuleDict({
'conv': nn.Conv2d(10, 10, 3),
'pool': nn.MaxPool2d(3)
})
self.activations = nn.ModuleDict({
'relu': nn.ReLU(),
'prelu': nn.PReLU()
})
def forward(self, x, choice, act):
x = self.choices[choice](x)
x = self.activations[act](x)
return x
net = ModuleDict()
fake_img = torch.randn((4, 10, 32, 32))
output = net(fake_img, 'conv', 'relu')
print(output)

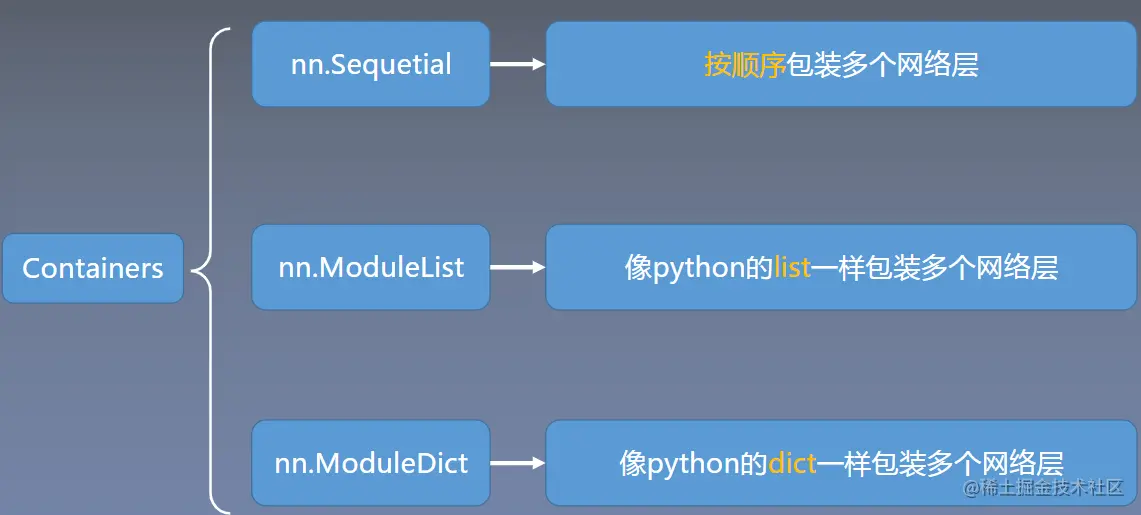

总结
- nn.Sequential：顺序性，各网络层之间严格按顺序执行，常用于block构建
- nn.ModuleList：迭代性，常用于大量重复网构建，通过for循环实现重复构建
- nn.ModuleDict：索引性，常用于可选择的网络层
AlexNet
读者可以自己通过以下代码进行调试：
alexnet = torchvision.models.AlexNet()
