socket.io 使用protobuf 协议发送消息

​

一、服务端

1、maven引入netty-socketio

<dependency>
            <groupId>com.corundumstudio.socketio</groupId>
            <artifactId>netty-socketio</artifactId>
            <version>1.7.22</version>
        </dependency>

2、服务端java代码

@Service
public class SocketService {

    @Autowired
    private SocketConfig socketConfig;

    private SocketIOServer socketIOServer = null;

    @Autowired(required = false)
    private ISocketLinesService socketLinesService;


    //pc端
    private Map<String /*userId*/, Set<UUID>> CLIENT_ID = new HashMap<>();
    //移动端
    private Set<String> MOBILE_ID = new HashSet<>();
    private Set<String> PC_COUNT = new HashSet<>();

    @PostConstruct
    public void init() {

        Configuration config = this.socketConfig.getConfig();
        if (config == null) {
            // 配置默认的启动信息
            config = new Configuration();
            config.setHostname("0.0.0.0");
            config.setPort(7543);
        }
        int num = Runtime.getRuntime().availableProcessors();

        //主线程设置为1即可
        config.setBossThreads(1);
        //设置工作线程
        config.setWorkerThreads(num * 2);

        //解决对此重启服务时，netty端口被占用问题
        com.corundumstudio.socketio.SocketConfig tmpConfig = new com.corundumstudio.socketio.SocketConfig();
        tmpConfig.setReuseAddress(true);
        config.setSocketConfig(tmpConfig);


        //异常处理
        config.setExceptionListener(new ExceptionListener() {

            @Override
            public void onPongException(Exception e, SocketIOClient client) {

            }

            @Override
            public void onEventException(Exception e, List<Object> args, SocketIOClient client) {
//                System.out.println("收发消息异常");
            }

            @Override
            public void onDisconnectException(Exception e, SocketIOClient client) {
//                System.out.println("断开连接异常");
            }

            @Override
            public void onConnectException(Exception e, SocketIOClient client) {
//                System.out.println("建立连接异常");
            }

            @Override
            public void onPingException(Exception e, SocketIOClient client) {
//                System.out.println("心跳异常");
            }

            @Override
            public boolean exceptionCaught(ChannelHandlerContext ctx, Throwable e) throws Exception {
                return false;
            }
        });
        this.socketIOServer = new SocketIOServer(config);
        this.addEvent();
        System.out.println(String.format("socket服务已启动，地址：%s，端口：%d", config.getHostname(), config.getPort()));

        this.socketIOServer.start();

        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            System.out.println("应用程序关闭了");
            socketIOServer.stop();
        }));
    }

    @PreDestroy
    public void stop() {
        if (this.socketIOServer != null) {
            this.socketIOServer.stop();
        }
    }

    public void addEvent() {
        this.socketIOServer.addEventListener("emit", String.class, new DataListener<String>() {
            @Override
            public void onData(SocketIOClient client, String data, AckRequest ackRequest) {
                System.out.println(String.format("收到的消息：%s", data));
            }
        });

        this.socketIOServer.addConnectListener(new ConnectListener() {
            @Override
            public void onConnect(SocketIOClient client) {
                //处理会话建立业务
                Map<String, List<String>> params = client.getHandshakeData().getUrlParams();
                if (params == null || params.size() == 0) {
                    client.disconnect();
                    return;
                }
                try {
                    line(params, 1, client);
                } catch (RuntimeException e) {
                    //校验身份失败
                    client.disconnect();
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        });

        this.socketIOServer.addDisconnectListener(new DisconnectListener() {
            @Override
            public void onDisconnect(SocketIOClient client) {
//                System.out.println("断开连接了");
                // 处理会话断开业务
                Map<String, List<String>> params = client.getHandshakeData().getUrlParams();
                try {
                    line(params, 2, client);
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        });
    }

    public void line(Map<String, List<String>> params, int type, SocketIOClient client) {
        List<String> list = params.get("userId");
        if (list == null || list.size() == 0) {
            send("身份认证失效");
            client.disconnect();
            return;
        }
        String user_id = params.get("userId").get(0);
        Set<UUID> uids = CLIENT_ID.get(user_id);
        if (uids == null) {
            uids = new HashSet<>();
        }
        System.out.println("clientId:" + user_id);
        uids.add(client.getSessionId());
        if (type == 1) {
            if (user_id.equalsIgnoreCase("undefined") || user_id.equals("")) {
                client.disconnect();
            } else {
                CLIENT_ID.put(user_id, uids);
                PC_COUNT.add(user_id);
            }
        } else {
            uids.remove(client.getSessionId());
            PC_COUNT.remove(user_id);
        }

        //移动端在线
        handleMobileLine(user_id, params, type, client);

    }

    public void handleMobileLine(String userId, Map<String, List<String>> params, int type, SocketIOClient client) {
        if (StringUtils.isEmpty(userId) || userId.equalsIgnoreCase("undefined")) {
            return;
        }
        List<String> list = params.get("mobile");
        if (list != null && list.size() > 0) {
            UUID id = client.getSessionId();
            if (type == 1) {
                MOBILE_ID.add(userId);
            } else {
                MOBILE_ID.remove(userId);
            }

        }
    }

    public void sendAll(String topic, byte[] data) {
        this.socketIOServer.getBroadcastOperations().sendEvent(topic, data);
    }

    public void sendOne(String topic, String clientId, byte[] data) {
        Set<UUID> uids = CLIENT_ID.get(clientId);
        if (uids != null) {
            for (UUID uid : uids) {
                this.socketIOServer.getClient(uid).sendEvent(topic, data);
            }
        }
    }

    public void send(String data) {
        this.socketIOServer.getBroadcastOperations().sendEvent("message", data);
    }

    public void send(String event, String data) {
        this.socketIOServer.getBroadcastOperations().sendEvent(event, data);
    }

    public void sendOne(String event, String data, String userId) {
        Set<UUID> uids = CLIENT_ID.get(userId);
        if (uids != null) {
            for (UUID uid : uids) {
                this.socketIOServer.getClient(uid).sendEvent(event, data);
            }
        }
    }

    /**
     * 刷新在线人数
     */
    @Scheduled(cron = "0/10 * * * * ?")
    public void reshCount() {
        if (this.socketLinesService != null) {
            this.socketLinesService.reshCount(0, PC_COUNT.size());
            this.socketLinesService.reshCount(1, MOBILE_ID.size());
        }
    }

}

3、 消息发送工具

@Component
public class SendMsgUtil {

    private static SendMsgUtil sendMsgUtil;

    @Autowired
    private SocketService socketService;

    @PostConstruct
    public void start() {
        sendMsgUtil = this;
    }

    public static void send2User(String userId, String event, MsgEntity msg) {
        sendMsgUtil.socketService.sendOne(event, JSON.toJSONString(msg), userId);
    }

    public static void send2User(String userId, String event, byte[] data) {
        sendMsgUtil.socketService.sendOne(event, userId, data);
    }

    public static void send2User(String userId, MsgEntity msg) {
        try {
            sendMsgUtil.socketService.sendOne("message", JSON.toJSONString(msg), userId);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static void sendAll(String event, String data) {
        sendMsgUtil.socketService.send(event, data);
    }


    public static void sendAll(String event, byte[] data) {
        sendMsgUtil.socketService.sendAll(event, data);
    }


}

4、发送消息

@RestController
@RequestMapping(value = "admin/demo")
public class TestSocketController {


    @ApiOperation(value = "测试发送")
    @GetMapping(value = "send")
    public ResultMsg send(
            @RequestParam String name
    ) {

        //
        PlayerOuterClass.Player.Builder builder = PlayerOuterClass.Player.newBuilder();
        builder.setId(1).setName(name).setEnterTime(System.currentTimeMillis());

        PlayerOuterClass.Player player = builder.build();
        System.out.println(player.getName());

        //发送普通文本消息
        SendMsgUtil.sendAll("topic", "cn_yaojin");

        //发送protobuf协议消息
        SendMsgUtil.sendAll("topic1", player.toByteArray());
        return ResultMsg.builder();
    }


}

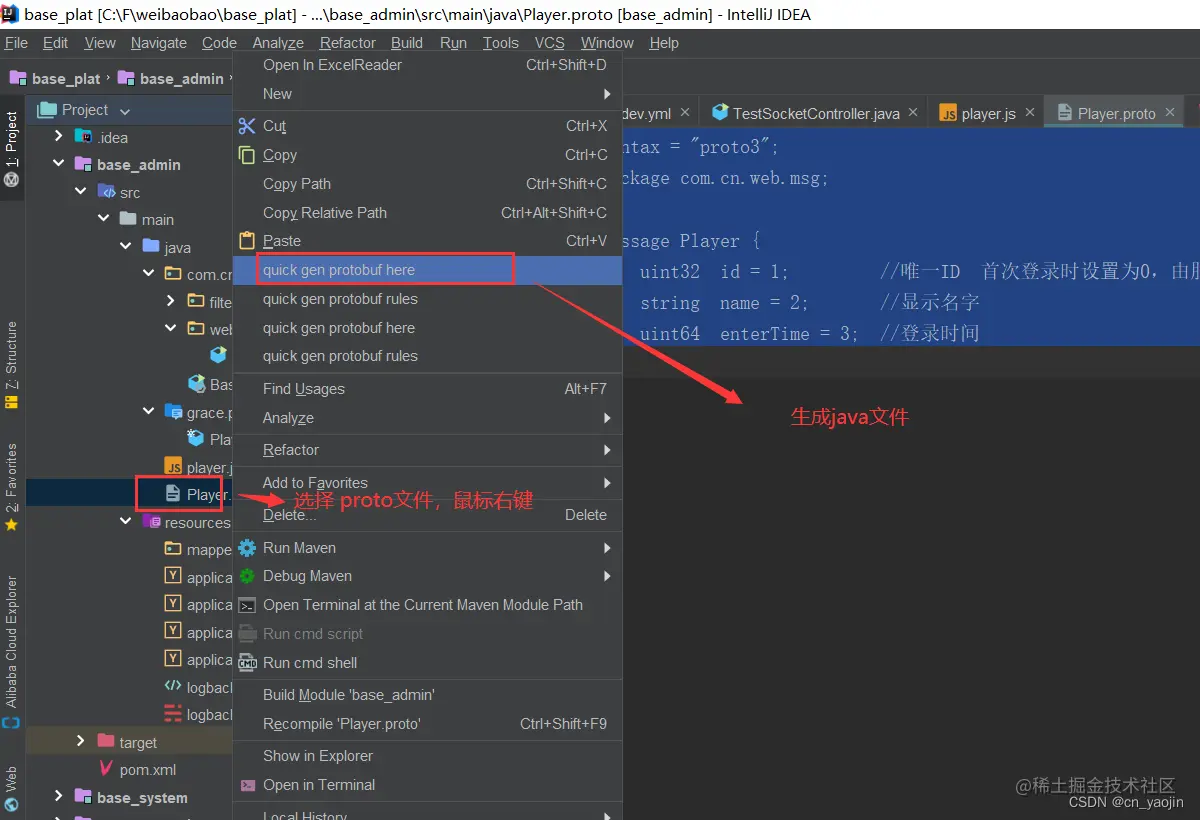

5、proto文件：Player.proto，使用idea插件生成java代码

syntax = "proto3";
package com.cn.web.msg;

message Player {
    uint32  id = 1;         //唯一ID  首次登录时设置为0，由服务器分配
    string  name = 2;       //显示名字
    uint64  enterTime = 3;  //登录时间
}

​

编辑

二、前端

<!DOCTYPE html>
<html>

<head>
    <title>Socket.IO chat</title>
    <style>
        body {
            margin: 0;
            padding-bottom: 3rem;
            font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif;
        }

        #form {
            background: rgba(0, 0, 0, 0.15);
            padding: 0.25rem;
            position: fixed;
            bottom: 0;
            left: 0;
            right: 0;
            display: flex;
            height: 3rem;
            box-sizing: border-box;
            backdrop-filter: blur(10px);
        }

        #input {
            border: none;
            padding: 0 1rem;
            flex-grow: 1;
            border-radius: 2rem;
            margin: 0.25rem;
        }

        #input:focus {
            outline: none;
        }

        #form>button {
            background: #333;
            border: none;
            padding: 0 1rem;
            margin: 0.25rem;
            border-radius: 3px;
            outline: none;
            color: #fff;
        }

        #messages {
            list-style-type: none;
            margin: 0;
            padding: 0;
        }

        #messages>li {
            padding: 0.5rem 1rem;
        }

        #messages>li:nth-child(odd) {
            background: #efefef;
        }
    </style>

    <!-- 引入2.0版本的socket.io文件 -->
    <script src="https://cdn.jsdelivr.net/npm/socket.io-client@2/dist/socket.io.js" ></script>
    <!-- 引入protobuf文件 -->
    <script src="//cdn.jsdelivr.net/npm/protobufjs@7.X.X/dist/protobuf.js"></script>
</head>

<body>
    <ul id="messages"></ul>
    <form id="form" action="">
        <input id="input" autocomplete="off" /><button>Send</button>
    </form>


    <script type="module">

        //建立socket连接
        const socket = io("http://127.0.0.1:3091", {
            reconnectionDelayMax: 10000,
            auth: {
                token: "123"
            },
            query: {
                "userId": "cn_yaojin"
            }
        });


        socket.emit("emit","hello world !");

        socket.on("connect", () => {
            console.log("通道已建立")
        });

        //topic类型消息是服务端发送的普通文本
        socket.on("topic", (data) => {
            console.log("收到新的数据了");
        });

        //加载Player.proto文件(在前端代码目录下的某个位置，我放在了当前目录) 并解析收到socket数据(服务端发送的：topic1 类型消息
        protobuf.load("Player.proto", function (err, root) {

            // Player 是proto文件中定义的实体名称
            const tickerData = root.lookupType("Player");

            //监听服务端发送的 topic1 消息
            socket.on("topic1", (data) => {
                console.log("收到新的数据了");

                //解析数据
                var message = tickerData.decode(new Uint8Array(data));
                var object = tickerData.toObject(message, {
                    longs: String,
                    enums: String,
                    bytes: String,
                    // see ConversionOptions
                });

                console.log(object)


                //另一种解析方式
                // var d = new Uint8Array(data.byteLength);
                // var dataView = new DataView(data);
                // for (var i = 0; i < data.byteLength; i++) {
                //     d[i] = dataView.getInt8(i);
                // }
                // //解析后的数据
                // let decoded = tickerData.decode(d);
                // console.log(`decoded = ${JSON.stringify(decoded)}`);
                // console.log(decoded.id+"---"+decoded.name)

            });


        });


    </script>
</body>

</html>

​
