观察者模式

观察者模式主要是为了降低对象之间的耦合度

在对象之间定义一对多的依赖，当一的一方状态发生改变的时候，依赖一的一方（多的一方）就会收到通知，并进行自动更新

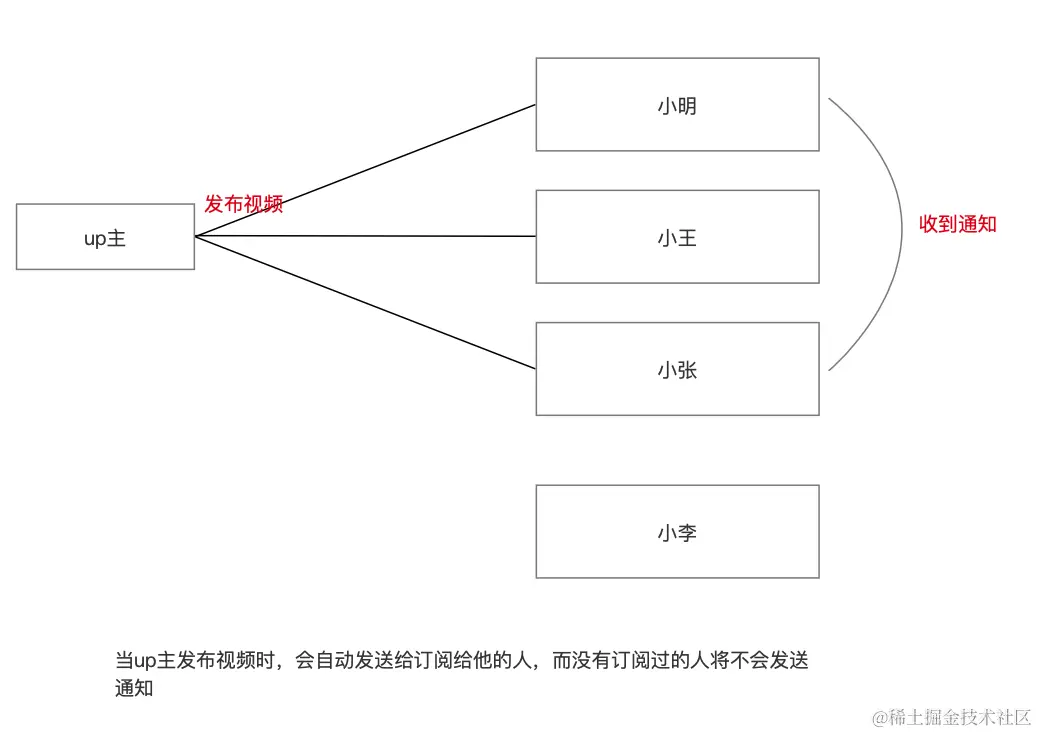

此时up主就是被观察者，而订阅的人就是观察者，一旦被观察者（主题）状态发生改变，相应的观察者也就会就行改变

经典问题：气象站问题
当气象站监测的温度、湿度、压强等信息发生改变时，相应的看板也要发生信息的改变

代码实现

public interface Subject {  //主题，也就是被观察者

    void registerObserver(Observer observer);

    void removeObserver(Observer observer);

    void notifyObserver();
}

//气象台
public class WeatherData implements Subject{

    private float temperature;
    private float humidity;
    private float pressure;

    private List<Observer> observers;

    public WeatherData() {
        this.observers = new ArrayList<>();
    }

    @Override
    public void registerObserver(Observer observer) {
        observers.add(observer);
    }

    @Override
    public void removeObserver(Observer observer) {
        Iterator<Observer> iterator = observers.iterator();
        while (iterator.hasNext()){
            Observer next = iterator.next();
            if(next.equals(observer)){
                iterator.remove();
                break;
            }
        }
    }

    @Override
    public void notifyObserver() {
        for (Observer observer : observers) {
            observer.update(temperature,humidity,pressure);
        }
    }

    public void measurementsChanged(){
        notifyObserver();
    }

    public void setMeasurements(float temperature,float humidity,float pressure){
        this.temperature = temperature;
        this.humidity = humidity;
        this.pressure = pressure;
        measurementsChanged();
    }
}

//观察者接口
public interface Observer {

    void update(float temp,float humidity,float pressure);  //发生变化时调用的方法

}

//面板
public class CurrentConditionsDisplay implements Observer,DisplayElement{

    private float temperature;
    private float humidity;
    private Subject subject;

	//注册
    public CurrentConditionsDisplay(Subject subject) {
        this.subject = subject;
        subject.registerObserver(this);
    }

    @Override
    public void display() {
        System.out.println("当前天气面板：温度:"+temperature+"   湿度:"+humidity);
    }

    @Override
    public void update(float temp, float humidity, float pressure) {
        this.temperature = temp;
        this.humidity = humidity;
        display();
    }
}

• 当气象台的监测到温度发生变化时，调用measurementsChanged方法，主题会推送数据到观察者，并调用观察者发生数据变化后进行的操作
• 当前的观察者方法是采用推送数据给观察者，也可采用观察则自己拉去的方法
• jdk有内置的观察者模式

jdk观察者模式源码分析

public class Observable {
    private boolean changed = false;//判断是否改变，可进行控制
    private Vector<Observer> obs;

    public Observable() {
        obs = new Vector<>();
    }

	public synchronized void addObserver(Observer o) {
        if (o == null)
            throw new NullPointerException();
        if (!obs.contains(o)) {
            obs.addElement(o);
        }
    }

    public synchronized void deleteObserver(Observer o) {
        obs.removeElement(o);
    }

	//拉
    public void notifyObservers() {
        notifyObservers(null);
    }

	//推
    public void notifyObservers(Object arg) {
        Object[] arrLocal;

        synchronized (this) {
             if (!changed)
                return;
            arrLocal = obs.toArray();
            clearChanged();
        }

        for (int i = arrLocal.length-1; i>=0; i--)
            ((Observer)arrLocal[i]).update(this, arg);
    }

	public synchronized void deleteObservers() {
        obs.removeAllElements();
    }

    protected synchronized void setChanged() {
        changed = true;
    }

    protected synchronized void clearChanged() {
        changed = false;
    }

    public synchronized boolean hasChanged() {
        return changed;
    }

    public synchronized int countObservers() {
        return obs.size();
    }
}

//观察者接口
public interface Observer {
	//o为被观察者对象，可以拉去数据
	//arg是推送过来的数据
    void update(Observable o, Object arg);
}
