13.1 Dashboard部署
[root@k8s-master01 ~]# cat recommended.yaml
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: Namespace
metadata:
name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-csrf
namespace: kubernetes-dashboard
type: Opaque
data:
csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-key-holder
namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-settings
namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
rules:
# Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
resources: ["secrets"]
resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
verbs: ["get", "update", "delete"]
# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
resources: ["configmaps"]
resourceNames: ["kubernetes-dashboard-settings"]
verbs: ["get", "update"]
# Allow Dashboard to get metrics.
- apiGroups: [""]
resources: ["services"]
resourceNames: ["heapster", "dashboard-metrics-scraper"]
verbs: ["proxy"]
- apiGroups: [""]
resources: ["services/proxy"]
resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
rules:
# Allow Metrics Scraper to get metrics from the Metrics server
- apiGroups: ["metrics.k8s.io"]
resources: ["pods", "nodes"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: kubernetes-dashboard
template:
metadata:
labels:
k8s-app: kubernetes-dashboard
spec:
containers:
- name: kubernetes-dashboard
image: kubernetesui/dashboard:v2.2.0
imagePullPolicy: Always
ports:
- containerPort: 8443
protocol: TCP
args:
- --auto-generate-certificates
- --namespace=kubernetes-dashboard
# Uncomment the following line to manually specify Kubernetes API server Host
# If not specified, Dashboard will attempt to auto discover the API server and connect
# to it. Uncomment only if the default does not work.
# - --apiserver-host=http://my-address:port
volumeMounts:
- name: kubernetes-dashboard-certs
mountPath: /certs
# Create on-disk volume to store exec logs
- mountPath: /tmp
name: tmp-volume
livenessProbe:
httpGet:
scheme: HTTPS
path: /
port: 8443
initialDelaySeconds: 30
timeoutSeconds: 30
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
volumes:
- name: kubernetes-dashboard-certs
secret:
secretName: kubernetes-dashboard-certs
- name: tmp-volume
emptyDir: {}
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
ports:
- port: 8000
targetPort: 8000
selector:
k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: dashboard-metrics-scraper
template:
metadata:
labels:
k8s-app: dashboard-metrics-scraper
annotations:
seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
spec:
containers:
- name: dashboard-metrics-scraper
image: kubernetesui/metrics-scraper:v1.0.6
ports:
- containerPort: 8000
protocol: TCP
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 8000
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- mountPath: /tmp
name: tmp-volume
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
volumes:
- name: tmp-volume
emptyDir: {}
[root@k8s-master01 ~]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort #添加这行
ports:
- port: 443
targetPort: 8443
nodePort: 30005 #添加这行
selector:
k8s-app: kubernetes-dashboard
...
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: kubernetesui/dashboard:v2.2.0
image: kubernetesui/metrics-scraper:v1.0.6
下载镜像并上传到harbor
[root@k8s-master01 ~]# cat download_dashboard_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_dashboard_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' recommended.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Dashboard镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Dashboard镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_dashboard_images.sh
[root@k8s-master01 ~]# sed -ri 's@(.*image:) kubernetesui(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' recommended.yaml
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: harbor.raymonds.cc/google_containers/dashboard:v2.2.0
image: harbor.raymonds.cc/google_containers/metrics-scraper:v1.0.6
[root@k8s-master01 ~]# kubectl create -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
创建管理员用户admin.yaml
[root@k8s-master01 ~]# vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kube-system
[root@k8s-master01 ~]# kubectl apply -f admin.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
13.2 登录dashboard

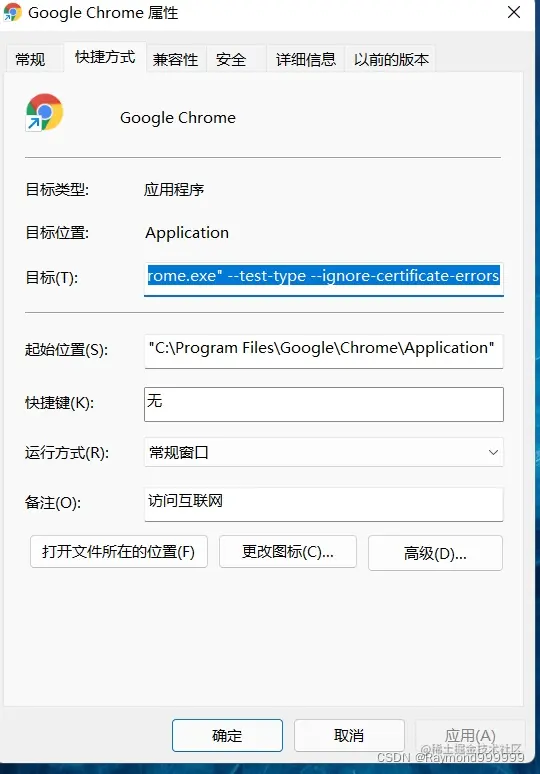

在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考图1-1：
--test-type --ignore-certificate-errors
[root@k8s-master01 ~]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.101.181.206 <none> 443:30005/TCP 66s

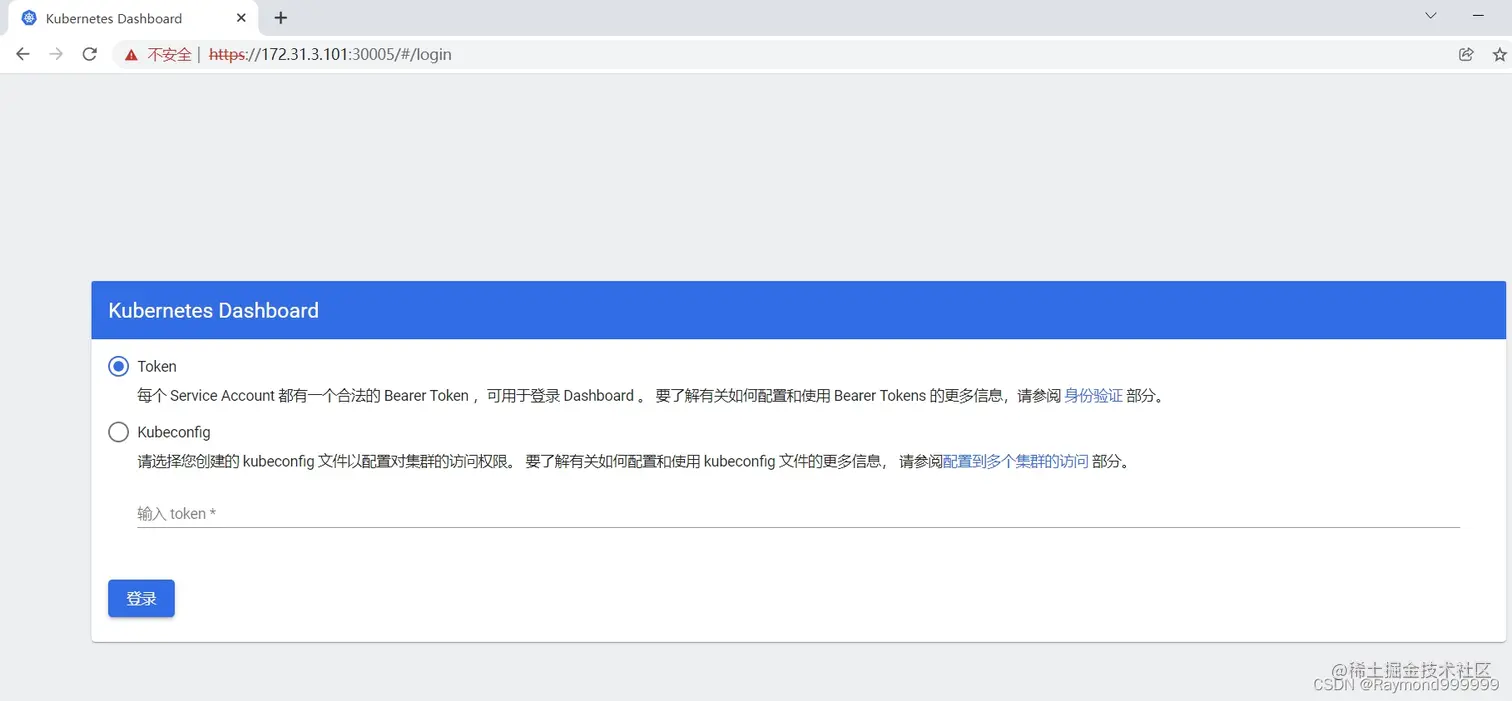

访问Dashboard：https://172.31.3.101:30005，参考图1-2
图1-2 Dashboard登录方式
13.2.1 token登录
查看token值：
[root@k8s-master01 ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name: admin-user-token-k728l
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin-user
kubernetes.io/service-account.uid: d983856d-c896-44cb-812f-69215864f845
Type: kubernetes.io/service-account-token
Data
====
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6InhHSlloc2pJTWNxdVVhSlNrR0UwY3pLd1JLSk1IeThBcDVPWjZ4dW5OMU0ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWs3MjhsIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJkOTgzODU2ZC1jODk2LTQ0Y2ItODEyZi02OTIxNTg2NGY4NDUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.Gn6BORdZG1SO29erk9vapnijsaJdLEg7dsiZhqRxM5fB6jscA3Q6aHdBVpRA1IhIgGcx-naEPu-YRCCKfuVh3ZYWUVpLEgQAfKISeUYb6nXQVz1RygPhjGHZgc7XjiIT5sXqIPs6WmteQ3lZkXEr6U__E93nany4bsr9jr1XbfCICLeriVsjNyR6KyCR1F03KmNm_zP-BRApq5JjZhE-nEnWWrLMTJGXMaqjfi7I7uF4584wj20RA28ktOLEZV7BP3XjjS4jJzLR2Vl3BihME8H5YjCDxOh1yO7QUlarh06aRSmHoQkqx1YnVa_eS5bYFW7daI9SOaZ0cSMRbVnsrA
ca.crt: 1066 bytes

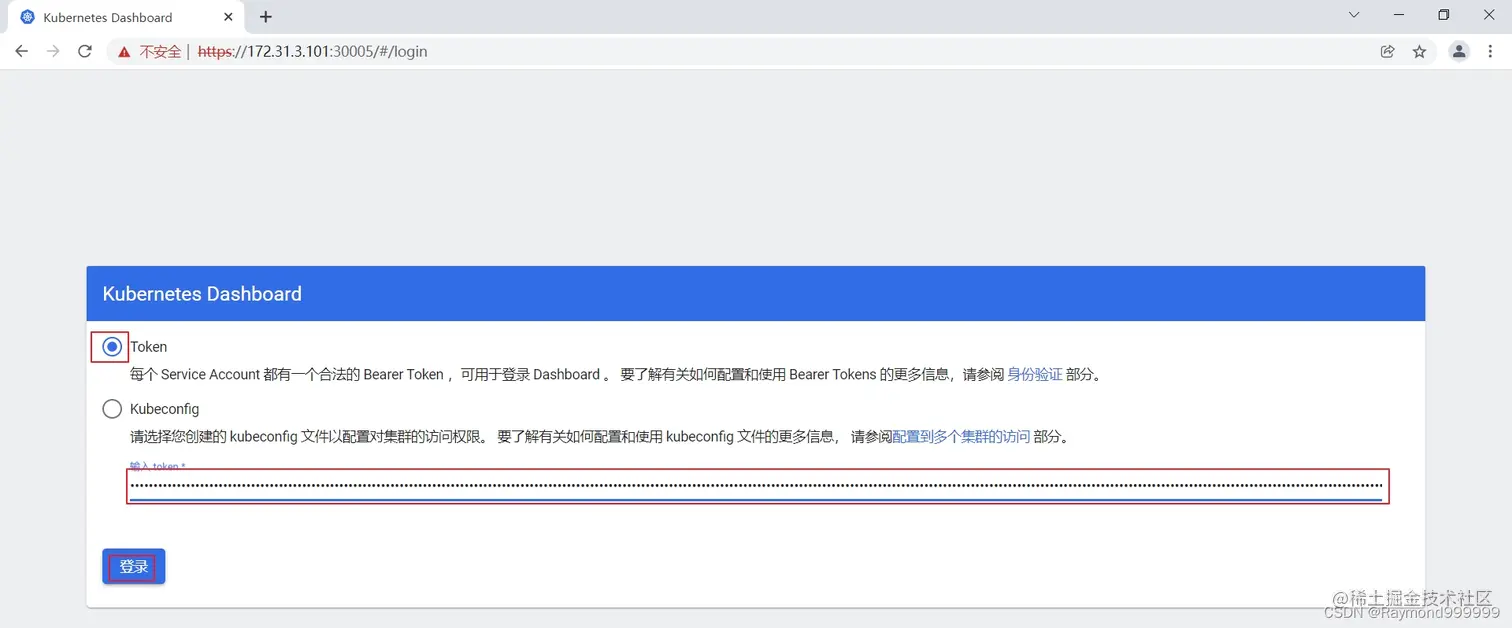

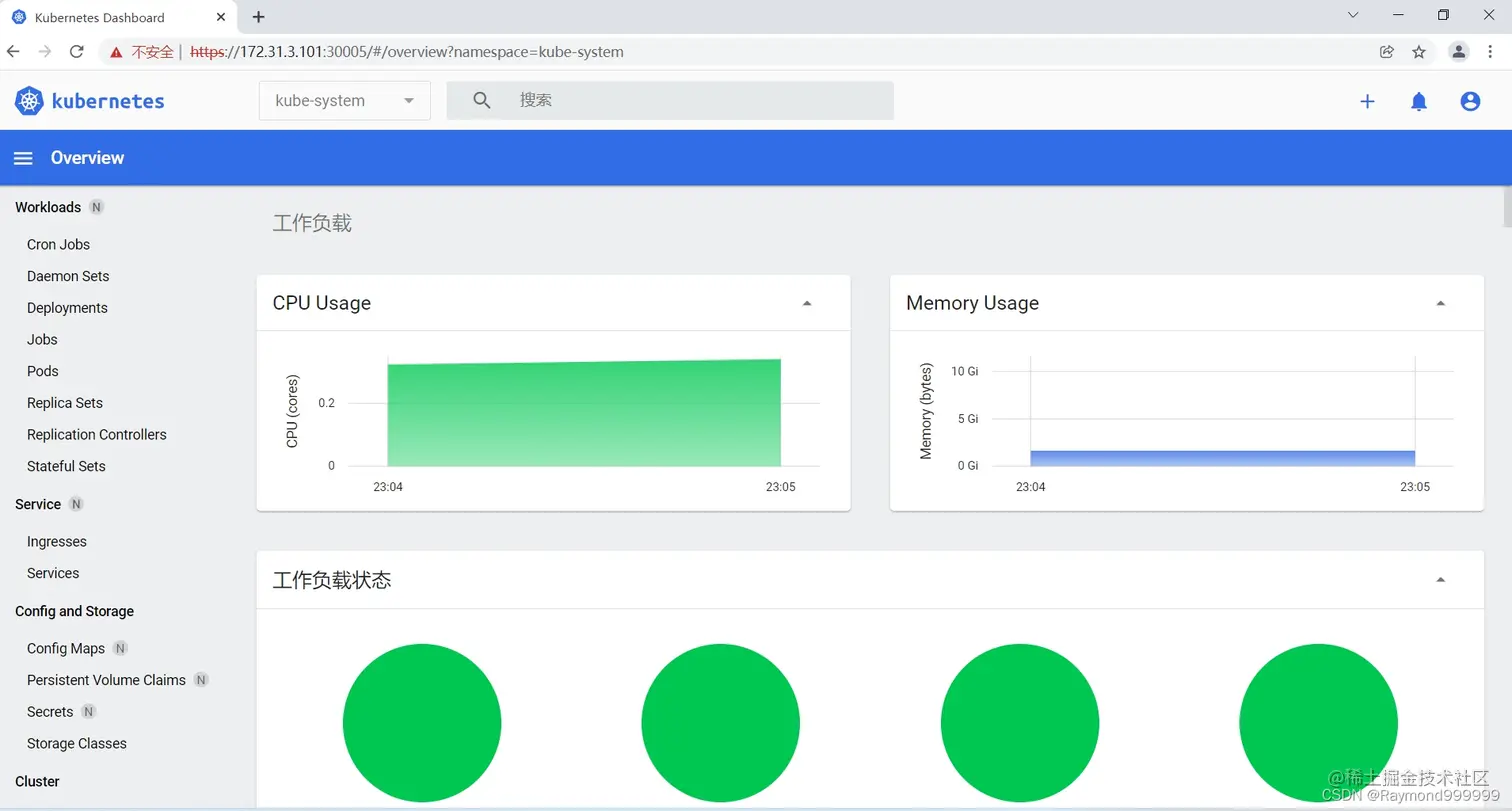

将token值输入到令牌后，单击登录即可访问Dashboard，参考图1-3：
13.2.2 使用kubeconfig文件登录dashboard
[root@k8s-master01 ~]# cp /etc/kubernetes/admin.conf kubeconfig
[root@k8s-master01 ~]# vim kubeconfig
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM1ekNDQWMrZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1ETXdOREE0TVRjeE5sb1hEVE15TURNd01UQTRNVGN4Tmxvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTXpWCnNGam02Qjk5cUlCOFVSZ3A3Nm9vZUJjT2kyWHZidzR6WFk1QmJQU1J4bFRPZUJrdEQ1SXAwNnFnMzlpb00rbm0KdUIvb0VuRzhmVkxQZi93QmtwcWlERTArSFNhTzFGU2JhSlJNZXVKN2J2STdNR3RkRnFzdHo0amZ2ak9uZUpaRQo1K0g4MmV4aXFLK0pkRENYVENMT0doK1YyQWROcXgySmo1bk1QYi9JU0hoQ0lPSUVvRVRJV0w5Wm41bUtlMnhJCjlFcWJaRlZQcVVWOG1zLzArNGs4eG1sQ1R0M09HZEd3UUtXSC94dE5zenFzVHY1RGM3Zmg4eXN6a3JVNVFHOWsKdDRnTjVWc2w1YmxuTE5YSDlodFVQTjVPY0hyOEEvNFczU08xVkVubEQyelVPN2pJdXB1RjhjZWNvM2dXcVJBYwpob2IvdGNkUTM2c2hza0ZGbFhVQ0F3RUFBYU5DTUVBd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZJZmpuRGtYOUNLK0dTMms5amZTRVA1RjR3Y2hNQTBHQ1NxR1NJYjMKRFFFQkN3VUFBNElCQVFDRFAydFp0R0lHK1hmVGs3Y01EeXdxdm1XdnlVYUFCdlNoYk5sZTA3OUIyeDhoSE1RegppOXZtUTVNU3hZcnQwL0ZDZXNPT2wraUk4aFFOeDV2M3E3MTJRWXZnLy95R0pGL0N3a1ltbmc5UUFRRktYR1NsCnRJMXIwZWVuTTNCVEpzS1VlaEVqMnZUa0tXWTlUcDFMbUw2M1Q1QUU1SWJTTnFRU2M4MjBIck1pRERMNFR3Q2UKdThXSnoxZ1lGek1ZRUcyeDBxaXZPZUxuSjFtZTY0Y1gybVRGc1FmcGt5TEhmd1hLcWJqbElzSW5Edk5qaC9Kdwp5cy9UZGFRSlFBTmxxWmV2M09LcU9jNUtJbFE3ZTZRaWt5UVZQQ200SmROU1JZSU9pUXQ5VStBQUhWZ1NMN2V6ClJGaFUxVUpPekVFVTVTVVoxdWdaN3pOY0dYWmVKUFpZaHpPSwotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://172.31.3.188:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJVENDQWdtZ0F3SUJBZ0lJYXFaUzIrTitIZFl3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBek1EUXdPREUzTVRaYUZ3MHlNekF6TURRd09ERTNNVGhhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQXByUDhyMkxKL0hYcHJEQ04Kb24zSHI5M0pNd2c0b1Y3ZGV5b0x0ekJlK2JVV2JNYlk5dWFRTU9KZkZrdmEyNmtUN3R6cmw2R1pNRzNTYlVveQpsNU9vajJkYkRrK3pYM01mZmhNVTVIdGdFYTcvcmx1VDJXWC9rSy9FTVJPSVBKOTBqdmNZMkhZTTNwN0lyaXg0CkZQOGloOFJNdUowTEJENjRyOE9tSDMwZzVFdy8yY1lra0JlaVdndU83aG1ISjJKVFVjVCsyRHREZFpxUjg0MTYKMzBEY2ZrTVBSMUlhalIrRXV5SUlIMjI1NElsSWRXcnBBQmcrQmRlU1dEQ0FHQnpLRnBOSmwrUDFqYURBV2wxTQpCN3BGOEFTNUVwd1lUNkcwWGt3R1NMRmpxc3pUelowZWhxa2tkNmZDUmVyMGtSRmpwVHdkREppdHUzUXE4MmR0CmRUbDZWd0lEQVFBQm8xWXdWREFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RBWURWUjBUQVFIL0JBSXdBREFmQmdOVkhTTUVHREFXZ0JTSDQ1dzVGL1FpdmhrdHBQWTMwaEQrUmVNSApJVEFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBUXluMDhJQS9GNUJlNVZaNzFyL0tkOXU1eERWREsvYkhvSHQ4CmRSYVR1Tm1rVzM2SkhBQXVhTk5GRjhBNENZSWhwTTJSaDR2ZDhTUXFIQlpNTnZXWlJqTGFXaWpDeE5rQjJJVWcKbU95QWtsanQ1c1daZ1h6U25oQ3EwSTdtUG9FVElmNzkyZnEzNks5UFVQSldRczlOQmdLV0srQ01nbGx3THJiKwpaZHFveUJrcWY2S2ZnQWlNVEJFSWFaTFNFU1I5cHk1VFdjNjh1WktVUmVtMElRVDZsTGoyR3A4cWY0SFZ0OG1PCnd5UUlhSlVOeVlCekUvV0pUeFU1SSsybHlhSWlCNjM5eVc2bEJGcC9IMi95ZWZmUXFvYnhaYnlqTG0yQldPbkwKUWZVSktzb0R6ZUk3WHF2ZXVUMmVhUzNxZTRjbDl6Z1Qrb2taM0prbkEzdzZ3QWhUWFE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBcHJQOHIyTEovSFhwckRDTm9uM0hyOTNKTXdnNG9WN2RleW9MdHpCZStiVVdiTWJZCjl1YVFNT0pmRmt2YTI2a1Q3dHpybDZHWk1HM1NiVW95bDVPb2oyZGJEayt6WDNNZmZoTVU1SHRnRWE3L3JsdVQKMldYL2tLL0VNUk9JUEo5MGp2Y1kySFlNM3A3SXJpeDRGUDhpaDhSTXVKMExCRDY0cjhPbUgzMGc1RXcvMmNZawprQmVpV2d1TzdobUhKMkpUVWNUKzJEdERkWnFSODQxNjMwRGNma01QUjFJYWpSK0V1eUlJSDIyNTRJbElkV3JwCkFCZytCZGVTV0RDQUdCektGcE5KbCtQMWphREFXbDFNQjdwRjhBUzVFcHdZVDZHMFhrd0dTTEZqcXN6VHpaMGUKaHFra2Q2ZkNSZXIwa1JGanBUd2RESml0dTNRcTgyZHRkVGw2VndJREFRQUJBb0lCQURUSjBCMTF5Z0tCRUVMdgppUnBJZkVCcm1mZm9CWTdNTEpTQTV2N1dlV3pYZEVkejNHYXE4a1FZbXdYRGRZV1RqL1ZXemQvUlUySXJsTFA1CkIvWkowdG0rWCs0elBOamY2cndRck5BQlpaV1Q5ZkV2bkt6K0NLUzNsQWY2YUd6U0RhWHNCMWtjWU16cU9TQTIKZ3J3YllzTGRYWElrZ01XU1d3ZUZqQWh5cGtURWdWWTJmRkpkdG84TGNhV1hkek1ySElkNzVLTitiT0hNL3JQdQpkMHEwR2VoQmozaGNSK0hmN25wcWlrKzZGTTloZTFQY00zYXNlR1FYcDlTMDdIaWZBZTloYXloREhtdW4xdEhMCmFGVWRRTE5kU09GdFJuNEtFbUhIVVFnM1M4ZDJQZ2xUSEdSRWFDSlE5a3VEVXVZc0FqU1BmTTdGUkJnaFpIUjQKakVOQ0c5a0NnWUVBd0hxNTY0NjBTTHRqUXpNbG5DV2xkdDBMdHk1N2dUek1IRnlhdXNZbWZ4ZWZKVjBYVUJBUwpXQUZ4ZVlicDJGTUhMbktGZXR3UGI3NVlVYk9FVlBKUEZUVHlkTHNlVkRzZGpuU2N5ekpxTXpkWDN5dkMzZmFtCjQvU29WTTF1dVV4UTdtWThMbWZDRkdaUzRBM2wwMjN2RUc5M24xNTBZMldlM0k2bTRESG1nWE1DZ1lFQTNiZVkKT1ltbGRSSENzcDdzelkzUkM3NUFONWp2VlJMelBOOGlSc3pqbGwvZjU2dTlvWjVyNVNtVjJwZUdBaXkxR2JZRwoyd3BxQzliU3pXQVFyVEhmeUowTTYrSnVQSkYxS2R2MGFPVlVWL0RqZUZTN1dpZzQvaFNzL3lPL2M4QUxzcTl3Cjgvb2gvQnkzVTRjSXRzbEZSNFZ2TmV2TFJDbWcvd2M1VHRYSG1vMENnWUEyMm9ManE2NmJUN1B4TWNGVko3RnAKRjRQQU42SUE2Y2V0aVlLYkdkOWN0dW1tNTBtK2ltWC82S0ZqSmR5OHhxUzBTdlRaVjUrYWs5OXRvVUJrU1EzYQptRlZFaVJNU3BDby9MK0tEVWlITDZNakZGQjZielRBd3BNZllLeGVUL1RqUFNCbDhqQnRXWHZiZFhYaVM4YkNBCnVaT1l1bjFtMms0VXd4NnhvK2J5R3dLQmdHbGdWTzBqeW91MWdUKzc0UGhoS3JYV0dsZFNUSTIyai95aVlId2QKN1IwUFBDK3pwRkVvSmtlb1dCeW9YM3l4R3ZHNVhkREZSbG1TSkdhUC9kMFRFelVaejRaYys5KzFrbVh1c0Y4YQpmOWU4R2FDYlJPQTR0YjJzdmZ3VlZXMENIWTB6YlEvSUZsYm9ud2tINk5CWElLSTVmUDIzcjhnWnNQY0V5K3Y0CkZ3SVJBb0dBYlpudFRKSTg2ekV6aUY5VnpPK2hXdFpPNVpMMEpKOGNKaGNSWFRZQ2d2MkZkeUVSd2d2SFRzdy8Kc0s0cVI5TytPVGdnMU5TekEwZ0lqemJJamtCazA1VXhwVWRZSUhIcUFodlB5WC9qZVlrdnlrck92aFlzaXlmUwpxZGtITng1dkQzclE5T2c2R3l2Z2hPVzE4dG1yVFdCV1plVSt0ZnRoblRHZU1kQkE0TWM9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
token: eyJhbGciOiJSUzI1NiIsImtpZCI6InhHSlloc2pJTWNxdVVhSlNrR0UwY3pLd1JLSk1IeThBcDVPWjZ4dW5OMU0ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWs3MjhsIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJkOTgzODU2ZC1jODk2LTQ0Y2ItODEyZi02OTIxNTg2NGY4NDUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.Gn6BORdZG1SO29erk9vapnijsaJdLEg7dsiZhqRxM5fB6jscA3Q6aHdBVpRA1IhIgGcx-naEPu-YRCCKfuVh3ZYWUVpLEgQAfKISeUYb6nXQVz1RygPhjGHZgc7XjiIT5sXqIPs6WmteQ3lZkXEr6U__E93nany4bsr9jr1XbfCICLeriVsjNyR6KyCR1F03KmNm_zP-BRApq5JjZhE-nEnWWrLMTJGXMaqjfi7I7uF4584wj20RA28ktOLEZV7BP3XjjS4jJzLR2Vl3BihME8H5YjCDxOh1yO7QUlarh06aRSmHoQkqx1YnVa_eS5bYFW7daI9SOaZ0cSMRbVnsrA
14.一些必须的配置更改
将Kube-proxy改为ipvs模式，因为在初始化集群的时候注释了ipvs配置，所以需要自行修改一下：
在master01节点执行
[root@k8s-master01 ~]# curl 127.0.0.1:10249/proxyMode
iptables
[root@k8s-master01 ~]# kubectl edit cm kube-proxy -n kube-system
mode: "ipvs"
更新Kube-Proxy的Pod：
[root@k8s-master01 ~]# kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
daemonset.apps/kube-proxy patched
验证Kube-Proxy模式
[root@k8s-master01 ~]# curl 127.0.0.1:10249/proxyMode
ipvs
[root@k8s-master01 ~]# ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 172.17.0.1:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 172.31.3.101:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 192.162.55.64:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 10.96.0.1:443 rr
-> 172.31.3.101:6443 Masq 1 0 0
-> 172.31.3.102:6443 Masq 1 0 0
-> 172.31.3.103:6443 Masq 1 0 0
TCP 10.96.0.10:53 rr
-> 192.170.21.193:53 Masq 1 0 0
-> 192.170.21.194:53 Masq 1 0 0
TCP 10.96.0.10:9153 rr
-> 192.170.21.193:9153 Masq 1 0 0
-> 192.170.21.194:9153 Masq 1 0 0
TCP 10.99.167.144:443 rr
-> 192.167.195.132:4443 Masq 1 0 0
TCP 10.101.88.7:8000 rr
-> 192.169.111.140:8000 Masq 1 0 0
TCP 10.106.189.113:443 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 127.0.0.1:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
UDP 10.96.0.10:53 rr
-> 192.170.21.193:53 Masq 1 0 0
-> 192.170.21.194:53 Masq 1 0 0
15.注意事项
注意：kubeadm安装的集群，证书有效期默认是一年。master节点的kube-apiserver、kube-scheduler、kube-controller-manager、etcd都是以容器运行的。可以通过kubectl get po -n kube-system查看。
启动和二进制不同的是，
kubelet的配置文件在/etc/sysconfig/kubelet和/var/lib/kubelet/config.yaml，修改后需要重启kubelet进程
ipvs[root@k8s-master01 ~]# ls /etc/sysconfig/kubelet
/etc/sysconfig/kubelet
[root@k8s-master01 ~]# ls /var/lib/kubelet/config.yaml
/var/lib/kubelet/config.yaml
其他组件的配置文件在/etc/kubernetes/manifests目录下，比如kube-apiserver.yaml，该yaml文件更改后，kubelet会自动刷新配置，也就是会重启pod。不能再次创建该文件
[root@k8s-master01 ~]# ls /etc/kubernetes/manifests
etcd.yaml kube-apiserver.yaml kube-controller-manager.yaml kube-scheduler.yaml
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-5d8579866c-fmqvq 1/1 Running 0 29m 172.31.3.109 k8s-node02.example.local <none> <none>
calico-node-4x957 1/1 Running 0 29m 172.31.3.101 k8s-master01.example.local <none> <none>
calico-node-m9wll 1/1 Running 0 29m 172.31.3.103 k8s-master03.example.local <none> <none>
calico-node-ph8vb 1/1 Running 0 29m 172.31.3.109 k8s-node02.example.local <none> <none>
calico-node-pzf57 1/1 Running 0 29m 172.31.3.110 k8s-node03.example.local <none> <none>
calico-node-qmn42 1/1 Running 0 29m 172.31.3.108 k8s-node01.example.local <none> <none>
calico-node-t89ws 1/1 Running 0 29m 172.31.3.102 k8s-master02.example.local <none> <none>
coredns-78db7484ff-9zfrs 1/1 Running 0 54m 192.169.111.129 k8s-node01.example.local <none> <none>
coredns-78db7484ff-m6hhp 1/1 Running 0 54m 192.170.21.193 k8s-node03.example.local <none> <none>
etcd-k8s-master01.example.local 1/1 Running 0 54m 172.31.3.101 k8s-master01.example.local <none> <none>
etcd-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
etcd-k8s-master03.example.local 1/1 Running 0 43m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-apiserver-k8s-master01.example.local 1/1 Running 0 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-apiserver-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-apiserver-k8s-master03.example.local 1/1 Running 0 43m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-controller-manager-k8s-master01.example.local 1/1 Running 1 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-controller-manager-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-controller-manager-k8s-master03.example.local 1/1 Running 0 43m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-proxy-4hsmt 1/1 Running 0 3m2s 172.31.3.109 k8s-node02.example.local <none> <none>
kube-proxy-5nshs 1/1 Running 0 3m 172.31.3.110 k8s-node03.example.local <none> <none>
kube-proxy-d9v8g 1/1 Running 0 3m11s 172.31.3.103 k8s-master03.example.local <none> <none>
kube-proxy-gnqgd 1/1 Running 0 3m24s 172.31.3.101 k8s-master01.example.local <none> <none>
kube-proxy-snqwb 1/1 Running 0 3m14s 172.31.3.102 k8s-master02.example.local <none> <none>
kube-proxy-twpdb 1/1 Running 0 3m32s 172.31.3.108 k8s-node01.example.local <none> <none>
kube-scheduler-k8s-master01.example.local 1/1 Running 1 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-scheduler-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-scheduler-k8s-master03.example.local 1/1 Running 0 43m 172.31.3.103 k8s-master03.example.local <none> <none>
metrics-server-9787b55bd-5gjbf 1/1 Running 0 24m 192.167.195.129 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-5d8579866c-fmqvq 1/1 Running 0 29m 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system calico-node-4x957 1/1 Running 0 29m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system calico-node-m9wll 1/1 Running 0 29m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system calico-node-ph8vb 1/1 Running 0 29m 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system calico-node-pzf57 1/1 Running 0 29m 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system calico-node-qmn42 1/1 Running 0 29m 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system calico-node-t89ws 1/1 Running 0 29m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system coredns-78db7484ff-9zfrs 1/1 Running 0 54m 192.169.111.129 k8s-node01.example.local <none> <none>
kube-system coredns-78db7484ff-m6hhp 1/1 Running 0 54m 192.170.21.193 k8s-node03.example.local <none> <none>
kube-system etcd-k8s-master01.example.local 1/1 Running 0 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system etcd-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system etcd-k8s-master03.example.local 1/1 Running 0 44m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 0 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 0 44m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 1 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 0 44m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-4hsmt 1/1 Running 0 3m27s 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system kube-proxy-5nshs 1/1 Running 0 3m25s 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system kube-proxy-d9v8g 1/1 Running 0 3m36s 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-gnqgd 1/1 Running 0 3m49s 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-proxy-snqwb 1/1 Running 0 3m39s 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-proxy-twpdb 1/1 Running 0 3m57s 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 1 54m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 0 50m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 0 44m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system metrics-server-9787b55bd-5gjbf 1/1 Running 0 25m 192.167.195.129 k8s-node02.example.local <none> <none>
kubernetes-dashboard dashboard-metrics-scraper-6cd7688f4b-ghl2w 1/1 Running 0 8m51s 192.169.111.130 k8s-node01.example.local <none> <none>
kubernetes-dashboard kubernetes-dashboard-7bd4bf94d8-d9hq7 1/1 Running 0 8m51s 192.170.21.194 k8s-node03.example.local <none> <none>
Kubeadm安装后，master节点默认不允许部署pod，可以通过以下方式打开：
查看Taints：
[root@k8s-master01 ~]# kubectl describe node -l node-role.kubernetes.io/master= | grep Taints
Taints: node-role.kubernetes.io/master:NoSchedule
Taints: node-role.kubernetes.io/master:NoSchedule
Taints: node-role.kubernetes.io/master:NoSchedule
删除Taint：
[root@k8s-master01 ~]# kubectl taint node -l node-role.kubernetes.io/master node-role.kubernetes.io/master:NoSchedule-
node/k8s-master01 untainted
node/k8s-master02 untainted
node/k8s-master03 untainted
[root@k8s-master01 ~]# kubectl describe node -l node-role.kubernetes.io/master= | grep Taints
Taints: <none>
Taints: <none>
Taints: <none>
kube-proxy的配置在kube-system命名空间下的configmap中，可以通过
kubectl edit cm kube-proxy -n kube-system
进行更改，更改完成后，可以通过patch重启kube-proxy
kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
16.集群验证
#查看集群所有namespace的容器
[root@k8s-master01 ~]# kubectl get pod --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-5d8579866c-fmqvq 1/1 Running 0 30m
kube-system calico-node-4x957 1/1 Running 0 30m
kube-system calico-node-m9wll 1/1 Running 0 30m
kube-system calico-node-ph8vb 1/1 Running 0 30m
kube-system calico-node-pzf57 1/1 Running 0 30m
kube-system calico-node-qmn42 1/1 Running 0 30m
kube-system calico-node-t89ws 1/1 Running 0 30m
kube-system coredns-78db7484ff-9zfrs 1/1 Running 0 55m
kube-system coredns-78db7484ff-m6hhp 1/1 Running 0 55m
kube-system etcd-k8s-master01.example.local 1/1 Running 0 55m
kube-system etcd-k8s-master02.example.local 1/1 Running 0 51m
kube-system etcd-k8s-master03.example.local 1/1 Running 0 45m
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 0 55m
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 0 51m
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 0 45m
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 1 55m
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 0 51m
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 0 45m
kube-system kube-proxy-4hsmt 1/1 Running 0 4m24s
kube-system kube-proxy-5nshs 1/1 Running 0 4m22s
kube-system kube-proxy-d9v8g 1/1 Running 0 4m33s
kube-system kube-proxy-gnqgd 1/1 Running 0 4m46s
kube-system kube-proxy-snqwb 1/1 Running 0 4m36s
kube-system kube-proxy-twpdb 1/1 Running 0 4m54s
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 1 55m
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 0 51m
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 0 45m
kube-system metrics-server-9787b55bd-5gjbf 1/1 Running 0 26m
kubernetes-dashboard dashboard-metrics-scraper-6cd7688f4b-ghl2w 1/1 Running 0 9m48s
kubernetes-dashboard kubernetes-dashboard-7bd4bf94d8-d9hq7 1/1 Running 0 9m48s
#查看所有pod的cpu和内存使用率
[root@k8s-master01 ~]# kubectl top pod --use-protocol-buffers -n kube-system
NAME CPU(cores) MEMORY(bytes)
calico-kube-controllers-5d8579866c-fmqvq 2m 18Mi
calico-node-4x957 22m 58Mi
calico-node-m9wll 23m 59Mi
calico-node-ph8vb 23m 61Mi
calico-node-pzf57 23m 55Mi
calico-node-qmn42 26m 54Mi
calico-node-t89ws 18m 57Mi
coredns-78db7484ff-9zfrs 2m 16Mi
coredns-78db7484ff-m6hhp 2m 13Mi
etcd-k8s-master01.example.local 30m 84Mi
etcd-k8s-master02.example.local 25m 94Mi
etcd-k8s-master03.example.local 28m 76Mi
kube-apiserver-k8s-master01.example.local 41m 315Mi
kube-apiserver-k8s-master02.example.local 37m 426Mi
kube-apiserver-k8s-master03.example.local 38m 307Mi
kube-controller-manager-k8s-master01.example.local 12m 62Mi
kube-controller-manager-k8s-master02.example.local 1m 25Mi
kube-controller-manager-k8s-master03.example.local 1m 26Mi
kube-proxy-4hsmt 11m 20Mi
kube-proxy-5nshs 1m 18Mi
kube-proxy-d9v8g 10m 20Mi
kube-proxy-gnqgd 6m 20Mi
kube-proxy-snqwb 7m 18Mi
kube-proxy-twpdb 1m 20Mi
kube-scheduler-k8s-master01.example.local 2m 24Mi
kube-scheduler-k8s-master02.example.local 2m 27Mi
kube-scheduler-k8s-master03.example.local 2m 25Mi
metrics-server-9787b55bd-5gjbf 2m 16Mi
#查看svc
[root@k8s-master01 ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 57m
[root@k8s-master01 ~]# kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 57m
metrics-server ClusterIP 10.103.246.114 <none> 443/TCP 27m
[root@k8s-master01 ~]# telnet 10.96.0.1 443
Trying 10.96.0.1...
Connected to 10.96.0.1.
Escape character is '^]'.
quit
Connection closed by foreign host.
[root@k8s-master01 ~]# telnet 10.96.0.10 53
Trying 10.96.0.10...
Connected to 10.96.0.10.
Escape character is '^]'.
Connection closed by foreign host.
[root@k8s-master01 ~]# kubectl get pod --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-5d8579866c-fmqvq 1/1 Running 0 32m 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system calico-node-4x957 1/1 Running 0 32m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system calico-node-m9wll 1/1 Running 0 32m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system calico-node-ph8vb 1/1 Running 0 32m 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system calico-node-pzf57 1/1 Running 0 32m 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system calico-node-qmn42 1/1 Running 0 32m 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system calico-node-t89ws 1/1 Running 0 32m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system coredns-78db7484ff-9zfrs 1/1 Running 0 57m 192.169.111.129 k8s-node01.example.local <none> <none>
kube-system coredns-78db7484ff-m6hhp 1/1 Running 0 57m 192.170.21.193 k8s-node03.example.local <none> <none>
kube-system etcd-k8s-master01.example.local 1/1 Running 0 57m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system etcd-k8s-master02.example.local 1/1 Running 0 53m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system etcd-k8s-master03.example.local 1/1 Running 0 47m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 0 57m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 0 53m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 0 47m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 1 57m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 0 53m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 0 47m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-4hsmt 1/1 Running 0 6m21s 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system kube-proxy-5nshs 1/1 Running 0 6m19s 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system kube-proxy-d9v8g 1/1 Running 0 6m30s 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-gnqgd 1/1 Running 0 6m43s 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-proxy-snqwb 1/1 Running 0 6m33s 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-proxy-twpdb 1/1 Running 0 6m51s 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 1 57m 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 0 53m 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 0 47m 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system metrics-server-9787b55bd-5gjbf 1/1 Running 0 28m 192.167.195.129 k8s-node02.example.local <none> <none>
kubernetes-dashboard dashboard-metrics-scraper-6cd7688f4b-ghl2w 1/1 Running 0 11m 192.169.111.130 k8s-node01.example.local <none> <none>
kubernetes-dashboard kubernetes-dashboard-7bd4bf94d8-d9hq7 1/1 Running 0 11m 192.170.21.194 k8s-node03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
dashboard-metrics-scraper-6cd7688f4b-ghl2w 1/1 Running 0 12m
kubernetes-dashboard-7bd4bf94d8-d9hq7 1/1 Running 0 12m
[root@k8s-master01 ~]# kubectl get svc -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dashboard-metrics-scraper ClusterIP 10.108.144.19 <none> 8000/TCP 12m
kubernetes-dashboard NodePort 10.101.181.206 <none> 443:30005/TCP 12m
k8s创建容器并测试内部网络
[root@k8s-master01 ~]# kubectl run net-test1 --image=alpine sleep 500000
pod/net-test1 created
[root@k8s-master01 ~]# kubectl run net-test2 --image=alpine sleep 500000
pod/net-test2 created
[root@k8s-master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
net-test1 1/1 Running 0 2m18s 192.167.195.130 k8s-node02.example.local <none> <none>
net-test2 1/1 Running 0 2m10s 192.170.21.195 k8s-node03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl exec -it net-test1 sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # ping -c4 192.170.21.195
PING 192.170.21.195 (192.170.21.195): 56 data bytes
64 bytes from 192.170.21.195: seq=0 ttl=62 time=0.464 ms
64 bytes from 192.170.21.195: seq=1 ttl=62 time=0.455 ms
64 bytes from 192.170.21.195: seq=2 ttl=62 time=0.635 ms
64 bytes from 192.170.21.195: seq=3 ttl=62 time=0.512 ms
--- 192.170.21.195 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.455/0.516/0.635 ms
/ # exit
