1.kubeadm 安装方式升级
升级k8s集群必须 先升级kubeadm版本到目的k8s版本，也就是说kubeadm是k8s升级的准升证。
1.1 升级准备
在k8s的所有master节点进行组件升级，将管理端服务kube-controller-manager、kube-apiserver、kube-scheduler、kube-proxy进行版本升级。
1.1.1 验证当前k8s master版本
[root@k8s-master01 ~]# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.8", GitCommit:"4a3b558c52eb6995b3c5c1db5e54111bd0645a64", GitTreeState:"clean", BuildDate:"2021-12-15T14:50:58Z", GoVersion:"go1.16.12", Compiler:"gc", Platform:"linux/amd64"}
1.1.2 验证当前k8s node版本
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 116m v1.21.8
k8s-master02.example.local Ready control-plane,master 111m v1.21.8
k8s-master03.example.local Ready control-plane,master 106m v1.21.8
k8s-node01.example.local Ready <none> 110m v1.21.8
k8s-node02.example.local Ready <none> 109m v1.21.8
k8s-node03.example.local Ready <none> 103m v1.21.8
1.2 升级k8s master节点版本
升级各k8s master节点版本
1.2.1 查看升级计划
[root@k8s-master01 ~]# kubeadm upgrade plan
[upgrade/config] Making sure the configuration is correct:
[upgrade/config] Reading configuration from the cluster...
[upgrade/config] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[preflight] Running pre-flight checks.
[upgrade] Running cluster health checks
[upgrade] Fetching available versions to upgrade to
[upgrade/versions] Cluster version: v1.21.8
[upgrade/versions] kubeadm version: v1.21.8
I0304 18:14:07.428546 97176 version.go:254] remote version is much newer: v1.23.4; falling back to: stable-1.21
[upgrade/versions] Target version: v1.21.10
[upgrade/versions] Latest version in the v1.21 series: v1.21.10
Components that must be upgraded manually after you have upgraded the control plane with 'kubeadm upgrade apply':
COMPONENT CURRENT TARGET
kubelet 6 x v1.21.8 v1.21.10
Upgrade to the latest version in the v1.21 series:
COMPONENT CURRENT TARGET
kube-apiserver v1.21.8 v1.21.10
kube-controller-manager v1.21.8 v1.21.10
kube-scheduler v1.21.8 v1.21.10
kube-proxy v1.21.8 v1.21.10
CoreDNS v1.8.0 v1.8.0
etcd 3.4.13-0 3.4.13-0
You can now apply the upgrade by executing the following command:
kubeadm upgrade apply v1.21.10
Note: Before you can perform this upgrade, you have to update kubeadm to v1.21.10.
_____________________________________________________________________
The table below shows the current state of component configs as understood by this version of kubeadm.
Configs that have a "yes" mark in the "MANUAL UPGRADE REQUIRED" column require manual config upgrade or
resetting to kubeadm defaults before a successful upgrade can be performed. The version to manually
upgrade to is denoted in the "PREFERRED VERSION" column.
API GROUP CURRENT VERSION PREFERRED VERSION MANUAL UPGRADE REQUIRED
kubeproxy.config.k8s.io v1alpha1 v1alpha1 no
kubelet.config.k8s.io v1beta1 v1beta1 no
_____________________________________________________________________
1.2.2 升级 k8s master节点版本
master01
#CentOS
[root@k8s-master01 ~]# yum list kubeadm.x86_64 --showduplicates | grep 1.21.*
kubeadm.x86_64 1.21.8-0 @kubernetes
kubeadm.x86_64 1.21.0-0 kubernetes
kubeadm.x86_64 1.21.1-0 kubernetes
kubeadm.x86_64 1.21.2-0 kubernetes
kubeadm.x86_64 1.21.3-0 kubernetes
kubeadm.x86_64 1.21.4-0 kubernetes
kubeadm.x86_64 1.21.5-0 kubernetes
kubeadm.x86_64 1.21.6-0 kubernetes
kubeadm.x86_64 1.21.7-0 kubernetes
kubeadm.x86_64 1.21.8-0 kubernetes
kubeadm.x86_64 1.21.9-0 kubernetes
kubeadm.x86_64 1.21.10-0 kubernetes
#Ubuntu
root@k8s-master01:~# apt-cache madison kubeadm |grep 1.21.*
kubeadm | 1.21.10-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.9-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.8-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.7-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.6-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.4-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.3-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.2-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.1-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
kubeadm | 1.21.0-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages
#ha01和ha02上安装
#CentOS
[root@k8s-ha01 ~]# yum -y install socat
#Ubuntu
root@k8s-master01:~# apt -y install socat
#下线master01
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.101" | socat stdio /var/lib/haproxy/haproxy.sock"
#CentOS
[root@k8s-master01 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10 kubectl-1.21.10
#Ubuntu
root@k8s-master01:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00 kubectl=1.21.10-00
[root@k8s-master01 ~]# kubeadm config images list --kubernetes-version v1.21.10
k8s.gcr.io/kube-apiserver:v1.21.10
k8s.gcr.io/kube-controller-manager:v1.21.10
k8s.gcr.io/kube-scheduler:v1.21.10
k8s.gcr.io/kube-proxy:v1.21.10
k8s.gcr.io/pause:3.4.1
k8s.gcr.io/etcd:3.4.13-0
k8s.gcr.io/coredns/coredns:v1.8.0
[root@k8s-master01 ~]# cat download_kubeadm_images_1.21-2.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_kubeadm_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
KUBEADM_VERSION=1.21.10
images=$(kubeadm config images list --kubernetes-version=v${KUBEADM_VERSION} | awk -F "/" '{print $NF}')
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Kubeadm镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Kubeadm镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_kubeadm_images_1.21-2.sh
[root@k8s-master01 ~]# kubeadm upgrade apply v1.21.10
[upgrade/config] Making sure the configuration is correct:
[upgrade/config] Reading configuration from the cluster...
[upgrade/config] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[preflight] Running pre-flight checks.
[upgrade] Running cluster health checks
[upgrade/version] You have chosen to change the cluster version to "v1.21.10"
[upgrade/versions] Cluster version: v1.21.8
[upgrade/versions] kubeadm version: v1.21.10
[upgrade/confirm] Are you sure you want to proceed with the upgrade? [y/N]: y
[upgrade/prepull] Pulling images required for setting up a Kubernetes cluster
[upgrade/prepull] This might take a minute or two, depending on the speed of your internet connection
[upgrade/prepull] You can also perform this action in beforehand using 'kubeadm config images pull'
[upgrade/apply] Upgrading your Static Pod-hosted control plane to version "v1.21.10"...
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
[upgrade/etcd] Upgrading to TLS for etcd
Static pod: etcd-k8s-master01.example.local hash: 1815773c45f159b04fa1cc3dd5470d86
[upgrade/staticpods] Preparing for "etcd" upgrade
[upgrade/staticpods] Current and new manifests of etcd are equal, skipping upgrade
[upgrade/etcd] Waiting for etcd to become available
[upgrade/staticpods] Writing new Static Pod manifests to "/etc/kubernetes/tmp/kubeadm-upgraded-manifests023185240"
[upgrade/staticpods] Preparing for "kube-apiserver" upgrade
[upgrade/staticpods] Renewing apiserver certificate
[upgrade/staticpods] Renewing apiserver-kubelet-client certificate
[upgrade/staticpods] Renewing front-proxy-client certificate
[upgrade/staticpods] Renewing apiserver-etcd-client certificate
[upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-apiserver.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2022-03-04-18-26-36/kube-apiserver.yaml"
[upgrade/staticpods] Waiting for the kubelet to restart the component
[upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s)
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: 54ccbfaa343b01755fa5046d37885372
Static pod: kube-apiserver-k8s-master01.example.local hash: e5735eec9cf199a0fab1f50892705433
[apiclient] Found 3 Pods for label selector component=kube-apiserver
[upgrade/staticpods] Component "kube-apiserver" upgraded successfully!
[upgrade/staticpods] Preparing for "kube-controller-manager" upgrade
[upgrade/staticpods] Renewing controller-manager.conf certificate
[upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-controller-manager.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2022-03-04-18-26-36/kube-controller-manager.yaml"
[upgrade/staticpods] Waiting for the kubelet to restart the component
[upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s)
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: f5cb290d0dd5336442c0cb3d7d633dd2
Static pod: kube-controller-manager-k8s-master01.example.local hash: fed309dfdc6c6282806ff6363ede3287
[apiclient] Found 3 Pods for label selector component=kube-controller-manager
[upgrade/staticpods] Component "kube-controller-manager" upgraded successfully!
[upgrade/staticpods] Preparing for "kube-scheduler" upgrade
[upgrade/staticpods] Renewing scheduler.conf certificate
[upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-scheduler.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2022-03-04-18-26-36/kube-scheduler.yaml"
[upgrade/staticpods] Waiting for the kubelet to restart the component
[upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s)
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 933634761590238c2e4a0e136463fc14
Static pod: kube-scheduler-k8s-master01.example.local hash: 4ddfb2d81fc02c53b95b8ba31b7558e4
[apiclient] Found 3 Pods for label selector component=kube-scheduler
[upgrade/staticpods] Component "kube-scheduler" upgraded successfully!
[upgrade/postupgrade] Applying label node-role.kubernetes.io/control-plane='' to Nodes with label node-role.kubernetes.io/master='' (deprecated)
[upgrade/postupgrade] Applying label node.kubernetes.io/exclude-from-external-load-balancers='' to control plane Nodes
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.21" in namespace kube-system with the configuration for the kubelets in the cluster
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
[upgrade/successful] SUCCESS! Your cluster was upgraded to "v1.21.10". Enjoy!
[upgrade/kubelet] Now that your control plane is upgraded, please proceed with upgrading your kubelets if you haven't already done so.
[root@k8s-master01 ~]# systemctl daemon-reload
[root@k8s-master01 ~]# systemctl restart kubelet
#上线master01
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.101" | socat stdio /var/lib/haproxy/haproxy.sock"
master02
#下线master02
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.102" | socat stdio /var/lib/haproxy/haproxy.sock"
#CentOS
[root@k8s-master02 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10 kubectl-1.21.10
#Ubuntu
root@k8s-master02:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00 kubectl=1.21.10-00
[root@k8s-master02 ~]# cat download_kubeadm_images_1.21-3.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_kubeadm_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
KUBEADM_VERSION=1.21.10
images=$(kubeadm config images list --kubernetes-version=v${KUBEADM_VERSION} | awk -F "/" '{print $NF}')
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Kubeadm镜像"${END}
for i in ${images};do
docker pull ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Kubeadm镜像下载完成"${END}
}
images_download
[root@k8s-master02 ~]# bash download_kubeadm_images_1.21-3.sh
[root@k8s-master02 ~]# kubeadm upgrade apply v1.21.10
[root@k8s-master02 ~]# systemctl daemon-reload
[root@k8s-master02 ~]# systemctl restart kubelet
#上线master02
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.102" | socat stdio /var/lib/haproxy/haproxy.sock"
master03
#下线master03
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.103" | socat stdio /var/lib/haproxy/haproxy.sock"
#CentOS
[root@k8s-master03 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10 kubectl-1.21.10
#Ubuntu
root@k8s-master03:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00 kubectl=1.21.10-00
[root@k8s-master03 ~]# bash download_kubeadm_images_1.21-3.sh
[root@k8s-master03 ~]# kubeadm upgrade apply v1.21.10
[root@k8s-master03 ~]# systemctl daemon-reload
[root@k8s-master03 ~]# systemctl restart kubelet
#上线master03
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.103" | socat stdio /var/lib/haproxy/haproxy.sock"
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 140m v1.21.10
k8s-master02.example.local Ready control-plane,master 135m v1.21.10
k8s-master03.example.local Ready control-plane,master 130m v1.21.10
k8s-node01.example.local Ready <none> 134m v1.21.8
k8s-node02.example.local Ready <none> 133m v1.21.8
k8s-node03.example.local Ready <none> 127m v1.21.8
[root@k8s-master01 ~]# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.10", GitCommit:"a7a32748b5c60445c4c7ee904caf01b91f2dbb71", GitTreeState:"clean", BuildDate:"2022-02-16T11:22:49Z", GoVersion:"go1.16.14", Compiler:"gc", Platform:"linux/amd64"}
[root@k8s-master01 ~]# kubectl version
Client Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.10", GitCommit:"a7a32748b5c60445c4c7ee904caf01b91f2dbb71", GitTreeState:"clean", BuildDate:"2022-02-16T11:24:04Z", GoVersion:"go1.16.14", Compiler:"gc", Platform:"linux/amd64"}
Server Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.10", GitCommit:"a7a32748b5c60445c4c7ee904caf01b91f2dbb71", GitTreeState:"clean", BuildDate:"2022-02-16T11:18:16Z", GoVersion:"go1.16.14", Compiler:"gc", Platform:"linux/amd64"}
[root@k8s-master01 ~]# kubelet --version
Kubernetes v1.21.10
1.3 升级calico
[root@k8s-master01 ~]# curl https://docs.projectcalico.org/manifests/calico-etcd.yaml -O
[root@k8s-master01 ~]# vim calico-etcd.yaml
...
spec:
selector:
matchLabels:
k8s-app: calico-node
updateStrategy:
type: OnDelete #修改这里，calico不会滚动更新，只有重启了kubelet，才会更新
template:
metadata:
labels:
k8s-app: calico-node
...
修改calico-etcd.yaml的以下位置
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"
[root@k8s-master01 ~]# sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "https://172.31.3.101:2379,https://172.31.3.102:2379,https://172.31.3.103:2379"#g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "etcd_endpoints:.*" calico-etcd.yaml
etcd_endpoints: "https://172.31.3.101:2379,https://172.31.3.102:2379,https://172.31.3.103:2379"
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
# etcd-key: null
# etcd-cert: null
# etcd-ca: null
[root@k8s-master01 ~]# ETCD_KEY=`cat /etc/kubernetes/pki/etcd/server.key | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CERT=`cat /etc/kubernetes/pki/etcd/server.crt | base64 | tr -d '\n'`
[root@k8s-master01 ~]# ETCD_CA=`cat /etc/kubernetes/pki/etcd/ca.crt | base64 | tr -d '\n'`
[root@k8s-master01 ~]# sed -i "s@# etcd-key: null@etcd-key: ${ETCD_KEY}@g; s@# etcd-cert: null@etcd-cert: ${ETCD_CERT}@g; s@# etcd-ca: null@etcd-ca: ${ETCD_CA}@g" calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd-key:.*|.*etcd-cert:.*|.*etcd-ca:.*)" calico-etcd.yaml
etcd-key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdzFyRE5lanVxbnVDRVBEa01xdjlmcVNWeHhmSzQvQ0wrY2Z3YnY5WHovSS9ScHZmCmNtRjdUM0wzYnBDNS9JMjVuVlZ6N2plb2JUZnN2RFhDWjVIQml1MkYrSzR1SHdna3dtREJYWjZzSUd6clNSS1oKRTdldWhxN1F3SWVqOWtTcTN2RjA5d1NsbWJJeFJaNTZmMXgvYXVMcnFpNUZnanBmWUhMWit3MVdBcUM3WWtVWgoraHoxN3pFRjVnaWlYWE9ucGR1c2VCZDZoVHd1T2JwNmg0clpEb0IrY1VMMXplOTNPTFJGbDBpL2ppRzFzMGw2CmlUaUgwU3d1SFlXQ1NXNWZ5NzBjVDFseUduWG5jNUFwOGRYZWt5dnZYRFBzNEVnVVcvbUczWlpoalAreC9DWTcKNGp6M2dRZVFHYitSMUdRb1djdlh4UGZneGsxK2IwK01ZUjFmVXdJREFRQUJBb0lCQUYwWTQrN05FdkFyNjlBbQovSmtwWGFUOHltUVc4cG11Q1FjQVFaU2tHelQrUFNscEh4TmpZV0I3YVc5SGlWclNMNkxMRm5Sd0VkUDYwdGJlCng4YVRyNmlGaVZMNXJ3RWE0R25Cc21Uck9SdzZ5K1lHOXV4dW5MMlNrZWt1dXZTaHhNeDZSVU55ODNoTGN5KzYKVnFaYmJsMkJ4czFUUDh6UUJLUHlGKytNYTNEVVV1RnhNZ0h3cnFOYVA5bzdOaW9ycTFzZTdHV2F1dHNXSW1HZwpLZjJDREU5SVlHbGQyd1pnWCtoVWhQOU1UcWVKVGJrQVJiUEVsS1BLUDBSeUxaNi9tcE42K0VONGovS0NHeW9PCmNmTzUrazlpUlpwYytldnhpelZkNXNyWER2azBlK1pyU3Y2eUhtV0hpaUxCMm9PN0hkMUVKbjhQa09scE1ISjcKU0hoTzBBRUNnWUVBN29DMFZicmVQNXhZRjUyalI2RUtDUkVLR0lWcExrTTBuNUpSRUdpNElXcWNyWEJ1eGhIYwpQWVgzdnJKRWM5Nm8va28rZTRVNk94cWFISjZRSGNVODFCRTcyc0d0RkY2WHlnNlRkSjRJd2ZIenpKNjlDK2JtCmRhSlNqbG1UeE9GOEhNSkpjdUt3RGRxOFlLNlRHZzN0MXJTcVNtczMzV1BxdG9zbW5Takp0cThDZ1lFQTBhK3kKTGxIWWl5U2NVSG0vY3hYWEZSVkNUWjJqaWo0MzF4MXNkNFE3amc0MlQ0dmNCUElsUmJGQjdRYjVLallZUjZkYQp2cGJMV0hLbE1OblUrM1dvcnJnNjNWNlZwa3lCck1VcnNSemlQaUIxM1lXVENsZjUwdDJERVZ5dS9aWDZPc2FuCjY4MDJwRFc0YnhKcmNPam9aM3BjUm9Fcy96N0RGKzArZStseWlwMENnWUVBdXR2WGJmdDBPUDR5L24yZytYT3cKT3g1QWZLbTVtR2RMQ1dKSFpNWEd6VmVMM1U3ald3ZVBPQnlIMTc0dloyQ2hvbWxrdnIzSXU1bkIrSDQ2aHppSwp5ZE9ldzJ0T1FWRkROeWxvV2N1ZkxPUjFrSEVseC9kbHcvQWpJaWdJWUE0UmdTNnZBUFdkM1p6c1RnczRjUWRNCnVoVGQvbVEyWnB2cnZvMFMrYnFGSHowQ2dZRUFnVnN3UXQ3L0JhZktQdU04dGxTczRUYkNObnVmWGpOUDQ0Y2wKV1AzY2Q2QlE1UFhVLzhBYU9rcEY3Mkd6Nk5TQ1dnSG1PMWx2ak5yOUNZdjRsa0JabFovVndLY1BEdzUzbVF2eQpEa3RSVHg1YldCT0ZTSVpKZWtwcEJ4YjBaVUJXcEZmVlUrUy9ac0kxUzJCRG85NHJNVnNNL2ZuR3RwZ1RadmxXCjZMNTFpUWtDZ1lBUkVRSElYTmhlYW1RSFE1TEpicEZzMFltSzRVZDluL2w1Vng1MEdUbG0vUEx5VlBWWU9TUWUKenYyYS96RHY2dVJ6ZGROU0tpSkFMVUJDZG5RSDRraklBWGg3NDBTQXNGUDZraW4zNm11RDB4RTlEODBOMlNyMgpDL3hQWHdINWp0Ry9jUkdHZGU4SGdjQTg4NkFKYkMyenlxYURpY3h1ejRQcll4Z2dPNG9iTmc9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
etcd-cert: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURRVENDQWltZ0F3SUJBZ0lJR2VNdy9ETExMK2t3RFFZSktvWklodmNOQVFFTEJRQXdFakVRTUE0R0ExVUUKQXhNSFpYUmpaQzFqWVRBZUZ3MHlNakF4TWpZeE16TTFOVGRhRncweU16QXhNall4TXpNMU5UZGFNQmN4RlRBVApCZ05WQkFNVERHczRjeTF0WVhOMFpYSXdNVENDQVNJd0RRWUpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DCmdnRUJBTU5hd3pYbzdxcDdnaER3NURLci9YNmtsY2NYeXVQd2kvbkg4RzcvVjgveVAwYWIzM0poZTA5eTkyNlEKdWZ5TnVaMVZjKzQzcUcwMzdMdzF3bWVSd1lydGhmaXVMaDhJSk1KZ3dWMmVyQ0JzNjBrU21STzNyb2F1ME1DSApvL1pFcXQ3eGRQY0VwWm15TVVXZWVuOWNmMnJpNjZvdVJZSTZYMkJ5MmZzTlZnS2d1MkpGR2ZvYzllOHhCZVlJCm9sMXpwNlhickhnWGVvVThMam02ZW9lSzJRNkFmbkZDOWMzdmR6aTBSWmRJdjQ0aHRiTkplb2s0aDlFc0xoMkYKZ2tsdVg4dTlIRTlaY2hwMTUzT1FLZkhWM3BNcjcxd3o3T0JJRkZ2NWh0MldZWXovc2Z3bU8rSTg5NEVIa0JtLwprZFJrS0ZuTDE4VDM0TVpOZm05UGpHRWRYMU1DQXdFQUFhT0JsVENCa2pBT0JnTlZIUThCQWY4RUJBTUNCYUF3CkhRWURWUjBsQkJZd0ZBWUlLd1lCQlFVSEF3RUdDQ3NHQVFVRkJ3TUNNQjhHQTFVZEl3UVlNQmFBRk1Ha3dwKy8KZGdBTjRHdnRDT0ZrbE5OSnBCSkNNRUFHQTFVZEVRUTVNRGVDREdzNGN5MXRZWE4wWlhJd01ZSUpiRzlqWVd4bwpiM04waHdTc0h3Tmxod1IvQUFBQmh4QUFBQUFBQUFBQUFBQUFBQUFBQUFBQk1BMEdDU3FHU0liM0RRRUJDd1VBCkE0SUJBUUFMOE53a0I5aUprc0RnOGp6dFRTTjB4U3pyaXQyK242M2QrV0dGS3l1K2d6Z2pTLzZaOXhYQkpZN3YKL2c1SEZrUnpxTmJXTDdoV0dtY1ZPUGJpQmNpZnJtcmpFNUFMdzhPNmZBVGg2V3RtaVN4RlRwa1Nhc3R5OW82RApJcGlmYzhSTS8rSS9EVWdTQXQ3ZzFucUJodjlxdnFSRWNiM1J1SmRYWTJjNi90LzNZb3gzTUFmVzNJaUVDNUorCkNTSXl2UUtmUDlBWVlXK2F4Y1dQelhXNzEwUVdNTnozZXVQMzJqZENkanBzbFVLNldpaHJQYjdnaURTdDdFVFYKWk5EeEh4NUp3WXlpYmFxbGQzQUlicFhNRmxnY2NubWttM0pwWnIrTUI4bGlGYThHZlU5L005N1ZueXFZN0huNgpDNkdXTWlJNWFvc0lGaE9INUJ3NFFNa0NzSXlvCi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
etcd-ca: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM0VENDQWNtZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFTTVJBd0RnWURWUVFERXdkbGRHTmsKTFdOaE1CNFhEVEl5TURFeU5qRXpNelUxTjFvWERUTXlNREV5TkRFek16VTFOMW93RWpFUU1BNEdBMVVFQXhNSApaWFJqWkMxallUQ0NBU0l3RFFZSktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQU5OcnNlMnd1aG45CnVKazdpOEZLN1A5SHU1YlIwOEY5R0VQTEtBelg0NHdKSE45QjZ1MTBrZmNoL0dlRTBremErQjhJejQ1UjRrdmUKbVpVYS9XbmVXdjNxRm1odURiTEdvU1B1Ykl1aXh1aTkwdllzbjBaRUJCV2dMbWdRNkdHNnd5OWFNbG55VGlWYworOTdSNTg2b3dMVGRTU3NiNjd2c0w0U2U0U2lXOHdTQTQ2K3FXSEJKNHc5Q2s2QXljam9vbDBMbXREVkJ1QlpqCjlNeWdDbUE4M3lkTnV4eUhDSGJpM2FRdkovVUNyQnoyNk5zYTVha1NlMlRQNGJ1US9PWjBIYnhsNUE5NXIyeGgKNkM1NGx3cHFLeTkxb2craWQ1ZlZMRFVVdDR0d1pvd0dITnZxMWRrRnI3VjA2SDJjdXo0eXlMajQ0a0xPNk9LMgo4OGplaWhBREhiY0NBd0VBQWFOQ01FQXdEZ1lEVlIwUEFRSC9CQVFEQWdLa01BOEdBMVVkRXdFQi93UUZNQU1CCkFmOHdIUVlEVlIwT0JCWUVGTUdrd3ArL2RnQU40R3Z0Q09Ga2xOTkpwQkpDTUEwR0NTcUdTSWIzRFFFQkN3VUEKQTRJQkFRQTI5SWlldmxmdk9MSmFCOGlNR3ZLTmVXMExGZkhkTGRoeUl3T2dDeThjaHNaTVR5SjhXdzFrUUVKUgozbTY0MGVHK2UvOTE0QmE5Wk5iL0NQMkN1eHA2MkQrVWl0U0FjS001NWtTNURuVEVrcURwbVdETjdLTjhISk1QCkcwdlRXYnNrVTVicXJqb0JVQVNPNUsxeDl4WENSUDU2elBVZ3E5QTY4SmM4N1Mya29PNk56Mm53ZE9zc042TW0KRzFNQmdHQ2lqQXB3MDZJM2NuT1ExcFFhVk1RNVovT0tDSEoyTFFFUFJISVZqb2E4clBBcmNyYXFGUnpPeTk4agpOc3FxcWYvNDhMamVwZDZvOFlZc08zRng2M3c2YmhaOG94WDFxT090WTRlQ0pPeWRTZkRMR21tYkMrc1ozZlJiCjU0RkVLQ1RWKzhqQjBYNmZJYjl2OHg3WU5MNFgKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "" # "/calico-secrets/etcd-ca"
etcd_cert: "" # "/calico-secrets/etcd-cert"
etcd_key: "" # "/calico-secrets/etcd-key"
[root@k8s-master01 ~]# sed -i 's#etcd_ca: ""#etcd_ca: "/calico-secrets/etcd-ca"#g; s#etcd_cert: ""#etcd_cert: "/calico-secrets/etcd-cert"#g; s#etcd_key: "" #etcd_key: "/calico-secrets/etcd-key" #g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*etcd_ca:.*|.*etcd_cert:.*|.*etcd_key:.*)" calico-etcd.yaml
etcd_ca: "/calico-secrets/etcd-ca" # "/calico-secrets/etcd-ca"
etcd_cert: "/calico-secrets/etcd-cert" # "/calico-secrets/etcd-cert"
etcd_key: "/calico-secrets/etcd-key" # "/calico-secrets/etcd-key"
[root@k8s-master01 ~]# POD_SUBNET=`cat /etc/kubernetes/manifests/kube-controller-manager.yaml | grep cluster-cidr= | awk -F= '{print $NF}'`
[root@k8s-master01 ~]# echo $POD_SUBNET
192.168.0.0/12
# 注意下面的这个步骤是把calico-etcd.yaml文件里面的CALICO_IPV4POOL_CIDR下的网段改成自己的Pod网段，也就是把192.168.x.x/16改成自己的集群网段，并打开注释：
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
# - name: CALICO_IPV4POOL_CIDR
# value: "192.168.0.0/16"
[root@k8s-master01 ~]# sed -i 's@# - name: CALICO_IPV4POOL_CIDR@- name: CALICO_IPV4POOL_CIDR@g; s@# value: "192.168.0.0/16"@ value: '"${POD_SUBNET}"'@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep -E "(.*CALICO_IPV4POOL_CIDR.*|.*192.168.0.0.*)" calico-etcd.yaml
- name: CALICO_IPV4POOL_CIDR
value: 192.168.0.0/12
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: docker.io/calico/cni:v3.22.1
image: docker.io/calico/pod2daemon-flexvol:v3.22.1
image: docker.io/calico/node:v3.22.1
image: docker.io/calico/kube-controllers:v3.22.1
下载calico镜像并上传harbor
[root@k8s-master01 ~]# cat download_calico_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_calico_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' calico-etcd.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Calico镜像"${END}
for i in ${images};do
docker pull registry.cn-beijing.aliyuncs.com/raymond9/$i
docker tag registry.cn-beijing.aliyuncs.com/raymond9/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.cn-beijing.aliyuncs.com/raymond9/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Calico镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_calico_images.sh
[root@k8s-master01 ~]# sed -ri 's@(.*image:) docker.io/calico(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' calico-etcd.yaml
[root@k8s-master01 ~]# grep "image:" calico-etcd.yaml
image: harbor.raymonds.cc/google_containers/cni:v3.21.4
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.21.4
image: harbor.raymonds.cc/google_containers/node:v3.21.4
image: harbor.raymonds.cc/google_containers/kube-controllers:v3.21.4
[root@k8s-master01 ~]# kubectl apply -f calico-etcd.yaml
secret/calico-etcd-secrets configured
configmap/calico-config configured
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrole.rbac.authorization.k8s.io/calico-node configured
clusterrolebinding.rbac.authorization.k8s.io/calico-node unchanged
daemonset.apps/calico-node configured
serviceaccount/calico-node unchanged
deployment.apps/calico-kube-controllers configured
serviceaccount/calico-kube-controllers unchanged
Warning: policy/v1beta1 PodDisruptionBudget is deprecated in v1.21+, unavailable in v1.25+; use policy/v1 PodDisruptionBudget
poddisruptionbudget.policy/calico-kube-controllers created
[root@k8s-master01 ~]# vim calico-etcd.yaml
...
apiVersion: policy/v1
...
[root@k8s-master01 ~]# kubectl apply -f calico-etcd.yaml
secret/calico-etcd-secrets unchanged
configmap/calico-config unchanged
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrole.rbac.authorization.k8s.io/calico-node unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-node unchanged
daemonset.apps/calico-node configured
serviceaccount/calico-node unchanged
deployment.apps/calico-kube-controllers unchanged
serviceaccount/calico-kube-controllers unchanged
poddisruptionbudget.policy/calico-kube-controllers configured
#下线master01
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.101" | socat stdio /var/lib/haproxy/haproxy.sock"
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master01
calico-node-4x957 1/1 Running 0 150m 172.31.3.101 k8s-master01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-4x957 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
#镜像并没有升级
[root@k8s-master01 ~]# kubectl delete pod calico-node-4x957 -n kube-system
pod "calico-node-4x957" deleted
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master01
calico-node-dl9z8 1/1 Running 0 19s 172.31.3.101 k8s-master01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-dl9z8 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: calico/node:v3.22.1
image: calico/cni:v3.22.1
image: calico/pod2daemon-flexvol:v3.22.1
#上线master01
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.101" | socat stdio /var/lib/haproxy/haproxy.sock"
#下线master02
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.102" | socat stdio /var/lib/haproxy/haproxy.sock"
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master02
calico-node-t89ws 1/1 Running 0 153m 172.31.3.102 k8s-master02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-t89ws -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
[root@k8s-master01 ~]# kubectl delete pod calico-node-t89ws -n kube-system
pod "calico-node-t89ws" deleted
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master02
calico-node-29xv5 0/1 Init:0/2 0 4s 172.31.3.102 k8s-master02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-29xv5 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
#上线master02
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.102" | socat stdio /var/lib/haproxy/haproxy.sock"
#下线master03
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/172.31.3.103" | socat stdio /var/lib/haproxy/haproxy.sock"
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master03
calico-node-m9wll 1/1 Running 0 157m 172.31.3.103 k8s-master03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-m9wll -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
[root@k8s-master01 ~]# kubectl delete pod calico-node-m9wll -n kube-system
pod "calico-node-m9wll" deleted
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide |grep calico |grep master03
calico-node-cnpb9 0/1 PodInitializing 0 8s 172.31.3.103 k8s-master03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-cnpb9 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
#上线master03
[root@k8s-master01 ~]# ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/172.31.3.103" | socat stdio /var/lib/haproxy/haproxy.sock"
1.4 升级k8s node节点版本
[root@k8s-master01 ~]# kubectl drain k8s-node01.example.local --delete-emptydir-data --force --ignore-daemonsets
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h8m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h4m v1.21.10
k8s-master03.example.local Ready control-plane,master 178m v1.21.10
k8s-node01.example.local Ready,SchedulingDisabled <none> 3h2m v1.21.8
k8s-node02.example.local Ready <none> 3h1m v1.21.8
k8s-node03.example.local Ready <none> 175m v1.21.8
#CentOS
[root@k8s-node01 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10
#Ubuntu
root@k8s-node01:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00
[root@k8s-node01 ~]# systemctl daemon-reload
[root@k8s-node01 ~]# systemctl restart kubelet
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node01
kube-system calico-node-qmn42 1/1 Running 0 164m 172.31.3.108 k8s-node01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-qmn42 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
[root@k8s-master01 ~]# kubectl delete pod calico-node-qmn42 -n kube-system
pod "calico-node-qmn42" deleted
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node01
kube-system calico-node-x7xw5 1/1 Running 0 25s 172.31.3.108 k8s-node01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-x7xw5 -n kube-system -o yaml |grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
[root@k8s-master01 ~]# kubectl uncordon k8s-node01.example.local
node/k8s-node01.example.local uncordoned
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h12m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h7m v1.21.10
k8s-master03.example.local Ready control-plane,master 3h2m v1.21.10
k8s-node01.example.local Ready <none> 3h6m v1.21.10
k8s-node02.example.local Ready <none> 3h5m v1.21.8
k8s-node03.example.local Ready <none> 179m v1.21.8
[root@k8s-master01 ~]# kubectl drain k8s-node02.example.local --delete-emptydir-data --force --ignore-daemonsets
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h13m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h8m v1.21.10
k8s-master03.example.local Ready control-plane,master 3h3m v1.21.10
k8s-node01.example.local Ready <none> 3h7m v1.21.10
k8s-node02.example.local Ready,SchedulingDisabled <none> 3h6m v1.21.8
k8s-node03.example.local Ready <none> 3h v1.21.8
#CentOS
[root@k8s-node02 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10
#Ubuntu
root@k8s-node03:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00
[root@k8s-node02 ~]# systemctl daemon-reload
[root@k8s-node02 ~]# systemctl restart kubelet
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node02 | tail -n1
kube-system calico-node-ph8vb 0/1 Running 0 169m 172.31.3.109 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-ph8vb -n kube-system -o yaml| grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
[root@k8s-master01 ~]# kubectl delete pod calico-node-ph8vb -n kube-system
pod "calico-node-ph8vb" deleted
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node02 | tail -n1
kube-system calico-node-wfrxd 1/1 Running 0 33s 172.31.3.109 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-wfrxd -n kube-system -o yaml| grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
[root@k8s-master01 ~]# kubectl uncordon k8s-node02.example.local
node/k8s-node02.example.local uncordoned
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h16m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h12m v1.21.10
k8s-master03.example.local Ready control-plane,master 3h6m v1.21.10
k8s-node01.example.local Ready <none> 3h10m v1.21.10
k8s-node02.example.local Ready <none> 3h9m v1.21.10
k8s-node03.example.local Ready <none> 3h3m v1.21.8
[root@k8s-master01 ~]# kubectl drain k8s-node03.example.local --delete-emptydir-data --force --ignore-daemonsets
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h17m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h13m v1.21.10
k8s-master03.example.local Ready control-plane,master 3h7m v1.21.10
k8s-node01.example.local Ready <none> 3h11m v1.21.10
k8s-node02.example.local Ready <none> 3h10m v1.21.10
k8s-node03.example.local Ready,SchedulingDisabled <none> 3h4m v1.21.8
#CentOS
[root@k8s-node03 ~]# yum -y install kubeadm-1.21.10 kubelet-1.21.10
#Ubuntu
root@k8s-node03:~# apt -y install kubeadm=1.21.10-00 kubelet=1.21.10-00
[root@k8s-node03 ~]# systemctl daemon-reload
[root@k8s-node03 ~]# systemctl restart kubelet
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node03 | tail -n1
kube-system calico-node-pzf57 0/1 Running 0 173m 172.31.3.110 k8s-node03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-pzf57 -n kube-system -o yaml| grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
image: harbor.raymonds.cc/google_containers/node:v3.15.3
image: harbor.raymonds.cc/google_containers/cni:v3.15.3
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.15.3
[root@k8s-master01 ~]# kubectl delete pod calico-node-pzf57 -n kube-system
pod "calico-node-pzf57" deleted
[root@k8s-master01 ~]# kubectl get pod -A -o wide|grep calico |grep node03 | tail -n1
kube-system calico-node-clg2c 1/1 Running 0 24s 172.31.3.110 k8s-node03.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod calico-node-clg2c -n kube-system -o yaml| grep "image:"
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
- image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
image: harbor.raymonds.cc/google_containers/node:v3.22.1
image: harbor.raymonds.cc/google_containers/cni:v3.22.1
image: harbor.raymonds.cc/google_containers/pod2daemon-flexvol:v3.22.1
[root@k8s-master01 ~]# kubectl uncordon k8s-node03.example.local
node/k8s-node03.example.local uncordoned
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01.example.local Ready control-plane,master 3h20m v1.21.10
k8s-master02.example.local Ready control-plane,master 3h15m v1.21.10
k8s-master03.example.local Ready control-plane,master 3h10m v1.21.10
k8s-node01.example.local Ready <none> 3h14m v1.21.10
k8s-node02.example.local Ready <none> 3h13m v1.21.10
k8s-node03.example.local Ready <none> 3h7m v1.21.10
1.5 升级metrics-server
[root@k8s-master01 ~]# wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
#修改成下面内容
[root@k8s-master01 ~]# vim components.yaml
...
spec:
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
- --metric-resolution=15s
#添加下面内容
- --kubelet-insecure-tls
- --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
- --requestheader-username-headers=X-Remote-User
- --requestheader-group-headers=X-Remote-Group
- --requestheader-extra-headers-prefix=X-Remote-Extra-
...
volumeMounts:
- mountPath: /tmp
name: tmp-dir
#添加下面内容
- name: ca-ssl
mountPath: /etc/kubernetes/pki
...
volumes:
- emptyDir: {}
name: tmp-dir
#添加下面内容
- name: ca-ssl
hostPath:
path: /etc/kubernetes/pki
...
[root@k8s-master01 ~]# grep "image:" components.yaml
image: k8s.gcr.io/metrics-server/metrics-server:v0.6.1
[root@k8s-master01 ~]# cat download_metrics_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_metrics_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' components.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Metrics镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Metrics镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_metrics_images.sh
[root@k8s-master01 ~]# docker images |grep metrics
harbor.raymonds.cc/google_containers/metrics-server v0.6.1 f73640fb5061 8 weeks ago 64.3MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) k8s.gcr.io/metrics-server(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' components.yaml
[root@k8s-master01 ~]# grep "image:" components.yaml
image: harbor.raymonds.cc/google_containers/metrics-server:v0.6.1
[root@k8s-master01 ~]# kubectl apply -f components.yaml
serviceaccount/metrics-server created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
clusterrolebinding.rbac.authorization.k8s.io/metrics-server:system:auth-delegator created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created
service/metrics-server created
deployment.apps/metrics-server created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
查看状态
[root@k8s-master01 ~]# kubectl get pod -n kube-system |grep metrics
metrics-server-75c8898f9f-fkmd8 1/1 Running 0 36s
[root@k8s-master01 ~]# kubectl top node --use-protocol-buffers
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
k8s-master01.example.local 167m 8% 2456Mi 64%
k8s-master02.example.local 207m 10% 1470Mi 38%
k8s-master03.example.local 162m 8% 1359Mi 35%
k8s-node01.example.local 104m 5% 1064Mi 27%
k8s-node02.example.local 75m 3% 1032Mi 27%
k8s-node03.example.local 103m 5% 962Mi 25%
1.6 升级dashboard

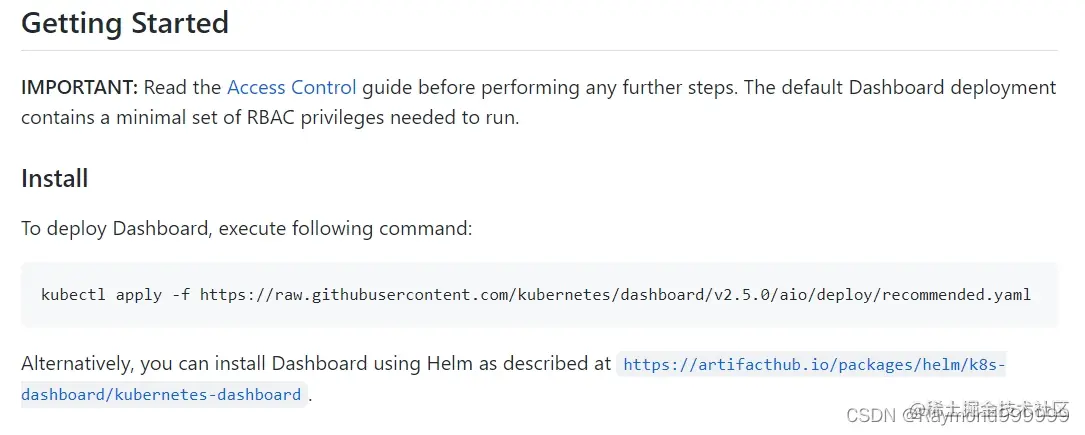

官方GitHub地址：github.com/kubernetes/…
可以在官方dashboard查看到最新版dashboard
root@k8s-master01:~# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.0/aio/deploy/recommended.yaml
[root@k8s-master01 ~]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort #添加这行
ports:
- port: 443
targetPort: 8443
nodePort: 30005 #添加这行
selector:
k8s-app: kubernetes-dashboard
...
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: kubernetesui/dashboard:v2.5.0
image: kubernetesui/metrics-scraper:v1.0.7
[root@k8s-master01 ~]# cat download_dashboard_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_dashboard_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' recommended.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Dashboard镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Dashboard镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_dashboard_images.sh
root@k8s-master01:~# docker images |grep -E "(dashboard|metrics-scraper)"
harbor.raymonds.cc/google_containers/dashboard v2.5.0 57446aa2002e 4 weeks ago 223MB
harbor.raymonds.cc/google_containers/metrics-scraper v1.0.7 7801cfc6d5c0 8 months ago 34.4MB
[root@k8s-master01 ~]# sed -ri 's@(.*image:) kubernetesui(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' recommended.yaml
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: harbor.raymonds.cc/google_containers/dashboard:v2.5.0
image: harbor.raymonds.cc/google_containers/metrics-scraper:v1.0.7
[root@k8s-master01 ~]# kubectl apply -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
创建管理员用户admin.yaml
[root@k8s-master01 ~]# vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kube-system
[root@k8s-master01 ~]# kubectl apply -f admin.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
[root@k8s-master01 ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name: admin-user-token-tzh6x
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin-user
kubernetes.io/service-account.uid: c79c4e80-0d34-488d-950a-cdd18f4f687e
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1066 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6InhHSlloc2pJTWNxdVVhSlNrR0UwY3pLd1JLSk1IeThBcDVPWjZ4dW5OMU0ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXR6aDZ4Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjNzljNGU4MC0wZDM0LTQ4OGQtOTUwYS1jZGQxOGY0ZjY4N2UiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.5DQGMa9Xfq1VtPFrnvfZoytYGT1kmxUj5XqmkCAM51_G5sckAhE79QBXRwBNrCJyQriMfeh3iuvCweKqyfUZUV7lAh6zopZlY2VvEge40ch_9mtSX0t2i-kces4W1ZT7bZfkX20XS6fcshgsC1IJJEeNtsi-EXWKUiC1p-6KpAwQmdWzfHGhfKZZQVgShbq6uHKjaqEfqvVH2aLxHZbmdLXU8JKwegg4arRygeRejHWDc2DLLoMHBfCC46dA_Ntjex9gFTkcwGH4HlN9-WpF94gHMHSo4Rj7To5Q9OLap1BC70sElSbY5juf4orDcLJVtrFMIwmVizUkyTle8jQlgQ
