记得看代码中的注释哈，理解都在里面 源码基于v1.24
本篇文章主要介绍kube-apiServer的认证和鉴权部分的代码，了解其加载流程和执行流程，理清全流程
登录和鉴权

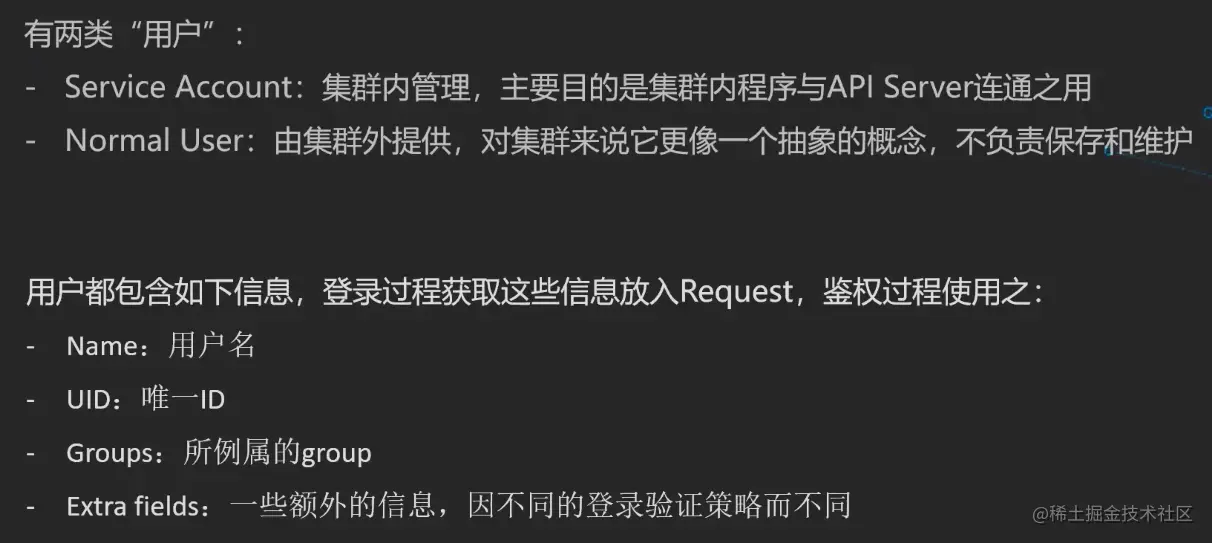

1.Authentication（认证）：认证方式现共有8种，可以启用一种或多种认证方式，只要有一种认证方式通过，就不再 进行其它方式的认证。通常启用X509 Client Certs和Service Accout Tokens两种认证方式。 Kubernetes集群有两类用户：由Kubernetes管理的Service Accounts （服务账户）和 （Users Accounts） 普通账户。 k8s中账号的概念不是我们理解的账号，它并不真的存在， 它只是形式上存在。
2.Authorization（授权）：必须经过认证阶段，才到授权请求，根据所有授权策略匹配请求资源属性，决定允许或拒 绝请求。授权方式现共有6种，AlwaysDeny、AlwaysAllow、ABAC、RBAC、Webhook、 Node。默认集群强制开启RBAC。

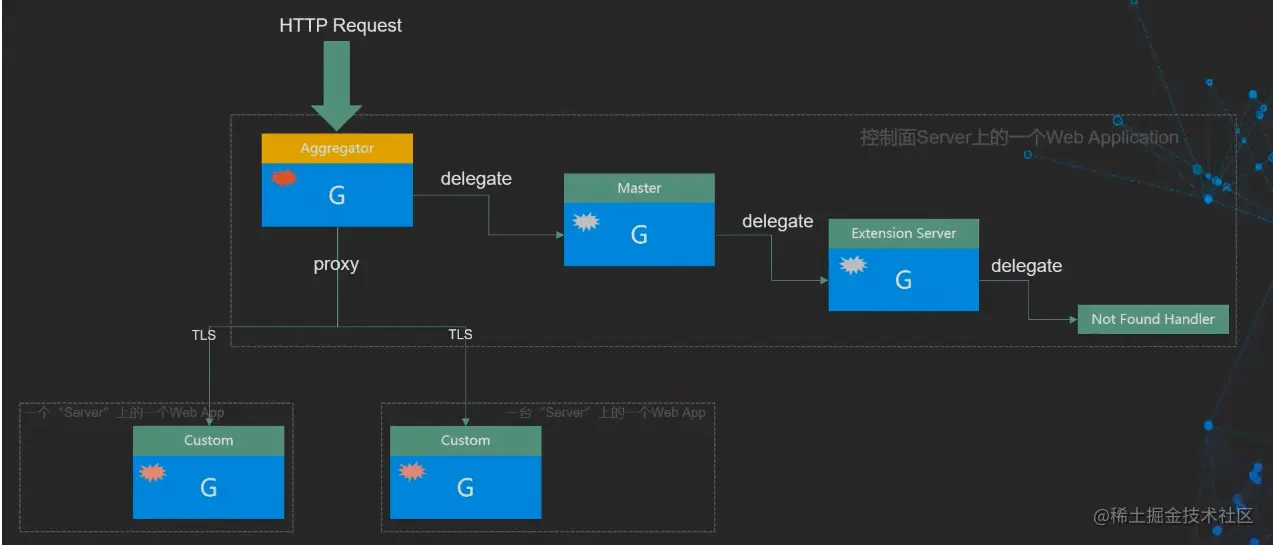

再看请求的转发过程，登录鉴权只发生在Aggregator

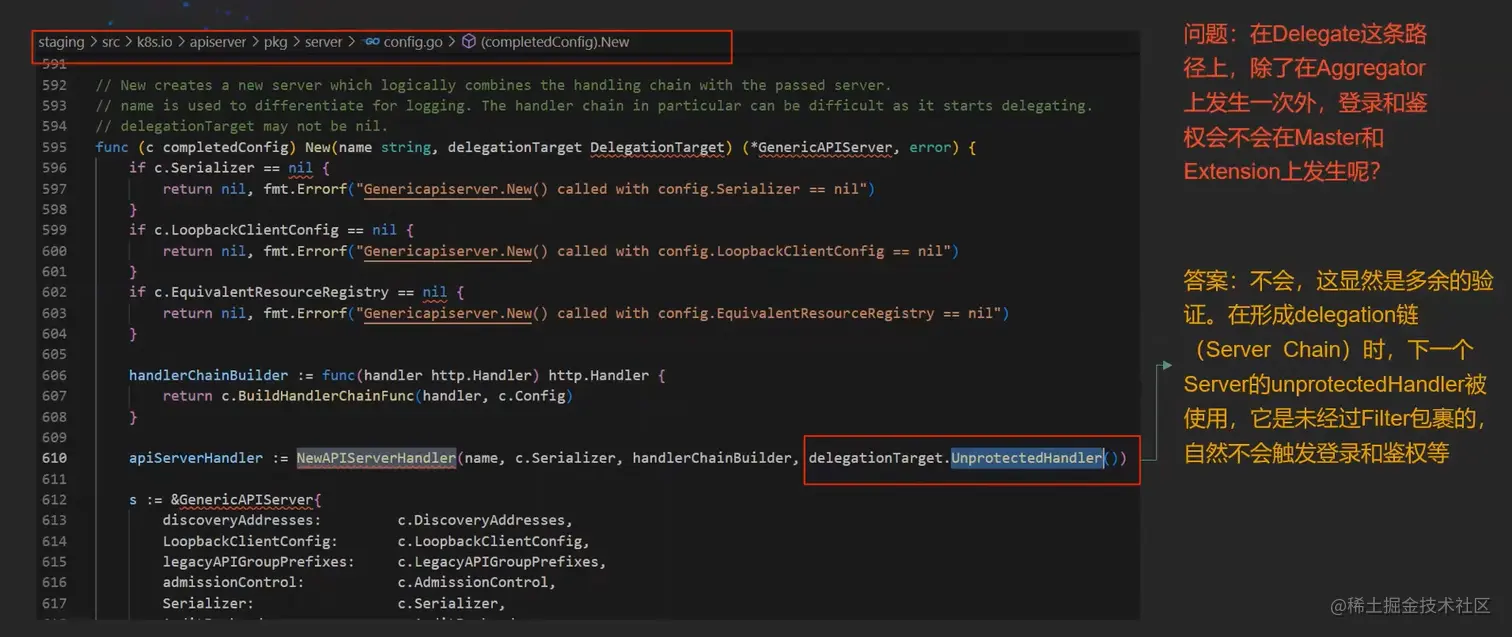

转发到Delegate

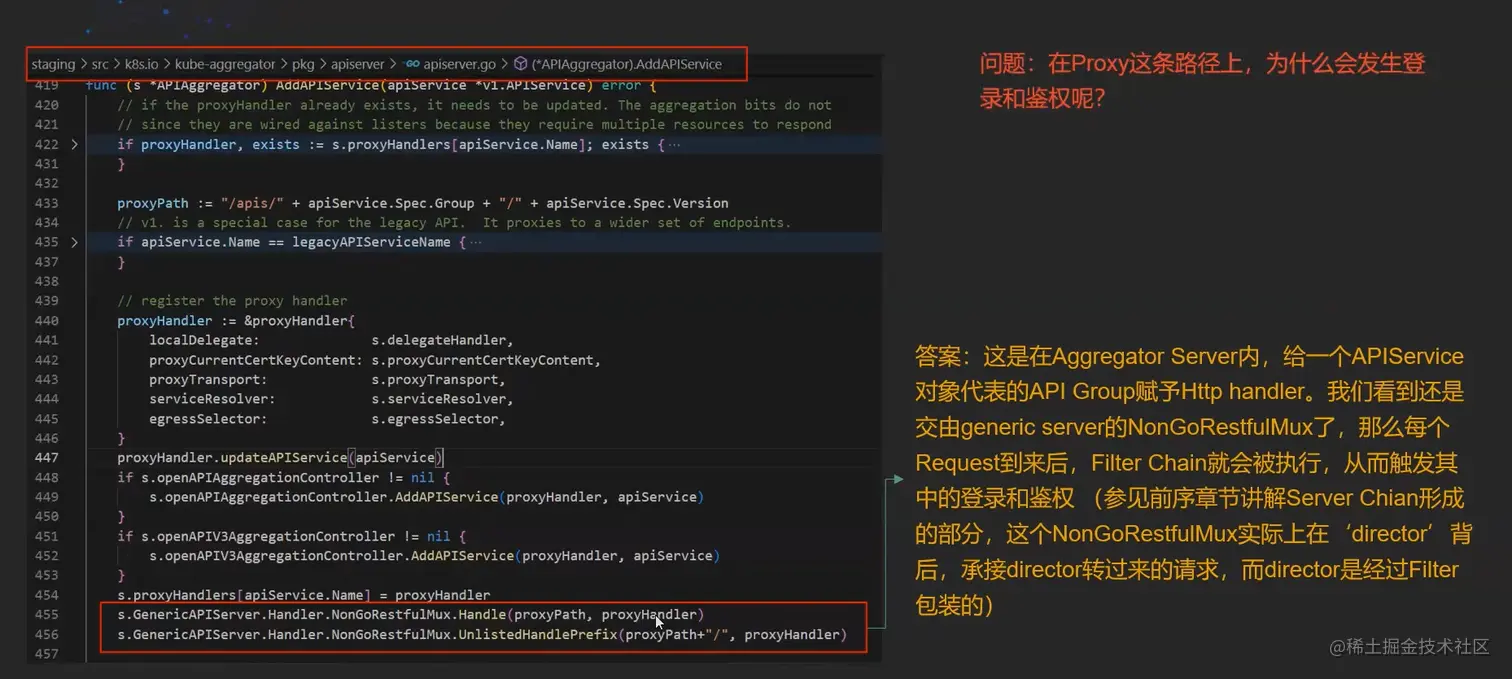

转发到Proxy

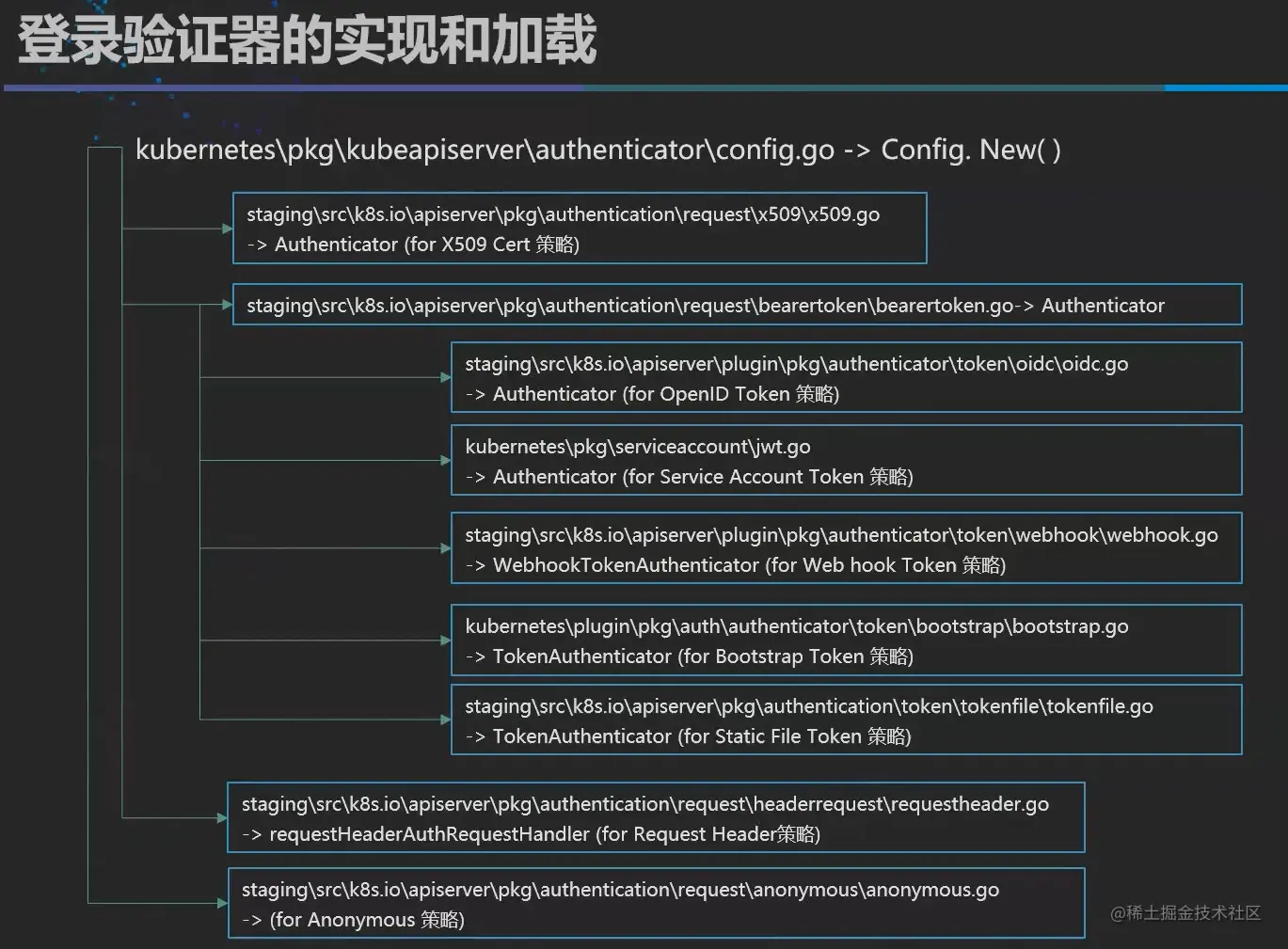

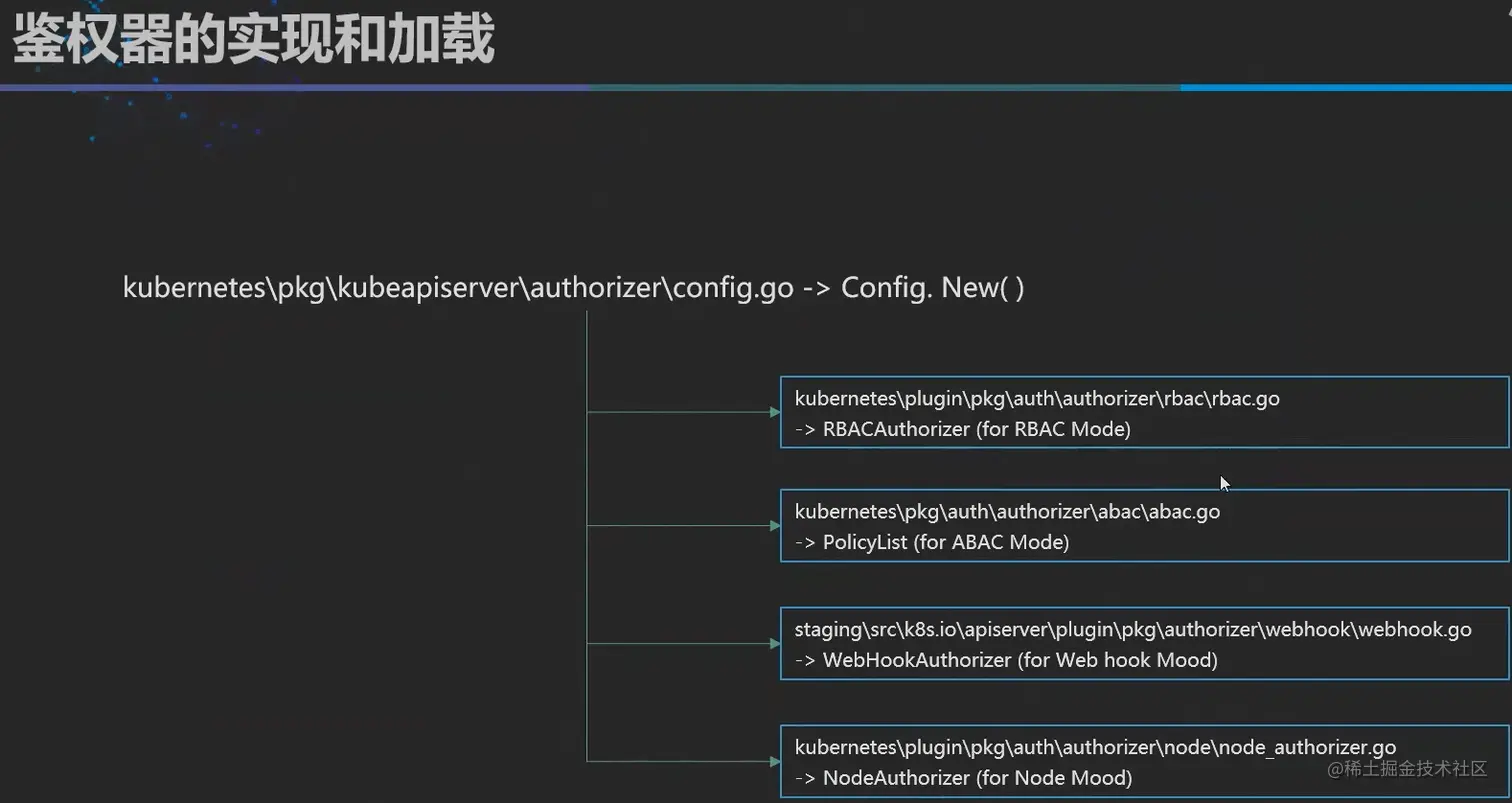

实现和加载
我们举一个x509认证的例子
func (config Config) New() (authenticator.Request, *spec.SecurityDefinitions, error) {
var authenticators []authenticator.Request
var tokenAuthenticators []authenticator.Token
securityDefinitions := spec.SecurityDefinitions{}
if config.RequestHeaderConfig != nil {
requestHeaderAuthenticator := headerrequest.NewDynamicVerifyOptionsSecure(
config.RequestHeaderConfig.CAContentProvider.VerifyOptions,
config.RequestHeaderConfig.AllowedClientNames,
config.RequestHeaderConfig.UsernameHeaders,
config.RequestHeaderConfig.GroupHeaders,
config.RequestHeaderConfig.ExtraHeaderPrefixes,
)
authenticators = append(authenticators, authenticator.WrapAudienceAgnosticRequest(config.APIAudiences, requestHeaderAuthenticator))
}
// X509 methods
if config.ClientCAContentProvider != nil {
certAuth := x509.NewDynamic(config.ClientCAContentProvider.VerifyOptions, x509.CommonNameUserConversion)
authenticators = append(authenticators, certAuth)
}
// Bearer token methods, local first, then remote
if len(config.TokenAuthFile) > 0 {
tokenAuth, err := newAuthenticatorFromTokenFile(config.TokenAuthFile)
if err != nil {
return nil, nil, err
}
tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, tokenAuth))
}
if len(config.ServiceAccountKeyFiles) > 0 {
serviceAccountAuth, err := newLegacyServiceAccountAuthenticator(config.ServiceAccountKeyFiles, config.ServiceAccountLookup, config.APIAudiences, config.ServiceAccountTokenGetter)
if err != nil {
return nil, nil, err
}
tokenAuthenticators = append(tokenAuthenticators, serviceAccountAuth)
}
if len(config.ServiceAccountIssuers) > 0 {
serviceAccountAuth, err := newServiceAccountAuthenticator(config.ServiceAccountIssuers, config.ServiceAccountKeyFiles, config.APIAudiences, config.ServiceAccountTokenGetter)
if err != nil {
return nil, nil, err
}
tokenAuthenticators = append(tokenAuthenticators, serviceAccountAuth)
}
if config.BootstrapToken {
if config.BootstrapTokenAuthenticator != nil {
tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, config.BootstrapTokenAuthenticator))
}
}
if len(config.OIDCIssuerURL) > 0 && len(config.OIDCClientID) > 0 {
// TODO(enj): wire up the Notifier and ControllerRunner bits when OIDC supports CA reload
var oidcCAContent oidc.CAContentProvider
if len(config.OIDCCAFile) != 0 {
var oidcCAErr error
oidcCAContent, oidcCAErr = dynamiccertificates.NewDynamicCAContentFromFile("oidc-authenticator", config.OIDCCAFile)
if oidcCAErr != nil {
return nil, nil, oidcCAErr
}
}
/*
openID的验证
*/
oidcAuth, err := newAuthenticatorFromOIDCIssuerURL(oidc.Options{
IssuerURL: config.OIDCIssuerURL,
ClientID: config.OIDCClientID,
CAContentProvider: oidcCAContent,
UsernameClaim: config.OIDCUsernameClaim,
UsernamePrefix: config.OIDCUsernamePrefix,
GroupsClaim: config.OIDCGroupsClaim,
GroupsPrefix: config.OIDCGroupsPrefix,
SupportedSigningAlgs: config.OIDCSigningAlgs,
RequiredClaims: config.OIDCRequiredClaims,
})
if err != nil {
return nil, nil, err
}
tokenAuthenticators = append(tokenAuthenticators, authenticator.WrapAudienceAgnosticToken(config.APIAudiences, oidcAuth))
}
if len(config.WebhookTokenAuthnConfigFile) > 0 {
webhookTokenAuth, err := newWebhookTokenAuthenticator(config)
if err != nil {
return nil, nil, err
}
tokenAuthenticators = append(tokenAuthenticators, webhookTokenAuth)
}
if len(tokenAuthenticators) > 0 {
// Union the token authenticators
tokenAuth := tokenunion.New(tokenAuthenticators...)
// Optionally cache authentication results
if config.TokenSuccessCacheTTL > 0 || config.TokenFailureCacheTTL > 0 {
tokenAuth = tokencache.New(tokenAuth, true, config.TokenSuccessCacheTTL, config.TokenFailureCacheTTL)
}
authenticators = append(authenticators, bearertoken.New(tokenAuth), websocket.NewProtocolAuthenticator(tokenAuth))
securityDefinitions["BearerToken"] = &spec.SecurityScheme{
SecuritySchemeProps: spec.SecuritySchemeProps{
Type: "apiKey",
Name: "authorization",
In: "header",
Description: "Bearer Token authentication",
},
}
}
if len(authenticators) == 0 {
if config.Anonymous {
return anonymous.NewAuthenticator(), &securityDefinitions, nil
}
return nil, &securityDefinitions, nil
}
authenticator := union.New(authenticators...)
authenticator = group.NewAuthenticatedGroupAdder(authenticator)
if config.Anonymous {
authenticator = union.NewFailOnError(authenticator, anonymous.NewAuthenticator())
}
return authenticator, &securityDefinitions, nil
}
/*
staging\src\k8s.io\apiserver\pkg\authentication\request\x509\x509.go
*/
func (a *Authenticator) AuthenticateRequest(req *http.Request) (*authenticator.Response, bool, error) {
if req.TLS == nil || len(req.TLS.PeerCertificates) == 0 {
return nil, false, nil
}
// Use intermediates, if provided
optsCopy, ok := a.verifyOptionsFn()
// if there are intentionally no verify options, then we cannot authenticate this request
if !ok {
return nil, false, nil
}
if optsCopy.Intermediates == nil && len(req.TLS.PeerCertificates) > 1 {
optsCopy.Intermediates = x509.NewCertPool()
for _, intermediate := range req.TLS.PeerCertificates[1:] {
optsCopy.Intermediates.AddCert(intermediate)
}
}
remaining := req.TLS.PeerCertificates[0].NotAfter.Sub(time.Now())
clientCertificateExpirationHistogram.WithContext(req.Context()).Observe(remaining.Seconds())
chains, err := req.TLS.PeerCertificates[0].Verify(optsCopy)
if err != nil {
return nil, false, fmt.Errorf(
"verifying certificate %s failed: %w",
certificateIdentifier(req.TLS.PeerCertificates[0]),
err,
)
}
/*
比较优雅的错误处理方式，先把err存起来
*/
var errlist []error
for _, chain := range chains {
user, ok, err := a.user.User(chain)
if err != nil {
errlist = append(errlist, err)
continue
}
if ok {
return user, ok, err
}
}
return nil, false, utilerrors.NewAggregate(errlist)
}
流程解析如下图
代码量比较多，有兴趣可以去仔细看看
Summary
Authentication & Authorization 是每一个请求必经的过程，由于请求又是由Aggregator来转发的，所以在Aggregator就完成了认证鉴权的操作，这种委托的机制提高了验证的效率
