13.Dashboard部署
Dashboard用于展示集群中的各类资源，同时也可以通过Dashboard实时查看Pod的日志和在容器中执行一些命令等。
13.1 Dashboard部署
[root@k8s-master01 ~]# cat recommended.yaml
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: Namespace
metadata:
name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-csrf
namespace: kubernetes-dashboard
type: Opaque
data:
csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-key-holder
namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-settings
namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
rules:
# Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
resources: ["secrets"]
resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
verbs: ["get", "update", "delete"]
# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
resources: ["configmaps"]
resourceNames: ["kubernetes-dashboard-settings"]
verbs: ["get", "update"]
# Allow Dashboard to get metrics.
- apiGroups: [""]
resources: ["services"]
resourceNames: ["heapster", "dashboard-metrics-scraper"]
verbs: ["proxy"]
- apiGroups: [""]
resources: ["services/proxy"]
resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
rules:
# Allow Metrics Scraper to get metrics from the Metrics server
- apiGroups: ["metrics.k8s.io"]
resources: ["pods", "nodes"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: kubernetes-dashboard
template:
metadata:
labels:
k8s-app: kubernetes-dashboard
spec:
containers:
- name: kubernetes-dashboard
image: kubernetesui/dashboard:v2.0.4
imagePullPolicy: Always
ports:
- containerPort: 8443
protocol: TCP
args:
- --auto-generate-certificates
- --namespace=kubernetes-dashboard
# Uncomment the following line to manually specify Kubernetes API server Host
# If not specified, Dashboard will attempt to auto discover the API server and connect
# to it. Uncomment only if the default does not work.
# - --apiserver-host=http://my-address:port
volumeMounts:
- name: kubernetes-dashboard-certs
mountPath: /certs
# Create on-disk volume to store exec logs
- mountPath: /tmp
name: tmp-volume
livenessProbe:
httpGet:
scheme: HTTPS
path: /
port: 8443
initialDelaySeconds: 30
timeoutSeconds: 30
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
volumes:
- name: kubernetes-dashboard-certs
secret:
secretName: kubernetes-dashboard-certs
- name: tmp-volume
emptyDir: {}
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
ports:
- port: 8000
targetPort: 8000
selector:
k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: dashboard-metrics-scraper
template:
metadata:
labels:
k8s-app: dashboard-metrics-scraper
annotations:
seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
spec:
containers:
- name: dashboard-metrics-scraper
image: kubernetesui/metrics-scraper:v1.0.4
ports:
- containerPort: 8000
protocol: TCP
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 8000
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- mountPath: /tmp
name: tmp-volume
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
serviceAccountName: kubernetes-dashboard
nodeSelector:
"kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
volumes:
- name: tmp-volume
emptyDir: {}
[root@k8s-master01 ~]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort #添加这行
ports:
- port: 443
targetPort: 8443
nodePort: 30005 #添加这行
selector:
k8s-app: kubernetes-dashboard
...
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: kubernetesui/dashboard:v2.0.4
image: kubernetesui/metrics-scraper:v1.0.4
下载镜像并上传到harbor
[root@k8s-master01 ~]# cat download_dashboard_images.sh
#!/bin/bash
#
#**********************************************************************************************
#Author: Raymond
#QQ: 88563128
#Date: 2022-01-11
#FileName: download_dashboard_images.sh
#URL: raymond.blog.csdn.net
#Description: The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'
images=$(awk -F "/" '/image:/{print $NF}' recommended.yaml)
HARBOR_DOMAIN=harbor.raymonds.cc
images_download(){
${COLOR}"开始下载Dashboard镜像"${END}
for i in ${images};do
docker pull registry.aliyuncs.com/google_containers/$i
docker tag registry.aliyuncs.com/google_containers/$i ${HARBOR_DOMAIN}/google_containers/$i
docker rmi registry.aliyuncs.com/google_containers/$i
docker push ${HARBOR_DOMAIN}/google_containers/$i
done
${COLOR}"Dashboard镜像下载完成"${END}
}
images_download
[root@k8s-master01 ~]# bash download_dashboard_images.sh
[root@k8s-master01 ~]# sed -ri 's@(.*image:) kubernetesui(/.*)@\1 harbor.raymonds.cc/google_containers\2@g' recommended.yaml
[root@k8s-master01 ~]# grep "image:" recommended.yaml
image: harbor.raymonds.cc/google_containers/dashboard:v2.0.4
image: harbor.raymonds.cc/google_containers/metrics-scraper:v1.0.4
[root@k8s-master01 ~]# kubectl create -f recommended.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
创建管理员用户admin.yaml
[root@k8s-master01 ~]# vim admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: admin-user
annotations:
rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kube-system
[root@k8s-master01 ~]# kubectl apply -f admin.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
13.2 登录dashboard

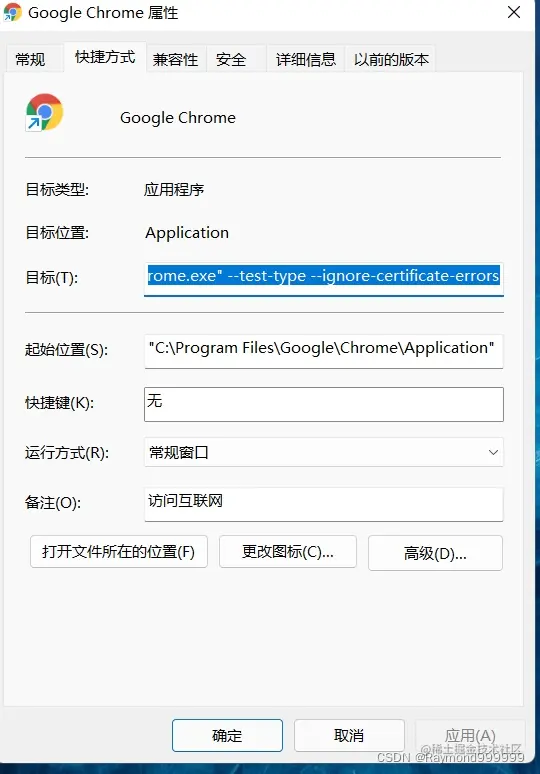

在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考图1-1：
--test-type --ignore-certificate-errors
[root@k8s-master01 ~]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.106.189.113 <none> 443:30005/TCP 18s
访问Dashboard：https://172.31.3.101:30005，参考图1-2
图1-2 Dashboard登录方式
13.2.1 token登录
查看token值：
[root@k8s-master01 ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name: admin-user-token-6bvhm
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: admin-user
kubernetes.io/service-account.uid: c6ae76a2-322c-483a-9db1-eaf102859165
Type: kubernetes.io/service-account-token
Data
====
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IldlTXE5S29BbW1YYVdJNWljRnBGamVEX1E0YV9xRVU5UWM1Ykh0dGQ0UkkifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTZidmhtIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjNmFlNzZhMi0zMjJjLTQ4M2EtOWRiMS1lYWYxMDI4NTkxNjUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.Y_VSCPM9F3L00v5XBGcT6JwpnLoAfrKUw8ufOpOhH5AhuFcXctRwAWvZDzGPOH3mH0GaIiyi1G7GOlZRRnJJVy5C7I3VKnE4mZzMScBvKCEheU40Y6x28CvkZDTmuaaDgSWrm3cfjAvTEJIg45TrtaN25at79GB27_A1LJ3JQUHY59OpG6YUbnFWjW899bCUN99lmYTMGe9M5cjY2RCufuyEam296QEz6b23tyEHdMCcPDJJH6IEDf2I4XhA5e5GWqfdkX1qX5XZ21MRyXXXTSVYqeLvvdNvQS3MxLlNaB5my0WcruRihydkC_n1UamgzXBu-XWfM4QWwk3gzsQ9yg
ca.crt: 1066 bytes
namespace: 11 bytes
将token值输入到令牌后，单击登录即可访问Dashboard，参考图1-3：

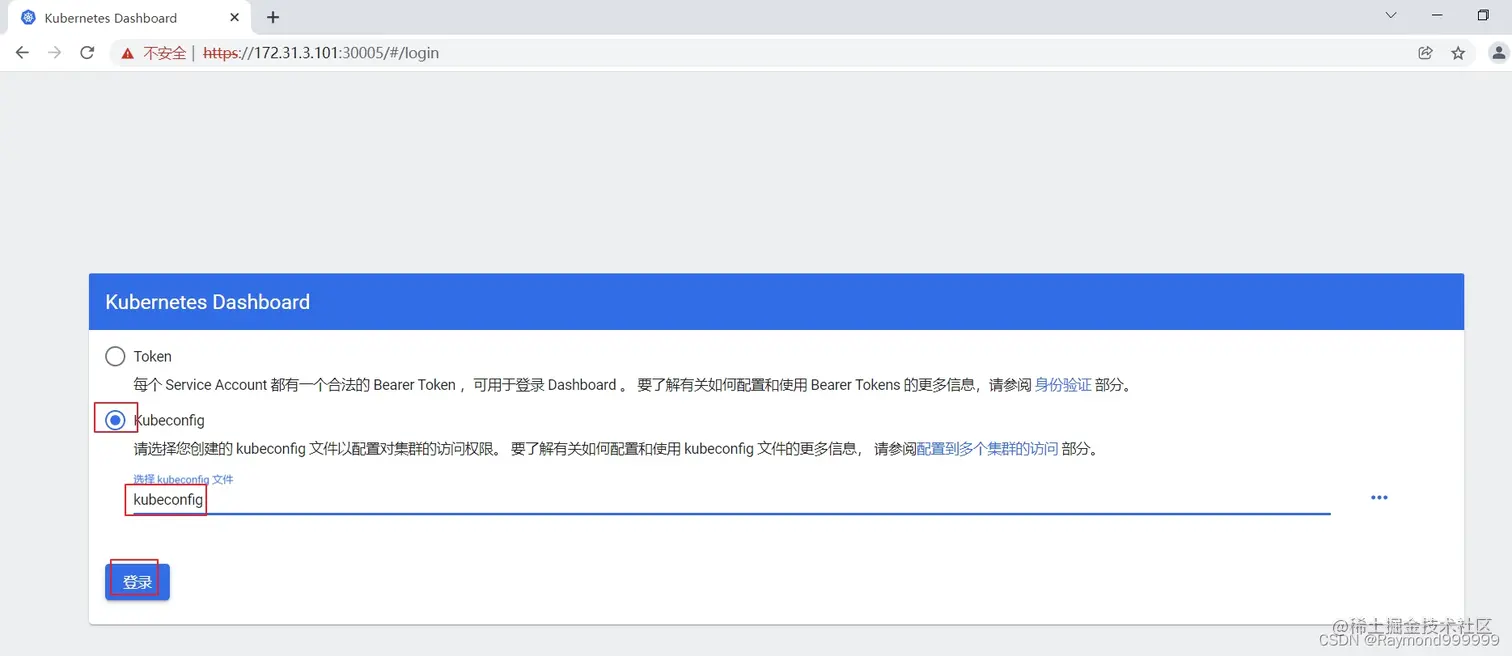

13.2.2 使用kubeconfig文件登录dashboard
[root@k8s-master01 ~]# cp /etc/kubernetes/admin.conf kubeconfig
[root@k8s-master01 ~]# vim kubeconfig
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM1ekNDQWMrZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1ERXhNVEV6TURJMU1Gb1hEVE15TURFd09URXpNREkxTUZvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBT0JoCkQxV3h3Myt3bE9WNU02MEtPYjlEZmo1U09EREZBYjdMTGd3ZXgrK3d3eEVHcnFpaGUxVmVLZnlIMHJmTnEvakEKVHArekxyVXhRNHdzNEw3Z29Na2tJcDc3aXRqOHc1VWJXYUh0c3IwMkp1VVBQQzZiWktieG5hTmFXTldTNjRBegpORFhzeSszU3dxcTNyU3h4WkloTS9ubVZRTEZKL21OanU5MUNVWE03ak9jcXhaMUI2QitSbzhSdHFpRStZUlhFCm1JS1ZCeWhpUXhQWE53VEcwN0NKMnY5WnduNmlxK2VUMUdNbVFsZ0Z1M0pqQm9NUTFteWhYODM3QTNTdXVQNDkKYU1HKzd2YTh5TFFkMWltZEZjSVpDcmNHU2FMekR5SDFmMUQ3ZTM4Qm01MTd4S1ZZZkJQQkNBSjROb3VKQmVXSgpPN1lLK2RFb1liaURHWVBtdWxNQ0F3RUFBYU5DTUVBd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZQVUlaLzVqSSs0WHQ3b1FROC9USU5RQ1gxbXNNQTBHQ1NxR1NJYjMKRFFFQkN3VUFBNElCQVFBRnVkbFNQUTNTM0VXdUZ0YnhiekVsc2IyR2F2NUQzd1VDWStBdlZWRWhzcmZvYzlqKwp5REEwdjZSamEvS3VRWUpjMG9vVkN5cTkveHVyenZyOU9DS3ZwejBDZDJHWkYyeFFFcDZ6QlMvM3A5VUh5YnU3Cm9Kb0E2S0h4OTd0KzVzaWQyamQ4U29qUGNwSGdzZloySmxJckc3ckJpMktuSTZFSlprdWxjMlVIN09kY2RJWmwKTXpkMWFlVG5xdHlsVkZYSDN6ZkNCTTJyZ045d0RqSHphNjUyMkFRZVQ2ODN0ZTZXRWIxeWwvVEdVUld0RFhmKwpQbXV6b3g5eGpwSFJoVDZlcVYwelVHVGZJUlI3WmRIb3p2TzNRVlhtYmNUdDQxVFFsaDRIMHBkQ2p6dmZLTDA0CnNHMmRIaFRBL0wzUlc0RXlDY2NPQ0o2bWNiT1hyZzNOUnhxWQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://172.31.3.188:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURFekNDQWZ1Z0F3SUJBZ0lJUnQ3eHBrbVg3cjh3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TWpBeE1URXhNekF5TlRCYUZ3MHlNekF4TVRFeE16QXlOVEphTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQWxKeHBjcmlNTjh0aGg3ODEKT2FMckxmZmRtU3BRYUdSTmJQZjZUdTMwK1hCMEtUTXloR2EwRC83TWtaajZ5MjAzM0R5SEtpSUlhY2d3QXBnYQpjZE9TcHhwaitsd2pRSy9rN3M3QVJLcVExY2VueUtiaXp0RGMweCt2dGFXN0djcVlQSkpvU2dqWWxuZ0FWSmh4CnlWZDI3R3I2SEVWRFFMSVlra2tqWnFSTzI0U0ZoMDlUK2JCZlhSRGVZaHk1UW1qem5lc0VWbk1nUkdSVElnNTgKYjFBRHR1d1VTZ3BQNTFITTlKWHZtSTBqUytqSXBJNllYQUtodlpLbnhLRjh2d1lpZnhlZDV4ZjhNNVJHWnJEMQpGbFZ5NWQ5ZUNjV2dpQ0tNYVgvdzM4b2pTbE5OZGFwUzlzQXVObXNnbHlMT0MrWVh1TlBNRWZHbDdmeG5yUWl2ClV1dkFMUUlEQVFBQm8wZ3dSakFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0h3WURWUjBqQkJnd0ZvQVU5UWhuL21NajdoZTN1aEJEejlNZzFBSmZXYXd3RFFZSktvWklodmNOQVFFTApCUUFEZ2dFQkFGU0tBZm9kYi9xSVJmdWIrcXlLdkhEeDFuNEtoNEVWQ2M5ZlRPZG1NdHBHU2tUbCtMbmptc0pNClpncWdTYUtMY0xYWS9JWTVsd3N3OXRsbzBwSElyMUNxYXBYa3M5WDZiSjJzc0pFdGN5ODFocXJSd2pqYzQzdEoKZUp0QkhsNWpvV2tkV0ZCMXpsRVhyWEYwdmU0ckRueVdWL04zSTV3bzVUYXpRMTRZRmZ0c2RVYlYwNXdXa0F6cgo5YWtLd25pWWRVZTRjdlpwNkFMb01uQVJXa29La1h0elI1SElJUFhaTGlHWnEwWGpHMWdpODBvR01ZZXlWb1ZCCnRUMmt1MElJNmhIbzh3VXNJdWlDT3EyQjRMWFpobW9DQU5kcnFDc0FUaXRjTll0bGdkM1RtQUx4ZmpMMkN1cWUKL1lieXZORWhndnh4dFlwN2lJWE9jZks1RDF3VSthdz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBbEp4cGNyaU1OOHRoaDc4MU9hTHJMZmZkbVNwUWFHUk5iUGY2VHUzMCtYQjBLVE15CmhHYTBELzdNa1pqNnkyMDMzRHlIS2lJSWFjZ3dBcGdhY2RPU3B4cGorbHdqUUsvazdzN0FSS3FRMWNlbnlLYmkKenREYzB4K3Z0YVc3R2NxWVBKSm9TZ2pZbG5nQVZKaHh5VmQyN0dyNkhFVkRRTElZa2tralpxUk8yNFNGaDA5VAorYkJmWFJEZVloeTVRbWp6bmVzRVZuTWdSR1JUSWc1OGIxQUR0dXdVU2dwUDUxSE05Slh2bUkwalMraklwSTZZClhBS2h2WktueEtGOHZ3WWlmeGVkNXhmOE01UkdackQxRmxWeTVkOWVDY1dnaUNLTWFYL3czOG9qU2xOTmRhcFMKOXNBdU5tc2dseUxPQytZWHVOUE1FZkdsN2Z4bnJRaXZVdXZBTFFJREFRQUJBb0lCQURrV0tHK1lNc3pRQktRWApzRU4yc083VWt6eGVBOHRHRkhQeWdpWEZ4Ti80OGJaTjQyNzI0TjV3RzNjbWs5aUhHUGt5Q3g0Rk9zUWYwVWw5CjBsSzlXazEwbHNrNmtaUXN2VDE3RUdLUVB0alFQRVNZenZGeFRCS1J6blp4dG9DKzBXSWJQNUtJK1dJN3NLek8KYm85UVdPK1NYSWQxbDlNSFZ1Y0N6MldEWW9OeU85bmFobWdzSWpIRnRqVEo5NWQ2cWRmWDNHZXBSRHA0em5EaQprTVFJMWRBdTg1TE9HMVZyd2lMRUxPa2JVOW5hNGdJS1VIVmY5RW90SndXVzI2K2kxS1JNYVJJVmlkbDVqTm1aCnZwM3JVOUM3L253c01pVktMMTF2MW8wdGptc2gzbkxnTVNEcEJtUE5pTGcxR3AxK0FPYVBXVFNDVEJZTDdOOG8KNGJxcEw0VUNnWUVBeEVpSWhKMzNMS0FTTHBGY3NtZ2RKUDBZOWRwZzZmcHlvOXA4NlpuejYxZXpUVkhyZ0p1SQptc09tTXQ0eHRINGVJbHhRYklWSGNJWC9iZis0aCtkUFJ0Q1ExRUdUTWRaaW9qSkJCd2JhRS9xd0YwMjZpRkRnCm9TZFpiemhFbk5BWmV5NjI1Skp2QXdRdldIanRPRHRNdDQ0dWZmYndGRDErZEtQc3JobkQzWThDZ1lFQXdkTHUKdGJTWDZYUFovTndHaXl6TnBrWHZST0hzNU1TaGFiVW9ibmxMbWxsL3gwUS9WQVkxdmhhakFiQ2t2WUk0T3VrUgowZWl2Wmx1bVNrazFJTlB5VXBNQ1dHR1lVTGJlWURidXhnZDlZd3Z1SWZQRmpwWU1RR0FRcE1SangzTCtMMzlQClplRW9lRmF3ZzdIVTgrYWVWWU9jTk5aaHYvbHhadUM5MzRkSW9JTUNnWUVBb3ZiRndiV1ZYb3VZRE9uTFdLUncKYmlGazg5cFgxR3VIZXRzUUVyTXJmUjNYVkQ3TGxIK05yMUQ1VUFxQ29pU0R5R3QwcW1VTnB6TFptKzVRdXlVbApBTnB4SklrOU9JZVNaSy9zcFhUZTR1K2orL1VoQmNTQWU4dzd5TWVpejc5SEtLcmtWbW50bVVlRU42Uk83L3pyCitRb25ONVlxUmVPNGRnY1Rub2p0d2FrQ2dZQTZYeVVHMGdtQ0JDTGROUUkvZmRHOVJvaUZqU2pEeUxmMzF0Z0QKVlVKQWpMMmZyRjBLR0FpdFk3SFp1M0lScEpyOG10NkVBZmg0OGhjRmZrQ2l6MUhHTG9IaFRoc0tDOWl5enpoZgpxVGZJMFhuNC9hbzhnOUhTdlZ1bDA0TmRPTE4yYUhmbjdjUTdZWmd0UVN3cC9BVXBLY2FzWHZmM1VjOG1OWDdaClI2dkdzd0tCZ1FDd2VBcmptSVV1ejV5cXhkREszbElQd0VsQTlGU3lMTjROU0owNTVrQ2tkTUZMS0xpcUZ0Y2UKSXBrWWhIbXNRc28yRTZwTStHQ0dIMU81YWVRSFNSZWh2SkRZeGdEMVhYaHA5UjRNdHpjTmw2U3cwcTQ4MVNZZQplNVp5Zk9CcWVDbzdOQmZ0dS9ua0tZTDFCTUNMS1hOM0JYNkVpQ0JPUjlSUDJHeEh6S3FBa2c9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IldlTXE5S29BbW1YYVdJNWljRnBGamVEX1E0YV9xRVU5UWM1Ykh0dGQ0UkkifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTZidmhtIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjNmFlNzZhMi0zMjJjLTQ4M2EtOWRiMS1lYWYxMDI4NTkxNjUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.Y_VSCPM9F3L00v5XBGcT6JwpnLoAfrKUw8ufOpOhH5AhuFcXctRwAWvZDzGPOH3mH0GaIiyi1G7GOlZRRnJJVy5C7I3VKnE4mZzMScBvKCEheU40Y6x28CvkZDTmuaaDgSWrm3cfjAvTEJIg45TrtaN25at79GB27_A1LJ3JQUHY59OpG6YUbnFWjW899bCUN99lmYTMGe9M5cjY2RCufuyEam296QEz6b23tyEHdMCcPDJJH6IEDf2I4XhA5e5GWqfdkX1qX5XZ21MRyXXXTSVYqeLvvdNvQS3MxLlNaB5my0WcruRihydkC_n1UamgzXBu-XWfM4QWwk3gzsQ9yg
14.一些必须的配置更改
将Kube-proxy改为ipvs模式，因为在初始化集群的时候注释了ipvs配置，所以需要自行修改一下：
在master01节点执行
[root@k8s-master01 ~]# curl 127.0.0.1:10249/proxyMode
iptables
[root@k8s-master01 ~]# kubectl edit cm kube-proxy -n kube-system
mode: "ipvs"
更新Kube-Proxy的Pod：
[root@k8s-master01 ~]# kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
daemonset.apps/kube-proxy patched
验证Kube-Proxy模式
[root@k8s-master01 ~]# curl 127.0.0.1:10249/proxyMode
ipvs
[root@k8s-master01 ~]# ipvsadm -ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port Forward Weight ActiveConn InActConn
TCP 172.17.0.1:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 172.31.3.101:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 192.162.55.64:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 10.96.0.1:443 rr
-> 172.31.3.101:6443 Masq 1 0 0
-> 172.31.3.102:6443 Masq 1 0 0
-> 172.31.3.103:6443 Masq 1 0 0
TCP 10.96.0.10:53 rr
-> 192.170.21.193:53 Masq 1 0 0
-> 192.170.21.194:53 Masq 1 0 0
TCP 10.96.0.10:9153 rr
-> 192.170.21.193:9153 Masq 1 0 0
-> 192.170.21.194:9153 Masq 1 0 0
TCP 10.99.167.144:443 rr
-> 192.167.195.132:4443 Masq 1 0 0
TCP 10.101.88.7:8000 rr
-> 192.169.111.140:8000 Masq 1 0 0
TCP 10.106.189.113:443 rr
-> 192.169.111.141:8443 Masq 1 0 0
TCP 127.0.0.1:30005 rr
-> 192.169.111.141:8443 Masq 1 0 0
UDP 10.96.0.10:53 rr
-> 192.170.21.193:53 Masq 1 0 0
-> 192.170.21.194:53 Masq 1 0 0
15.注意事项
注意：kubeadm安装的集群，证书有效期默认是一年。master节点的kube-apiserver、kube-scheduler、kube-controller-manager、etcd都是以容器运行的。可以通过kubectl get po -n kube-system查看。
启动和二进制不同的是，
kubelet的配置文件在/etc/sysconfig/kubelet和/var/lib/kubelet/config.yaml，修改后需要重启kubelet进程
ipvs[root@k8s-master01 ~]# ls /etc/sysconfig/kubelet
/etc/sysconfig/kubelet
[root@k8s-master01 ~]# ls /var/lib/kubelet/config.yaml
/var/lib/kubelet/config.yaml
其他组件的配置文件在/etc/kubernetes/manifests目录下，比如kube-apiserver.yaml，该yaml文件更改后，kubelet会自动刷新配置，也就是会重启pod。不能再次创建该文件
[root@k8s-master01 ~]# ls /etc/kubernetes/manifests
etcd.yaml kube-apiserver.yaml kube-controller-manager.yaml kube-scheduler.yaml
[root@k8s-master01 ~]# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-55bfb655fc-bgdlr 1/1 Running 1 16h 192.167.195.130 k8s-node02.example.local <none> <none>
calico-node-2bggs 1/1 Running 1 16h 172.31.3.102 k8s-master02.example.local <none> <none>
calico-node-2rgfb 1/1 Running 1 16h 172.31.3.101 k8s-master01.example.local <none> <none>
calico-node-449ws 1/1 Running 1 16h 172.31.3.110 k8s-node03.example.local <none> <none>
calico-node-4p9t5 1/1 Running 1 16h 172.31.3.103 k8s-master03.example.local <none> <none>
calico-node-bljzq 1/1 Running 1 16h 172.31.3.108 k8s-node01.example.local <none> <none>
calico-node-cbv29 1/1 Running 1 16h 172.31.3.109 k8s-node02.example.local <none> <none>
coredns-5ffd5c4586-rvsm4 1/1 Running 1 18h 192.170.21.194 k8s-node03.example.local <none> <none>
coredns-5ffd5c4586-xzrwx 1/1 Running 1 18h 192.170.21.193 k8s-node03.example.local <none> <none>
etcd-k8s-master01.example.local 1/1 Running 1 18h 172.31.3.101 k8s-master01.example.local <none> <none>
etcd-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
etcd-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-apiserver-k8s-master01.example.local 1/1 Running 1 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-apiserver-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-apiserver-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-controller-manager-k8s-master01.example.local 1/1 Running 2 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-controller-manager-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-controller-manager-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-proxy-6k8vv 1/1 Running 0 88s 172.31.3.108 k8s-node01.example.local <none> <none>
kube-proxy-flt2l 1/1 Running 0 75s 172.31.3.101 k8s-master01.example.local <none> <none>
kube-proxy-ftqqm 1/1 Running 0 42s 172.31.3.102 k8s-master02.example.local <none> <none>
kube-proxy-m9h72 1/1 Running 0 96s 172.31.3.110 k8s-node03.example.local <none> <none>
kube-proxy-mjssk 1/1 Running 0 54s 172.31.3.109 k8s-node02.example.local <none> <none>
kube-proxy-zz2sl 1/1 Running 0 61s 172.31.3.103 k8s-master03.example.local <none> <none>
kube-scheduler-k8s-master01.example.local 1/1 Running 2 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-scheduler-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-scheduler-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
metrics-server-5b7c76b46c-2tkz6 1/1 Running 0 92m 192.167.195.132 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-55bfb655fc-bgdlr 1/1 Running 1 16h 192.167.195.130 k8s-node02.example.local <none> <none>
kube-system calico-node-2bggs 1/1 Running 1 16h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system calico-node-2rgfb 1/1 Running 1 16h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system calico-node-449ws 1/1 Running 1 16h 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system calico-node-4p9t5 1/1 Running 1 16h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system calico-node-bljzq 1/1 Running 1 16h 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system calico-node-cbv29 1/1 Running 1 16h 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system coredns-5ffd5c4586-rvsm4 1/1 Running 1 18h 192.170.21.194 k8s-node03.example.local <none> <none>
kube-system coredns-5ffd5c4586-xzrwx 1/1 Running 1 18h 192.170.21.193 k8s-node03.example.local <none> <none>
kube-system etcd-k8s-master01.example.local 1/1 Running 1 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system etcd-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system etcd-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 1 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 2 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-6k8vv 1/1 Running 0 2m12s 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system kube-proxy-flt2l 1/1 Running 0 119s 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-proxy-ftqqm 1/1 Running 0 86s 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-proxy-m9h72 1/1 Running 0 2m20s 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system kube-proxy-mjssk 1/1 Running 0 98s 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system kube-proxy-zz2sl 1/1 Running 0 105s 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 2 18h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 1 18h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 1 18h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system metrics-server-5b7c76b46c-2tkz6 1/1 Running 0 93m 192.167.195.132 k8s-node02.example.local <none> <none>
kubernetes-dashboard dashboard-metrics-scraper-575d79bd97-l25f4 1/1 Running 0 21m 192.169.111.140 k8s-node01.example.local <none> <none>
kubernetes-dashboard kubernetes-dashboard-68965ddf9f-c5f7g 1/1 Running 0 21m 192.169.111.141 k8s-node01.example.local <none> <none>
Kubeadm安装后，master节点默认不允许部署pod，可以通过以下方式打开：
查看Taints：
[root@k8s-master01 ~]# kubectl describe node -l node-role.kubernetes.io/master= | grep Taints
Taints: node-role.kubernetes.io/master:NoSchedule
Taints: node-role.kubernetes.io/master:NoSchedule
Taints: node-role.kubernetes.io/master:NoSchedule
删除Taint：
[root@k8s-master01 ~]# kubectl taint node -l node-role.kubernetes.io/master node-role.kubernetes.io/master:NoSchedule-
node/k8s-master01 untainted
node/k8s-master02 untainted
node/k8s-master03 untainted
[root@k8s-master01 ~]# kubectl describe node -l node-role.kubernetes.io/master= | grep Taints
Taints: <none>
Taints: <none>
Taints: <none>
kube-proxy的配置在kube-system命名空间下的configmap中，可以通过
kubectl edit cm kube-proxy -n kube-system
进行更改，更改完成后，可以通过patch重启kube-proxy
kubectl patch daemonset kube-proxy -p "{\"spec\":{\"template\":{\"metadata\":{\"annotations\":{\"date\":\"`date +'%s'`\"}}}}}" -n kube-system
16.集群验证
#查看集群所有namespace的容器
[root@k8s-master01 ~]# kubectl get pod --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-6fdd497b59-xtldf 1/1 Running 1 3d22h
kube-system calico-node-4dbgm 1/1 Running 1 3d22h
kube-system calico-node-4vqrz 1/1 Running 1 3d22h
kube-system calico-node-6fgtr 1/1 Running 2 3d22h
kube-system calico-node-c5g75 1/1 Running 1 3d22h
kube-system calico-node-vnqgf 1/1 Running 1 3d22h
kube-system calico-node-x8hcl 1/1 Running 1 3d22h
kube-system coredns-5ffd5c4586-nwqgd 1/1 Running 1 3d22h
kube-system coredns-5ffd5c4586-z8rs8 1/1 Running 1 3d22h
kube-system etcd-k8s-master01.example.local 1/1 Running 1 3d22h
kube-system etcd-k8s-master02.example.local 1/1 Running 1 3d22h
kube-system etcd-k8s-master03.example.local 1/1 Running 1 3d22h
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 1 3d22h
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 1 3d22h
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 1 3d22h
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 2 3d22h
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 1 3d22h
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 1 3d22h
kube-system kube-proxy-7xnlg 1/1 Running 1 3d22h
kube-system kube-proxy-pq2jk 1/1 Running 1 3d22h
kube-system kube-proxy-sbsfn 1/1 Running 1 3d22h
kube-system kube-proxy-vkqc8 1/1 Running 1 3d22h
kube-system kube-proxy-xp24c 1/1 Running 1 3d22h
kube-system kube-proxy-zk5n4 1/1 Running 1 3d22h
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 2 3d22h
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 1 3d22h
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 1 3d22h
kube-system metrics-server-dd9ddfbb-blwb8 1/1 Running 2 3d22h
kubernetes-dashboard dashboard-metrics-scraper-6d5db67fb7-fscb9 1/1 Running 1 3d22h
kubernetes-dashboard kubernetes-dashboard-6b5967f475-g9qmj 1/1 Running 2 3d22h
#查看所有pod的cpu和内存使用率
[root@k8s-master01 ~]# kubectl top pod -n kube-system
NAME CPU(cores) MEMORY(bytes)
calico-kube-controllers-6fdd497b59-xtldf 2m 18Mi
calico-node-4dbgm 18m 105Mi
calico-node-4vqrz 22m 102Mi
calico-node-6fgtr 18m 66Mi
calico-node-c5g75 18m 103Mi
calico-node-vnqgf 16m 110Mi
calico-node-x8hcl 20m 105Mi
coredns-5ffd5c4586-nwqgd 2m 13Mi
coredns-5ffd5c4586-z8rs8 2m 13Mi
etcd-k8s-master01.example.local 25m 78Mi
etcd-k8s-master02.example.local 31m 80Mi
etcd-k8s-master03.example.local 24m 78Mi
kube-apiserver-k8s-master01.example.local 32m 229Mi
kube-apiserver-k8s-master02.example.local 33m 239Mi
kube-apiserver-k8s-master03.example.local 37m 242Mi
kube-controller-manager-k8s-master01.example.local 1m 21Mi
kube-controller-manager-k8s-master02.example.local 13m 54Mi
kube-controller-manager-k8s-master03.example.local 1m 22Mi
kube-proxy-7xnlg 1m 24Mi
kube-proxy-pq2jk 1m 21Mi
kube-proxy-sbsfn 4m 23Mi
kube-proxy-vkqc8 1m 24Mi
kube-proxy-xp24c 1m 24Mi
kube-proxy-zk5n4 1m 22Mi
kube-scheduler-k8s-master01.example.local 2m 20Mi
kube-scheduler-k8s-master02.example.local 2m 18Mi
kube-scheduler-k8s-master03.example.local 2m 21Mi
metrics-server-dd9ddfbb-blwb8 3m 18Mi
#查看svc
[root@k8s-master01 ~]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3d22h
[root@k8s-master01 ~]# kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 3d22h
metrics-server ClusterIP 10.104.2.18 <none> 443/TCP 3d22h
[root@k8s-master01 ~]# telnet 10.96.0.1 443
Trying 10.96.0.1...
Connected to 10.96.0.1.
Escape character is '^]'.
quit
Connection closed by foreign host.
[root@k8s-master01 ~]# telnet 10.96.0.10 53
Trying 10.96.0.10...
Connected to 10.96.0.10.
Escape character is '^]'.
Connection closed by foreign host.
[root@k8s-master01 ~]# kubectl get pod --all-namespaces -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system calico-kube-controllers-6fdd497b59-xtldf 1/1 Running 1 3d22h 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system calico-node-4dbgm 1/1 Running 1 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system calico-node-4vqrz 1/1 Running 1 3d22h 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system calico-node-6fgtr 1/1 Running 2 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system calico-node-c5g75 1/1 Running 1 3d22h 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system calico-node-vnqgf 1/1 Running 1 3d22h 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system calico-node-x8hcl 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system coredns-5ffd5c4586-nwqgd 1/1 Running 1 3d22h 192.169.111.131 k8s-node01.example.local <none> <none>
kube-system coredns-5ffd5c4586-z8rs8 1/1 Running 1 3d22h 192.167.195.132 k8s-node02.example.local <none> <none>
kube-system etcd-k8s-master01.example.local 1/1 Running 1 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system etcd-k8s-master02.example.local 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system etcd-k8s-master03.example.local 1/1 Running 1 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-apiserver-k8s-master01.example.local 1/1 Running 1 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-apiserver-k8s-master02.example.local 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-apiserver-k8s-master03.example.local 1/1 Running 1 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-controller-manager-k8s-master01.example.local 1/1 Running 2 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-controller-manager-k8s-master02.example.local 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-controller-manager-k8s-master03.example.local 1/1 Running 1 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-7xnlg 1/1 Running 1 3d22h 172.31.3.109 k8s-node02.example.local <none> <none>
kube-system kube-proxy-pq2jk 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-proxy-sbsfn 1/1 Running 1 3d22h 172.31.3.108 k8s-node01.example.local <none> <none>
kube-system kube-proxy-vkqc8 1/1 Running 1 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system kube-proxy-xp24c 1/1 Running 1 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-proxy-zk5n4 1/1 Running 1 3d22h 172.31.3.110 k8s-node03.example.local <none> <none>
kube-system kube-scheduler-k8s-master01.example.local 1/1 Running 2 3d22h 172.31.3.101 k8s-master01.example.local <none> <none>
kube-system kube-scheduler-k8s-master02.example.local 1/1 Running 1 3d22h 172.31.3.102 k8s-master02.example.local <none> <none>
kube-system kube-scheduler-k8s-master03.example.local 1/1 Running 1 3d22h 172.31.3.103 k8s-master03.example.local <none> <none>
kube-system metrics-server-dd9ddfbb-blwb8 1/1 Running 2 3d22h 192.170.21.194 k8s-node03.example.local <none> <none>
kubernetes-dashboard dashboard-metrics-scraper-6d5db67fb7-fscb9 1/1 Running 1 3d22h 192.167.195.131 k8s-node02.example.local <none> <none>
kubernetes-dashboard kubernetes-dashboard-6b5967f475-g9qmj 1/1 Running 2 3d22h 192.169.111.132 k8s-node01.example.local <none> <none>
[root@k8s-master01 ~]# kubectl get pod -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
dashboard-metrics-scraper-6d5db67fb7-fscb9 1/1 Running 1 3d22h
kubernetes-dashboard-6b5967f475-g9qmj 1/1 Running 2 3d22h
[root@k8s-master01 ~]# kubectl get svc -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dashboard-metrics-scraper ClusterIP 10.99.15.144 <none> 8000/TCP 3d22h
kubernetes-dashboard NodePort 10.106.152.125 <none> 443:30005/TCP 3d22h
k8s创建容器并测试内部网络
[root@k8s-master01 ~]# kubectl run net-test1 --image=alpine sleep 500000
pod/net-test1 created
[root@k8s-master01 ~]# kubectl run net-test2 --image=alpine sleep 500000
pod/net-test2 created
[root@k8s-master01 ~]# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
net-test1 1/1 Running 0 30s 192.169.111.142 k8s-node01.example.local <none> <none>
net-test2 1/1 Running 0 25s 192.167.195.133 k8s-node02.example.local <none> <none>
[root@k8s-master01 ~]# kubectl exec -it net-test1 sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # ping -c4 192.167.195.133
PING 192.167.195.133 (192.167.195.133): 56 data bytes
64 bytes from 192.167.195.133: seq=0 ttl=62 time=0.491 ms
64 bytes from 192.167.195.133: seq=1 ttl=62 time=0.677 ms
64 bytes from 192.167.195.133: seq=2 ttl=62 time=0.408 ms
64 bytes from 192.167.195.133: seq=3 ttl=62 time=0.443 ms
--- 192.167.195.133 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.408/0.504/0.677 ms
/ # exit
