一起用feign来调用接口（有源码）

学习微站公众平台
67 阅读1分钟

nacos很好的兼容了feign，feign默认集成了Ribbon，所以Nacos下使用Feign就默认实现了负载均衡

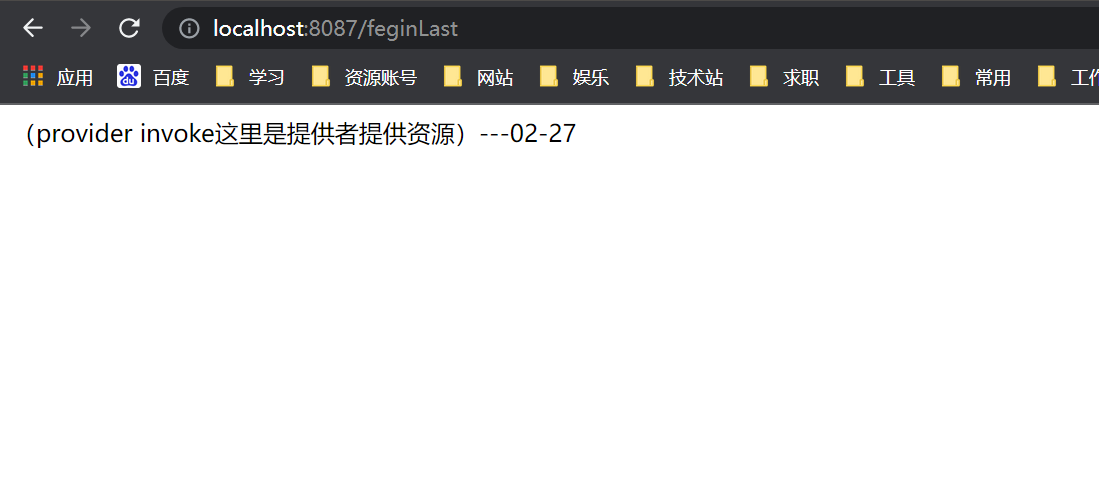

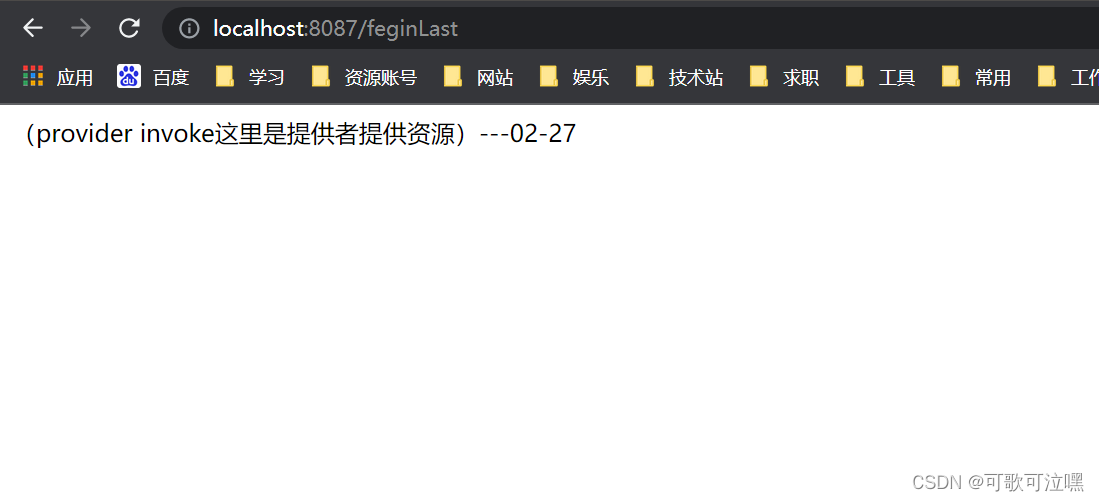

一、测试结果
在这里插入图片描述

二、生产者

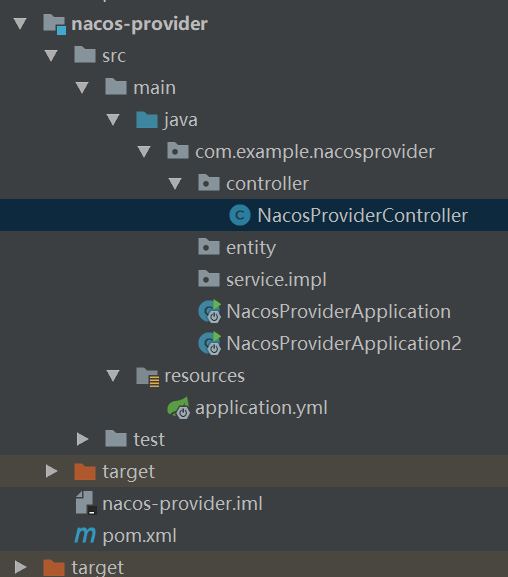

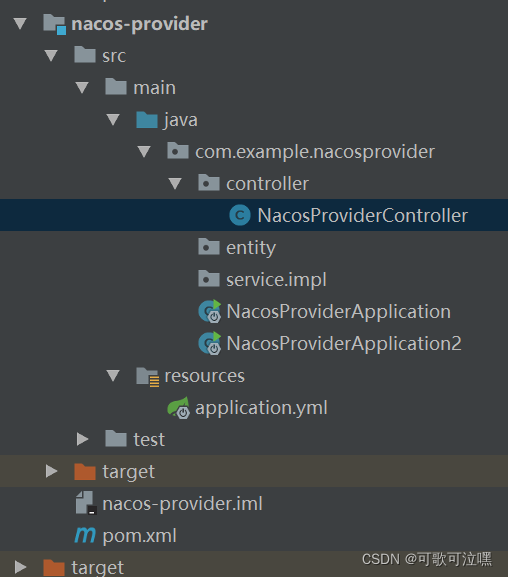

结构图
在这里插入图片描述

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>cn.nacos.provider</groupId>
	<artifactId>nacos-provider</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>nacos-provider</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!--nacos依赖-->
		<dependency>
			<groupId>com.alibaba.cloud</groupId>
			<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
			<version>2.0.1.RELEASE</version>
		</dependency>

		<!--openfeign依赖-->
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-openfeign</artifactId>
			<version>2.1.1.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.12</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

application.yml

server:
  port: 8086
spring:
  application:
    name: nacos-provider
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
logging:
  level:
    root: info
    org.springframework: info

NacosProviderApplication

package com.example.nacosprovider;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.boot.SpringApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;


@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class NacosProviderApplication {


	public static void main(String[] args) {
		SpringApplication.run(NacosProviderApplication.class, args);
	}


}

NacosProviderController

@RestController
@Slf4j
public class NacosProviderController {
	@GetMapping("/provider")
	public String provider() {
		System.out.println("==================hello");
		return "（provider invoke这里是提供者提供资源）-" + now();
	}

}

三、消费者（重点）

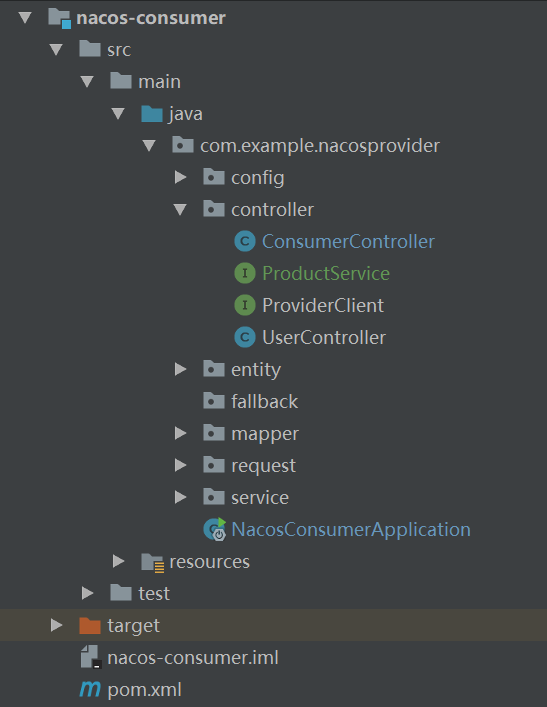

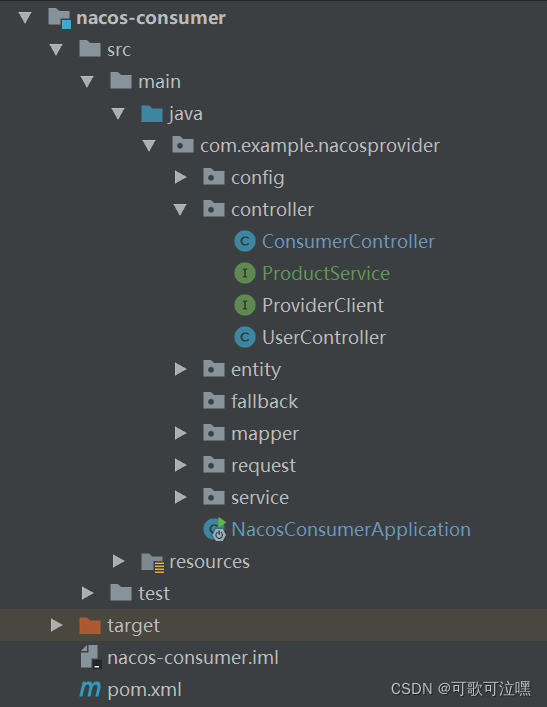

结构图
在这里插入图片描述
pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>cn.nacos.consumer</groupId>
	<artifactId>nacos-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>nacos-consumer</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<spring-boot.version>2.1.0.RELEASE</spring-boot.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
			<exclusions>
				<exclusion>
					<groupId>org.junit.vintage</groupId>
					<artifactId>junit-vintage-engine</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!--nacos依赖-->
		<dependency>
			<groupId>com.alibaba.cloud</groupId>
			<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
			<version>2.0.1.RELEASE</version>
		</dependency>

		<!--openfeign依赖-->
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-openfeign</artifactId>
			<version>2.1.1.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.16.10</version>
		</dependency>
		<dependency>
			<groupId>io.swagger</groupId>
			<artifactId>swagger-annotations</artifactId>
			<version>1.5.13</version>
		</dependency>
		<dependency>
			<groupId>com.baomidou</groupId>
			<artifactId>mybatis-plus-boot-starter</artifactId>
			<version>3.2.0</version>
		</dependency>


	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-dependencies</artifactId>
				<version>${spring-boot.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

application.yml

server:
  port: 8087
spring:
  application:
    name: nacos-consumer
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/study_cloud?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&useSSL=false
    username: root
    password: root
  main:
    allow-bean-definition-overriding: true

logging:
  level:
    root: info
    org.springframework: info
mybatis-plus:
  mapper-locations: classpath*:xml
  type-aliases-package: com.example.nacosprovider.entity

nacos-provider:
  ribbon:
    NFLoadBalancerRuleClassName: com.netflix.loadbalancer.RandomRule

NacosConsumerApplication

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients//开启客户端fegin
@ComponentScan("com.example.nacosprovider.*")
public class NacosConsumerApplication {


	public static void main(String[] args) {
		SpringApplication.run(NacosConsumerApplication.class, args);
	}

	@Bean
	@LoadBalanced
	public RestTemplate restTemplate() {
		return new RestTemplate();
	}


}

ConsumerController

@RestController
@Slf4j
public class ConsumerController {
	@Resource
	private ProductService productService;

	@ApiOperation("fegin")
	@GetMapping("/feginLast")
	public String feginLast() {
		String provider = productService.provider();
		return provider;
	}

}

ProductService

@FeignClient(value = "nacos-provider")//调用微服务
public interface ProductService {
	@RequestMapping("/provider")//制定请求的url===nacos-provider/provider
	String provider();
}
