objc_msgSend消息发送流程和cache方法缓存

首先class的结构体

struct objc_class : objc_object {
  objc_class(const objc_class&) = delete;
  objc_class(objc_class&&) = delete;
  void operator=(const objc_class&) = delete;
  void operator=(objc_class&&) = delete;
    // Class ISA;
    Class superclass;
    cache_t cache;             // formerly cache pointer and vtable
    class_data_bits_t bits;    // class_rw_t * plus custom rr/alloc flags

  //省略方法信息................
}

cache_t cache是和objc_msgSend在执行方法调用时密切相关的一个联合体。它有临时缓存方法的作用，在我们调用方法时，如果cache中存在的时候，直接从cache中获取相关发放信息。 当objc_msgSend（receiver，sel...），走快速查找流程，在cache中查找方法时，流程如下

1. 判断receiver是否存在
2. 找到获取receiver中的isa指针，找到对应指向的类或者元类calss
3. 通过class内存平移，获取到cache联合体
4. 获取cache中的buchets，buchets中有对相关缓存方法的存储
5. buchets中有对应的sel，调用imp，链接调用方法如果没有结束快速查找流程 当此快速查找完成，没有查找到后

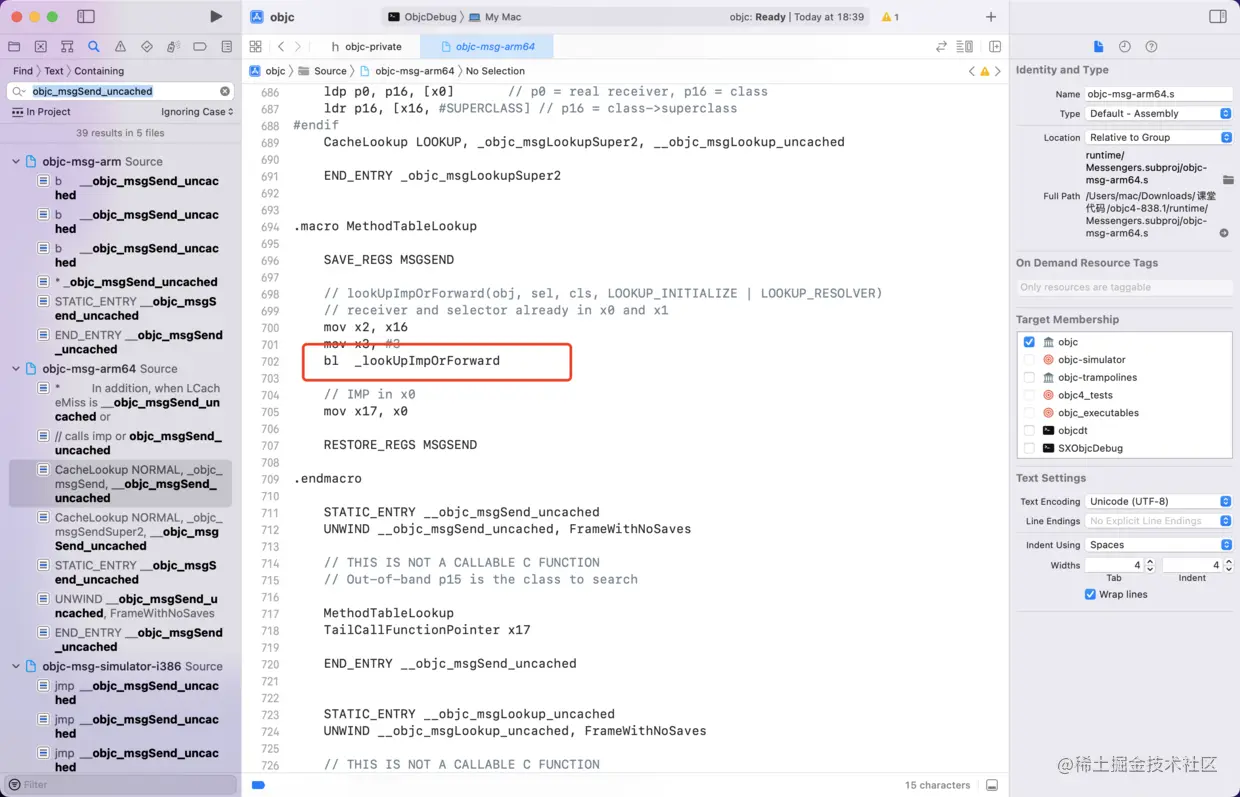

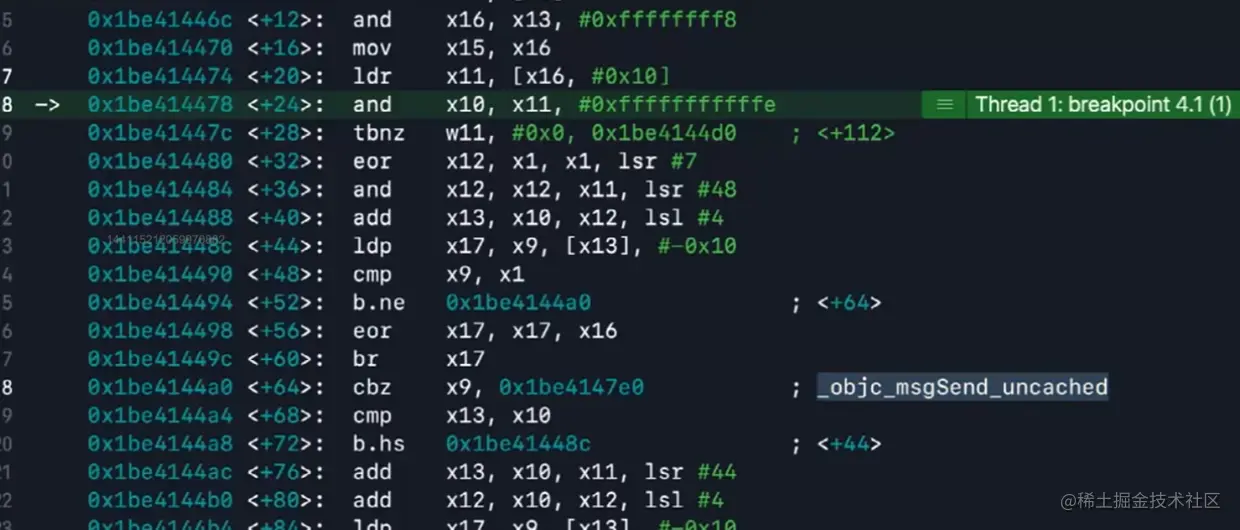

会调用objc_msgSend_uncached方法，重新执行查找 此处也是混编语言，到最后会执行到

执行_lookUpImpOrForward函数

IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
    const IMP forward_imp = (IMP)_objc_msgForward_impcache;
    IMP imp = nil;
    Class curClass;

    runtimeLock.assertUnlocked();

    if (slowpath(!cls->isInitialized())) {
        // The first message sent to a class is often +new or +alloc, or +self
        // which goes through objc_opt_* or various optimized entry points.
        //
        // However, the class isn't realized/initialized yet at this point,
        // and the optimized entry points fall down through objc_msgSend,
        // which ends up here.
        //
        // We really want to avoid caching these, as it can cause IMP caches
        // to be made with a single entry forever.
        //
        // Note that this check is racy as several threads might try to
        // message a given class for the first time at the same time,
        // in which case we might cache anyway.
        behavior |= LOOKUP_NOCACHE;
    }

    // runtimeLock is held during isRealized and isInitialized checking
    // to prevent races against concurrent realization.

    // runtimeLock is held during method search to make
    // method-lookup + cache-fill atomic with respect to method addition.
    // Otherwise, a category could be added but ignored indefinitely because
    // the cache was re-filled with the old value after the cache flush on
    // behalf of the category.

    runtimeLock.lock();

    // We don't want people to be able to craft a binary blob that looks like
    // a class but really isn't one and do a CFI attack.
    //
    // To make these harder we want to make sure this is a class that was
    // either built into the binary or legitimately registered through
    // objc_duplicateClass, objc_initializeClassPair or objc_allocateClassPair.
    checkIsKnownClass(cls);

    cls = realizeAndInitializeIfNeeded_locked(inst, cls, behavior & LOOKUP_INITIALIZE);
    // runtimeLock may have been dropped but is now locked again
    runtimeLock.assertLocked();
    curClass = cls;

    // The code used to lookup the class's cache again right after
    // we take the lock but for the vast majority of the cases
    // evidence shows this is a miss most of the time, hence a time loss.
    //
    // The only codepath calling into this without having performed some
    // kind of cache lookup is class_getInstanceMethod().

    for (unsigned attempts = unreasonableClassCount();;) {
        if (curClass->cache.isConstantOptimizedCache(/* strict */true)) {
            //再一次从cache里面去找imp
            //目的：防止多线程操作时，刚好调用函数，此时缓存进来了
#if CONFIG_USE_PREOPT_CACHES
            imp = cache_getImp(curClass, sel);
            if (imp) goto done_unlock;
            curClass = curClass->cache.preoptFallbackClass();
#endif
        } else {
            // curClass method list.
            method_t *meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                imp = meth->imp(false);
                goto done;
            }

            if (slowpath((curClass = curClass->getSuperclass()) == nil)) {
                // No implementation found, and method resolver didn't help.
                // Use forwarding.
                imp = forward_imp;
                break;
            }
        }

        // Halt if there is a cycle in the superclass chain.
        if (slowpath(--attempts == 0)) {
            _objc_fatal("Memory corruption in class list.");
        }

        // Superclass cache.
        imp = cache_getImp(curClass, sel);
        if (slowpath(imp == forward_imp)) {
            // Found a forward:: entry in a superclass.
            // Stop searching, but don't cache yet; call method
            // resolver for this class first.
            break;
        }
        if (fastpath(imp)) {
            // Found the method in a superclass. Cache it in this class.
            goto done;
        }
    }

    // No implementation found. Try method resolver once.

    if (slowpath(behavior & LOOKUP_RESOLVER)) {
        behavior ^= LOOKUP_RESOLVER;
        return resolveMethod_locked(inst, sel, cls, behavior);
    }

 done:
    if (fastpath((behavior & LOOKUP_NOCACHE) == 0)) {
#if CONFIG_USE_PREOPT_CACHES
        while (cls->cache.isConstantOptimizedCache(/* strict */true)) {
            cls = cls->cache.preoptFallbackClass();
        }
#endif
        log_and_fill_cache(cls, imp, sel, inst, curClass);
    }
 done_unlock:
    runtimeLock.unlock();
    if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
        return nil;
    }
    return imp;
}

粗略解释下以上方法执行的干了些啥事情

1. 查找自己当前的方法列表，methodList，如果没有执行2
2. 查找父类的cache，如果没有找到执行3
3. 查找父类的方法列表，此过程如果父类没有一直会查找到顶级父类NSObject，如果没有转发消息

补充下cache的方法缓存策略

在arm64结构，也就是真机环境下，刚开始初始化的缓存⽅法的容器的⻓度2，当容器的⻓度 ⼩于8时，是满容量了才扩容。当容器的⻓度⼤于8时，是7/8扩容。也就是说当容器的⻓度为 8时，容器可以存储8个⽅法。当容器的⻓度为16时，当第15个⽅法需要存储进来的时候，容 器就要扩容了。

在x86_64架构下，刚开始初始化的容器的⻓度为4，是3/4扩容。这⾥的3/4扩容指的是：如果 容器的⻓度为4，当第3个数据需要存储的时候，就要扩容了。如果容器的⻓度为8，当第6个 数据需要存储的时候，就要扩容了。也就是说容器只能存储容器⻓度的3/4减1个⽅法。 还有⼀点就是：当容器扩容之后，前⾯存储的⽅法也会随之清空。
