记得看代码中的注释哈，理解都在里面 源码基于v1.24
AdmissionPlugin是kubernetes的准入控制插件，对提交的请求进行验证和更改，是kubernetes的一种拓展方式
什么是AdmissionPlugin

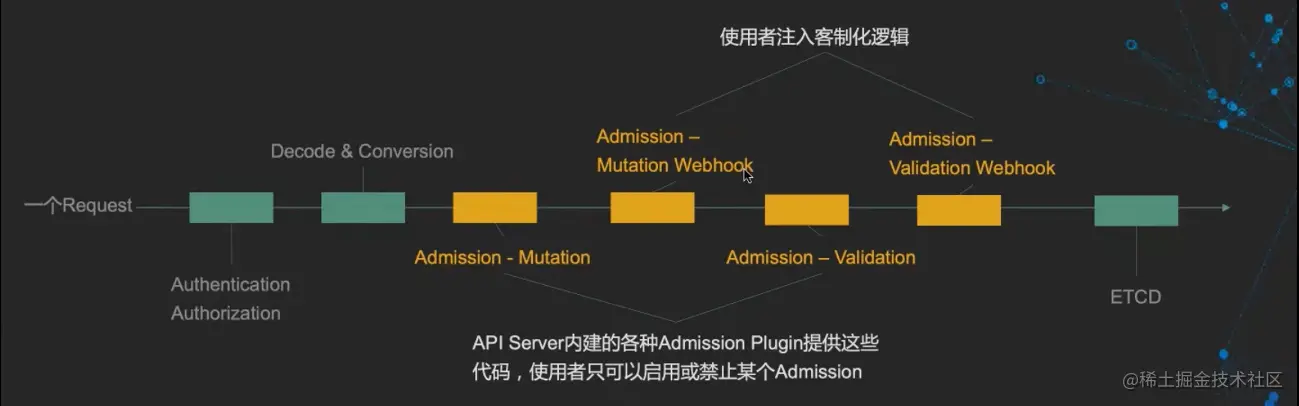

什么是AdmissionWebhook，就要先了解K8S中的admission controller, 按照官方的解释是： admission controller是拦截(经过身份验证API Server请求的网关，并且可以修改请求对象或拒绝请求。
简而言之，它可以认为是拦截器，类似web框架中的middleware。
K8S默认提供很多内置的admission controller，通过kube-apiserver启动命令参数可以 查看到支持的admission controller plugin有哪些。
[root@node220]# kube-apiserver --help |grep enable-admission-plugins # 支持的plugin有如下
AlwaysAdmit, AlwaysDeny, AlwaysPullImages,
DefaultStorageClass, DefaultTolerationSeconds, DenyEscalatingExec,
DenyExecOnPrivileged, EventRateLimit, ExtendedResourceToleration,
ImagePolicyWebhook, Initializers, LimitPodHardAntiAffinityTopology,
LimitRanger, MutatingAdmissionWebhook, NamespaceAutoProvision,
NamespaceExists, NamespaceLifecycle, NodeRestriction,
OwnerReferencesPermissionEnforcement, PersistentVolumeClaimResize,
PersistentVolumeLabel, PodNodeSelector, PodPreset, PodSecurityPolicy,
PodTolerationRestriction, Priority, ResourceQuota, SecurityContextDeny,
ServiceAccount, StorageObjectInUseProtection, ValidatingAdmissionWebhook.
Admission
在启动APIServer时，有些Admission是默认启用的; 使用者可以通过启动参数来指定: 启用的Admission 禁用的Admission 但无法影响一个Admission内部的逻辑
在哪里装配呢？
func NewAPIServerCommand() *cobra.Command {
/*
参数配置选项
*/
s := options.NewServerRunOptions()
}
func NewServerRunOptions() *ServerRunOptions {
s := ServerRunOptions{
GenericServerRunOptions: genericoptions.NewServerRunOptions(),
Etcd: genericoptions.NewEtcdOptions(storagebackend.NewDefaultConfig(kubeoptions.DefaultEtcdPathPrefix, nil)),
SecureServing: kubeoptions.NewSecureServingOptions(),
Audit: genericoptions.NewAuditOptions(),
Features: genericoptions.NewFeatureOptions(),
Admission: kubeoptions.NewAdmissionOptions(),
Authentication: kubeoptions.NewBuiltInAuthenticationOptions().WithAll(),
Authorization: kubeoptions.NewBuiltInAuthorizationOptions(),
CloudProvider: kubeoptions.NewCloudProviderOptions(),
APIEnablement: genericoptions.NewAPIEnablementOptions(),
EgressSelector: genericoptions.NewEgressSelectorOptions(),
Metrics: metrics.NewOptions(),
Logs: logs.NewOptions(),
Traces: genericoptions.NewTracingOptions(),
EnableLogsHandler: true,
EventTTL: 1 * time.Hour,
MasterCount: 1,
EndpointReconcilerType: string(reconcilers.LeaseEndpointReconcilerType),
IdentityLeaseDurationSeconds: 3600,
IdentityLeaseRenewIntervalSeconds: 10,
KubeletConfig: kubeletclient.KubeletClientConfig{
Port: ports.KubeletPort,
ReadOnlyPort: ports.KubeletReadOnlyPort,
PreferredAddressTypes: []string{
// --override-hostname
string(api.NodeHostName),
// internal, preferring DNS if reported
string(api.NodeInternalDNS),
string(api.NodeInternalIP),
// external, preferring DNS if reported
string(api.NodeExternalDNS),
string(api.NodeExternalIP),
},
HTTPTimeout: time.Duration(5) * time.Second,
},
ServiceNodePortRange: kubeoptions.DefaultServiceNodePortRange,
AggregatorRejectForwardingRedirects: true,
}
// Overwrite the default for storage data format.
s.Etcd.DefaultStorageMediaType = "application/vnd.kubernetes.protobuf"
return &s
}
func NewAdmissionOptions() *AdmissionOptions {
options := genericoptions.NewAdmissionOptions()
// register all admission plugins
RegisterAllAdmissionPlugins(options.Plugins)
// set RecommendedPluginOrder
options.RecommendedPluginOrder = AllOrderedPlugins
// set DefaultOffPlugins
options.DefaultOffPlugins = DefaultOffAdmissionPlugins()
return &AdmissionOptions{
GenericAdmission: options,
}
}
func RegisterAllAdmissionPlugins(plugins *admission.Plugins) {
admit.Register(plugins) // DEPRECATED as no real meaning
alwayspullimages.Register(plugins)
antiaffinity.Register(plugins)
defaulttolerationseconds.Register(plugins)
defaultingressclass.Register(plugins)
denyserviceexternalips.Register(plugins)
deny.Register(plugins) // DEPRECATED as no real meaning
eventratelimit.Register(plugins)
extendedresourcetoleration.Register(plugins)
gc.Register(plugins)
imagepolicy.Register(plugins)
limitranger.Register(plugins)
autoprovision.Register(plugins)
exists.Register(plugins)
noderestriction.Register(plugins)
nodetaint.Register(plugins)
label.Register(plugins) // DEPRECATED, future PVs should not rely on labels for zone topology
podnodeselector.Register(plugins)
podtolerationrestriction.Register(plugins)
runtimeclass.Register(plugins)
resourcequota.Register(plugins)
podsecurity.Register(plugins)
podpriority.Register(plugins)
scdeny.Register(plugins)
serviceaccount.Register(plugins)
setdefault.Register(plugins)
resize.Register(plugins)
storageobjectinuseprotection.Register(plugins)
certapproval.Register(plugins)
certsigning.Register(plugins)
certsubjectrestriction.Register(plugins)
}

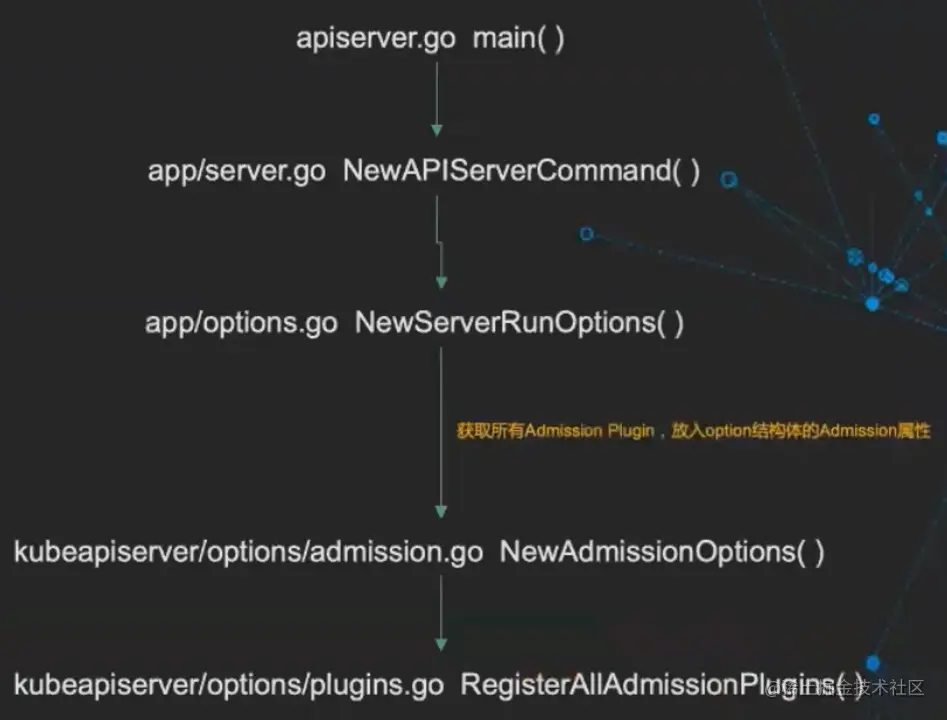

流程解析如下图
func buildGenericConfig(
s *options.ServerRunOptions,
proxyTransport *http.Transport,
) (
genericConfig *genericapiserver.Config,
versionedInformers clientgoinformers.SharedInformerFactory,
serviceResolver aggregatorapiserver.ServiceResolver,
pluginInitializers []admission.PluginInitializer,
admissionPostStartHook genericapiserver.PostStartHookFunc,
storageFactory *serverstorage.DefaultStorageFactory,
lastErr error,
) {
err = s.Admission.ApplyTo(
genericConfig,
versionedInformers,
kubeClientConfig,
utilfeature.DefaultFeatureGate,
pluginInitializers...)
if err != nil {
lastErr = fmt.Errorf("failed to initialize admission: %v", err)
return
}
...
}
func (a *AdmissionOptions) ApplyTo(
c *server.Config,
informers informers.SharedInformerFactory,
kubeAPIServerClientConfig *rest.Config,
features featuregate.FeatureGate,
pluginInitializers ...admission.PluginInitializer,
) error {
if a == nil {
return nil
}
if a.PluginNames != nil {
// pass PluginNames to generic AdmissionOptions
a.GenericAdmission.EnablePlugins, a.GenericAdmission.DisablePlugins = computePluginNames(a.PluginNames, a.GenericAdmission.RecommendedPluginOrder)
}
return a.GenericAdmission.ApplyTo(c, informers, kubeAPIServerClientConfig, features, pluginInitializers...)
}
func (a *AdmissionOptions) ApplyTo(
c *server.Config,
informers informers.SharedInformerFactory,
kubeAPIServerClientConfig *rest.Config,
features featuregate.FeatureGate,
pluginInitializers ...admission.PluginInitializer,
) error {
if a == nil {
return nil
}
// Admission depends on CoreAPI to set SharedInformerFactory and ClientConfig.
if informers == nil {
return fmt.Errorf("admission depends on a Kubernetes core API shared informer, it cannot be nil")
}
pluginNames := a.enabledPluginNames()
pluginsConfigProvider, err := admission.ReadAdmissionConfiguration(pluginNames, a.ConfigFile, configScheme)
if err != nil {
return fmt.Errorf("failed to read plugin config: %v", err)
}
clientset, err := kubernetes.NewForConfig(kubeAPIServerClientConfig)
if err != nil {
return err
}
genericInitializer := initializer.New(clientset, informers, c.Authorization.Authorizer, features, c.DrainedNotify())
initializersChain := admission.PluginInitializers{genericInitializer}
initializersChain = append(initializersChain, pluginInitializers...)
admissionChain, err := a.Plugins.NewFromPlugins(pluginNames, pluginsConfigProvider, initializersChain, a.Decorators)
if err != nil {
return err
}
c.AdmissionControl = admissionmetrics.WithStepMetrics(admissionChain)
return nil
}

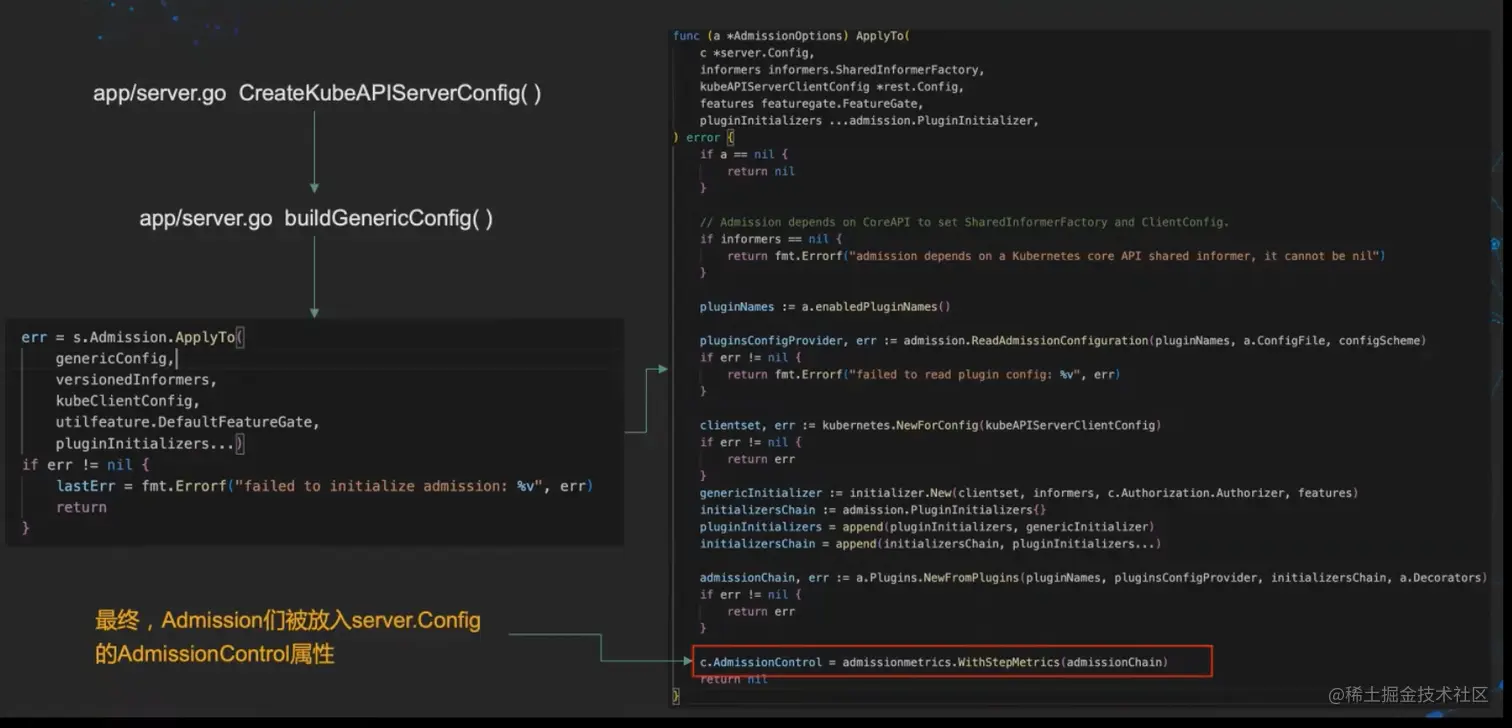

流程解析如下图
在哪里注入到handler中呢？

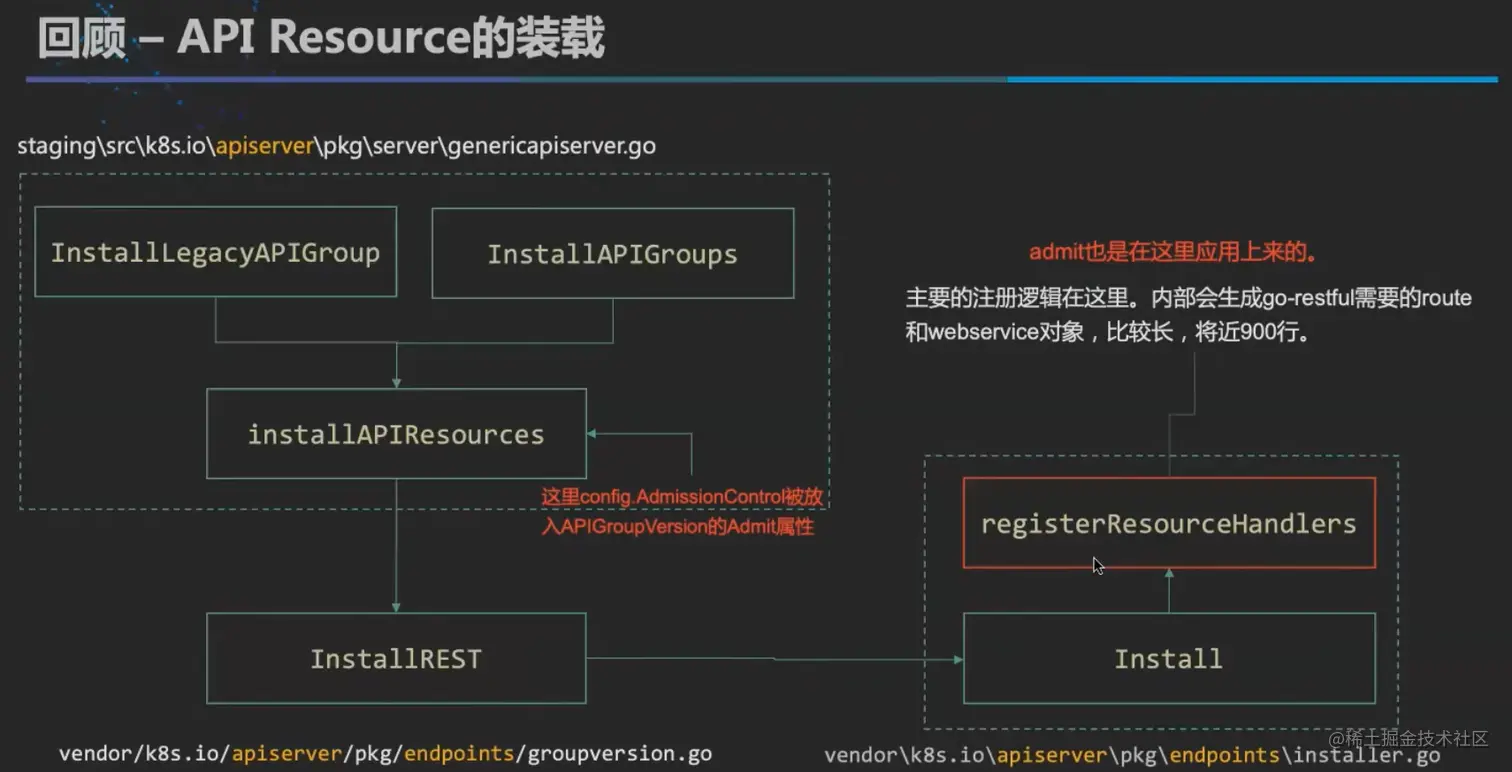

回顾-API Resource的装载

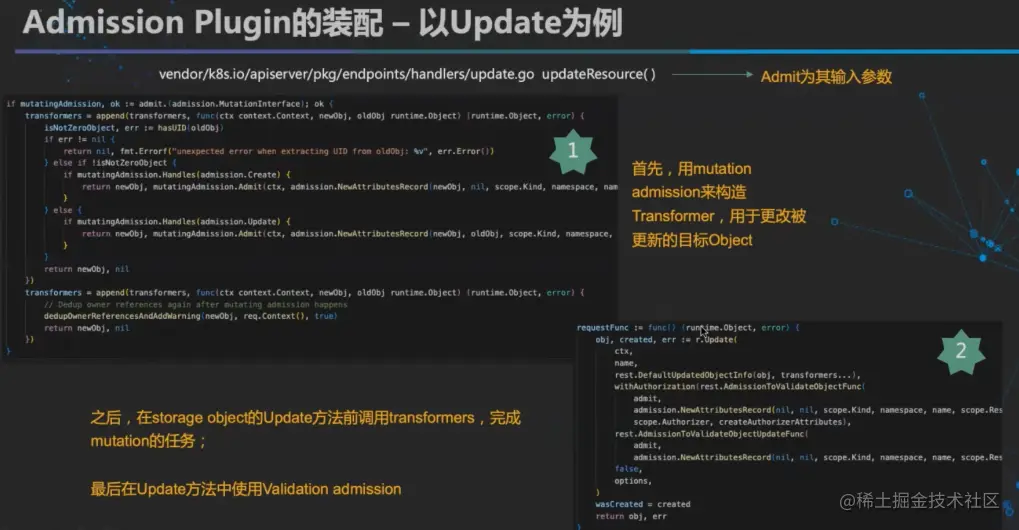

func UpdateResource(r rest.Updater, scope *RequestScope, admit admission.Interface) http.HandlerFunc {
return func(w http.ResponseWriter, req *http.Request) {
if mutatingAdmission, ok := admit.(admission.MutationInterface); ok {
transformers = append(transformers, func(ctx context.Context, newObj, oldObj runtime.Object) (runtime.Object, error) {
isNotZeroObject, err := hasUID(oldObj)
if err != nil {
return nil, fmt.Errorf("unexpected error when extracting UID from oldObj: %v", err.Error())
} else if !isNotZeroObject {
if mutatingAdmission.Handles(admission.Create) {
return newObj, mutatingAdmission.Admit(ctx, admission.NewAttributesRecord(newObj, nil, scope.Kind, namespace, name, scope.Resource, scope.Subresource, admission.Create, updateToCreateOptions(options), dryrun.IsDryRun(options.DryRun), userInfo), scope)
}
} else {
if mutatingAdmission.Handles(admission.Update) {
return newObj, mutatingAdmission.Admit(ctx, admission.NewAttributesRecord(newObj, oldObj, scope.Kind, namespace, name, scope.Resource, scope.Subresource, admission.Update, options, dryrun.IsDryRun(options.DryRun), userInfo), scope)
}
}
return newObj, nil
})
transformers = append(transformers, func(ctx context.Context, newObj, oldObj runtime.Object) (runtime.Object, error) {
// Dedup owner references again after mutating admission happens
dedupOwnerReferencesAndAddWarning(newObj, req.Context(), true)
return newObj, nil
})
}
...
}
func (e *Store) Update(ctx context.Context, name string, objInfo rest.UpdatedObjectInfo, createValidation rest.ValidateObjectFunc, updateValidation rest.ValidateObjectUpdateFunc, forceAllowCreate bool, options *metav1.UpdateOptions) (runtime.Object, bool, error) {
key, err := e.KeyFunc(ctx, name)
if err != nil {
return nil, false, err
}
var (
creatingObj runtime.Object
creating = false
)
qualifiedResource := e.qualifiedResourceFromContext(ctx)
storagePreconditions := &storage.Preconditions{}
if preconditions := objInfo.Preconditions(); preconditions != nil {
storagePreconditions.UID = preconditions.UID
storagePreconditions.ResourceVersion = preconditions.ResourceVersion
}
out := e.NewFunc()
// deleteObj is only used in case a deletion is carried out
var deleteObj runtime.Object
err = e.Storage.GuaranteedUpdate(ctx, key, out, true, storagePreconditions, func(existing runtime.Object, res storage.ResponseMeta) (runtime.Object, *uint64, error) {
existingResourceVersion, err := e.Storage.Versioner().ObjectResourceVersion(existing)
if err != nil {
return nil, nil, err
}
if existingResourceVersion == 0 {
if !e.UpdateStrategy.AllowCreateOnUpdate() && !forceAllowCreate {
return nil, nil, apierrors.NewNotFound(qualifiedResource, name)
}
}
// Given the existing object, get the new object
obj, err := objInfo.UpdatedObject(ctx, existing)
if err != nil {
return nil, nil, err
}
// If AllowUnconditionalUpdate() is true and the object specified by
// the user does not have a resource version, then we populate it with
// the latest version. Else, we check that the version specified by
// the user matches the version of latest storage object.
newResourceVersion, err := e.Storage.Versioner().ObjectResourceVersion(obj)
if err != nil {
return nil, nil, err
}
doUnconditionalUpdate := newResourceVersion == 0 && e.UpdateStrategy.AllowUnconditionalUpdate()
if existingResourceVersion == 0 {
// Init metadata as early as possible.
if objectMeta, err := meta.Accessor(obj); err != nil {
return nil, nil, err
} else {
rest.FillObjectMetaSystemFields(objectMeta)
}
var finishCreate FinishFunc = finishNothing
if e.BeginCreate != nil {
fn, err := e.BeginCreate(ctx, obj, newCreateOptionsFromUpdateOptions(options))
if err != nil {
return nil, nil, err
}
finishCreate = fn
defer func() {
finishCreate(ctx, false)
}()
}
creating = true
creatingObj = obj
if err := rest.BeforeCreate(e.CreateStrategy, ctx, obj); err != nil {
return nil, nil, err
}
// at this point we have a fully formed object. It is time to call the validators that the apiserver
// handling chain wants to enforce.
if createValidation != nil {
if err := createValidation(ctx, obj.DeepCopyObject()); err != nil {
return nil, nil, err
}
}
ttl, err := e.calculateTTL(obj, 0, false)
if err != nil {
return nil, nil, err
}
// The operation has succeeded. Call the finish function if there is one,
// and then make sure the defer doesn't call it again.
fn := finishCreate
finishCreate = finishNothing
fn(ctx, true)
return obj, &ttl, nil
}
creating = false
creatingObj = nil
if doUnconditionalUpdate {
// Update the object's resource version to match the latest
// storage object's resource version.
err = e.Storage.Versioner().UpdateObject(obj, res.ResourceVersion)
if err != nil {
return nil, nil, err
}
} else {
// Check if the object's resource version matches the latest
// resource version.
if newResourceVersion == 0 {
// TODO: The Invalid error should have a field for Resource.
// After that field is added, we should fill the Resource and
// leave the Kind field empty. See the discussion in #18526.
qualifiedKind := schema.GroupKind{Group: qualifiedResource.Group, Kind: qualifiedResource.Resource}
fieldErrList := field.ErrorList{field.Invalid(field.NewPath("metadata").Child("resourceVersion"), newResourceVersion, "must be specified for an update")}
return nil, nil, apierrors.NewInvalid(qualifiedKind, name, fieldErrList)
}
if newResourceVersion != existingResourceVersion {
return nil, nil, apierrors.NewConflict(qualifiedResource, name, fmt.Errorf(OptimisticLockErrorMsg))
}
}
var finishUpdate FinishFunc = finishNothing
if e.BeginUpdate != nil {
fn, err := e.BeginUpdate(ctx, obj, existing, options)
if err != nil {
return nil, nil, err
}
finishUpdate = fn
defer func() {
finishUpdate(ctx, false)
}()
}
if err := rest.BeforeUpdate(e.UpdateStrategy, ctx, obj, existing); err != nil {
return nil, nil, err
}
// at this point we have a fully formed object. It is time to call the validators that the apiserver
// handling chain wants to enforce.
if updateValidation != nil {
if err := updateValidation(ctx, obj.DeepCopyObject(), existing.DeepCopyObject()); err != nil {
return nil, nil, err
}
}
// Check the default delete-during-update conditions, and store-specific conditions if provided
if ShouldDeleteDuringUpdate(ctx, key, obj, existing) &&
(e.ShouldDeleteDuringUpdate == nil || e.ShouldDeleteDuringUpdate(ctx, key, obj, existing)) {
deleteObj = obj
return nil, nil, errEmptiedFinalizers
}
ttl, err := e.calculateTTL(obj, res.TTL, true)
if err != nil {
return nil, nil, err
}
// The operation has succeeded. Call the finish function if there is one,
// and then make sure the defer doesn't call it again.
fn := finishUpdate
finishUpdate = finishNothing
fn(ctx, true)
if int64(ttl) != res.TTL {
return obj, &ttl, nil
}
return obj, nil, nil
}, dryrun.IsDryRun(options.DryRun), nil)
if err != nil {
// delete the object
if err == errEmptiedFinalizers {
return e.deleteWithoutFinalizers(ctx, name, key, deleteObj, storagePreconditions, newDeleteOptionsFromUpdateOptions(options))
}
if creating {
err = storeerr.InterpretCreateError(err, qualifiedResource, name)
err = rest.CheckGeneratedNameError(ctx, e.CreateStrategy, err, creatingObj)
} else {
err = storeerr.InterpretUpdateError(err, qualifiedResource, name)
}
return nil, false, err
}
if creating {
if e.AfterCreate != nil {
e.AfterCreate(out, newCreateOptionsFromUpdateOptions(options))
}
} else {
if e.AfterUpdate != nil {
e.AfterUpdate(out, options)
}
}
if e.Decorator != nil {
e.Decorator(out)
}
return out, creating, nil
}
流程解析如下图
Summary
- MutatingAdmissionWebhook: 做修改操作的AdmissionWebhook
- ValidatingAdmissionWebhook: 做验证操作的AdmissionWebhook
用户可以通过webhook来拓展这自己想要的功能，Istio的sidecar注入机制就采用了这种方式，在创建pod时注入了sidecar容器
