Lucene源码系列（二十五）：DocValues-SortedDocValues

背景

SortedDocValues和BinaryDocValues存储的都是二进制，并且都是每个文档同名的最多一个，但是SortedDocValues在存储的时候会全局排序，所以存储的结构会复杂很多，后面我们会重点分析。

public class DocValueDemo {
    public static void main(String[] args) throws IOException {
        Directory directory = FSDirectory.open(new File("D:\\code\\lucene-9.1.0-learning\\data").toPath());
        WhitespaceAnalyzer analyzer = new WhitespaceAnalyzer();
        IndexWriterConfig indexWriterConfig = new IndexWriterConfig(analyzer);
        indexWriterConfig.setUseCompoundFile(false);
        IndexWriter indexWriter = new IndexWriter(directory, indexWriterConfig);

        Document document = new Document();
        // 一个doc不能有同名的BinaryDocValuesField，存储二进制
        document.add(new BinaryDocValuesField("name", new BytesRef("zjc".getBytes(StandardCharsets.UTF_8))));

        // 一个doc不能有同名的SortedDocValuesField，存储二进制，存储的时候会全局排序
        document.add(new SortedDocValuesField("nickname", new BytesRef("alpha".getBytes(StandardCharsets.UTF_8))));

        indexWriter.addDocument(document);
        indexWriter.flush();
        indexWriter.commit();
        indexWriter.close();
    }
}

前置知识

本文涉及到的一些知识在之前的文章中都做了详细的介绍，后续碰到不会重复介绍。

• DirectMonotonicWriter：用来压缩存储单调递增的long集合，详见《多值编码压缩算法》
• BytesRefHash：存储字符串，并且按字符串出现的顺序分配唯一的id，相同的字符串不会重复存储，BytesRefHash的具体介绍详见《内存中倒排信息的构建》

存储方案

SortedDocValues的存储涉及到两个概念：TermDict和TermsIndex。

因为SortedDocValues是有序的，所以支持根据序号获取value，和根据value查询序号。TermDict是用来根据序号获取value的，TermsIndex是加速根据value获取序号的索引。从逻辑上理解，整个存储结构可以类比跳表，如下图所示：

TermDict

从上面的示意图可以看出，如果没有其他的辅助结构，根据序号获取value就要遍历来获取。为了避免遍历操作，可以为每个value建立一个索引信息，指向每个value，这样可以直接根据序号获取索引信息然后定位到value，但是对全部的value构建索引，索引大小受数据量的影响比较直接。因此Lucene做了权衡，对数据进行分块，为每个块建立索引。此时，根据序号先计算在哪个块，然后在块中使用遍历的方式。

不仅如此，为了提高空间利用率，Lucene还对block进行压缩存储。这里并没有直接使用诸如L4等压缩算法对block中的所有value进行压缩，而是考虑特殊的场景，在SortedDocValues中，block的数据都是有序的，因此可以通过共享前缀方式避免了公共前缀的重复存储。因此，在block中，只有完整存储第一个value，后面的value都是存储跟前一个value的公共前缀长度，后缀长度以及后缀内容。

TermsIndex

TermsIndex其实是TermDict的一种补充的结构，加速根据value获取序号的索引。在TermDict中，查询某个value需要遍历，遍历是比较慢的，因此TermsDict的block是比较小的，在当前版本中是64。如果文档数量比较小的话，TermDict本身是可以根据每个block的第一个value来当做索引的，但是文档数量较大的时候，每64一个会导致索引数据量比较大，因此有了TermsIndex。

TermsIndex来加速定位目标value在TermDict的哪个block中，或者是哪几个block中。每1024个value构建一个索引，为了压缩索引的大小，每个索引只记录当前索引和前一个索引的最长公共前缀加上suffix的一个字节（做排序），这是在不影响排序的前提下索引最小化。

a
ab
abcd
abcdef
abddef
abdeee
abefff

假设我们是每3个value构建一个索引，得到：

 value   |   index  |
---------|----------|
a        |    a     |
ab       |          |
abcd     |          |
abcdef   |    ab    |
abddef   |          |
abdeee   |          |
abefff   |    abe   |

文件格式

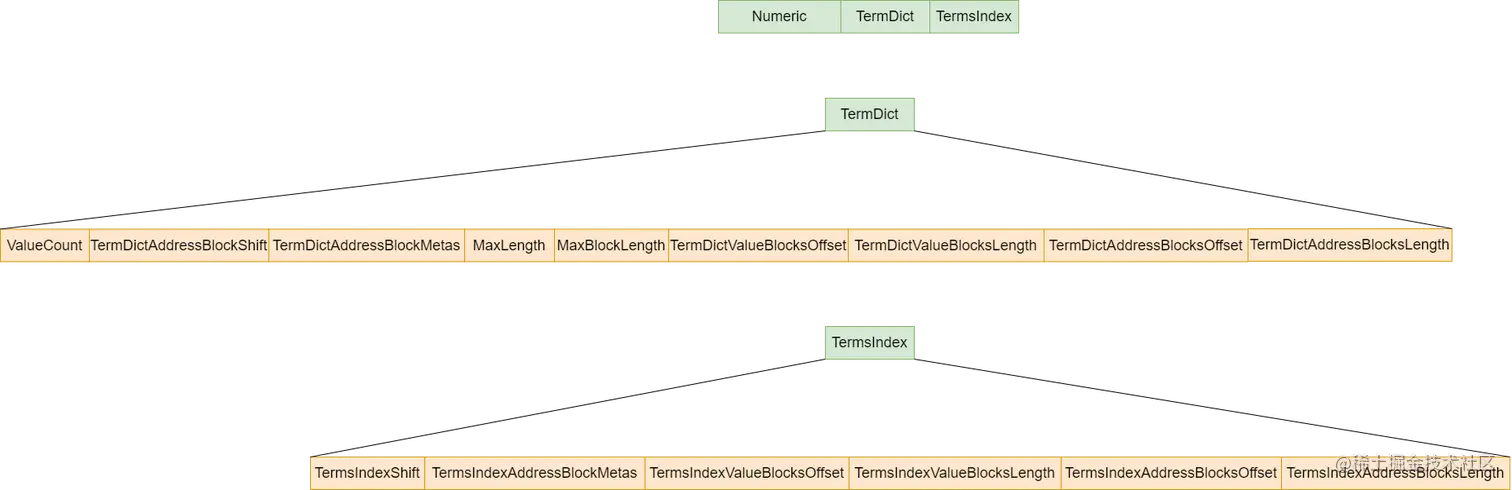

dvm

整体结构

字段详解

• Numeric：binary的id存储和NumericDocValues一模一样，因此和NumericDocValues的dvm字段一样。
• TermDict
  • ValueCount：SortedDocValues的个数
  • TermDictAddressBlockShift：存储TermDict各个block的起始位置的DirectMonotonicWriter的参数
  • TermDictAddressBlockMetas：DirectMonotonicWriter的元信息
  • MaxLength：最长的binary
  • MaxBlockLength：最大的block的大小
  • TermDictValueBlocksOffset：TermDict数据在dvd文件的起始位置
  • TermDictValueBlocksLength：TermDict数据在dvd文件中的长度
  • TermDictAddressBlocksOffset：TermDict各个block的起始位置的数据在dvd文件中的起始位置
  • TermDictAddressBlocksLength：TermDoct各个block的起始位置的数据在dvd文件中的长度
• TermsIndex
  • TermsIndexShift：决定TermsIndex的block的大小
  • TermsIndexAddressBlockMetas：存储TermsIndex各个block的起始位置的DirectMonotonicWriter的元信息
  • TermsIndexValueBlocksOffset：TermsIndex数据在dvd文件的起始位置
  • TermIndexValueBlocksLength：TermsIndex数据在dvd文件中的长度
  • TermIndexAddressBlocksOffset：TermsIndex各个block的起始位置的数据在dvd文件中的起始位置
  • TermsIndexAddressBlocksLength：TermsIndex各个block的起始位置的数据在dvd文件中的长度

dvd

整体结构

字段详解

• Numeric：binary的id集合,使用和NumericDocValues一样的存储方式
• TermDictBlock：TermDict数据block
  • FirstTermLength：block中第一个term的的长度
  • FirstTerm：block中第一个term
  • Length：block剩下的数据的长度
  • Value：其他的term
    • LengthInfo：长度信息
      • LengthCode：byte类型，高四位suffixLength，低四位是prefixLength
      • PrefixLength：如果prefixLength大于等于15，则存储prefixLength - 15
      • SuffixLength：如果suffixLength大宇等于16，则存储suffixLength - 16
    • Suffix：suffix的内容
• TermDictBlockAddress：TermDictBlock在dvd文件中的起始位置
• TermsIndexBlock：TermsIndex数据block
  • PrefixWithOneByteOffSuffix：block第一个binary和前一个binary的公共前缀再加上后缀的第一个字节
• TermsIndexBlockAddress：TermsIndexBlock在dvd文件的起始位置

源码解析

构建

数据收集

临时存储BinaryDocValues的工具是PagedBytes，它逻辑上就是一个byte数组，只是为了避免大数组对内存不友好，所以分成多个block，或者说page。

在持久化的时候，会把BinaryDocValues的值和包含该field的docID集合会根据是否需要对doc进行排序都封装到BufferedBinaryDocValues或者SortingBinaryDocValues中。

SortedDocValuesWriter

class SortedDocValuesWriter extends DocValuesWriter<SortedDocValues> {
  // 存储所有的binary，并且会为每个binary分配一个唯一id，id是按binary出现顺序分配
  final BytesRefHash hash;
  // 临时存储所有的id
  private final PackedLongValues.Builder pending;
  // 包含此字段的doc集合
  private final DocsWithFieldSet docsWithField;
  private final Counter iwBytesUsed;
  private long bytesUsed;
  private final FieldInfo fieldInfo;
  private int lastDocID = -1;
  // 存储所有的id
  private PackedLongValues finalOrds;
  // 根据binary排序得到的id列表
  private int[] finalSortedValues;
  // 下标是id，值是其排序的序号
  private int[] finalOrdMap;

  public SortedDocValuesWriter(FieldInfo fieldInfo, Counter iwBytesUsed, ByteBlockPool pool) {
    this.fieldInfo = fieldInfo;
    this.iwBytesUsed = iwBytesUsed;
    hash =
        new BytesRefHash(
            pool,
            BytesRefHash.DEFAULT_CAPACITY,
            new DirectBytesStartArray(BytesRefHash.DEFAULT_CAPACITY, iwBytesUsed));
    pending = PackedLongValues.deltaPackedBuilder(PackedInts.COMPACT);
    docsWithField = new DocsWithFieldSet();
    bytesUsed = pending.ramBytesUsed() + docsWithField.ramBytesUsed();
    iwBytesUsed.addAndGet(bytesUsed);
  }
  // 新增一个binary
  public void addValue(int docID, BytesRef value) {
    if (docID <= lastDocID) { // 说明一个docID同个字段只能有一个value
      throw new IllegalArgumentException(
          "DocValuesField \""
              + fieldInfo.name
              + "\" appears more than once in this document (only one value is allowed per field)");
    }
    if (value == null) {
      throw new IllegalArgumentException(
          "field \"" + fieldInfo.name + "\": null value not allowed");
    }
    if (value.length > (BYTE_BLOCK_SIZE - 2)) { // binary的长度有限制
      throw new IllegalArgumentException(
          "DocValuesField \""
              + fieldInfo.name
              + "\" is too large, must be <= "
              + (BYTE_BLOCK_SIZE - 2));
    }
    // 新增一个docValue
    addOneValue(value);
    // 记录包含此Field的docID
    docsWithField.add(docID);

    lastDocID = docID;
  }

  private void addOneValue(BytesRef value) {
    // 如果value是第一次出现，就会为其分配一个唯一的id，如果value之前出现过，则返回  -(id + 1)
    int termID = hash.add(value);
    if (termID < 0) { // 说明之前出现过这个value
      termID = -termID - 1;
    } else {
      iwBytesUsed.addAndGet(2 * Integer.BYTES);
    }
    // 记录id
    pending.add(termID);
    updateBytesUsed();
  }

  private void updateBytesUsed() {
    final long newBytesUsed = pending.ramBytesUsed() + docsWithField.ramBytesUsed();
    iwBytesUsed.addAndGet(newBytesUsed - bytesUsed);
    bytesUsed = newBytesUsed;
  }

  @Override
  SortedDocValues getDocValues() {
    int valueCount = hash.size();
    if (finalSortedValues == null) {
      updateBytesUsed();
      assert finalOrdMap == null && finalOrds == null;
      // 根据binary排序得到的id列表
      finalSortedValues = hash.sort();
      finalOrds = pending.build();
      finalOrdMap = new int[valueCount];
    }
    for (int ord = 0; ord < valueCount; ord++) {
      finalOrdMap[finalSortedValues[ord]] = ord;
    }
    return new BufferedSortedDocValues(
        hash, finalOrds, finalSortedValues, finalOrdMap, docsWithField.iterator());
  }

  private int[] sortDocValues(int maxDoc, Sorter.DocMap sortMap, SortedDocValues oldValues)
      throws IOException {
    int[] ords = new int[maxDoc];
    Arrays.fill(ords, -1);
    int docID;
    while ((docID = oldValues.nextDoc()) != NO_MORE_DOCS) {
      int newDocID = sortMap.oldToNew(docID);
      ords[newDocID] = oldValues.ordValue();
    }
    return ords;
  }

  @Override
  public void flush(SegmentWriteState state, Sorter.DocMap sortMap, DocValuesConsumer dvConsumer)
      throws IOException {
    final int valueCount = hash.size();
    if (finalOrds == null) {
      updateBytesUsed();
      finalSortedValues = hash.sort();
      finalOrds = pending.build();
      finalOrdMap = new int[valueCount];
      for (int ord = 0; ord < valueCount; ord++) {
        finalOrdMap[finalSortedValues[ord]] = ord;
      }
    }

    final int[] sorted;
    if (sortMap != null) {
      sorted =
          sortDocValues(
              state.segmentInfo.maxDoc(),
              sortMap,
              new BufferedSortedDocValues(
                  hash, finalOrds, finalSortedValues, finalOrdMap, docsWithField.iterator()));
    } else {
      sorted = null;
    }
    dvConsumer.addSortedField(
        fieldInfo,
        new EmptyDocValuesProducer() {
          @Override
          public SortedDocValues getSorted(FieldInfo fieldInfoIn) {
            if (fieldInfoIn != fieldInfo) {
              throw new IllegalArgumentException("wrong fieldInfo");
            }
            final SortedDocValues buf =
                new BufferedSortedDocValues(
                    hash, finalOrds, finalSortedValues, finalOrdMap, docsWithField.iterator());
            if (sorted == null) {
              return buf;
            }
            return new SortingSortedDocValues(buf, sorted);
          }
        });
  }
}

持久化

相比于之前介绍的几种DocValues，SortedDocValues的存储结构会比较复杂一些：

1. 使用和NumericDocValues一样的存储结构，存储所有binary的id
2. 构建TermDict
3. 构建TermsIndex

  @Override
  public void addSortedField(FieldInfo field, DocValuesProducer valuesProducer) throws IOException {
    meta.writeInt(field.number);
    meta.writeByte(Lucene90DocValuesFormat.SORTED);
    doAddSortedField(field, valuesProducer);
  }

  private void doAddSortedField(FieldInfo field, DocValuesProducer valuesProducer)
      throws IOException {
    // 每个doc的SortedDocValues只存储其id，id也是整型，所以和NumericDocValues的存储方案一样
    writeValues(
        field,
        new EmptyDocValuesProducer() {
          @Override
          public SortedNumericDocValues getSortedNumeric(FieldInfo field) throws IOException {
            SortedDocValues sorted = valuesProducer.getSorted(field);
            NumericDocValues sortedOrds =
                new NumericDocValues() {
                  @Override
                  public long longValue() throws IOException {
                    return sorted.ordValue();
                  }

                  @Override
                  public boolean advanceExact(int target) throws IOException {
                    return sorted.advanceExact(target);
                  }

                  @Override
                  public int docID() {
                    return sorted.docID();
                  }

                  @Override
                  public int nextDoc() throws IOException {
                    return sorted.nextDoc();
                  }

                  @Override
                  public int advance(int target) throws IOException {
                    return sorted.advance(target);
                  }

                  @Override
                  public long cost() {
                    return sorted.cost();
                  }
                };
            return DocValues.singleton(sortedOrds);
          }
        },
        true);
    addTermsDict(DocValues.singleton(valuesProducer.getSorted(field)));
  }

  private void addTermsDict(SortedSetDocValues values) throws IOException {
    // value总数
    final long size = values.getValueCount();
    meta.writeVLong(size);

    // 63
    int blockMask = Lucene90DocValuesFormat.TERMS_DICT_BLOCK_LZ4_MASK;
    // 6
    int shift = Lucene90DocValuesFormat.TERMS_DICT_BLOCK_LZ4_SHIFT;

    meta.writeInt(DIRECT_MONOTONIC_BLOCK_SHIFT);
    ByteBuffersDataOutput addressBuffer = new ByteBuffersDataOutput();
    ByteBuffersIndexOutput addressOutput =
        new ByteBuffersIndexOutput(addressBuffer, "temp", "temp");
    long numBlocks = (size + blockMask) >>> shift;
    DirectMonotonicWriter writer =
        DirectMonotonicWriter.getInstance(
            meta, addressOutput, numBlocks, DIRECT_MONOTONIC_BLOCK_SHIFT);
    // 记录前一个处理的value，用来算公共前缀
    BytesRefBuilder previous = new BytesRefBuilder();
    long ord = 0;
    long start = data.getFilePointer();
    int maxLength = 0, maxBlockLength = 0;
    TermsEnum iterator = values.termsEnum();

    LZ4.FastCompressionHashTable ht = new LZ4.FastCompressionHashTable();
    ByteArrayDataOutput bufferedOutput = new ByteArrayDataOutput(termsDictBuffer);
    // 遍历所有的value
    for (BytesRef term = iterator.next(); term != null; term = iterator.next()) {
      if ((ord & blockMask) == 0) { // 每逢64的倍数，也就是block的第一个value
        if (bufferedOutput.getPosition() > 0) {
          maxBlockLength =
              Math.max(maxBlockLength, compressAndGetTermsDictBlockLength(bufferedOutput, ht));
          bufferedOutput.reset(termsDictBuffer);
        }
        // block的起始位置
        writer.add(data.getFilePointer() - start);
        // block第一个value都是完整存储的
        data.writeVInt(term.length);
        data.writeBytes(term.bytes, term.offset, term.length);
      } else {
        // 公共前缀长度
        final int prefixLength = StringHelper.bytesDifference(previous.get(), term);
        // 剩下的后缀长度
        final int suffixLength = term.length - prefixLength;
        // Will write (suffixLength + 1 byte + 2 vint) bytes. Grow the buffer in need.
        bufferedOutput = maybeGrowBuffer(bufferedOutput, suffixLength + 11);
        // 低4位存储prefixLength，高4位存储suffixLength
        bufferedOutput.writeByte(
            (byte) (Math.min(prefixLength, 15) | (Math.min(15, suffixLength - 1) << 4)));
        if (prefixLength >= 15) { // 如果前缀长度大于等于15，需要额外存储前缀长度差值
          bufferedOutput.writeVInt(prefixLength - 15);
        }
        if (suffixLength >= 16) {// 如果后缀长度大于等于15，需要额外存储前缀长度差值
          bufferedOutput.writeVInt(suffixLength - 16);
        }
        // 写入后缀
        bufferedOutput.writeBytes(term.bytes, term.offset + prefixLength, suffixLength);
      }
      maxLength = Math.max(maxLength, term.length);
      previous.copyBytes(term);
      ++ord;
    }
    // Compress and write out the last block
    if (bufferedOutput.getPosition() > 0) {
      maxBlockLength =
          Math.max(maxBlockLength, compressAndGetTermsDictBlockLength(bufferedOutput, ht));
    }

    writer.finish();
    meta.writeInt(maxLength);
    // Write one more int for storing max block length.
    meta.writeInt(maxBlockLength);
    meta.writeLong(start);
    meta.writeLong(data.getFilePointer() - start);
    start = data.getFilePointer();
    addressBuffer.copyTo(data);
    meta.writeLong(start);
    meta.writeLong(data.getFilePointer() - start);

    // Now write the reverse terms index
    writeTermsIndex(values);
  }

  private int compressAndGetTermsDictBlockLength(
      ByteArrayDataOutput bufferedOutput, LZ4.FastCompressionHashTable ht) throws IOException {
    int uncompressedLength = bufferedOutput.getPosition();
    data.writeVInt(uncompressedLength);
    long before = data.getFilePointer();
    LZ4.compress(termsDictBuffer, 0, uncompressedLength, data, ht);
    int compressedLength = (int) (data.getFilePointer() - before);
    // Block length will be used for creating buffer for decompression, one corner case is that
    // compressed length might be bigger than un-compressed length, so just return the bigger one.
    return Math.max(uncompressedLength, compressedLength);
  }

  private ByteArrayDataOutput maybeGrowBuffer(ByteArrayDataOutput bufferedOutput, int termLength) {
    int pos = bufferedOutput.getPosition(), originalLength = termsDictBuffer.length;
    if (pos + termLength >= originalLength - 1) {
      termsDictBuffer = ArrayUtil.grow(termsDictBuffer, originalLength + termLength);
      bufferedOutput = new ByteArrayDataOutput(termsDictBuffer, pos, termsDictBuffer.length - pos);
    }
    return bufferedOutput;
  }

  private void writeTermsIndex(SortedSetDocValues values) throws IOException {
    final long size = values.getValueCount();
    // 10
    meta.writeInt(Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_SHIFT);
    long start = data.getFilePointer();

    long numBlocks =
        1L
            + ((size + Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_MASK)
                >>> Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_SHIFT);
    ByteBuffersDataOutput addressBuffer = new ByteBuffersDataOutput();
    DirectMonotonicWriter writer;
    try (ByteBuffersIndexOutput addressOutput =
        new ByteBuffersIndexOutput(addressBuffer, "temp", "temp")) {
      writer =
          DirectMonotonicWriter.getInstance(
              meta, addressOutput, numBlocks, DIRECT_MONOTONIC_BLOCK_SHIFT);
      TermsEnum iterator = values.termsEnum();
      BytesRefBuilder previous = new BytesRefBuilder();
      long offset = 0;
      long ord = 0;
      for (BytesRef term = iterator.next(); term != null; term = iterator.next()) {
        if ((ord & Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_MASK) == 0) { // 每1024个
          writer.add(offset);
          // 和前一个term最长公共前缀+1
          final int sortKeyLength;
          if (ord == 0) {
            sortKeyLength = 0;
          } else {
            sortKeyLength = StringHelper.sortKeyLength(previous.get(), term);
          }
          offset += sortKeyLength;
          data.writeBytes(term.bytes, term.offset, sortKeyLength);
        } else if ((ord & Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_MASK)
            == Lucene90DocValuesFormat.TERMS_DICT_REVERSE_INDEX_MASK) {
          previous.copyBytes(term);
        }
        ++ord;
      }
      writer.add(offset);
      writer.finish();
      meta.writeLong(start);
      meta.writeLong(data.getFilePointer() - start);
      start = data.getFilePointer();
      addressBuffer.copyTo(data);
      meta.writeLong(start);
      meta.writeLong(data.getFilePointer() - start);
    }
  }

读取

读取逻辑比较简单，最核心的是构建TermDict和TermsIndex，下面我们简单看下这个过程的源码，至于TermDict怎么用，我们后面来说。

  private SortedEntry readSorted(IndexInput meta) throws IOException {
    SortedEntry entry = new SortedEntry();
    entry.ordsEntry = new NumericEntry();
    readNumeric(meta, entry.ordsEntry);
    entry.termsDictEntry = new TermsDictEntry();
    readTermDict(meta, entry.termsDictEntry);
    return entry;
  }

  private static void readTermDict(IndexInput meta, TermsDictEntry entry) throws IOException {
    entry.termsDictSize = meta.readVLong();
    final int blockShift = meta.readInt();
    final long addressesSize =
        (entry.termsDictSize + (1L << TERMS_DICT_BLOCK_LZ4_SHIFT) - 1)
            >>> TERMS_DICT_BLOCK_LZ4_SHIFT;
    entry.termsAddressesMeta = DirectMonotonicReader.loadMeta(meta, addressesSize, blockShift);
    entry.maxTermLength = meta.readInt();
    entry.maxBlockLength = meta.readInt();
    entry.termsDataOffset = meta.readLong();
    entry.termsDataLength = meta.readLong();
    entry.termsAddressesOffset = meta.readLong();
    entry.termsAddressesLength = meta.readLong();
    entry.termsDictIndexShift = meta.readInt();
    final long indexSize =
        (entry.termsDictSize + (1L << entry.termsDictIndexShift) - 1) >>> entry.termsDictIndexShift;
    entry.termsIndexAddressesMeta = DirectMonotonicReader.loadMeta(meta, 1 + indexSize, blockShift);
    entry.termsIndexOffset = meta.readLong();
    entry.termsIndexLength = meta.readLong();
    entry.termsIndexAddressesOffset = meta.readLong();
    entry.termsIndexAddressesLength = meta.readLong();
  }

  @Override
  public SortedDocValues getSorted(FieldInfo field) throws IOException {
    SortedEntry entry = sorted.get(field.name);
    return getSorted(entry);
  }

  private SortedDocValues getSorted(SortedEntry entry) throws IOException {
    // Specialize the common case for ordinals: single block of packed integers.
    final NumericEntry ordsEntry = entry.ordsEntry;
    if (ordsEntry.blockShift < 0 // single block
        && ordsEntry.bitsPerValue > 0) { // more than 1 value

      if (ordsEntry.gcd != 1 || ordsEntry.minValue != 0 || ordsEntry.table != null) {
        throw new IllegalStateException("Ordinals shouldn't use GCD, offset or table compression");
      }

      final RandomAccessInput slice =
          data.randomAccessSlice(ordsEntry.valuesOffset, ordsEntry.valuesLength);
      final LongValues values =
          getDirectReaderInstance(slice, ordsEntry.bitsPerValue, 0L, ordsEntry.numValues);

      if (ordsEntry.docsWithFieldOffset == -1) { // dense
        return new BaseSortedDocValues(entry) {

          private final int maxDoc = Lucene90DocValuesProducer.this.maxDoc;
          private int doc = -1;

          @Override
          public int ordValue() throws IOException {
            return (int) values.get(doc);
          }

          @Override
          public boolean advanceExact(int target) throws IOException {
            doc = target;
            return true;
          }

          @Override
          public int docID() {
            return doc;
          }

          @Override
          public int nextDoc() throws IOException {
            return advance(doc + 1);
          }

          @Override
          public int advance(int target) throws IOException {
            if (target >= maxDoc) {
              return doc = NO_MORE_DOCS;
            }
            return doc = target;
          }

          @Override
          public long cost() {
            return maxDoc;
          }
        };
      } else if (ordsEntry.docsWithFieldOffset >= 0) { // sparse but non-empty
        final IndexedDISI disi =
            new IndexedDISI(
                data,
                ordsEntry.docsWithFieldOffset,
                ordsEntry.docsWithFieldLength,
                ordsEntry.jumpTableEntryCount,
                ordsEntry.denseRankPower,
                ordsEntry.numValues);

        return new BaseSortedDocValues(entry) {

          @Override
          public int ordValue() throws IOException {
            return (int) values.get(disi.index());
          }

          @Override
          public boolean advanceExact(int target) throws IOException {
            return disi.advanceExact(target);
          }

          @Override
          public int docID() {
            return disi.docID();
          }

          @Override
          public int nextDoc() throws IOException {
            return disi.nextDoc();
          }

          @Override
          public int advance(int target) throws IOException {
            return disi.advance(target);
          }

          @Override
          public long cost() {
            return disi.cost();
          }
        };
      }
    }

    final NumericDocValues ords = getNumeric(entry.ordsEntry);
    return new BaseSortedDocValues(entry) {

      @Override
      public int ordValue() throws IOException {
        return (int) ords.longValue();
      }

      @Override
      public boolean advanceExact(int target) throws IOException {
        return ords.advanceExact(target);
      }

      @Override
      public int docID() {
        return ords.docID();
      }

      @Override
      public int nextDoc() throws IOException {
        return ords.nextDoc();
      }

      @Override
      public int advance(int target) throws IOException {
        return ords.advance(target);
      }

      @Override
      public long cost() {
        return ords.cost();
      }
    };
  }

TermsDict

在TermDict中重点是支持两种查询方式：

• 根据value查询序号

  首先利用TermsIndex索引，快速判断value所在的序号范围，然后遍历这个序号范围内所有的TermDict的block，可以根据block的一个value确定在哪个block中，最后遍历value所在的block，获取序号。

• 根据序号获取value

  这个比较简单，可以通过序号，直接计算序号所在的TermDict的block，然后遍历这个block就可以。

private class TermsDict extends BaseTermsEnum {
  static final int LZ4_DECOMPRESSOR_PADDING = 7;

  final TermsDictEntry entry;
  final LongValues blockAddresses;
  final IndexInput bytes;
  final long blockMask;
  // TermsIndex的索引信息
  final LongValues indexAddresses;
  // TermsIndex的数据
  final IndexInput indexBytes;
  final BytesRef term;
  long ord = -1;

  BytesRef blockBuffer = null;
  // TermDictBlock的数据
  ByteArrayDataInput blockInput = null;
  long currentCompressedBlockStart = -1;
  long currentCompressedBlockEnd = -1;

  TermsDict(TermsDictEntry entry, IndexInput data) throws IOException {
    this.entry = entry;
    RandomAccessInput addressesSlice =
        data.randomAccessSlice(entry.termsAddressesOffset, entry.termsAddressesLength);
    blockAddresses =
        DirectMonotonicReader.getInstance(entry.termsAddressesMeta, addressesSlice, merging);
    bytes = data.slice("terms", entry.termsDataOffset, entry.termsDataLength);
    blockMask = (1L << TERMS_DICT_BLOCK_LZ4_SHIFT) - 1;
    RandomAccessInput indexAddressesSlice =
        data.randomAccessSlice(entry.termsIndexAddressesOffset, entry.termsIndexAddressesLength);
    indexAddresses =
        DirectMonotonicReader.getInstance(
            entry.termsIndexAddressesMeta, indexAddressesSlice, merging);
    indexBytes = data.slice("terms-index", entry.termsIndexOffset, entry.termsIndexLength);
    term = new BytesRef(entry.maxTermLength);

    // add 7 padding bytes can help decompression run faster.
    int bufferSize = entry.maxBlockLength + LZ4_DECOMPRESSOR_PADDING;
    blockBuffer = new BytesRef(new byte[bufferSize], 0, bufferSize);
  }

  @Override
  public BytesRef next() throws IOException {
    if (++ord >= entry.termsDictSize) {
      return null;
    }

    if ((ord & blockMask) == 0L) { // 如果当前block已经结束了，需要加载下一个block
      decompressBlock();
    } else {
      DataInput input = blockInput;
      final int token = Byte.toUnsignedInt(input.readByte());
      int prefixLength = token & 0x0F;
      int suffixLength = 1 + (token >>> 4);
      if (prefixLength == 15) {
        prefixLength += input.readVInt();
      }
      if (suffixLength == 16) {
        suffixLength += input.readVInt();
      }
      term.length = prefixLength + suffixLength;
      // 读取suffix的内容，拼接在prefix的后面
      input.readBytes(term.bytes, prefixLength, suffixLength);
    }
    return term;
  }

  // 根据序号获取value
  public void seekExact(long ord) throws IOException {
    if (ord < 0 || ord >= entry.termsDictSize) {
      throw new IndexOutOfBoundsException();
    }
    // 根据序号得到在哪个block
    final long blockIndex = ord >>> TERMS_DICT_BLOCK_LZ4_SHIFT;
    // 获取block的起始位置
    final long blockAddress = blockAddresses.get(blockIndex);
    // 定位到block的起始位置
    bytes.seek(blockAddress);
    // block的起始序号，要开始遍历了
    this.ord = (blockIndex << TERMS_DICT_BLOCK_LZ4_SHIFT) - 1;
    do {
      next();
    } while (this.ord < ord); // 遍历获取指定的序号对应的value
  }

  // 根据index获取TermsIndex中的value
  private BytesRef getTermFromIndex(long index) throws IOException {
    assert index >= 0 && index <= (entry.termsDictSize - 1) >>> entry.termsDictIndexShift;
    final long start = indexAddresses.get(index);
    term.length = (int) (indexAddresses.get(index + 1) - start);
    indexBytes.seek(start);
    indexBytes.readBytes(term.bytes, 0, term.length);
    return term;
  }

  // 获取text在TermsIndex的哪个block中
  private long seekTermsIndex(BytesRef text) throws IOException {
    long lo = 0L;
    long hi = (entry.termsDictSize - 1) >> entry.termsDictIndexShift;
    while (lo <= hi) {
      final long mid = (lo + hi) >>> 1;
      getTermFromIndex(mid);
      final int cmp = term.compareTo(text);
      if (cmp <= 0) {
        lo = mid + 1;
      } else {
        hi = mid - 1;
      }
    }

    assert hi < 0 || getTermFromIndex(hi).compareTo(text) <= 0;
    assert hi == ((entry.termsDictSize - 1) >> entry.termsDictIndexShift)
        || getTermFromIndex(hi + 1).compareTo(text) > 0;

    return hi;
  }

  // 获取TermDict中block的第一个term，第一个term是完整存储的
  private BytesRef getFirstTermFromBlock(long block) throws IOException {
    assert block >= 0 && block <= (entry.termsDictSize - 1) >>> TERMS_DICT_BLOCK_LZ4_SHIFT;
    final long blockAddress = blockAddresses.get(block);
    bytes.seek(blockAddress);
    term.length = bytes.readVInt();
    bytes.readBytes(term.bytes, 0, term.length);
    return term;
  }

  // 获取text所在的TermDict的block编号
  private long seekBlock(BytesRef text) throws IOException {
    // 获取text所在TermsIndex的block编号
    long index = seekTermsIndex(text);
    if (index == -1L) {
      return -1L;
    }

    // 根据TermsIndex的block编号反推可能的序号区间
    long ordLo = index << entry.termsDictIndexShift;
    long ordHi = Math.min(entry.termsDictSize, ordLo + (1L << entry.termsDictIndexShift)) - 1L;

    // 根据序号区间得到TermDict的区间
    long blockLo = ordLo >>> TERMS_DICT_BLOCK_LZ4_SHIFT;
    long blockHi = ordHi >>> TERMS_DICT_BLOCK_LZ4_SHIFT;

    while (blockLo <= blockHi) { // 二分查找
      final long blockMid = (blockLo + blockHi) >>> 1;
      getFirstTermFromBlock(blockMid);
      final int cmp = term.compareTo(text);
      if (cmp <= 0) {
        blockLo = blockMid + 1;
      } else {
        blockHi = blockMid - 1;
      }
    }

    assert blockHi < 0 || getFirstTermFromBlock(blockHi).compareTo(text) <= 0;
    assert blockHi == ((entry.termsDictSize - 1) >>> TERMS_DICT_BLOCK_LZ4_SHIFT)
        || getFirstTermFromBlock(blockHi + 1).compareTo(text) > 0;

    return blockHi;
  }

  @Override
  public SeekStatus seekCeil(BytesRef text) throws IOException {
    // 定位text所在的TermDict的block
    final long block = seekBlock(text);
    if (block == -1) {
      if (entry.termsDictSize == 0) {
        ord = 0;
        return SeekStatus.END;
      } else {
        seekExact(0L);
        return SeekStatus.NOT_FOUND;
      }
    }
    final long blockAddress = blockAddresses.get(block);
    this.ord = block << TERMS_DICT_BLOCK_LZ4_SHIFT;
    bytes.seek(blockAddress);
    decompressBlock();

    while (true) { // 遍历block
      int cmp = term.compareTo(text);
      if (cmp == 0) {
        return SeekStatus.FOUND;
      } else if (cmp > 0) {
        return SeekStatus.NOT_FOUND;
      }
      if (next() == null) {
        return SeekStatus.END;
      }
    }
  }

  private void decompressBlock() throws IOException {
    // 第一个value的长度
    term.length = bytes.readVInt();
    // 读取第一个value
    bytes.readBytes(term.bytes, 0, term.length);
    long offset = bytes.getFilePointer();
    if (offset < entry.termsDataLength - 1) {
      // Avoid decompress again if we are reading a same block.
      if (currentCompressedBlockStart != offset) {
        int decompressLength = bytes.readVInt();
        // Decompress the remaining of current block
        LZ4.decompress(bytes, decompressLength, blockBuffer.bytes, 0);
        currentCompressedBlockStart = offset;
        currentCompressedBlockEnd = bytes.getFilePointer();
      } else {
        // Skip decompression but need to re-seek to block end.
        bytes.seek(currentCompressedBlockEnd);
      }

      // Reset the buffer.
      blockInput = new ByteArrayDataInput(blockBuffer.bytes, 0, blockBuffer.length);
    }
  }

  @Override
  public BytesRef term() throws IOException {
    return term;
  }

  @Override
  public long ord() throws IOException {
    return ord;
  }

  @Override
  public long totalTermFreq() throws IOException {
    return -1L;
  }

  @Override
  public PostingsEnum postings(PostingsEnum reuse, int flags) throws IOException {
    throw new UnsupportedOperationException();
  }

  @Override
  public ImpactsEnum impacts(int flags) throws IOException {
    throw new UnsupportedOperationException();
  }

  @Override
  public int docFreq() throws IOException {
    throw new UnsupportedOperationException();
  }
}
