Metal每日分享，4x4颜色矩阵滤镜效果

「这是我参与2022首次更文挑战的第14天，活动详情查看：2022首次更文挑战」

本文正在参加「金石计划 . 瓜分6万现金大奖」

本案例的目的是理解如何用Metal实现图像4x4颜色矩阵效果滤镜，通过4x4矩阵对RGBA像素处理；

---

Demo

• HarbethDemo地址
• iDay每日分享文档地址

实操代码

// 绿色通道加倍
let filter = C7ColorMatrix4x4(matrix: Matrix4x4.Color.greenDouble)

// 方案1:
ImageView.image = try? BoxxIO(element: originImage, filters: [filter, filter2, filter3]).output()

// 方案2:
ImageView.image = originImage.filtering(filter, filter2, filter3)

// 方案3:
ImageView.image = originImage ->> filter ->> filter2 ->> filter3

效果对比图

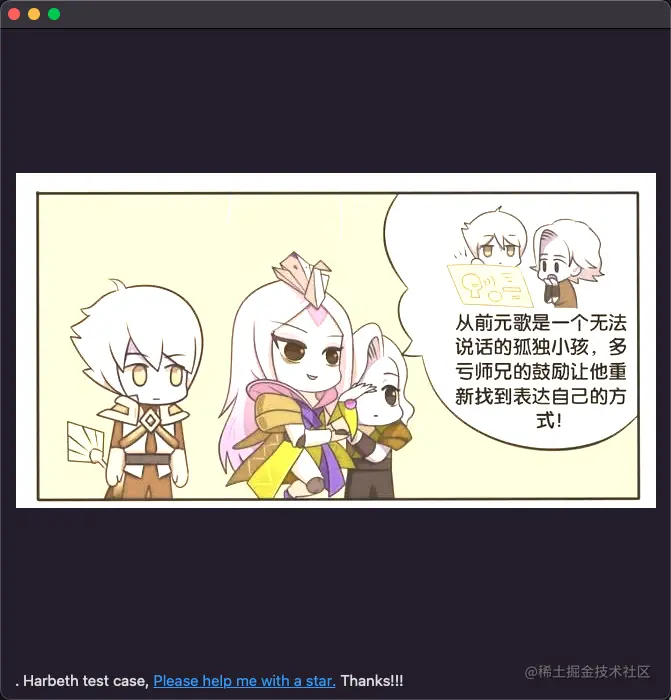

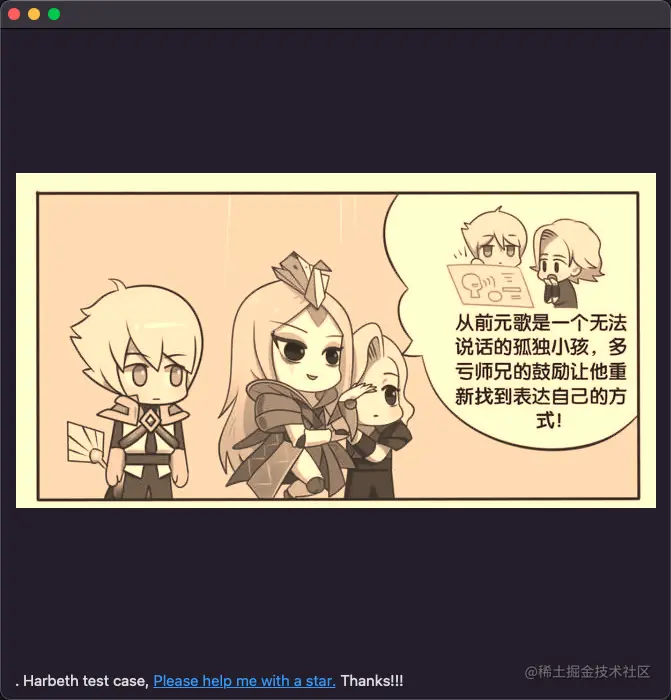

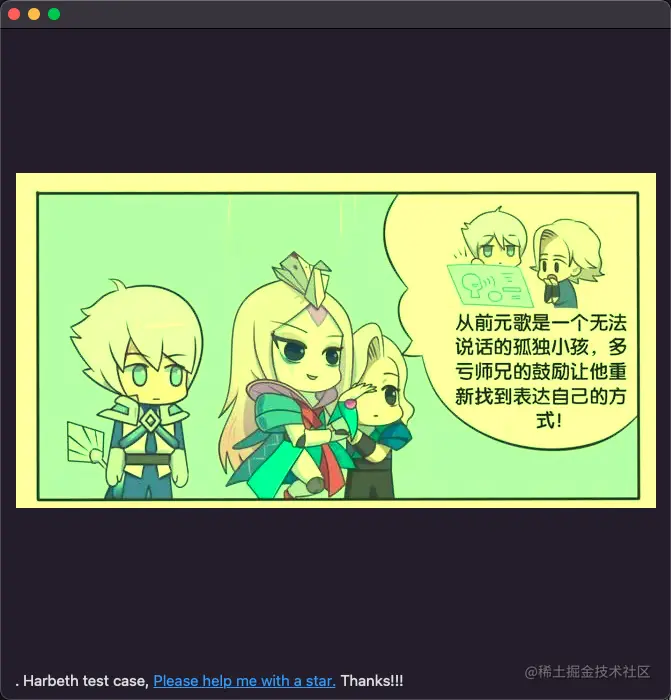

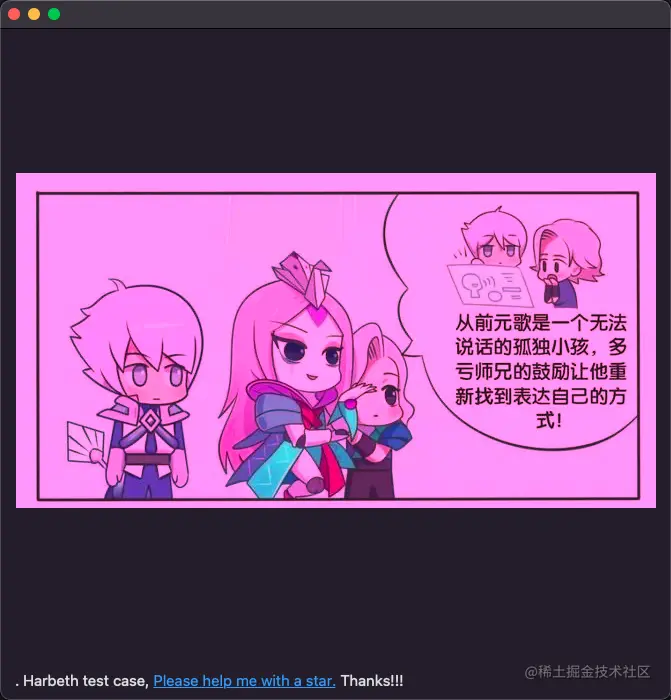

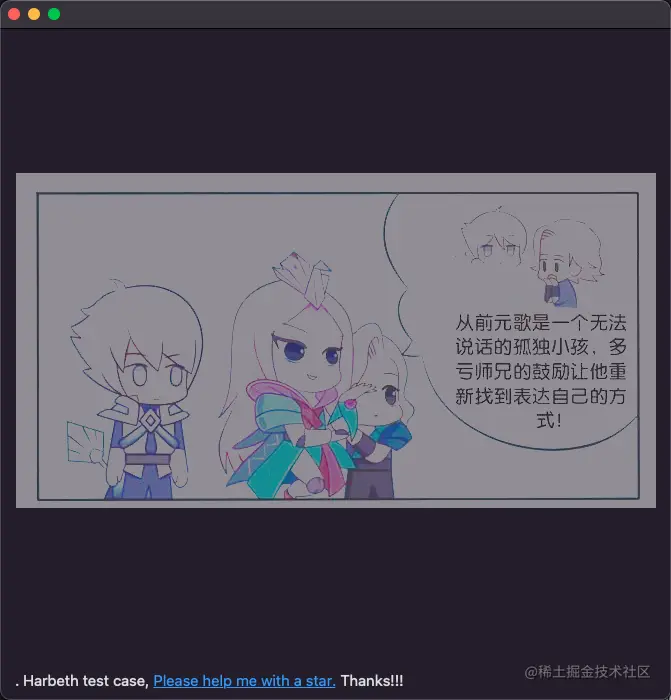

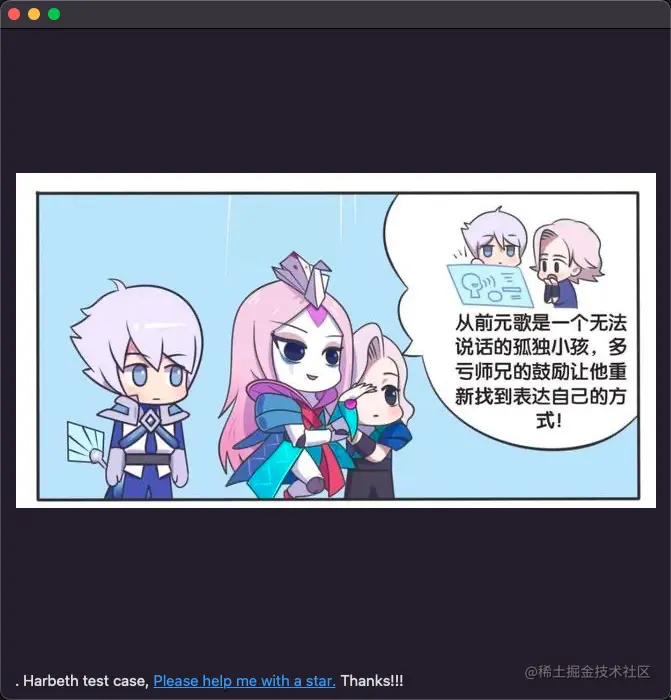

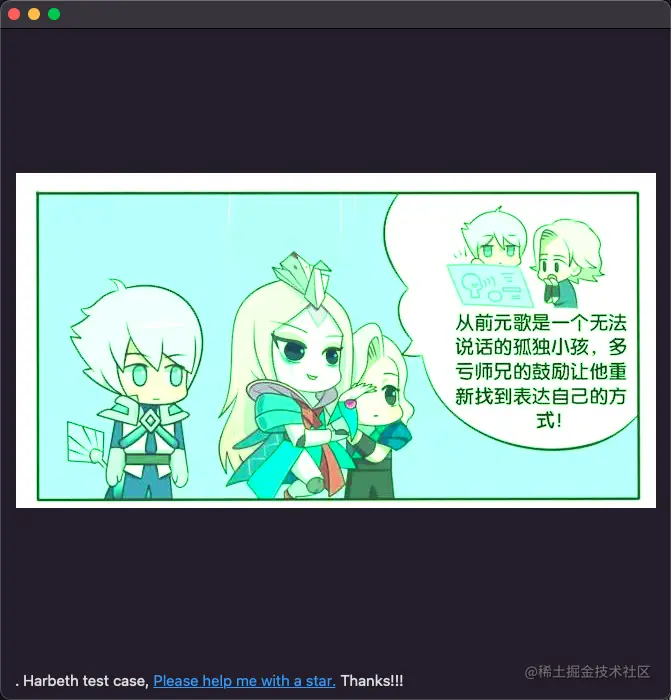

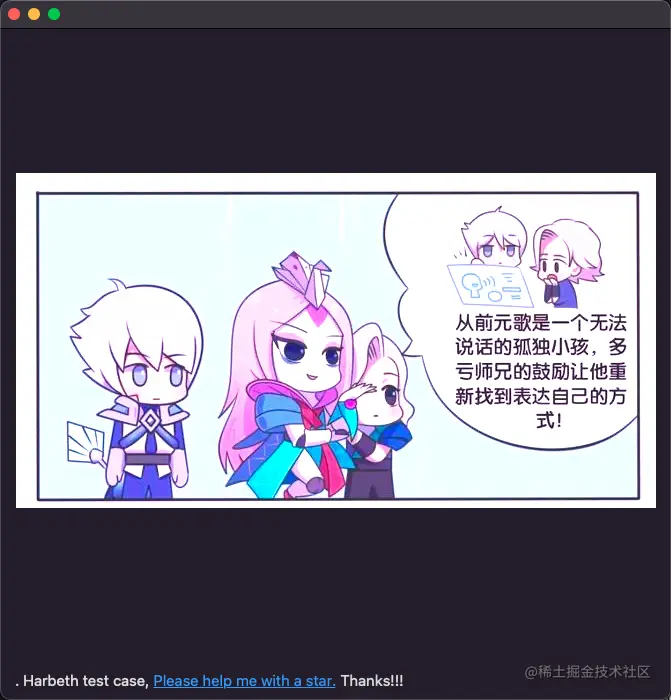

identity: 原始	sepia: 棕褐色	nostalgic: 怀旧效果

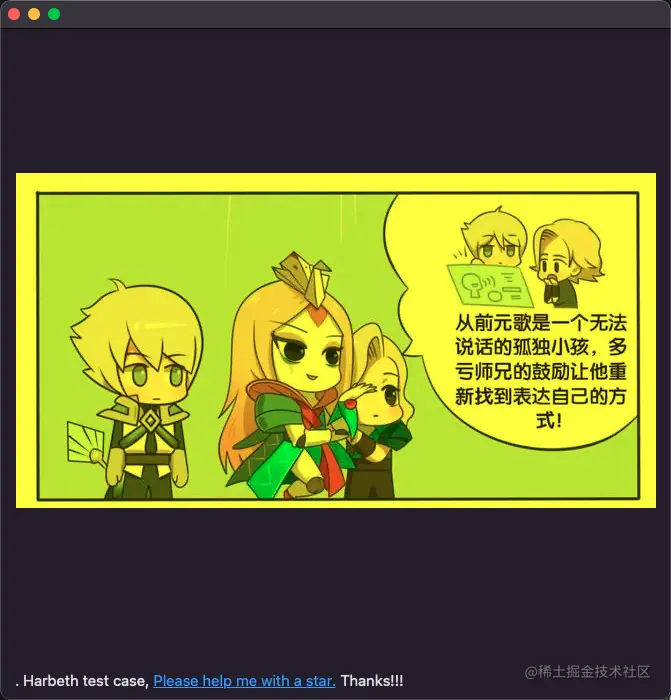

retroStyle: 复古效果	polaroid: 宝丽来彩色	greenDouble: 绿色通道加倍

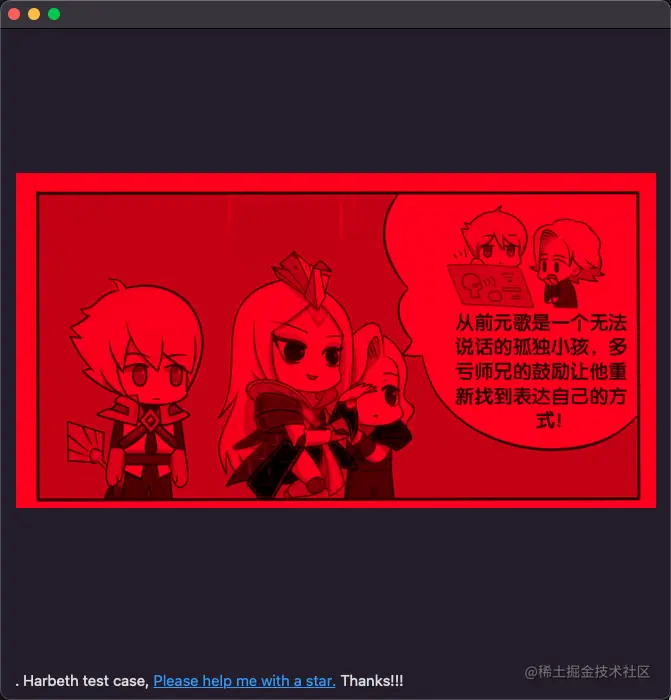

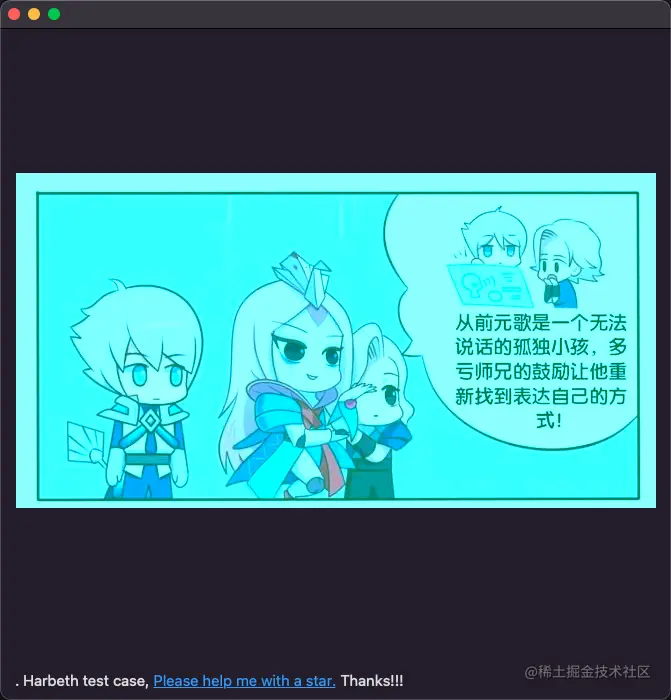

skyblue_turns_green :天蓝色变绿色	gray: 灰度图矩阵	remove_green_blue: 去掉绿色和蓝色

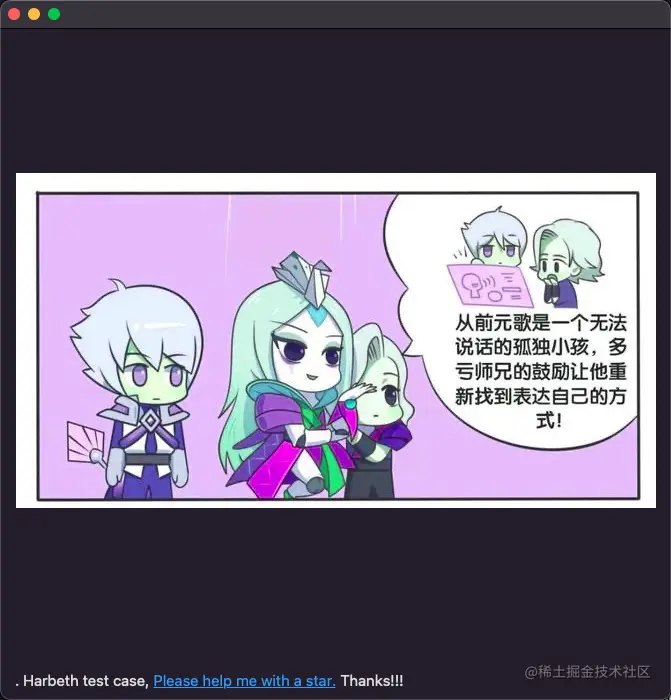

replaced_red_green: 红色绿色对调位置	rgb_to_bgr: 映射RGB到BGR	decreasingOpacity: 调整透明度
axix_red_rotate: 围绕红色旋转	axix_green_rotate: 围绕绿色旋转	axix_blue_rotate: 围绕蓝色旋转

实现原理

• 过滤器

这款滤镜采用并行计算编码器设计.compute(kernel: "C7ColorMatrix4x4")，参数因子[intensity] + offset.toFloatArray()

对外开放参数

• intensity: 新转换的颜色取代每个像素原始颜色的程度，默认1；
• offset: 每个通道的颜色偏移量；
• matrix: 颜色矩阵；

/// 4x4 color matrix.
public struct C7ColorMatrix4x4: C7FilterProtocol {

    public static let range: ParameterRange<Float, Self> = .init(min: 0.0, max: 1.0, value: 1.0)

    /// The degree to which the new transformed color replaces the original color for each pixel, default 1
    @ZeroOneRange public var intensity: Float = range.value
    /// Color offset for each channel.
    public var offset: RGBAColor = .zero
    public var matrix: Matrix4x4

    public var modifier: Modifier {
        return .compute(kernel: "C7ColorMatrix4x4")
    }

    public var factors: [Float] {
        return [intensity] + offset.toFloatArray()
    }

    public func setupSpecialFactors(for encoder: MTLCommandEncoder, index: Int) {
        guard let computeEncoder = encoder as? MTLComputeCommandEncoder else { return }
        var factor = matrix.to_factor()
        computeEncoder.setBytes(&factor, length: Matrix4x4.size, index: index + 1)
    }

    public init(matrix: Matrix4x4) {
        self.matrix = matrix
    }
}

/// RGBA色彩空间中的颜色，在`0 ~ 1`区间内
/// Color in the RGBA color space, from 0 to 1.
public struct RGBAColor {

    public static let zero = RGBAColor(red: 0, green: 0, blue: 0, alpha: 0)
    public static let one  = RGBAColor(red: 1, green: 1, blue: 1, alpha: 1)

    @ZeroOneRange public var red: Float
    @ZeroOneRange public var green: Float
    @ZeroOneRange public var blue: Float
    @ZeroOneRange public var alpha: Float

    public init(red: Float, green: Float, blue: Float, alpha: Float = 1.0) {
        self.red = red
        self.green = green
        self.blue = blue
        self.alpha = alpha
    }

    public init(color: C7Color) {
        // See: https://developer.apple.com/documentation/uikit/uicolor/1621919-getred
        let tuple = color.mt.toRGBA()
        self.init(red: tuple.red, green: tuple.green, blue: tuple.blue, alpha: tuple.alpha)
    }
}

extension RGBAColor: Convertible {
    public func toFloatArray() -> [Float] {
        [red, green, blue, alpha]
    }

    public func toRGB() -> [Float] {
        [red, green, blue]
    }
}

extension RGBAColor: Equatable {

    public static func == (lhs: RGBAColor, rhs: RGBAColor) -> Bool {
        lhs.red == rhs.red &&
        lhs.green == rhs.green &&
        lhs.blue == rhs.blue &&
        lhs.alpha == rhs.alpha
    }
}

• 着色器

对RGBA进行矩阵运算，然后加上偏移值offset，按intensity程度获取新的像素颜色；

kernel void C7ColorMatrix4x4(texture2d<half, access::write> outputTexture [[texture(0)]],
                             texture2d<half, access::read> inputTexture [[texture(1)]],
                             constant float *intensity [[buffer(0)]],
                             constant float *redOffset [[buffer(1)]],
                             constant float *greenOffset [[buffer(2)]],
                             constant float *blueOffset [[buffer(3)]],
                             constant float *alphaOffset [[buffer(4)]],
                             constant float4x4 *colorMatrix [[buffer(5)]],
                             uint2 grid [[thread_position_in_grid]]) {
    const half4 inColor = inputTexture.read(grid);
    const half r = inColor.r;
    const half g = inColor.g;
    const half b = inColor.b;
    const half a = inColor.a;

    const half4x4 matrix = half4x4(*colorMatrix);
    const half red   = r * matrix[0][0] + g * matrix[0][1] + b * matrix[0][2] + a * matrix[0][3] + (*redOffset);
    const half green = r * matrix[1][0] + g * matrix[1][1] + b * matrix[1][2] + a * matrix[1][3] + (*greenOffset);
    const half blue  = r * matrix[2][0] + g * matrix[2][1] + b * matrix[2][2] + a * matrix[2][3] + (*blueOffset);
    const half alpha = r * matrix[3][0] + g * matrix[3][1] + b * matrix[3][2] + a * matrix[3][3] + (*alphaOffset);

    const half4 color = half4(red, green, blue, alpha);
    const half4 outColor = half(*intensity) * color + (1.0h - half(*intensity)) * inColor;

    outputTexture.write(outColor, grid);
}

4x4矩阵

• 部分4x4颜色矩阵

extension Matrix4x4 {
    /// 常见4x4颜色矩阵，考线性代数时刻😪
    /// 第一行的值决定了红色值，第二行决定绿色，第三行蓝色，第四行是透明通道值
    /// Common 4x4 color matrix
    /// See: https://medium.com/macoclock/coreimage-911-color-matrix-4x4-50a7098414f4
    public struct Color { }
}

extension Matrix4x4.Color {

    public static let identity = Matrix4x4(values: [
        1.0, 0.0, 0.0, 0.0,
        0.0, 1.0, 0.0, 0.0,
        0.0, 0.0, 1.0, 0.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// 棕褐色，老照片
    public static let sepia = Matrix4x4(values: [
        0.3588, 0.7044, 0.1368, 0.0,
        0.2990, 0.5870, 0.1140, 0.0,
        0.2392, 0.4696, 0.0912, 0.0,
        0.0000, 0.0000, 0.0000, 1.0,
    ])

    /// 怀旧效果
    public static let nostalgic = Matrix4x4(values: [
        0.272, 0.534, 0.131, 0.0,
        0.349, 0.686, 0.168, 0.0,
        0.393, 0.769, 0.189, 0.0,
        0.000, 0.000, 0.000, 1.0,
    ])

    /// 复古效果
    public static let retroStyle = Matrix4x4(values: [
        0.50, 0.50, 0.50, 0.0,
        0.33, 0.33, 0.33, 0.0,
        0.25, 0.25, 0.25, 0.0,
        0.00, 0.00, 0.00, 1.0,
    ])

    /// 宝丽来彩色
    public static let polaroid = Matrix4x4(values: [
        1.4380, -0.062, -0.062, 0.0,
        -0.122, 1.3780, -0.122, 0.0,
        -0.016, -0.016, 1.4830, 0.0,
        -0.030, 0.0500, -0.020, 1.0,
    ])

    /// 绿色通道加倍
    public static let greenDouble = Matrix4x4(values: [
        1.0, 0.0, 0.0, 0.0,
        0.0, 2.0, 0.0, 0.0,
        0.0, 0.0, 1.0, 0.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// 天蓝色变绿色，天蓝色是由绿色和蓝色叠加
    public static let skyblue_turns_green = Matrix4x4(values: [
        1.0, 0.0, 0.0, 0.0,
        0.0, 1.0, 0.0, 0.0,
        0.0, 0.0, 0.0, 0.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// 灰度图矩阵，平均值法
    public static let gray = Matrix4x4(values: [
        0.33, 0.33, 0.33, 0.0,
        0.33, 0.33, 0.33, 0.0,
        0.33, 0.33, 0.33, 0.0,
        0.00, 0.00, 0.00, 1.0,
    ])

    /// 去掉绿色和蓝色
    public static let remove_green_blue = Matrix4x4(values: [
        1.0, 0.0, 0.0, 0.0,
        0.0, 0.0, 0.0, 0.0,
        0.0, 0.0, 0.0, 0.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// 红色绿色对调位置
    public static let replaced_red_green = Matrix4x4(values: [
        0.0, 1.0, 0.0, 0.0,
        1.0, 0.0, 0.0, 0.0,
        0.0, 0.0, 1.0, 0.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// 白色剪影
    /// In case you have to produce a white silhouette you need to supply data to the last column of the color matrix.
    public static let white_silhouette = Matrix4x4(values: [
        0.0, 0.0, 0.0, 1.0,
        0.0, 0.0, 0.0, 1.0,
        0.0, 0.0, 0.0, 1.0,
        0.0, 0.0, 0.0, 1.0,
    ])

    /// maps RGB to BGR (rows permuted)
    public static let rgb_to_bgr = Matrix4x4(values: [
        0.22, 0.22, 0.90, 0.0,
        0.11, 0.70, 0.44, 0.0,
        0.90, 0.11, 0.11, 0.0,
        0.00, 0.00, 0.00, 1.0
    ])

    /// When you have a premultiplied image, where RGB is multiplied by Alpha, decreasing A value you decrease a whole opacity of RGB.
    /// Thus, any underlying layer becomes partially visible from under our translucent image.
    /// - Parameter alpha: Alpha, 0 ~ 1
    public static func decreasingOpacity(_ alpha: Float) -> Matrix4x4 {
        var matrix = Matrix4x4.Color.identity
        matrix.values[15] = min(1.0, max(0.0, alpha))
        return matrix
    }

    /// Rotates the color matrix by alpha degrees clockwise about the red component axis.
    /// - Parameter angle: rotation degree.
    /// - Returns: 4x4 color matrix.
    public static func axix_red_rotate(_ angle: Float) -> Matrix4x4 {
        var matrix = Matrix4x4.Color.identity
        let radians = angle * Float.pi / 180.0
        matrix.values[5] = cos(radians)
        matrix.values[6] = sin(radians)
        matrix.values[9] = -sin(radians)
        matrix.values[10] = cos(radians)
        return matrix
    }

    /// Rotates the color matrix by alpha degrees clockwise about the green component axis.
    /// - Parameter angle: rotation degree.
    /// - Returns: 4x4 color matrix.
    public static func axix_green_rotate(_ angle: Float) -> Matrix4x4 {
        var matrix = Matrix4x4.Color.identity
        let radians = angle * Float.pi / 180.0
        matrix.values[0] = cos(radians)
        matrix.values[2] = -sin(radians)
        matrix.values[7] = sin(radians)
        matrix.values[9] = cos(radians)
        return matrix
    }

    /// Rotates the color matrix by alpha degrees clockwise about the blue component axis.
    /// - Parameter angle: rotation degree.
    /// - Returns: 4x4 color matrix.
    public static func axix_blue_rotate(_ angle: Float) -> Matrix4x4 {
        var matrix = Matrix4x4.Color.identity
        let radians = angle * Float.pi / 180.0
        matrix.values[0] = cos(radians)
        matrix.values[1] = sin(radians)
        matrix.values[4] = -sin(radians)
        matrix.values[5] = cos(radians)
        return matrix
    }
}

最后

• 慢慢再补充其他相关滤镜，喜欢就给我点个星🌟吧。

✌️.
