记得看代码中的注释哈，理解都在里面 源码基于v1.24
本篇文章讲解处理kubernetes原生资源对象（如pod，Deployment等）的Master API Serve，从server的配置（option->config）到创建实例的过程慢慢深入
MasterServer的引入
之前的三四五六节都是讲的GenericServer，是一些通用的功能，有了GenericServer之后，其他的Server就看他基于GenericServer进行拓展，代码量就会减少许多
MasterServer主要处理k8s的原生对象的增删改查如Pod，Deployment...
只需做一些额外的配置
先找到通用配置
func CreateServerChain(completedOptions completedServerRunOptions) (*aggregatorapiserver.APIAggregator, error) {
/*
CreateKubeAPIServerConfig非常重要
*/
kubeAPIServerConfig, serviceResolver, pluginInitializer, err := CreateKubeAPIServerConfig(completedOptions)
if err != nil {
return nil, err
}
/*

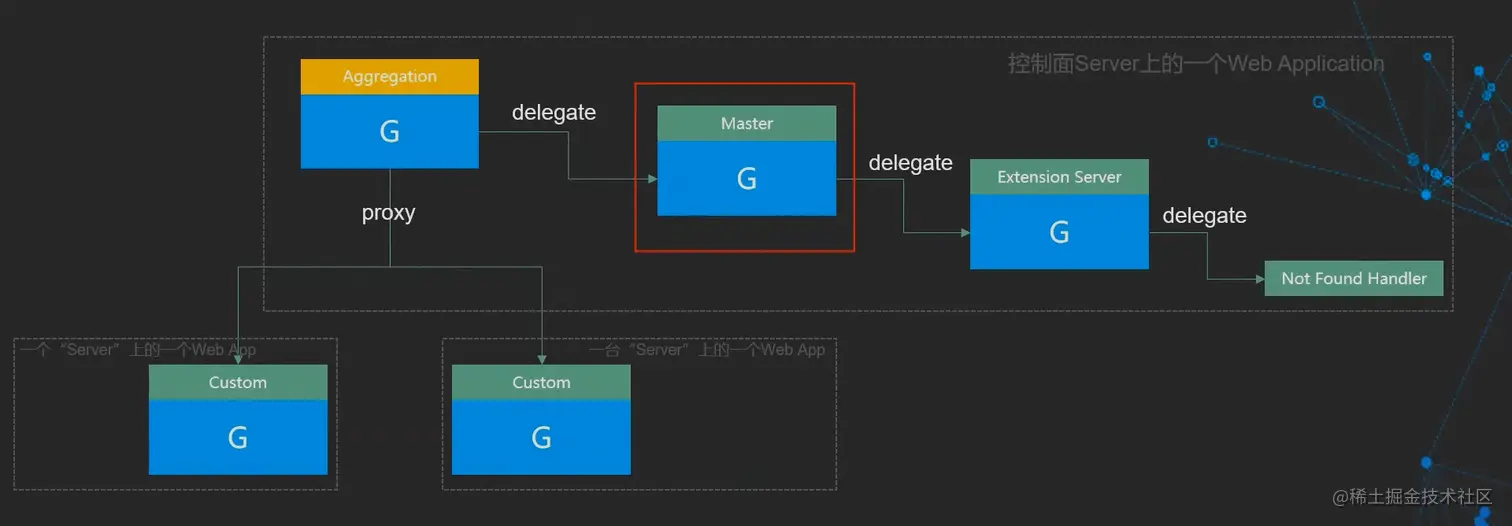

先配置在创建server，上一个的server被下一个server利用
*/
// If additional API servers are added, they should be gated.
apiExtensionsConfig, err := createAPIExtensionsConfig(*kubeAPIServerConfig.GenericConfig, kubeAPIServerConfig.ExtraConfig.VersionedInformers, pluginInitializer, completedOptions.ServerRunOptions, completedOptions.MasterCount,
serviceResolver, webhook.NewDefaultAuthenticationInfoResolverWrapper(kubeAPIServerConfig.ExtraConfig.ProxyTransport, kubeAPIServerConfig.GenericConfig.EgressSelector, kubeAPIServerConfig.GenericConfig.LoopbackClientConfig, kubeAPIServerConfig.GenericConfig.TracerProvider))
if err != nil {
return nil, err
}
notFoundHandler := notfoundhandler.New(kubeAPIServerConfig.GenericConfig.Serializer, genericapifilters.NoMuxAndDiscoveryIncompleteKey)
apiExtensionsServer, err := createAPIExtensionsServer(apiExtensionsConfig, genericapiserver.NewEmptyDelegateWithCustomHandler(notFoundHandler))
if err != nil {
return nil, err
}
kubeAPIServer, err := CreateKubeAPIServer(kubeAPIServerConfig, apiExtensionsServer.GenericAPIServer)
if err != nil {
return nil, err
}
/*
aggregator相当于一个请求的转发器，把不同路径的请求转发到不同server去处理
*/
// aggregator comes last in the chain
aggregatorConfig, err := createAggregatorConfig(*kubeAPIServerConfig.GenericConfig, completedOptions.ServerRunOptions, kubeAPIServerConfig.ExtraConfig.VersionedInformers, serviceResolver, kubeAPIServerConfig.ExtraConfig.ProxyTransport, pluginInitializer)
if err != nil {
return nil, err
}
aggregatorServer, err := createAggregatorServer(aggregatorConfig, kubeAPIServer.GenericAPIServer, apiExtensionsServer.Informers)
if err != nil {
// we don't need special handling for innerStopCh because the aggregator server doesn't create any go routines
return nil, err
}
return aggregatorServer, nil
}
func CreateKubeAPIServerConfig(s completedServerRunOptions) (
*controlplane.Config,
aggregatorapiserver.ServiceResolver,
[]admission.PluginInitializer,
error,
) {
proxyTransport := CreateProxyTransport()
/*
buildGenericConfig 构建通用的配置
*/
genericConfig, versionedInformers, serviceResolver, pluginInitializers, admissionPostStartHook, storageFactory, err := buildGenericConfig(s.ServerRunOptions, proxyTransport)
if err != nil {
return nil, nil, nil, err
}
...
config := &controlplane.Config{
GenericConfig: genericConfig,
ExtraConfig: controlplane.ExtraConfig{
APIResourceConfigSource: storageFactory.APIResourceConfigSource,
StorageFactory: storageFactory,
EventTTL: s.EventTTL,
KubeletClientConfig: s.KubeletConfig,
EnableLogsSupport: s.EnableLogsHandler,
ProxyTransport: proxyTransport,
ServiceIPRange: s.PrimaryServiceClusterIPRange,
APIServerServiceIP: s.APIServerServiceIP,
SecondaryServiceIPRange: s.SecondaryServiceClusterIPRange,
APIServerServicePort: 443,
ServiceNodePortRange: s.ServiceNodePortRange,
KubernetesServiceNodePort: s.KubernetesServiceNodePort,
EndpointReconcilerType: reconcilers.Type(s.EndpointReconcilerType),
MasterCount: s.MasterCount,
ServiceAccountIssuer: s.ServiceAccountIssuer,
ServiceAccountMaxExpiration: s.ServiceAccountTokenMaxExpiration,
ExtendExpiration: s.Authentication.ServiceAccounts.ExtendExpiration,
VersionedInformers: versionedInformers,
IdentityLeaseDurationSeconds: s.IdentityLeaseDurationSeconds,
IdentityLeaseRenewIntervalSeconds: s.IdentityLeaseRenewIntervalSeconds,
},
}
...
return config, serviceResolver, pluginInitializers, nil
}

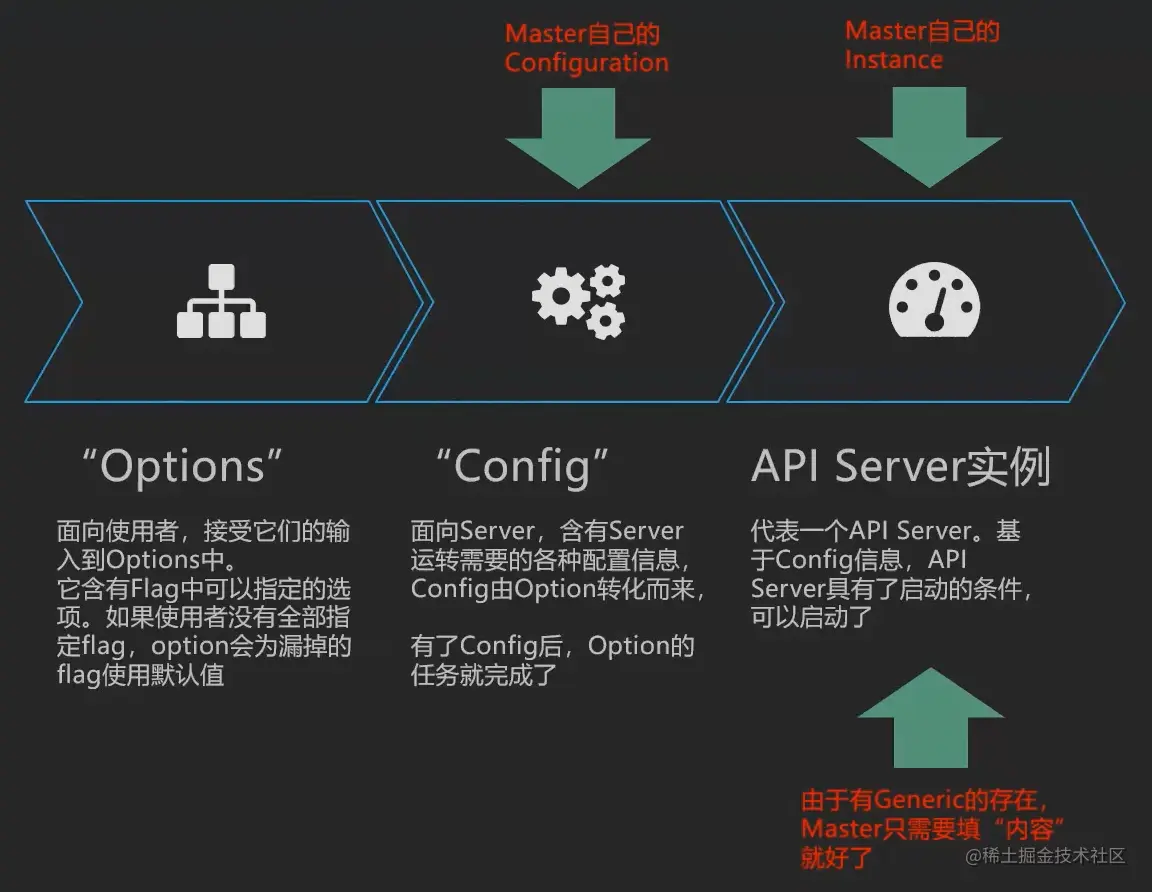

下面buildGenericConfig里面就是一系列的配置，把option转换成config的过程
func buildGenericConfig(
s *options.ServerRunOptions,
proxyTransport *http.Transport,
) (
genericConfig *genericapiserver.Config,
versionedInformers clientgoinformers.SharedInformerFactory,
serviceResolver aggregatorapiserver.ServiceResolver,
pluginInitializers []admission.PluginInitializer,
admissionPostStartHook genericapiserver.PostStartHookFunc,
storageFactory *serverstorage.DefaultStorageFactory,
lastErr error,
) {
genericConfig = genericapiserver.NewConfig(legacyscheme.Codecs)
genericConfig.MergedResourceConfig = controlplane.DefaultAPIResourceConfigSource()
if lastErr = s.GenericServerRunOptions.ApplyTo(genericConfig); lastErr != nil {
return
}
if lastErr = s.SecureServing.ApplyTo(&genericConfig.SecureServing, &genericConfig.LoopbackClientConfig); lastErr != nil {
return
}
if lastErr = s.Features.ApplyTo(genericConfig); lastErr != nil {
return
}
if lastErr = s.APIEnablement.ApplyTo(genericConfig, controlplane.DefaultAPIResourceConfigSource(), legacyscheme.Scheme); lastErr != nil {
return
}
if lastErr = s.EgressSelector.ApplyTo(genericConfig); lastErr != nil {
return
}
if utilfeature.DefaultFeatureGate.Enabled(genericfeatures.APIServerTracing) {
if lastErr = s.Traces.ApplyTo(genericConfig.EgressSelector, genericConfig); lastErr != nil {
return
}
}
// wrap the definitions to revert any changes from disabled features
getOpenAPIDefinitions := openapi.GetOpenAPIDefinitionsWithoutDisabledFeatures(generatedopenapi.GetOpenAPIDefinitions)
genericConfig.OpenAPIConfig = genericapiserver.DefaultOpenAPIConfig(getOpenAPIDefinitions, openapinamer.NewDefinitionNamer(legacyscheme.Scheme, extensionsapiserver.Scheme, aggregatorscheme.Scheme))
genericConfig.OpenAPIConfig.Info.Title = "Kubernetes"
if utilfeature.DefaultFeatureGate.Enabled(genericfeatures.OpenAPIV3) {
genericConfig.OpenAPIV3Config = genericapiserver.DefaultOpenAPIV3Config(getOpenAPIDefinitions, openapinamer.NewDefinitionNamer(legacyscheme.Scheme, extensionsapiserver.Scheme, aggregatorscheme.Scheme))
genericConfig.OpenAPIV3Config.Info.Title = "Kubernetes"
}
genericConfig.LongRunningFunc = filters.BasicLongRunningRequestCheck(
sets.NewString("watch", "proxy"),
sets.NewString("attach", "exec", "proxy", "log", "portforward"),
)
kubeVersion := version.Get()
genericConfig.Version = &kubeVersion
storageFactoryConfig := kubeapiserver.NewStorageFactoryConfig()
storageFactoryConfig.APIResourceConfig = genericConfig.MergedResourceConfig
completedStorageFactoryConfig, err := storageFactoryConfig.Complete(s.Etcd)
if err != nil {
lastErr = err
return
}
storageFactory, lastErr = completedStorageFactoryConfig.New(genericConfig.DrainedNotify())
if lastErr != nil {
return
}
if genericConfig.EgressSelector != nil {
storageFactory.StorageConfig.Transport.EgressLookup = genericConfig.EgressSelector.Lookup
}
if utilfeature.DefaultFeatureGate.Enabled(genericfeatures.APIServerTracing) {
storageFactory.StorageConfig.Transport.TracerProvider = genericConfig.TracerProvider
} else {
storageFactory.StorageConfig.Transport.TracerProvider = oteltrace.NewNoopTracerProvider()
}
if lastErr = s.Etcd.ApplyWithStorageFactoryTo(storageFactory, genericConfig); lastErr != nil {
return
}
// Use protobufs for self-communication.
// Since not every generic apiserver has to support protobufs, we
// cannot default to it in generic apiserver and need to explicitly
// set it in kube-apiserver.
genericConfig.LoopbackClientConfig.ContentConfig.ContentType = "application/vnd.kubernetes.protobuf"
// Disable compression for self-communication, since we are going to be
// on a fast local network
genericConfig.LoopbackClientConfig.DisableCompression = true
kubeClientConfig := genericConfig.LoopbackClientConfig
clientgoExternalClient, err := clientgoclientset.NewForConfig(kubeClientConfig)
if err != nil {
lastErr = fmt.Errorf("failed to create real external clientset: %v", err)
return
}
versionedInformers = clientgoinformers.NewSharedInformerFactory(clientgoExternalClient, 10*time.Minute)
// Authentication.ApplyTo requires already applied OpenAPIConfig and EgressSelector if present
if lastErr = s.Authentication.ApplyTo(&genericConfig.Authentication, genericConfig.SecureServing, genericConfig.EgressSelector, genericConfig.OpenAPIConfig, genericConfig.OpenAPIV3Config, clientgoExternalClient, versionedInformers); lastErr != nil {
return
}
genericConfig.Authorization.Authorizer, genericConfig.RuleResolver, err = BuildAuthorizer(s, genericConfig.EgressSelector, versionedInformers)
if err != nil {
lastErr = fmt.Errorf("invalid authorization config: %v", err)
return
}
if !sets.NewString(s.Authorization.Modes...).Has(modes.ModeRBAC) {
genericConfig.DisabledPostStartHooks.Insert(rbacrest.PostStartHookName)
}
lastErr = s.Audit.ApplyTo(genericConfig)
if lastErr != nil {
return
}
admissionConfig := &kubeapiserveradmission.Config{
ExternalInformers: versionedInformers,
LoopbackClientConfig: genericConfig.LoopbackClientConfig,
CloudConfigFile: s.CloudProvider.CloudConfigFile,
}
serviceResolver = buildServiceResolver(s.EnableAggregatorRouting, genericConfig.LoopbackClientConfig.Host, versionedInformers)
pluginInitializers, admissionPostStartHook, err = admissionConfig.New(proxyTransport, genericConfig.EgressSelector, serviceResolver, genericConfig.TracerProvider)
if err != nil {
lastErr = fmt.Errorf("failed to create admission plugin initializer: %v", err)
return
}
err = s.Admission.ApplyTo(
genericConfig,
versionedInformers,
kubeClientConfig,
utilfeature.DefaultFeatureGate,
pluginInitializers...)
if err != nil {
lastErr = fmt.Errorf("failed to initialize admission: %v", err)
return
}
if utilfeature.DefaultFeatureGate.Enabled(genericfeatures.APIPriorityAndFairness) && s.GenericServerRunOptions.EnablePriorityAndFairness {
genericConfig.FlowControl, lastErr = BuildPriorityAndFairness(s, clientgoExternalClient, versionedInformers)
}
return
}

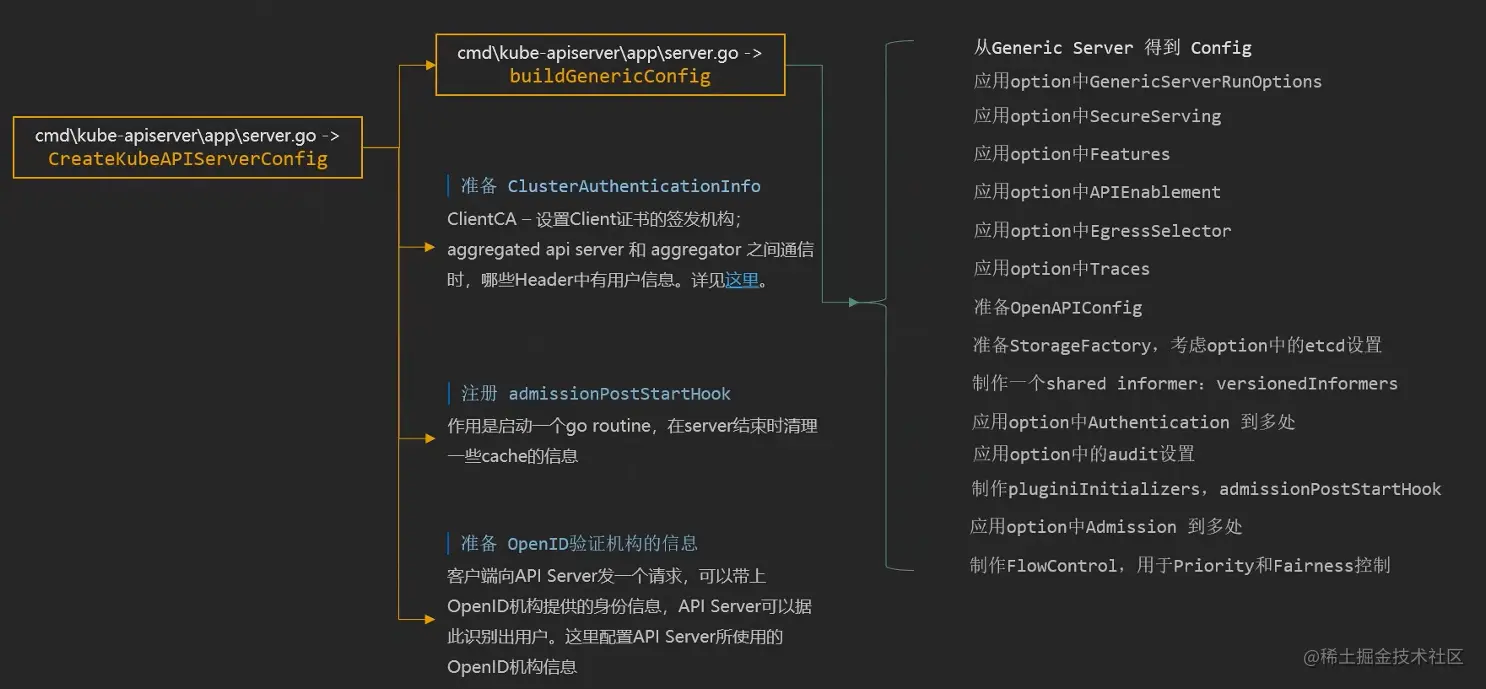

流程解析如下图
MasterServer的创建
对配置进行complete
func CreateKubeAPIServer(kubeAPIServerConfig *controlplane.Config, delegateAPIServer genericapiserver.DelegationTarget) (*controlplane.Instance, error) {
/*
主要逻辑在New中，函数返回的*controlplane.Instance就是MasterServer的代名词，Complete是加载配置的默认值
*/
kubeAPIServer, err := kubeAPIServerConfig.Complete().New(delegateAPIServer)
if err != nil {
return nil, err
}
return kubeAPIServer, nil
}
func (c *Config) Complete() CompletedConfig {
cfg := completedConfig{
c.GenericConfig.Complete(c.ExtraConfig.VersionedInformers),
&c.ExtraConfig,
}
serviceIPRange, apiServerServiceIP, err := ServiceIPRange(cfg.ExtraConfig.ServiceIPRange)
if err != nil {
klog.Fatalf("Error determining service IP ranges: %v", err)
}
if cfg.ExtraConfig.ServiceIPRange.IP == nil {
cfg.ExtraConfig.ServiceIPRange = serviceIPRange
}
if cfg.ExtraConfig.APIServerServiceIP == nil {
cfg.ExtraConfig.APIServerServiceIP = apiServerServiceIP
}
discoveryAddresses := discovery.DefaultAddresses{DefaultAddress: cfg.GenericConfig.ExternalAddress}
discoveryAddresses.CIDRRules = append(discoveryAddresses.CIDRRules,
discovery.CIDRRule{IPRange: cfg.ExtraConfig.ServiceIPRange, Address: net.JoinHostPort(cfg.ExtraConfig.APIServerServiceIP.String(), strconv.Itoa(cfg.ExtraConfig.APIServerServicePort))})
cfg.GenericConfig.DiscoveryAddresses = discoveryAddresses
if cfg.ExtraConfig.ServiceNodePortRange.Size == 0 {
// TODO: Currently no way to specify an empty range (do we need to allow this?)
// We should probably allow this for clouds that don't require NodePort to do load-balancing (GCE)
// but then that breaks the strict nestedness of ServiceType.
// Review post-v1
cfg.ExtraConfig.ServiceNodePortRange = kubeoptions.DefaultServiceNodePortRange
klog.Infof("Node port range unspecified. Defaulting to %v.", cfg.ExtraConfig.ServiceNodePortRange)
}
if cfg.ExtraConfig.EndpointReconcilerConfig.Interval == 0 {
cfg.ExtraConfig.EndpointReconcilerConfig.Interval = DefaultEndpointReconcilerInterval
}
if cfg.ExtraConfig.MasterEndpointReconcileTTL == 0 {
cfg.ExtraConfig.MasterEndpointReconcileTTL = DefaultEndpointReconcilerTTL
}
if cfg.ExtraConfig.EndpointReconcilerConfig.Reconciler == nil {
cfg.ExtraConfig.EndpointReconcilerConfig.Reconciler = c.createEndpointReconciler()
}
if cfg.ExtraConfig.RepairServicesInterval == 0 {
cfg.ExtraConfig.RepairServicesInterval = repairLoopInterval
}
return CompletedConfig{&cfg}
}
流程解析如下图

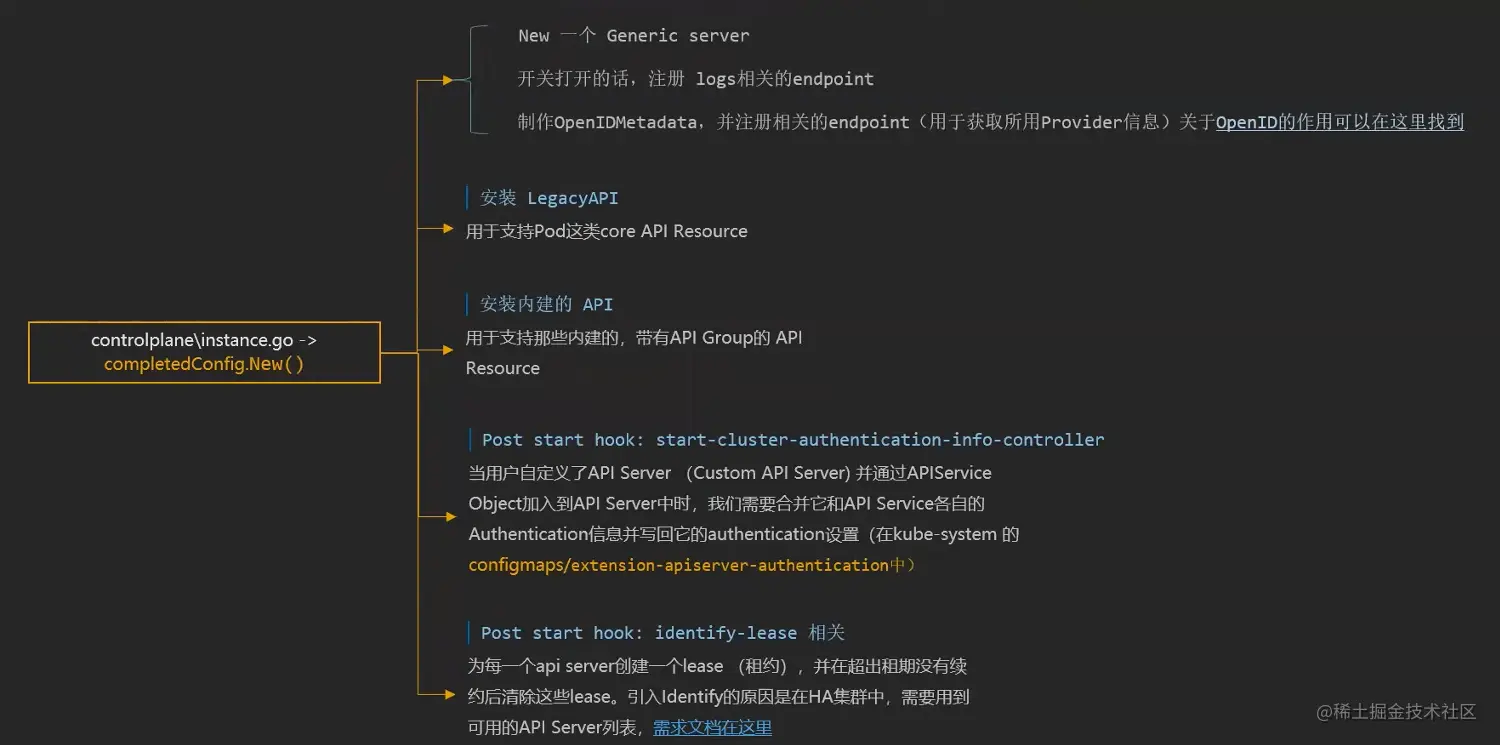

完善配置后，开始NewServer
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Instance, error) {
if reflect.DeepEqual(c.ExtraConfig.KubeletClientConfig, kubeletclient.KubeletClientConfig{}) {
return nil, fmt.Errorf("Master.New() called with empty config.KubeletClientConfig")
}
/*
这个GenericConfig挺重要的，后面再讲，我们先找Api-Object的装载
*/
s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
if err != nil {
return nil, err
}
if c.ExtraConfig.EnableLogsSupport {
routes.Logs{}.Install(s.Handler.GoRestfulContainer)
}
// Metadata and keys are expected to only change across restarts at present,
// so we just marshal immediately and serve the cached JSON bytes.
md, err := serviceaccount.NewOpenIDMetadata(
c.ExtraConfig.ServiceAccountIssuerURL,
c.ExtraConfig.ServiceAccountJWKSURI,
c.GenericConfig.ExternalAddress,
c.ExtraConfig.ServiceAccountPublicKeys,
)
if err != nil {
// If there was an error, skip installing the endpoints and log the
// error, but continue on. We don't return the error because the
// metadata responses require additional, backwards incompatible
// validation of command-line options.
msg := fmt.Sprintf("Could not construct pre-rendered responses for"+
" ServiceAccountIssuerDiscovery endpoints. Endpoints will not be"+
" enabled. Error: %v", err)
if c.ExtraConfig.ServiceAccountIssuerURL != "" {
// The user likely expects this feature to be enabled if issuer URL is
// set and the feature gate is enabled. In the future, if there is no
// longer a feature gate and issuer URL is not set, the user may not
// expect this feature to be enabled. We log the former case as an Error
// and the latter case as an Info.
klog.Error(msg)
} else {
klog.Info(msg)
}
} else {
routes.NewOpenIDMetadataServer(md.ConfigJSON, md.PublicKeysetJSON).
Install(s.Handler.GoRestfulContainer)
}
/*
在这里有个Instance，是MasterServer的代名词
*/
m := &Instance{
GenericAPIServer: s,
ClusterAuthenticationInfo: c.ExtraConfig.ClusterAuthenticationInfo,
}
// install legacy rest storage
/*
既负责和etcd打交道也负责响应restful的HTTP请求，下面是装载LegacyAPI的对象
*/
if err := m.InstallLegacyAPI(&c, c.GenericConfig.RESTOptionsGetter); err != nil {
return nil, err
}
/*
非Legacy的对象的Provider，进行api的装载
*/
restStorageProviders := []RESTStorageProvider{
apiserverinternalrest.StorageProvider{},
authenticationrest.RESTStorageProvider{Authenticator: c.GenericConfig.Authentication.Authenticator, APIAudiences: c.GenericConfig.Authentication.APIAudiences},
authorizationrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer, RuleResolver: c.GenericConfig.RuleResolver},
autoscalingrest.RESTStorageProvider{},
batchrest.RESTStorageProvider{},
certificatesrest.RESTStorageProvider{},
coordinationrest.RESTStorageProvider{},
discoveryrest.StorageProvider{},
networkingrest.RESTStorageProvider{},
noderest.RESTStorageProvider{},
policyrest.RESTStorageProvider{},
rbacrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer},
schedulingrest.RESTStorageProvider{},
storagerest.RESTStorageProvider{},
flowcontrolrest.RESTStorageProvider{InformerFactory: c.GenericConfig.SharedInformerFactory},
// keep apps after extensions so legacy clients resolve the extensions versions of shared resource names.
// See https://github.com/kubernetes/kubernetes/issues/42392
appsrest.StorageProvider{},
admissionregistrationrest.RESTStorageProvider{},
eventsrest.RESTStorageProvider{TTL: c.ExtraConfig.EventTTL},
}
if err := m.InstallAPIs(c.ExtraConfig.APIResourceConfigSource, c.GenericConfig.RESTOptionsGetter, restStorageProviders...); err != nil {
return nil, err
}
/*
拓展的customServer
*/
m.GenericAPIServer.AddPostStartHookOrDie("start-cluster-authentication-info-controller", func(hookContext genericapiserver.PostStartHookContext) error {
kubeClient, err := kubernetes.NewForConfig(hookContext.LoopbackClientConfig)
if err != nil {
return err
}
controller := clusterauthenticationtrust.NewClusterAuthenticationTrustController(m.ClusterAuthenticationInfo, kubeClient)
// generate a context from stopCh. This is to avoid modifying files which are relying on apiserver
// TODO: See if we can pass ctx to the current method
ctx, cancel := context.WithCancel(context.Background())
go func() {
select {
case <-hookContext.StopCh:
cancel() // stopCh closed, so cancel our context
case <-ctx.Done():
}
}()
/*
启动一些controller来更新CA
*/
// prime values and start listeners
if m.ClusterAuthenticationInfo.ClientCA != nil {
m.ClusterAuthenticationInfo.ClientCA.AddListener(controller)
if controller, ok := m.ClusterAuthenticationInfo.ClientCA.(dynamiccertificates.ControllerRunner); ok {
// runonce to be sure that we have a value.
if err := controller.RunOnce(ctx); err != nil {
runtime.HandleError(err)
}
go controller.Run(ctx, 1)
}
}
if m.ClusterAuthenticationInfo.RequestHeaderCA != nil {
m.ClusterAuthenticationInfo.RequestHeaderCA.AddListener(controller)
if controller, ok := m.ClusterAuthenticationInfo.RequestHeaderCA.(dynamiccertificates.ControllerRunner); ok {
// runonce to be sure that we have a value.
if err := controller.RunOnce(ctx); err != nil {
runtime.HandleError(err)
}
go controller.Run(ctx, 1)
}
}
go controller.Run(ctx, 1)
return nil
})
/*
续约的操作
*/
if utilfeature.DefaultFeatureGate.Enabled(apiserverfeatures.APIServerIdentity) {
m.GenericAPIServer.AddPostStartHookOrDie("start-kube-apiserver-identity-lease-controller", func(hookContext genericapiserver.PostStartHookContext) error {
kubeClient, err := kubernetes.NewForConfig(hookContext.LoopbackClientConfig)
if err != nil {
return err
}
controller := lease.NewController(
clock.RealClock{},
kubeClient,
m.GenericAPIServer.APIServerID,
int32(c.ExtraConfig.IdentityLeaseDurationSeconds),
nil,
time.Duration(c.ExtraConfig.IdentityLeaseRenewIntervalSeconds)*time.Second,
metav1.NamespaceSystem,
labelAPIServerHeartbeat)
go controller.Run(hookContext.StopCh)
return nil
})
m.GenericAPIServer.AddPostStartHookOrDie("start-kube-apiserver-identity-lease-garbage-collector", func(hookContext genericapiserver.PostStartHookContext) error {
kubeClient, err := kubernetes.NewForConfig(hookContext.LoopbackClientConfig)
if err != nil {
return err
}
go apiserverleasegc.NewAPIServerLeaseGC(
kubeClient,
time.Duration(c.ExtraConfig.IdentityLeaseDurationSeconds)*time.Second,
metav1.NamespaceSystem,
KubeAPIServerIdentityLeaseLabelSelector,
).Run(hookContext.StopCh)
return nil
})
}
return m, nil
}
流程解析如下图
到此MasterServer的实例已经创建，剩下就是Run就可以了
Summary
- 构建通用配置
- 配置的完善
- Server实例创建
