Echarts图表 一些实现

HPAN_
112 阅读1分钟

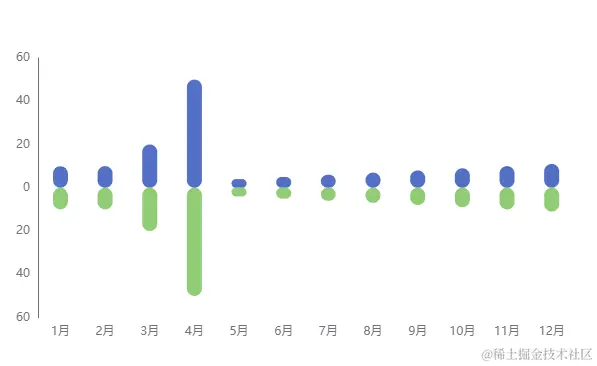

柱状图上下都为正数

效果实现如下


<template>
  <div>
    <div id="echart-one"></div>
  </div>
</template>
<script>
  import * as echarts from 'echarts';

  export default {
    name: 'PageOne',
    data() {
      return {
        myChart: null,
      };
    },
    mounted() {
      var chartDom = document.getElementById('echart-one');
      this.myChart = echarts.init(chartDom);

      var xAxisData = ["1月", "2月", "3月", "4月", "5月", "6月", "7月", "8月", "9月", "10月", "11月", "12月"];
      var data1 = [10, 10, 20, 50, 4, 5, 6, 7, 8, 9, 10, 11]; //上半部分的数据
      var data2 = []; //下半部分的数据
      data2 = data1.map((item) => {
        return -item
      })

      var option = {
        backgroundColor: "#fff",
        tooltip: {
          trigger: 'item',
          axisPointer: {
            type: 'shadow'
          },
          formatter: function (params) {
            // 使用绝对值把负数变正数
            return `${params.name}:${Math.abs(params.value)}`
          }
        },
        grid: {
          left: '3%',
          right: '4%',
          bottom: '3%',
          containLabel: true
        },
        yAxis: [
          {
            type: 'value',
            axisLine: {
              show: true
            },
            axisLabel: {
              formatter: function (params) {
              // 把负数返回展示成正数
                if (params < 0) {
                  return -params
                } else {
                  return params
                }
              }
            },
            splitLine: {
              show: false
            }
          }
        ],
        xAxis: [
          {
            type: 'category',
            axisTick: {
              show: false
            },
            axisLine: {
              show: false
            },
            data: xAxisData,
          }
        ],
        series: [
          {
            name: 'Income',
            type: 'bar',
            stack: 'Total',
            label: {
              show: false
            },
            emphasis: {
              focus: 'series'
            },
            barWidth: "15",
            itemStyle: {
              borderRadius: [25, 25, 25, 25]
            },
            data: data1
          },
          {
            name: 'Expenses',
            type: 'bar',
            stack: 'Total',
            label: {
              show: false,
              position: 'left'
            },
            emphasis: {
              focus: 'series'
            },
            barWidth: "15",
            itemStyle: {
              borderRadius: [25, 25, 25, 25]
            },
            data: data2
          }
        ]
      };

      option && this.myChart.setOption(option);
    },
  };
</script>

<style lang="scss" scoped>
  #echart-one {
    width: 600px;
    height: 350px;
  }
</style>

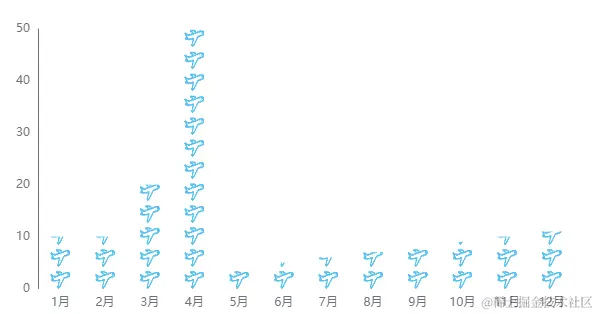

象柱状图使用自定义图片柱状

效果实现如下


<template>
  <div>
    <div id="echart-two"></div>
  </div>
</template>

<script>
  import * as echarts from 'echarts';

  export default {
    name: 'PageOne',
    data() {
      return {
        feijiIcon: require("@/assets/images/feiji.png"),
        myChart: null,
      };
    },
    mounted() {
      var xAxisData = ["1月", "2月", "3月", "4月", "5月", "6月", "7月", "8月", "9月", "10月", "11月", "12月"];
      var data1 = [10, 10, 20, 50, 4, 5, 6, 7, 8, 9, 10, 11];

      var chartDomTwo = document.getElementById('echart-two');
      this.myChartTwo = echarts.init(chartDomTwo);

      var optionTwo = {
        backgroundColor: "#fff",
        tooltip: {
          trigger: 'item',
          axisPointer: {
            type: 'shadow'
          }
        },
        grid: {
          left: '3%',
          right: '4%',
          bottom: '3%',
          containLabel: true
        },
        yAxis: [
          {
            type: 'value',
            axisLine: {
              show: true
            },
            splitLine: {
              show: false
            }
          }
        ],
        xAxis: [
          {
            type: 'category',
            axisTick: {
              show: false
            },
            axisLine: {
              show: false
            },
            data: xAxisData,
          }
        ],
        series: [
          {
            name: 'Income',
            type: 'pictorialBar',
            stack: 'Total',
            symbol: `image://${this.feijiIcon}`,
            symbolRepeat: true,
            symbolClip: "true",
            symbolSize: [20, 18],
            symbolPosition: "start",
            data: data1
          },
        ]
      };

      optionTwo && this.myChartTwo.setOption(optionTwo);
    }
  };
</script>

<style lang="scss" scoped>
  #echart-two {
    width: 600px;
    height: 350px;
  }
</style>

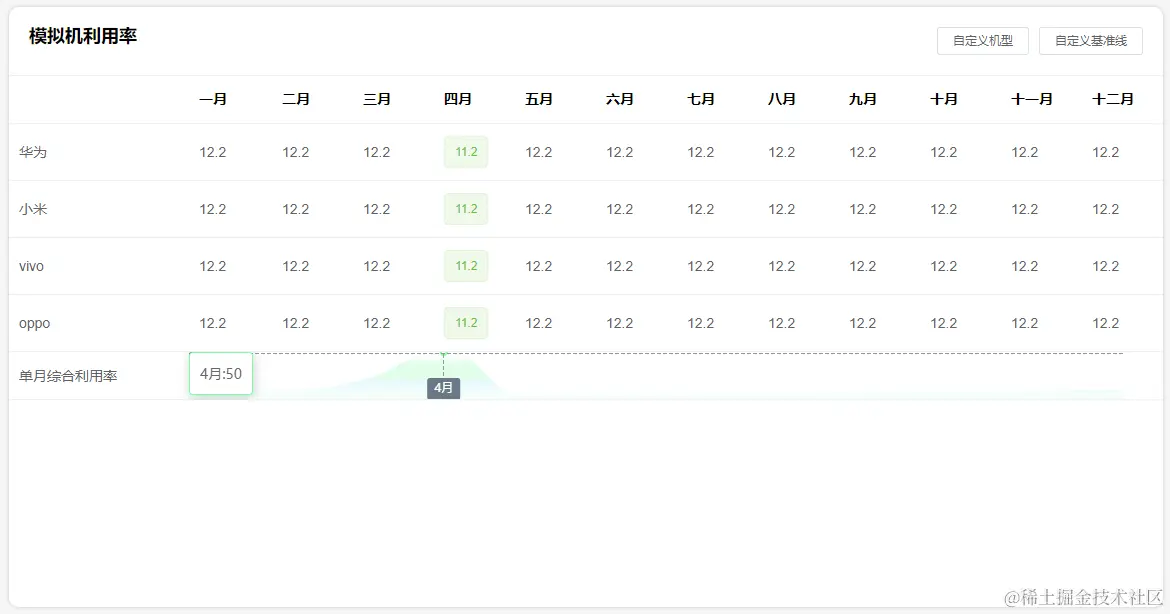

表格内嵌套图表（只是效果）

粗略效果实现如下


<template>
  <div class="page-two">
    <div class="content">
      <div class="header">
        <div class="title">模拟机利用率</div>
        <div class="btns">
          <el-button size="mini" @click="showFilterJX()">自定义机型</el-button>
          <el-button size="mini" @click="showHighlightDialog=true">自定义基准线</el-button>
        </div>
      </div>
      <div class="table-content">
        <el-table :data="dataList" style="width: 100%" header-row-class-name="tr-header">
          <el-table-column prop="jx" width="180">
          </el-table-column>
          <el-table-column prop="1" label="一月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['1'])">
                <el-tag type="success">{{row['1']}}</el-tag>
              </div>
              <div v-else>{{row['1']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="2" label="二月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="row['2'] < jzx">
                <el-tag type="success">{{row['2']}}</el-tag>
              </div>
              <div v-else>{{row['2']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="3" label="三月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['3'])">
                <el-tag type="success">{{row['3']}}</el-tag>
              </div>
              <div v-else>{{row['3']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="4" label="四月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['4'])">
                <el-tag type="success">{{row['4']}}</el-tag>
              </div>
              <div v-else>{{row['4']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="5" label="五月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['5'])">
                <el-tag type="success">{{row['5']}}</el-tag>
              </div>
              <div v-else>{{row['5']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="6" label="六月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['6'])">
                <el-tag type="success">{{row['6']}}</el-tag>
              </div>
              <div v-else>{{row['6']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="7" label="七月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['7'])">
                <el-tag type="success">{{row['7']}}</el-tag>
              </div>
              <div v-else>{{row['7']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="8" label="八月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['8'])">
                <el-tag type="success">{{row['8']}}</el-tag>
              </div>
              <div v-else>{{row['8']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="9" label="九月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['9'])">
                <el-tag type="success">{{row['9']}}</el-tag>
              </div>
              <div v-else>{{row['9']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="10" label="十月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['10'])">
                <el-tag type="success">{{row['10']}}</el-tag>
              </div>
              <div v-else>{{row['10']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="11" label="十一月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['11'])">
                <el-tag type="success">{{row['11']}}</el-tag>
              </div>
              <div v-else>{{row['11']}}</div>
            </template>
          </el-table-column>
          <el-table-column prop="12" label="十二月" min-width="80">
            <template slot-scope="{ row }">
              <div v-if="isShowTag(row['12'])">
                <el-tag type="success">{{row['12']}}</el-tag>
              </div>
              <div v-else>{{row['12']}}</div>
            </template>
          </el-table-column>
        </el-table>
      </div>

      <!-- 通过使用 element-ui的组件样式 实现表格内嵌套图表的效果 -->
      <div class="el-table echarts">
        <div class="el-table__row">
          <div class="cell">单月综合利用率</div>
          <div id="echart-one" class="echart-one"></div>
        </div>
      </div>
    </div>

    <el-dialog title="提示" :visible.sync="showFilterJXBool" width="30%" center>
      <el-select v-model="filterJXValue" multiple placeholder="请选择">
        <el-option v-for="item in tableData" :key="item.jx" :label="item.jx" :value="item.jx">
        </el-option>
      </el-select>
      <span slot="footer" class="dialog-footer">
        <el-button @click="showFilterJXBool = false">取 消</el-button>
        <el-button type="primary" @click="showFilterJXBool = false;filterJXEvent()">确 定</el-button>
      </span>
    </el-dialog>

    <el-dialog title="提示" :visible.sync="showHighlightDialog" width="30%" center>
      <el-input placeholder="请输入内容" v-model.number="inputJzx" type="number" clearable>
      </el-input>
      <span slot="footer" class="dialog-footer">
        <el-button @click="showHighlightDialog = false">取 消</el-button>
        <el-button type="primary" @click="showHighlightDialog = false;jzx=inputJzx">确 定</el-button>
      </span>
    </el-dialog>
  </div>
</template>

<script>
  import * as echarts from 'echarts';

  export default {
    name: 'PageTwo',
    data() {
      return {
        myChart: null,
        tableData: [{
          jx: "华为",
          1: 12.20,
          2: 12.20,
          3: 12.20,
          4: 11.20,
          5: 12.20,
          6: 12.20,
          7: 12.20,
          8: 12.20,
          9: 12.20,
          10: 12.20,
          11: 12.20,
          12: 12.20,
        }, {
          jx: "小米",
          1: 12.20,
          2: 12.20,
          3: 12.20,
          4: 11.20,
          5: 12.20,
          6: 12.20,
          7: 12.20,
          8: 12.20,
          9: 12.20,
          10: 12.20,
          11: 12.20,
          12: 12.20,
        }, {
          jx: "vivo",
          1: 12.20,
          2: 12.20,
          3: 12.20,
          4: 11.20,
          5: 12.20,
          6: 12.20,
          7: 12.20,
          8: 12.20,
          9: 12.20,
          10: 12.20,
          11: 12.20,
          12: 12.20,
        }, {
          jx: "oppo",
          1: 12.20,
          2: 12.20,
          3: 12.20,
          4: 11.20,
          5: 12.20,
          6: 12.20,
          7: 12.20,
          8: 12.20,
          9: 12.20,
          10: 12.20,
          11: 12.20,
          12: 12.20,
        }],
        jzx: 12,
        showFilterJXBool: false,
        filterJXValue: [],
        isFilter: false,
        showHighlightDialog: false,
        inputJzx: 0
      };
    },
    mounted() {
      var chartDom = document.getElementById('echart-one');
      var myChart = echarts.init(chartDom);

      var xAxisData = ["1月", "2月", "3月", "4月", "5月", "6月", "7月", "8月", "9月", "10月", "11月", "12月"];
      var data1 = [10, 10, 20, 50, 4, 5, 6, 7, 8, 9, 10, 11];
      var option;

      option = {
        color: ['#80FFA5', '#00DDFF', '#37A2FF', '#FF0087', '#FFBF00'],
        tooltip: {
          trigger: 'item',
          axisPointer: {
            type: 'cross',
            label: {
              backgroundColor: '#6a7985'
            }
          },
          position: [0, 0],
          formatter: function (params) {
            return `${params.name}:${Math.abs(params.value)}`
          }
        },
        grid: {
          top: 0,
          left: 0,
          right: 40,
          bottom: 0,
          // containLabel: true
        },
        xAxis: [
          {
            type: 'category',
            boundaryGap: false,
            show: false,
            axisTick: { alignWithLabel: true },
            data: xAxisData,
          }
        ],
        yAxis: [
          {
            type: 'value',
            show: false
          }
        ],
        series: [
          {
            name: 'Line 1',
            type: 'line',
            stack: 'Total',
            smooth: true,
            lineStyle: {
              width: 0
            },
            showSymbol: false,
            areaStyle: {
              color: {
                type: 'linear',
                x: 0,
                y: 0,
                x2: 0,
                y2: 1,
                colorStops: [{
                  offset: 0, color: 'rgba(179,127,235,0.5)' // 0% 处的颜色
                }, {
                  offset: 0.5, color: 'rgba(179,127,235,0.3)' // 100% 处的颜色
                }, {
                  offset: 1, color: 'rgba(179,127,235,0.1)' // 100% 处的颜色
                }],
                global: false // 缺省为 false
              }
            },
            emphasis: {
              focus: 'series'
            },
            data: data1
          }
        ]
      };

      option && myChart.setOption(option);
    },
    computed: {
      dataList() {
        const { tableData, isFilter } = this;

        if (!isFilter) return tableData;

        const result = this.filterJXValue.map(val => {
          return tableData.find(data => data.jx == val);
        })
        return result;
      },
    },
    methods: {
      isShowTag(value) {
        let { jzx } = this;
        return value < jzx;
      },
      filterJXEvent() {
        this.isFilter = true;
      },
      showFilterJX() {
        this.showFilterJXBool = true;
      },
    },
  };
</script>

<style lang="scss" scoped>
  .page-two {
    box-sizing: border-box;
    padding: 20px 0;
  }
  .content {
    box-sizing: border-box;
    background-color: #fff;
    border-radius: 10px;
    -webkit-box-shadow: 0px 0px 4px 0px rgba(161, 161, 161, 0.5);
    -moz-box-shadow: 0px 0px 4px 0px rgba(161, 161, 161, 0.5);
    box-shadow: 0px 0px 4px 0px rgba(161, 161, 161, 0.5);
    height: 600px;

    .header {
      display: flex;
      justify-content: space-between;
      padding: 20px;
      border-bottom: 1px solid #ebeef5;

      .title {
        font-weight: bold;
        font-size: 18px;
      }
    }
    ::v-deep .tr-header {
      color: #000000;
      font-weight: bold;
    }

    .echarts {
      .el-table__row {
        height: 48px;
        display: flex;
      }

      .cell {
        width: 180px;
        line-height: 48px;
      }

      .echart-one {
        height: 48px;
        flex: 1;
      }
    }
  }
</style>

记录
