Metal每日分享，连环画滤镜和油画滤镜效果

「这是我参与2022首次更文挑战的第13天，活动详情查看：2022首次更文挑战」

本案例的目的是理解如何用Metal实现连环画滤镜和油画滤镜，将图像处理成连环画和油画效果；

---

Demo

• HarbethDemo地址
• iDay每日分享文档地址

效果图

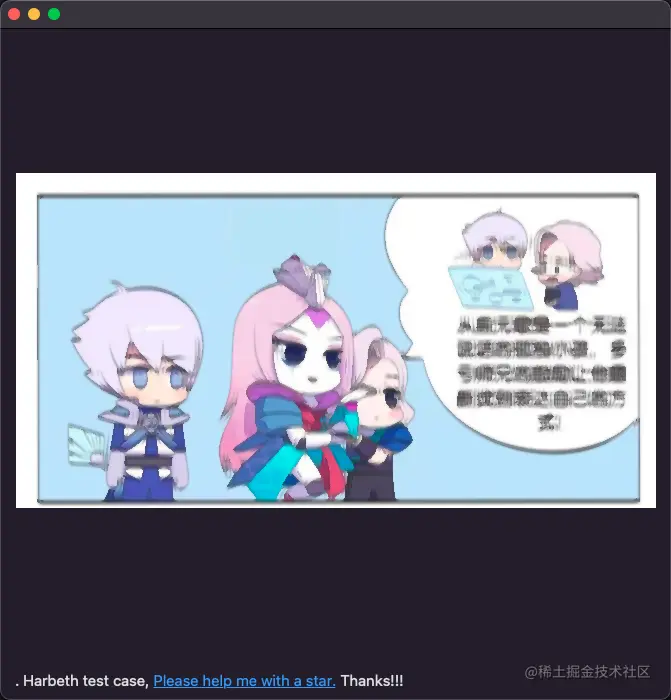

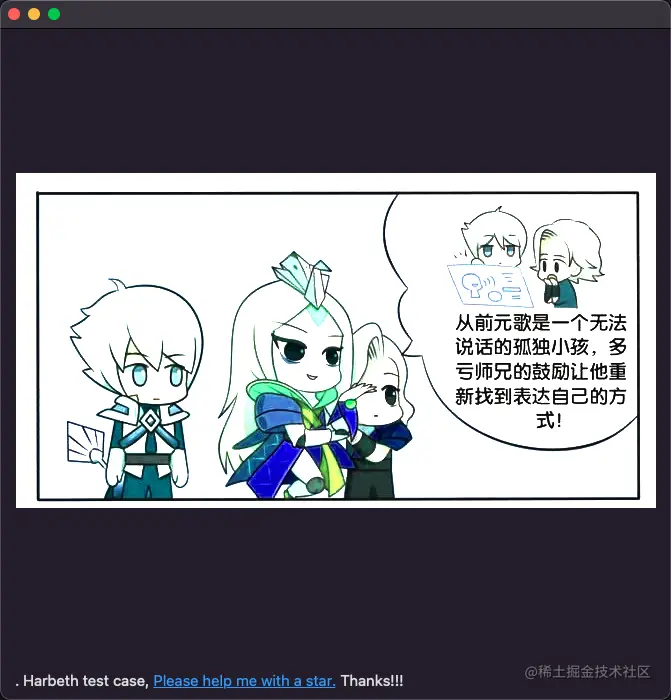

原图	连环画	油画

实操代码

// 连环画效果
let filter = C7ComicStrip.init()

// 方案1:
ImageView.image = try? BoxxIO(element: originImage, filters: [filter, filter2, filter3]).output()

// 方案2:
ImageView.image = originImage.filtering(filter, filter2, filter3)

// 方案3:
ImageView.image = originImage ->> filter ->> filter2 ->> filter3

连环画实现原理

• 过滤器

这款滤镜采用并行计算编码器设计.compute(kernel: "C7ComicStrip")

/// 连环画滤镜
public struct C7ComicStrip: C7FilterProtocol {

    public var modifier: Modifier {
        return .compute(kernel: "C7ComicStrip")
    }

    public init() { }
}

• 着色器

获取到红色值abs(g - b + g + r) * r绝对值，绿色abs(b - g + b + r) * r，蓝色abs(b - g + b + r) * g，最后获取到像素颜色；

kernel void C7ComicStrip(texture2d<half, access::write> outputTexture [[texture(0)]],
                         texture2d<half, access::read> inputTexture [[texture(1)]],
                         uint2 grid [[thread_position_in_grid]]) {
    const half4 inColor = inputTexture.read(grid);
    const half r = inColor.r;
    const half g = inColor.g;
    const half b = inColor.b;

    const half R = half(abs(g - b + g + r) * r);
    const half G = half(abs(b - g + b + r) * r);
    const half B = half(abs(b - g + b + r) * g);

    const half4 outColor = half4(R, G, B, inColor.a);

    outputTexture.write(outColor, grid);
}

油画实现原理

• 过滤器

这款滤镜采用并行计算编码器设计.compute(kernel: "C7OilPainting")，参数因子[radius, Float(pixel)]

对外开放参数

• radius: 模糊半径；
• pixel: 像素颗粒度；

/// 油画滤镜
public struct C7OilPainting: C7FilterProtocol {

    public var radius: Float = 3.0
    public var pixel: Int = 1

    public var modifier: Modifier {
        return .compute(kernel: "C7OilPainting")
    }

    public var factors: [Float] {
        return [radius, Float(pixel)]
    }

    public init(radius: Float = 3.0, pixel: Int = 1) {
        self.radius = radius
        self.pixel = pixel
    }
}

• 着色器

kernel void C7OilPainting(texture2d<half, access::write> outputTexture [[texture(0)]],
                          texture2d<half, access::sample> inputTexture [[texture(1)]],
                          constant float *radius [[buffer(0)]],
                          constant float *pixel [[buffer(1)]],
                          uint2 grid [[thread_position_in_grid]]) {
    constexpr sampler quadSampler(mag_filter::linear, min_filter::linear);
    const float2 size = float2(*pixel) / float2(outputTexture.get_width(), outputTexture.get_height());
    const float2 textureCoordinate = float2(grid) / float2(outputTexture.get_width(), outputTexture.get_height());
    const float r = float(*radius);
    const float n = float((r + 1.0) * (r + 1.0));

    float3 m0 = float3(0.0);
    float3 m1 = float3(0.0);
    float3 s0 = float3(0.0);
    float3 s1 = float3(0.0);
    float3 color = float3(0.0);

    for (float j = -r; j <= 0.0; ++j)  {
        for (float k = -r; k <= 0.0; ++k)  {
            color = float3(inputTexture.sample(quadSampler, textureCoordinate + float2(k,j) * size).rgb);
            m0 += color;
            s0 += color * color;
        }
    }

    for (float j = -r; j <= 0.0; ++j)  {
        for (float k = 0.0; k <= r; ++k)  {
            color = float3(inputTexture.sample(quadSampler, textureCoordinate + float2(k,j) * size).rgb);
            m1 += color;
            s1 += color * color;
        }
    }

    half4 outColor = half4(0.0h);
    float min_sigma2 = 100.0;
    m0 /= n;
    s0 = abs(s0 / n - m0 * m0);
    float sigma2 = s0.r + s0.g + s0.b;
    if (sigma2 < min_sigma2) {
        min_sigma2 = sigma2;
        outColor = half4(half3(m0), 1.0h);
    }

    m1 /= n;
    s1 = abs(s1 / n - m1 * m1);
    sigma2 = s1.r + s1.g + s1.b;
    if (sigma2 < min_sigma2) {
        min_sigma2 = sigma2;
        outColor = half4(half3(m1), 1.0h);
    }

    outputTexture.write(outColor, grid);
}
