前言

在上一章节中,壹哥 给大家介绍了RabbitMQ的相关知识。本章节中我会在SpringBoot中结合JPA,整合jta-atomikos来实现多数据源环境下的分布式事务,话不多说,我们直接上代码开撸!

一. 代码环境

  • Spring Boot2.2.5
  • mysql-connector-java8.0.11

二. 创建数据库对应的表

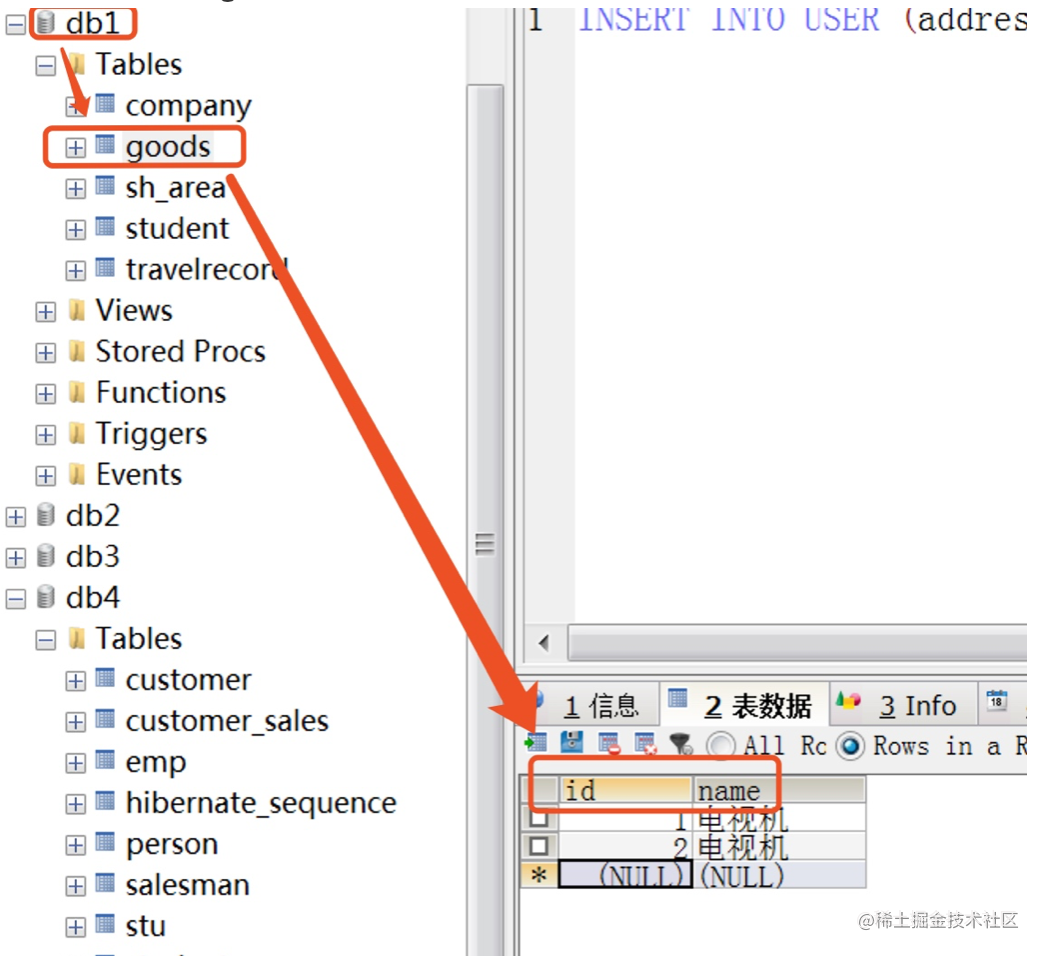

1. db1数据库中的goods表

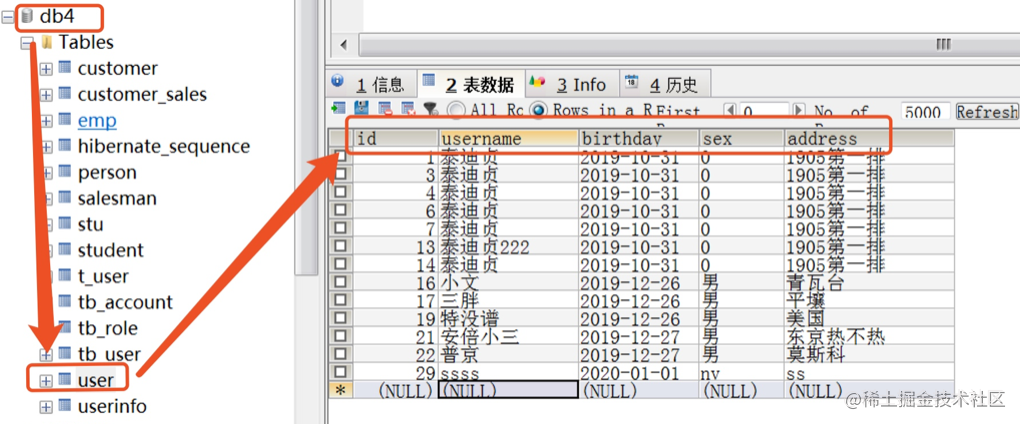

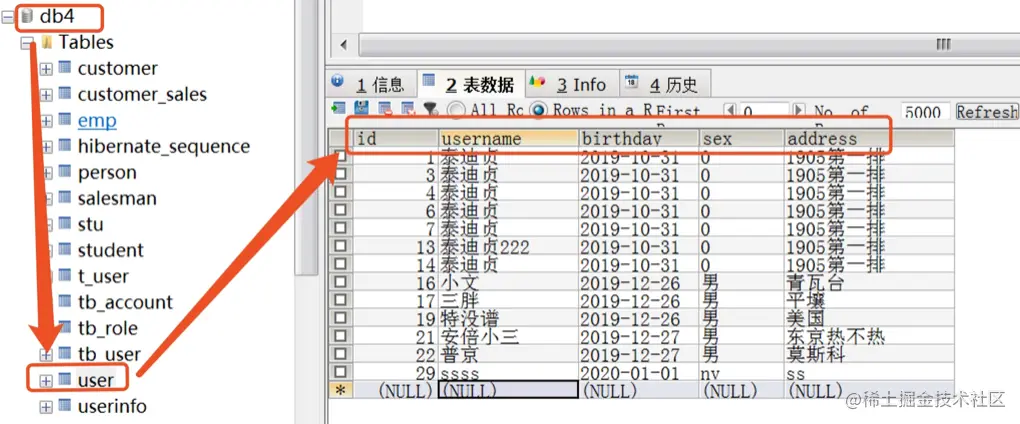

2. db4数据库中的user表

三. 多数据源环境下分布式事务的代码实现

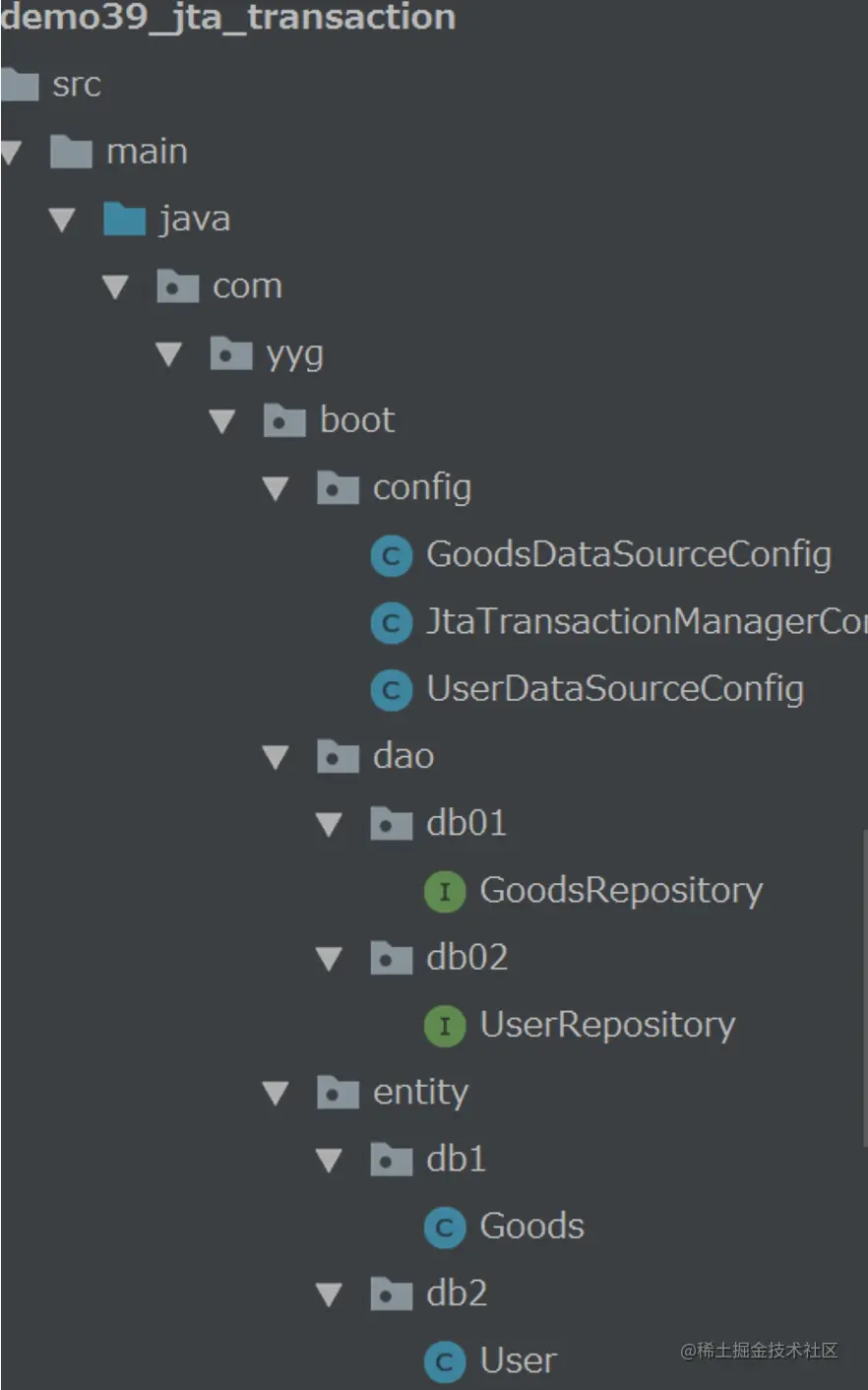

1. 创建web项目

我们按照之前的经验,创建一个web程序,并将之改造成Spring Boot项目,具体过程略。

2. 添加依赖包

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jta-atomikos</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <!--版本不能太高-->
    <version>8.0.11</version>
</dependency>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.1.12</version>
</dependency>
复制代码

要注意mysql-connector-java的版本不要太高,否则可能会产生一些异常。

3. 创建application.yml配置文件

spring:
  jpa:
    database: mysql
    show-sql: true
    hibernate:
      ddl-auto: update
    database-platform: org.hibernate.dialect.MySQL57Dialect
复制代码

4. 创建两个数据源对应的实体类

4.1 db1数据源的实体类Goods

package com.yyg.boot.entity.db1;

import lombok.Data;

import javax.persistence.*;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/3
 * @Description db1中的商品表
 */
@Entity
@Table(name = "goods")
@Data
public class Goods {

    @Id
    @GeneratedValue(strategy=GenerationType.IDENTITY)
    private Long id;

    private String name;

}
复制代码

4.2 db4数据源的实体类User

package com.yyg.boot.entity.db2;

import lombok.Data;
import lombok.ToString;

import javax.persistence.*;
import java.io.Serializable;
import java.util.Date;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/3
 * @Description db4中的用户表
 */
@Entity
@Table(name = "user")
@Data
@ToString
public class User implements Serializable {

    @Id
    @GeneratedValue(strategy=GenerationType.IDENTITY)
    private Long id;

    @Column
    private String username;

    @Column
    private Date birthday;

    @Column
    private String sex;

    @Column
    private String address;

}
复制代码

5. 创建2个数据源仓库类

5.1 创建db1数据源仓库类GoodsRepository

package com.yyg.boot.dao.db01;

import com.yyg.boot.entity.db1.Goods;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
import org.springframework.stereotype.Repository;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/3
 * @Description Description
 */
@Repository
public interface GoodsRepository extends JpaRepository<Goods, Long>,JpaSpecificationExecutor<Goods> {
}
复制代码

5.2 创建db4数据源仓库类UserRepository

package com.yyg.boot.dao.db02;

import com.yyg.boot.entity.db2.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.JpaSpecificationExecutor;
import org.springframework.stereotype.Repository;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/3
 * @Description Description
 */
@Repository
public interface UserRepository extends JpaRepository<User, Long>,JpaSpecificationExecutor<User> {
}
复制代码

6. 配置数据源及事务管理器等

这里的配置是最关键的,一般代码出问题都是因为这里有问题。

这里针对两个数据库,分别设置两个数据源goodsDataSource与userDataSource。这里的DataSource必须是XADataSource类型的数据源才行,并且利用AtomikosDataSourceBean讲数据源配置进去。

还有分别设置实体类管理工厂goodsEntityManagerFactory与userEntityManagerFactory。

再分别设置事务管理器goodsTransactionManager与userTransactionManager。

还要创建一个用来整合多个事务管理器的JtaTransactionManager,负责回滚到多个数据源中。

但要注意区分是否是Primary配置。

6.1 db1数据源配置类GoodsDataSourceConfig

package com.yyg.boot.config;

import com.alibaba.druid.pool.xa.DruidXADataSource;
import com.atomikos.jdbc.AtomikosDataSourceBean;
import org.springframework.boot.autoconfigure.orm.jpa.JpaProperties;
import org.springframework.boot.orm.jpa.EntityManagerFactoryBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaTransactionManager;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;
import org.springframework.transaction.PlatformTransactionManager;

import javax.annotation.Resource;
import javax.sql.DataSource;
import java.util.Objects;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/18
 * @Description 商品数据源配置类
 */
@Configuration
@EnableJpaRepositories(basePackages = {"com.yyg.boot.dao.db01"}, entityManagerFactoryRef = "goodsEntityManagerFactory", transactionManagerRef = "goodsTransactionManager")
public class GoodsDataSourceConfig {

    @Resource
    private JpaProperties jpaProperties;

    /**
     * 第一个数据源
     */
    @Primary
    @Bean(name = "goodsDataSource")
    public DataSource goodsDataSource() {
        DruidXADataSource druidXADataSource = new DruidXADataSource();
        druidXADataSource.setUrl("jdbc:mysql://localhost:3306/db1?characterEncoding=utf-8&useSSL=false&serverTimezone=UTC");
        druidXADataSource.setUsername("root");
        druidXADataSource.setPassword("syc");
        druidXADataSource.setDefaultAutoCommit(false);
        AtomikosDataSourceBean atomikosDataSourceBean = new AtomikosDataSourceBean();
        atomikosDataSourceBean.setXaDataSource(druidXADataSource);
        atomikosDataSourceBean.setUniqueResourceName("goodsDataSource");
        atomikosDataSourceBean.setPoolSize(5);

        return atomikosDataSourceBean;
    }

    /**
     * 商品实体类管理工厂
     */
    @Primary
    @Bean(name = "goodsEntityManagerFactory")
    public LocalContainerEntityManagerFactoryBean goodsEntityManagerFactory(EntityManagerFactoryBuilder builder) {
        return builder.dataSource(goodsDataSource())
                .properties(jpaProperties.getProperties())
                //设置实体类所在位置:类或包
                .packages("com.yyg.boot.entity.db1")
                //持久化单元名称
                .persistenceUnit("goodsPersistenceUnit")
                .build();
    }

    /**
     * 商品事务管理器
     */
    @Primary
    @Bean(name = "goodsTransactionManager")
    public PlatformTransactionManager goodsTransactionManager(EntityManagerFactoryBuilder builder) {
        return new JpaTransactionManager(Objects.requireNonNull(goodsEntityManagerFactory(builder).getObject()));
    }

}
复制代码

6.2 db4数据源配置类GoodsDataSourceConfig

package com.yyg.boot.config;

import com.alibaba.druid.pool.xa.DruidXADataSource;
import com.atomikos.jdbc.AtomikosDataSourceBean;
import org.springframework.boot.autoconfigure.orm.jpa.JpaProperties;
import org.springframework.boot.orm.jpa.EntityManagerFactoryBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaTransactionManager;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;
import org.springframework.transaction.PlatformTransactionManager;

import javax.annotation.Resource;
import javax.sql.DataSource;
import java.util.Objects;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/18
 * @Description 商品数据源配置类
 */
@Configuration
@EnableJpaRepositories(basePackages = {"com.yyg.boot.dao.db02"},entityManagerFactoryRef = "userEntityManagerFactory",transactionManagerRef = "userTransactionManager")
public class UserDataSourceConfig {

    /**
     * 自动注入jpa配置
     */
    @Resource
    private JpaProperties jpaProperties;

    @Bean(name = "userDataSource")
    public DataSource db4DataSource() {
        DruidXADataSource druidXADataSource = new DruidXADataSource();
        druidXADataSource.setUrl("jdbc:mysql://localhost:3306/db4?characterEncoding=utf-8&useSSL=false&serverTimezone=UTC");
        druidXADataSource.setUsername("root");
        druidXADataSource.setPassword("syc");
        druidXADataSource.setDefaultAutoCommit(false);

        AtomikosDataSourceBean atomikosDataSourceBean = new AtomikosDataSourceBean();
        atomikosDataSourceBean.setXaDataSource(druidXADataSource);
        atomikosDataSourceBean.setUniqueResourceName("userDataSource");
        atomikosDataSourceBean.setPoolSize(5);

        return atomikosDataSourceBean;
    }

    /**
     * 将数据源、连接池、以及其他配置策略进行封装返回给事务管理器
     * 自动装配时当出现多个Bean候选者时,被注解为@Primary的Bean将作为首选者,否则将抛出异常
    */
    @Bean(name = "userEntityManagerFactory")
    public LocalContainerEntityManagerFactoryBean userEntityManagerFactory(EntityManagerFactoryBuilder builder){
      return builder.dataSource(db4DataSource())
              .properties(jpaProperties.getProperties())
              //设置实体类所在位置:类或包
              .packages("com.yyg.boot.entity.db2")
              //持久化单元名称
              .persistenceUnit("userPersistenceUnit")
              .build();
    }

    /**
      * 返回数据源的事务管理器
      */
    @Bean(name = "userTransactionManager")
    public PlatformTransactionManager userTransactionManager(EntityManagerFactoryBuilder builder){
        return new JpaTransactionManager(Objects.requireNonNull(userEntityManagerFactory(builder).getObject()));
    }

}
复制代码

6.3 创建用来整合多数据源的事务管理器JtaTransactionManager

package com.yyg.boot.config;

import com.atomikos.icatch.jta.UserTransactionImp;
import com.atomikos.icatch.jta.UserTransactionManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.transaction.jta.JtaTransactionManager;

import javax.transaction.UserTransaction;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/19
 * @Description Description
 */
@Configuration
public class JtaTransactionManagerConfig {

    @Primary
    @Bean(name = "jtaTransactionManager")
    public JtaTransactionManager regTransactionManager () {
        UserTransactionManager userTransactionManager = new UserTransactionManager();
        UserTransaction userTransaction = new UserTransactionImp();
        return new JtaTransactionManager(userTransaction, userTransactionManager);
    }

}
复制代码

7. 创建Service及其实现类

注意:
此处一定要通过@Transactional注解来明确指明所用的事务管理器,否则当多数据源时可能只能执行一个数据里的增删改操作,且此处应该设置Spring的事务传播属性为propagation =Propagation.NEVER,不使用单个数据源自己的事务,统一交由jtaTransactionManager的事务来管理。

7.1 定义GoodsService接口

package com.yyg.boot.service;

import com.yyg.boot.entity.db1.Goods;

import java.util.List;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/7
 * @Description Description
 */
public interface GoodsService {

    List<Goods> findAll();

    Goods addGoods(Goods goods);

}
复制代码

7.2 GoodsServiceImpl实现

package com.yyg.boot.service.impl;

import com.yyg.boot.dao.db01.GoodsRepository;
import com.yyg.boot.entity.db1.Goods;
import com.yyg.boot.service.GoodsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.transaction.interceptor.TransactionAspectSupport;

import java.util.List;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/7
 * @Description Description
 *
 * 注意:此处一定要通过@Transactional注解来明确指明所用的事务管理器,否则当多数据源时可能只能执行一个数据里的增删改操作.
 * 且此处应该设置Spring的事务传播属性为propagation =Propagation.NEVER,不使用单个数据源自己的事务,统一交由jtaTransactionManager的事务来管理.
 */
@Service
@Transactional(transactionManager = "goodsTransactionManager",rollbackFor = Exception.class,propagation =Propagation.NEVER)
public class GoodsServiceImpl implements GoodsService {

    @Autowired
    private GoodsRepository goodsRepository;

    @Override
    public List<Goods> findAll() {
        return goodsRepository.findAll();
    }

    @Override
    public Goods addGoods(Goods goods) {
        try {
            return goodsRepository.save(goods);
        }catch (Exception e){
            //强制手动事务回滚
            TransactionAspectSupport.currentTransactionStatus().setRollbackOnly();
        }
        return null;
    }

}
复制代码

7.3 定义UserService接口

package com.yyg.boot.service;

import com.yyg.boot.entity.db2.User;

import java.util.List;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/7
 * @Description Description
 */
public interface UserService {

    List<User> findAll();

    User addUser(User user);

}
复制代码

7.4 创建UserServiceImpl实现类

package com.yyg.boot.service.impl;

import com.yyg.boot.dao.db02.UserRepository;
import com.yyg.boot.entity.db2.User;
import com.yyg.boot.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.transaction.interceptor.TransactionAspectSupport;

import java.util.List;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/7
 * @Description Description
 * 注意:此处一定要通过@Transactional注解来明确指明所用的事务管理器,否则当多数据源时可能只能执行一个数据里的增删改操作.
 * 且此处应该设置Spring的事务传播属性为propagation =Propagation.NEVER,不使用单个数据源自己的事务,统一交由jtaTransactionManager的事务来管理.
 */
@Service
@Transactional(transactionManager = "userTransactionManager",rollbackFor = Exception.class,propagation =Propagation.NEVER)
public class UserServiceImpl implements UserService {

    @Autowired
    private UserRepository userRepository;

    @Override
    public List<User> findAll() {
        return userRepository.findAll();
    }

    @Override
    public User addUser(User user) {
        try {
            return userRepository.save(user);
        }catch (Exception e){
            //强制手动事务回滚
            TransactionAspectSupport.currentTransactionStatus().setRollbackOnly();
        }
        return null;
    }

}
复制代码

8. 创建Controller进行测试

package com.yyg.boot.web;

import com.yyg.boot.entity.db1.Goods;
import com.yyg.boot.entity.db2.User;
import com.yyg.boot.service.GoodsService;
import com.yyg.boot.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Date;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/3
 * @Description Description
 */
@RestController
public class TransactionController {

    @Autowired
    private UserService userService;

    @Autowired
    private GoodsService goodsService;

    @Transactional(value = "jtaTransactionManager", rollbackFor = Exception.class)
    @GetMapping("/add")
    public ResponseEntity addTest() {
        Goods goods = new Goods();
        goods.setId(44L);
        goods.setName("iPhone se");
        goodsService.addGoods(goods);

        User user = new User();
        user.setSex("男");
        user.setUsername("一一哥");
        user.setAddress("上海");
        user.setBirthday(new Date());
        userService.addUser(user);

        return ResponseEntity.ok("添加成功");
    }

//在该接口中故意制造一个除零异常
@Transactional(value = "jtaTransactionManager", rollbackFor = Exception.class)
    @GetMapping("/add2")
    public ResponseEntity addTest2() {
        Goods goods = new Goods();
        goods.setId(44L);
        goods.setName("iPhone se");
        goodsService.addGoods(goods);

        User user = new User();
        user.setSex("男");
        user.setUsername("一一哥");
        user.setAddress("上海");
        user.setBirthday(new Date());
        userService.addUser(user);

        int i=10/0;

        return ResponseEntity.ok("添加成功");
    }

}
复制代码

9. 创建入口类

package com.yyg.boot;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.transaction.annotation.EnableTransactionManagement;

/**
 * @Author 一一哥Sun
 * @Date Created in 2020/4/18
 * @Description Description
 * (exclude = {DataSourceAutoConfiguration.class,DataSourceTransactionManagerAutoConfiguration.class})
 */
@SpringBootApplication
//手动进行事务管理
@EnableTransactionManagement
public class TransactionApplication {

    public static void main(String[] args){
        SpringApplication.run(TransactionApplication.class,args);
    }

}
复制代码

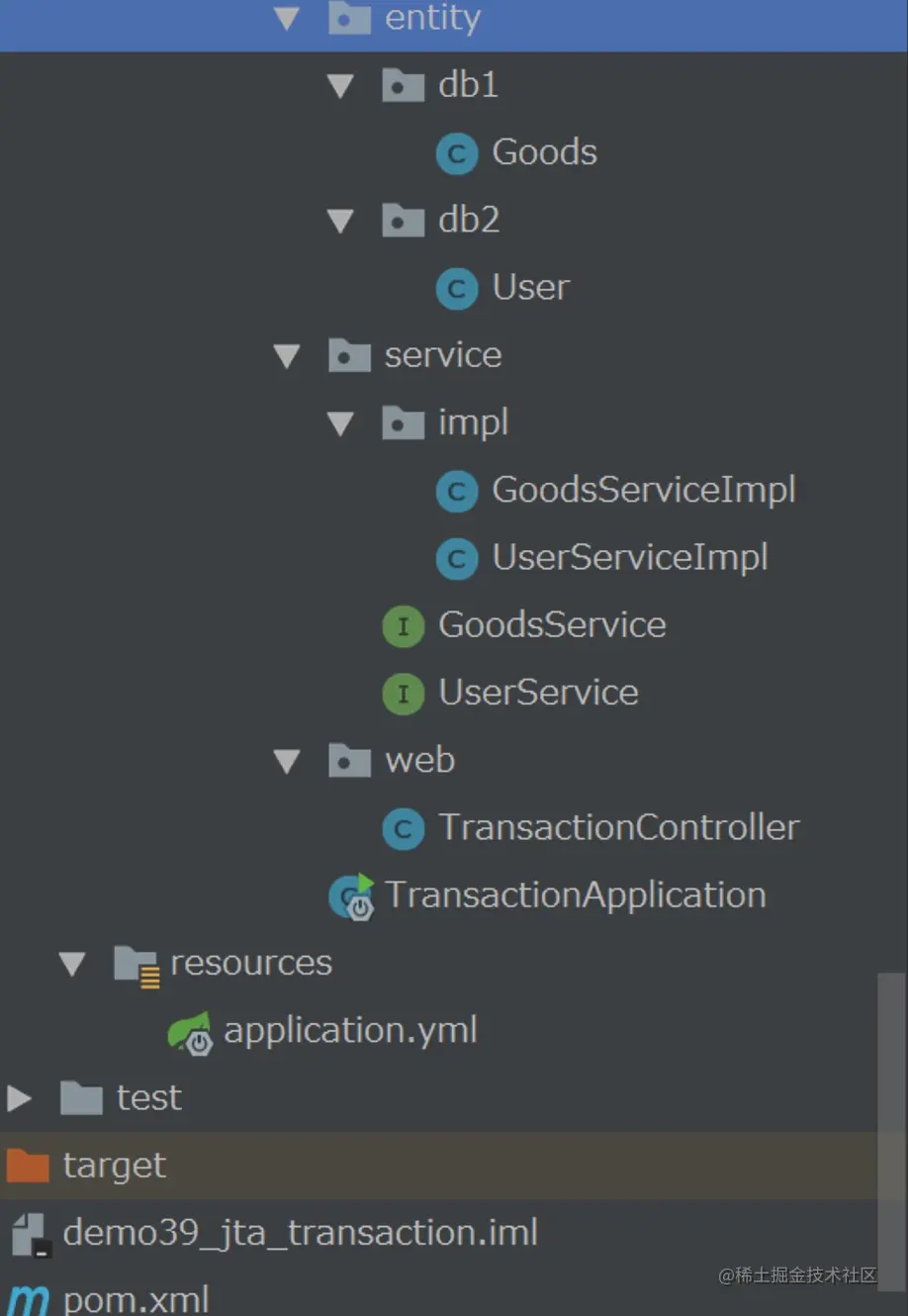

10. 完整代码结构

11. 启动项目进行测试

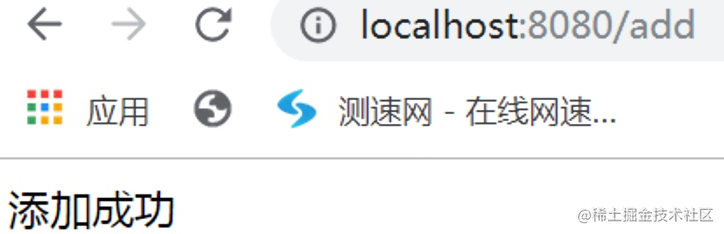

11.1 测试add接口

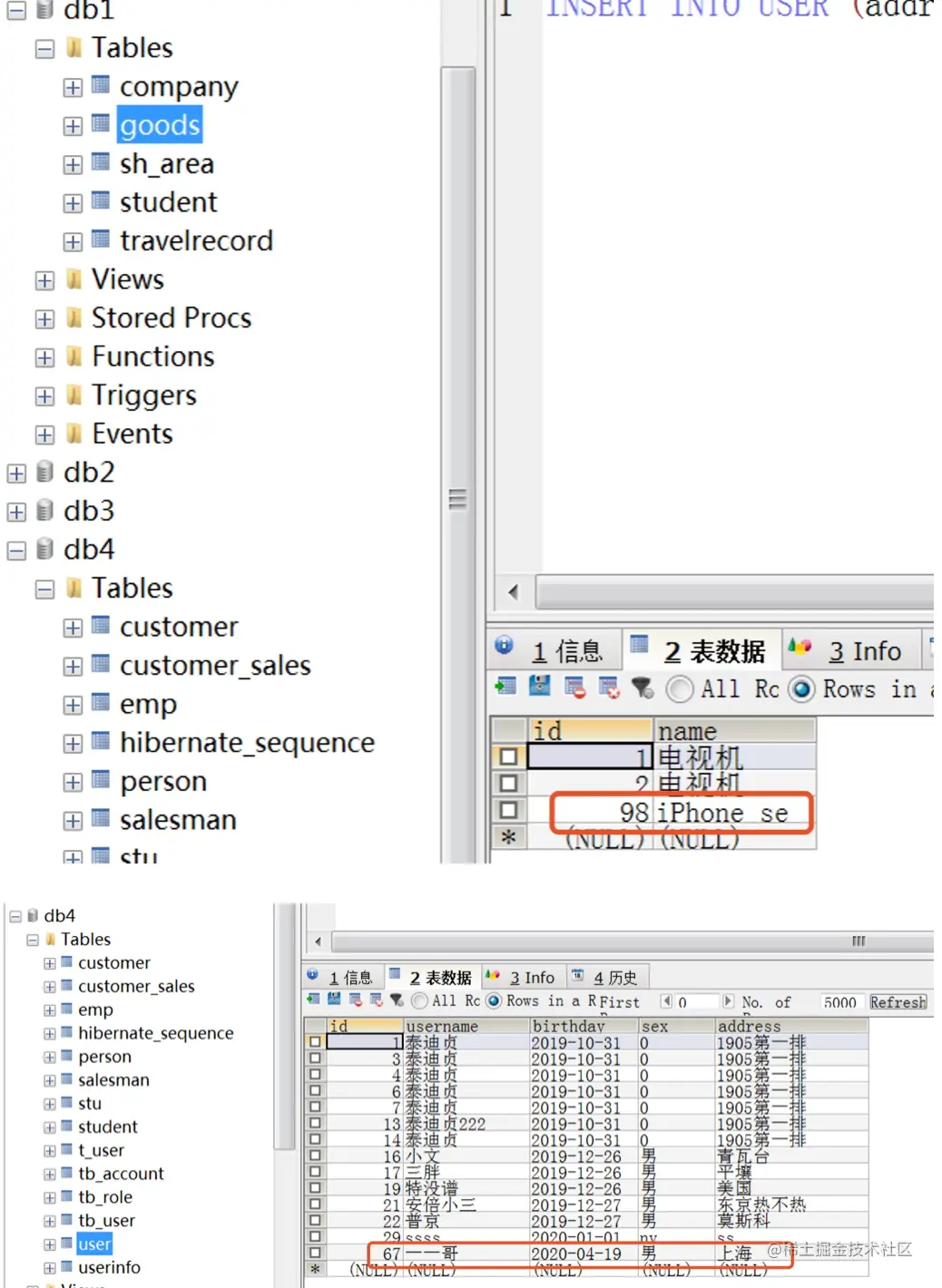

可以看到,当插入数据没有异常发生时,两个数据库都可以正常插入数据。

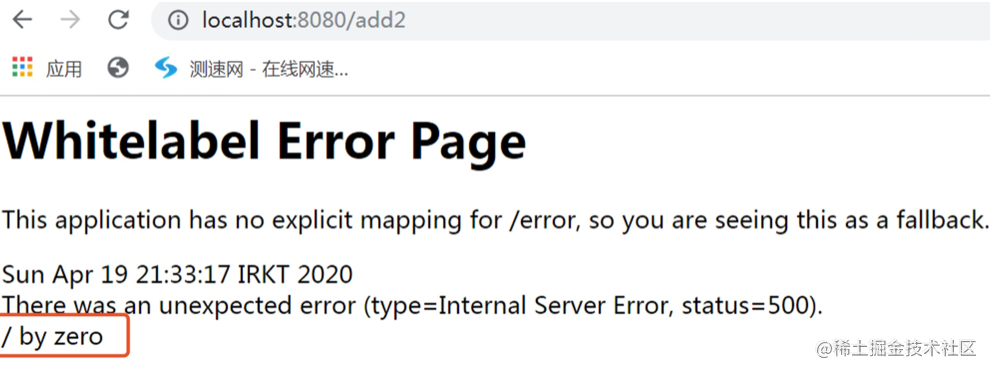

11.2 测试add2接口

因为我在add2接口中故意制造了一个除零异常,此时代码会发生异常。

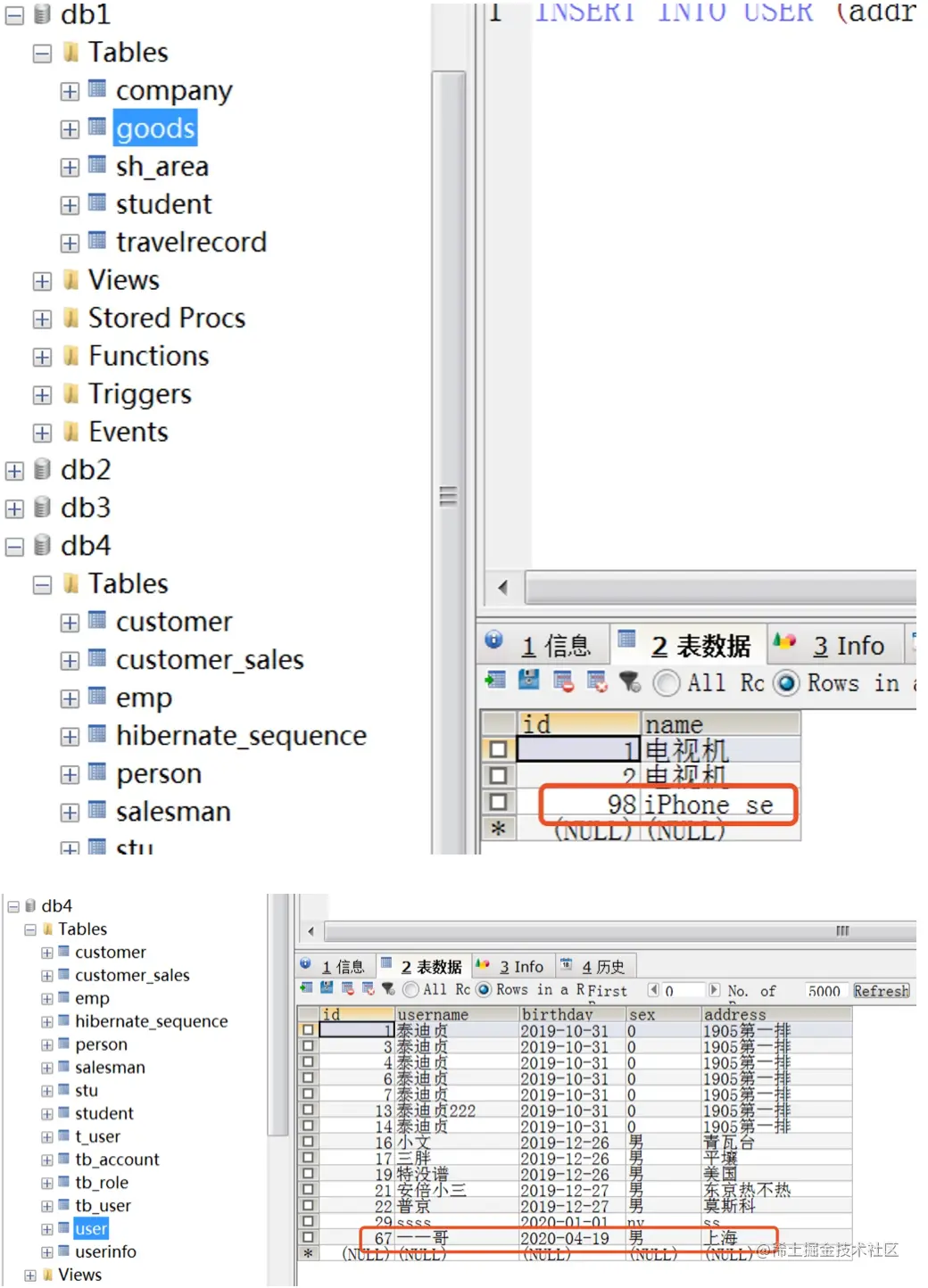

我们再看数据库中,会发现并没有产生新数据,还是和之前的数据一样,说明多数据源环境下,利用jta-atomikos实现了分布式事务的代码实现。

结语

至此,壹哥 就带各位实现了多数据源环境下的分布式事务功能,现在你学会了吗?有什么问题可以在评论区留言哦。

收藏成功!
已添加到「」, 点击更改
