使用Cassandra sdk导入大量数据
yugabytedb支持Cassandra Client协议，我们从https://github.com/datastax/cpp-driver.git下载SDK，并编译：
- 依赖项有cmake、libuv、gcc等
- cpp-driver/examples/concurrent_executions 可以编译测试，注意指定rpath 我们使用cpp-driver/examples/concurrent_executions的原因是这是一个并发写入数据的example，可以方便配置写入量，但我们需要改写代码。
apt-get install libuv1-dev:amd64
mkdir build
cmake ..
cd cpp-driver/examples/concurrent_executions
gcc concurrent_executions.c -I../../include/ -Wl,-rpath,../../build/ ../../build/libcassandra.so
./a.out 127.0.1.1 即可，其中127.0.1.1为yugabytedb的cql端口。你可以在启动界面找到：下图中，YCQL即为Cassandra Server入口。
+----------------------------------------------------------------------------------------------------------+
| yugabyted |
+----------------------------------------------------------------------------------------------------------+
| Status : Running. |
| Replication Factor : 1 |
| Web console : http://127.0.1.1:7000 |
| JDBC : jdbc:postgresql://127.0.1.1:5433/yugabyte?user=yugabyte&password=yugabyte |
| YSQL : bin/ysqlsh -h 127.0.1.1 -U yugabyte -d yugabyte |
| YCQL : bin/ycqlsh 127.0.1.1 9042 -u cassandra |
| Data Dir : /root/var/data |
| Log Dir : /root/var/logs |
| Universe UUID : e0764452-c361-420f-8131-9c4c2ab890fe |
+----------------------------------------------------------------------------------------------------------+
关键函数修改如下，我们需要大的key、value，这样才能触发flush到RocksDB，这有助于测试YugabyteDB的Rocksdb魔改效果。这里我们使用rand_str生产512byte随机value。
CassError prepare_insert(CassSession* session, const CassPrepared** prepared) {
CassError rc = CASS_OK;
const char* query = "INSERT INTO examples.concurrent_executions (id, value) VALUES (?, ?) using TTL 100;";
// const char* query = "INSERT INTO examples.concurrent_executions (id, value) VALUES (?, ?);"; // 如果不测试TTL相关功能，使用这个SQL
CassFuture* future = cass_session_prepare(session, query);
cass_future_wait(future);
rc = cass_future_error_code(future);
if (rc != CASS_OK) {
print_error(future);
} else {
*prepared = cass_future_get_prepared(future);
}
cass_future_free(future);
return rc;
}
void rand_str(char *dest, size_t length) {
char charset[] = "0123456789"
"abcdefghijklmnopqrstuvwxyz"
"ABCDEFGHIJKLMNOPQRSTUVWXYZ";
while (length-- > 0) {
size_t index = (double) rand() / RAND_MAX * (sizeof charset - 1);
*dest++ = charset[index];
}
*dest = '\0';
}
void insert_into_concurrent_executions() {
CassFuture* futures[CONCURRENCY_LEVEL];
int num_requests = NUM_REQUESTS;
while (num_requests > 0) {
int i;
int num_outstanding_requests = CONCURRENCY_LEVEL;
if (num_requests < num_outstanding_requests) {
num_outstanding_requests = num_requests;
}
num_requests -= num_outstanding_requests;
for (i = 0; i < num_outstanding_requests; ++i) {
CassUuid uuid;
CassStatement* statement = cass_prepared_bind(prepared);
cass_statement_set_is_idempotent(statement, cass_true);
cass_uuid_gen_random(uuid_gen, &uuid);
cass_statement_bind_uuid_by_name(statement, "id", uuid);
char value_buffer[512];
// sprintf(value_buffer, "%d", i);
rand_str(value_buffer,511);
cass_statement_bind_string_by_name(statement, "value", value_buffer);
futures[i] = cass_session_execute(session, statement);
cass_statement_free(statement);
}
for (i = 0; i < num_outstanding_requests; ++i) {
CassFuture* future = futures[i];
CassError rc = cass_future_error_code(future);
if (rc != CASS_OK) {
print_error(future);
}
cass_future_free(future);
}
}
}
调整flush 参数

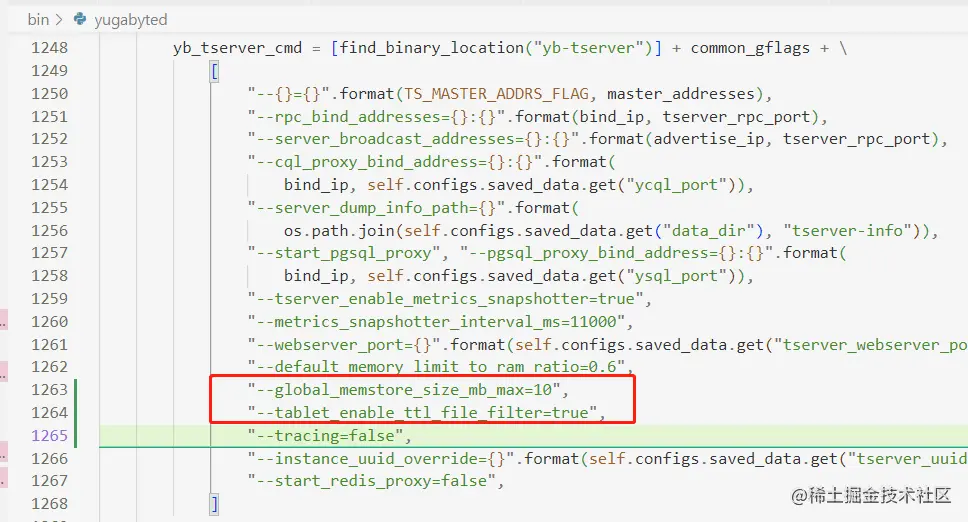

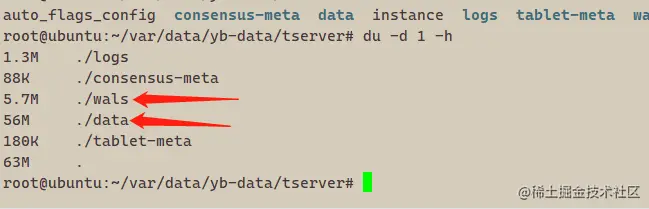

在前一篇文章我提到YugabyteDB为了减少写放大，魔改了rocksdb的flush参数，默认的刷盘阈值是2G，这导致我们这点写入量很难触发刷盘写SST，查看方法是在data目录执行du -d 1 -h，如果wals目录很大，data很小，这说明数据都集中在rocksdb memtable，下文是改动后的效果（改之前没截图）。 改动阈值的方法是找对应gflag参数：将
"--global_memstore_size_mb_max=10"添加到yb_tserver_cmd启动脚本bin/yugabyted中，重启启动即可。
seek是否可以使用file filter
此前我们在YugabyteDB写入大量TTL数据，目的是测试docs.yugabyte.com/preview/dev…提到的对TTL expire优化，以及在read、seek时直接 跳过过期sst文件：在readOption中指定filter去seek，可以快速回收和跳过墓碑。
使用bin/ycqlsh 127.0.1.1 9042 -u cassandra打开客户端，默认密码为空。使用SELECT * from examples.concurrent_executions limit 10 ;搜索数据：
由于遇到大量TTL超時的墓碑数据，select 全部超时了。发下有个Gflag没有打开，打开这个flag，
tablet_enable_ttl_file_filter试试看：
这个特性没用，select依旧超时。这就比较尴尬了。使用GDB 打开调试，下断点调查一下：
gdb -p 1541
b bounded_rocksdb_iterator.cc:30
(gdb) p read_opts
$1 = (const rocksdb::ReadOptions &) @0x7f7b65d20c48: {verify_checksums = true, fill_cache = true, snapshot = 0x0, iterate_upper_bound = 0x0, read_tier = rocksdb::kReadAllTier, tailing = false,
managed = false, total_order_seek = false, prefix_same_as_start = false, pin_data = false, query_id = 369471131232, table_aware_file_filter = {__ptr_ = 0x0, __cntrl_ = 0x0}, file_filter = {
__ptr_ = 0x560a5f8498, __cntrl_ = 0x560a5f8480}, static kDefault = {verify_checksums = true, fill_cache = true, snapshot = 0x0, iterate_upper_bound = 0x0, read_tier = rocksdb::kReadAllTier, tailing = false,
managed = false, total_order_seek = false, prefix_same_as_start = false, pin_data = false, query_id = 0, table_aware_file_filter = {__ptr_ = 0x0, __cntrl_ = 0x0}, file_filter = {__ptr_ = 0x0,
__cntrl_ = 0x0}, static kDefault = <same as static member of an already seen type>}}
看到table_aware_file_filter仍为空，file_filter是有 分配的，这就有点诡异。 下文是YugabyteDB select *的堆栈，为我们接下来阅读代码有很好的指导作用，记下来：
../../src/yb/docdb/bounded_rocksdb_iterator.cc:30
yb::docdb::IntentAwareIterator::IntentAwareIterator src/yb/docdb/intent_aware_iterator.cc:272
yb::docdb::CreateIntentAwareIterator src/yb/docdb/docdb_rocksdb_util.cc:382
yb::docdb::DocRowwiseIterator::DoInit<yb::docdb::DocQLScanSpec> /src/yb/docdb/doc_rowwise_iterator.cc:170
yb::docdb::DocRowwiseIterator::Init /src/yb/docdb/doc_rowwise_iterator.cc:210
yb::docdb::QLRocksDBStorage::GetIterator /src/yb/docdb/ql_rocksdb_storage.cc:49
yb::docdb::QLReadOperation::Execute /src/yb/docdb/cql_operation.cc:1561
yb::tablet::AbstractTablet::HandleQLReadRequest./src/yb/tablet/abstract_tablet.cc:66
yb::tablet::Tablet::HandleQLReadRequest /src/yb/tablet/tablet.cc:1481
ReadQuery::DoReadImpl (this=0x5607508798) at ../../src/yb/tserver/read_query.cc:640
ReadQuery::DoRead (this=0x5607508798) at ../../src/yb/tserver/read_query.cc:550
ReadQuery::Complete (this=0x5607508798) at ../../src/yb/tserver/read_query.cc:467
ReadQuery::DoPerform (this=0x5607508798) at ../../src/yb/tserver/read_query.cc:409
ReadQuery::Perform (this=0x5607508798) at ../../src/yb/tserver/read_query.cc:102
yb::tserver::PerformRead /src/yb/tserver/read_query.cc:699
yb::tserver::TabletServiceImpl::Read /src/yb/tserver/tablet_service.cc:1852
yb::tserver::TabletServerServiceIf::InitMethods yb/rpc/local_call.h:116
yb::tserver::TabletServerServiceIf::InitMethodssrc/yb/tserver/tserver_service.service.cc:541
std::__1::__invoke[abi:v15002]<yb::tserver::TabletServerServiceIf::InitMethods invoke.h:394
std::__1::__invoke_void_return_wrapper<void, true>::__call<yb::tserver::TabletServerServiceIf::InitMethods
yb::tserver::TabletServerServiceIf::Handle (this=0x5604c6e020, call=...) at src/yb/tserver/tserver_service.service.cc:511
yb::rpc::ServicePoolImpl::Handle (this=0x5604ed4480, incoming=...) at ../../src/yb/rpc/service_pool.cc:267
yb::rpc::InboundCall::InboundCallTask::Run (this=0x5605306640) at ../../src/yb/rpc/inbound_call.cc:236
yb::rpc::(anonymous namespace)::Worker::Execute (this=0x560fdfd960) at ../../src/yb/rpc/thread_pool.cc:104
yb::Thread::SuperviseThread (arg=0x5604e62f00) at ../../src/yb/util/thread.cc:800
start_thread (arg=<optimized out>) at ./nptl/pthread_create.c:442
clone () at ../sysdeps/unix/sysv/linux/x86_64/clone.S:100
使用sst_dump检查properties
我们检查下SST property是否正确收集了必要信息，在这里是ttl 信息是否正确记录在properties中？ 我们在最大的rocksdb目录使用命令/root/tmp/yugabyte-db/build/debug-clang15-dynamic-ninja/bin/sst_dump --file=./ --show_properties发现并没有在properties中读到想要的信息，失望而归，改天继续。
Process .//000048.sst
Sst file format: block-based
Table Properties:
------------------------------
# data blocks: 1
# data index blocks: 1
# filter blocks: 1
# entries: 36
raw key size: 5273
raw average key size: 146.472222222222
raw value size: 446
raw average value size: 12.3888888888889
data blocks total size: 1006
data index size: 28
filter blocks total size: 65482
filter index block size: 21
(estimated) table size: 66516
filter policy name: DocKeyV3Filter
# deleted keys: 0
User collected properties:
------------------------------
rocksdb.block.based.table.data.block.key.value.encoding.format: 02
rocksdb.block.based.table.index.num.levels: 01000000
rocksdb.block.based.table.index.type: 02000000
rocksdb.block.based.table.prefix.filtering: 0
rocksdb.block.based.table.whole.key.filtering: 1
rocksdb.deleted.keys: 00
