记得看代码中的注释哈，理解都在里面 源码基于v1.24
本篇文章介绍HTTPServer具体是怎么跑起来的，寻找到调用链，了解Server生命周期状态的流转的流程
先找到调用链
核心调用链代码，下面是按照函数调用顺序展示的代码，省略的逻辑写在注释里
func NewAPIServerCommand() *cobra.Command {
return Run(completedOptions, genericapiserver.SetupSignalHandler())
}
func Run(completeOptions completedServerRunOptions, stopCh <-chan struct{}) error {
prepared, err := server.PrepareRun()
if err != nil {
return err
}
return prepared.Run(stopCh)
}
func (s *APIAggregator) PrepareRun() (preparedAPIAggregator, error) {
/*
注册openapi 相关的controller到post start hook中
*/
prepared := s.GenericAPIServer.PrepareRun()
}
func (s *GenericAPIServer) PrepareRun() preparedGenericAPIServer {
/*
制作openapi，server healthz,
Livez，readyz等endpoints
*/
}
func (s preparedAPIAggregator) Run(stopCh <-chan struct{}) error {
return s.runnable.Run(stopCh)
}
func (s preparedGenericAPIServer) Run(stopCh <-chan struct{}) error {
stoppedCh, listenerStoppedCh, err := s.NonBlockingRun(stopHttpServerCh, shutdownTimeout)
}
func (s preparedGenericAPIServer) NonBlockingRun(stopCh <-chan struct{}, shutdownTimeout time.Duration) (<-chan struct{}, <-chan struct{}, error) {
// Use an internal stop channel to allow cleanup of the listeners on error.
internalStopCh := make(chan struct{})
var stoppedCh <-chan struct{}
var listenerStoppedCh <-chan struct{}
if s.SecureServingInfo != nil && s.Handler != nil {
var err error
/*
TLS的设置SecureServingInfo.Serve
*/
stoppedCh, listenerStoppedCh, err = s.SecureServingInfo.Serve(s.Handler, shutdownTimeout, internalStopCh)
if err != nil {
close(internalStopCh)
return nil, nil, err
}
}
// Now that listener have bound successfully, it is the
// responsibility of the caller to close the provided channel to
// ensure cleanup.
go func() {
<-stopCh
close(internalStopCh)
}()
/*
调用启动后的HOOK
*/
s.RunPostStartHooks(stopCh)
if _, err := systemd.SdNotify(true, "READY=1\n"); err != nil {
klog.Errorf("Unable to send systemd daemon successful start message: %v\n", err)
}
return stoppedCh, listenerStoppedCh, nil
}
/*
HTTP2.0设置，TLS设置，启动Server
*/
func (s *SecureServingInfo) Serve(handler http.Handler, shutdownTimeout time.Duration, stopCh <-chan struct{}) (<-chan struct{}, <-chan struct{}, error) {
if s.Listener == nil {
return nil, nil, fmt.Errorf("listener must not be nil")
}
tlsConfig, err := s.tlsConfig(stopCh)
if err != nil {
return nil, nil, err
}
secureServer := &http.Server{
Addr: s.Listener.Addr().String(),
Handler: handler,
MaxHeaderBytes: 1 << 20,
TLSConfig: tlsConfig,
IdleTimeout: 90 * time.Second, // matches http.DefaultTransport keep-alive timeout
ReadHeaderTimeout: 32 * time.Second, // just shy of requestTimeoutUpperBound
}
// At least 99% of serialized resources in surveyed clusters were smaller than 256kb.
// This should be big enough to accommodate most API POST requests in a single frame,
// and small enough to allow a per connection buffer of this size multiplied by `MaxConcurrentStreams`.
const resourceBody99Percentile = 256 * 1024
http2Options := &http2.Server{
IdleTimeout: 90 * time.Second, // matches http.DefaultTransport keep-alive timeout
}
// shrink the per-stream buffer and max framesize from the 1MB default while still accommodating most API POST requests in a single frame
http2Options.MaxUploadBufferPerStream = resourceBody99Percentile
http2Options.MaxReadFrameSize = resourceBody99Percentile
// use the overridden concurrent streams setting or make the default of 250 explicit so we can size MaxUploadBufferPerConnection appropriately
if s.HTTP2MaxStreamsPerConnection > 0 {
http2Options.MaxConcurrentStreams = uint32(s.HTTP2MaxStreamsPerConnection)
} else {
http2Options.MaxConcurrentStreams = 250
}
// increase the connection buffer size from the 1MB default to handle the specified number of concurrent streams
http2Options.MaxUploadBufferPerConnection = http2Options.MaxUploadBufferPerStream * int32(http2Options.MaxConcurrentStreams)
if !s.DisableHTTP2 {
// apply settings to the server
if err := http2.ConfigureServer(secureServer, http2Options); err != nil {
return nil, nil, fmt.Errorf("error configuring http2: %v", err)
}
}
// use tlsHandshakeErrorWriter to handle messages of tls handshake error
tlsErrorWriter := &tlsHandshakeErrorWriter{os.Stderr}
tlsErrorLogger := log.New(tlsErrorWriter, "", 0)
secureServer.ErrorLog = tlsErrorLogger
klog.Infof("Serving securely on %s", secureServer.Addr)
return RunServer(secureServer, s.Listener, shutdownTimeout, stopCh)
}
Server生命周期状态的流转
在go语言中，事件传递状态流转常用channel来实现，在下面这个函数中，就是Server的生命周期状态的流转，其中有很多的channel，代表不同的事件
// HTTPServerStoppedListening (httpServerStoppedListeningCh)
func (s preparedGenericAPIServer) Run(stopCh <-chan struct{}) error {
delayedStopCh := s.lifecycleSignals.AfterShutdownDelayDuration
shutdownInitiatedCh := s.lifecycleSignals.ShutdownInitiated
// Clean up resources on shutdown.
defer s.Destroy()
// spawn a new goroutine for closing the MuxAndDiscoveryComplete signal
// registration happens during construction of the generic api server
// the last server in the chain aggregates signals from the previous instances
go func() {
for _, muxAndDiscoveryCompletedSignal := range s.GenericAPIServer.MuxAndDiscoveryCompleteSignals() {
select {
case <-muxAndDiscoveryCompletedSignal:
continue
case <-stopCh:
klog.V(1).Infof("haven't completed %s, stop requested", s.lifecycleSignals.MuxAndDiscoveryComplete.Name())
return
}
}
s.lifecycleSignals.MuxAndDiscoveryComplete.Signal()
klog.V(1).Infof("%s has all endpoints registered and discovery information is complete", s.lifecycleSignals.MuxAndDiscoveryComplete.Name())
}()
go func() {
defer delayedStopCh.Signal()
defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", delayedStopCh.Name())
<-stopCh
// As soon as shutdown is initiated, /readyz should start returning failure.
// This gives the load balancer a window defined by ShutdownDelayDuration to detect that /readyz is red
// and stop sending traffic to this server.
shutdownInitiatedCh.Signal()
klog.V(1).InfoS("[graceful-termination] shutdown event", "name", shutdownInitiatedCh.Name())
time.Sleep(s.ShutdownDelayDuration)
}()
// close socket after delayed stopCh
shutdownTimeout := s.ShutdownTimeout
if s.ShutdownSendRetryAfter {
// when this mode is enabled, we do the following:
// - the server will continue to listen until all existing requests in flight
// (not including active long running requests) have been drained.
// - once drained, http Server Shutdown is invoked with a timeout of 2s,
// net/http waits for 1s for the peer to respond to a GO_AWAY frame, so
// we should wait for a minimum of 2s
shutdownTimeout = 2 * time.Second
klog.V(1).InfoS("[graceful-termination] using HTTP Server shutdown timeout", "ShutdownTimeout", shutdownTimeout)
}
notAcceptingNewRequestCh := s.lifecycleSignals.NotAcceptingNewRequest
drainedCh := s.lifecycleSignals.InFlightRequestsDrained
stopHttpServerCh := make(chan struct{})
go func() {
defer close(stopHttpServerCh)
timeToStopHttpServerCh := notAcceptingNewRequestCh.Signaled()
if s.ShutdownSendRetryAfter {
timeToStopHttpServerCh = drainedCh.Signaled()
}
<-timeToStopHttpServerCh
}()
// Start the audit backend before any request comes in. This means we must call Backend.Run
// before http server start serving. Otherwise the Backend.ProcessEvents call might block.
// AuditBackend.Run will stop as soon as all in-flight requests are drained.
if s.AuditBackend != nil {
if err := s.AuditBackend.Run(drainedCh.Signaled()); err != nil {
return fmt.Errorf("failed to run the audit backend: %v", err)
}
}
stoppedCh, listenerStoppedCh, err := s.NonBlockingRun(stopHttpServerCh, shutdownTimeout)
if err != nil {
return err
}
httpServerStoppedListeningCh := s.lifecycleSignals.HTTPServerStoppedListening
go func() {
<-listenerStoppedCh
httpServerStoppedListeningCh.Signal()
klog.V(1).InfoS("[graceful-termination] shutdown event", "name", httpServerStoppedListeningCh.Name())
}()
// we don't accept new request as soon as both ShutdownDelayDuration has
// elapsed and preshutdown hooks have completed.
preShutdownHooksHasStoppedCh := s.lifecycleSignals.PreShutdownHooksStopped
go func() {
defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", notAcceptingNewRequestCh.Name())
defer notAcceptingNewRequestCh.Signal()
// wait for the delayed stopCh before closing the handler chain
<-delayedStopCh.Signaled()
// Additionally wait for preshutdown hooks to also be finished, as some of them need
// to send API calls to clean up after themselves (e.g. lease reconcilers removing
// itself from the active servers).
<-preShutdownHooksHasStoppedCh.Signaled()
}()
go func() {
defer klog.V(1).InfoS("[graceful-termination] shutdown event", "name", drainedCh.Name())
defer drainedCh.Signal()
// wait for the delayed stopCh before closing the handler chain (it rejects everything after Wait has been called).
<-notAcceptingNewRequestCh.Signaled()
//等待所有由RequestTimeout变量限定的请求完成。
//一次HandlerChainWaitGroup。等待被调用，apiserver被调用
//期望拒绝任何传入请求{503,try- after}
//通过WithWaitGroup过滤器进行响应。相反，我们观察到传入的请求得到一个“连接拒绝”错误，这是
//因为，在这一点上，我们已经调用了'Server。关闭”,
// net/http服务器已经停止监听。这导致的
//请求获取一个'connection refused'错误。
//另一方面，如果'ShutdownSendRetryAfter'在传入时启用
//请求将被拒绝{429,try- after} since
//服务器。Shutdown'只会在飞行中请求后调用
s.HandlerChainWaitGroup.Wait()
}()
klog.V(1).Info("[graceful-termination] waiting for shutdown to be initiated")
<-stopCh
// run shutdown hooks directly. This includes deregistering from
// the kubernetes endpoint in case of kube-apiserver.
func() {
defer func() {
preShutdownHooksHasStoppedCh.Signal()
klog.V(1).InfoS("[graceful-termination] pre-shutdown hooks completed", "name", preShutdownHooksHasStoppedCh.Name())
}()
err = s.RunPreShutdownHooks()
}()
if err != nil {
return err
}
// Wait for all requests in flight to drain, bounded by the RequestTimeout variable.
<-drainedCh.Signaled()
if s.AuditBackend != nil {
s.AuditBackend.Shutdown()
klog.V(1).InfoS("[graceful-termination] audit backend shutdown completed")
}
// wait for stoppedCh that is closed when the graceful termination (server.Shutdown) is finished.
<-listenerStoppedCh
<-stoppedCh
klog.V(1).Info("[graceful-termination] apiserver is exiting")
return nil
}
Summary

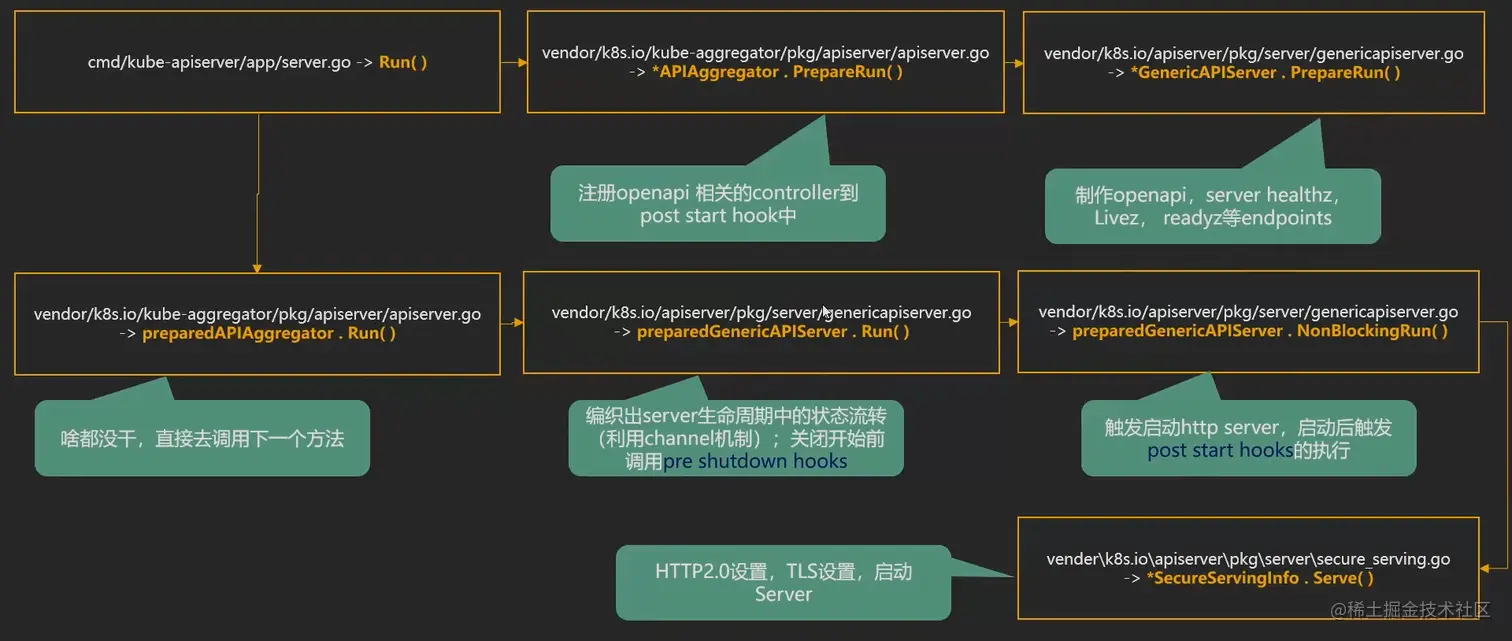

核心调用链路流程图如下
preparedGenericAPIServer.NonBlockingRun的调用时序图，http.Server一直运行下去直至终结
