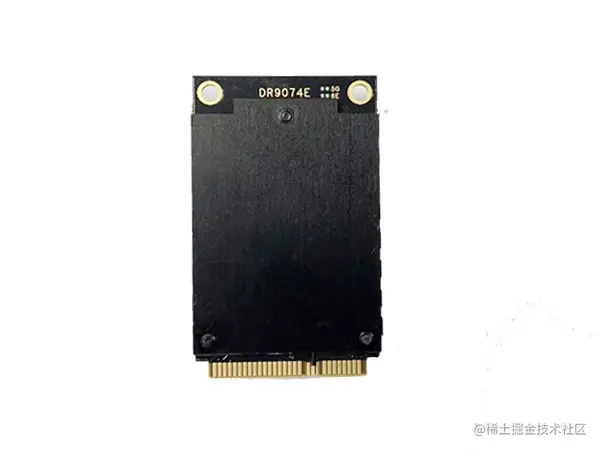

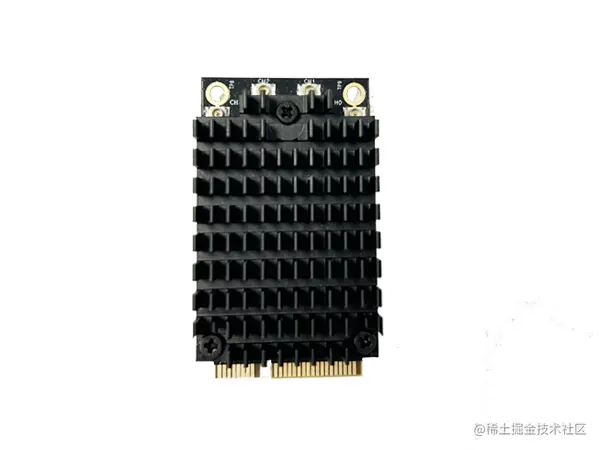

**DR9074E
www.wallystech.com/Network_Car…
Features
■ Qualcomm Atheros QCN90X4
■ Maxim Tx power 20dBm per chain
■ Date Rateup to 4949Mbps
■ Support 5.180~5.825Ghz or 5.925GHz-7.125GHz or 5.180GHz- 7.125GHz
■ MiniPCIe connector
■ PCI Express 3.0 Interface
Applications
■ Security Surveillance
■ Commercial radio coverage
■ Hotel Wireless application
■ Forest fire protection engineering
■ Country coverage
■ Some special scene application
| Absolute Maximum Rating |
|---|
| Parameter | Rating | Unit |
|---|---|---|
| Operating Temperature Range | -20 to 70 | ºC |
| Storage Temperature Range | -40 to 90 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Storage Humidity Range | 0 to +90 (non-condensing) | % |
| Hardware Specifications |
|---|
| Symbol | Parameter |
|---|---|
| Chipset | Qualcomm Atheros QCN9074(QCN9024) |
| WLAN Host Interface | PCI Express 3.0 Interface |
| System Memory | 2Mbit serial I²C bus EEPROM |
| Standard Operating Voltage | 3.3V |
| Operating Systems | QSDK |
| Host Interface | MiniPCIE |
| Antenna Cable / Port | 4 x MMCX Connectors,4T4R |
| Frequency Range | 5.180GHz-5.852GHz or 5.952GHz-7.125GHz |
| Data Rates for WALN | Maxim TX power 20dBm per chain, up to 4949Mbps |
| Channel Spectrum Widths for WLAN | Support 20/40/80/160MHz |
| Modulation Techniques | OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM |
| Temperature Range | Operating: -20°C to 70°C, Storage: -40°C to 90°C |
| Humidity | Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing) |
| Certification | TBD |
| Power Consumption | 15W（Maximum），9.5W(Normally) |
| Dimensions (WxHxD) | 30mm x 50mm x 14.5mm |
