本篇文章介绍API Resource的装载，把Apigroup对象装载到系统中，底层的存储，响应，注册机制
在哪里开始装载API Resource呢？
在InstallLegacyAPI中调用了GenericAPIServer.InstallLegacyAPIGroup
func (s *GenericAPIServer) InstallLegacyAPIGroup(apiPrefix string, apiGroupInfo *APIGroupInfo) error {
if !s.legacyAPIGroupPrefixes.Has(apiPrefix) {
return fmt.Errorf("%q is not in the allowed legacy API prefixes: %v", apiPrefix, s.legacyAPIGroupPrefixes.List())
}
openAPIModels, err := s.getOpenAPIModels(apiPrefix, apiGroupInfo)
if err != nil {
return fmt.Errorf("unable to get openapi models: %v", err)
}
if err := s.installAPIResources(apiPrefix, apiGroupInfo, openAPIModels); err != nil {
return err
}
// Install the version handler.
// Add a handler at /<apiPrefix> to enumerate the supported api versions.
s.Handler.GoRestfulContainer.Add(discovery.NewLegacyRootAPIHandler(s.discoveryAddresses, s.Serializer, apiPrefix).WebService())
return nil
}
func (s *GenericAPIServer) installAPIResources(apiPrefix string, apiGroupInfo *APIGroupInfo, openAPIModels openapiproto.Models) error {
var resourceInfos []*storageversion.ResourceInfo
for _, groupVersion := range apiGroupInfo.PrioritizedVersions {
if len(apiGroupInfo.VersionedResourcesStorageMap[groupVersion.Version]) == 0 {
klog.Warningf("Skipping API %v because it has no resources.", groupVersion)
continue
}
apiGroupVersion, err := s.getAPIGroupVersion(apiGroupInfo, groupVersion, apiPrefix)
if err != nil {
return err
}
if apiGroupInfo.OptionsExternalVersion != nil {
apiGroupVersion.OptionsExternalVersion = apiGroupInfo.OptionsExternalVersion
}
apiGroupVersion.OpenAPIModels = openAPIModels
if openAPIModels != nil && utilfeature.DefaultFeatureGate.Enabled(features.ServerSideApply) {
typeConverter, err := fieldmanager.NewTypeConverter(openAPIModels, false)
if err != nil {
return err
}
apiGroupVersion.TypeConverter = typeConverter
}
apiGroupVersion.MaxRequestBodyBytes = s.maxRequestBodyBytes
r, err := apiGroupVersion.InstallREST(s.Handler.GoRestfulContainer)
if err != nil {
return fmt.Errorf("unable to setup API %v: %v", apiGroupInfo, err)
}
resourceInfos = append(resourceInfos, r...)
}
s.RegisterDestroyFunc(apiGroupInfo.destroyStorage)
if utilfeature.DefaultFeatureGate.Enabled(features.StorageVersionAPI) &&
utilfeature.DefaultFeatureGate.Enabled(features.APIServerIdentity) {
// API installation happens before we start listening on the handlers,
// therefore it is safe to register ResourceInfos here. The handler will block
// write requests until the storage versions of the targeting resources are updated.
s.StorageVersionManager.AddResourceInfo(resourceInfos...)
}
return nil
}
怎么装载的？
func (g *APIGroupVersion) InstallREST(container *restful.Container) ([]*storageversion.ResourceInfo, error) {
prefix := path.Join(g.Root, g.GroupVersion.Group, g.GroupVersion.Version)
installer := &APIInstaller{
group: g,
prefix: prefix,
minRequestTimeout: g.MinRequestTimeout,
}
apiResources, resourceInfos, ws, registrationErrors := installer.Install()
versionDiscoveryHandler := discovery.NewAPIVersionHandler(g.Serializer, g.GroupVersion, staticLister{apiResources})
versionDiscoveryHandler.AddToWebService(ws)
container.Add(ws)
return removeNonPersistedResources(resourceInfos), utilerrors.NewAggregate(registrationErrors)
}
func (a *APIInstaller) Install() ([]metav1.APIResource, []*storageversion.ResourceInfo, *restful.WebService, []error) {
var apiResources []metav1.APIResource
var resourceInfos []*storageversion.ResourceInfo
var errors []error
ws := a.newWebService()
// Register the paths in a deterministic (sorted) order to get a deterministic swagger spec.
paths := make([]string, len(a.group.Storage))
var i int = 0
for path := range a.group.Storage {
paths[i] = path
i++
}
sort.Strings(paths)
for _, path := range paths {
apiResource, resourceInfo, err := a.registerResourceHandlers(path, a.group.Storage[path], ws)
if err != nil {
errors = append(errors, fmt.Errorf("error in registering resource: %s, %v", path, err))
}
if apiResource != nil {
apiResources = append(apiResources, *apiResource)
}
if resourceInfo != nil {
resourceInfos = append(resourceInfos, resourceInfo)
}
}
return apiResources, resourceInfos, ws, errors
}
/*
代码过长留下了核心部分
*/

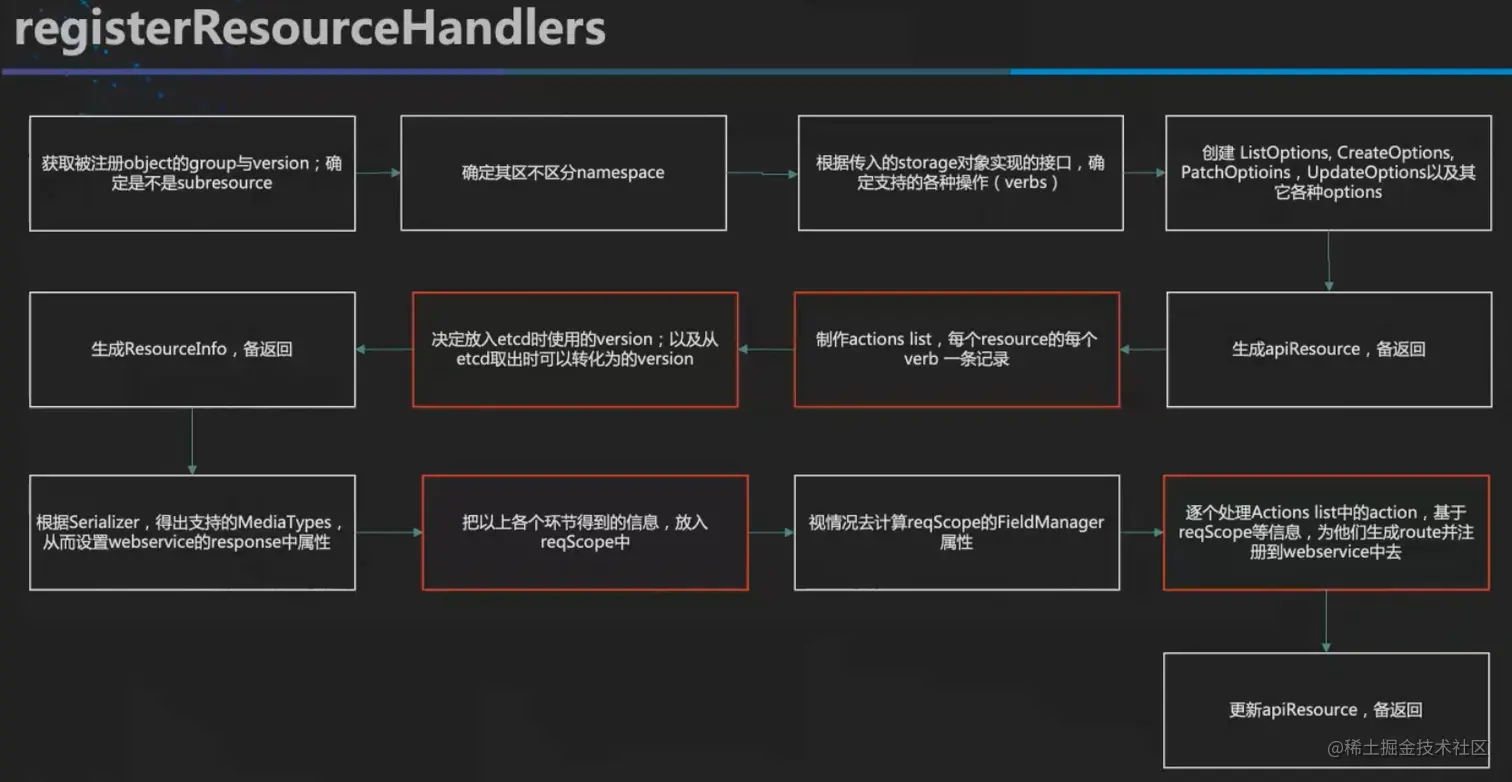

func (a *APIInstaller) registerResourceHandlers(path string, storage rest.Storage, ws *restful.WebService) (*metav1.APIResource, *storageversion.ResourceInfo, error) {
admit := a.group.Admit
optionsExternalVersion := a.group.GroupVersion
if a.group.OptionsExternalVersion != nil {
optionsExternalVersion = *a.group.OptionsExternalVersion
}
resource, subresource, err := splitSubresource(path)
if err != nil {
return nil, nil, err
}
group, version := a.group.GroupVersion.Group, a.group.GroupVersion.Version
fqKindToRegister, err := GetResourceKind(a.group.GroupVersion, storage, a.group.Typer)
if err != nil {
return nil, nil, err
}
versionedPtr, err := a.group.Creater.New(fqKindToRegister)
if err != nil {
return nil, nil, err
}
defaultVersionedObject := indirectArbitraryPointer(versionedPtr)
kind := fqKindToRegister.Kind
isSubresource := len(subresource) > 0
// If there is a subresource, namespace scoping is defined by the parent resource
var namespaceScoped bool
if isSubresource {
parentStorage, ok := a.group.Storage[resource]
if !ok {
return nil, nil, fmt.Errorf("missing parent storage: %q", resource)
}
scoper, ok := parentStorage.(rest.Scoper)
if !ok {
return nil, nil, fmt.Errorf("%q must implement scoper", resource)
}
namespaceScoped = scoper.NamespaceScoped()
} else {
scoper, ok := storage.(rest.Scoper)
if !ok {
return nil, nil, fmt.Errorf("%q must implement scoper", resource)
}
namespaceScoped = scoper.NamespaceScoped()
}
// what verbs are supported by the storage, used to know what verbs we support per path
creater, isCreater := storage.(rest.Creater)
namedCreater, isNamedCreater := storage.(rest.NamedCreater)
lister, isLister := storage.(rest.Lister)
getter, isGetter := storage.(rest.Getter)
getterWithOptions, isGetterWithOptions := storage.(rest.GetterWithOptions)
gracefulDeleter, isGracefulDeleter := storage.(rest.GracefulDeleter)
collectionDeleter, isCollectionDeleter := storage.(rest.CollectionDeleter)
updater, isUpdater := storage.(rest.Updater)
patcher, isPatcher := storage.(rest.Patcher)
watcher, isWatcher := storage.(rest.Watcher)
connecter, isConnecter := storage.(rest.Connecter)
storageMeta, isMetadata := storage.(rest.StorageMetadata)
storageVersionProvider, isStorageVersionProvider := storage.(rest.StorageVersionProvider)
gvAcceptor, _ := storage.(rest.GroupVersionAcceptor)
if !isMetadata {
storageMeta = defaultStorageMetadata{}
}
...
// Get the list of actions for the given scope.
/*
生成actions
*/
switch {
case !namespaceScoped:
// Handle non-namespace scoped resources like nodes.
...
// Handler for standard REST verbs (GET, PUT, POST and DELETE).
// Add actions at the resource path: /api/apiVersion/resource
actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
// DEPRECATED in 1.11
actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)
// Add actions at the item path: /api/apiVersion/resource/{name}
actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
if getSubpath {
actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
}
actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
// DEPRECATED in 1.11
actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)
default:
namespaceParamName := "namespaces"
// Handler for standard REST verbs (GET, PUT, POST and DELETE).
namespaceParam := ws.PathParameter("namespace", "object name and auth scope, such as for teams and projects").DataType("string")
namespacedPath := namespaceParamName + "/{namespace}/" + resource
namespaceParams := []*restful.Parameter{namespaceParam}
resourcePath := namespacedPath
resourceParams := namespaceParams
itemPath := namespacedPath + "/{name}"
nameParams := append(namespaceParams, nameParam)
proxyParams := append(nameParams, pathParam)
itemPathSuffix := ""
if isSubresource {
itemPathSuffix = "/" + subresource
itemPath = itemPath + itemPathSuffix
resourcePath = itemPath
resourceParams = nameParams
}
apiResource.Name = path
apiResource.Namespaced = true
apiResource.Kind = resourceKind
namer := handlers.ContextBasedNaming{
Namer: a.group.Namer,
ClusterScoped: false,
}
actions = appendIf(actions, action{"LIST", resourcePath, resourceParams, namer, false}, isLister)
actions = appendIf(actions, action{"POST", resourcePath, resourceParams, namer, false}, isCreater)
actions = appendIf(actions, action{"DELETECOLLECTION", resourcePath, resourceParams, namer, false}, isCollectionDeleter)
// DEPRECATED in 1.11
actions = appendIf(actions, action{"WATCHLIST", "watch/" + resourcePath, resourceParams, namer, false}, allowWatchList)
actions = appendIf(actions, action{"GET", itemPath, nameParams, namer, false}, isGetter)
if getSubpath {
actions = appendIf(actions, action{"GET", itemPath + "/{path:*}", proxyParams, namer, false}, isGetter)
}
actions = appendIf(actions, action{"PUT", itemPath, nameParams, namer, false}, isUpdater)
actions = appendIf(actions, action{"PATCH", itemPath, nameParams, namer, false}, isPatcher)
actions = appendIf(actions, action{"DELETE", itemPath, nameParams, namer, false}, isGracefulDeleter)
// DEPRECATED in 1.11
actions = appendIf(actions, action{"WATCH", "watch/" + itemPath, nameParams, namer, false}, isWatcher)
actions = appendIf(actions, action{"CONNECT", itemPath, nameParams, namer, false}, isConnecter)
actions = appendIf(actions, action{"CONNECT", itemPath + "/{path:*}", proxyParams, namer, false}, isConnecter && connectSubpath)
...
/*
route的注入
*/
for _, route := range routes {
route.Metadata(ROUTE_META_GVK, metav1.GroupVersionKind{
Group: reqScope.Kind.Group,
Version: reqScope.Kind.Version,
Kind: reqScope.Kind.Kind,
})
route.Metadata(ROUTE_META_ACTION, strings.ToLower(action.Verb))
ws.Route(route)
}
Summary
- 函数之间的调用逻辑
- 注册资源对象的逻辑
