Lucene源码系列（二十四）：DocValues-BinaryDocValues

背景

前面我们介绍的两种DocValues都是数值类型的。今天我们要开始介绍字符串类型的DocValues。字符串类型的DocValues在存储的时候都是字节数组，其实也就是二进制，所以在Lucene中叫做BinaryDocValues，当然还有其他跟字符串相关的DocValues，本文先介绍最简的BinaryDocValues，一个文档不能有同名的BinaryDocValues。

public class DocValueDemo {
    public static void main(String[] args) throws IOException {
        Directory directory = FSDirectory.open(new File("D:\\code\\lucene-9.1.0-learning\\data").toPath());
        WhitespaceAnalyzer analyzer = new WhitespaceAnalyzer();
        IndexWriterConfig indexWriterConfig = new IndexWriterConfig(analyzer);
        indexWriterConfig.setUseCompoundFile(false);
        IndexWriter indexWriter = new IndexWriter(directory, indexWriterConfig);

        Document document = new Document();
        // 一个doc不能有同名的BinaryDocValuesField，存储二进制
        document.add(new BinaryDocValuesField("name", new BytesRef("zjc".getBytes(StandardCharsets.UTF_8))));

        indexWriter.addDocument(document);
        indexWriter.flush();
        indexWriter.commit();
        indexWriter.close();
    }
}

前置知识

本文涉及到的一些知识在之前的文章中都做了详细的介绍，后续碰到不会重复介绍。

• DirectMonotonicWriter：用来压缩存储单调递增的long集合，详见《多值编码压缩算法》

文件格式

dvm

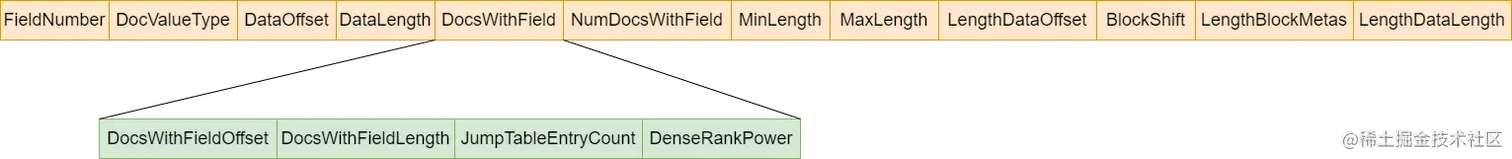

整体结构

字段详解

• FieldNumber：字段编号
• DocValueType：DocValues类型编号
• DataOffset：数据在dvd文件的起始位置
• DataLength：数据在dvd文件的总长度
• DocsWithField：存在此field的docID集合，分为3种情况：
  • 所有doc都不包含
    • DocsWithFieldOffset：-2，表示所有doc都不包含情况
    • DocsWithFieldLength：0
    • JumpTableEntryCount：-1
    • DenseRankPower：-1
  • 所有doc都包含
    • DocsWithFieldOffset：-1，表示所有的doc都包含情况
    • DocsWithFieldLength：0
    • JumpTableEntryCount：-1
    • DenseRankPower：-1
  • 部分doc包含：使用IndexDISI来存储
    • DocsWithFieldOffset：IndexDISI在dvd文件中的起始位置
    • DocsWithFieldLength：IndexDISI在dvd文件中的总长度
    • JumpTableEntryCount：IndexDISI中jump的参数
    • DenseRankPower：IndexDISI中rank的参数
• NumDocsWithField：包含此字段的doc数
• MinLength：长度最短的BinaryDocValues
• MaxLength：长度最长的BinaryDocValues
• LengthDataOffset：每个BinaryDocValues长度信息在dvd文件的起始位置。长度信息使用DirectMonotonicWriter存储，第i个位置存储的是value0.length + value1.length + ... + valuei.length。
• BlockShift：DirectMonotonicWriter的参数
• LengthBlockMetas：DirectMonotonicWriter的元信息
• LengthDataLength：长度信息在dvd文件中的总长度

dvd

整体结构

字段详解

• Bytes：所有的binary都存储在一起
  • binary：doc的本字段的BinaryDocValues

源码解析

构建

数据收集

BinaryDocValues临时存储的工具是PagedBytes，它逻辑上就是一个byte数组，只是为了避免大数组对内存不友好，所以分成多个block，或者说page。

在持久化的时候，会把BinaryDocValues的值和包含该field的docID集合会根据是否需要对doc进行排序都封装到BufferedBinaryDocValues或者SortingBinaryDocValues中。

SortedNumericDocValuesWriter

class BinaryDocValuesWriter extends DocValuesWriter<BinaryDocValues> {

  // BinaryDocValues值的最大长度
  private static final int MAX_LENGTH = ArrayUtil.MAX_ARRAY_LENGTH;

  // 4 kB block sizes for PagedBytes storage:
  private static final int BLOCK_BITS = 12;

  // 逻辑上就是一个byte数组，只是为了避免大数组对内存不友好，所以分成多个block，或者说page
  private final PagedBytes bytes;
  // bytes的输出流
  private final DataOutput bytesOut;

  private final Counter iwBytesUsed;
  // 临时存储每个二进制的长度，待构建成PackedLongValues
  private final PackedLongValues.Builder lengths;
  // 记录存在这个字段的docID
  private DocsWithFieldSet docsWithField;
  private final FieldInfo fieldInfo;
  private long bytesUsed;
  private int lastDocID = -1;
  private int maxLength = 0;
  // 记录每个二进制的长度
  private PackedLongValues finalLengths;

  BinaryDocValuesWriter(FieldInfo fieldInfo, Counter iwBytesUsed) {
    this.fieldInfo = fieldInfo;
    this.bytes = new PagedBytes(BLOCK_BITS);
    this.bytesOut = bytes.getDataOutput();
    this.lengths = PackedLongValues.deltaPackedBuilder(PackedInts.COMPACT);
    this.iwBytesUsed = iwBytesUsed;
    this.docsWithField = new DocsWithFieldSet();
    this.bytesUsed = lengths.ramBytesUsed() + docsWithField.ramBytesUsed();
    iwBytesUsed.addAndGet(bytesUsed);
  }

  public void addValue(int docID, BytesRef value) {
    if (docID <= lastDocID) {
      throw new IllegalArgumentException(
          "DocValuesField \""
              + fieldInfo.name
              + "\" appears more than once in this document (only one value is allowed per field)");
    }
    if (value == null) {
      throw new IllegalArgumentException(
          "field=\"" + fieldInfo.name + "\": null value not allowed");
    }
    if (value.length > MAX_LENGTH) {
      throw new IllegalArgumentException(
          "DocValuesField \"" + fieldInfo.name + "\" is too large, must be <= " + MAX_LENGTH);
    }
    // 更新最大的长度
    maxLength = Math.max(value.length, maxLength);
    // 记录当binary的长度
    lengths.add(value.length);
    try {
      // 记录binary的值
      bytesOut.writeBytes(value.bytes, value.offset, value.length);
    } catch (IOException ioe) {
      throw new RuntimeException(ioe);
    }
    // 记录docID
    docsWithField.add(docID);
    updateBytesUsed();

    lastDocID = docID;
  }

  private void updateBytesUsed() {
    final long newBytesUsed =
        lengths.ramBytesUsed() + bytes.ramBytesUsed() + docsWithField.ramBytesUsed();
    iwBytesUsed.addAndGet(newBytesUsed - bytesUsed);
    bytesUsed = newBytesUsed;
  }

  @Override
  BinaryDocValues getDocValues() {
    if (finalLengths == null) {
      finalLengths = this.lengths.build();
    }
    // 封装成  BufferedBinaryDocValues
    return new BufferedBinaryDocValues(
        finalLengths, maxLength, bytes.getDataInput(), docsWithField.iterator());
  }

  @Override
  public void flush(SegmentWriteState state, Sorter.DocMap sortMap, DocValuesConsumer dvConsumer)
      throws IOException {
    // 冻结bytes
    bytes.freeze(false);
    if (finalLengths == null) {
      finalLengths = this.lengths.build();
    }
    final BinaryDVs sorted;
    if (sortMap != null) {
      sorted =
          new BinaryDVs(
              state.segmentInfo.maxDoc(),
              sortMap,
              new BufferedBinaryDocValues(
                  finalLengths, maxLength, bytes.getDataInput(), docsWithField.iterator()));
    } else {
      sorted = null;
    }
    dvConsumer.addBinaryField(
        fieldInfo,
        new EmptyDocValuesProducer() {
          @Override
          public BinaryDocValues getBinary(FieldInfo fieldInfoIn) {
            if (fieldInfoIn != fieldInfo) {
              throw new IllegalArgumentException("wrong fieldInfo");
            }
            if (sorted == null) {
              return new BufferedBinaryDocValues(
                  finalLengths, maxLength, bytes.getDataInput(), docsWithField.iterator());
            } else {
              return new SortingBinaryDocValues(sorted);
            }
          }
        });
  }
}

BufferedBinaryDocValues

  private static class BufferedBinaryDocValues extends BinaryDocValues {
    final BytesRefBuilder value;
    final PackedLongValues.Iterator lengthsIterator;
    final DocIdSetIterator docsWithField;
    final DataInput bytesIterator;

    BufferedBinaryDocValues(
        PackedLongValues lengths,
        int maxLength,
        DataInput bytesIterator,
        DocIdSetIterator docsWithFields) {
      this.value = new BytesRefBuilder();
      this.value.grow(maxLength);
      this.lengthsIterator = lengths.iterator();
      this.bytesIterator = bytesIterator;
      this.docsWithField = docsWithFields;
    }

    @Override
    public int docID() {
      return docsWithField.docID();
    }

    @Override
    public int nextDoc() throws IOException {
      int docID = docsWithField.nextDoc();
      if (docID != NO_MORE_DOCS) {
        int length = Math.toIntExact(lengthsIterator.next());
        value.setLength(length);
        bytesIterator.readBytes(value.bytes(), 0, length);
      }
      return docID;
    }

    @Override
    public int advance(int target) {
      throw new UnsupportedOperationException();
    }

    @Override
    public boolean advanceExact(int target) throws IOException {
      throw new UnsupportedOperationException();
    }

    @Override
    public long cost() {
      return docsWithField.cost();
    }

    @Override
    public BytesRef binaryValue() {
      return value.get();
    }
  }

SortingBinaryDocValues

  static class SortingBinaryDocValues extends BinaryDocValues {
    // 封装的是排好序doc和对应的DocValues
    private final BinaryDVs dvs;
    private final BytesRefBuilder spare = new BytesRefBuilder();
    private int docID = -1;

    SortingBinaryDocValues(BinaryDVs dvs) {
      this.dvs = dvs;
    }

    @Override
    public int nextDoc() {
      do {
        docID++;
        if (docID == dvs.offsets.length) {
          return docID = NO_MORE_DOCS;
        }
      } while (dvs.offsets[docID] <= 0);
      return docID;
    }

    @Override
    public int docID() {
      return docID;
    }

    @Override
    public int advance(int target) {
      throw new UnsupportedOperationException("use nextDoc instead");
    }

    @Override
    public boolean advanceExact(int target) throws IOException {
      throw new UnsupportedOperationException("use nextDoc instead");
    }

    @Override
    public BytesRef binaryValue() {
      dvs.values.get(spare, dvs.offsets[docID] - 1);
      return spare.get();
    }

    @Override
    public long cost() {
      return dvs.values.size();
    }
  }

持久化

• NumericDocValues持久化的核心逻辑在writeValues方法中，主要做了一下几件事：

  • 遍历所有的value，存储到dvd文件中
  • 记录本字段的docValue元信息
  • 记录存在本字段的docID集合
  • 如果所有字段的长度没有都相等，则存储每个value的长度

  public void addBinaryField(FieldInfo field, DocValuesProducer valuesProducer) throws IOException {
    meta.writeInt(field.number);
    meta.writeByte(Lucene90DocValuesFormat.BINARY);

    BinaryDocValues values = valuesProducer.getBinary(field);
    long start = data.getFilePointer();
    // 数据在dvd文件中的起始位置
    meta.writeLong(start);
    int numDocsWithField = 0;
    int minLength = Integer.MAX_VALUE;
    int maxLength = 0;
    for (int doc = values.nextDoc(); doc != DocIdSetIterator.NO_MORE_DOCS; doc = values.nextDoc()) {
      numDocsWithField++;
      BytesRef v = values.binaryValue();
      int length = v.length;
      data.writeBytes(v.bytes, v.offset, v.length);
      minLength = Math.min(length, minLength);
      maxLength = Math.max(length, maxLength);
    }
    assert numDocsWithField <= maxDoc;
    // 数据的长度
    meta.writeLong(data.getFilePointer() - start);
    // 下面处理包含此field的doc集合，存储方案和NumericDocValues一模一样
    if (numDocsWithField == 0) {
      meta.writeLong(-2);
      meta.writeLong(0L);
      meta.writeShort((short) -1);
      meta.writeByte((byte) -1);
    } else if (numDocsWithField == maxDoc) {
      meta.writeLong(-1);
      meta.writeLong(0L);
      meta.writeShort((short) -1);
      meta.writeByte((byte) -1);
    } else {
      long offset = data.getFilePointer();
      meta.writeLong(offset);
      values = valuesProducer.getBinary(field);
      final short jumpTableEntryCount =
          IndexedDISI.writeBitSet(values, data, IndexedDISI.DEFAULT_DENSE_RANK_POWER);
      meta.writeLong(data.getFilePointer() - offset);
      meta.writeShort(jumpTableEntryCount);
      meta.writeByte(IndexedDISI.DEFAULT_DENSE_RANK_POWER);
    }

    meta.writeInt(numDocsWithField);
    meta.writeInt(minLength);
    meta.writeInt(maxLength);
    if (maxLength > minLength) { // 说明不是所有的value的长度都一样，需要额外存储每个value的长度
      start = data.getFilePointer();
      meta.writeLong(start);
      meta.writeVInt(DIRECT_MONOTONIC_BLOCK_SHIFT);

      final DirectMonotonicWriter writer =
          DirectMonotonicWriter.getInstance(
              meta, data, numDocsWithField + 1, DIRECT_MONOTONIC_BLOCK_SHIFT);
      long addr = 0;
      writer.add(addr);
      values = valuesProducer.getBinary(field);
      for (int doc = values.nextDoc();
          doc != DocIdSetIterator.NO_MORE_DOCS;
          doc = values.nextDoc()) {
        addr += values.binaryValue().length;
        writer.add(addr);
      }
      writer.finish();
      meta.writeLong(data.getFilePointer() - start);
    }
  }

读取

读取逻辑比较简单：

1. 从dvm文件中解析相关的元信息
2. 如果所有文档都不包含此字段，则无需继续处理
3. 如果所有文档都包含此字段，则可以用maxDoc来判断doc遍历的结束。
4. 如果部分文档包含本字段，则使用IndexDISI来遍历doc。
5. 数据读取，如果长度都一样，则从元信息中可以获取长度，否则就需要先解析doc对应的BinaryDocValues的长度，然后再读取value。

  private BinaryEntry readBinary(IndexInput meta) throws IOException {
    final BinaryEntry entry = new BinaryEntry();
    entry.dataOffset = meta.readLong();
    entry.dataLength = meta.readLong();
    entry.docsWithFieldOffset = meta.readLong();
    entry.docsWithFieldLength = meta.readLong();
    entry.jumpTableEntryCount = meta.readShort();
    entry.denseRankPower = meta.readByte();
    entry.numDocsWithField = meta.readInt();
    entry.minLength = meta.readInt();
    entry.maxLength = meta.readInt();
    if (entry.minLength < entry.maxLength) { // 说明存在value长度的数据
      entry.addressesOffset = meta.readLong();
      long numAddresses = entry.numDocsWithField + 1L;

      final int blockShift = meta.readVInt();
      entry.addressesMeta = DirectMonotonicReader.loadMeta(meta, numAddresses, blockShift);
      entry.addressesLength = meta.readLong();
    }
    return entry;
  }

  public BinaryDocValues getBinary(FieldInfo field) throws IOException {
    BinaryEntry entry = binaries.get(field.name);

    if (entry.docsWithFieldOffset == -2) { // 没有doc包含此字段
      return DocValues.emptyBinary();
    }

    final IndexInput bytesSlice = data.slice("fixed-binary", entry.dataOffset, entry.dataLength);

    if (entry.docsWithFieldOffset == -1) { // 所有doc都包含此字段
      if (entry.minLength == entry.maxLength) { // 如果所有的value长度都相等
        // 固定一个value的读取长度
        final int length = entry.maxLength;
        return new DenseBinaryDocValues(maxDoc) {
          final BytesRef bytes = new BytesRef(new byte[length], 0, length);

          @Override
          public BytesRef binaryValue() throws IOException {
            bytesSlice.seek((long) doc * length);
            bytesSlice.readBytes(bytes.bytes, 0, length);
            return bytes;
          }
        };
      } else { // 如果value的长度不一样，则需要先读取doc的field的value的长度，再读取value
        final RandomAccessInput addressesData =
            this.data.randomAccessSlice(entry.addressesOffset, entry.addressesLength);
        final LongValues addresses =
            DirectMonotonicReader.getInstance(entry.addressesMeta, addressesData, merging);
        return new DenseBinaryDocValues(maxDoc) {
          final BytesRef bytes = new BytesRef(new byte[entry.maxLength], 0, entry.maxLength);

          @Override
          public BytesRef binaryValue() throws IOException {
            long startOffset = addresses.get(doc);
            bytes.length = (int) (addresses.get(doc + 1L) - startOffset);
            bytesSlice.seek(startOffset);
            bytesSlice.readBytes(bytes.bytes, 0, bytes.length);
            return bytes;
          }
        };
      }
    } else { // 部分doc包含此字段，需要使用IndexedDISI遍历doc
      final IndexedDISI disi =
          new IndexedDISI(
              data,
              entry.docsWithFieldOffset,
              entry.docsWithFieldLength,
              entry.jumpTableEntryCount,
              entry.denseRankPower,
              entry.numDocsWithField);
      if (entry.minLength == entry.maxLength) { // 所有的value的长度都相等
        final int length = entry.maxLength;
        return new SparseBinaryDocValues(disi) {
          final BytesRef bytes = new BytesRef(new byte[length], 0, length);

          @Override
          public BytesRef binaryValue() throws IOException {
            bytesSlice.seek((long) disi.index() * length);
            bytesSlice.readBytes(bytes.bytes, 0, length);
            return bytes;
          }
        };
      } else { // value的长度不一
        final RandomAccessInput addressesData =
            this.data.randomAccessSlice(entry.addressesOffset, entry.addressesLength);
        final LongValues addresses =
            DirectMonotonicReader.getInstance(entry.addressesMeta, addressesData);
        return new SparseBinaryDocValues(disi) {
          final BytesRef bytes = new BytesRef(new byte[entry.maxLength], 0, entry.maxLength);

          @Override
          public BytesRef binaryValue() throws IOException {
            final int index = disi.index();
            long startOffset = addresses.get(index);
            bytes.length = (int) (addresses.get(index + 1L) - startOffset);
            bytesSlice.seek(startOffset);
            bytesSlice.readBytes(bytes.bytes, 0, bytes.length);
            return bytes;
          }
        };
      }
    }
  }

总结

本文介绍了最简的字符串类型的DocValues：BinaryDocValues。后面继续介绍两种可以存储字符串的DocValue，他们的存储基于本文介绍的BinaryDocValues。
