前言

在布局时，如果需要根据特定的模型数据来移除或者安装特定的约束条件，这个时候可以使用MASConstraint的- (void)uninstall { MASMethodNotImplemented(); } 和- (void)install { MASMethodNotImplemented(); } 进行实现。

I 应用场景

1.1 收款详情界面

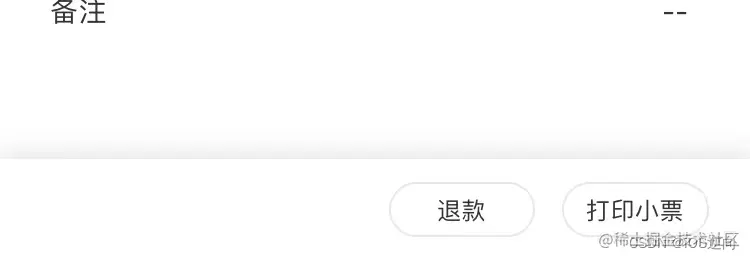

例子：如果是支付成功状态的订单，界面底部显示退款按钮

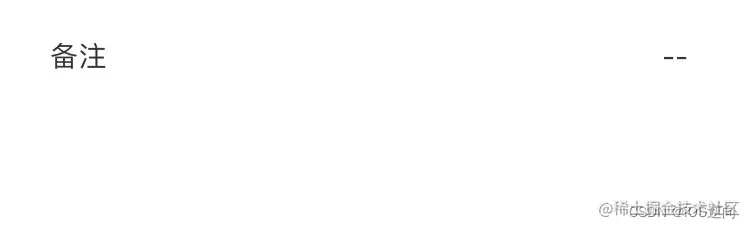

其他支付状态隐藏退款按钮

/**
 用于退款视图底部约束的移除与安装
 */
@property MASConstraint *makebottomequalToWeakSelf4tableV;


        [_tableView mas_makeConstraints:^(MASConstraintMaker *make) {
            make.top.equalTo(weakSelf);
            make.left.equalTo(weakSelf).offset(kAdjustRatio(0));

            weakSelf.makebottomequalToWeakSelf4tableV = make.bottom.equalTo(weakSelf);

            if(weakSelf.viewModel.ishiddenPtinterBtn){// 隐藏打印、退款按钮
                [weakSelf.makebottomequalToWeakSelf4tableV install];

            }else{
                // 移除
                [weakSelf.makebottomequalToWeakSelf4tableV uninstall];
            }


            make.right.equalTo(weakSelf).offset(-kAdjustRatio(0));


        }];


1.2 入库单详情界面

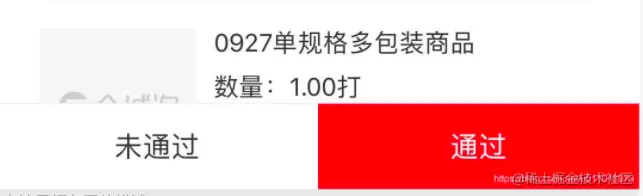

例子： 例如入库单详情界面，如果是未审核状态的时候，就需要在底部展示审核按钮，这个时候就可以对tableView底部约束进行安装和移除。

核心代码示例：

        if(!weakSelf.viewModel.isShowBottomBtn){
            [self.makebottomequalToWeakSelf4TV install];

        }else{
            [self.makebottomequalToWeakSelf4TV uninstall];
        }

前后效果对比

1.3 签到界面

签到界面根据班次信息进行动态修改视图的高度和对齐方式：

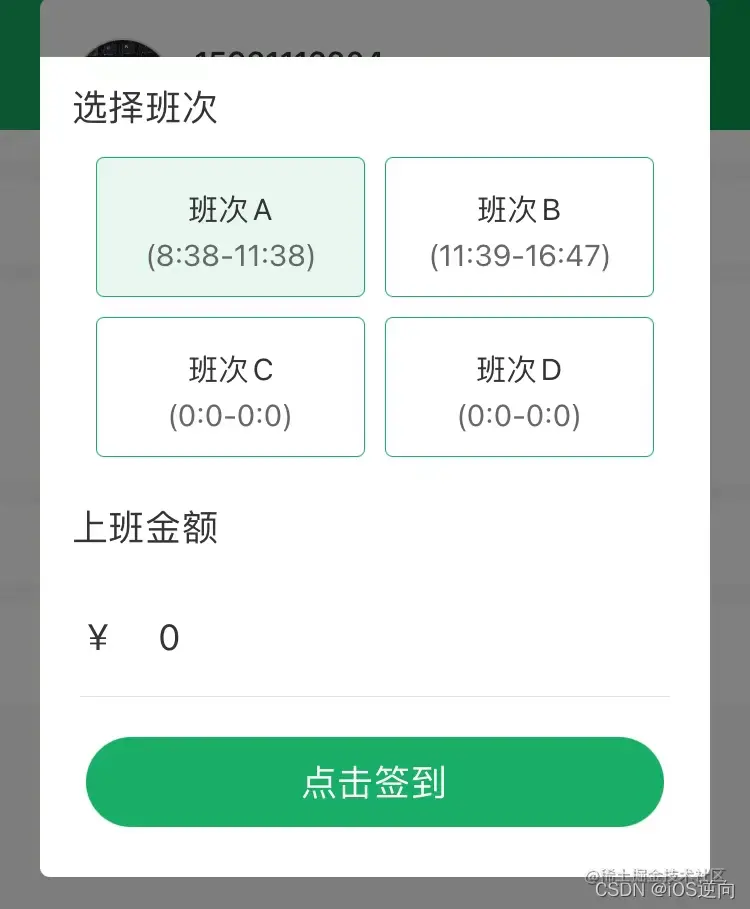

1个班次的界面

4个班次的签到界面

II 约束的安装与移除

2.1 定义 MASConstraint 属性

/**
 用于图片底部约束的移除与安装
 */
@property MASConstraint *makebottomequalToWeakSelf4imgV;

2.2 根据特定条件进行约束的安装和卸载

根据使用包含特定字段models.tradeNo进行移除和卸载特定的约束

    __weak __typeof__(self) weakSelf = self;

    [self.imgV mas_updateConstraints:^(MASConstraintMaker *make) {
        self.makebottomequalToWeakSelf4imgV = make.bottom.equalTo(weakSelf).offset(-kAdjustRatio(14));



    }];



    if([NSStringQCTtoll isBlankString:models.tradeNo]){
        self.tradeNoLab.text = @"";


        self.tradeNoLab.hidden = YES;
        [self.tradeNoLab mas_updateConstraints:^(MASConstraintMaker *make) {
            make.top.equalTo(weakSelf.titleLab).offset(kAdjustRatio(0));
            make.left.equalTo(weakSelf.imgV.mas_right).offset(kAdjustRatio(16));


        }];

        [self.timeLab mas_updateConstraints:^(MASConstraintMaker *make) {
            make.bottom.equalTo(weakSelf.imgV).offset(kAdjustRatio(3));
            make.left.equalTo(weakSelf.titleLab).offset(kAdjustRatio(0));


        }];

        [self.imgV mas_updateConstraints:^(MASConstraintMaker *make) {
            make.size.mas_equalTo(CGSizeMake(kAdjustRatio(36), kAdjustRatio(36)));
            make.left.equalTo(weakSelf).offset(kAdjustRatio(0));
            make.top.equalTo(weakSelf).offset(kAdjustRatio(14));


        }];

        [self.makebottomequalToWeakSelf4imgV install];


    }else{
        self.tradeNoLab.hidden = NO;
        self.tradeNoLab.text = models.tradeNo;
        [self.tradeNoLab mas_makeConstraints:^(MASConstraintMaker *make) {
            make.top.equalTo(weakSelf.titleLab.mas_bottom).offset(kAdjustRatio(3));
            make.left.equalTo(weakSelf.imgV.mas_right).offset(kAdjustRatio(16));


        }];

        [self.timeLab mas_updateConstraints:^(MASConstraintMaker *make) {
            make.bottom.equalTo(weakSelf).offset(kAdjustRatio(-3));
            make.left.equalTo(weakSelf.titleLab).offset(kAdjustRatio(0));
            make.top.equalTo(weakSelf.tradeNoLab.mas_bottom).offset(kAdjustRatio(3));


        }];
        [self.imgV mas_updateConstraints:^(MASConstraintMaker *make) {
            make.size.mas_equalTo(CGSizeMake(kAdjustRatio(36), kAdjustRatio(36)));
            make.left.equalTo(weakSelf).offset(kAdjustRatio(0));
            make.top.equalTo(weakSelf).offset(kAdjustRatio(14));



        }];
        [self.makebottomequalToWeakSelf4imgV uninstall];



    }

2.3 注意事项

一个视图针对不同的视图（比如A和B）的bottom约束，是不会进行覆盖的，记得移除其中一个，否则会冲突。

• 相对于图片控件weakSelf.imgV的bottom约束，

    [self.timeLab mas_updateConstraints:^(MASConstraintMaker *make) {

        weakSelf.makeTop4TimeLab =  make.top.equalTo(weakSelf.tradeNoLab.mas_bottom).offset(kAdjustRatio(4));

      weakSelf.makebottom4timeLab =   make.bottom.equalTo(weakSelf.imgV).offset(kAdjustRatio(3));


    }];

• 相对于weakSelf的bottom约束。这个时候需要移除self.makebottom4timeLab，否则会冲突

        [self.makeTop4TimeLab install];
        [self.makebottom4timeLab uninstall];

        [self.timeLab mas_updateConstraints:^(MASConstraintMaker *make) {
            make.bottom.equalTo(weakSelf).offset(kAdjustRatio(-14));
            make.left.equalTo(weakSelf.titleLab).offset(kAdjustRatio(0));

            make.height.mas_equalTo(kAdjustRatio(13));



        }];

III 预备知识：比例约束的使用

3.1 倍数 multipliedBy

            make.width.equalTo(weakSelf).multipliedBy(0.6);

3.2 dividedBy

例子 【1、Masonry以动画的形式更新约束 2、利用dividedBy进行九宫格布局3、Masonry约束宽高比的例子demo】

blog.csdn.net/z929118967/…
