CSS进阶
1.字体图标
1.1介绍
- 字体图标展示的是图标,本质是字体
- 处理简单的,颜色单一的图片
- 字体图标的优点: 灵活性 轻量级 兼容性 使用方便
1.2使用
- 引入字体图标样式表
<link rel="stylesheet" herf="./iconfont.css">
- 调用图标对应的类名,必须调用两个类名
iconfont类:基本样式,包含字体的使用等
icon-xxx:图标对应的类名
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>字体图标的基本使用-类名</title>
<link rel="stylesheet" href="./iconfont/iconfont.css">
<style>
.iconfont{
font-size: 200px;
color: green;
}
span{
/* color: red; */
}
</style>
</head>
<body>
<!-- inconfont 是固定的 -->
<span class="iconfont icon-add-cart"></span>
</body>
</html>

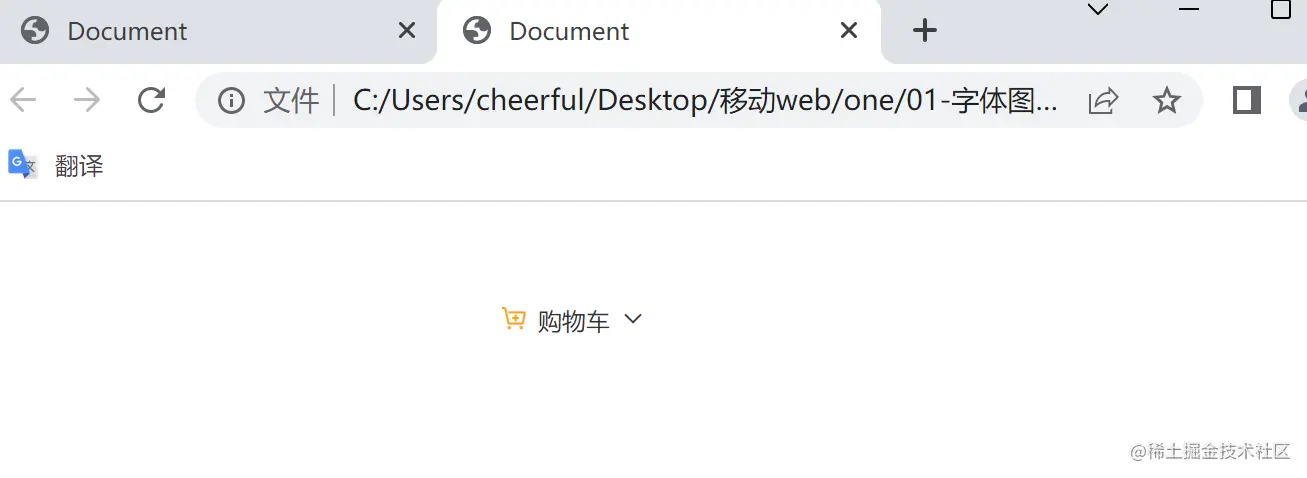

(案例)淘宝购物车
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<link rel="stylesheet" href="./iconfont/iconfont.css">
<style>
*{
margin: 0;
padding: 0;
}
li{
list-style: none;
}
a{
color: #333;
text-decoration: none;
}
.nav{
width: 200px;
margin: 50px auto;
font-size: 12px;
}
.icon-add-cart{
color: orange;
}
</style>
</head>
<body>
<div class="nav">
<ul>
<li>
<a href="#">
<span class="iconfont icon-add-cart"></span>
<span>购物车</span>
<span class="iconfont icon-arrow-down"></span>
</a>
</li>
</ul>
</div>
</body>
</html>
注:如果图标库没有所需要的图标怎么办?
自己在网站上传svg格式的图标后下载
2.平面转换
2.1平面转换的概念
- 改变盒子在平面内的形态(2D转换 如位移、旋转、缩放)
- 平面转换属性:transform
2.2位移
- 语法:transform:translate(水平移动距离,垂直移动距离)
- 取值(正负均可):
像素单位数值
百分比(参照物为盒子自生尺寸)
- translate()如果只给出一个值,表示x轴方向移动
- 单独设置某个方向的移动距离:transformX()&transformY()
*注意:X轴正向为右,Y轴正向为下
2.3绝对定位居中
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
.father{
position:relative;
width: 500px;
height: 300px;
margin: 100px auto;
border: 1px solid #000;
}
.son{
position: absolute;
left: 50%;
top: 50%;
/* 改变盒子的位置 */
/* margin-left: -100px; */
/* margin-top: -50px; */
transform: translate(-50%,-50%);
width: 200px;
height: 100px;
background-color: pink;
}
</style>
</head>
<body>
<div class="father">
<div class="son"></div>
</div>
</body>
</html>
(案例)双开门
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
*{
margin: 0;
padding: 0;
}
.box{
width: 1366px;
height: 600px;
margin: 0 auto;
background: url(./images/bg.jpg);
/* 超出父级范围的隐藏 */
overflow: hidden;
}
/* 左右相同的样式 */
/* 伪元素:行内显示模式 */
.box::before,
.box::after{
float: left;
content: '';
width: 50%;
height: 600px;
background-image: url(./images/fm.jpg);
transition: all 0.5s;
}
/* 单独控制after的背景图位置 */
.box::after{
background-position: right 0;
}
.box:hover::before{
transform: translate(-100%);
}
.box:hover::after{
transform: translateX(100%);
}
</style>
</head>
<body>
<div class="box">
</div>
</body>
</html>
2.4旋转
语法:transform:rotate(角度)
注意:角度的单位是deg,
取值为正,则顺时针旋转
取值为负,则逆时针旋转
2.5转换原点
- 语法:默认原点是盒子中心点
transform-origin:原点水平位置 原点垂直位置;
- 取值:方位名词
像素单位数值
百分比(参照盒子自身尺寸计算)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
img{
width: 250px;
border: 1px solid #000;
transition: all 2s;
/* 添加给标签本身,不要加到hover */
transform-origin: right bottom;
transform-origin: left bottom;
}
img:hover{
transform: rotate(360deg);
}
</style>
</head>
<body>
<img src="./images/rotate.png" alt="">
</body>
</html>
注:添加到标签本身,不要加到hover
原点水平位置和垂直位置之间用空格隔开,不是逗号
2.6多重转换
多重转换技巧:
transform:translate() rotate();
实现轮胎向前滚动的效果:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>多重转换</title>
<style>
.box{
width: 800px;
height: 200px;
border: 1px solid #000;
}
img{
width: 200px;
transition: all 8s;
}
.box:hover img{
transform: translate(600px) rotate(720deg);
/* 不行,旋转会改变坐标轴向,先旋转改变了坐标轴向,位移会受到影响
多重转换如果涉及到旋转,往最后书写*/
/* transform:rotate(720deg) translate(600px) ; */
/* transform分开写不行,会发生层叠 */
/* transform: translate(600px); */
/* transform: rotate(720deg); */
}
</style>
</head>
<body>
<div class="box">
<img src="./images/tyre.png" alt="">
</div>
</body>
</html>
注:
- 不能先写旋转再写位移,旋转会改变坐标轴向,先旋转改变了坐标轴向,位移会受到影响,多重转换如果涉及到旋转,往最后书写
- 不能把transform分开写,会发生层叠。
2.7缩放
- 语法:transform:scale(x轴缩放倍数,y轴缩放倍数)
- 技巧:x轴y轴等比例缩放:transform:scale(缩放倍数)。scale值大于1表示放大,小于1表示缩小
(案例)和平精英
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
*{
margin: 0;
padding: 0;
}
li{
list-style: none;
}
img{
width: 100%;
}
.box{
width: 249px;
height: 210px;
margin: 50px auto;
/* 超出父级的隐藏 */
overflow: hidden;
}
.box p{
color: #3b3b3b;
padding: 10px 10px 0 10px;
}
.box .pic{
position: relative;
}
/* 1.播放按钮盒子,压在img标签的上面(定位)
2.hover的时候缩放效果 */
.box .pic::after{
position: absolute;
left: 50%;
top: 50%;
/* margin-left: -29px;
margin-top: -29px; */
/* transform: translate(-50%,50%); */
content: '';
width: 58px;
height: 58px;
background-image: url(./imageshe/play.png);
transform: translate(-50%,-50%) scale(5);
/* 透明度-opacity */
/* opacity: 0; */
transition: all .5s;
}
.box li :hover.pic::after{
opacity: 1;
transform: translate(-50%,-50%) scale(1);
}
</style>
</head>
<body>
<div class="box">
<ul>
<li>
<div class="pic">
<img src="./imageshe/party.jpeg" alt="">
<!-- 伪元素添加播放按钮 -->
</div>
<p> 【和平精英】“出火音乐概念篇:四圣觉醒······”</p>
</li>
</ul>
</div>
</body>
</html>
3.渐变
3.1渐变的介绍
- 渐变是多个颜色逐渐变化的视觉效果
- 一般用于设置盒子的背景
background-image:linear-gradient(
颜色1;
颜色2
);
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
.box{
width: 300px;
height: 200px;
background-color: pink;
background-image:linear-gradient(pink,green ,blue);
/* 工作中常用:半透明渐变:透明-rgba() */
background-image: linear-gradient(
transparent,
rgba(0,0,0,.6)
);
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
3.2产品展示
略
4.空间转换
4.1空间转换的概念
-
空间:是从坐标轴角度定义的。x,y和z三条坐标轴构成了一个立体空间,z轴位置与视线方向相同(正值指向屏幕外)
-
空间转换也叫3D转换
-
属性:transform
-
语法:transform:translate3d(x,y,z);
transform:translateX(值);
transform:translateY(值);
transform:translateZ(值);
-
取值(正负均可):
像素单位数值
百分比
4.2空间位移
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>空间位移</title>
<style>
.box {
width: 200px;
height: 200px;
margin: 100px auto;
background-color: pink;
transition: all 0.5s;
}
.box:hover {
/* transform: translate3d(50px 100px 200px); */
transform: translateX(100px);
transform: translateY(100px);
transform: translateZ(100px);
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
注:这时z轴方向的改变看不出来
4.3透视
透视效果:近大远小,近清楚远模糊
属性(添加给父级):
perspactive:值
取值:像素单位数值,数值一般在800-1200。
透视距离也称为视距,所谓的视距就是人的眼睛到屏幕的距离。
应用:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>透视效果</title>
<style>
body {
perspective: 1000px;
}
.box {
width: 200px;
height: 200px;
margin: 100px auto;
background-color: pink;
transition: all 0.5s;
}
.box:hover{
transform: translateZ(200px);
transform: translateZ(-200px);
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
4.4空间旋转
语法:transform:rotateZ(值);
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>空间旋转-Z轴</title>
<style>
.box {
width: 300px;
margin: 100px auto;
}
img {
width: 300px;
transition: all 2s;
}
.box img:hover {
transform: rotateZ(360deg);
}
</style>
</head>
<body>
<div class="box">
<img src="./images/hero.jpeg" alt="">
</div>
</body>
</html>
transform:rotateX(值);
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>空间旋转-X轴</title>
<style>
.box {
width: 300px;
margin: 100px auto;
}
img {
width: 300px;
transition: all 2s;
}
.box {
/* 透视效果:近大远小,近实远虚 */
perspective: 1000px;
}
.box img:hover {
transform: rotateX(60deg);
transform: rotateX(-60deg);
}
</style>
</head>
<body>
<div class="box">
<img src="./images/hero.jpeg" alt="">
</div>
</body>
</html>
transform:rotateY(值);
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>空间旋转-Y轴</title>
<style>
.box {
width: 300px;
margin: 100px auto;
}
img {
width: 300px;
transition: all 2s;
}
.box {
/* 透视效果:近大远小,近实远虚 */
perspective: 1000px;
}
.box img:hover {
transform: rotateY(60deg);
transform: rotateY(-60deg);
}
</style>
</head>
<body>
<div class="box">
<img src="./images/hero.jpeg" alt="">
</div>
</body>
</html>
4.5左手法则
判断旋转方向:左手握住旋转轴,拇指指向正值方向,手指弯曲方向为旋转正值方向
*扩展(了解)
rotate3d(x,y,z,角度度数):用来设置自定义旋转轴的位置及旋转的角度
x,y,z取值为0-1之间的数字
4.6立体呈现
实现方法: 添加transform-style:preserve-3d;
使子元素处于真正的3d空间
默认值flat,表示子元素处于2d平面内呈现
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>立体呈现</title>
<style>
.cube {
position: relative;
width: 200px;
height: 200px;
margin: 100px auto;
background-color: pink;
transition: all 2s;
transform-style: preserve-3d;
}
.cube div {
position: absolute;
left: 0;
top: 0;
width: 200px;
height: 200px;
}
.front {
background-color: orange;
<--拉开距离,产生3D空间-->
transform: translateZ(200px);
}
.back {
background-color: green;
}
.cube:hover{
transform: rotateY(180deg);
}
</style>
</head>
<body>
<div class="cube">
<div class="front">前面</div>
<div class="back">后面</div>
</div>
</body>
</html>
(案例)3D导航
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D导航</title>
<style>
ul {
margin: 0;
padding: 0;
list-style: none;
}
.navs {
width: 300px;
height: 40px;
margin: 50px auto;
}
.navs li {
float: left;
width: 100px;
height: 40px;
line-height: 40px;
transition: all .5s;
transform-style: preserve-3d;
/* 可以在写代码的过程中看到立体盒子 */
/* 先写一个旋转,看起来更方便,后面再删掉 */
/* transform: rotateX(-20deg) rotateY(30deg); */
}
.navs li a{
position: absolute;
left: 0;
right: 0;
display: block;
width: 100%;
height: 100%;
text-align: center;
text-decoration: none;
color: #fff;
}
.navs li a:first-child {
background-color: green;
transform: translateZ(20px);
}
.navs li a:last-child {
background-color: orange;
<--以能看到面正面的方向为标准-->
transform: rotateX(90deg) translateZ(20px)
}
/* li:hover 立方体旋转 */
.navs li:hover{
transform: rotateX(-90deg);
}
</style>
</head>
<body>
<div class="navs">
<ul>
<li>
<a href="#">首页</a>
<a href="#">Index</a>
</li>
<li>
<a href="#">登录</a>
<a href="#">Login</a>
</li>
<li>
<a href="#">注册</a>
<a href="#">Register</a>
</li>
</ul>
</div>
</body>
</html>
注:rotate Z()和rotate()的视觉效果是一样的
4.7空间缩放
语法:
transform;sccaleX(倍数)
transform;sccaleY(倍数)
transform;sccaleZ(倍数)
transform;sccaleX(x,y,z)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D导航</title>
<style>
ul {
margin: 0;
padding: 0;
list-style: none;
}
.navs {
width: 300px;
height: 40px;
margin: 50px auto;
}
.navs li {
float: left;
width: 100px;
height: 40px;
line-height: 40px;
transition: all .5s;
transform-style: preserve-3d;
/* 可以在写代码的过程中看到立体盒子 */
/* 先写一个旋转,看起来更方便,后面再删掉 */
/* transform: rotateX(-20deg) rotateY(30deg); */
/* 空间缩放测试 */
transform:scale3d(0.5 ,1.2 ,3);
}
.navs li a{
position: absolute;
left: 0;
right: 0;
display: block;
width: 100%;
height: 100%;
text-align: center;
text-decoration: none;
color: #fff;
}
.navs li a:first-child {
background-color: green;
transform: translateZ(20px);
}
.navs li a:last-child {
background-color: orange;
transform: rotateX(90deg) translateZ(20px)
}
/* li:hover 立方体旋转 */
.navs li:hover{
transform: rotateX(-90deg);
}
</style>
</head>
<body>
<div class="navs">
<ul>
<li>
<a href="#">首页</a>
<a href="#">Index</a>
</li>
<li>
<a href="#">登录</a>
<a href="#">Login</a>
</li>
<li>
<a href="#">注册</a>
<a href="#">Register</a>
</li>
</ul>
</div>
</body>
</html>
5.动画
5.1简介
过渡实现的效果:实现两个状态间的变化过程
动画效果:实现多个状态之间的变化过程,动画的过程可控(重复播放、最终画面、是否暂停)
5.2动画的使用步骤
实现步骤: 1.定义动画
- keyframes 动画名称{
from{}
to{}
}
- keyframes 动画名称{
0%
10%
15%
100%
}
2.使用动画
animation:动画名称 动画花费时长
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>动画实现步骤</title>
<style>
.box {
width: 200px;
height: 100px;
background-color: pink;
/* 使用动画 */
animation:change 1s;
}
/* 一. 定义动画:从200变大到600 */
@keyframes change{
from{
width: 200px;
}
to{
width: 600px;
}
}
/* @keyframes change{
0% {
width: 200px;
}
50% {
width: 500px;
height:300px;
}
100%{
width:800px;
height:500px;
}
} */
/* 二. 定义动画:200 到 500*300 到 800*500 */
</style>
</head>
<body>
<div class="box" ></div>
</body>
</html>
5.3动画属性
- animation:动画名称 动画时长 速度曲线 延迟时间 重复次数 动画方向 执行完毕时状态;
- 注意:动画名称和动画时长必须赋值
取值不分先后顺序
如果有两个时间值,第一个时间表示动画时长,第二个时间表示延迟时间
- 各属性值详情
速度曲线:linear——匀速(还有加速减速,但他们在工作中一般都不被设置)
step(步数)——分步动画
重复次数:infinite——无限循环
动画方向:alternate
执行完毕时状态:backwards——默认值,停留在初始状态
forwards——动画停留在结束的状态
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>animation复合属性</title>
<style>
.box {
width: 200px;
height: 100px;
background-color: pink;
/* animation: change 1s linear; */
/* 分步动画 */
animation: change 1s steps(3) ;
/* 延迟时间 */
animation: change 1s steps(3) 1s;
/* 重复次数 */
animation: change 1s steps(3) 1s 3;
/* 无限循环 */
animation:change 1s infinite;
/* 加反向效果 */
animation:change 1s infinite alternate;
/* 动画执行完毕时状态 */
animation: change 1s backwards;
animation: change 1s forwards;
}
@keyframes change {
from {
width: 200px;
}
to {
width: 600px;
}
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
5.4animation拆分写法(了解)
.box:hover {
/* 鼠标移入的时候暂停动画 */
animation-play-state: paused;
}
补间动画
逐帧动画:帧动画。开发中,一般配合精灵图实现动画效果。
5.5精灵动画(小人原地跑)
-
animation-timing-function:steps(N);
- 将动画过程等分成N份
-
精灵动画制作步骤
- 准备显示区域:设置盒子尺寸是一张小图的尺寸,背景图为当前精灵图
- 定义动画:改变背景图的位置(移动的距离就是精灵图的宽度)
- 使用动画:添加速度曲线steps(N),N与精灵图上小图个数相同,添加无限重复效果。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>精灵动画</title>
<style>
.box {
/* 准备显示区域:1680/12 */
width: 140px;
height: 140px;
border: 1px solid #000;
background-image: url(./images/bg.png);
/* */
animation: move 1s steps(12) infinite;
}
@keyframes move{
from{
background-position: 0,0;
}
to{
background-position: -1680px 0;
}
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
5.6多组动画(小人移动跑)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>精灵动画</title>
<style>
.box {
/* 准备显示区域:1680/12 */
width: 140px;
height: 140px;
/* border: 1px solid #000; */
background-image: url(./images/bg.png);
/* */
animation: move 1s steps(12) infinite,
run 1s forwards;
}
@keyframes move{
/* from{
background-position: 0,0;
} */
to{
background-position: -1680px 0;
}
}
@keyframes run{
/* from{ */
/* 动画的开始状态和盒子的默认样式相同的,可以省略开始状态的代码*/
/* transform:translateX(0); */
/* } */
to{
transform: translateX(800px);
}
}
</style>
</head>
<body>
<div class="box"></div>
</body>
</html>
注:动画的开始状态和盒子的默认样式相同的,可以省略开始状态的代码
综合案例——走马灯(无缝动画)
因为显示区域是三张图,所以复制三张
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Document</title>
<style>
* {
padding: 0;
margin: 0;
}
li {
list-style: none;
}
img {
width: 200px;
}
.box {
width: 600px;
height: 112px;
border: 5px solid #000;
margin: 100px auto;
overflow: hidden;
}
.box li {
float: left;
}
.box ul{
width: 2000px;
animation: move 5s infinite linear;
}
/* 定义动画,位移,ul,左侧移动 x -1400px*/
@keyframes move{
to{
transform: translate(-1400px);
}
}
/* 用户鼠标移入box,动画暂停 */
.box :hover {
animation-play-state: paused;
}
</style>
</head>
<body>
<div class="box">
<ul>
<li><img src="./images/1.jpg" alt="" /></li>
<li><img src="./images/2.jpg" alt="" /></li>
<li><img src="./images/3.jpg" alt="" /></li>
<li><img src="./images/4.jpg" alt="" /></li>
<li><img src="./images/5.jpg" alt="" /></li>
<li><img src="./images/6.jpg" alt="" /></li>
<li><img src="./images/7.jpg" alt="" /></li>
<!-- 在567移动的时候,显示区域不能留白 -->
<li><img src="./images/1.jpg" alt="" /></li>
<li><img src="./images/2.jpg" alt="" /></li>
<li><img src="./images/3.jpg" alt="" /></li>
</ul>
</div>
</body>
</html>
