接上回书说到,rocketmq的消息存储问题,我们上一次主要是将commitLog的存储过程看了一遍,也就是相当于消息存储的根目录,但是我们消息的消费是首先先根据偏移量去查找consumeQueue然后从consume Queue中找到对应在commitLog上的偏移量以及具体的消息长度再去拿到具体的消息的。
那么我们这次的问题就是：
1.消息是如何分发到consumeQueue以及index文件上存储的
2.客户端如何根据consumeQueue去commitLog上查找对应的消息的
问题一:消息是如何分发到consumeQueue以及index文件上存储的
首先在messageStore在初始化的时候会初始化一个ReputMessageService的类 这个类主要做的事情就是将commitLog上面的消息按照规则分发到不同的consumeQueue上面去（每个topic下对应着很多consumeQueue）

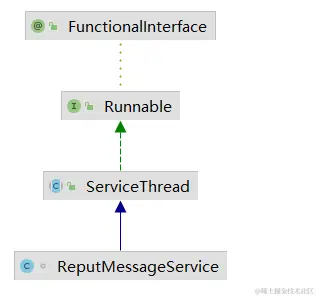

我们可以看到这个类是间接实现了runnable接口，我们只需要看run()方法即可:
@Override
public void run() {
DefaultMessageStore.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
try {
Thread.sleep(1); //间隔时间1ms
this.doReput();
} catch (Exception e) {
DefaultMessageStore.log.warn(this.getServiceName() + " service has exception. ", e);
}
}
DefaultMessageStore.log.info(this.getServiceName() + " service end");
}
我们可以看到rocketmq会每隔1ms进行一次消息的分发,主要逻辑在doReput();
接下来我们看一下doreput()方法:
private void doReput() {
//....判断
for (boolean doNext = true; this.isCommitLogAvailable() && doNext; ) {
//判断...
SelectMappedBufferResult result = DefaultMessageStore.this.commitLog.getData(reputFromOffset); //通过偏移量获取commitLog文件result
if (result != null) {
try {
this.reputFromOffset = result.getStartOffset();
for (int readSize = 0; readSize < result.getSize() && doNext; ) {
//对消息进行解析验证 并构建为DispatchRequest类型
DispatchRequest dispatchRequest =
DefaultMessageStore.this.commitLog.checkMessageAndReturnSize(result.getByteBuffer(), false, false);
int size = dispatchRequest.getBufferSize() == -1 ? dispatchRequest.getMsgSize() : dispatchRequest.getBufferSize();
if (dispatchRequest.isSuccess()) {
if (size > 0) {
//主要进行分发的地方【重要】
DefaultMessageStore.this.doDispatch(dispatchRequest);
if (BrokerRole.SLAVE != DefaultMessageStore.this.getMessageStoreConfig().getBrokerRole()
&& DefaultMessageStore.this.brokerConfig.isLongPollingEnable()) {
DefaultMessageStore.this.messageArrivingListener.arriving(dispatchRequest.getTopic(),
dispatchRequest.getQueueId(), dispatchRequest.getConsumeQueueOffset() + 1,
dispatchRequest.getTagsCode(), dispatchRequest.getStoreTimestamp(),
dispatchRequest.getBitMap(), dispatchRequest.getPropertiesMap());
}
this.reputFromOffset += size;
readSize += size;
if (DefaultMessageStore.this.getMessageStoreConfig().getBrokerRole() == BrokerRole.SLAVE) {
DefaultMessageStore.this.storeStatsService
.getSinglePutMessageTopicTimesTotal(dispatchRequest.getTopic()).incrementAndGet();
DefaultMessageStore.this.storeStatsService
.getSinglePutMessageTopicSizeTotal(dispatchRequest.getTopic())
.addAndGet(dispatchRequest.getMsgSize());
}
} else if (size == 0) {
this.reputFromOffset = DefaultMessageStore.this.commitLog.rollNextFile(this.reputFromOffset);
readSize = result.getSize();
}
} else if (!dispatchRequest.isSuccess()) {
if (size > 0) {
log.error("[BUG]read total count not equals msg total size. reputFromOffset={}", reputFromOffset);
this.reputFromOffset += size;
} else {
doNext = false;
// If user open the dledger pattern or the broker is master node,
// it will not ignore the exception and fix the reputFromOffset variable
if (DefaultMessageStore.this.getMessageStoreConfig().isEnableDLegerCommitLog() ||
DefaultMessageStore.this.brokerConfig.getBrokerId() == MixAll.MASTER_ID) {
log.error("[BUG]dispatch message to consume queue error, COMMITLOG OFFSET: {}",
this.reputFromOffset);
this.reputFromOffset += result.getSize() - readSize;
}
}
}
}
} finally {
result.release();
}
} else {
doNext = false;
}
}
我们看到了上面的doDispatch()方法 这个就是主要进行消息的分发的地方: 主要是调用了CommitLogDispatcher.dispatch(final DispatchRequest request)这个方法
实现:
1.CommitLogDispatcherBuildConsumeQueue
2.CommitLogDispatcherBuildIndex
这两个接口一个是用来进行consumeQueue的构建以及存储的另一个是index的文件构建 首先我们先来看看consumeQueue消息是如何构建的
@Override
public void dispatch(DispatchRequest request) {
final int tranType = MessageSysFlag.getTransactionValue(request.getSysFlag());
switch (tranType) {
case MessageSysFlag.TRANSACTION_NOT_TYPE:
case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
DefaultMessageStore.this.putMessagePositionInfo(request); //只有提交了的消息才给consumer消费
break;
case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
break;
}
}
putMessagePositionInfo
public void putMessagePositionInfo(DispatchRequest dispatchRequest) {
ConsumeQueue cq = this.findConsumeQueue(dispatchRequest.getTopic(), dispatchRequest.getQueueId()); //根据主题和queueid获取对应的consumeQueue主要是
cq.putMessagePositionInfoWrapper(dispatchRequest);
}
cq.putMessagePositionInfoWrapper
public void putMessagePositionInfoWrapper(DispatchRequest request) {
final int maxRetries = 30; //最大重试次数
boolean canWrite = this.defaultMessageStore.getRunningFlags().isCQWriteable();
for (int i = 0; i < maxRetries && canWrite; i++) {
long tagsCode = request.getTagsCode();
if (isExtWriteEnable()) { //记录一些不重要的信息时间等
ConsumeQueueExt.CqExtUnit cqExtUnit = new ConsumeQueueExt.CqExtUnit();
cqExtUnit.setFilterBitMap(request.getBitMap());
cqExtUnit.setMsgStoreTime(request.getStoreTimestamp());
cqExtUnit.setTagsCode(request.getTagsCode());
long extAddr = this.consumeQueueExt.put(cqExtUnit);
if (isExtAddr(extAddr)) {
tagsCode = extAddr;
} else {
log.warn("Save consume queue extend fail, So just save tagsCode! {}, topic:{}, queueId:{}, offset:{}", cqExtUnit,
topic, queueId, request.getCommitLogOffset());
}
}
//进行消息的存储
boolean result = this.putMessagePositionInfo(request.getCommitLogOffset(),
request.getMsgSize(), tagsCode, request.getConsumeQueueOffset());
if (result) {
if (this.defaultMessageStore.getMessageStoreConfig().getBrokerRole() == BrokerRole.SLAVE ||
this.defaultMessageStore.getMessageStoreConfig().isEnableDLegerCommitLog()) {
this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(request.getStoreTimestamp());
}
this.defaultMessageStore.getStoreCheckpoint().setLogicsMsgTimestamp(request.getStoreTimestamp());
return;
} else {
// XXX: warn and notify me
log.warn("[BUG]put commit log position info to " + topic + ":" + queueId + " " + request.getCommitLogOffset()
+ " failed, retry " + i + " times");
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
log.warn("", e);
}
}
}
// XXX: warn and notify me
log.error("[BUG]consume queue can not write, {} {}", this.topic, this.queueId);
this.defaultMessageStore.getRunningFlags().makeLogicsQueueError();
}
putMessagePositionInfo(final long offset, final int size, final long tagsCode,final long cqOffset)
参数说明:
1.commitLogOffset:消息对应在commitLog上的偏移量 也就是consumeQueue的节点第一个八个字节要存储的信息
2.消息的大小
3.tagCode哈希编码
4.在consumeQueue上的偏移量 因为一个consumeQueue的节点是20个字节所以这个字段其实也就是在consumeQueue是第几个
private boolean putMessagePositionInfo(final long offset, final int size, final long tagsCode,
final long cqOffset) {
if (offset + size <= this.maxPhysicOffset) {
log.warn("Maybe try to build consume queue repeatedly maxPhysicOffset={} phyOffset={}", maxPhysicOffset, offset);
return true;
}
//consumeQueue 信息构建
this.byteBufferIndex.flip();
this.byteBufferIndex.limit(CQ_STORE_UNIT_SIZE);
this.byteBufferIndex.putLong(offset);
this.byteBufferIndex.putInt(size);
this.byteBufferIndex.putLong(tagsCode);
final long expectLogicOffset = cqOffset * CQ_STORE_UNIT_SIZE;
//获取mappedFile
MappedFile mappedFile = this.mappedFileQueue.getLastMappedFile(expectLogicOffset);
if (mappedFile != null) {
//如果当前mappedFile是第一次创建的那么
if (mappedFile.isFirstCreateInQueue() && cqOffset != 0 && mappedFile.getWrotePosition() == 0) {
this.minLogicOffset = expectLogicOffset;
this.mappedFileQueue.setFlushedWhere(expectLogicOffset);
this.mappedFileQueue.setCommittedWhere(expectLogicOffset);
this.fillPreBlank(mappedFile, expectLogicOffset);
log.info("fill pre blank space " + mappedFile.getFileName() + " " + expectLogicOffset + " "
+ mappedFile.getWrotePosition());
}
if (cqOffset != 0) {
//获取当前的写指针偏移量 并和期望写入的位置的偏移量进行对比
long currentLogicOffset = mappedFile.getWrotePosition() + mappedFile.getFileFromOffset();
if (expectLogicOffset < currentLogicOffset) {
log.warn("Build consume queue repeatedly, expectLogicOffset: {} currentLogicOffset: {} Topic: {} QID: {} Diff: {}",
expectLogicOffset, currentLogicOffset, this.topic, this.queueId, expectLogicOffset - currentLogicOffset);
return true;
}
if (expectLogicOffset != currentLogicOffset) {
LOG_ERROR.warn(
"[BUG]logic queue order maybe wrong, expectLogicOffset: {} currentLogicOffset: {} Topic: {} QID: {} Diff: {}",
expectLogicOffset,
currentLogicOffset,
this.topic,
this.queueId,
expectLogicOffset - currentLogicOffset
);
}
}
this.maxPhysicOffset = offset + size; //记录最大物理偏移量
//写入
return mappedFile.appendMessage(this.byteBufferIndex.array());
}
return false;
}
以上就是commitLog信息分发存入consumeQueue的过程,index文件的记录过程也是大同小异 只不过index文件的目的是通过msgId可以进行消息的获取,感兴趣的同学可以看一下CommitLogDispatcherBuildIndex这个类的实现
我们接下来简单看一下 consume获取消息的时候怎么根据consumeQueue来获取commmitLog的 DefaultMessageStore#getMessage(final String group, final String topic, final int queueId, final long offset,final int maxMsgNums,final MessageFilter messageFilter)
这个方法就是进行消息拉取的方法我们主要看一下如何根据consumeQueue进行commitLog的获取 其他的我们留到消息消费的章节进行深入理解
主要的方法:
//根据主题和queueId获取consumeQueue
ConsumeQueue consumeQueue = findConsumeQueue(topic, queueId);
//根据cqoffset获取对应的consumeQueue信息
SelectMappedBufferResult bufferConsumeQueue = consumeQueue.getIndexBuffer(offset);
for (; i < bufferConsumeQueue.getSize() && i < maxFilterMessageCount; i += ConsumeQueue.CQ_STORE_UNIT_SIZE) {
//commitLog的偏移量
long offsetPy = bufferConsumeQueue.getByteBuffer().getLong();
//消息的长度
int sizePy = bufferConsumeQueue.getByteBuffer().getInt();
//tag的hash编码
long tagsCode = bufferConsumeQueue.getByteBuffer().getLong();
maxPhyOffsetPulling = offsetPy;
if (nextPhyFileStartOffset != Long.MIN_VALUE) {
if (offsetPy < nextPhyFileStartOffset)
continue;
}
//.....
//获取commitLog 根据偏移量 根据consumeQueue节点上存储的commitLogOffset以及长度获取对应的信息
SelectMappedBufferResult selectResult = this.commitLog.getMessage(offsetPy, sizePy);
//...
}
这里就是consumeQueue消息的存储以及获取相关的介绍 主要是讲了一些核心的主要流程 如果大家希望深入了解的话可以去翻翻源码！0v0
