LATEX图片排版

LATEX图片排版

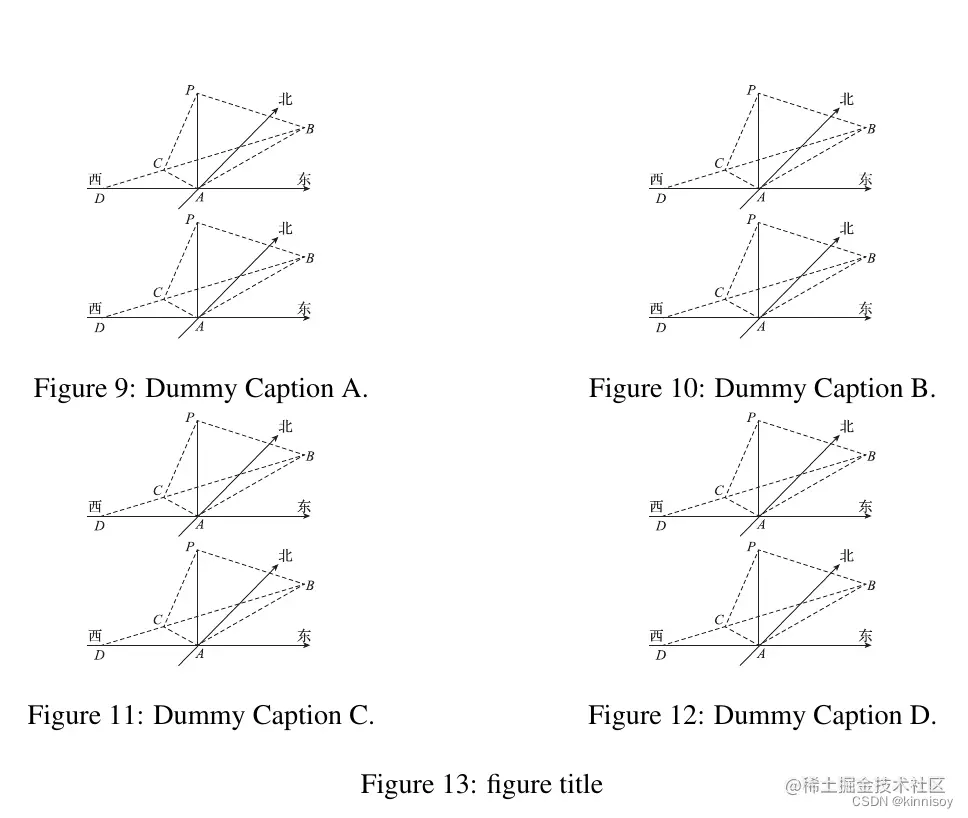

多图并排，独立编号

\begin{figure*}[h]
\centering
    \begin{minipage}[b]{.3\linewidth}
        \centering
        \includegraphics[scale=0.5]{result/1.eps} \\
        \includegraphics[scale=0.5]{result/2.eps}
	\caption{Dummy Caption A.}
    \end{minipage} %\hfill
    \begin{minipage}[b]{.3\linewidth}
        \centering
        \includegraphics[scale=0.5]{result/3.eps} \\
        \includegraphics[scale=0.5]{result/4.eps}
	\caption{Dummy Caption B.}
    \end{minipage} \\
    \begin{minipage}[b]{.3\linewidth}
        \centering
        \includegraphics[scale=0.5]{result/5.eps} \\
        \includegraphics[scale=0.5]{result/6.eps}
	\caption{Dummy Caption C.}
    \end{minipage} %\hfill
	\begin{minipage}[b]{.3\linewidth}
        \centering
	\includegraphics[scale=0.5]{result/7.eps} \\
	\includegraphics[scale=0.5]{result/8.eps}
	\caption{Dummy Caption D.}
    \end{minipage}
\caption{figure title}
\end{figure*}

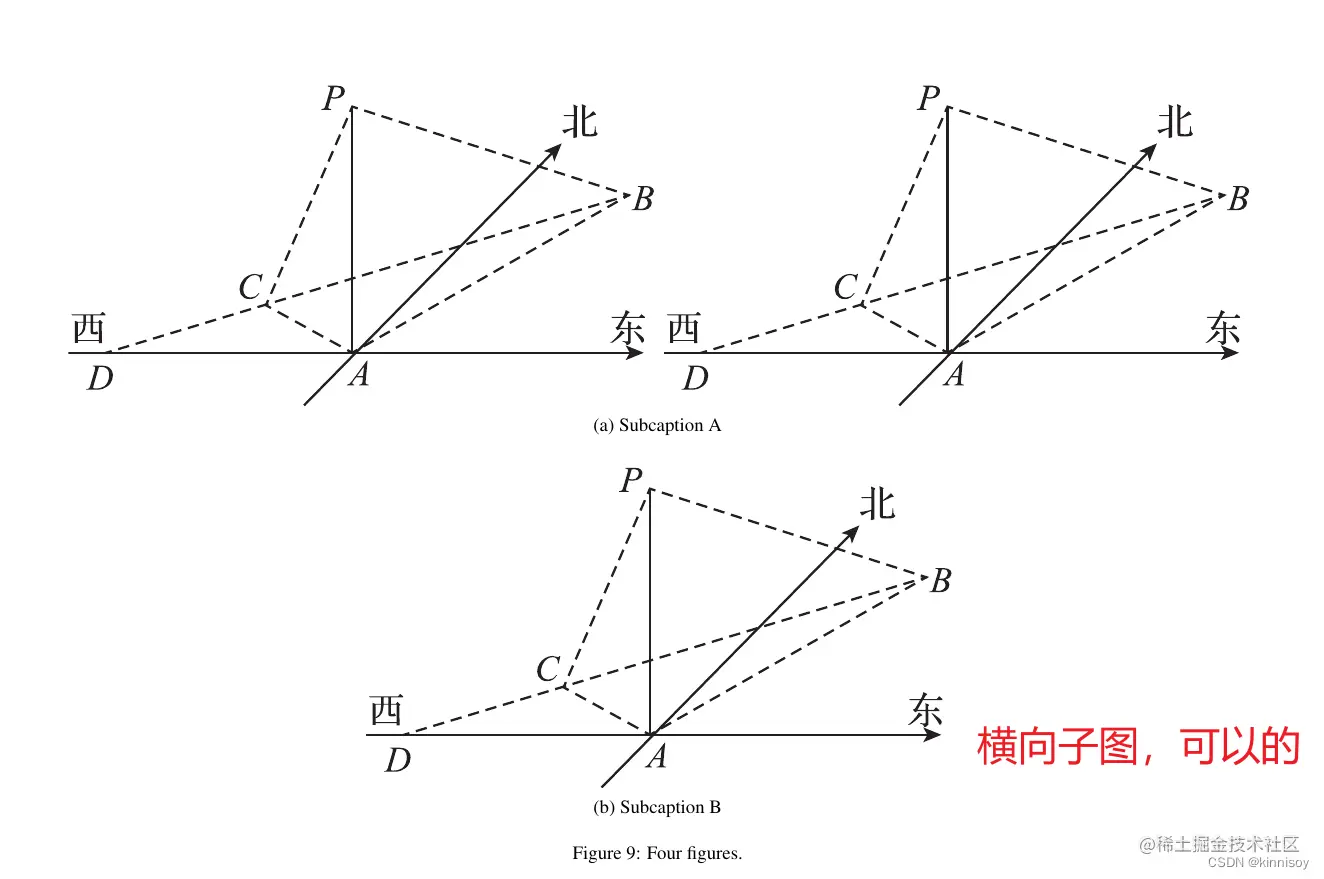

多图并排，统一编号

使用subfloat库，每个子图只能是单张图，或者横向多张图，不可以是纵向的拼接。

\begin{figure*}[h]
\centering
\subfloat[Subcaption A]{  %此处放置多个图 不可以使用\\换行 会报错，所以不可以纵向排版子子图
	\includegraphics[width=0.48\linewidth]{2.eps}}
\hfill
\subfloat[Subcaption B]{
	\includegraphics[width=0.48\linewidth]{2.eps}}

\subfloat[Subcaption C]{
	\includegraphics[width=0.48\linewidth]{2.eps}}
\subfloat[Subcaption D]{
	\includegraphics[width=0.48\linewidth]{2.eps}}
\caption{Four figures.}
\end{figure*}

多图并排，统一编号-纵向

\begin{figure*}
\centering
\subfigure[Caption a]{
\begin{minipage}[b]{0.23\textwidth}
\includegraphics[width=1\linewidth]{2.eps}\vspace{4pt}
\includegraphics[width=1\linewidth]{2.eps}
\end{minipage}}
\subfigure[Caption b]{
\begin{minipage}[b]{0.23\textwidth}
\includegraphics[width=1\linewidth]{2.eps}\vspace{4pt}
\includegraphics[width=1\linewidth]{2.eps}
\end{minipage}}
\subfigure[Caption c]{
\begin{minipage}[b]{0.23\textwidth}
\includegraphics[width=1\linewidth]{2.eps}\vspace{4pt}
\includegraphics[width=1\linewidth]{2.eps}
\end{minipage}}
\subfigure[Caption d]{
\begin{minipage}[b]{0.23\textwidth}
\includegraphics[width=1\linewidth]{2.eps}\vspace{4pt}
\includegraphics[width=1\linewidth]{2.eps}
\end{minipage}}
\caption{description of figure}
\end{figure*}

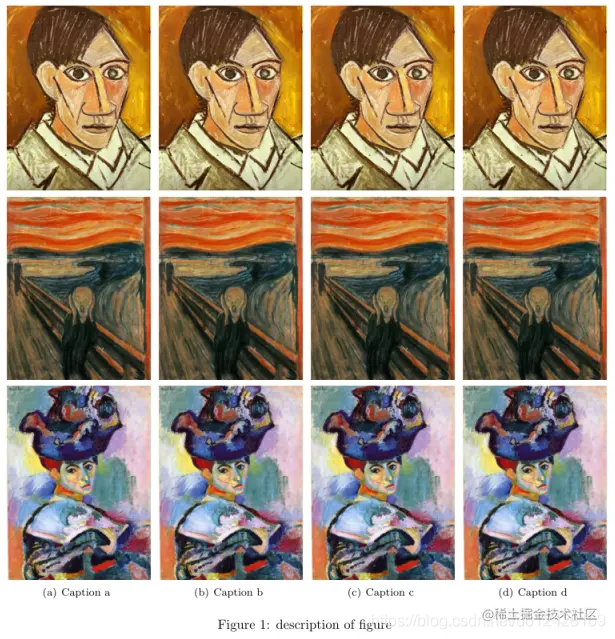

可能会发生宏包冲突，因为在subfigure包已经被弃用。效果如下：
