记得看代码中的注释哈，理解都在里面 源码基于v1.24
先从kube-apiServer的入口开始说起，看看是如何启动的，了解调用链的形成的整体流程
ApiServer的启动
apiServer的启动，使用了Cobra这个命令行工具在cmd/apiserver.go中
func main() {
/*
主要逻辑在NewAPIServerCommand
*/
command := app.NewAPIServerCommand()
/*
cli.Run做一些设置比如日志并执行命令
*/
code := cli.Run(command)
os.Exit(code)
}
---
func NewAPIServerCommand() *cobra.Command {
/*
参数配置选项，面向用户的
*/
s := options.NewServerRunOptions()
cmd := &cobra.Command{
Use: "kube-apiserver",
Long: `The Kubernetes API server validates and configures data
for the api objects which include pods, services, replicationcontrollers, and
others. The API Server services REST operations and provides the frontend to the
cluster's shared state through which all other components interact.`,
// stop printing usage when the command errors
SilenceUsage: true,
PersistentPreRunE: func(*cobra.Command, []string) error {
// silence client-go warnings.
// kube-apiserver loopback clients should not log self-issued warnings.
rest.SetDefaultWarningHandler(rest.NoWarnings{})
return nil
},
RunE: func(cmd *cobra.Command, args []string) error {
verflag.PrintAndExitIfRequested()
fs := cmd.Flags()
// Activate logging as soon as possible, after that
// show flags with the final logging configuration.
if err := logsapi.ValidateAndApply(s.Logs, utilfeature.DefaultFeatureGate); err != nil {
return err
}
cliflag.PrintFlags(fs)
// set default options 填默认值
completedOptions, err := Complete(s)
if err != nil {
return err
}
// validate options 验证
if errs := completedOptions.Validate(); len(errs) != 0 {
return utilerrors.NewAggregate(errs)
}
// genericapiserver.SetupSignalHandler() 一个用来停止的chan
return Run(completedOptions, genericapiserver.SetupSignalHandler())
},
Args: func(cmd *cobra.Command, args []string) error {
for _, arg := range args {
if len(arg) > 0 {
return fmt.Errorf("%q does not take any arguments, got %q", cmd.CommandPath(), args)
}
}
return nil
},
}
/*
把options上的参数配置反应到fs上，也就是命令行的参数配置，把面向用户的配置反应到server上
*/
fs := cmd.Flags()
namedFlagSets := s.Flags()
verflag.AddFlags(namedFlagSets.FlagSet("global"))
globalflag.AddGlobalFlags(namedFlagSets.FlagSet("global"), cmd.Name(), logs.SkipLoggingConfigurationFlags())
options.AddCustomGlobalFlags(namedFlagSets.FlagSet("generic"))
for _, f := range namedFlagSets.FlagSets {
fs.AddFlagSet(f)
}
cols, _, _ := term.TerminalSize(cmd.OutOrStdout())
cliflag.SetUsageAndHelpFunc(cmd, namedFlagSets, cols)
return cmd
}
}

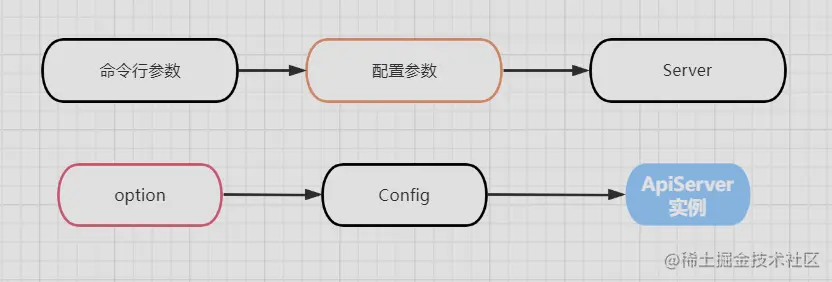

主要启动流程如下图所示
下面是CreateServerChain，由apiExtensionsServer，kubeAPIServer，aggregatorServer来组成serverChain，apiExtensionsServer负责CR，用户自定义资源，kubeAPIServer负责k8s的原生资源，aggregatorServer是拓展apiServer的一种方式
func CreateServerChain(completedOptions completedServerRunOptions) (*aggregatorapiserver.APIAggregator, error) {
kubeAPIServerConfig, serviceResolver, pluginInitializer, err := CreateKubeAPIServerConfig(completedOptions)
if err != nil {
return nil, err
}
/*
先配置在创建server，上一个的server被下一个server利用
*/
// If additional API servers are added, they should be gated.
apiExtensionsConfig, err := createAPIExtensionsConfig(*kubeAPIServerConfig.GenericConfig, kubeAPIServerConfig.ExtraConfig.VersionedInformers, pluginInitializer, completedOptions.ServerRunOptions, completedOptions.MasterCount,
serviceResolver, webhook.NewDefaultAuthenticationInfoResolverWrapper(kubeAPIServerConfig.ExtraConfig.ProxyTransport, kubeAPIServerConfig.GenericConfig.EgressSelector, kubeAPIServerConfig.GenericConfig.LoopbackClientConfig, kubeAPIServerConfig.GenericConfig.TracerProvider))
if err != nil {
return nil, err
}
notFoundHandler := notfoundhandler.New(kubeAPIServerConfig.GenericConfig.Serializer, genericapifilters.NoMuxAndDiscoveryIncompleteKey)
apiExtensionsServer, err := createAPIExtensionsServer(apiExtensionsConfig, genericapiserver.NewEmptyDelegateWithCustomHandler(notFoundHandler))
if err != nil {
return nil, err
}
kubeAPIServer, err := CreateKubeAPIServer(kubeAPIServerConfig, apiExtensionsServer.GenericAPIServer)
if err != nil {
return nil, err
}
/*
aggregator相当于一个请求的转发器，把不同路径的请求转发到不同server去处理
*/
// aggregator comes last in the chain
aggregatorConfig, err := createAggregatorConfig(*kubeAPIServerConfig.GenericConfig, completedOptions.ServerRunOptions, kubeAPIServerConfig.ExtraConfig.VersionedInformers, serviceResolver, kubeAPIServerConfig.ExtraConfig.ProxyTransport, pluginInitializer)
if err != nil {
return nil, err
}
aggregatorServer, err := createAggregatorServer(aggregatorConfig, kubeAPIServer.GenericAPIServer, apiExtensionsServer.Informers)
if err != nil {
// we don't need special handling for innerStopCh because the aggregator server doesn't create any go routines
return nil, err
}
return aggregatorServer, nil
}
ApiObject的装载
那Api Object是怎么被装载进去server的呢？先看看masterServer
我们常把核心对象的KubeAPIServer也说成是master
func CreateKubeAPIServer(kubeAPIServerConfig *controlplane.Config, delegateAPIServer genericapiserver.DelegationTarget) (*controlplane.Instance, error) {
/*
主要逻辑在New中，函数返回的*controlplane.Instance就是MasterServer的代名词，Complete是加载配置的默认值
*/
kubeAPIServer, err := kubeAPIServerConfig.Complete().New(delegateAPIServer)
if err != nil {
return nil, err
}
return kubeAPIServer, nil
}
func (c completedConfig) New(delegationTarget genericapiserver.DelegationTarget) (*Instance, error) {
...
/*
这个GenericConfig挺重要的，后面再讲，我们先找Api-Object的装载
*/
s, err := c.GenericConfig.New("kube-apiserver", delegationTarget)
if err != nil {
return nil, err
}
...
/*
在这里有个Instance，是MasterServer的代名词
*/
m := &Instance{
GenericAPIServer: s,
ClusterAuthenticationInfo: c.ExtraConfig.ClusterAuthenticationInfo,
}
// install legacy rest storage
/*
既负责和etcd打交道也负责响应restful的HTTP请求，下面是装载LegacyAPI的对象
*/
if err := m.InstallLegacyAPI(&c, c.GenericConfig.RESTOptionsGetter); err != nil {
return nil, err
}
/*
非Legacy的对象的Provider，进行非Legacy的api的装载
*/
restStorageProviders := []RESTStorageProvider{
apiserverinternalrest.StorageProvider{},
authenticationrest.RESTStorageProvider{Authenticator: c.GenericConfig.Authentication.Authenticator, APIAudiences: c.GenericConfig.Authentication.APIAudiences},
authorizationrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer, RuleResolver: c.GenericConfig.RuleResolver},
autoscalingrest.RESTStorageProvider{},
batchrest.RESTStorageProvider{},
certificatesrest.RESTStorageProvider{},
coordinationrest.RESTStorageProvider{},
discoveryrest.StorageProvider{},
networkingrest.RESTStorageProvider{},
noderest.RESTStorageProvider{},
policyrest.RESTStorageProvider{},
rbacrest.RESTStorageProvider{Authorizer: c.GenericConfig.Authorization.Authorizer},
schedulingrest.RESTStorageProvider{},
storagerest.RESTStorageProvider{},
flowcontrolrest.RESTStorageProvider{InformerFactory: c.GenericConfig.SharedInformerFactory},
// keep apps after extensions so legacy clients resolve the extensions versions of shared resource names.
// See https://github.com/kubernetes/kubernetes/issues/42392
appsrest.StorageProvider{},
admissionregistrationrest.RESTStorageProvider{},
eventsrest.RESTStorageProvider{TTL: c.ExtraConfig.EventTTL},
}
/*
进行install
*/
if err := m.InstallAPIs(c.ExtraConfig.APIResourceConfigSource, c.GenericConfig.RESTOptionsGetter, restStorageProviders...); err != nil {
return nil, err
}
return m, nil
}
Legacy的资源是k8s最早的一些资源，当时还没有引入apiGroup，所以就保留了下来，比如pod
func (m *Instance) InstallLegacyAPI(c *completedConfig, restOptionsGetter generic.RESTOptionsGetter) error {
legacyRESTStorageProvider := corerest.LegacyRESTStorageProvider{
StorageFactory: c.ExtraConfig.StorageFactory,
ProxyTransport: c.ExtraConfig.ProxyTransport,
KubeletClientConfig: c.ExtraConfig.KubeletClientConfig,
EventTTL: c.ExtraConfig.EventTTL,
ServiceIPRange: c.ExtraConfig.ServiceIPRange,
SecondaryServiceIPRange: c.ExtraConfig.SecondaryServiceIPRange,
ServiceNodePortRange: c.ExtraConfig.ServiceNodePortRange,
LoopbackClientConfig: c.GenericConfig.LoopbackClientConfig,
ServiceAccountIssuer: c.ExtraConfig.ServiceAccountIssuer,
ExtendExpiration: c.ExtraConfig.ExtendExpiration,
ServiceAccountMaxExpiration: c.ExtraConfig.ServiceAccountMaxExpiration,
APIAudiences: c.GenericConfig.Authentication.APIAudiences,
}
/*
这个apiGroupInfo就有了ApiObject的信息
*/
legacyRESTStorage, apiGroupInfo, err := legacyRESTStorageProvider.NewLegacyRESTStorage(c.ExtraConfig.APIResourceConfigSource, restOptionsGetter)
if err != nil {
return fmt.Errorf("error building core storage: %v", err)
}
if len(apiGroupInfo.VersionedResourcesStorageMap) == 0 { // if all core storage is disabled, return.
return nil
}
/*
把apiGroupInfo的对象装载到ApiServer中，这样就完成了Legacy对象的装载
*/
if err := m.GenericAPIServer.InstallLegacyAPIGroup(genericapiserver.DefaultLegacyAPIPrefix, &apiGroupInfo); err != nil {
return fmt.Errorf("error in registering group versions: %v", err)
}
return nil
}
func (m *Instance) InstallAPIs(apiResourceConfigSource serverstorage.APIResourceConfigSource, restOptionsGetter generic.RESTOptionsGetter, restStorageProviders ...RESTStorageProvider) error {
apiGroupsInfo := []*genericapiserver.APIGroupInfo{}
// used later in the loop to filter the served resource by those that have expired.
resourceExpirationEvaluator, err := genericapiserver.NewResourceExpirationEvaluator(*m.GenericAPIServer.Version)
if err != nil {
return err
}
/*
去遍历一个个的restStorageProviders，制作apiGroupInfo
*/
for _, restStorageBuilder := range restStorageProviders {
groupName := restStorageBuilder.GroupName()
apiGroupInfo, err := restStorageBuilder.NewRESTStorage(apiResourceConfigSource, restOptionsGetter)
if err != nil {
return fmt.Errorf("problem initializing API group %q : %v", groupName, err)
}
...
}
/*
把信息都append到apiGroupInfo中
*/
apiGroupsInfo = append(apiGroupsInfo, &apiGroupInfo)
}
/*
Install到apiServer，完成非Legacy的api对象的装载
*/
if err := m.GenericAPIServer.InstallAPIGroups(apiGroupsInfo...); err != nil {
return fmt.Errorf("error in registering group versions: %v", err)
}
return nil
}

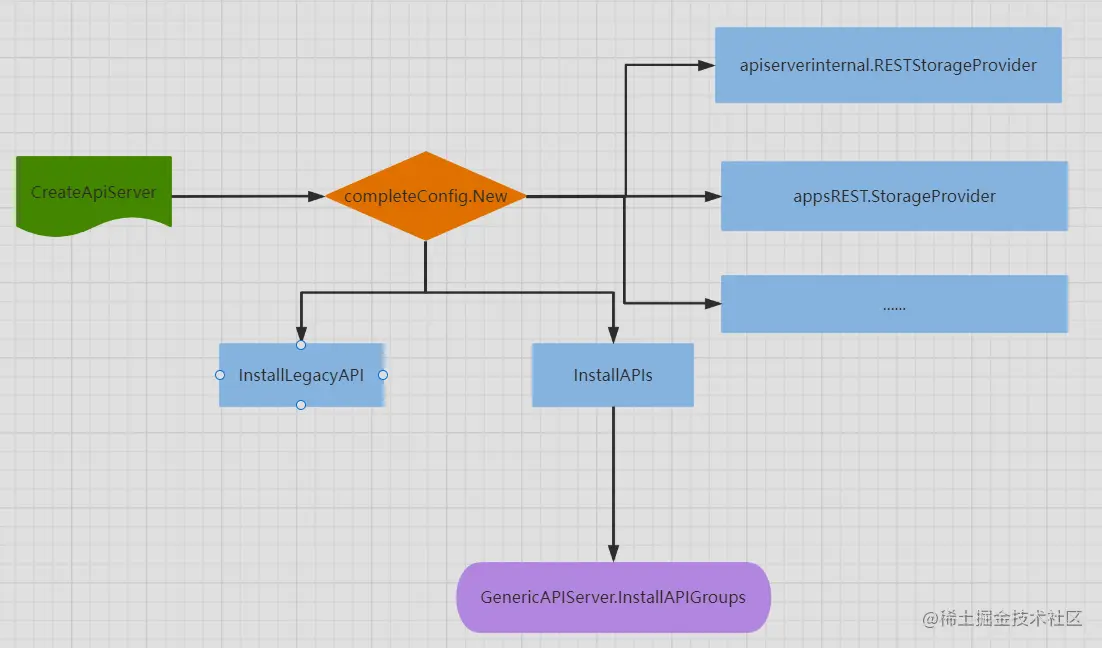

主要装载APIObject的流程如下图所示
Summary
- apiServer的命令行是Cobra启动的，通过传入的参数配置options，生成对应的Server的Config，启动apiServer
- apiServer以
ServerChain来提供服务，有三种类型的server，由apiExtensionsServer，kubeAPIServer，aggregatorServer来组成serverChain，apiExtensionsServer负责CR，用户自定义资源，kubeAPIServer负责k8s的原生资源，aggregatorServer是拓展apiServer的一种方式 - APIObject的装载是
RESTStorageProvider先生成APIGroupInfo然后InstallAPI完成装载，要注意Legacy和非Legacy的区别
