Thread和Runnable的关系

72 阅读2分钟

开启掘金成长之旅!这是我参与「掘金日新计划 · 12 月更文挑战」的第2天,点击查看活动详情

联系:public class Thread implements Runnable
相同点:两种方式都需要重写run(),将线程要执行的逻辑声明在run()中。

Runnable接口构造线程源码

public Thread(Runnable target) {
        init(null, target, "Thread-" + nextThreadNum(), 0);
    }
private void init(ThreadGroup g, Runnable target, String name,
                      long stackSize) {
        init(g, target, name, stackSize, null, true);
    }
private void init(ThreadGroup g, Runnable target, String name,
                      long stackSize, AccessControlContext acc,
                      boolean inheritThreadLocals) {
        if (name == null) {
            throw new NullPointerException("name cannot be null");
        }

        this.name = name;

        Thread parent = currentThread();
        SecurityManager security = System.getSecurityManager();
        if (g == null) {
            /* Determine if it's an applet or not */

            /* If there is a security manager, ask the security manager
               what to do. */
            if (security != null) {
                g = security.getThreadGroup();
            }

            /* If the security doesn't have a strong opinion of the matter
               use the parent thread group. */
            if (g == null) {
                g = parent.getThreadGroup();
            }
        }

        /* checkAccess regardless of whether or not threadgroup is
           explicitly passed in. */
        g.checkAccess();

        /*
         * Do we have the required permissions?
         */
        if (security != null) {
            if (isCCLOverridden(getClass())) {
                security.checkPermission(SUBCLASS_IMPLEMENTATION_PERMISSION);
            }
        }
        g.addUnstarted();
        this.group = g;
        this.daemon = parent.isDaemon();
        this.priority = parent.getPriority();
        if (security == null || isCCLOverridden(parent.getClass()))
            this.contextClassLoader = parent.getContextClassLoader();
        else
            this.contextClassLoader = parent.contextClassLoader;
        this.inheritedAccessControlContext =
                acc != null ? acc : AccessController.getContext();
        setPriority(priority);
        if (inheritThreadLocals && parent.inheritableThreadLocals != null)
            this.inheritableThreadLocals =
                ThreadLocal.createInheritedMap(parent.inheritableThreadLocals);
        /* Stash the specified stack size in case the VM cares */
        this.stackSize = stackSize;

        /* Set thread ID */
        tid = nextThreadID();
    }

@Override
    public void run() {

        if (target != null) {
            target.run();
        }
    }
  1. 用Runnable接口创建线程时会进入这个方法Thread(Runnable target)
  2. 接着调用这个方法init(ThreadGroup g, Runnable target, String name,long stackSize)
  3. 再调用这个方法(ThreadGroup g, Runnable target, String name,long stackSize, AccessControlContext acc,boolean inheritThreadLocals)
  4. 最后在这里将Runnable接口(target)赋值给Thread自己的target成员属性this.target = target;
  5. 如果你是实现了runnable接口,那么在上面的代码中target便不会为null,那么最终就会通过重写的 规则去调用真正实现了Runnable接口(你之前传进来的那个Runnable接口实现类)的类里的run方法

1、多线程的设计之中,使用了代理设计模式的结构,用户自定义的线程主体只是负责项目核心功能的实现,而所有的辅助实现全部交由Thread类来处理。

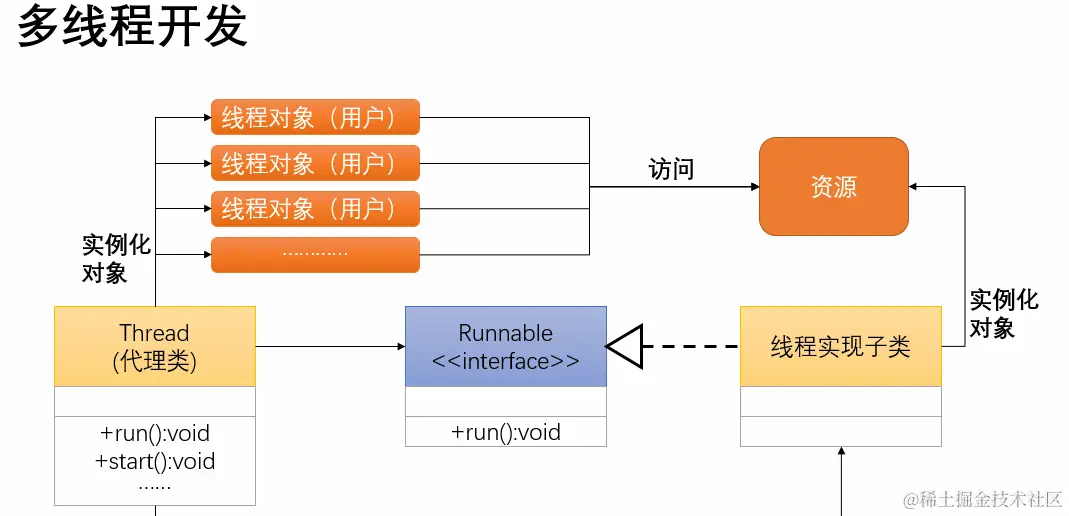

2、在进行Thread启动多线程的时候调用的是start()方法,而后找到的是run()方法,但通过Thread类的构造方法传递了一个Runnable接口对象的时候,那么该接口对象将被Thread类中的target属性所保存,在start()方法执行的时候会调用Thread类中的run()方法。而这个run()方法去调用实现了Runnable接口的那个类所重写过run()方法,进而执行相应的逻辑。多线程开发的本质实质上是在于多个线程可以进行同一资源的抢占,那么Thread主要描述的是线程,而资源的描述是通过Runnable完成的。如下图所示:
