概要:从上一篇文章RocketMq源码分析(五):生产者启动和发送消息到broker 中,我们看到生产者是如何将需要发送的消息封装好后,发送到broker,这一篇我们接着分析broker收到消息后,会做哪些事情

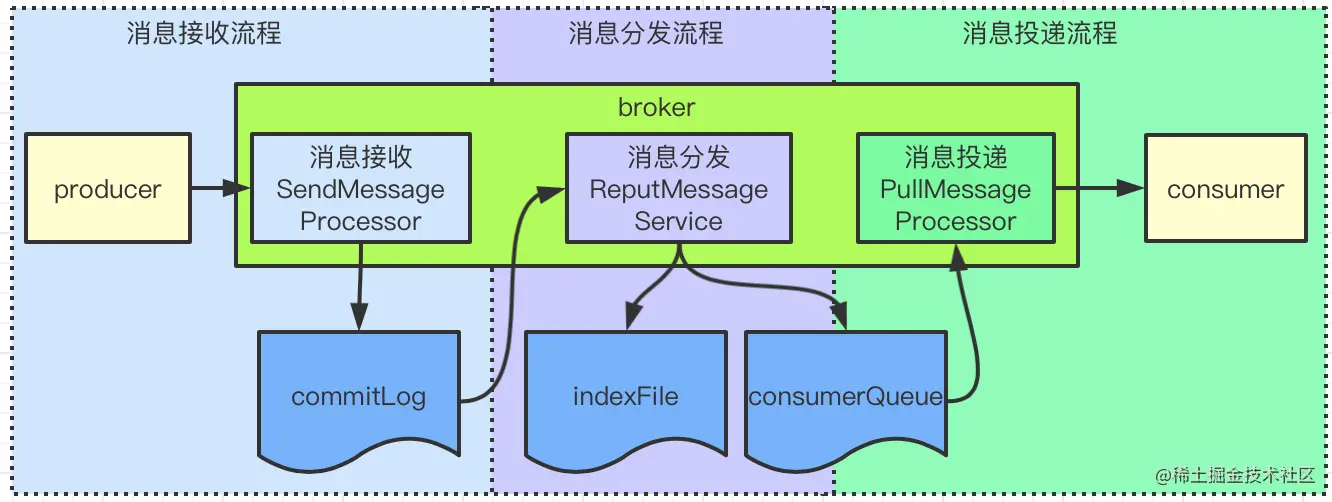

RocketMq消息处理整个流程如下：
-
消息接收：消息接收是指接收
producer的消息，处理类是SendMessageProcessor，将消息写入到commigLog文件后，接收流程处理完毕； -
消息分发：
broker处理消息分发的类是ReputMessageService，它会启动一个线程，不断地将commitLong分到到对应的consumerQueue，这一步操作会写两个文件：consumerQueue与indexFile，写入后，消息分发流程处理 完毕； -
消息投递：消息投递是指将消息发往
consumer的流程，consumer会发起获取消息的请求，broker收到请求后，调用PullMessageProcessor类处理，从consumerQueue文件获取消息，返回给consumer后，投递流程处理完毕。
一.broker启动过程中创建NettyRemoteServer
在前面文章中 # RocketMq源码分析(四):Broker启动流程中,已经得知,broker在启动的时候,会创建一个
NettyRemotingServer类,绑定好端口,等待客户端的连接,在start()方法中
serverBootstrap.group(this.eventLoopGroupBoss, this.eventLoopGroupSelector)
.channel(useEpoll() ? EpollServerSocketChannel.class : NioServerSocketChannel.class)
.option(ChannelOption.SO_BACKLOG, 1024)
.option(ChannelOption.SO_REUSEADDR, true)
.childOption(ChannelOption.SO_KEEPALIVE, false)
.childOption(ChannelOption.TCP_NODELAY, true)
//TODO 绑定ip和端口
.localAddress(new InetSocketAddress(this.nettyServerConfig.getBindAddress(),
this.nettyServerConfig.getListenPort()))
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel ch) {
ch.pipeline()
//handshakeHandler 处理握手操作，用来判断tls的开启状态
.addLast(defaultEventExecutorGroup, HANDSHAKE_HANDLER_NAME, handshakeHandler)
/**
* 批量添加五个handler
* encoder/NettyDecoder：处理报文的编解码操作
* IdleStateHandler：处理心跳
* connectionManageHandler：处理连接请求
* serverHandler：处理读写请求=> TODO 用来处理broker注册消息、producer/consumer获取topic消息的
*/
.addLast(defaultEventExecutorGroup,
encoder,
new NettyDecoder(),
new IdleStateHandler(0, 0,
nettyServerConfig.getServerChannelMaxIdleTimeSeconds()),
connectionManageHandler,
//serverHandler：处理读写请求
serverHandler
);
}
});
看到处理读写请求的handler是NettyServerHandler
二.处理netty读写请求的NettyServerHandler
NettyServerHandler是处理channel中数据读写的handler,我们可以进入看源码
class NettyServerHandler extends SimpleChannelInboundHandler<RemotingCommand> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, RemotingCommand msg) {
// System.out.println("NettyServerHandler 被触发==>"+msg.toString());
int localPort = RemotingHelper.parseSocketAddressPort(ctx.channel().localAddress());
NettyRemotingAbstract remotingAbstract = NettyRemotingServer.this.remotingServerTable.get(localPort);
if (localPort != -1 && remotingAbstract != null) {
//处理请求
remotingAbstract.processMessageReceived(ctx, msg);
return;
}
// The related remoting server has been shutdown, so close the connected channel
RemotingUtil.closeChannel(ctx.channel());
}
}
继续进入
public void processMessageReceived(ChannelHandlerContext ctx, RemotingCommand msg) {
if (msg != null) {
switch (msg.getType()) {
case REQUEST_COMMAND:
// 处理request命令
processRequestCommand(ctx, msg);
break;
// 处理response命令
case RESPONSE_COMMAND:
processResponseCommand(ctx, msg);
break;
default:
break;
}
}
}
继续进入processRequestCommand(ctx, msg)方法
public void processRequestCommand(final ChannelHandlerContext ctx, final RemotingCommand cmd) {
// 根据 code 从 processorTable 获取 Pair
final Pair<NettyRequestProcessor, ExecutorService> matched = this.processorTable.get(cmd.getCode());
// 找不到,给个默认值
final Pair<NettyRequestProcessor, ExecutorService> pair = null == matched ? this.defaultRequestProcessorPair : matched;
final int opaque = cmd.getOpaque();
if (pair == null) {
String error = " request type " + cmd.getCode() + " not supported";
final RemotingCommand response =
RemotingCommand.createResponseCommand(RemotingSysResponseCode.REQUEST_CODE_NOT_SUPPORTED, error);
response.setOpaque(opaque);
ctx.writeAndFlush(response);
log.error(RemotingHelper.parseChannelRemoteAddr(ctx.channel()) + error);
return;
}
/**
* 通过code找到 process(即pair),构建成一个 Runnable,
* 交个线程池去执行
* todo => pair.getObject1() 是这个process
* todo => pair.getObject2() 是这个线程池
*
*/
Runnable run = buildProcessRequestHandler(ctx, cmd, pair, opaque);
if (pair.getObject1().rejectRequest()) {
final RemotingCommand response = RemotingCommand.createResponseCommand(RemotingSysResponseCode.SYSTEM_BUSY,
"[REJECTREQUEST]system busy, start flow control for a while");
response.setOpaque(opaque);
ctx.writeAndFlush(response);
return;
}
try {
/**
* 将上面构建的runnable交给线程池执行
*/
final RequestTask requestTask = new RequestTask(run, ctx.channel(), cmd);
//async execute task, current thread return directly
pair.getObject2().submit(requestTask);
} catch (RejectedExecutionException e) {
....
}
}
上面代码逻辑
- 1.通过code找到对应的pair对象
- 2.将请求和pair对象封装成run对象
- 3.丢入线程池中执行
重点:这些pair对象是在哪里初始化的?
三 pair初始化时机

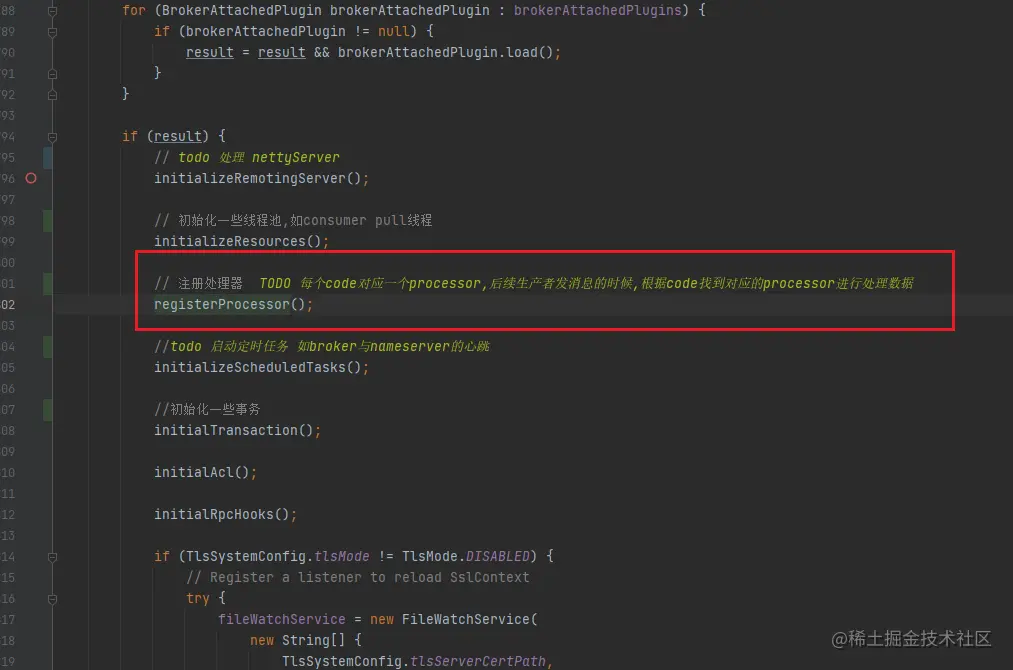

RocketMq源码分析(五):生产者启动和发送消息到broker中我们在brokerController的initialize()方法中
public void registerProcessor() {
/*
* SendMessageProcessor
*/
sendMessageProcessor.registerSendMessageHook(sendMessageHookList);
sendMessageProcessor.registerConsumeMessageHook(consumeMessageHookList);
this.remotingServer.registerProcessor(RequestCode.SEND_MESSAGE, sendMessageProcessor, this.sendMessageExecutor);
this.remotingServer.registerProcessor(RequestCode.SEND_MESSAGE_V2, sendMessageProcessor, this.sendMessageExecutor);
this.remotingServer.registerProcessor(RequestCode.SEND_BATCH_MESSAGE, sendMessageProcessor, this.sendMessageExecutor);
this.remotingServer.registerProcessor(RequestCode.CONSUMER_SEND_MSG_BACK, sendMessageProcessor, this.sendMessageExecutor);
//TODO 10 就是处理生产者发送的code码
this.fastRemotingServer.registerProcessor(RequestCode.SEND_MESSAGE, sendMessageProcessor, this.sendMessageExecutor);
//TODO 310 就是处理生产者发送的code码
this.fastRemotingServer.registerProcessor(RequestCode.SEND_MESSAGE_V2, sendMessageProcessor, this.sendMessageExecutor);
this.fastRemotingServer.registerProcessor(RequestCode.SEND_BATCH_MESSAGE, sendMessageProcessor, this.sendMessageExecutor);
this.fastRemotingServer.registerProcessor(RequestCode.CONSUMER_SEND_MSG_BACK, sendMessageProcessor, this.sendMessageExecutor);
...省略其他很多
在这里,会给remoteingServer注册很多 processor,把processor和线程池封装为pair对象, 和对应的code存放在一个map中,我们继续进入registerProcessor()方法
public void registerProcessor(int requestCode, NettyRequestProcessor processor, ExecutorService executor) {
ExecutorService executorThis = executor;
if (null == executor) {
executorThis = this.publicExecutor;
}
//TODO 把process和线程池封装为pair对象
Pair<NettyRequestProcessor, ExecutorService> pair = new Pair<>(processor, executorThis);
// 放入map中,每一个code对应一个pair
this.processorTable.put(requestCode, pair);
}
到了这里,所有的逻辑都通了,broker在启动的时候,会创建nettyServer,并且为每个code设置对应的processor对象, 当客户端连接的时候,对传递对应的code,服务端拿到code后,会根据code查到对应的processor类,进行处理
四.接受生产者发送的mq消息
在 RocketMq源码分析(五):生产者启动和发送消息到broker的最后,我们已经分析了生产者往broker发送消息,那么broker是怎么接受的呢?接下来我们来分析
4.1 回顾生产者发送的数据
请求头
// TODO 构架请求参数
SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
requestHeader.setTopic(msg.getTopic());
requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
requestHeader.setQueueId(mq.getQueueId());
requestHeader.setSysFlag(sysFlag);
requestHeader.setBornTimestamp(System.currentTimeMillis());
requestHeader.setFlag(msg.getFlag());
requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
requestHeader.setReconsumeTimes(0);
requestHeader.setUnitMode(this.isUnitMode());
requestHeader.setBatch(msg instanceof MessageBatch);
请求命令
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.SEND_MESSAGE, requestHeader);
请求内容
request.setBody(msg.getBody());
4.2.brocker接受生产者发送的消息逻辑
当broker的netty服务端接受到消息时候,处理消息发送的processor是 SendMessageprocessor类
public RemotingCommand processRequest(ChannelHandlerContext ctx,
RemotingCommand request) throws RemotingCommandException {
SendMessageContext traceContext;
switch (request.getCode()) {
/**
* 如果是消费者 的ack信息
*/
case RequestCode.CONSUMER_SEND_MSG_BACK:
return this.consumerSendMsgBack(ctx, request);
default:
/**
* 是生产者发送数据
*/
SendMessageRequestHeader requestHeader = parseRequestHeader(request);
if (requestHeader == null) {
return null;
}
TopicQueueMappingContext mappingContext = this.brokerController.getTopicQueueMappingManager().buildTopicQueueMappingContext(requestHeader, true);
RemotingCommand rewriteResult = this.brokerController.getTopicQueueMappingManager().rewriteRequestForStaticTopic(requestHeader, mappingContext);
if (rewriteResult != null) {
return rewriteResult;
}
/** 构建生产者发送过来数据*/
traceContext = buildMsgContext(ctx, requestHeader);
System.out.println("broker 接受的 head数据是==>"+ JSON.toJSONString(traceContext));
System.out.println("broker 接受的 body数据是==>"+new String(request.getBody()));
String owner = request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER);
traceContext.setCommercialOwner(owner);
try {
this.executeSendMessageHookBefore(ctx, request, traceContext);
} catch (AbortProcessException e) {
final RemotingCommand errorResponse = RemotingCommand.createResponseCommand(e.getResponseCode(), e.getErrorMessage());
errorResponse.setOpaque(request.getOpaque());
return errorResponse;
}
RemotingCommand response;
if (requestHeader.isBatch()) {
//普通批量消息
response = this.sendBatchMessage(ctx, request, traceContext, requestHeader, mappingContext,
(ctx1, response1) -> executeSendMessageHookAfter(response1, ctx1));
} else {
//普通发送消息
response = this.sendMessage(ctx, request, traceContext, requestHeader, mappingContext,
(ctx12, response12) -> executeSendMessageHookAfter(response12, ctx12));
}
return response;
}
}
继续进入sendMessage方法
public RemotingCommand sendMessage(final ChannelHandlerContext ctx,
final RemotingCommand request,
final SendMessageContext sendMessageContext,
final SendMessageRequestHeader requestHeader,
final TopicQueueMappingContext mappingContext,
final SendMessageCallback sendMessageCallback) throws RemotingCommandException {
final RemotingCommand response = preSend(ctx, request, requestHeader);
if (response.getCode() != -1) {
return response;
}
final SendMessageResponseHeader responseHeader = (SendMessageResponseHeader) response.readCustomHeader();
/**
* todo 获取消息内容
*/
final byte[] body = request.getBody();
int queueIdInt = requestHeader.getQueueId();
TopicConfig topicConfig = this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());
// queueIdInt 小于0,就随机使用其中一个
if (queueIdInt < 0) {
queueIdInt = randomQueueId(topicConfig.getWriteQueueNums());
}
// 将消息包装为 MessageExtBrokerInner
MessageExtBrokerInner msgInner = new MessageExtBrokerInner();
msgInner.setTopic(requestHeader.getTopic());
msgInner.setQueueId(queueIdInt);
...省略一些参数封装
if (brokerController.getBrokerConfig().isAsyncSendEnable()) {
CompletableFuture<PutMessageResult> asyncPutMessageFuture;
if (sendTransactionPrepareMessage) { /** 发送事务消息==> 通过 TransactionalMessageService 存放消息 */
asyncPutMessageFuture = this.brokerController.getTransactionalMessageService().asyncPrepareMessage(msgInner);
} else {
/** 发送普通消息==> 通过messageStore 存放消息 TODO 进入 */
asyncPutMessageFuture = this.brokerConroller.getMessageStore().asyncPutMessage(msgInner);
}
上面逻辑代码比较多,核心就是做下面三件事
- 获取队列id
- 封装参数到msgInner中
- 调用messageStore将数据存入commitlog中
brokerConroller.getMessageStore().asyncPutMessage(msgInner)
继续进入方法brokerConroller.getMessageStore().asyncPutMessage(msgInner)
/**
* todo 核心 保存到 commitLog 进入
*/
CompletableFuture<PutMessageResult> putResultFuture = this.commitLog.asyncPutMessage(msg);
继续进入
public CompletableFuture<PutMessageResult> asyncPutMessage(final MessageExtBrokerInner msg) {
// Set the storage time 设置存储时间
if (!defaultMessageStore.getMessageStoreConfig().isDuplicationEnable()) {
msg.setStoreTimestamp(System.currentTimeMillis());
}
// Set the message body CRC (consider the most appropriate setting on the client)
msg.setBodyCRC(UtilAll.crc32(msg.getBody()));
// Back to Results
AppendMessageResult result = null;
StoreStatsService storeStatsService = this.defaultMessageStore.getStoreStatsService();
String topic = msg.getTopic();
InetSocketAddress bornSocketAddress = (InetSocketAddress) msg.getBornHost();
if (bornSocketAddress.getAddress() instanceof Inet6Address) {
msg.setBornHostV6Flag();
}
InetSocketAddress storeSocketAddress = (InetSocketAddress) msg.getStoreHost();
if (storeSocketAddress.getAddress() instanceof Inet6Address) {
msg.setStoreHostAddressV6Flag();
}
PutMessageThreadLocal putMessageThreadLocal = this.putMessageThreadLocal.get();
updateMaxMessageSize(putMessageThreadLocal);
String topicQueueKey = generateKey(putMessageThreadLocal.getKeyBuilder(), msg);
long elapsedTimeInLock = 0;
MappedFile unlockMappedFile = null;
MappedFile mappedFile = this.mappedFileQueue.getLastMappedFile();
long currOffset;
if (mappedFile == null) {
currOffset = 0;
} else { //获取 currOffset
currOffset = mappedFile.getFileFromOffset() + mappedFile.getWrotePosition();
}
int needAckNums = this.defaultMessageStore.getMessageStoreConfig().getInSyncReplicas();
boolean needHandleHA = needHandleHA(msg);
if (needHandleHA && this.defaultMessageStore.getBrokerConfig().isEnableControllerMode()) {
if (this.defaultMessageStore.getHaService().inSyncReplicasNums(currOffset) < this.defaultMessageStore.getMessageStoreConfig().getMinInSyncReplicas()) {
return CompletableFuture.completedFuture(new PutMessageResult(PutMessageStatus.IN_SYNC_REPLICAS_NOT_ENOUGH, null));
}
if (this.defaultMessageStore.getMessageStoreConfig().isAllAckInSyncStateSet()) {
// -1 means all ack in SyncStateSet
needAckNums = MixAll.ALL_ACK_IN_SYNC_STATE_SET;
}
} else if (needHandleHA && this.defaultMessageStore.getBrokerConfig().isEnableSlaveActingMaster()) {
int inSyncReplicas = Math.min(this.defaultMessageStore.getAliveReplicaNumInGroup(),
this.defaultMessageStore.getHaService().inSyncReplicasNums(currOffset));
needAckNums = calcNeedAckNums(inSyncReplicas);
if (needAckNums > inSyncReplicas) {
// Tell the producer, don't have enough slaves to handle the send request
return CompletableFuture.completedFuture(new PutMessageResult(PutMessageStatus.IN_SYNC_REPLICAS_NOT_ENOUGH, null));
}
}
topicQueueLock.lock(topicQueueKey);
try {
boolean needAssignOffset = true;
if (defaultMessageStore.getMessageStoreConfig().isDuplicationEnable()
&& defaultMessageStore.getMessageStoreConfig().getBrokerRole() != BrokerRole.SLAVE) {
needAssignOffset = false;
}
if (needAssignOffset) {
defaultMessageStore.assignOffset(msg, getMessageNum(msg));
}
PutMessageResult encodeResult = putMessageThreadLocal.getEncoder().encode(msg);
if (encodeResult != null) {
return CompletableFuture.completedFuture(encodeResult);
}
msg.setEncodedBuff(putMessageThreadLocal.getEncoder().getEncoderBuffer());
PutMessageContext putMessageContext = new PutMessageContext(topicQueueKey);
putMessageLock.lock(); //spin or ReentrantLock ,depending on store config
try {
long beginLockTimestamp = this.defaultMessageStore.getSystemClock().now();
this.beginTimeInLock = beginLockTimestamp;
.... 省略一些代码
// todo 追加到文件中 {user.home}\store\commitlog\00000000000000000000
result = mappedFile.appendMessage(msg, this.appendMessageCallback, putMessageContext);
在源码里，这个方法也是非常长，这里删减了大部分，只看关键点：
- 如果发送的是延迟消息，先保存原始的
topic与queueId，然后使用延迟队列专有的topic与queueId - 将消息写入到文件中

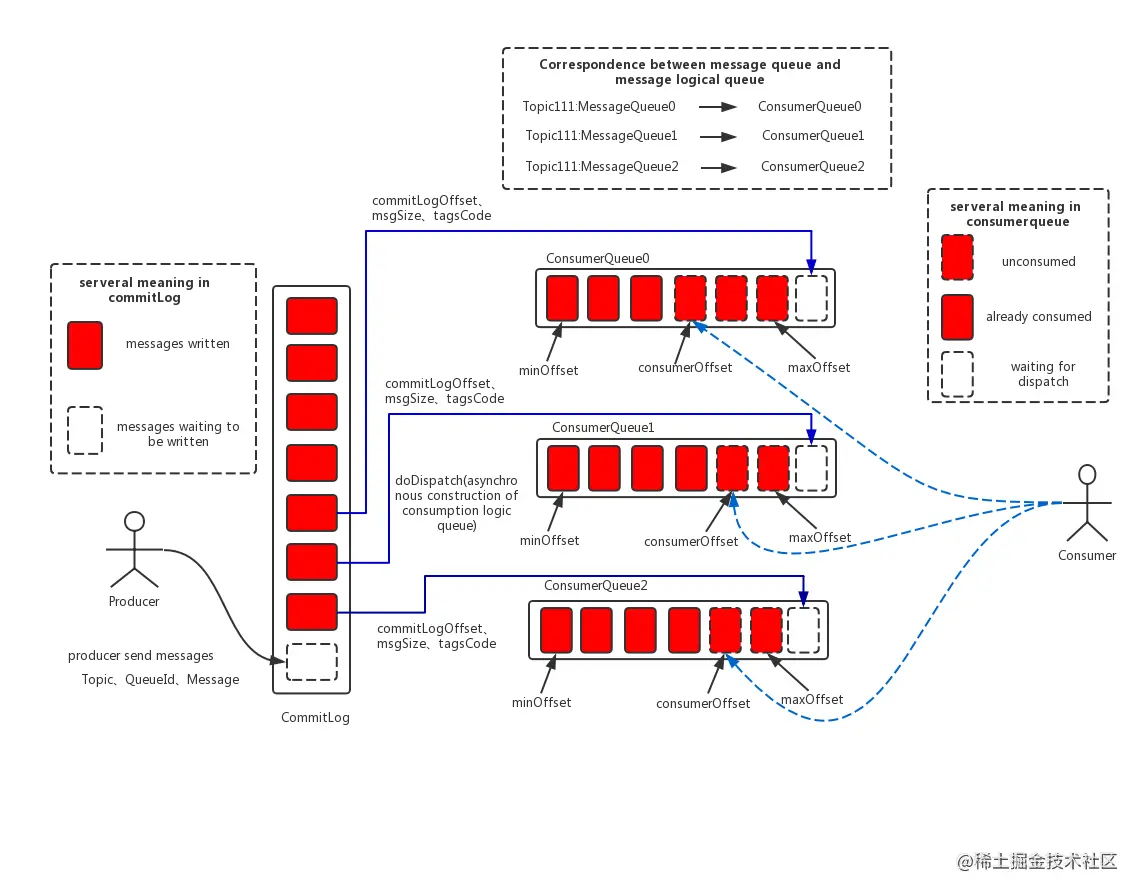

消息存储架构图中主要有下面三个跟消息存储相关的文件构成。
(1) CommitLog：消息主体以及元数据的存储主体，存储Producer端写入的消息主体内容,消息内容不是定长的。单个文件大小默认1G ，文件名长度为20位，左边补零，剩余为起始偏移量，比如00000000000000000000代表了第一个文件，起始偏移量为0，文件大小为1G=1073741824；当第一个文件写满了，第二个文件为00000000001073741824，起始偏移量为1073741824，以此类推。消息主要是顺序写入日志文件，当文件满了，写入下一个文件；
(2) ConsumeQueue：消息消费队列，引入的目的主要是提高消息消费的性能，由于RocketMQ是基于主题topic的订阅模式，消息消费是针对主题进行的，如果要遍历commitlog文件中根据topic检索消息是非常低效的。Consumer即可根据ConsumeQueue来查找待消费的消息。其中，ConsumeQueue（逻辑消费队列）作为消费消息的索引，保存了指定Topic下的队列消息在CommitLog中的起始物理偏移量offset，消息大小size和消息Tag的HashCode值。consumequeue文件可以看成是基于topic的commitlog索引文件，故consumequeue文件夹的组织方式如下：topic/queue/file三层组织结构，具体存储路径为：$HOME/store/consumequeue/{topic}/{queueId}/{fileName}。同样consumequeue文件采取定长设计，每一个条目共20个字节，分别为8字节的commitlog物理偏移量、4字节的消息长度、8字节tag hashcode，单个文件由30W个条目组成，可以像数组一样随机访问每一个条目，每个ConsumeQueue文件大小约5.72M；
(3) IndexFile：IndexFile（索引文件）提供了一种可以通过key或时间区间来查询消息的方法。Index文件的存储位置是：HOME\store\index{fileName}，文件名fileName是以创建时的时间戳命名的，固定的单个IndexFile文件大小约为400M，一个IndexFile可以保存 2000W个索引，IndexFile的底层存储设计为在文件系统中实现HashMap结构，故rocketmq的索引文件其底层实现为hash索引。
在上面的RocketMQ的消息存储整体架构图中可以看出，RocketMQ采用的是混合型的存储结构，即为Broker单个实例下所有的队列共用一个日志数据文件（即为CommitLog）来存储。RocketMQ的混合型存储结构(多个Topic的消息实体内容都存储于一个CommitLog中)针对Producer和Consumer分别采用了数据和索引部分相分离的存储结构，Producer发送消息至Broker端，然后Broker端使用同步或者异步的方式对消息刷盘持久化，保存至CommitLog中。只要消息被刷盘持久化至磁盘文件CommitLog中，那么Producer发送的消息就不会丢失。
正因为如此，Consumer也就肯定有机会去消费这条消息。当无法拉取到消息后，可以等下一次消息拉取，同时服务端也支持长轮询模式，如果一个消息拉取请求未拉取到消息，Broker允许等待30s的时间，只要这段时间内有新消息到达，将直接返回给消费端。这里，RocketMQ的具体做法是，使用Broker端的后台服务线程—ReputMessageService不停地分发请求并异步构建ConsumeQueue（逻辑消费队列）和IndexFile（索引文件）数据。
五.总结
本文主要分析了 broker 接收producer消息的流程，流程如下：
-
处理消息接收的底层服务为 netty，在
BrokerController#start方法中启动 -
netty服务中，处理消息接收的
channelHandler为NettyServerHandler，最终会调用SendMessageProcessor#processRequest来处理消息接收 -
消息接收流程的最后，
MappedFile#appendMessage(...)方法会将消息内容写入到commitLog文件中。
