【示例】react navigation 配置上下双导航(bottomTabs + stack)

342 阅读1分钟

1、前提

安装好react navigation、bottomTabs、stack

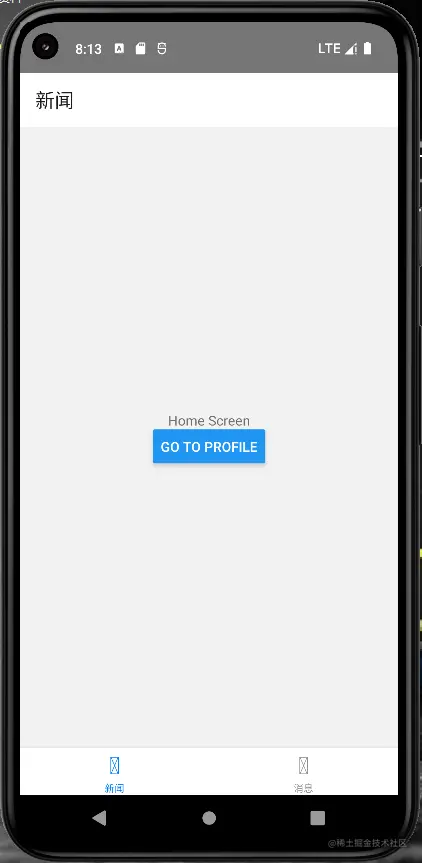

2、效果图


3、测试代码

import {createBottomTabNavigator} from '@react-navigation/bottom-tabs';
import {NavigationContainer} from '@react-navigation/native';
import {
  createNativeStackNavigator,
  NativeStackNavigationProp,
} from '@react-navigation/native-stack';
import React from 'react';
import {View, Text, Button, StyleSheet} from 'react-native';

// 创建Stack
const Stack = createNativeStackNavigator();
// 创建底部Tab
const Tab = createBottomTabNavigator();
// 创建样式
const style = StyleSheet.create({
  container: {
    flex: 1,
    alignItems: 'center',
    justifyContent: 'center',
  },
});

type RootStackParamList = {
  Profile: undefined;
  Detail: {
    id: number;
    screen?: string;
  };
};
function Feed({
  navigation,
}: {
  navigation: NativeStackNavigationProp<RootStackParamList>;
}) {
  return (
    <View style={style.container}>
      <Text>Home Screen</Text>
      <Button
        title="Go to Profile"
        onPress={() => navigation.navigate('Profile')}
      />
    </View>
  );
}

function Messages() {
  return (
    <View>
      <Text>Messages</Text>
    </View>
  );
}

function Settings() {
  return (
    <View>
      <Text>Settings</Text>
    </View>
  );
}

function Profile() {
  return (
    <View>
      <Text>Profile</Text>
    </View>
  );
}

function Home() {
  return (
    <Tab.Navigator>
      <Tab.Screen
        name="Feed"
        component={Feed}
        options={{
          tabBarLabel: '新闻',
          headerTitle: '新闻',
        }}
      />
      <Tab.Screen
        name="Messages"
        component={Messages}
        options={{
          tabBarLabel: '消息',
          headerTitle: '消息',
        }}
      />
    </Tab.Navigator>
  );
}

function App() {
  return (
    <NavigationContainer>
      <Stack.Navigator>
        <Stack.Screen
          name="Home"
          component={Home}
          // 隐藏bottomTabs默认的顶部标题栏
          options={{headerShown: false}}
        />
        <Stack.Screen name="Profile" component={Profile} />
        <Stack.Screen name="Settings" component={Settings} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

export default App;

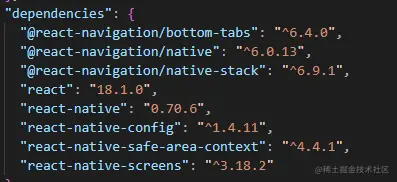

4、测试版本
