基于Vue-element-template的后台管理系统首页页面设计(图表)

203 阅读5分钟

开启掘金成长之旅!这是我参与「掘金日新计划 · 12 月更文挑战」的第2天,点击查看活动详情

我们再来写一下饼状图和折线图。 在components文件夹中新建一个PieChart.vue

<template>
  <div :class="className" :style="{height:height,width:width}" />
</template><script>
import * as echarts from 'echarts'
require('echarts/theme/macarons') // echarts theme
​
​
export default {
  props: {
    className: {
      type: String,
      default: 'chart'
    },
    width: {
      type: String,
      default: '100%'
    },
    height: {
      type: String,
      default: '300px'
    }
  },
  data() {
    return {
      chart: null
    }
  },
  mounted() {
    this.$nextTick(() => {
      this.initChart()
    })
  },
  beforeDestroy() {
    if (!this.chart) {
      return
    }
    this.chart.dispose()
    this.chart = null
  },
  methods: {
    initChart() {
      this.chart = echarts.init(this.$el, 'macarons')
​
      this.chart.setOption({
        title: {
            text: '分类占比',
            left: 'left'
        },
        tooltip: {
            trigger: 'item'
        },
        series: [
            {
            name: 'Access From',
            type: 'pie',
            radius: '50%',
            data: [
                { value: 1048, name: 'Search Engine' },
                { value: 735, name: 'Direct' },
                { value: 580, name: 'Email' },
                { value: 484, name: 'Union Ads' },
                { value: 300, name: 'Video Ads' }
            ],
            emphasis: {
                itemStyle: {
                shadowBlur: 10,
                shadowOffsetX: 0,
                shadowColor: 'rgba(0, 0, 0, 0.5)'
                }
            }
            }
        ]

      })
    }
  }
}
</script>

再新建一个LineChart.vue

<template>
  <div :class="className" :style="{height:height,width:width}" />
</template><script>
import * as echarts from 'echarts'
require('echarts/theme/macarons') // echarts theme
​
​
export default {
  props: {
    className: {
      type: String,
      default: 'chart'
    },
    width: {
      type: String,
      default: '100%'
    },
    height: {
      type: String,
      default: '300px'
    }
  },
  data() {
    return {
      chart: null
    }
  },
  mounted() {
    this.$nextTick(() => {
      this.initChart()
    })
  },
  beforeDestroy() {
    if (!this.chart) {
      return
    }
    this.chart.dispose()
    this.chart = null
  },
  methods: {
    initChart() {
      this.chart = echarts.init(this.$el, 'macarons')
​
      this.chart.setOption({
       title: {
          text: '访问量'
       },
        xAxis: {
            type: 'category',
            data: ['Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun']
        },
        yAxis: {
            type: 'value'
        },
        series: [
            {
            data: [820, 932, 901, 934, 1290, 1330, 1320],
            type: 'line',
            smooth: true
            }
        ]

      })
    }
  }
}
</script>

再去主页将这两个引入。

index.vue完整代码如下

<template>
  <div class="dashboard-container">
    <panel-group ></panel-group>
​
    <!-- 数据分析 -->
    <el-row :gutter="32" class="row-chart">
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <bar-chart />
        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <pie-chart />
        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
          <line-chart />
        </div>
      </el-col>
    </el-row>

  </div>

</template><script>import PanelGroup from './components/PanelGroup'
import BarChart from './components/BarChart'
import PieChart from './components/PieChart'
import LineChart from './components/LineChart'export default {
  name: 'Dashboard',
  components: {
    PanelGroup,
    BarChart,
    PieChart,
    LineChart
  },

  data() {
    return {
    }
  },
  methods: {

  },
​
}
</script><style rel="stylesheet/scss" lang="scss" scoped>.dashboard {
  &-container {
    padding: 32px;
    background-color: #f0f2f5;
  }
}
.chart-wrapper {
  background: #fff;
  padding: 16px 16px 0;
  margin-bottom: 32px;
}
.row-chart{
  margin-top: 30px;
}
</style>

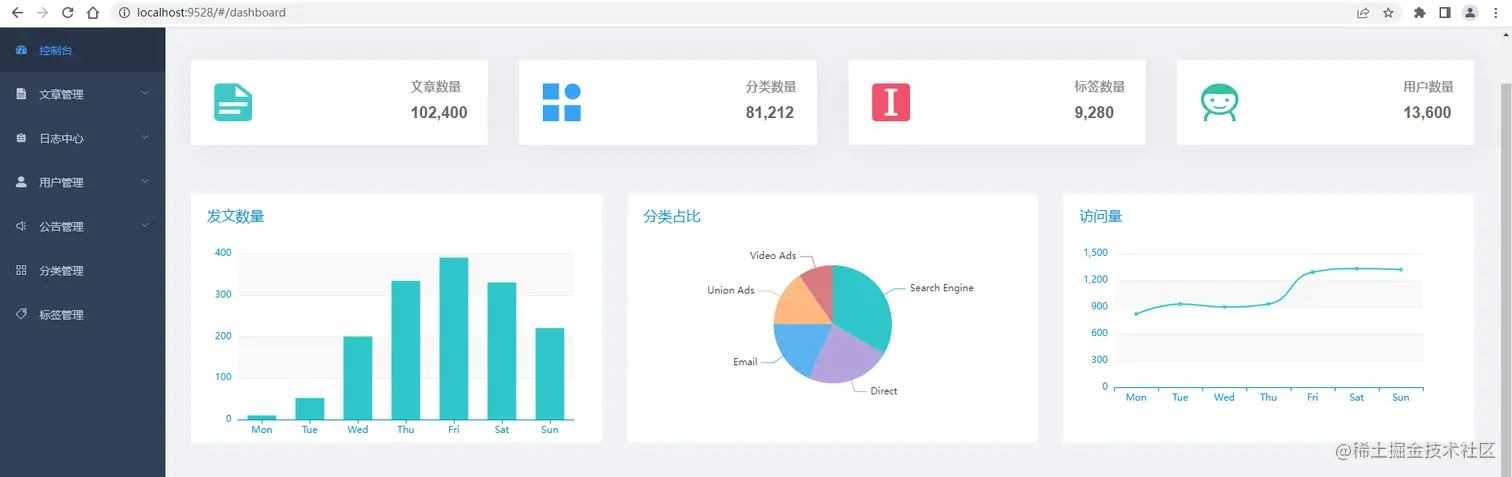

然后我们看一下效果


是不是感觉还挺哇塞的,其实那种看着非常高大上的大屏展示就是这种画出来的,我后边应该会写一篇如何制作大屏的页面的文章,大家可以等待一下。

现在我们的首页是不是有点样子了,越来越完善了,是有点系统的样子了。

接下来我们再美化一下首页,再添加一点小功能。

1、添加日历

大家可以参考这个文章添加日历,以下就是我参照实现的,稍微做了修改。

参考文章:vue日历插件vue-calendar

  1. 首先安装一下日历的组件
npm i vue-calendar-component --save

如果安装失败,可以试试以下的命令

cnpm i vue-calendar-component --save
  1. 引入组件

在我们的首页引入一下日历的组件

import Calendar from 'vue-calendar-component';

然后写绘制日历的代码

     <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <div class="con">
            <div class="now-data-myself">
              <div class="now-data-myself-time">{{ date }}</div>
              <div class="now-data-myself-week">{{ week }}</div>
            </div>
            <Calendar
              v-on:choseDay="clickDay"
              v-on:changeMonth="changeDate"
              v-on:isToday="clickToday"
            ></Calendar>
          </div>
        </div>
      </el-col>
components: {
    PanelGroup,
    BarChart,
    PieChart,
    LineChart,
    Calendar
},
data() {
    return {
     date: "",
     week: "",
    }
},
created() {
    var now = new Date();
    this.date = now.getDate();//得到日期
    var day = now.getDay();//得到周几
    var arr_week = new Array("星期日", "星期一", "星期二", "星期三", "星期四", "星期五", "星期六");
    this.week = arr_week[day];
},
​
methods: {
   clickDay(data) {},
   changeDate(data) {},
   clickToday(data) {}
},

CSS样式:

.now-data-myself {
  width: 40%;
  position: absolute;
  border-right: 1px solid rgba(227, 227, 227, 0.6);
}
.con {
  position: relative;
  max-width: 400px;
  margin: auto;
}
.con .wh_content_all {
  background: transparent !important;
}
.wh_top_changge li {
  color: #F56C6C !important;
  font-size: 15px !important;
}
.wh_content_item, .wh_content_item_tag {
  color: #303133 !important;
}
.wh_content_item .wh_isToday {
  background: #00d985  !important;
  color: #fff  !important;
}
.wh_content_item .wh_chose_day {
  background: #409EFF  !important;
  color: #ffff  !important;
}
.wh_item_date:hover {
    background: rgb(217, 236, 255) !important;
    border-radius: 100px !important;
    color: rgb(102, 177, 255)  !important;
}
.wh_jiantou1[data-v-2ebcbc83] {
    border-top: 2px solid #909399;
    border-left: 2px solid #909399;
    width: 7px;
    height: 7px;
}
.wh_jiantou2[data-v-2ebcbc83] {
    border-top: 2px solid #909399;
    border-right: 2px solid #909399;
    width: 7px;
    height: 7px;
}
.wh_top_tag[data-v-2ebcbc83] {
  color: #409EFF;
  border-top: 1px solid rgba(227, 227, 227, 0.6);
  border-bottom: 1px solid rgba(227, 227, 227, 0.6);
}
.wh_container[data-v-2ebcbc83] {
    max-width: 400px;
}
.wh_top_changge[data-v-2ebcbc83] {
    display: flex;
    width: 50%;
    margin-left: 43%;
}
.now-data-myself-time {
  color: #F56C6C;
  font-size: 28px;
  margin-left:60px;
  height: 33px;
  font-family: "Helvetica Neue";
}
.now-data-myself-week {
  margin-left:60px;
  font-size: 10px;
  color: #909399;
}
.wh_top_changge .wh_content_li[data-v-2ebcbc83] {
  font-family: Helvetica;
}

这里我遇到了一个坑,修改的日历的样式没有效果,最终看到css样式的地方加了scoped

<style rel="stylesheet/scss" lang="scss" scoped>

我们把这个去掉即可,想知道什么原因的可以去学习一下。

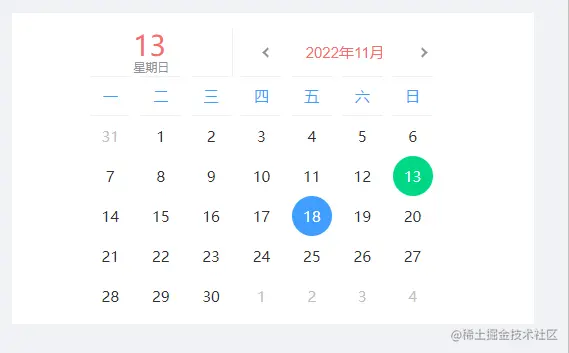

然后看一下我们的页面。


2、词云

接下来我们来写一下这个词云,这个主要是美化我们的页面,做一些特效使用,也多学一些常用的小功能。

我这个是在网上找了一个词云的代码,我将它封装成了一个组件,直接在首页引用即可。

在components文件夹下面新建一个WordCloud.vue文件

<template>
  <section class="cloud-bed">
    <div class="cloud-box">
      <span
        v-for="(item, index) in dataList"
        :key="index"
        @click="getDataInfo(item)"
        :style="{color:item.color,background:item.bgColor}"
      >
        {{ item.name }}
      </span>
    </div>
  </section>
</template>

<script>
  export default {
    name: "word-cloud",
    data() {
      return {
        timer: 10, // 球体转动速率
        radius: 0, // 词云球体面积大小
        dtr: Math.PI/180, //鼠标滑过球体转动速度
        active: false, // 默认加载是否开启转动
        lasta: 0, // 上下转动
        lastb: 0.5, // 左右转动
        distr: true,
        tspeed: 1, // 鼠标移动上去时球体转动
        mouseX: 0,
        mouseY: 0,
        tagAttrList: [],
        tagContent: null,
        cloudContent: null,
        sinA: '',
        cosA: '',
        sinB: '',
        cosB: '',
        sinC: '',
        cosC: '',
        dataList: [
          {
            name: '页面卡顿\白屏',
            value: '1',
            bgColor:'rgb(57, 193, 207,0.12)',
            color:'#39c1cf',
          },
          {
            name: '闪退',
            value: '8',
            bgColor:'rgb(66, 105, 245,0.12)',
            color:'#4269f5',
          },
          {
            name: '登录问题',
            value: '9',
            bgColor:'rgb(184, 107, 215,0.12)',
            color:'#b86bd7',
          },
          {
            name: '功能bug',
            value: '3',
            bgColor:'rgb(243, 84, 83,0.12)',
            color:'#f35453',
          },
          {
            name: '无法收到短信',
            value: '6',
            bgColor:'rgb(250, 116, 20,0.12)',
            color:'#FA7414',
          },
          {
            name: '人脸/指纹认证失败',
            value: '10',
            bgColor:'rgb(255, 171, 30,0.12)',
            color:'#FFAB1E',
          },
          {
            name: '功能建议',
            value: '2',
            bgColor:'rgb(136, 104, 217,0.12)',
            color:'#8868D9',
          },
          {
            name: 'UI/UX',
            value: '5',
            bgColor:'rgb(42, 184, 230,0.12)',
            color:'#2AB8E6',
          },
          {
            name: '导航性',
            value: '7',
            bgColor:'rgb(117, 133, 162,0.12)',
            color:'#7585A2',
          },
        ]
      }
    },
    mounted () {
      this.$nextTick(() => {
        this.radius = document.querySelector('.cloud-box').offsetWidth / 2
        this.initWordCloud()
      })
    },
    beforeDestroy () {
      clearInterval(this.timer)
    },
    methods:{
      // 获取点击文本信息
      getDataInfo (item) {
        console.log(item, 'item')
      },
      initWordCloud () {
        this.cloudContent = document.querySelector('.cloud-box');
        this.tagContent = this.cloudContent.getElementsByTagName('span');
        for (let i = 0; i < this.tagContent.length; i++) {
          let tagObj = {};
          tagObj.offsetWidth = this.tagContent[i].offsetWidth;
          tagObj.offsetHeight = this.tagContent[i].offsetHeight;
          this.tagAttrList.push(tagObj);
        }
        this.sineCosine(0, 0, 0);
        this.positionAll();
        this.cloudContent.onmouseover = () => {
          this.active=true;
        };
        this.cloudContent.onmouseout = () => {
          this.active=false;
        };
        this.cloudContent.onmousemove = (ev) => {
          let oEvent = window.event || ev;
          this.mouseX = oEvent.clientX - (this.cloudContent.offsetLeft + this.cloudContent.offsetWidth/2);
          this.mouseY = oEvent.clientY - (this.cloudContent.offsetTop + this.cloudContent.offsetHeight/2);
          this.mouseX/= 5;
          this.mouseY/= 5;
        };
          setInterval(this.update, this.timer);
      },
      positionAll () {
        let phi = 0;
        let theta = 0;
        let max = this.tagAttrList.length;
        let aTmp = [];
        let oFragment = document.createDocumentFragment();
        //随机排序
        for (let i=0; i < this.tagContent.length; i++) {
          aTmp.push(this.tagContent[i]);
        }
        aTmp.sort(() => {
          return Math.random() < 0.5 ? 1 : -1;
        });
        for (let i = 0; i < aTmp.length; i++) {
          oFragment.appendChild(aTmp[i]);
        }
        this.cloudContent.appendChild(oFragment);
        for(let i = 1; i < max + 1; i++){
          if (this.distr) {
            phi = Math.acos(-1 + (2 * i - 1) / max);
            theta = Math.sqrt(max * Math.PI) * phi;
          } else {
            phi = Math.random() * (Math.PI);
            theta = Math.random() * (2 * Math.PI);
          }
          //坐标变换
          this.tagAttrList[i-1].cx = this.radius * Math.cos(theta) * Math.sin(phi);
          this.tagAttrList[i-1].cy = this.radius * Math.sin(theta) * Math.sin(phi);
          this.tagAttrList[i-1].cz = this.radius * Math.cos(phi);
          this.tagContent[i-1].style.left = this.tagAttrList[i-1].cx + this.cloudContent.offsetWidth / 2 - this.tagAttrList[i-1].offsetWidth / 2 + 'px';
          this.tagContent[i-1].style.top = this.tagAttrList[i-1].cy + this.cloudContent.offsetHeight / 2 - this.tagAttrList[i-1].offsetHeight / 2 + 'px';
        }
      },
      update () {
        let angleBasicA;
        let angleBasicB;

        if (this.active) {
          angleBasicA = (-Math.min(Math.max(-this.mouseY, -200 ), 200) / this.radius) * this.tspeed;
          angleBasicB = (Math.min(Math.max(-this.mouseX, -200 ), 200) / this.radius) * this.tspeed;
        } else {
          angleBasicA = this.lasta * 0.98;
          angleBasicB = this.lastb * 0.98;
        }

        //默认转动是后是否需要停下
        // lasta=a;
        // lastb=b;

        // if(Math.abs(a)<=0.01 && Math.abs(b)<=0.01)
        // {
        // return;
        // }
        this.sineCosine(angleBasicA, angleBasicB, 0);
        for(let j = 0; j < this.tagAttrList.length; j++) {
          let rx1 = this.tagAttrList[j].cx;
          let ry1 = this.tagAttrList[j].cy * this.cosA + this.tagAttrList[j].cz * (-this.sinA);
          let rz1 = this.tagAttrList[j].cy * this.sinA + this.tagAttrList[j].cz * this.cosA;

          let rx2 = rx1 * this.cosB + rz1 * this.sinB;
          let ry2 = ry1;
          let rz2 = rx1 * (-this.sinB) + rz1 * this.cosB;

          let rx3 = rx2 * this.cosC + ry2 * (-this.sinC);
          let ry3 = rx2 * this.sinC + ry2 * this.cosC;
          let rz3 = rz2;
          this.tagAttrList[j].cx = rx3;
          this.tagAttrList[j].cy = ry3;
          this.tagAttrList[j].cz = rz3;

          let per = 350 / (350 + rz3);

          this.tagAttrList[j].x = rx3 * per - 2;
          this.tagAttrList[j].y = ry3 * per;
          this.tagAttrList[j].scale = per;
          this.tagAttrList[j].alpha = per;

          this.tagAttrList[j].alpha = (this.tagAttrList[j].alpha - 0.6) * (10/6);
        }
        this.doPosition();
        this.depthSort();
      },
      doPosition() {
        let len = this.cloudContent.offsetWidth/2;
        let height = this.cloudContent.offsetHeight/2;
        for (let i=0;i < this.tagAttrList.length;i++) {
          this.tagContent[i].style.left = this.tagAttrList[i].cx + len - this.tagAttrList[i].offsetWidth/2 + 'px';
          this.tagContent[i].style.top = this.tagAttrList[i].cy + height - this.tagAttrList[i].offsetHeight/2 + 'px';
          // this.tagContent[i].style.fontSize = Math.ceil(12 * this.tagAttrList[i].scale/2) + 8 + 'px';
          this.tagContent[i].style.fontSize = Math.ceil(12 * this.tagAttrList[i].scale/2) +2 + 'px';
          this.tagContent[i].style.filter = "alpha(opacity="+100 * this.tagAttrList[i].alpha+")";
          this.tagContent[i].style.opacity = this.tagAttrList[i].alpha;
        }
      },
      depthSort(){
        let aTmp = [];
        for (let i = 0; i < this.tagContent.length; i++) {
          aTmp.push(this.tagContent[i]);
        }
        aTmp.sort((item1, item2) => item2.cz - item1.cz);
        for (let i = 0; i < aTmp.length; i++) {
          aTmp[i].style.zIndex=i;
        }
      },
      sineCosine (a, b, c) {
        this.sinA = Math.sin(a * this.dtr);
        this.cosA = Math.cos(a * this.dtr);
        this.sinB = Math.sin(b * this.dtr);
        this.cosB = Math.cos(b * this.dtr);
        this.sinC = Math.sin(c * this.dtr);
        this.cosC = Math.cos(c * this.dtr);
      }
    }
  };
</script>


<style scoped>
.cloud-bed {
  width: 250px;
  height: 270px;
  margin: auto;
}
.cloud-box{
    position:relative;
    margin:20px auto 0px;
    width: 100%;
    height: 100%;
    background: #00000000;
  }
 .cloud-box span{
      position: absolute;
      padding: 3px 6px;
      top: 0px;
      font-weight: bold;
      text-decoration:none;
      left:0px;
      background-image: linear-gradient(to bottom, red, #fff);
      background-clip: text;
      color: transparent;
      width: 50px;
      height: 50px;
      border-radius: 50%;
      text-align: center;
​
      display: flex;
      align-items: center;
      justify-content: center;
​
      /* line-height: 50px;
      overflow:hidden;
      white-space: nowrap;
      text-overflow: ellipsis; */
    }
</style>
​

然后在首页中将组件引进来,和之前的图表引入一样。

<el-col :xs="24" :sm="24" :lg="8">
    <div class="chart-wrapper">
       <div class="e-title">文章标签统计</div>
       <word-cloud />
    </div>
</el-col>

引入组件

import WordCloud from './components/WordCloud.vue'components: {
    PanelGroup,
    BarChart,
    PieChart,
    LineChart,
    Calendar,
    WordCloud
},

然后运行一下项目,我们看一下页面


看着是不是还挺高大上的。这个功能模块添加完成了,最后一个我们写一下公告的展示

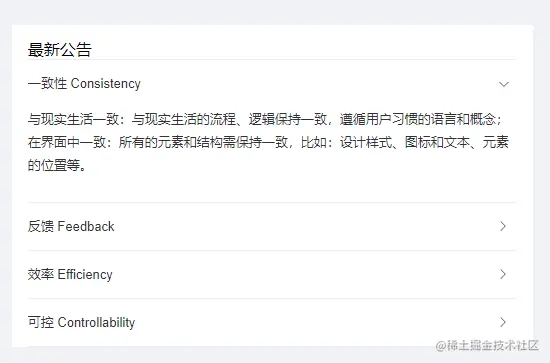

3、公告

在首页添加了公告的信息,方便我们及时的查看,但只展示最近发的前四条公告,其余的还是要去公告列表中去查看,这个就比较简单了,我们直接引用element-ui的组件即可。

我选择了折叠面板来实现,感觉还挺符合这个通知公告的功能实现。

<el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
          <div class="e-title">最新公告</div>
          <el-collapse v-model="activeName" accordion>
            <el-collapse-item title="一致性 Consistency" name="1">
              <div>与现实生活一致:与现实生活的流程、逻辑保持一致,遵循用户习惯的语言和概念;</div>
              <div>在界面中一致:所有的元素和结构需保持一致,比如:设计样式、图标和文本、元素的位置等。</div>
            </el-collapse-item>
            <el-collapse-item title="反馈 Feedback" name="2">
              <div>控制反馈:通过界面样式和交互动效让用户可以清晰的感知自己的操作;</div>
              <div>页面反馈:操作后,通过页面元素的变化清晰地展现当前状态。</div>
            </el-collapse-item>
            <el-collapse-item title="效率 Efficiency" name="3">
              <div>简化流程:设计简洁直观的操作流程;</div>
              <div>清晰明确:语言表达清晰且表意明确,让用户快速理解进而作出决策;</div>
              <div>帮助用户识别:界面简单直白,让用户快速识别而非回忆,减少用户记忆负担。</div>
            </el-collapse-item>
            <el-collapse-item title="可控 Controllability" name="4">
              <div>用户决策:根据场景可给予用户操作建议或安全提示,但不能代替用户进行决策;</div>
              <div>结果可控:用户可以自由的进行操作,包括撤销、回退和终止当前操作等。</div>
            </el-collapse-item>
      </el-collapse>


里面的内容暂时先不修改,我们下一篇处理后端的接口,再统一对接后端接口数据。

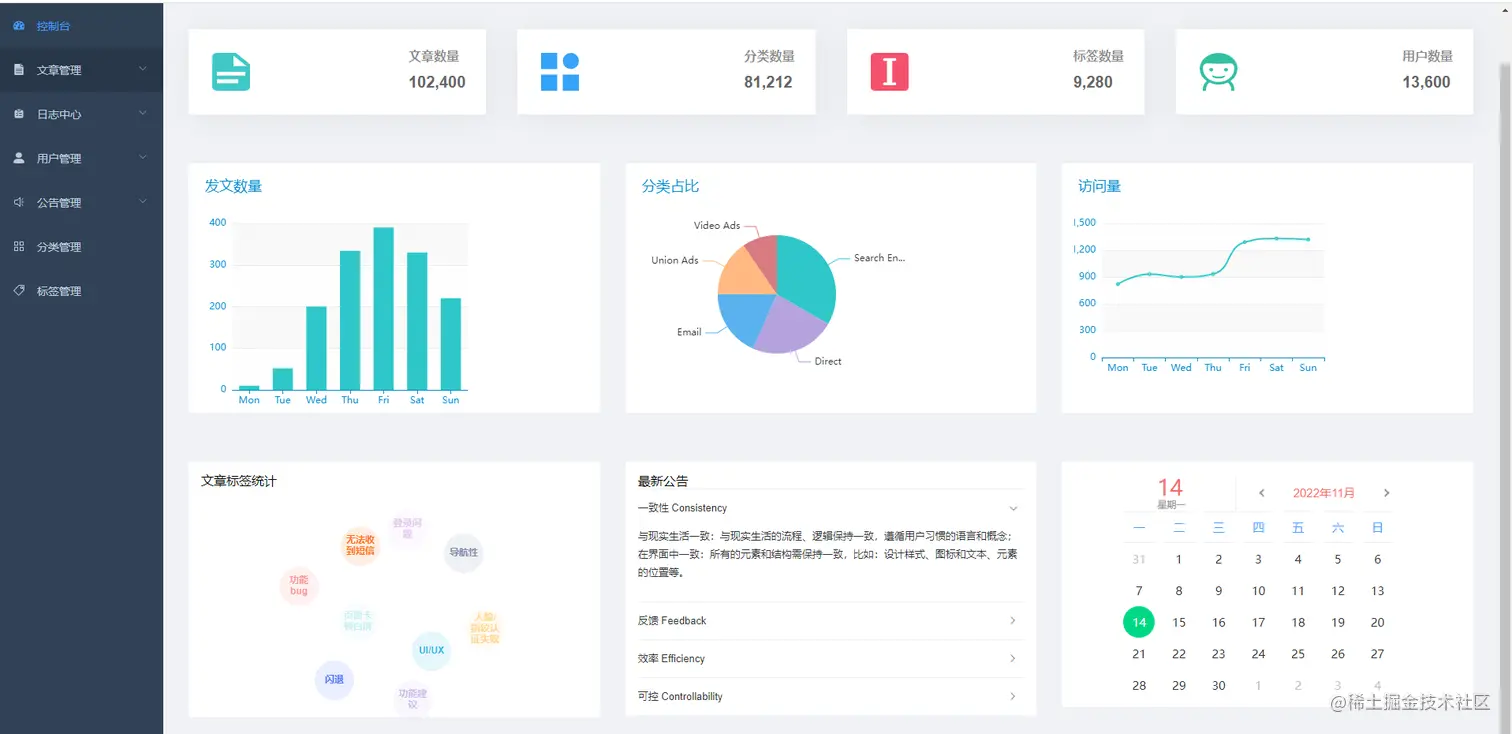

好啦,首页的功能基本上都写完了,我让大家看一下完整的页面效果


这个是不是很哇塞,感觉很beautiful。

首页完整代码如下:

<template>
  <div class="dashboard-container">
    <panel-group ></panel-group>
​
    <!-- 数据分析 -->
    <el-row :gutter="32" class="row-chart">
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <bar-chart />
        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <pie-chart />
        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
          <line-chart />
        </div>
      </el-col>
    </el-row>
​
    <!-- 功能 -->
    <el-row :gutter="32" class="row-chart">
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
         <div class="e-title">文章标签统计</div>
         <word-cloud />
        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
          <div class="e-title">最新公告</div>
          <el-collapse v-model="activeName" accordion>
            <el-collapse-item title="一致性 Consistency" name="1">
              <div>与现实生活一致:与现实生活的流程、逻辑保持一致,遵循用户习惯的语言和概念;</div>
              <div>在界面中一致:所有的元素和结构需保持一致,比如:设计样式、图标和文本、元素的位置等。</div>
            </el-collapse-item>
            <el-collapse-item title="反馈 Feedback" name="2">
              <div>控制反馈:通过界面样式和交互动效让用户可以清晰的感知自己的操作;</div>
              <div>页面反馈:操作后,通过页面元素的变化清晰地展现当前状态。</div>
            </el-collapse-item>
            <el-collapse-item title="效率 Efficiency" name="3">
              <div>简化流程:设计简洁直观的操作流程;</div>
              <div>清晰明确:语言表达清晰且表意明确,让用户快速理解进而作出决策;</div>
              <div>帮助用户识别:界面简单直白,让用户快速识别而非回忆,减少用户记忆负担。</div>
            </el-collapse-item>
            <el-collapse-item title="可控 Controllability" name="4">
              <div>用户决策:根据场景可给予用户操作建议或安全提示,但不能代替用户进行决策;</div>
              <div>结果可控:用户可以自由的进行操作,包括撤销、回退和终止当前操作等。</div>
            </el-collapse-item>
          </el-collapse>

        </div>
      </el-col>
      <el-col :xs="24" :sm="24" :lg="8">
        <div class="chart-wrapper">
           <div class="con">
            <div class="now-data-myself">
              <div class="now-data-myself-time">{{ date }}</div>
              <div class="now-data-myself-week">{{ week }}</div>
            </div>
            <Calendar
              v-on:choseDay="clickDay"
              v-on:changeMonth="changeDate"
              v-on:isToday="clickToday"
            ></Calendar>
          </div>
        </div>
      </el-col>
    </el-row>

  </div>

</template><script>import PanelGroup from './components/PanelGroup'
import BarChart from './components/BarChart'
import PieChart from './components/PieChart'
import LineChart from './components/LineChart'
import Calendar from 'vue-calendar-component'
import WordCloud from './components/WordCloud.vue'
​
​
export default {
  name: 'Dashboard',
  components: {
    PanelGroup,
    BarChart,
    PieChart,
    LineChart,
    Calendar,
    WordCloud
  },

  data() {
    return {
     date: "",
     week: "",
     activeName: '1'
    }
  },
   created() {
    var now = new Date();
    this.date = now.getDate();//得到日期
    var day = now.getDay();//得到周几
    var arr_week = new Array("星期日", "星期一", "星期二", "星期三", "星期四", "星期五", "星期六");
    this.week = arr_week[day];
  },
​
  methods: {
    clickDay(data) {},
    changeDate(data) {},
    clickToday(data) {}
​
  },

​
}
</script><style rel="stylesheet/scss" lang="scss">.dashboard {
  &-container {
    padding: 32px;
    background-color: #f0f2f5;
  }
}
.chart-wrapper {
  background: #fff;
  padding: 16px 16px 0;
  margin-bottom: 32px;
}
.row-chart{
  margin-top: 30px;
}
.now-data-myself {
  width: 40%;
  position: absolute;
  border-right: 1px solid rgba(227, 227, 227, 0.6);
}
.con {
  position: relative;
  max-width: 400px;
  margin: auto;
}
.con .wh_content_all {
  background: transparent !important;
}
.wh_top_changge li {
  color: #F56C6C !important;
  font-size: 15px !important;
}
.wh_content_item, .wh_content_item_tag {
  color: #303133 !important;
}
.wh_content_item .wh_isToday {
  background: #00d985  !important;
  color: #fff  !important;
}
.wh_content_item .wh_chose_day {
  background: #409EFF  !important;
  color: #ffff  !important;
}
.wh_item_date:hover {
    background: rgb(217, 236, 255) !important;
    border-radius: 100px !important;
    color: rgb(102, 177, 255)  !important;
}
.wh_jiantou1[data-v-2ebcbc83] {
    border-top: 2px solid #909399;
    border-left: 2px solid #909399;
    width: 7px;
    height: 7px;
}
.wh_jiantou2[data-v-2ebcbc83] {
    border-top: 2px solid #909399;
    border-right: 2px solid #909399;
    width: 7px;
    height: 7px;
}
.wh_top_tag[data-v-2ebcbc83] {
  color: #409EFF;
  border-top: 1px solid rgba(227, 227, 227, 0.6);
  border-bottom: 1px solid rgba(227, 227, 227, 0.6);
}
.wh_container[data-v-2ebcbc83] {
    max-width: 400px;
}
.wh_top_changge[data-v-2ebcbc83] {
    display: flex;
    width: 50%;
    margin-left: 43%;
}
.now-data-myself-time {
  color: #F56C6C;
  font-size: 28px;
  margin-left:60px;
  height: 33px;
  font-family: "Helvetica Neue";
}
.now-data-myself-week {
  margin-left:60px;
  font-size: 10px;
  color: #909399;
}
.wh_top_changge .wh_content_li[data-v-2ebcbc83] {
  font-family: Helvetica;
}
​
</style>
