读完很多博客后，zygote似乎不是那么陌生了，但提及的时候还是很模糊，仅仅知道他是所有用户进程的鼻祖，然后也是做了一系列的初始化动作，谈及做了哪些就还总是忘记，应该是没有把相应的知识点串起来，本次我们先随着其他博客将这一系列流程梳理记录，先这样，等到日后学习能将这部分相关的内容串起来时，我们再回来修改。
Zygote是什么
zygote意为“受精卵”，是一个进程，它是所有用户进程的鼻祖，当我们想要打开一个app时，此时便会fork该进程，所以意为“受精卵”，zygote进程提供了一个单独的art虚拟机，以及系列初始化操作，为App的运行环境打下基础。
Zygote进程启动流程
app_main.main
Init进程提到，最终fork了zygote进程并exec()，跳到zygote的相关代码处执行，这里便是app_main.cpp->main，他做的事情很简单，解析argv参数列表，根据参数列表添加AppRuntime的配置参数runtime.addOption()，最后调用了runtime.start("com.android.internal.os.ZygoteInit", args, true)
int main(int argc, char* const argv[])
{
AppRuntime runtime(argv[0], computeArgBlockSize(argc, argv));
// Process command line arguments
// ignore argv[0]
argc--;
argv++;
bool known_command = false;
int i;
for (i = 0; i < argc; i++) {
...//获取虚拟机相关参数
runtime.addOption(strdup(argv[i]));
}
bool zygote = false;
bool startSystemServer = false;
bool application = false;
String8 niceName;
String8 className;
++i; // Skip unused "parent dir" argument.
while (i < argc) {
const char* arg = argv[i++];
if (strcmp(arg, "--zygote") == 0) {
zygote = true;
niceName = ZYGOTE_NICE_NAME;
} else if (strcmp(arg, "--start-system-server") == 0) {
startSystemServer = true;
} else if (strcmp(arg, "--application") == 0) {
application = true;
} else if (strncmp(arg, "--nice-name=", 12) == 0) {
niceName.setTo(arg + 12);
} else if (strncmp(arg, "--", 2) != 0) {
className.setTo(arg);
break;
} else {
--i;
break;
}
}
if (!niceName.isEmpty()) {
runtime.setArgv0(niceName.string(), true /* setProcName */);
}
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (className) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
}
AndroidRuntime::start
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
static const String8 startSystemServer("start-system-server");
...忽略一些文件环境配置
/* 启动虚拟机 */
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
if (startVm(&mJavaVM, &env, zygote) != 0) {
return;
}
onVmCreated(env);
/*
* Register android functions. 注册android方法startReg(env)
*/
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
/*
* We want to call main() with a String array with arguments in it.
* At present we have two arguments, the class name and an option string.
* Create an array to hold them.
* 看到jni咯，这里就是将classname和参数列表和到一起，放到了strArray中
*/
jclass stringClass;
jobjectArray strArray;
jstring classNameStr;
stringClass = env->FindClass("java/lang/String");
strArray = env->NewObjectArray(options.size() + 1, stringClass, NULL);
classNameStr = env->NewStringUTF(className);
env->SetObjectArrayElement(strArray, 0, classNameStr);
for (size_t i = 0; i < options.size(); ++i) {
jstring optionsStr = env->NewStringUTF(options.itemAt(i).string());
env->SetObjectArrayElement(strArray, i + 1, optionsStr);
}
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
* GetStaticMethodID：获取到了ZygoteInit.main
* CallStaticVoidMain，调用了ZygoteInit.main
*/
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
/* keep going */
} else {
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
/* keep going */
} else {
env->CallStaticVoidMethod(startClass, startMeth, strArray);
}
}
...
}
- startVm:初始化虚拟机，忽略细节
- startReg: 将一些android native方法注册给jvm，同时Hook了线程的创建，从这里开始所有的线程都是Jvm线程。
/*
* Register android native functions with the VM.
*/
/*static*/ int AndroidRuntime::startReg(JNIEnv* env)
{
/*
* This hook causes all future threads created in this process to be
* attached to the JavaVM. (This needs to go away in favor of JNI
* Attach calls.)
*/
androidSetCreateThreadFunc((android_create_thread_fn) javaCreateThreadEtc);
/*
* Every "register" function calls one or more things that return
* a local reference (e.g. FindClass). Because we haven't really
* started the VM yet, they're all getting stored in the base frame
* and never released. Use Push/Pop to manage the storage.
*/
if (register_jni_procs(gRegJNI, NELEM(gRegJNI), env) < 0) {
env->PopLocalFrame(NULL);
return -1;
}
return 0;
}
- env->CallStaticVoidMethod(startClass, startMeth, strArray)，从这里我们便到了ZygoteInit.main中
ZygoteInit.main
将视线拉到ZygoteInit.main中，很开心，这里我们已经进入到了Java层
public static void main(String argv[]) {
// Zygote服务管理类，用于注册socket监听
ZygoteServer zygoteServer = null;
// Mark zygote start. This ensures that thread creation will throw
// an error.
// 拒绝线程创建，如果确实创建了线程则会抛错
ZygoteHooks.startZygoteNoThreadCreation();
// Zygote goes into its own process group.
try {
Os.setpgid(0, 0);
} catch (ErrnoException ex) {
throw new RuntimeException("Failed to setpgid(0,0)", ex);
}
Runnable caller;
try {
// 启动DDMS虚拟机监控调试服务
RuntimeInit.enableDdms();
boolean startSystemServer = false;
String zygoteSocketName = "zygote";
String abiList = null;
boolean enableLazyPreload = false;
// 参数解析
for (int i = 1; i < argv.length; i++) {
if ("start-system-server".equals(argv[i])) {
startSystemServer = true;
} else if ("--enable-lazy-preload".equals(argv[i])) {
enableLazyPreload = true;
} else if (argv[i].startsWith(ABI_LIST_ARG)) {
abiList = argv[i].substring(ABI_LIST_ARG.length());
} else if (argv[i].startsWith(SOCKET_NAME_ARG)) {
zygoteSocketName = argv[i].substring(SOCKET_NAME_ARG.length());
} else {
throw new RuntimeException("Unknown command line argument: " + argv[i]);
}
}
final boolean isPrimaryZygote = zygoteSocketName.equals(Zygote.PRIMARY_SOCKET_NAME);
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
preload(bootTimingsTraceLog);
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
} else {
Zygote.resetNicePriority();
}
// Do an initial gc to clean up after startup
bootTimingsTraceLog.traceBegin("PostZygoteInitGC");
// 官方注释：运行几个指定的GC，尝试清除几代的软引用和可达的对象，还有别的垃圾
// 此方法只在fork()前是好使的
gcAndFinalize();
// Disable tracing so that forked processes do not inherit stale tracing tags from
Zygote.initNativeState(isPrimaryZygote);
// 可以开始创建线程了
ZygoteHooks.stopZygoteNoThreadCreation();
// 初始化Zygote进程管理服务
zygoteServer = new ZygoteServer(isPrimaryZygote);
// fork system server子进程，当r不为null时，即在system server子进程中了，此时调用r.run，直接返回
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
// 仅在zyote进程中做无限循环，毕竟是zyogte服务管理程序嘛，处理接收到的socket包
// 这里还做了很多事情，包括启动了子进程
// 1. 调用了ZygoteConnection.processOneCommand
// 2. 在processOneCommand里调用了Zygote.forkAndSpecialize，fork出了子进程，close掉了zygoteServer return
// 3. 在runSelectLoop的无限循环中，判断当前是否是子进程，是的话，停止循环，所以此时便可以往下走了
// 4. 注意这里的返回值，仅在子进程中才会返回非空值
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with exception", ex);
throw ex;
} finally {
if (zygoteServer != null) {
// 这里主要是对异常情况下子进程和zygote进程的关闭处理
zygoteServer.closeServerSocket();
}
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
// 只有子进程caller非空，看runselectLoop的注释
if (caller != null) {
caller.run();
}
}
注释已经说得很明白了，这里我们分开去看一些代码，看完后整体总结发生了什么
SystemServer
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
在ZygoteInit.main中，调用了forkSystemServer，在这个方法里，fork出了systemServer子进程，当方法返回时，若runable不为null，则处于systemserver进程中，此时r.run，我们点击进去看下forkSystemServer具体做了什么事情。
private static Runnable forkSystemServer(String abiList, String socketName,
ZygoteServer zygoteServer) {
/* Hardcoded command line to start the system server */
/*硬编码命令行来启动system server*/
String args[] = {
"--setuid=1000",
"--setgid=1000",
"--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,"
+ "1024,1032,1065,3001,3002,3003,3006,3007,3009,3010",
"--capabilities=" + capabilities + "," + capabilities,
"--nice-name=system_server",
"--runtime-args",
"--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,
"com.android.server.SystemServer",
};
ZygoteArguments parsedArgs = null;
int pid;
try {
parsedArgs = new ZygoteArguments(args);
Zygote.applyDebuggerSystemProperty(parsedArgs);
Zygote.applyInvokeWithSystemProperty(parsedArgs);
/* 请求fork system server进程 */
pid = Zygote.forkSystemServer(
parsedArgs.mUid, parsedArgs.mGid,
parsedArgs.mGids,
parsedArgs.mRuntimeFlags,
null,
parsedArgs.mPermittedCapabilities,
parsedArgs.mEffectiveCapabilities);
} catch (IllegalArgumentException ex) {
throw new RuntimeException(ex);
}
/* For child process */
// 判断在子进程中
if (pid == 0) {
// ablist可能表明有两个zygote进程，看起来是源码10才有的东西，忽略这点
if (hasSecondZygote(abiList)) {
waitForSecondaryZygote(socketName);
}
// 关闭socket，子进程不需要这玩意
zygoteServer.closeServerSocket();
// 这里嵌套了很多东西，主要的目的是让我们能跳转到SystemServer代码中执行，返回的runable里面就带着system server的代码入口端。
return handleSystemServerProcess(parsedArgs);
}
return null;
}
我们通过硬编码的形式，来指出system server需要哪些参数，然后调用Zygote.forkSystemServerfork出来了system server子进程，并返回一个runnable，方便在ZygoteInit中回调，那么对于父进程，则执行另一分支代码
zygoteServer.runSelectLoop(abiList)
简述下这里做了什么，zygote进程在这里直接进入了循环等待状态，等待什么呢，等待socket数据，对于我们来说，可以认为这里在等待启动子进程的命令行，当收到了命令行后，会fork出子进程，并在子进程中退出了runSelectLoop，关闭了zygoteserver，去执行子进程的代码，也即我们一个新的APP从这里启动了
/**
* Runs the zygote process's select loop. Accepts new connections as
* they happen, and reads commands from connections one spawn-request's
* worth at a time.
*/
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> socketFDs = new ArrayList<FileDescriptor>();
ArrayList<ZygoteConnection> peers = new ArrayList<ZygoteConnection>();
socketFDs.add(mZygoteSocket.getFileDescriptor());
peers.add(null);
while (true) {
...
ZygoteConnection connection = peers.get(pollIndex);
final Runnable command = connection.processOneCommand(this);
if (mIsForkChild) {
return command;
} else {
if (connection.isClosedByPeer()) {
connection.closeSocket();
peers.remove(pollIndex);
socketFDs.remove(pollIndex);
}
}
}
}
这里我们忽略了大量代码，拿到最关键的一条connection.processOneCommand(this);
connection.processOneCommand
Runnable processOneCommand(ZygoteServer zygoteServer) {
String args[];
ZygoteArguments parsedArgs = null;
FileDescriptor[] descriptors;
args = Zygote.readArgumentList(mSocketReader);
descriptors = mSocket.getAncillaryFileDescriptors();
int pid = -1;
FileDescriptor childPipeFd = null;
FileDescriptor serverPipeFd = null;
parsedArgs = new ZygoteArguments(args);
// 设置策略
Zygote.applyUidSecurityPolicy(parsedArgs, peer);
Zygote.applyInvokeWithSecurityPolicy(parsedArgs, peer);
// 也是一些设置，不用太关心
Zygote.applyDebuggerSystemProperty(parsedArgs);
Zygote.applyInvokeWithSystemProperty(parsedArgs);
pid = Zygote.forkAndSpecialize(parsedArgs.mUid, parsedArgs.mGid, parsedArgs.mGids,
parsedArgs.mRuntimeFlags, rlimits, parsedArgs.mMountExternal, parsedArgs.mSeInfo,
parsedArgs.mNiceName, fdsToClose, fdsToIgnore, parsedArgs.mStartChildZygote,
parsedArgs.mInstructionSet, parsedArgs.mAppDataDir, parsedArgs.mTargetSdkVersion);
try {
if (pid == 0) {
// in child
zygoteServer.setForkChild();
zygoteServer.closeServerSocket();
IoUtils.closeQuietly(serverPipeFd);
serverPipeFd = null;
return handleChildProc(parsedArgs, descriptors, childPipeFd,
parsedArgs.mStartChildZygote);
} else {
// In the parent. A pid < 0 indicates a failure and will be handled in
// handleParentProc.
IoUtils.closeQuietly(childPipeFd);
childPipeFd = null;
handleParentProc(pid, descriptors, serverPipeFd);
return null;
}
} finally {
IoUtils.closeQuietly(childPipeFd);
IoUtils.closeQuietly(serverPipeFd);
}
}
这里我们关心的点就在Zygote.forkAndSpecialize，fork进程，这里fork时执行了native方法，我们这里只需要知道他fork出了子进程就ok了，然后在子进程中，关闭socket等等的收尾处理，然后执行handleChildProc，现在我们已经处在新的子进程中了，也就是我们的APP进程
handleChildProc
private Runnable handleChildProc(ZygoteArguments parsedArgs, FileDescriptor[] descriptors,
FileDescriptor pipeFd, boolean isZygote) {
/**
* By the time we get here, the native code has closed the two actual Zygote
* socket connections, and substituted /dev/null in their place. The LocalSocket
* objects still need to be closed properly.
*/
closeSocket();
if (!isZygote) {
// 执行这里
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mRemainingArgs, null /* classLoader */);
} else {
return ZygoteInit.childZygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mRemainingArgs, null /* classLoader */);
}
}
}
代码很简单，关注我们需要的点ZygoteInit.zygoteInit
ZygoteInit.zygoteInit
/**
* The main function called when started through the zygote process. This could be unified with
* main(), if the native code in nativeFinishInit() were rationalized with Zygote startup.<p>
*
* Current recognized args:
* <ul>
* <li> <code> [--] <start class name> <args>
* </ul>
*
* @param targetSdkVersion target SDK version
* @param argv arg strings
*/
public static final Runnable zygoteInit(int targetSdkVersion, String[] argv,
ClassLoader classLoader) {
RuntimeInit.commonInit(); // 通用的初始化
ZygoteInit.nativeZygoteInit(); // zygote native init
return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);
}
再看下RuntimeInit.applicationInit做了啥事情
RuntimeInit.applicationInit
protected static Runnable applicationInit(int targetSdkVersion, String[] argv,
ClassLoader classLoader) {
final Arguments args = new Arguments(argv);
// Remaining arguments are passed to the start class's static main
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
findStaticMain
这段代码不用多说了，找到传入的classname的静态main方法，然后执行他 这里有个问题classname来自于哪里， 我们跟着调用链去找，发现还是在runSelectLoop这里，我们接收到了一个socket，然后从socketconnection中读取数据，这里的数据就是命令行，其中最后一行就指明了要调用的classname是谁
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
Class<?> cl;
try {
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
int modifiers = m.getModifiers();
if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
throw new RuntimeException(
"Main method is not public and static on " + className);
}
/*
* This throw gets caught in ZygoteInit.main(), which responds
* by invoking the exception's run() method. This arrangement
* clears up all the stack frames that were required in setting
* up the process.
*/
return new MethodAndArgsCaller(m, argv);
}
Ok，我们到这里为止，知道了zygote进程在不断的等待着zygoteServer中的命令行数据，那么请求打开app的socket又是由谁发送的呢？里面的classname是谁呢？classname决定了我们打开一个APP时最开始执行的地方，这个我们必须得知道是哪个类。OK，这些疑问我们就可以留个system server进程来回答了~
Android的源码还是比较清晰明了的。
同样的，我们总结一下ZygoteInit这里都做了什么事情
- app_main.c::main，创建AppRuntime并调用AppRuntime.start()方法；
- 调用AndroidRuntime的startVM()方法创建虚拟机，再调用startReg()注册JNI函数；
- 通过JNI方式调用ZygoteInit.main()，第一次进入Java世界；
- zygoteServer建立socket通道，zygote作为通信的服务端，用于响应客户端请求；
- zygote完毕大部分工作，接下来再通过forkSystemServer()，fork system_server进程，也是上层framework的运行载体。
- zygote功成身退，调用runSelectLoop()，随时待命，当接收到请求创建新进程请求时立即唤醒并执行相应工作。

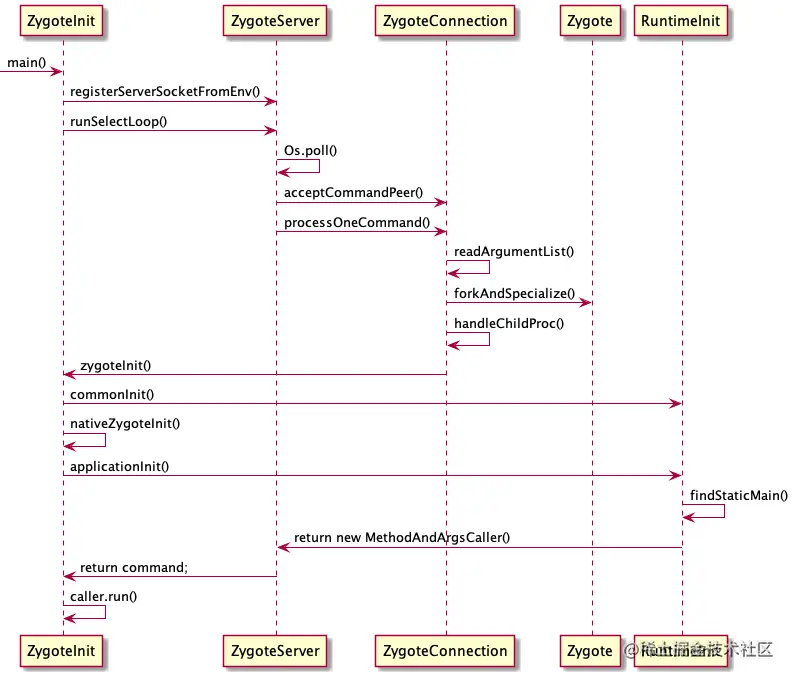

这里我们缺一副时序图，画起来费事，我们直接copy别人的。
