a48.ansible 生产实战案例 -- 基于kubeadm安装kubernetes v1.22 -- 集群升级(三)

Raymond运维
127 阅读1分钟

19.k8s升级

19.1 master

19.1.1 升级master

[root@ansible-server ansible]# mkdir -p roles/kubeadm-master-update/{tasks,vars}
[root@ansible-server ansible]# cd roles/kubeadm-master-update/
[root@ansible-server kubeadm-master-update]# ls
files  tasks  vars

#下面HARBOR_DOMAIN的地址设置成自己的harbor域名地址，MASTER01、MASTER02、MASTER03变量改成自己的master对应的IP地址
[root@ansible-server kubeadm-master-update]# vim vars/main.yml
KUBEADM_VERSION: 1.23.5
HARBOR_DOMAIN: harbor.raymonds.cc
MASTER01: 172.31.3.101
MASTER02: 172.31.3.102
MASTER03: 172.31.3.103

[root@ansible-server kubeadm-master-update]# vim tasks/upgrade_master01.yml
- name: install CentOS or Rocky socat
  yum:
    name: socat
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - inventory_hostname in groups.ha
- name: install Ubuntu socat
  apt:
    name: socat
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - inventory_hostname in groups.ha
- name: down master01
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER01 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"
- name: install CentOS or Rocky kubeadm for master
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }},kubectl-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-master01"
- name: install Ubuntu kubeadm for master
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00,kubectl={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-master01"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-master01"
- name: get kubeadm version
  shell:
    cmd: kubeadm config images list --kubernetes-version=v{{ KUBEADM_VERSION }} | awk -F "/"  '{print $NF}'
  register: KUBEADM_IMAGES_VERSION
  when:
    - ansible_hostname=="k8s-master01"
- name: download kubeadm image for master01
  shell: |
    {% for i in KUBEADM_IMAGES_VERSION.stdout_lines %}
      docker pull registry.aliyuncs.com/google_containers/{{ i }}
      docker tag registry.aliyuncs.com/google_containers/{{ i }} {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
      docker rmi registry.aliyuncs.com/google_containers/{{ i }}
      docker push {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}
  when:
    - ansible_hostname=="k8s-master01"
- name: kubeadm upgrade
  shell:
    cmd: |
      kubeadm upgrade apply v{{ KUBEADM_VERSION }} <<EOF
      y
      EOF
      sleep 180s
  when:
    - ansible_hostname=="k8s-master01"
- name: up master01
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER01 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server kubeadm-master-update]# vim tasks/upgrade_master02.yml
- name: down master02
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER02 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master02"
- name: install CentOS or Rocky kubeadm for master
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }},kubectl-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-master02"
- name: install Ubuntu kubeadm for master
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00,kubectl={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-master02"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-master02"
- name: get kubeadm version
  shell:
    cmd: kubeadm config images list --kubernetes-version=v{{ KUBEADM_VERSION }} | awk -F "/"  '{print $NF}'
  register: KUBEADM_IMAGES_VERSION
  when:
    - ansible_hostname=="k8s-master02"
- name: download kubeadm image for master02
  shell: |
    {% for i in KUBEADM_IMAGES_VERSION.stdout_lines %}
      docker pull {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}
  when:
    - ansible_hostname=="k8s-master02"
- name: kubeadm upgrade
  shell:
    cmd: |
      kubeadm upgrade apply v{{ KUBEADM_VERSION }} <<EOF
      y
      EOF
      sleep 180s
  when:
    - ansible_hostname=="k8s-master02"
- name: up master02
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER02 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master02"

[root@ansible-server kubeadm-master-update]# vim tasks/upgrade_master03.yml
- name: down master03
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER03 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master03"
- name: install CentOS or Rocky kubeadm for master
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }},kubectl-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-master03"
- name: install Ubuntu kubeadm for master
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00,kubectl={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-master03"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-master03"
- name: get kubeadm version
  shell:
    cmd: kubeadm config images list --kubernetes-version=v{{ KUBEADM_VERSION }} | awk -F "/"  '{print $NF}'
  register: KUBEADM_IMAGES_VERSION
  when:
    - ansible_hostname=="k8s-master03"
- name: download kubeadm image for master03
  shell: |
    {% for i in KUBEADM_IMAGES_VERSION.stdout_lines %}
      docker pull {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}
  when:
    - ansible_hostname=="k8s-master03"
- name: kubeadm upgrade
  shell:
    cmd: |
      kubeadm upgrade apply v{{ KUBEADM_VERSION }} <<EOF
      y
      EOF
      sleep 180s
  when:
    - ansible_hostname=="k8s-master03"
- name: up master03
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER03 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master03"

[root@ansible-server kubeadm-master-update]# vim tasks/main.yml
- include: upgrade_master01.yml
- include: upgrade_master02.yml
- include: upgrade_master03.yml

[root@ansible-server kubeadm-master-update]# cd ../../
[root@ansible-server ansible]# tree roles/kubeadm-master-update/
roles/kubeadm-master-update/
├── tasks
│   ├── main.yml
│   ├── upgrade_master01.yml
│   ├── upgrade_master02.yml
│   └── upgrade_master03.yml
└── vars
    └── main.yml

2 directories, 5 files

[root@ansible-server ansible]# vim kubeadm_master_update_role.yml
---
- hosts: k8s_cluster:ha

  roles:
    - role: kubeadm-master-update

[root@ansible-server ansible]# ansible-playbook kubeadm_master_update_role.yml

19.1.2 验证master

root@k8s-master01:~# kubectl get nodes
NAME                         STATUS   ROLES                  AGE   VERSION
k8s-master01.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-master02.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-master03.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-node01.example.local     Ready    <none>                 20h   v1.22.8
k8s-node02.example.local     Ready    <none>                 20h   v1.22.8
k8s-node03.example.local     Ready    <none>                 20h   v1.22.8

19.2 升级calico

[root@ansible-server ansible]# mkdir -p roles/calico-update/{tasks,vars,templates}
[root@ansible-server ansible]# cd roles/calico-update
[root@ansible-server calico-update]# ls
tasks  templates  vars

#下面HARBOR_DOMAIN的地址设置成自己的harbor域名地址，MASTER01、MASTER02、MASTER03变量改成自己的master对应的IP地址
[root@ansible-server calico-update]# vim vars/main.yml
HARBOR_DOMAIN: harbor.raymonds.cc
MASTER01: 172.31.3.101
MASTER02: 172.31.3.102
MASTER03: 172.31.3.103

[root@ansible-server calico-update]# wget https://docs.projectcalico.org/manifests/calico-etcd.yaml -p templates/calico-etcd.yaml.j2

[root@k8s-master01 ~]# vim templates/calico-etcd.yaml.j2
...
spec:
  selector:
    matchLabels:
      k8s-app: calico-node
  updateStrategy:
    type: OnDelete #修改这里，calico不会滚动更新，只有重启了kubelet，才会更新
 template:
    metadata:
      labels:
        k8s-app: calico-node
...

#修改下面内容
[root@ansible-server calico-update]# grep "etcd_endpoints:.*" templates/calico-etcd.yaml.j2
  etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"

[root@ansible-server calico-update]# sed -i 's#etcd_endpoints: "http://<ETCD_IP>:<ETCD_PORT>"#etcd_endpoints: "{% for i in groups.master %}https://{{ hostvars[i].ansible_default_ipv4.address }}:2379{% if not loop.last %},{% endif %}{% endfor %}"#g' templates/calico-etcd.yaml.j2

[root@ansible-server calico-update]# grep "etcd_endpoints:.*" templates/calico-etcd.yaml.j2
  etcd_endpoints: "{% for i in groups.master %}https://{{ hostvars[i].ansible_default_ipv4.address }}:2379{% if not loop.last %},{% endif %}{% endfor %}"

[root@ansible-server calico-update]# vim tasks/calico_file.yml
- name: copy calico-etcd.yaml file
  template:
    src: calico-etcd.yaml.j2
    dest: /root/calico-etcd.yaml
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/config.yml
- name: get ETCD_KEY key
  shell:
    cmd: cat /etc/kubernetes/pki/etcd/server.key | base64 | tr -d '\n'
  register: ETCD_KEY
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*etcd-key:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '# (etcd-key:) null'
    replace: '\1 {{ ETCD_KEY.stdout }}'
  when:
    - ansible_hostname=="k8s-master01"
- name: get ETCD_CERT key
  shell:
    cmd: cat /etc/kubernetes/pki/etcd/server.crt | base64 | tr -d '\n'
  register: ETCD_CERT
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*etcd-cert:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '# (etcd-cert:) null'
    replace: '\1 {{ ETCD_CERT.stdout }}'
  when:
    - ansible_hostname=="k8s-master01"
- name: get ETCD_CA key
  shell:
    cmd: cat /etc/kubernetes/pki/etcd/ca.crt | base64 | tr -d '\n'
  when:
    - ansible_hostname=="k8s-master01"
  register: ETCD_CA
- name: Modify the ".*etcd-ca:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '# (etcd-ca:) null'
    replace: '\1 {{ ETCD_CA.stdout }}'
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*etcd_ca:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '(etcd_ca:) ""'
    replace: '\1 "/calico-secrets/etcd-ca"'
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*etcd_cert:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '(etcd_cert:) ""'
    replace: '\1 "/calico-secrets/etcd-cert"'
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*etcd_key:.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '(etcd_key:) ""'
    replace: '\1 "/calico-secrets/etcd-key"'
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*CALICO_IPV4POOL_CIDR.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '# (- name: CALICO_IPV4POOL_CIDR)'
    replace: '\1'
  when:
    - ansible_hostname=="k8s-master01"
- name: get POD_SUBNET
  shell:
    cmd: cat /etc/kubernetes/manifests/kube-controller-manager.yaml | grep cluster-cidr= | awk -F= '{print $NF}'
  register: POD_SUBNET
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the ".*192.168.0.0.*" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '#   (value:) "192.168.0.0/16"'
    replace: '  \1 "{{ POD_SUBNET.stdout }}"'
  when:
    - ansible_hostname=="k8s-master01"
- name: Modify the "image:" line
  replace:
    path: /root/calico-etcd.yaml
    regexp: '(.*image:) docker.io/calico(/.*)'
    replace: '\1 {{ HARBOR_DOMAIN }}/google_containers\2'
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/download_images.yml
- name: get calico version
  shell:
    chdir: /root
    cmd: awk -F "/"  '/image:/{print $NF}' calico-etcd.yaml
  register: CALICO_VERSION
  when:
    - ansible_hostname=="k8s-master01"
- name: download calico image
  shell: |
    {% for i in CALICO_VERSION.stdout_lines %}
      docker pull registry.cn-beijing.aliyuncs.com/raymond9/{{ i }}
      docker tag registry.cn-beijing.aliyuncs.com/raymond9/{{ i }} {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
      docker rmi registry.cn-beijing.aliyuncs.com/raymond9/{{ i }}
      docker push {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/install_calico.yml
- name: install calico
  shell:
    chdir: /root
    cmd: "kubectl --kubeconfig=/etc/kubernetes/admin.conf apply -f calico-etcd.yaml"
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/delete_master01_calico_container.yml
- name: down master01
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER01 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"
- name: get calico container
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf get pod -n kube-system -o wide|grep calico |grep master01 |awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 30s
  when:
    - ansible_hostname=="k8s-master01"
- name: up master01
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER01 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/delete_master02_calico_container.yml
- name: down master02
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER02 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"
- name: get calico container
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf get pod -n kube-system -o wide|grep calico |grep master02 |awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 30s
  when:
    - ansible_hostname=="k8s-master01"
- name: up master02
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER02 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/delete_master03_calico_container.yml
- name: down master03
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "disable server kubernetes-6443/{{ MASTER03 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"
- name: get calico container
  shell:
    cmd: kubectl get --kubeconfig=/etc/kubernetes/admin.conf pod -n kube-system -o wide|grep calico |grep master03 |awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 30s
  when:
    - ansible_hostname=="k8s-master01"
- name: up master03
  shell:
    cmd: ssh -o StrictHostKeyChecking=no root@k8s-lb "echo "enable server kubernetes-6443/{{ MASTER03 }}" | socat stdio /var/lib/haproxy/haproxy.sock"
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server calico-update]# vim tasks/main.yml
- include: calico_file.yml
- include: config.yml
- include: download_images.yml
- include: install_calico.yml
- include: delete_master01_calico_container.yml
- include: delete_master02_calico_container.yml
- include: delete_master03_calico_container.yml

[root@ansible-server calico-update]# cd ../../
[root@ansible-server ansible]# tree roles/calico-update/
roles/calico-update/
├── tasks
│   ├── calico_file.yml
│   ├── config.yml
│   ├── delete_master01_calico_container.yml
│   ├── delete_master02_calico_container.yml
│   ├── delete_master03_calico_container.yml
│   ├── download_images.yml
│   ├── install_calico.yml
│   └── main.yml
├── templates
│   └── calico-etcd.yaml.j2
└── vars
    └── main.yml

3 directories, 10 files

[root@ansible-server ansible]# vim calico_update_role.yml
---
- hosts: master

  roles:
    - role: calico-update

[root@ansible-server ansible]# ansible-playbook calico_update_role.yml

19.3 node

19.3.1 升级node

[root@ansible-server ansible]# mkdir -p roles/kubeadm-node-update/{tasks,vars}
[root@ansible-server ansible]# cd roles/kubeadm-node-update/
[root@ansible-server kubeadm-node-update]# ls
tasks  vars

[root@ansible-server kubeadm-node-update]# vim vars/main.yml
KUBEADM_VERSION: 1.23.5

[root@ansible-server kubeadm-node-update]# vim tasks/upgrade_node01.yml
- name: drain node01
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf drain k8s-node01.example.local --delete-emptydir-data --force --ignore-daemonsets
  when:
    - ansible_hostname=="k8s-master01"
- name: install CentOS or Rocky kubeadm for node
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-node01"
- name: install Ubuntu kubeadm for node
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-node01"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-node01"
- name: get calico container
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf get pod -n kube-system -o wide|grep calico |grep node01 |tail -n1|awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 60s
  when:
    - ansible_hostname=="k8s-master01"
- name: uncordon node01
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf uncordon k8s-node01.example.local
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server kubeadm-node-update]# vim tasks/upgrade_node02.yml
- name: drain node02
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf drain k8s-node02.example.local --delete-emptydir-data --force --ignore-daemonsets
  when:
    - ansible_hostname=="k8s-master01"
- name: install CentOS or Rocky kubeadm for node
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-node02"
- name: install Ubuntu kubeadm for node
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-node02"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-node02"
- name: get calico container
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf get pod -n kube-system -o wide|grep calico |grep node02 |tail -n1|awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 60s
  when:
    - ansible_hostname=="k8s-master01"
- name: uncordon node02
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf uncordon k8s-node02.example.local
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server kubeadm-node-update]# vim tasks/upgrade_node03.yml
- name: drain node03
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf drain k8s-node03.example.local --delete-emptydir-data --force --ignore-daemonsets
  when:
    - ansible_hostname=="k8s-master01"
- name: install CentOS or Rocky kubeadm for node
  yum:
    name: kubelet-{{ KUBEADM_VERSION }},kubeadm-{{ KUBEADM_VERSION }}
  when:
    - (ansible_distribution=="CentOS" or ansible_distribution=="Rocky")
    - ansible_hostname=="k8s-node03"
- name: install Ubuntu kubeadm for node
  apt:
    name: kubelet={{ KUBEADM_VERSION }}-00,kubeadm={{ KUBEADM_VERSION }}-00
    force: yes
  when:
    - ansible_distribution=="Ubuntu"
    - ansible_hostname=="k8s-node03"
- name: restart kubelet
  systemd:
    name: kubelet
    state: restarted
    daemon_reload: yes
  when:
    - ansible_hostname=="k8s-node03"
- name: get calico container
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf get pod -n kube-system -o wide|grep calico |grep node03 |tail -n1|awk -F " " '{print $1}'
  register: CALICO_CONTAINER
  when:
    - ansible_hostname=="k8s-master01"
- name: delete calico container
  shell: |
    kubectl --kubeconfig=/etc/kubernetes/admin.conf delete pod {{ CALICO_CONTAINER.stdout }} -n kube-system
    sleep 60s
  when:
    - ansible_hostname=="k8s-master01"
- name: uncordon node03
  shell:
    cmd: kubectl --kubeconfig=/etc/kubernetes/admin.conf uncordon k8s-node03.example.local
  when:
    - ansible_hostname=="k8s-master01"

[root@ansible-server kubeadm-node-update]# vim tasks/main.yml
- include: upgrade_node01.yml
- include: upgrade_node02.yml
- include: upgrade_node03.yml

[root@ansible-server kubeadm-node-update]# cd ../../
[root@ansible-server ansible]# tree roles/kubeadm-node-update/
roles/kubeadm-node-update/
├── tasks
│   ├── main.yml
│   ├── upgrade_node01.yml
│   ├── upgrade_node02.yml
│   └── upgrade_node03.yml
└── vars
    └── main.yml

2 directories, 5 files

[root@ansible-server ansible]# vim kubeadm_node_update_role.yml
---
- hosts: k8s_cluster

  roles:
    - role: kubeadm-node-update

[root@ansible-server ansible]# ansible-playbook kubeadm_node_update_role.yml

19.3.2 验证node

root@k8s-master01:~# kubectl get nodes
NAME                         STATUS   ROLES                  AGE   VERSION
k8s-master01.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-master02.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-master03.example.local   Ready    control-plane,master   20h   v1.23.5
k8s-node01.example.local     Ready    <none>                 20h   v1.23.5
k8s-node02.example.local     Ready    <none>                 20h   v1.23.5
k8s-node03.example.local     Ready    <none>                 20h   v1.23.5

19.4 metrics

19.4.1 升级metrics

[root@ansible-server ansible]# mkdir -p roles/metrics-update/{files,vars,tasks}
[root@ansible-server ansible]# cd roles/metrics-update/
[root@ansible-server metrics-update]# ls
files  tasks  vars

[root@ansible-server metrics-update]# wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml -P files/

#下面HARBOR_DOMAIN的地址设置成自己的harbor域名地址
[root@ansible-server metrics-update]# vim vars/main.yml
HARBOR_DOMAIN: harbor.raymonds.cc

[root@ansible-server metrics-update]# wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml -P files/

[root@ansible-server metrics-update]# vim files/components.yaml
...
    spec:
      containers:
      - args:
        - --cert-dir=/tmp
        - --secure-port=4443
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
#添加下面内容
        - --kubelet-insecure-tls
        - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
        - --requestheader-username-headers=X-Remote-User
        - --requestheader-group-headers=X-Remote-Group
        - --requestheader-extra-headers-prefix=X-Remote-Extra-
...
        volumeMounts:
        - mountPath: /tmp
          name: tmp-dir
#添加下面内容
        - name: ca-ssl
          mountPath: /etc/kubernetes/pki
...
      volumes:
      - emptyDir: {}
        name: tmp-dir
#添加下面内容
      - name: ca-ssl
        hostPath:
          path: /etc/kubernetes/pki
...

[root@ansible-server metrics-update]# vim tasks/metrics_file.yml
- name: copy components.yaml file
  copy:
    src: components.yaml
    dest: /root/components.yaml

[root@ansible-server metrics-update]# vim tasks/config.yml
- name: Modify the "image:" line
  replace:
    path: /root/components.yaml
    regexp: '(.*image:) k8s.gcr.io/metrics-server(/.*)'
    replace: '\1 {{ HARBOR_DOMAIN }}/google_containers\2'

[root@ansible-server metrics-update]# vim tasks/download_images.yml
- name: get metrics version
  shell:
    chdir: /root
    cmd: awk -F "/"  '/image:/{print $NF}' components.yaml
  register: METRICS_VERSION
- name: download metrics image
  shell: |
    {% for i in METRICS_VERSION.stdout_lines %}
      docker pull registry.aliyuncs.com/google_containers/{{ i }}
      docker tag registry.aliyuncs.com/google_containers/{{ i }} {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
      docker rmi registry.aliyuncs.com/google_containers/{{ i }}
      docker push {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}

[root@ansible-server metrics-update]# vim tasks/install_metrics.yml
- name: install metrics
  shell:
    chdir: /root
    cmd: "kubectl --kubeconfig=/etc/kubernetes/admin.conf apply -f components.yaml"

[root@ansible-server metrics-update]# vim tasks/main.yml
- include: metrics_file.yml
- include: config.yml
- include: download_images.yml
- include: install_metrics.yml

[root@ansible-server metrics-update]# cd ../../
[root@ansible-server ansible]# tree roles/metrics-update/
roles/metrics-update/
├── files
│   └── components.yaml
├── tasks
│   ├── config.yml
│   ├── download_images.yml
│   ├── install_metrics.yml
│   ├── main.yml
│   └── metrics_file.yml
└── vars
    └── main.yml

3 directories, 7 files

[root@ansible-server ansible]# vim metrics_update_role.yml
---
- hosts: master01

  roles:
    - role: metrics-update

[root@ansible-server ansible]# ansible-playbook metrics_update_role.yml

19.4.2 验证metrics

root@k8s-master01:~# kubectl get pod -A|grep metrics-server
kube-system            metrics-server-8d5598b6f-kdqnb                       1/1     Running   0               35s

root@k8s-master01:~# kubectl top node
NAME                         CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
k8s-master01.example.local   187m         9%     1771Mi          46%
k8s-master02.example.local   221m         11%    1616Mi          42%
k8s-master03.example.local   180m         9%     1501Mi          39%
k8s-node01.example.local     123m         6%     920Mi           24%
k8s-node02.example.local     191m         9%     903Mi           23%
k8s-node03.example.local     149m         7%     920Mi           24%

19.5 dashboard

19.5.1 升级dashboard

[root@ansible-server ansible]# mkdir -p roles/dashboard-update/{files,templates,vars,tasks}
[root@ansible-server ansible]# cd roles/dashboard-update/
[root@ansible-server dashboard-update]# ls
files  tasks  templates  vars

[root@ansible-server dashboard-update]# vim files/admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

[root@ansible-server dashboard-update]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.0/aio/deploy/recommended.yaml -P templates/recommended.yaml.j2

[root@ansible-server dashboard-update]# vim templates/recommended.yaml.j2
...
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort #添加这行
  ports:
    - port: 443
      targetPort: 8443
      nodePort: {{ NODEPORT }} #添加这行
  selector:
    k8s-app: kubernetes-dashboard
...

#下面HARBOR_DOMAIN的地址设置成自己的harbor域名地址
[root@ansible-server dashboard-update]# vim vars/main.yml
HARBOR_DOMAIN: harbor.raymonds.cc
NODEPORT: 30005

[root@ansible-server dashboard-update]# vim tasks/dashboard_file.yml
- name: copy recommended.yaml file
  template:
    src: recommended.yaml.j2
    dest: /root/recommended.yaml
- name: copy admin.yaml file
  copy:
    src: admin.yaml
    dest: /root/admin.yaml

[root@ansible-server dashboard-update]# vim tasks/config.yml
- name: Modify the "image:" line
  replace:
    path: /root/recommended.yaml
    regexp: '(.*image:) kubernetesui(/.*)'
    replace: '\1 {{ HARBOR_DOMAIN }}/google_containers\2'

[root@ansible-server dashboard-update]# vim tasks/download_images.yml
- name: get dashboard version
  shell:
    chdir: /root
    cmd: awk -F "/"  '/image:/{print $NF}' recommended.yaml
  register: DASHBOARD_VERSION
- name: download dashboard image
  shell: |
    {% for i in DASHBOARD_VERSION.stdout_lines %}
      docker pull kubernetesui/{{ i }}
      docker tag kubernetesui/{{ i }} {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
      docker rmi kubernetesui/{{ i }}
      docker push {{ HARBOR_DOMAIN }}/google_containers/{{ i }}
    {% endfor %}

[root@ansible-server dashboard-update]# vim tasks/install_dashboard.yml
- name: install dashboard
  shell:
    chdir: /root
    cmd: "kubectl --kubeconfig=/etc/kubernetes/admin.conf apply -f recommended.yaml -f admin.yaml"

[root@ansible-server dashboard-update]# vim tasks/main.yml
- include: dashboard_file.yml
- include: config.yml
- include: download_images.yml
- include: install_dashboard.yml

[root@ansible-server dashboard-update]# cd ../../
[root@ansible-server ansible]# tree roles/dashboard-update/
roles/dashboard-update/
├── files
│   └── admin.yaml
├── tasks
│   ├── config.yml
│   ├── dashboard_file.yml
│   ├── download_images.yml
│   ├── install_dashboard.yml
│   └── main.yml
├── templates
│   └── recommended.yaml.j2
└── vars
    └── main.yml

4 directories, 8 files

[root@ansible-server ansible]# vim dashboard_update_role.yml
---
- hosts: master01

  roles:
    - role: dashboard-update

[root@ansible-server ansible]# ansible-playbook dashboard_update_role.yml

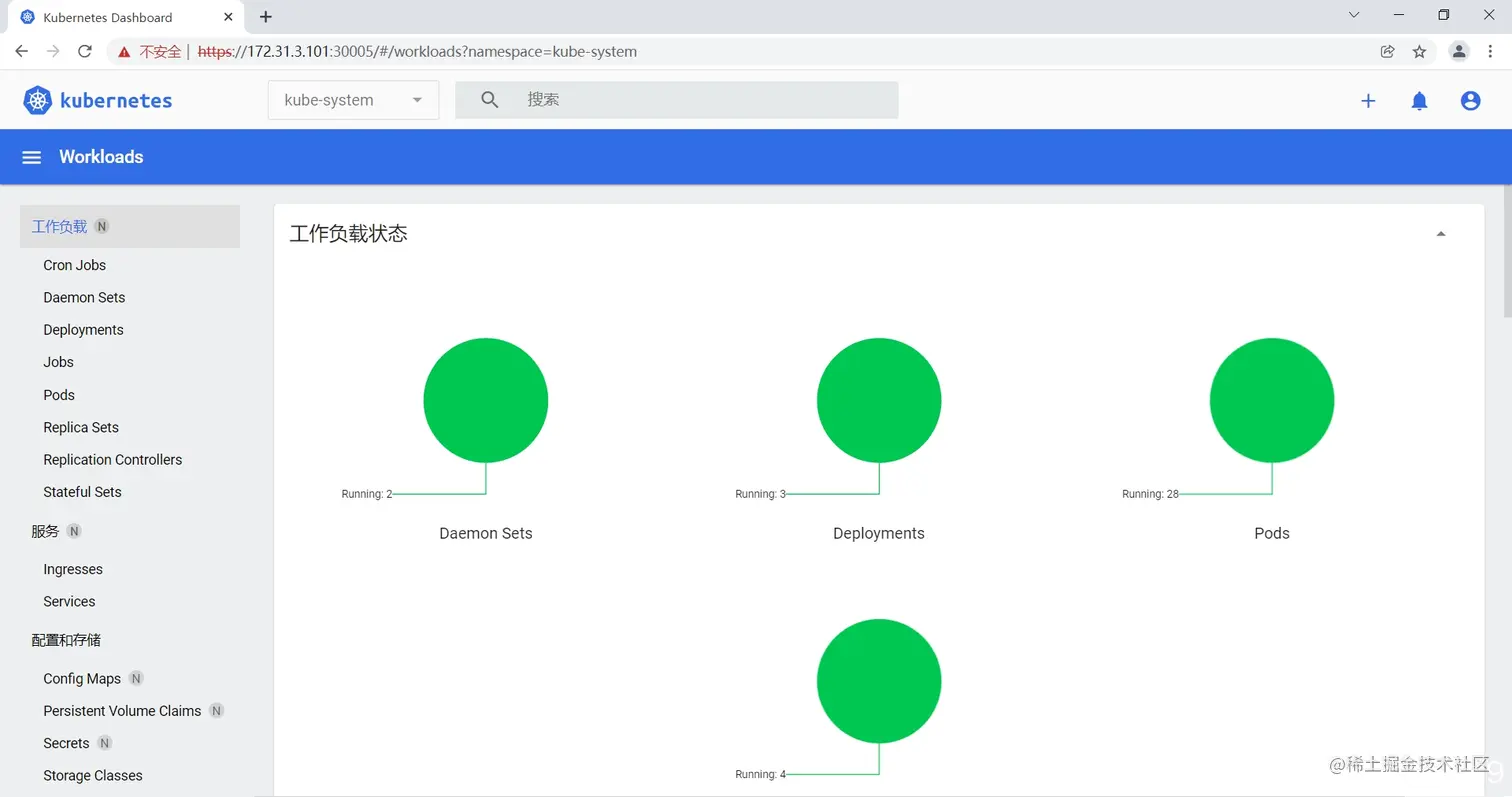

19.5.2 登录dashboard

https://172.31.3.101:30005

root@k8s-master01:~# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-z66mb
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: eac60163-1e16-4a2d-978a-f6814964b0f6

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1099 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IlNUdW4zTmJQbDZrN24tczlCb1hVMGtlMW8xLTFwczRJQndUVjFUdFptb1kifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXo2Nm1iIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJlYWM2MDE2My0xZTE2LTRhMmQtOTc4YS1mNjgxNDk2NGIwZjYiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.mWxxT3yn8_ztEy357Hv1dY6r9S7fZAvkndAwmFbvDLMhrS-xVaxyhAYD4sFC97QYYyk1DXlz5PUR7qXhkFvJp7bEQrXOpKYXyf0QO6s84eX-7lwSqzLrGMonsDMR3gu34dtckJgaG3Qa7lp-bBA51RJmyMyBGGAPxUSeR3jECjqxOJzfDuqTRGrEWdzwvN69KRnzx56_jCb5C8BcBc3PzPt29cEZGf9ScjHv5i-TPF8e5ehYIAOcwSQ0Hb622169Th8EZmFfybKZ0P6fR_uJnf-7x0Y5N7Xt4B2semlxBtGmW0L07omfKt9Z98ZuDfKf5EA4GEENxGVVp53Nw0JBaA

在这里插入图片描述

avatar
文章
阅读
粉丝
