前端框架搭建

项目初始化

生成项目模板

这里我们直接使用 Vue CLI 初始化我们的骨架, 然后在此基础上进行修改

npm init vue@latest
Need to install the following packages:
  create-vue@3.3.4
Ok to proceed? (y) y

Vue.js - The Progressive JavaScript Framework

✔ Project name: … ui
✔ Add TypeScript? … No
✔ Add JSX Support? … No
✔ Add Vue Router for Single Page Application development? … Yes
✔ Add Pinia for state management? … Yes
✔ Add Vitest for Unit Testing? … No
✔ Add Cypress for both Unit and End-to-End testing? … No
✔ Add ESLint for code quality? … Yes
✔ Add Prettier for code formatting? …  Yes

Scaffolding project in /Users/yumaojun/Workspace/Golang/go-course/extra/vblog...

Done. Now run:

  cd vblog
  npm install
  npm run lint
  npm run dev

清理模板页面

在做Home 页面之前，先清理掉脚手架为我们生成的页面

清理 App.vue , 只保留 router 视图部分, 其他部分删除掉

<script setup>
import { RouterView } from "vue-router";
</script>

<template>
  <RouterView />
</template>

<style scoped>
</style>

Views 只保留了 HomeView, 内容留白:

<script setup></script>

<template>
  <main>Home</main>
</template>

删除其他页面和无用的组件:

AboutView 删除
components 目录下的所有组件
router/index 里的 routes 清理掉 AboutView 路由

清理样式

base.css 设置全局样式

* {
  box-sizing: border-box;
}

html,
body {
  width: 100%;
  height: 100%;
  margin: 0;
  padding: 0;
  font-size: 14px;
  background-color: var(--color-bg-1);
  -moz-osx-font-smoothing: grayscale;
  -webkit-font-smoothing: antialiased;
}

#app {
  width: 100%;
  height: 100%;
}

main.css 只保留基础样式

@import "./base.css";

安装UI插件

接下来就需要编写我们的业务页面, 这我们选择的UI组件为: Arco Design

安装 Arco Design

# npm
npm install --save-dev @arco-design/web-vue
# yarn
yarn add --dev @arco-design/web-vue

main.js 内添加

// 加载 UI 组件
import ArcoVue from "@arco-design/web-vue";
import "@arco-design/web-vue/dist/arco.css";

// 引入 ICON 组件
import ArcoVueIcon from "@arco-design/web-vue/es/icon";

app.use(ArcoVue);
app.use(ArcoVueIcon);

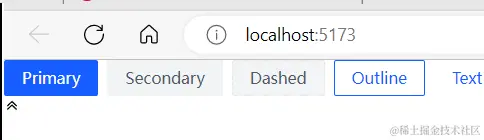

验证插件

修改HomeView, 引入buttom UI组件进行测试

<template>
  <main>
    <a-space>
      <a-button type="primary">Primary</a-button>
      <a-button>Secondary</a-button>
      <a-button type="dashed">Dashed</a-button>
      <a-button type="outline">Outline</a-button>
      <a-button type="text">Text</a-button>
    </a-space>
  </main>
  <IconDoubleUp />
</template>

错误页面

这里我们需要补充2种异常页面:

404页面: 当用户输入的URL并没有匹配页面时
403页面: 当用户未登陆就访问管理页面时

我们使用HTTP 状态码组件进行封装

我们在 Views 文件夹下创建 errors 文件夹专门存放错误页面

404页面

errors/NotFound.vue:

<template>
  <div class="content">
    <a-result class="result" status="404" :subtitle="'not found'">
      <template #extra>
        <a-button key="back" type="primary" @click="back"> 返回主页 </a-button>
      </template>
    </a-result>
  </div>
</template>

<script setup>
import { useRouter } from "vue-router";

const router = useRouter();
const back = () => {
  // 通过push 跳转到 home页面
  router.push({ name: "home" });
};
</script>

<style scoped lang="less">
.content {
  position: absolute;
  top: 50%;
  left: 50%;
  margin-left: -95px;
  margin-top: -121px;
  text-align: center;
}
</style>

这里我们使用到了less, 一种css编译器(css扩展), 因此需要安装less的编译器

npm install --save-dev less

最后我们在路由上补充上404路由

const router = createRouter({
  history: createWebHistory(import.meta.env.BASE_URL),
  routes: [
    {
      path: "/",
      name: "home",
      component: HomeView,
    },
    {
      path: "/:pathMatch(.*)*",
      name: "notFound",
      component: () => import("@/views/errors/NotFound.vue"),
    },
  ],
});

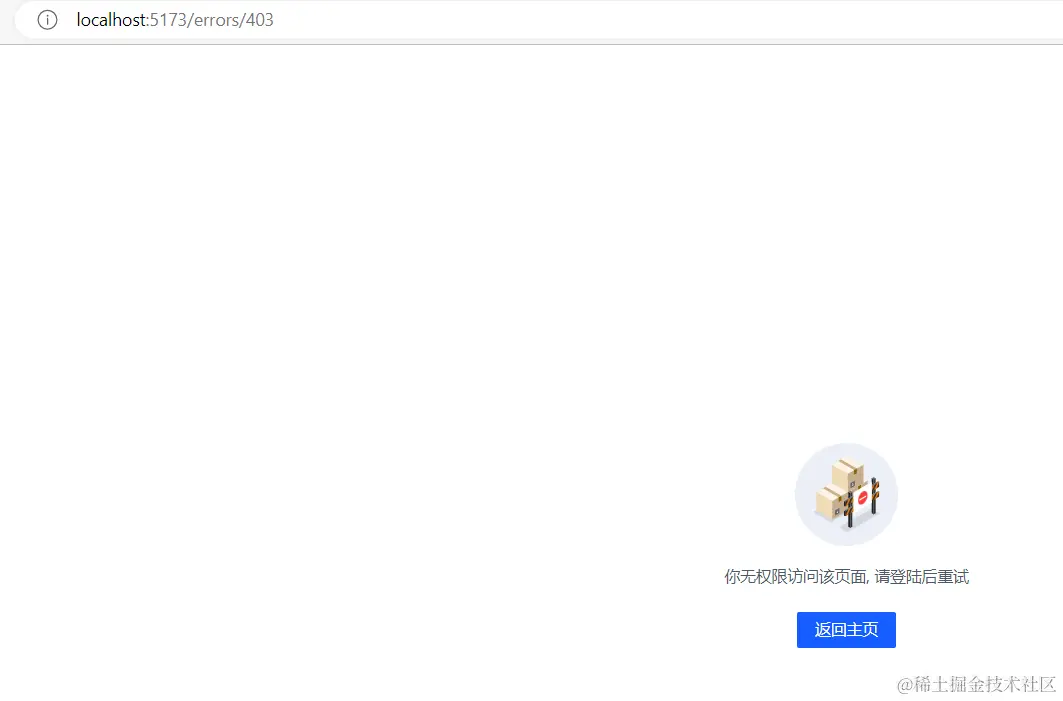

403页面

errors/PermissionDeny.vue

<template>
  <div class="content">
    <a-result
      class="result"
      status="403"
      :subtitle="'你无权限访问该页面, 请登陆后重试'"
    >
      <template #extra>
        <a-button key="back" type="primary" @click="back"> 返回主页 </a-button>
      </template>
    </a-result>
  </div>
</template>

<script setup>
import { useRouter } from "vue-router";

const router = useRouter();
const back = () => {
  // warning： Go to the node that has the permission
  router.push({ name: "home" });
};
</script>

<style scoped lang="less">
.content {
  position: absolute;
  top: 50%;
  left: 50%;
  margin-left: -95px;
  margin-top: -121px;
  text-align: center;
}
</style>

补充路由:

const router = createRouter({
  history: createWebHistory(import.meta.env.BASE_URL),
  routes: [
    {
      path: "/",
      name: "home",
      component: HomeView,
    },
    {
      path: "/errors/403",
      name: "PermissionDeny",
      component: () => import("@/views/errors/PermissionDeny.vue"),
    },
    {
      path: "/:pathMatch(.*)*",
      name: "NotFound",
      component: () => import("@/views/errors/NotFound.vue"),
    },
  ],
});

Layout布局

界面分为前台和管理后台

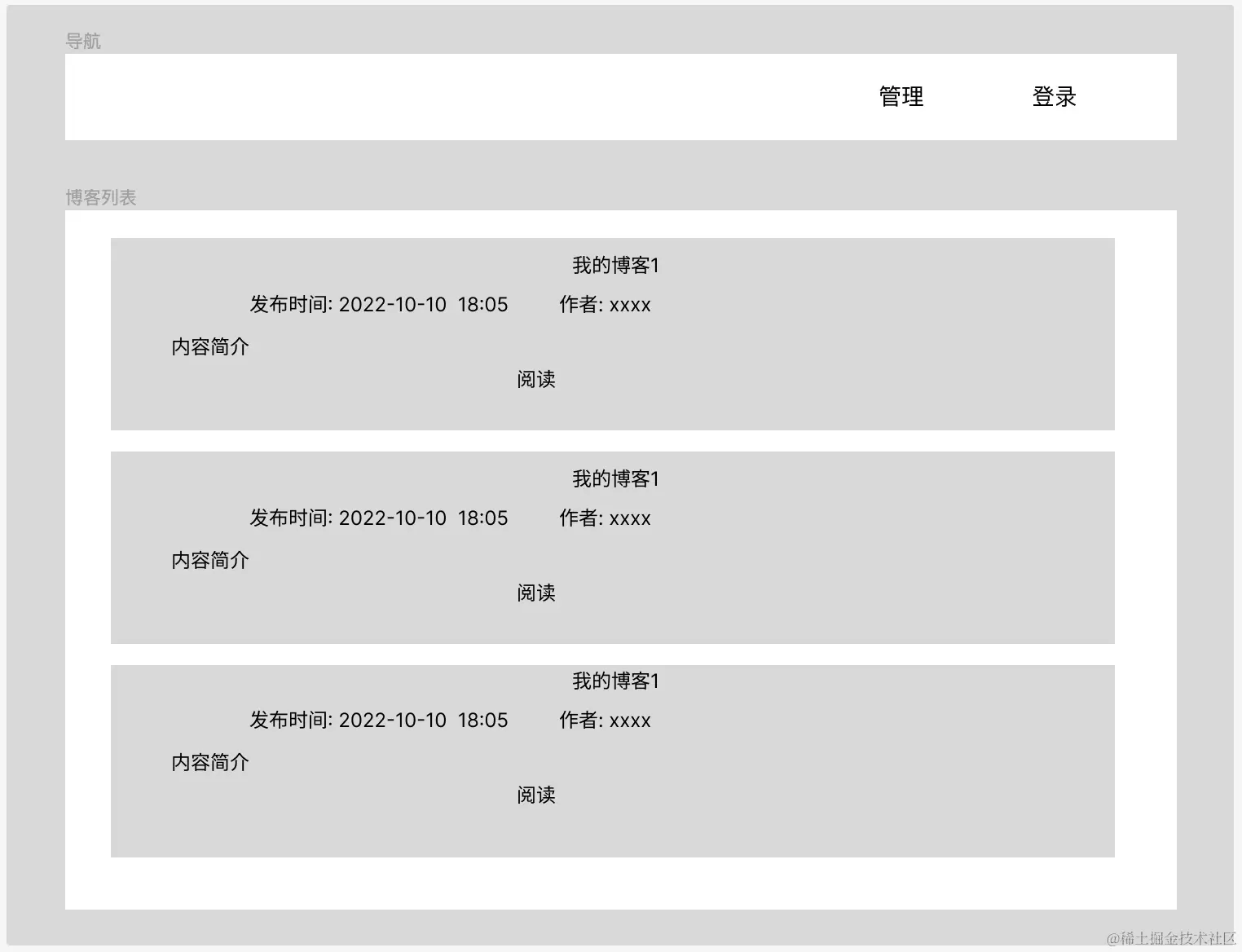

博客前台:

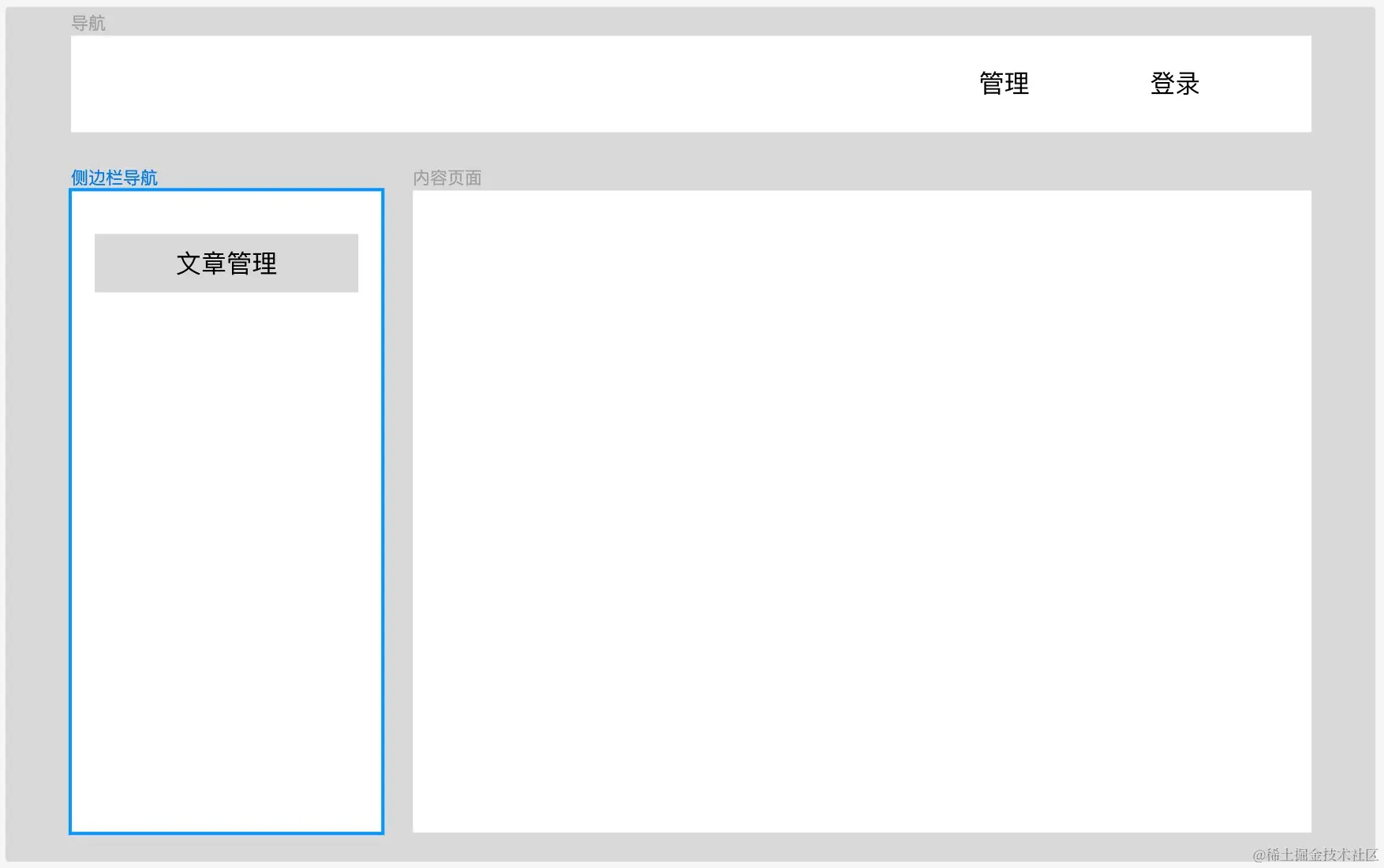

博客管理后台:

博客前台

因为前台与后台布局样式不一样, 因此分别使用独立布局模版.

Layout

在 src 文件夹下新建 layout 文件夹前台布局模板: FrontendLayout.vue

<script setup>
import { RouterView } from "vue-router";
</script>

<template>
  <div>
    <!-- 顶部导航 -->
    <div class="header">
      <div class="logo">我的博客</div>
      <div class="right-header">
        <div>
          <!-- 登录后台进行博客管理 -->
          <a-button size="mini" type="text">后台管理</a-button>
        </div>
      </div>
    </div>
    <!-- 显示博客列表 -->
    <div class="content">
      <RouterView />
    </div>
  </div>
</template>

<style scoped>
.header {
  display: flex;
  align-content: center;
  justify-content: flex-start;
  align-items: center;
  border-bottom: 1px solid rgb(229, 230, 235);
  height: 45px;
}

.logo {
  margin-left: 8px;
  font-size: 14px;
  font-weight: 500;
}

.right-header {
  margin-left: auto;
}

.content {
  margin: 20px;
  display: flex;
  align-content: center;
  justify-content: center;
  align-items: center;
}
</style>

blog占位页

在 Views 文件夹内新建 frontend 文件夹
补充一个前台展位页面: BlogView.vue

<script setup></script>

<template>
  <main>
    博客页面
  </main>
</template>

Blog路由

    {
      path: "/",
      name: "home",
      redirect: "/frontend",
    },
    {
      path: "/frontend",
      name: "frontend",
      component: FrontendLayout,
      children: [
        {
          path: "",
          name: "frontend",
          component: BlogView,
        },
      ],
    },

博客后台

Loayout

博客后台使用的布局模板: BackendLayout.vue

这里我们需要使用到侧边栏导航:菜单Menu

<script setup>
import { RouterView, useRouter } from "vue-router";

const router = useRouter();
const clickMenu = (key) => {
  router.push(key);
};
</script>

<template>
  <div>
    <div class="header">
      <div class="logo">我的博客</div>
      <div class="right-header">
        <div>
          <a-button size="mini" type="text">前台</a-button>
        </div>
      </div>
    </div>
    <div class="main">
      <div class="sidebar">
        <a-menu
          :style="{ width: '200px', height: '100%' }"
          :default-open-keys="['0']"
          :default-selected-keys="['/backend/blogs']"
          show-collapse-button
          breakpoint="xl"
          @menu-item-click="clickMenu"
        >
          <a-sub-menu key="0">
            <template #icon><icon-apps></icon-apps></template>
            <template #title>文章管理</template>
            <a-menu-item key="/backend/blogs">文章列表</a-menu-item>
            <a-menu-item key="/backend/tags">标签管理</a-menu-item>
          </a-sub-menu>
        </a-menu>
      </div>
      <div class="content">
        <RouterView />
      </div>
    </div>
  </div>
</template>

<style scoped>
.header {
  display: flex;
  align-content: center;
  justify-content: flex-start;
  align-items: center;
  border-bottom: 1px solid rgb(229, 230, 235);
  height: 45px;
}

.logo {
  margin-left: 8px;
  font-size: 14px;
  font-weight: 500;
}

.right-header {
  margin-left: auto;
}

.main {
  display: flex;
  align-content: center;
  justify-content: flex-start;
  align-items: flex-start;
  height: calc(100vh - 45px);
}

.sidebar {
  height: 100%;
  border-right: 1px solid rgb(229, 230, 235);
}

.content {
  margin: 8px;
  width: 100%;
  height: 100%;
}
</style>

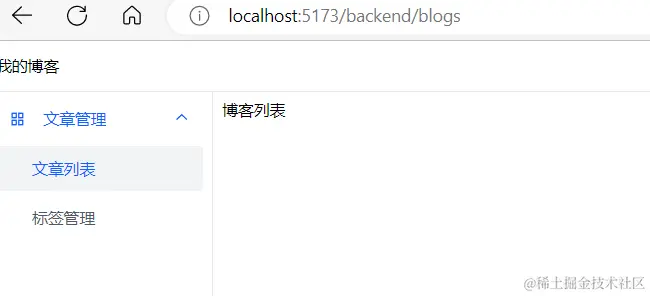

blog占位页

在 Views 文件夹内新建 backend 文件夹
添加 BlogList.vue

<script setup></script>

<template>
  <main>博客列表</main>
</template>

添加 TagList.vue

<script setup></script>

<template>
  <main>标签列表</main>
</template>

blog路由

    {
      path: "/backend",
      name: "backend",
      component: BackendLayout,
      children: [
        {
          path: "blogs",
          name: "BlogList",
          component: BlogList,
        },
        {
          path: "tags",
          name: "TagList",
          component: TagList,
        },
      ],
    },

切换到前台

无效任务后台可以直接切换到前台:

layout/BackendLayout.vue

const jumpToFrontend = () => {
  router.push("/frontend");
};

// 前台 按钮添加点击事件
<a-button size="mini" type="text" @click="jumpToFrontend">前台</a-button>

切换到后台

但是前台切换到后台，是需要认证的, 因此需要先做登录页面

登录页面

这里我们将要使用到: 表单在 Views 文件夹内新建 login 文件夹
添加 LoginPage.vue

<template>
  <div class="login-form">
    <a-form
      ref="loginForm"
      :model="form"
      :style="{ width: '400px', height: '100%', justifyContent: 'center' }"
      @submit="handleSubmit"
    >
      <a-form-item>
        <div class="title">登录博客管理后台</div>
      </a-form-item>
      <a-form-item
        field="username"
        label=""
        :rules="[{ required: true, message: '请输入用户名' }]"
        hide-asterisk
      >
        <a-input v-model="form.username" placeholder="请输入用户名">
          <template #prefix>
            <icon-user />
          </template>
        </a-input>
      </a-form-item>
      <a-form-item
        field="password"
        label=""
        :rules="[{ required: true, message: '请输入密码' }]"
        hide-asterisk
      >
        <a-input
          type="password"
          v-model="form.password"
          placeholder="请输入密码"
        >
          <template #prefix>
            <icon-lock />
          </template>
        </a-input>
      </a-form-item>
      <a-form-item>
        <a-button style="width: 100%" type="primary" html-type="submit"
          >登录</a-button
        >
      </a-form-item>
    </a-form>
  </div>
</template>

<script setup>
import { reactive } from "vue";
import { Message } from "@arco-design/web-vue";
import { useRouter } from "vue-router";

const router = useRouter();

const form = reactive({
  username: "",
  password: ""
});
const handleSubmit = (data) => {
  if (data.errors === undefined) {
    let form = data.values;
    if (form.username === "admin" && form.password === "123456") {
      // 保存登录状态
      localStorage.setItem("username", form.username);
      localStorage.setItem("password", form.password);

      // 登录成功直接跳转到后台页, 如果URL页面带有重定向参数, 则直接路由到重定向的页面
      const { redirect, ...othersQuery } = router.currentRoute.value.query;
      router.push({
        name: redirect || "BlogList",
        query: {
          ...othersQuery,
        },
      });
    } else {
      Message.error("用户名或者密码不正确");
    }
  }
};
</script>

<style scoped>
.login-form {
  height: 100%;
  display: flex;
  align-content: center;
  justify-content: center;
  align-items: center;
}

.title {
  display: flex;
  justify-content: center;
  align-items: center;
  align-content: center;
  width: 100%;
  font-weight: 500;
}
</style>

添加路由:

    {
      path: "/login",
      name: "LoginPage",
      component: () => import("@/views/login/LoginPage.vue"),
    },

切换到后台

前台页面添加登录跳转: fronend/FrontendLayout.vue:

<script setup>
import { RouterView, useRouter } from "vue-router";

const router = useRouter();

const jumpToBackend = () => {
  const username = localStorage.getItem("username");
  const password = localStorage.getItem("password");
  if (
    username !== null &&
    password !== null &&
    username !== "" &&
    password !== ""
  ) {
    // 直接跳转后台管理页面
    router.push("/backend/blogs");
  } else {
    // 跳转去登录页面
    router.push("/login");
  }
};
</script>

在响相应的按钮上添加点击事件

现在可以任意出入前后台了！

退出登录

有了登录我们也需要支持退出登录, 我们是通过 localStorage 来保持状态的, 因此删除对于数据就可以退出了

补充注销按钮: layout/BackendLayout.vue

 <a-button @click="logout" size="mini" type="text">注销</a-button>

补充注销逻辑: 注销成功后跳转到登录页面:

const logout = () => {
  localStorage.removeItem("username");
  localStorage.removeItem("password");
  router.push("/login");
};

导航守卫

之前的流程用户通过前台跳转到后台管理时, 补充了认证, 但是如果用户直接通过 URL 访问后台管理页面喃?

这时候我们就需要做一个全局的导航守卫, 保护所有的 backend 的页面, 凡事访问到backend的页面都需要检查登录状态, 避免用户直接绕开访问

关于导航守卫

后台页面守卫

单独起一个模块: router/permession.js 来定义导航守卫钩子函数

// 定义导航守卫

export async function beforeEachHandler(to, from, next) {
  if (to.fullPath.indexOf("/backend") === 0) {
    // 如果未登陆 重定向到登录页面, 并且把目标页面作为重定向参数传递下去
    const username = localStorage.getItem("username");
    const password = localStorage.getItem("password");
    if (
      username === null ||
      password === null ||
      username === "" ||
      password === ""
    ) {
      console.log("not login");
      next({
        path: "/login",
        query: {
          redirect: to.name,
          ...to.query,
        },
      });
    } else {
      // 已经登录的用户直接放行
      next();
    }
  } else {
    // 不属于/backend的页面 直接放开
    next();
  }
}

export function afterEachHandler(to, from) {
  console.log(to, from);
}

然后在 router/index.js 中添加该 Hook 到 router 实例上

import { beforeEachHandler, afterEachHandler } from "./permession";

// 补充导航守卫
router.beforeEach(beforeEachHandler);
router.afterEach(afterEachHandler);

export default router;

页面加载进度条

安装 process bar 库

npm install --save nprogress

router/permession.js 进入页面前开启进度条, 离开后结束进度条

import NProgress from "nprogress"; // progress bar
import "nprogress/nprogress.css"; // progress bar style

export async function beforeEachHandler(to, from, next) {
  NProgress.start();
  ...
}

export function afterEachHandler(to, from) {
  NProgress.done();
  console.log(to, from);
}

v-blog 前端框架搭建

前端框架搭建

项目初始化

生成项目模板

清理模板页面

安装UI插件

安装 Arco Design

验证插件

错误页面

404页面

403页面

Layout布局

博客前台

Layout

blog占位页

Blog路由

博客后台

Loayout

blog占位页

blog路由

切换到前台

切换到后台

登录页面

切换到后台

退出登录

导航守卫

后台页面守卫

页面加载进度条
