vue3+ts+vite组件库-打包

开场

咱们今天接着上一篇的组件库搭建开发。本篇主要做的是js、css、vue组件、ts类的声明的打包配置 采用gulp来控制打包流程，采用rollup打包、借鉴elementPlus官网

gulp安装

执行命令全局安装gulp脚手架

npm install --global gulp-cli

项目gulp环境

在根目录下安装 gulp @types/gulp sucrase

包	作用
gulp	流程控制
@types/gulp	Gulp TS 的类型定义
sucrase	编译工具

pnpm install gulp @types/gulp sucrase -w -D

在根目录新建 build 文件夹

mkdir build

在build中新建gulpfile.ts文件 新增utils文件夹

touch gulpfile.ts
mkdir utils

gulpfile.ts代码如下：

// 打包方式：串行(series)  并行(parallel)
import { series, parallel } from "gulp";
import { withTaskName,runTask } from "./utils"

/**
 * 1. 打包样式
 * 2. 打包工具方法
 * 3. 打包所有组件
 * 4. 打包每个组件
 * 5. 生成一个组件库
 * 6. 发布组件
 */
export default series(
  withTaskName("clean", async () => runTask('rm -rf ./dist')),  // 删除dist目录
);

在utils/index.ts中实现 withTaskName runTask方法

/**
 * 子进程
 * child_process.spawn(command[, args][, options])
 * command <string> 要运行的命令。
 * args <string[]> 字符串参数列表。
 * options <Object>
 *  - cwd <string> | <URL> 子进程的当前工作目录
 *  - stdio <Array> | <string> 子进程的标准输入输出配置。'inherit'：通过相应的标准输入输出流传入/传出父进程
 * - shell <boolean> | <string> 如果是 true，则在 shell 内运行 command。 在 Unix 上使用 '/bin/sh'，在 Windows 上使用    process.env.ComSpec。 可以将不同的 shell 指定为字符串。 请参阅 shell 的要求和默认的 Windows shell。 默认值: false （没有 shell）x
 */
import { spawn } from 'child_process'
import type { TaskFunction } from 'gulp'
import {projRoot,buildRoot} from './paths'
// 自定义每个task的name
export const withTaskName = <T extends TaskFunction>(name: string, fn: T) =>
  Object.assign(fn, { displayName: name })
  // 在node中开启一个子进程来运行脚本
 const run = async (command: string, cwd: string = projRoot) =>
  new Promise<void>((resolve, reject) => {
    const [cmd, ...args] = command.split(' ')
    const app = spawn(cmd, args, {
      cwd,
      stdio: 'inherit',
      shell: true,
    })

    const onProcessExit = () => app.kill('SIGHUP')

    app.on('close', (code) => {
      process.removeListener('exit', onProcessExit)
      if (code === 0) resolve()
      else
        reject(
          new Error(`Command failed. \n Command: ${command} \n Code: ${code}`)
        )
    })
    process.on('exit', onProcessExit)
  })
// 执行方法
  export const runTask = (name: string) =>
  withTaskName(`shellTask:${name}`, () =>
    run(`pnpm run start ${name}`, buildRoot)
  )

在utils/paths.ts中实现 定义 根目录 打包目录

import { resolve } from 'path'
// 根目录
export const projRoot = resolve(__dirname, '..','..')
export const buildRoot = resolve(projRoot, 'internal', 'build')
/** `/dist` */
export const buildOutput = resolve(projRoot, 'dist')

在根目录下的package.json中增加build脚本：gulp -f build/gulpfile.ts,指定配置文件为build目录下的gulpfile.ts文件：

 "scripts": {
    "dev": "pnpm -C play dev",
  + "build": "gulp -f build/gulpfile.ts"
  },

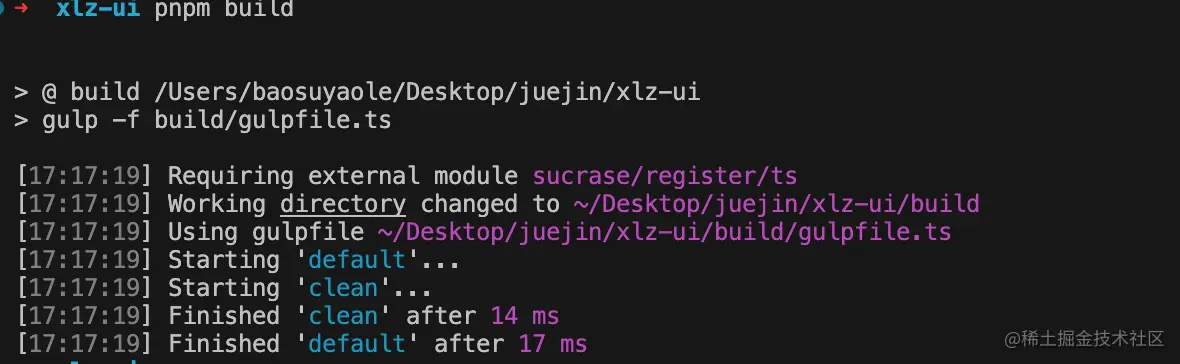

接下来测试一下，在根目录新建一个dist目录，执行pnpm build，看看有没有删除掉

gulp处理scss

在theme-chalk下增加gulp配置文件gulpfile.ts在package.json下，增加build脚本

 "scripts": {
    "build": "gulp"
  }

安装相关依赖在根目录

# 安装相关依赖
pnpm install gulp-sass @types/gulp-sass @types/sass gulp-autoprefixer @types/gulp-autoprefixer @types/gulp-clean-css gulp-clean-css -w -D

包名	作用
gulp-sass	将scss编译为css
@types/gulp-sass	gulp-sass 的TS类声明
@types/sass	sass的 TS类声明
gulp-autoprefixer	自动添加前缀
@types/gulp-autoprefixer	gulp-autoprefixer 的TS类声明
gulp-clean-css	压缩css文件
@types/gulp-clean-css	gulp-clean-css 的TS声明

//gulpfile.ts
import gulpSass from "gulp-sass";
import dartSass from "sass";
import autoprefixer from "gulp-autoprefixer";
import cleanCss from "gulp-clean-css";
import path from "path";
/**
 * gulp是类似一个管道的方式执行，从入口开始到出口，中间一步步执行
 */
import { series, src, dest } from "gulp";
/**
 * 对sass文件做处理
 */
function compile() {
  const sass = gulpSass(dartSass);
  return src(path.resolve(__dirname, "./src/*.scss"))
    .pipe(sass.sync())//转译
    .pipe(autoprefixer())//添加前缀
    .pipe(cleanCss())//压缩
    .pipe(dest("./dist/css"));//将处理完的生成在dist目录
}
/**
* 把打包好的css输出到根目录的dist
*/
function copyfullstyle(){
  const rootDistPath = path.resolve(__dirname,'../../dist/theme-chalk')
  return src(path.resolve(__dirname,'./dist/**')).pipe(dest(rootDistPath))
}
export default series(compile,copyfullstyle);

在打包入口文件中加入执行命令

export default series(
  withTaskName("clean",  () => run('rm -rf ./dist')),  // 删除dist目录
  //新增的命令 找到带有@xlz-ui/*包的所有build命令
  parallel(
    withTaskName("buildPackages", () =>
    run("pnpm run --filter @xlz-ui/* --parallel build")
  ),
  )
);

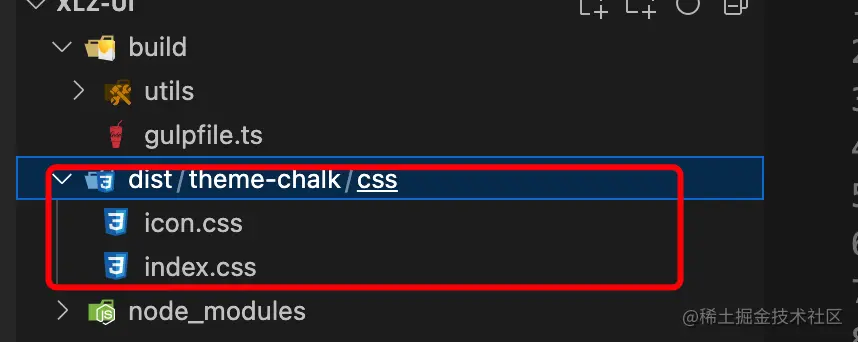

执行打包命令pnpm build

gulp处理utils工具包

在utils下增加gulp配置文件gulpfile.ts,并且安装依赖gulp-typescript来处理ts文件

# 安装依赖
pnpm install gulp-typescript -w -D

//gulpfile.ts
import { buildPackages } from "../../build/packages"
export default buildPackages(__dirname,'utils')

在build下新增packages.ts utils/config.ts文件

touch packages.ts
touch config.ts

将ts分别打包为cjs和esm两种模块规范 在config.ts配置如下：

import path from "path";
import { outDir } from "./paths";
export const buildConfig = {
  esm: {
    module: "ESNext", // tsconfig输出的结果es6模块
    format: "esm", // 需要配置格式化化后的模块规范
    output: {
      name: "es", // 打包到dist目录下的那个目录
      path: path.resolve(outDir, "es"),
    },
    bundle: {
      path: "xlz-plus/es",
    },
  },
  cjs: {
    module: "CommonJS",
    format: "cjs",
    output: {
      name: "lib",
      path: path.resolve(outDir, "lib"),
    },
    bundle: {
      path: "xlz-plus/lib",
    },
  },
};
export type BuildConfig = typeof buildConfig;

packages.ts配置

import { series, parallel, src, dest } from "gulp";
import { buildConfig } from "./utils/config";
import path from "path";
import { outDir, projectRoot } from "./utils/paths";
import ts from "gulp-typescript";
import { withTaskName } from "./utils";

// 打包处理
export const buildPackages = (dirname: string, name: string) => {
  const tasks = Object.entries(buildConfig).map(([module, config]) => {
    const output = path.resolve(dirname, config.output.name);
    // 安装依赖gulp-typescript
    return series(
      // 处理ts文件
      withTaskName(`build${dirname}`, () => {
        const tsConfig = path.resolve(projectRoot, "tsconfig.json"); // ts配置文件路径
        const inputs = ["**/*.ts", "!gulpfile.ts", "!node_modules"];
        return src(inputs)
          .pipe(
            ts.createProject(tsConfig, {
              declaration: true, // 需要生成声明文件
              strict: false, // 关闭严格模式
              module: config.module,
            })()
          )
          .pipe(dest(output));
      }),
      withTaskName(`copy:${dirname}`,() => {
          // 将打包好的文件放到 es=>utils 和 lib => utils
          // 将utils模块拷贝到dist目录下的es和lib目录
          return src(`${output}/**`).pipe(dest(path.resolve(outDir,config.output.name,name)))
      })
    );
  });

  return parallel(...tasks);
};

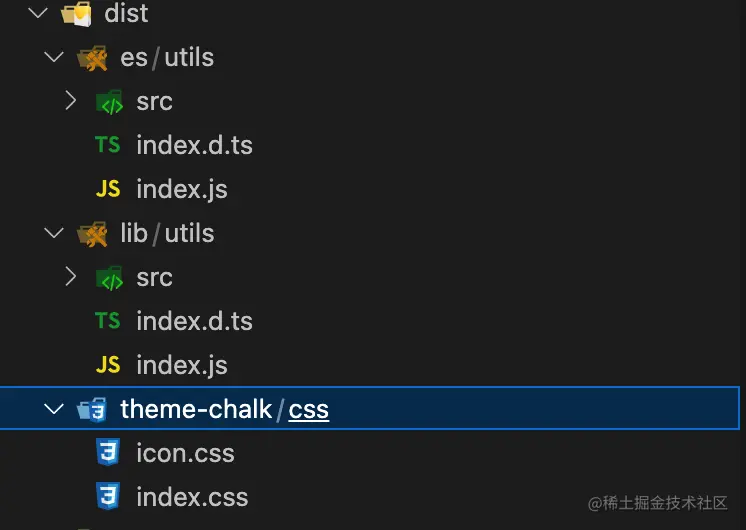

执行打包pnpm build发现dist下有 es lib两个文件夹

gulp+rollup打包vue组件

首先安装依赖包

pnpm install rollup @rollup/plugin-node-resolve @rollup/plugin-commonjs rollup-plugin-typescript2 rollup-plugin-vue rollup-plugin-cleanup rollup-plugin-postcss rollup-plugin-terser @vue/compiler-sfc -D -w

在packages中新增一个文件夹xlz-ui打包组件的文件 初始化执行pnpm init配置如下：

{
  "name": "xlz-ui",
  "version": "1.0.0",
  "description": "",
  "main": "lib/index.js",
  "module": "es/index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
   "keywords": [
    "xlz-ui"
  ],
  "author": "",
  "license": "ISC"
}

在新增一个index.ts文件 处理按需加载与批量导入

import * as components from  '@xlz-ui/components'
export * from "@xlz-ui/components";
import type { App } from "vue"; // ts中的优化只获取类型
export default {
    install: (app: App) => {
        for (const comkey in components) {
            app.component((components as any)[comkey].name, (components as any)[comkey])
        }
    }
}

开始配置打包 在build/utils/下index.ts与paths.ts 新增内容

//index.ts下新增
 // 重写打包后的@xlz-ui 路径
 export const pathRewriter = (format) => {
   return (id: any) => {
     id = id.replaceAll("@xlz-ui", `xlz-ui/${format}`);
     return id;
   };
 };

//paths.ts新增
// xlz-ui 入口 index.ts
export const xlzRoot = resolve(projRoot,'/packages/xlz-ui')
// 组件目录
export const compRoot = resolve(projRoot,'packages/components')

build下新增full-component.ts做编译

 import { nodeResolve } from "@rollup/plugin-node-resolve";  // 处理文件路径
 import commonjs from "@rollup/plugin-commonjs"; // 将 CommonJS 模块转换为 ES6
 import vue from "rollup-plugin-vue";
 import RollupPluginPostcss from 'rollup-plugin-postcss'; // 解决组件内部如果有css 打包会报错的css插件
 import typescript from "rollup-plugin-typescript2";
 import { parallel } from "gulp";
 import Autoprefixer from 'autoprefixer'
import cssnano from 'cssnano'
 import path from "path";
 import { outDir, xlzRoot } from "./utils/paths";
 import { rollup, OutputOptions } from "rollup";
 import fs from "fs/promises";
 import { terser } from 'rollup-plugin-terser';// 压缩js代码
 import cleanup from 'rollup-plugin-cleanup';// 去除无效代码
 import { buildConfig } from "./utils/config";
 import { pathRewriter } from "./utils";

 const buildFull = async () => {
   // rollup 打包的配置信息
   const config = {
     input: path.resolve(xlzRoot, "index.ts"), // 打包入口
     plugins: [
      nodeResolve(),
       vue({
        preprocessStyles: false
      }),
      typescript(),
      RollupPluginPostcss({ extract: 'theme-chalk/components-style.css'  , plugins: [Autoprefixer(),cssnano()] }),
     commonjs(),
     cleanup(),
     terser({ compress: { drop_console: true }})// 压缩js代码 及删除console
    ],
     external: (id) => /^vue/.test(id), // 打包的时候不打包vue代码
   };

   // 组件库两种使用方式 import 导入组件库 在浏览器中使用script

   // esm umd

   const buildConfig = [
     {
       format: "umd", // 打包的格式
       file: path.resolve(outDir, "index.js"),
       name: "xlz-plus", // 全局变量名字
       exports: "named", // 导出的名字 用命名的方式导出 libaryTarget:"" name:""
       globals: {
         // 表示使用的vue是全局的
         vue: "Vue",
       },
     },
     {
       format: "esm",
       file: path.resolve(outDir, "index.esm.js"),
     },
   ];

   let bundle = await rollup(config);

   return Promise.all(
     buildConfig.map((option) => {
       bundle.write(option as OutputOptions);
     })
   );
 };

 async function buildEntry() {
   // 读取xlz-ui目录下的所有内容，包括目录和文件
   const entryFiles = await fs.readdir(xlzRoot, { withFileTypes: true });
   // 过滤掉 不是文件的内容和package.json文件  index.ts 作为打包入口
   const entryPoints = entryFiles
     .filter((f) => f.isFile())
     .filter((f) => !["package.json"].includes(f.name))
     .map((f) => path.resolve(xlzRoot, f.name));

   const config = {
     input: entryPoints,
     plugins: [
      nodeResolve(),
       vue(),
        typescript(),
        cleanup(),
        terser({ compress: { drop_console: true }})// 压缩js代码 及删除console
      ],
     external: (id: string) => /^vue/.test(id) || /^@xlz-ui/.test(id),
   };
   const bundle = await rollup(config);
   return Promise.all(
     Object.values(buildConfig)
       .map((config) => ({
         format: config.format,
         dir: config.output.path,
         paths: pathRewriter(config.output.name),
       }))
       .map((option) => bundle.write(option as OutputOptions))
   );
 }
 // gulp适合流程控制和代码的转义  没有打包的功能
 export const buildFullComponent = parallel(buildFull, buildEntry);

修改build/gulpfile.ts文件

// 打包方式：串行(series)  并行(parallel)
import { series, parallel } from "gulp";
import { withTaskName,run } from "./utils"

/**
 * 1. 打包样式
 * 2. 打包工具方法
 * 3. 打包所有组件
 * 4. 打包每个组件
 * 5. 生成一个组件库
 * 6. 发布组件
 */
export default series(
  withTaskName("clean",  () => run('rm -rf ./dist')),  // 删除dist目录
  parallel(
    withTaskName("buildPackages", () =>
    run("pnpm run -C packages/utils build")
    // run("pnpm run --filter ./packages --parallel build") 在我本地有点问题就换了个写法 有兴趣的可以自己在本地试一试
  ),
  withTaskName("buildComponent", () => run("pnpm run -C packages/theme-chalk build")),
  withTaskName("buildFullComponent", () =>
      run("pnpm run build buildFullComponent")
    ),

  )
);
// 任务执行器 gulp 任务名 就会执行对应的任务
export * from "./full-component";//新增的自定义任务

可以执行pnpm build 看看有没有问题 没有问题继续操作怎么把编译后的文件copy到dist目录

在新增文件build/component.ts 安装依赖包

pnpm install fast-glob ts-morph -w -D

/**
 * 安装依赖 pnpm install fast-glob ts-morph -w -D
 */
 import { nodeResolve } from "@rollup/plugin-node-resolve";
 import commonjs from "@rollup/plugin-commonjs";
 import vue from "rollup-plugin-vue";
 import typescript from "rollup-plugin-typescript2";
 import RollupPluginPostcss from 'rollup-plugin-postcss'; // 解决组件内部如果有css 打包会报错的css插件
 import Autoprefixer from 'autoprefixer'
import cssnano from 'cssnano'
 import { series, parallel } from "gulp";
 import { sync } from "fast-glob"; // 同步查找文件
 import { compRoot, outDir, projRoot } from "./utils/paths";
 import path from "path";
 import { rollup, OutputOptions } from "rollup";
 import { buildConfig } from "./utils/config";
 import { pathRewriter, run } from "./utils";
 import { Project, SourceFile } from "ts-morph";
 import { terser } from 'rollup-plugin-terser';// 压缩js代码
import cleanup from 'rollup-plugin-cleanup';// 去除无效代码
 import glob from "fast-glob";
 import * as VueCompiler from "@vue/compiler-sfc";
 import fs from "fs/promises";

 const buildEachComponent = async () => {
   // 打包每个组件
   // 查找components下所有的组件目录 ["icon"]
   const files = sync("*", {
     cwd: compRoot,
     onlyDirectories: true, // 只查找文件夹
   });

   // 分别把components文件夹下的组件，放到dist/es/components下 和 dist/lib/components
   const builds = files.map(async (file: string) => {
     // 找到每个组件的入口文件 index.ts
     const input = path.resolve(compRoot, file, "index.ts");
     const  config = {
       input,
       plugins: [
        nodeResolve(),
        vue({
          preprocessStyles: false
        }),
        typescript(),

       RollupPluginPostcss({ extract: true, plugins: [Autoprefixer,cssnano()] }),
       commonjs(),
      //  cleanup(),
      //  terser({ compress: { drop_console: true }})// 压缩js代码 及删除console
       ],
       external: (id) => /^vue/.test(id) || /^@xlz-ui/.test(id), // 排除掉vue和@xlz-ui的依赖
     }
     const bundle = await rollup(config);
     const options = Object.values(buildConfig).map((config) => ({
       format: config.format,
       file: path.resolve(config.output.path, `components/${file}/index.js`),
       paths: pathRewriter(config.output.name), // @xlz-ui => xlz-ui/es xlz-ui/lib  处理路径
       exports: "named",
     }));

     await Promise.all(
       options.map((option) => bundle.write(option as OutputOptions))
     );
   });

   return Promise.all(builds);
 };

 async function genTypes() {
   const project = new Project({
     // 生成.d.ts 我们需要有一个tsconfig
     compilerOptions: {
       allowJs: true,
       declaration: true,
       emitDeclarationOnly: true,
       noEmitOnError: true,
       outDir: path.resolve(outDir, "./"),
       baseUrl: projRoot,
       paths: {
         "@xlz-ui/*": ["packages/*"],
       },
       skipLibCheck: true,
       strict: false,
     },
     tsConfigFilePath: path.resolve(projRoot, "tsconfig.json"),
     skipAddingFilesFromTsConfig: true,
   });

   const filePaths = await glob("**/*", {
     // ** 任意目录  * 任意文件
     cwd: compRoot,
     onlyFiles: true,
     absolute: true,
   });
  //  const filePathsDTS = await glob("**/*", {
  //   // ** 任意目录  * 任意文件
  //   cwd: path.resolve(projRoot, "packages/types"),
  //   onlyFiles: true,
  //   absolute: true,
  // });
  // filePaths.push(filePathsDTS[0])
   const sourceFiles: SourceFile[] = [];
   await Promise.all(
     filePaths.map(async function (file) {
       if (file.endsWith(".vue")) {
         const content = await fs.readFile(file, "utf8");
         const sfc = VueCompiler.parse(content);
         const { script } = sfc.descriptor;
         if (script) {
           let content = script.content; // 拿到脚本  icon.vue.ts  => icon.vue.d.ts
           const sourceFile = project.createSourceFile(file + ".ts", content);
           sourceFiles.push(sourceFile);
         }
       } else {
         const sourceFile = project.addSourceFileAtPath(file); // 把所有的ts文件都放在一起 发射成.d.ts文件
         sourceFiles.push(sourceFile);
       }
     })
   );
   await project.emit({
     // 默认是放到内存中的
     emitOnlyDtsFiles: true,
   });

   const tasks = sourceFiles.map(async (sourceFile: any) => {
     const emitOutput = sourceFile.getEmitOutput();
     const tasks = emitOutput.getOutputFiles().map(async (outputFile: any) => {
       const filepath = outputFile.getFilePath();
       await fs.mkdir(path.dirname(filepath), {
         recursive: true,
       });
       await fs.writeFile(filepath, pathRewriter("es")(outputFile.getText()));
     });
     await Promise.all(tasks);
   });

   await Promise.all(tasks);
 }

//  function copyTypes() {
//    const src = path.resolve(outDir, "components/");

//    const copy = (module) => {
//      let output = path.resolve(outDir, module, "components");
//      console.log(src,output,module)
//      return () => run(`cp -r ${src}/* ${output}`);
//    };
//    return parallel(copy("es"), copy("lib"));
//  }

 async function buildComponentEntry() {
   const config = {
     input: path.resolve(compRoot, "index.ts"),
     plugins: [typescript(), cleanup(),
      terser({ compress: { drop_console: true }})// 压缩js代码 及删除console
    ],
     external: () => true,
   };
   const bundle = await rollup(config);
   return Promise.all(
     Object.values(buildConfig)
       .map((config) => ({
         format: config.format,
         file: path.resolve(config.output.path, "components/index.js"),
       }))
       .map((config) => bundle.write(config as OutputOptions))
   );
 }

 export const buildComponent = series(
   buildEachComponent,
   genTypes,
  //  copyTypes(),
   buildComponentEntry
 );

在build/gen-types.ts 新增文件 打包ts声明文件.d.ts

import { outDir, projRoot, xlzRoot } from "./utils/paths";
import glob from "fast-glob";
import { Project, ModuleKind, ScriptTarget, SourceFile } from "ts-morph";
import path from "path";
import fs from "fs/promises";
import { parallel, series } from "gulp";
import { run, withTaskName,pathRewriter } from "./utils";
import { buildConfig } from "./utils/config";

export const genEntryTypes = async () => {
  const files = await glob("*.ts", {
    cwd: xlzRoot,
    absolute: true,
    onlyFiles: true,
  });
  const project = new Project({
    compilerOptions: {
      declaration: true,
      module: ModuleKind.ESNext,
      allowJs: true,
      emitDeclarationOnly: true,
      noEmitOnError: false,
      outDir: path.resolve(outDir, "entry"),
      target: ScriptTarget.ESNext,
      rootDir: xlzRoot,
      strict: false,
    },
    skipFileDependencyResolution: true,
    tsConfigFilePath: path.resolve(projRoot, "tsconfig.json"),
    skipAddingFilesFromTsConfig: true,
  });
  const sourceFiles: SourceFile[] = [];
  files.map((f) => {
    const sourceFile = project.addSourceFileAtPath(f);
    sourceFiles.push(sourceFile);
  });
  await project.emit({
    emitOnlyDtsFiles: true,
  });
  const tasks = sourceFiles.map(async (sourceFile) => {
    const emitOutput = sourceFile.getEmitOutput();
    for (const outputFile of emitOutput.getOutputFiles()) {
      const filepath = outputFile.getFilePath();
      await fs.mkdir(path.dirname(filepath), { recursive: true });
      await fs.writeFile(
        filepath,
        // outputFile.getText().replaceAll("@xlz-ui", "."),
        pathRewriter("es")(outputFile.getText()),// @xlz-ui => xlz-ui/es xlz-ui/lib  处理路径
        "utf8"
      );
    }
  });
  await Promise.all(tasks);
};
export const copyEntryTypes = () => {
  const src = path.resolve(outDir, "entry");
  const copy = (module) =>
    parallel(
      withTaskName(`copyEntryTypes:${module}`, () =>
        run(
          `cp -r ${src}/* ${path.resolve(
            outDir,
            buildConfig[module].output.path
          )}/`
        )
      )
    );
  return parallel(copy("esm"), copy("cjs"));
};

export const genTypes = series(genEntryTypes, copyEntryTypes());

修改build/gulpfile.ts文件 最终的样子如下

// 打包方式：串行(series)  并行(parallel)
import { series, parallel } from "gulp";
import { withTaskName,run } from "./utils"
import { genTypes } from "./gen-types";
import { outDir, xlzRoot } from "./utils/paths";
//新增拷贝package.json文件
const copySourceCode = () => async () => {
  await run(`cp ${xlzRoot}/package.json ${outDir}/package.json`);
};
/**
 * 1. 打包样式
 * 2. 打包工具方法
 * 3. 打包所有组件
 * 4. 打包每个组件
 * 5. 生成一个组件库
 * 6. 发布组件
 */
export default series(
  withTaskName("clean",  () => run('rm -rf ./dist')),  // 删除dist目录
  parallel(
    withTaskName("buildPackages", () =>
    run("pnpm run -C packages/utils build")
    // run("pnpm run --filter ./packages --parallel build")
  ),
  withTaskName("buildFullComponent", () =>
      run("pnpm run build buildFullComponent")
    ),
   withTaskName("buildComponent", () => run("pnpm run -C packages/theme-chalk build")),
  withTaskName("buildComponent", () => run("pnpm run build buildComponent")),
  ),
  parallel(genTypes, copySourceCode()),

);
// 任务执行器 gulp 任务名 就会执行对应的任务
export * from "./full-component";
export * from "./component"; //新增

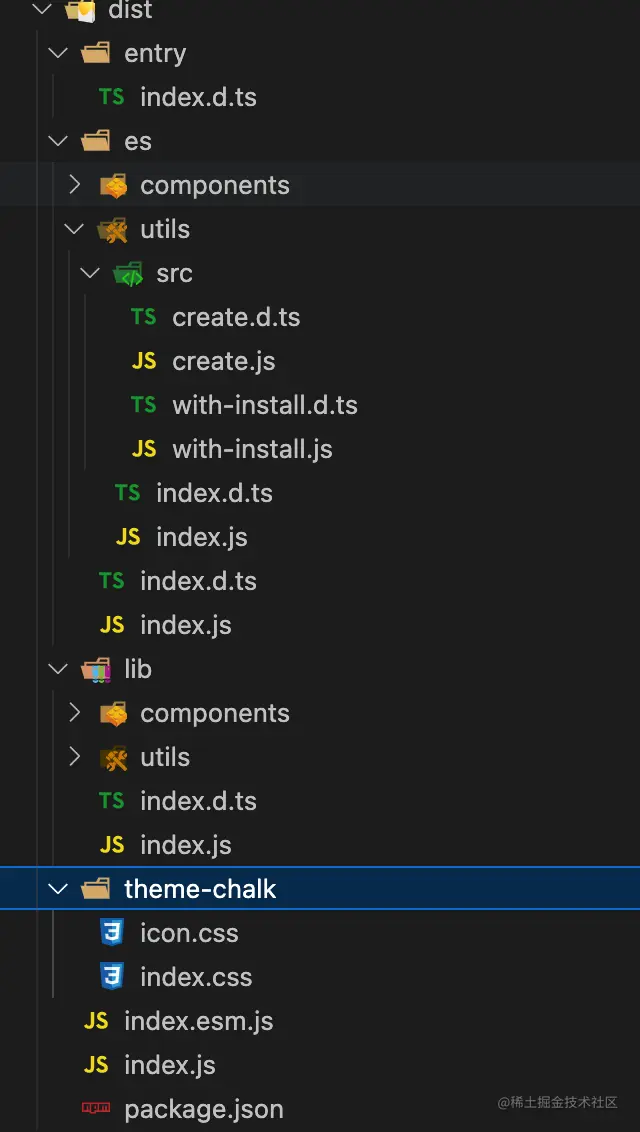

执行打包 pnpm build

可能出现的问题

如果打包报错 .vue文件没有对应的声明类就在根目录新建一个types/vue-shim.d.ts文件

declare module '*.vue' {
  import type { DefineComponent } from 'vue'
  const component: DefineComponent<{}, {}, any>
  export default component
}

还有其他问题可以留言 看到必回 关注公众号可以第一时间收到最新文章
