vr引擎设计-unity入门第三天

403 阅读2分钟

一、与物体相关的脚本

1.使用Resources加载Resources中的资源并克隆到场景中

官网 docs.unity.cn/cn/2019.4/S…

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class test02 : MonoBehaviour
{
    // Start is called before the first frame update
    void Start()
    {
        //加载Resource文件夹中的英雄资源
        GameObject hero = Resources.Load<GameObject>("hero/StoneKing");
        //克隆物体到场景中
        GameObject.Instantiate(hero);
    }

}

2.查找物体

官网 docs.unity.cn/cn/2019.4/S…

1.通过路径查找物体

//这里举例找到Sphere对象后,停用物体,这样加载场景后就看不到该对象了
GameObject sphere= GameObject.Find("Sphere");
sphere.SetActive(false);//激活或停用对象

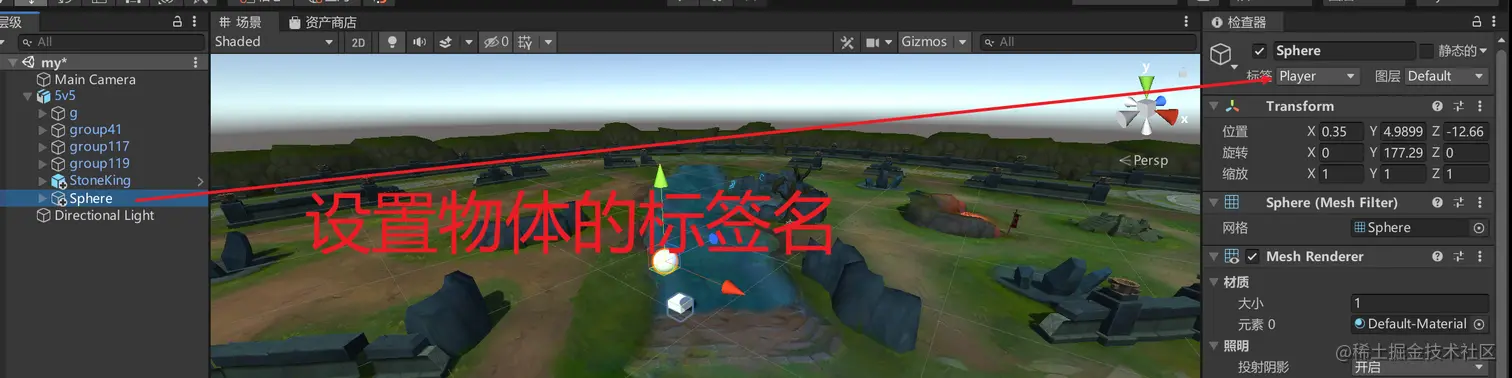

2.通过标签查找物体

官网 docs.unity.cn/cn/2019.4/S…


 GameObject shpere = GameObject.FindGameObjectWithTag("Player");//括号中填标签名
 shpere.SetActive(false);

3.对物体的参数进行改变

官网 docs.unity.cn/cn/2019.4/S…

GameObject shpere = GameObject.FindGameObjectWithTag("Player");//括号中填标签名
//shpere.SetActive(false);
shpere.name = "sphere01";//修改物体的名字
shpere.transform.position = new Vector3(0,10,34);//改变世界坐标
shpere.transform.localPosition = new Vector3(0, 10, 34);//改变相对自身起始点的坐标
shpere.transform.eulerAngles = new Vector3(34,32,1);//改变物体的旋转角度
shpere.transform.localEulerAngles=new Vector3(34, 32, 1);
shpere.transform.localScale = new Vector3(10,10,10);//改变物体的规模大小

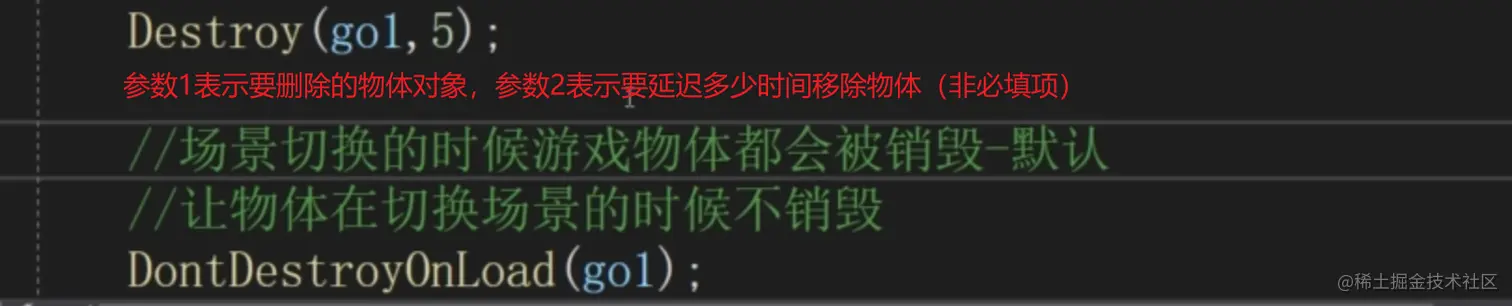

4.通过脚本删除物体


5.操作组件的相关脚本

官网 docs.unity.cn/cn/2019.4/S…

 GameObject shpere = GameObject.FindGameObjectWithTag("Player");//括号中填标签名
 shpere.AddComponent<AudioSource>();//添加一个audio source组件
 GameObject text = GameObject.FindGameObjectWithTag("Text");
 //text.GetComponent<Text>().text="欢迎进入游戏";//查找自身上的Text组件
 //text.GetComponentInChildren<Text>().text = "先查找孩子中是否有该组件再查找自身";
 //text.GetComponentInParent<Text>().text = "先查找父亲中是否有该组件再查找自身";
 //查找多个同类型的组件
 AudioSource[] audioArray = text.GetComponentsInChildren<AudioSource>();//查找自身挂载的所有音频源组件
 Debug.Log(audioArray.Length);
 //激活和关闭组件  通过组件中的enabled属性,值为false关闭,ture激活
 audioArray[0].enabled = false;
 //可以使用Destory(传入要移除的组件)来移除组件
 Destroy(audioArray[0]);

二、像素游戏案例

1.控制虚拟轴移动物体

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class script : MonoBehaviour
{
    // Start is called before the first frame update
    void Start()
    {

    }

    // Update is called once per frame
    void Update()
    {
        //获取水平虚拟轴
        float x = Input.GetAxis("Horizontal");
        //获取垂直虚拟轴
        float z = Input.GetAxis("Vertical");
        Debug.Log($"x:{x},y:{z}");
        //创建一个向量,该向量为玩家按下按键时的向量
        Vector3 dir = new Vector3(x,0,z);
        //判断玩家是否按下了按键,如果按下按键x,z的值一定会发生变化,这时候向量dir肯定不为0
        if (dir != Vector3.zero)
        {
            //将玩家转dir向量的方向
            transform.rotation = Quaternion.LookRotation(dir);
            //因为update中是一帧一帧得执行,不同设备在一秒内可能执行的帧数不一样,这里我们想
            //保持每隔一秒移动2m,可以乘以 Time.delta.Time表示每帧经过的时间
            transform.Translate(Vector3.forward * 2 * Time.deltaTime);
        }
    }
}

2.控制摄像机跟随

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class cameral : MonoBehaviour
{
    //保存开始时,玩家和相机的向量
    private Vector3 vector;
    //保存玩家的transform组件
    private Transform player;
    // Start is called before the first frame update
    void Start()
    {
        //通过标签获取玩家的transform组件
        player = GameObject.FindGameObjectWithTag("Player").transform;
        //获取玩家和相机之间的向量
        vector = player.position - transform.position;

    }

    // Update is called once per frame
    void Update()
    {
        //每次更新相机的位置
        transform.position = player.position - vector;
    }
}
