一、简介

Android compose是Android官方推出新的UI解决方案，相比传统的xml实现UI，它使用更少的代码、强大的工具和直观的 Kotlin API，可以帮助您简化并加快 Android 界面开发，所以在后续的学习中，自己将使用compose来编写UI界面，增强这方面的能力。

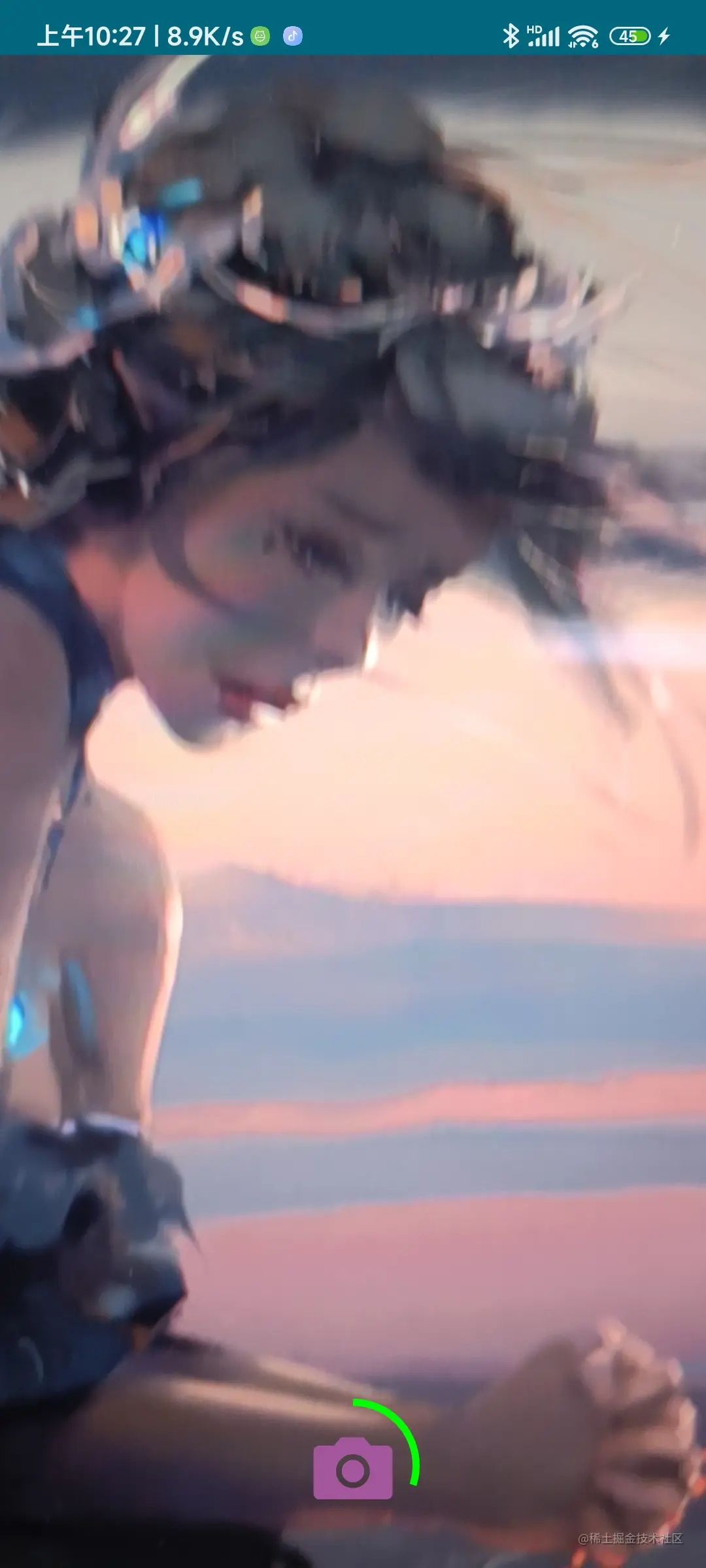

最近自己在看Jetpack CameraX的相关知识，记录一下compos结合CameraX实现拍照和录像。 最终实现效果，如下：

功能：

• 点击拍照
• 长按录像
• 拍照、录像结果展示
• 最后ffmpeg渲染SurfaceView

二、Compose依赖导入和UI实现

由于我后续将持续使用和学习compose的各种组件，因此我这儿进行了全量的依赖，可以根据自己需要进行选择性依赖。

//Compose
implementation 'androidx.compose.ui:ui:1.2.1'
// Tooling support (Previews, etc.)
implementation 'androidx.compose.ui:ui-tooling:1.2.1'
// Foundation (Border, Background, Box, Image, Scroll, shapes, animations, etc.)
implementation 'androidx.compose.foundation:foundation:1.2.1'
// Material Design
implementation 'androidx.compose.material:material:1.2.1'
// Material design icons
implementation 'androidx.compose.material:material-icons-core:1.2.1'
implementation 'androidx.compose.material:material-icons-extended:1.2.1'
// Integration with activities
implementation 'androidx.activity:activity-compose:1.5.1'
// Integration with ViewModels
implementation 'androidx.lifecycle:lifecycle-viewmodel-compose:2.5.1'
// Integration with observables
implementation 'androidx.compose.runtime:runtime-livedata:1.2.1'
implementation 'androidx.compose.runtime:runtime-rxjava2:1.2.1'
implementation 'androidx.compose.material3:material3:1.0.0-alpha01'
// UI Tests
androidTestImplementation 'androidx.compose.ui:ui-test-junit4:1.2.1'


// CameraX core library using the camera2 implementation
def camerax_version = "1.1.0"
// The following line is optional, as the core library is included indirectly by camera-camera2
implementation "androidx.camera:camera-core:${camerax_version}"
implementation "androidx.camera:camera-camera2:${camerax_version}"
// If you want to additionally use the CameraX Lifecycle library
implementation "androidx.camera:camera-lifecycle:${camerax_version}"
// If you want to additionally use the CameraX VideoCapture library
implementation "androidx.camera:camera-video:${camerax_version}"
// If you want to additionally use the CameraX View class
implementation "androidx.camera:camera-view:${camerax_version}"
// If you want to additionally add CameraX ML Kit Vision Integration
// implementation "androidx.camera:camera-mlkit-vision:${camerax_version}"
// If you want to additionally use the CameraX Extensions library
implementation "androidx.camera:camera-extensions:${camerax_version}"

implementation 'com.blankj:utilcodex:1.31.1'
implementation 'io.coil-kt:coil-compose:2.2.2'

参考官方文档 从上面的效果展示可以知道，我们需要用到帧布局方案，在Android xml中是FrameLayout在compose中是Box。PreViewLayout.kt 代码如下：

@SuppressLint("RestrictedApi")
@Composable
fun PreViewMainLayout(
    viewModel: CaptureViewModel,
    takePhotoClick: (imageCapture: ImageCapture) -> Unit,
    recordVideoClick: (videoCapture: VideoCapture) -> Unit
) {
    val lifecycleOwner = LocalLifecycleOwner.current //获取lifecycleOwner
    val ctx = LocalContext.current //获取Context
    val preview = Preview.Builder().build() //构建Preview
    val previewView = PreviewView(ctx) //实例化Android View PreviewView

    val cameraSelector = CameraSelector.Builder()
        .requireLensFacing(CameraSelector.LENS_FACING_BACK)
        .build() //构建CameraSelector并设置后置摄像头

    val imageCapture = remember {
        ImageCapture.Builder().build()
    } //实例化拍照ImageCapture，

    val videoCapture = remember {
        VideoCapture
            .Builder()
            .setVideoFrameRate(25) //每秒的帧数
            .setBitRate(3 * 1024 * 1024) //比特率
            .build()
    } //实例化录像VideoCapture，并进行参数设置

    LaunchedEffect(CameraSelector.LENS_FACING_BACK) { //compose中使用协程进行camera绑定生命周期
        val cameraProvider = ctx.getCameraProvider()
        cameraProvider.unbindAll()
        cameraProvider.bindToLifecycle(
            lifecycleOwner,
            cameraSelector,
            preview,
            imageCapture,
            videoCapture
        )
        preview.setSurfaceProvider(previewView.surfaceProvider)

    }

    val progress = viewModel.process.observeAsState() //录像进度状态，viewmodel进行记录

    Box {
        AndroidView( //由于PreviewView是Android View非compose，所以需要AndroidView
            { previewView },
            modifier = Modifier.fillMaxSize()
        )
        Box(
            modifier = Modifier
                .padding(bottom = 20.dp)
                .align(Alignment.BottomCenter)
        ) {
            if (progress.value != 0f) {
                CircularProgressIndicator( //圆形进度条
                    strokeWidth = 4.dp,
                    color = Color.Green,
                    modifier = Modifier
                        .size(74.dp)
                        .align(Alignment.Center),
                    progress = progress.value ?: 0f,
                )
            }
            Image(
                contentDescription = null,
                painter = painterResource(R.drawable.ic_take_photo),
                modifier = Modifier
                    .size(50.dp)
                    .wrapContentSize()
                    .align(Alignment.Center)
                    .pointerInput(Unit) {
                        detectTapGestures(
                            onTap = { //点击事件
                                if (progress.value != null && progress.value != 0f) {
                                    Toast
                                        .makeText(
                                            ctx,
                                            "视频录制中...",
                                            Toast.LENGTH_SHORT
                                        )
                                        .show()
                                    return@detectTapGestures
                                }
                                takePhotoClick.invoke(imageCapture)
                            },
                            onLongPress = { //长按事件
                                recordVideoClick.invoke(videoCapture)
                            }
                        )
                    }
            )
        }
    }
}

在扩展类Ext.kt增加获取CameraProvider。

suspend fun Context.getCameraProvider(): ProcessCameraProvider = suspendCoroutine { continuation ->
    ProcessCameraProvider.getInstance(this).also { cameraProvider ->
        cameraProvider.addListener({
            continuation.resume(cameraProvider.get())
        }, ContextCompat.getMainExecutor(this))
    }
}

在compose中我们可以通过LocalLifecycleOwner.current获取到lifecycleOwner。和LocalContext.current获取到Context上下文。 在进行拍照或录像预览时，我们需要创建一个Preview和PreviewView，然后选择一个摄像头，并且初始化拍照和录像两个用例（UseCase），最后通过协程将相机和预览绑定到生命周期。最后点击进行拍照，长按表示录像。

简单介绍一下CameraX结构（来自官方文档）： 您可以使用 CameraX，借助名为“UseCase”的抽象概念与设备的相机进行交互。提供的用例如下：

• 预览：接受用于显示预览的 Surface，例如 PreviewView。
• 图片分析：为分析（例如机器学习）提供 CPU 可访问的缓冲区。
• 图片拍摄：通过[ImageCapture]拍摄并保存照片。
• 视频拍摄：通过[VideoCapture]拍摄视频和音频

不同用例可以组合使用，也可以同时处于活跃状态。例如，应用中可以加入预览用例，以便让用户查看进入相机视野的画面；加入图片分析用例，以确定照片里的人物是否在微笑；还可以加入图片拍摄用例，以在人物微笑时拍摄照片。

二、拍照代码实现

继续在Ext.kt增加如下方法

private const val fileNameFormat = "yyyy-MM-dd-HH-mm-ss-SSS"

fun startTakePhoto(
    imageCapture: ImageCapture,
    outputDirectory: File,
    executor: Executor,
    onSuccess: (Uri) -> Unit,
    onError: (ImageCaptureException) -> Unit
) {

    val photoFile = File(
        outputDirectory,
        SimpleDateFormat(fileNameFormat, Locale.CHINA).format(System.currentTimeMillis()) + ".jpg"
    )

    val outputOptions = ImageCapture.OutputFileOptions.Builder(photoFile).build()

    imageCapture.takePicture(outputOptions, executor, object : ImageCapture.OnImageSavedCallback {
        override fun onError(exception: ImageCaptureException) {
            onError(exception)
        }

        override fun onImageSaved(outputFileResults: ImageCapture.OutputFileResults) {
            val savedUri = Uri.fromFile(photoFile)
            onSuccess(savedUri)
        }
    })
}

三、录像代码实现

@SuppressLint("RestrictedApi")
fun startRecordVideo(
    context: Context,
    videoCapture: VideoCapture,
    outputDirectory: File,
    executor: Executor,
    onSuccess: (String?) -> Unit,
    onError: (String) -> Unit
) {
    val videoFile = File(
        outputDirectory,
        SimpleDateFormat(fileNameFormat, Locale.CHINA).format(System.currentTimeMillis()) + ".mp4"
    )
    val options = VideoCapture.OutputFileOptions.Builder(videoFile).build()
    if (ActivityCompat.checkSelfPermission(context, Manifest.permission.RECORD_AUDIO) != PackageManager.PERMISSION_GRANTED) {
        return
    }
    videoCapture.startRecording(options, executor, object : VideoCapture.OnVideoSavedCallback {
        override fun onVideoSaved(outputFileResults: VideoCapture.OutputFileResults) {
            onSuccess.invoke(outputFileResults.savedUri?.path)
        }

        override fun onError(videoCaptureError: Int, message: String, cause: Throwable?) {
            onError.invoke(message)
        }
    })
}

四、倒计时简单实现

fun CaptureActivity.countDown(
    time: Int = 10,
    end: () -> Unit,
    next: (time: Int) -> Unit
) {
    lifecycleScope.launch {
        flow {
            (time downTo 0).forEach {
                delay(1000)
                emit(it)
            }
        }.onCompletion {
            end.invoke()
        }.catch {
            Log.d("TAG_HQL", "countDown: 倒计时出错")
        }.collect {
            Log.d("TAG_HQL", "countDown: 倒计时 $it")
            next(it)
        }
    }
}

五、CaptureActivity 实现拍照、录像方法调用

class CaptureActivity : ComponentActivity() {

    private lateinit var cameraExecutor: ExecutorService
    private lateinit var outputDirectory: File

    private val viewModel by lazy { CaptureViewModel() }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            StudyVideoTheme {
                PreViewMainLayout(
                    viewModel = viewModel,
                    takePhotoClick = {
                        takePhoto(it)
                    },
                    recordVideoClick = {
                        recordVideo(it)
                    }
                )
            }
        }
        cameraExecutor = Executors.newSingleThreadExecutor()
        outputDirectory = getOutputDirectory()
    }

    private fun takePhoto(imageCapture: ImageCapture) {
        startTakePhoto(
            imageCapture = imageCapture,
            outputDirectory = outputDirectory,
            executor = cameraExecutor,
            onSuccess = {
                val intent = Intent(this@CaptureActivity, PreviewResultActivity::class.java)
                intent.putExtra("PATH", "${it.path}")
                startActivity(intent)
            },
            onError = {
                Log.d("TAG_HQL", "takePhoto: ${it.message}")
            }
        )
    }

    @SuppressLint("RestrictedApi")
    private fun recordVideo(videoCapture: VideoCapture) {
        startRecordVideo(
            this,
            videoCapture,
            outputDirectory,
            cameraExecutor,
            onSuccess = {
                Log.d("TAG_HQL", "onSuccess: $it")
                val intent = Intent(this@CaptureActivity, PreviewResultActivity::class.java)
                intent.putExtra("PATH", "$it")
                startActivity(intent)
            },
            onError = {
                Log.d("TAG_HQL", "onError: $it")
            }
        )
        countDown(
            end = {
                videoCapture.stopRecording()
                viewModel.process.postValue(0f)
            }, next = {
                viewModel.process.postValue((10 - it) * 0.1f)
            }
        )
    }

    private fun getOutputDirectory(): File {
        val mediaDir = externalMediaDirs.firstOrNull()?.let {
            File(it, resources.getString(R.string.app_name)).apply { mkdirs() }
        }
        return if (mediaDir != null && mediaDir.exists()) mediaDir else filesDir
    }
}

创建CaptureViewModel类

class CaptureViewModel : ViewModel() {
    var process = MutableLiveData<Float>()
}

六、创建结果页面UI和Activity

PreViewResultLayout.kt

@Composable
fun PreViewImageLayout(
    path: String,
    backClick: () -> Unit,
    playCLick: (SurfaceView) -> Unit
) {
    val ctx = LocalContext.current
    val surfaceView = SurfaceView(ctx)
    Box {
        val fileExtension = FileUtils.getFileExtension(path)
        if (fileExtension == "jpg") {
            Image(
                contentDescription = null,
                painter = rememberAsyncImagePainter(model = path), //coil加载图片
                modifier = Modifier.fillMaxSize()
            )
        } else {
           /* AndroidView(
                factory = {
                    val videoView = VideoView(ctx)
                    videoView.setVideoPath(path)
                    videoView.start()
                    videoView
                }, modifier = Modifier
                    .fillMaxWidth()
                    .fillMaxHeight()
            )*/
            AndroidView(
                factory = {
                    surfaceView
                },
                modifier = Modifier
                    .fillMaxWidth()
                    .fillMaxHeight()
            )
        }
        Image(
            contentDescription = null,
            painter = painterResource(id = R.drawable.ic_back),
            modifier = Modifier
                .size(66.dp)
                .padding(
                    start = 16.dp,
                    top = 16.dp
                )
                .clickable {
                    backClick.invoke()
                }
        )
        if (fileExtension == "mp4") {
            Image(
                contentDescription = null,
                painter = painterResource(id = R.drawable.ic_play),
                modifier = Modifier
                    .size(66.dp)
                    .padding(
                        bottom = 20.dp,
                    )
                    .align(Alignment.BottomCenter)
                    .clickable {
                        playCLick.invoke(surfaceView)
                    }
            )
        }
    }
}

我们可以使用Android原生的VideoView组件进行播放，因为后面我需要进行FFmpeg进行播放，因此这儿使用SurfaceView，由于点击是拍照，长按是录像，所以这儿根据了后缀名进行UI结果展示。

PreviewResultActivity.kt

class PreviewResultActivity : ComponentActivity() {
    private lateinit var mHolder: SurfaceHolder
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        val path = intent.getStringExtra("PATH") ?: return
        setContent {
            PreViewImageLayout(
                path = path,
                backClick = {
                    finish()
                }, playCLick = {
                    mHolder = it.holder
                    mHolder.setFormat(PixelFormat.RGBA_8888)
                    lifecycleScope.launch(Dispatchers.IO) {
                        playVideo(path, mHolder.surface)
                    }
                })
        }
    }

    external fun playVideo(path: String, surface: Surface)

    companion object {
        init {
            System.loadLibrary("studyffmpeg")
        }
    }
}

通过协程新开子线程的方法调用了JNI方法playVideo()，将视频路径和SurfaceView传递到JNI层。

七、项目JNI配置以及文件导入

gradle配置NDK相关：

defaultConfig {
    ......
    externalNativeBuild {
        cmake {
            cppFlags '-std=c++11'
            abiFilters 'arm64-v8a'
        }
    }
}
sourceSets {
        main {
            jniLibs.srcDirs = ['libs']
        }
}
externalNativeBuild {
        cmake {
            path file('src/main/cpp/CMakeLists.txt')
            version '3.18.1'
        }
}

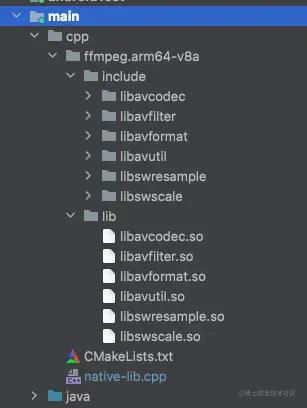

导入ffmpeg 头文件和so

八、CMakeLists编写和JNI方法编写

CMakeLists.txt

cmake_minimum_required(VERSION 3.18.1)

project("studyffmpeg")

# 定义 so 库和头文件所在目录，方便后面使用
set(ffmpeg_head_dir ${CMAKE_SOURCE_DIR}/ffmpeg/arm64-v8a)
set(ffmpeg_lib_dir ${CMAKE_SOURCE_DIR}/ffmpeg/arm64-v8a/lib)

include_directories(${ffmpeg_head_dir}/include)

add_library( # Sets the name of the library.
        studyffmpeg

        # Sets the library as a shared library.
        SHARED

        # Provides a relative path to your source file(s).
        native-lib.cpp)


add_library(avcodec SHARED IMPORTED)
set_target_properties(avcodec PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libavcodec.so)

add_library(avfilter SHARED IMPORTED)
set_target_properties(avfilter PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libavfilter.so)

add_library(avformat SHARED IMPORTED)
set_target_properties(avformat PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libavformat.so)

add_library(avutil SHARED IMPORTED)
set_target_properties(avutil PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libavutil.so)

add_library(swresample SHARED IMPORTED)
set_target_properties(swresample PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libswresample.so)

add_library(swscale SHARED IMPORTED)
set_target_properties(swscale PROPERTIES IMPORTED_LOCATION ${ffmpeg_lib_dir}/libswscale.so)

find_library( # Sets the name of the path variable.
        log-lib

        # Specifies the name of the NDK library that
        # you want CMake to locate.
        log)

# Specifies libraries CMake should link to your target library. You
# can link multiple libraries, such as libraries you define in this
# build script, prebuilt third-party libraries, or system libraries.

target_link_libraries( # Specifies the target library.
        studyffmpeg

        avcodec
        avfilter
        avformat
        avutil
        swresample
        swscale
        -landroid
        # Links the target library to the log library
        # included in the NDK.
        ${log-lib})

native-lib.cpp

#include <jni.h>
#include <string>
#include <android/native_window_jni.h>
#include <zconf.h>
#include "android/log.h"
//混合C代码编译
extern "C" {
#include "libavcodec/avcodec.h"
#include "libavformat/avformat.h"
#include "libswscale/swscale.h"
#include "libavutil/imgutils.h"
}

#define  LOG_TAG    "StudyVideo"
#define  LOGD(FORMAT, ...)  __android_log_print(ANDROID_LOG_DEBUG, LOG_TAG,FORMAT, ##__VA_ARGS__)

extern "C"
JNIEXPORT void JNICALL
Java_com_hql_study_PreviewResultActivity_playVideo(
        JNIEnv *env,
        jobject thiz,
        jstring path,
        jobject surface
) {
    //获取用于绘制的NativeWindow
    ANativeWindow *a_native_window = ANativeWindow_fromSurface(env, surface);

    //转换视频路径字符串为C中可用的
    const char *video_path = env->GetStringUTFChars(path, 0);

    //网络模块初始化（可以播放Url）
    avformat_network_init();

    //获取用于获取视频文件中各种流（视频流、音频流、字幕流等）的上下文：AVFormatContext
    AVFormatContext *av_format_context = avformat_alloc_context();

    //配置信息
    AVDictionary *options = NULL;
    av_dict_set(&options, "timeout", "3000000", 0);

    //打开视频文件
    //第一个参数：AVFormatContext的二级指针
    //第二个参数：视频路径
    //第三个参数：非NULL的话就是设置输入格式，NULL就是自动
    //第四个参数：配置项
    //返回值是是否打开成功，0是成功其他为失败
    int open_result = avformat_open_input(&av_format_context, video_path, NULL, &options);

    //如果打开失败就返回
    if (open_result) {
        return;
    }

    //让FFmpeg将流解析出来,并找到视频流对应的索引
    avformat_find_stream_info(av_format_context, NULL);
    int video_stream_index = 0;
    for (int i = 0; i < av_format_context->nb_streams; i++) {
        //如果当前流是视频流的话保存索引
        if (av_format_context->streams[i]->codecpar->codec_type == AVMEDIA_TYPE_VIDEO) {
            video_stream_index = i;
            break;
        }
    }

    //获取视频流的解码参数（宽高等信息）
    AVCodecParameters *av_codec_parameters = av_format_context->streams[video_stream_index]->codecpar;

    //获取视频流的解码器
    AVCodec *av_codec = avcodec_find_decoder(av_codec_parameters->codec_id);

    //获取解码上下文
    AVCodecContext *av_codec_context = avcodec_alloc_context3(av_codec);

    //将解码器参数复制到解码上下文(因为解码上下文目前还没有解码器参数)
    avcodec_parameters_to_context(av_codec_context, av_codec_parameters);
    LOGD("%d,%d", av_codec_context->height, av_codec_context->width);

    //进行解码
    avcodec_open2(av_codec_context, av_codec, NULL);

    //因为YUV数据被封装在了AVPacket中，因此我们需要用AVPacket去获取数据
    AVPacket *av_packet = av_packet_alloc();

    //获取转换上下文（把解码后的YUV数据转换为RGB数据才能在屏幕上显示）
    SwsContext *sws_context = sws_getContext(av_codec_context->width, av_codec_context->height,
                                             av_codec_context->pix_fmt,
                                             av_codec_context->width, av_codec_context->height,
                                             AV_PIX_FMT_RGBA, SWS_BILINEAR,
                                             0, 0, 0);

    //设置NativeWindow绘制的缓冲区
    ANativeWindow_setBuffersGeometry(a_native_window, av_codec_context->width,
                                     av_codec_context->height,
                                     WINDOW_FORMAT_RGBA_8888);
    //绘制时，用于接收的缓冲区
    ANativeWindow_Buffer a_native_window_buffer;

    //计算出转换为RGB所需要的容器的大小
    //接收的容器
    uint8_t *dst_data[4];
    //每一行的首地址（R、G、B、A四行）
    int dst_line_size[4];
    //进行计算
    av_image_alloc(dst_data, dst_line_size, av_codec_context->width, av_codec_context->height,
                   AV_PIX_FMT_RGBA, 1);

    //从视频流中读数据包，返回值小于0的时候表示读取完毕
    while (av_read_frame(av_format_context, av_packet) >= 0) {
        //将取出的数据发送出来
        avcodec_send_packet(av_codec_context, av_packet);

        //接收发送出来的数据
        AVFrame *av_frame = av_frame_alloc();
        int av_receive_result = avcodec_receive_frame(av_codec_context, av_frame);

        //如果读取失败就重新读
        if (av_receive_result == AVERROR(EAGAIN)) {
            continue;
        } else if (av_receive_result < 0) {
            //如果到末尾了就结束循环读取
            break;
        }

        //将取出的数据放到之前定义的RGB目标容器中
        sws_scale(sws_context, av_frame->data, av_frame->linesize, 0, av_frame->height,
                  dst_data, dst_line_size);

        //加锁然后进行渲染
        ANativeWindow_lock(a_native_window, &a_native_window_buffer, 0);

        uint8_t *first_window = static_cast<uint8_t *>(a_native_window_buffer.bits);
        uint8_t *src_data = dst_data[0];

        //拿到每行有多少个RGBA字节
        int dst_stride = a_native_window_buffer.stride * 4;
        int src_line_size = dst_line_size[0];
        //循环遍历所得到的缓冲区数据
        for (int i = 0; i < a_native_window_buffer.height; i++) {
            //内存拷贝进行渲染
            memcpy(first_window + i * dst_stride, src_data + i * src_line_size, dst_stride);
        }

        //绘制完解锁
        ANativeWindow_unlockAndPost(a_native_window);

        //40000微秒之后解析下一帧(这个是根据视频的帧率来设置的，我这播放的视频帧率是25帧/秒)
        usleep(1000 * 40);
        //释放资源
        av_frame_free(&av_frame);
        av_free_packet(av_packet);
    }

    env->ReleaseStringUTFChars(path, video_path);
}
