SpringCloud整合 Oauth2+Gateway+Jwt+Nacos 实现授权码模式的服务认证(二)

前言

目前正在出一个SpringCloud进阶系列教程，含源码解读, 篇幅会较多, 喜欢的话，给个关注❤️ ~

该系列默认开启Nacos 服务,还不会搭建的小伙伴可以参考往期文章~

本节重点是给大家介绍Oauth2如何整合到SpringCloud Gateway 网关中, 废话不多说直接开整吧~

SpringCloud Gateway 网关搭建

在最初的时候，给大家介绍的是Zull网关，其实我们可以有更好的网关选择，就是我们的SpringCloud Gateway，如果有条件的话，还是建议大家选择它，毕竟有强大的社区在维护，功能和性能方面表现都不错。

网关搭建

本节依然沿用上节的代码，我们新建一个网关模块，名字叫spring-cloud-oauth2-gateway,创建好之后，复制以下依赖 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>com.pkq.cloud</artifactId>
        <groupId>pkq-cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-cloud-oauth2-gateway</artifactId>

    <dependencies>
        <!--网关依赖gateway-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>

        <!-- Nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba.nacos</groupId>
                    <artifactId>nacos-client</artifactId>
                </exclusion>
            </exclusions>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba.nacos</groupId>
                    <artifactId>nacos-client</artifactId>
                </exclusion>
            </exclusions>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
            <version>${alibaba.nacos.version}</version>
        </dependency>
        <!--SpringBoot2.4.x之后默认不加载bootstrap.yml文件，需要在pom里加上依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
        <!-- 加入 log4j2 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>*</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
        </dependency>

        <!-- Druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.22</version>
        </dependency>
        <!-- MySQL -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.16</version>
        </dependency>
        <!-- MyBatis-Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis.plus.version}</version>
        </dependency>

        <!-- redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!--安全认证框架-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!-- oauth2 -->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-oauth2-resource-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
            <version>2.2.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>com.nimbusds</groupId>
            <artifactId>nimbus-jose-jwt</artifactId>
            <version>9.9.3</version>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.8.0</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

紧接着，我们加入配置文件 bootstrap.yml

server:
  port: 10002

spring:
  application:
    name: oauth2-gateway
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: **********
    driver-class-name: com.mysql.cj.jdbc.Driver
  redis:
    host: 127.0.0.1
    port: 6379
    database: 2

  cloud:
    nacos:
      discovery:
        #注册中心地址
        server-addr: 127.0.0.1:8848
      config:
        file-extension: yaml
        #配置中心地址
        server-addr: 127.0.0.1:8848


  thymeleaf:
    cache: false


mybatis-plus:
  mapper-locations: classpath:mapper/*/*.xml,mapper/*.xml
  global-config:
    db-config:
      id-type: auto
      field-strategy: NOT_EMPTY
      db-type: MYSQL
  configuration:
    map-underscore-to-camel-case: true
    call-setters-on-nulls: true
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

下面我们新建一个启动类:

/**
 * @Author
 * @Description spring cloud gateway 网关服务
 * @Date
 */
@SpringBootApplication
public class Oauth2GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(Oauth2GatewayApplication.class, args);
    }
}

我们不急着继续配置，先点开启动一下，检查一下依赖是否都符合预期，如果没有任何报错，那么恭喜你可以继续下一步了

配置网关

修改bootstrap.yml ，添加如下配置

 gateway:
    routes:
    # 产品服务
    - id: product
        uri: http://localhost:10003
        predicates:
        - Path=/api/**
    # 认证服务
    - id: auth
        uri: http://localhost:10001
        predicates:
        - Path=/**

配置权限管理器

/**
 * @Author
 * @Description 权限管理器
 * @Date
 */
@Slf4j
@Component
public class AccessManager implements ReactiveAuthorizationManager<AuthorizationContext> {
    private Set<String> permitAll = new ConcurrentSkipListSet<>();
    private static final AntPathMatcher antPathMatcher = new AntPathMatcher();


    public AccessManager() {
        permitAll.add("/");
        permitAll.add("/error");
        permitAll.add("/favicon.ico");
        permitAll.add("/**/oauth/**");
    }

    /**
     * 实现权限验证判断
     */
    @Override
    public Mono<AuthorizationDecision> check(Mono<Authentication> authenticationMono, AuthorizationContext authorizationContext) {
        ServerWebExchange exchange = authorizationContext.getExchange();
        //请求资源
        String requestPath = exchange.getRequest().getURI().getPath();
        // 是否直接放行
        if (permitAll(requestPath)) {
            return Mono.just(new AuthorizationDecision(true));
        }

        return authenticationMono.map(auth -> new AuthorizationDecision(checkAuthorities(exchange, auth, requestPath))).defaultIfEmpty(new AuthorizationDecision(false));

    }

    /**
     * 校验路径
     *
     * @param requestPath 请求路径
     * @return
     */
    private boolean permitAll(String requestPath) {
        return permitAll.stream()
                .filter(r -> antPathMatcher.match(r, requestPath)).findFirst().isPresent();
    }

    //权限校验
    private boolean checkAuthorities(ServerWebExchange exchange, Authentication auth, String requestPath) {
        if (auth instanceof OAuth2Authentication) {
            OAuth2Authentication athentication = (OAuth2Authentication) auth;
            String clientId = athentication.getOAuth2Request().getClientId();
            log.info("clientId is {}", clientId);
        }

        Object principal = auth.getPrincipal();
        log.info("principal:{}", principal.toString());
        return true;
    }
}

配置自定义认证管理器:

/**
 * @Author
 * @Description 自定义认证管理器
 * @Date
 */
@Slf4j
public class ReactiveJdbcAuthenticationManager implements ReactiveAuthenticationManager {

    private TokenStore tokenStore;

    public ReactiveJdbcAuthenticationManager(TokenStore tokenStore){
        this.tokenStore = tokenStore;
    }

    @Override
    public Mono<Authentication> authenticate(Authentication authentication) {
        return Mono.justOrEmpty(authentication)
                .filter(a -> a instanceof BearerTokenAuthenticationToken)
                .cast(BearerTokenAuthenticationToken.class)
                .map(BearerTokenAuthenticationToken::getToken)
                .flatMap((accessToken ->{
                    log.warn("accessToken is :{}",accessToken);
                    OAuth2AccessToken oAuth2AccessToken = this.tokenStore.readAccessToken(accessToken);
                    //根据access_token从数据库获取不到OAuth2AccessToken
                    if(oAuth2AccessToken == null){
                        return Mono.error(new InvalidTokenException("invalid access token,please check"));
                    }else if(oAuth2AccessToken.isExpired()){
                        return Mono.error(new InvalidTokenException("access token has expired,please reacquire token"));
                    }

                    OAuth2Authentication oAuth2Authentication =this.tokenStore.readAuthentication(accessToken);
                    if(oAuth2Authentication == null){
                        return Mono.error(new InvalidTokenException("Access Token 无效!"));
                    }else {
                        return Mono.just(oAuth2Authentication);
                    }
                })).cast(Authentication.class);
    }
}

网关层安全配置

/**
 * @Author
 * @Description 网关层安全配置
 * @Date
 */
@Configuration
public class SecurityConfig {
    @Autowired
    private DataSource dataSource;

    @Autowired
    private AccessManager accessManager;

    @Bean
    SecurityWebFilterChain webFluxSecurityFilterChain(ServerHttpSecurity http) throws Exception{
        //token管理器
        ReactiveAuthenticationManager tokenAuthenticationManager = new ReactiveJdbcAuthenticationManager(new JdbcTokenStore(dataSource));
        //认证过滤器
        AuthenticationWebFilter authenticationWebFilter = new AuthenticationWebFilter(tokenAuthenticationManager);
        authenticationWebFilter.setServerAuthenticationConverter(new ServerBearerTokenAuthenticationConverter());

        http
                .httpBasic().disable()
                .csrf().disable()
                .authorizeExchange()
                .pathMatchers(HttpMethod.OPTIONS).permitAll()
                .anyExchange().access(accessManager)
                .and()
                //oauth2认证过滤器
                .addFilterAt(authenticationWebFilter, SecurityWebFiltersOrder.AUTHENTICATION);
        return http.build();
    }
}

到这里，基本的配置就结束了，下面我们进入验证环节~

产品服务搭建

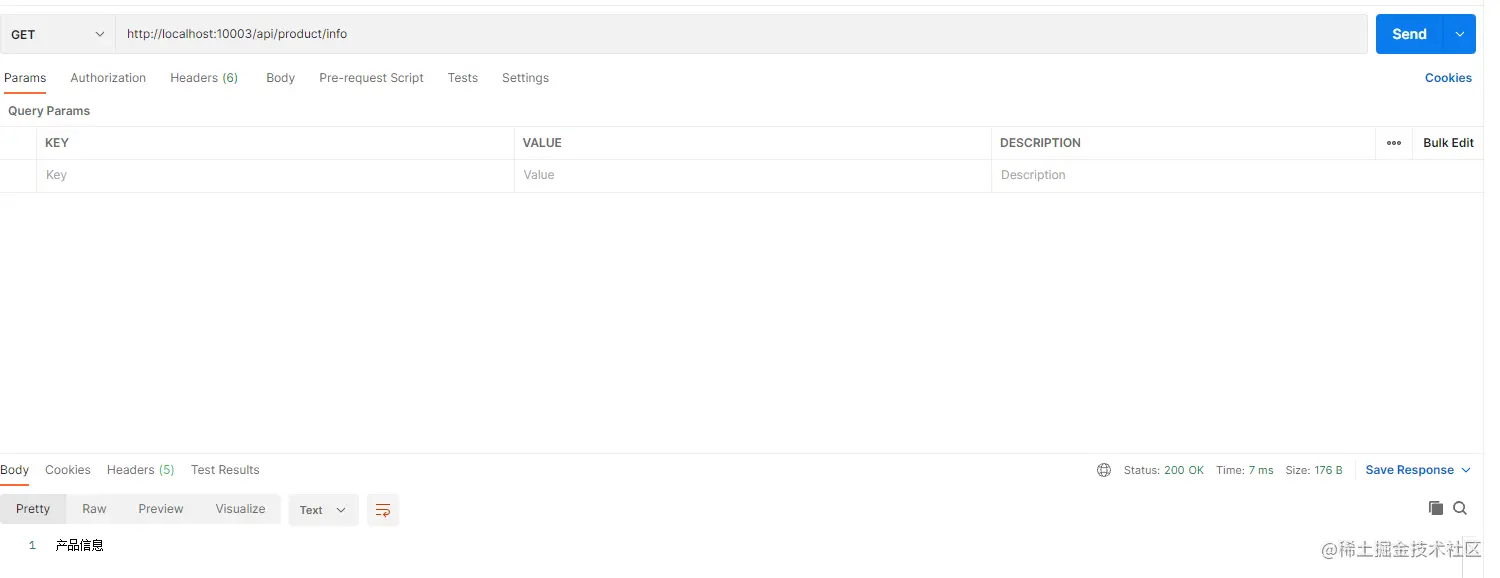

为了更加贴近实际，我们再新建一个产品模块，最终会通过网关去访问到这个产品服务~

我们新建一个产品模块，叫做spring-cloud-oauth2-product, 引入以下依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>com.pkq.cloud</artifactId>
        <groupId>pkq-cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-cloud-oauth2-product</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--SpringBoot2.4.x之后默认不加载bootstrap.yml文件，需要在pom里加上依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>

        <!-- Nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba.nacos</groupId>
                    <artifactId>nacos-client</artifactId>
                </exclusion>
            </exclusions>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba.nacos</groupId>
                    <artifactId>nacos-client</artifactId>
                </exclusion>
            </exclusions>
            <version>${spring-cloud-alibaba.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
            <version>${alibaba.nacos.version}</version>
        </dependency>

        <!-- Druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.22</version>
        </dependency>
        <!-- MySQL -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.16</version>
        </dependency>
        <!-- MyBatis-Plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis.plus.version}</version>
        </dependency>
        <!-- redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>com.nimbusds</groupId>
            <artifactId>nimbus-jose-jwt</artifactId>
            <version>9.9.3</version>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.8.0</version>
        </dependency>
        <!--thymeleaf-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>


</project>

同样的加入配置文件

server:
  port: 10003
  servlet:
    context-path: /api

spring:
  application:
    name: oauth2-product
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: ******
    driver-class-name: com.mysql.cj.jdbc.Driver
  redis:
    host: 127.0.0.1
    port: 6379
    database: 2

  cloud:
    nacos:
      discovery:
        #注册中心地址
        server-addr: 127.0.0.1:8848
      config:
        file-extension: yaml
        #配置中心地址
        server-addr: 127.0.0.1:8848

  thymeleaf:
    cache: false

mybatis-plus:
  mapper-locations: classpath:mapper/*/*.xml,mapper/*.xml
  global-config:
    db-config:
      id-type: auto
      field-strategy: NOT_EMPTY
      db-type: MYSQL
  configuration:
    map-underscore-to-camel-case: true
    call-setters-on-nulls: true
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

启动类大家自己建，然后建一个简单的controller

/**
 * @Author
 * @Description 产品信息
 * @Date
 */
@RestController
@RequestMapping("/product")
public class ProductInfoController {

    @GetMapping("/info")
    public String getInfo() {
        return "产品信息";
    }
}

测试环节

准备工作都已经结束了，为了让大家对流程上更加易懂，这里给大家看一张图，这样对整体上有清除的认知:

下面我就开始测试，首先浏览器请求这个地址：

http://localhost:10002/oauth/authorize?client_id=clientId1&response_type=code&scope=all&redirect_uri=https://www.baidu.com

就是把上节的10001改成网关的端口就可以了，后续流程都一样，最终我们拿到了code之后,下面请求token

在请求产品服务之前，我们先请求真实地址

下面我们通过网关请求，这时不带token

请求带```token````

发现不带token的请求被拦截下来了，携带的成功请求并返回正确数据。

结束语

本节到这里就结束了，其实还有很多细节，这个就需要大家根据自己的业务灵活调整了，下节我们带大家整合一下比较热门的分布式存储、搜索、分析的引擎Elasticsearch，这个系列内容会比较多，希望能够帮助到大家吧。关注我，不迷路 ~

相关文章

• SpringCloud整合 Oauth2+Gateway+Jwt+Nacos 实现授权码模式的服务认证(一)

项目源码(源码已更新 欢迎star⭐️)

• spring-cloud-all

往期并发编程内容推荐

• Java多线程专题之线程与进程概述
• Java多线程专题之线程类和接口入门
• Java多线程专题之进阶学习Thread(含源码分析)
• Java多线程专题之Callable、Future与FutureTask(含源码分析)
• 面试官: 有了解过线程组和线程优先级吗
• 面试官: 说一下线程的生命周期过程
• 面试官: 说一下线程间的通信
• 面试官: 说一下Java的共享内存模型
• 面试官: 有了解过指令重排吗，什么是happens-before
• 面试官: 有了解过volatile关键字吗 说说看
• 面试官: 有了解过Synchronized吗 说说看
• Java多线程专题之Lock锁的使用
• 面试官: 有了解过ReentrantLock的底层实现吗？说说看
• 面试官: 有了解过CAS和原子操作吗？说说看
• Java多线程专题之线程池的基本使用
• 面试官: 有了解过线程池的工作原理吗？说说看
• 面试官: 线程池是如何做到线程复用的？有了解过吗，说说看
• 面试官: 阻塞队列有了解过吗?说说看
• 面试官: 阻塞队列的底层实现有了解过吗? 说说看
• 面试官: 同步容器和并发容器有用过吗? 说说看
• 面试官: CopyOnWrite容器有了解过吗? 说说看
• 面试官: Semaphore在项目中有使用过吗？说说看(源码剖析)
• 面试官: Exchanger在项目中有使用过吗？说说看(源码剖析)
• 面试官: CountDownLatch有了解过吗？说说看(源码剖析)
• 面试官: CyclicBarrier有了解过吗？说说看(源码剖析)
• 面试官: Phaser有了解过吗？说说看
• 面试官: Fork/Join 有了解过吗？说说看（含源码分析）
• 面试官: Stream并行流有了解过吗？说说看

博客(阅读体验较佳)

• 我的博客(阅读体验较佳)

• 地址: github.com/qiuChenglei…

推荐 SpringBoot & SpringCloud (源码已更新 欢迎star⭐️)

• springboot-all

• 地址: github.com/qiuChenglei…

• SpringBoot系列教程合集

• 一起来学SpringCloud合集
