Spring Cloud源码分析之eureka+feign远程调用

穹柏
538 阅读10分钟

是什么

Eureka是一个REST (Representational State Transfer)服务，用于定位服务，以实现中间层服务器的负载平衡和故障转移，我们称此服务为Eureka服务器。Eureka还有一个基于java的客户端组件，Eureka客户端，这使得与服务的交互更加容易，同时客户端也有一个内置的负载平衡器，它执行基本的循环负载均衡。

Feign 是一种声明式服务调用组件，它在 RestTemplate 的基础上做了进一步的封装。通过 Feign，我们只需要声明一个接口并通过注解进行简单的配置（类似于 Dao 接口上面的 Mapper 注解一样）即可实现对 HTTP 接口的绑定。

通过 Feign，我们可以像调用本地方法一样来调用远程服务，而完全感觉不到这是在进行远程调用。

为什么

eureka解决了什么问题？为什么要用eureka?

eureka为分布式环境引入了服务注册与发现的能力，如果没有服务注册与发现，我们便需要手动去维护一大堆服务的地址信息，而当服务的状态变化发生变化，比如有新的服务加入或某些现有服务突然不可用时，现存的服务也无法感知到并及时切换到可用的服务上去.

相对其他提供服务注册与发现的组件（比如说zk），Eureka更偏向于AP。如果分布式系统对可用性的要求更高，那么，Eureka会是一个不错的选择。

另外，feign屏蔽了请求构建、发送、重试、负载均衡等相关细节，让我们能够从重复的工作中解放出来，更专注于业务本身。

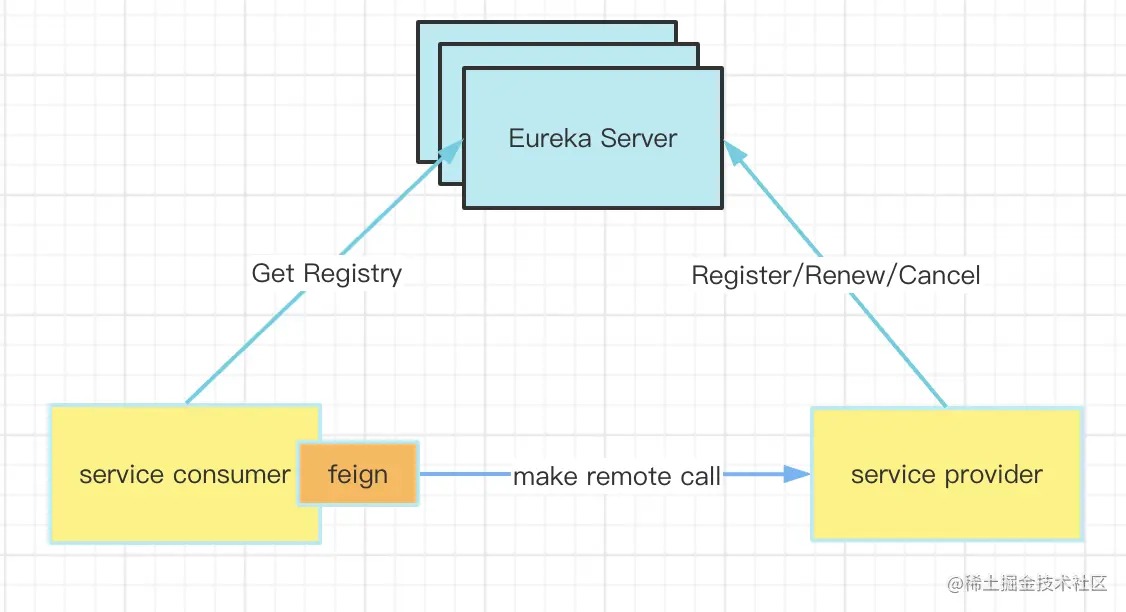

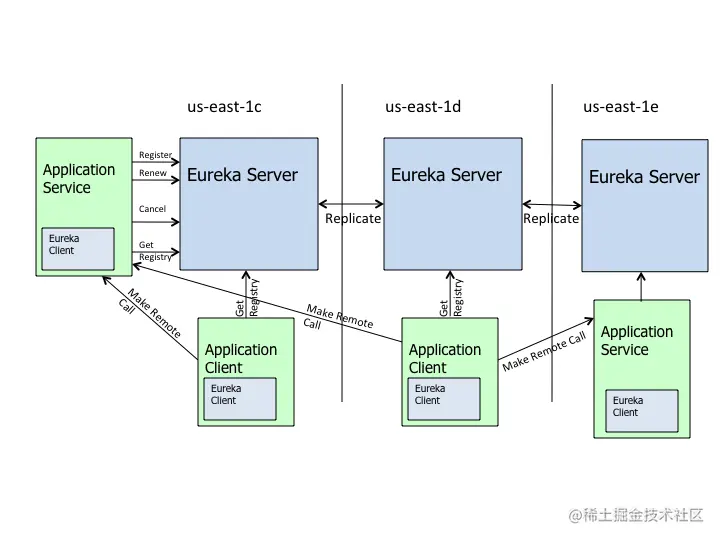

架构图



案例

eureka server

引入依赖

implementation 'org.springframework.cloud:spring-cloud-starter-netflix-eureka-server'

启动类

@EnableEurekaServer
@SpringBootApplication
public class EurekaServerApplication {

	public static void main(String[] args) {
		SpringApplication.run(EurekaServerApplication.class, args);
	}
}

配置文件

server.port=8761
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false

service consumer

依赖

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

启动类

@SpringBootApplication
@EnableDiscoveryClient
@RestController
@EnableFeignClients
public class HelloClientApplication {
	@Autowired
	HelloClient client;

	@RequestMapping("/")
	public String hello() {
		return client.hello();
	}

	public static void main(String[] args) {
		SpringApplication.run(HelloClientApplication.class, args);
	}

	@FeignClient("HelloServer")
	interface HelloClient {
		@RequestMapping(value = "/", method = GET)
		String hello();
	}
}

配置文件

spring:
  application:
    name: HelloClient

server:
  port: 7211

eureka:
  password: password
  client:
    serviceUrl:
      defaultZone: <http://user:${eureka.password}@localhost:8761/eureka/>
  instance:
    leaseRenewalIntervalInSeconds: 10
    metadataMap:
      instanceId: ${vcap.application.instance_id:${spring.application.name}:${spring.application.instance_id:${server.port}}}

endpoints:
  restart:
    enabled: true

service provider

依赖

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<dependency>
	<groupId>org.springframework.cloud</groupId>
	<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

启动类

@SpringBootApplication
@EnableDiscoveryClient
@RestController
public class HelloServerApplication {
	@Autowired
	DiscoveryClient client;

	@RequestMapping("/")
	public String hello() {
		List<ServiceInstance> instances = client.getInstances("HelloServer");
		ServiceInstance selectedInstance = instances
				.get(new Random().nextInt(instances.size()));
		return "Hello World: " + selectedInstance.getServiceId() + ":" + selectedInstance
				.getHost() + ":" + selectedInstance.getPort();
	}

	public static void main(String[] args) {
		SpringApplication.run(HelloServerApplication.class, args);
	}
}

配置文件

spring:
  application:
    name: HelloServer

server:
  port: 7111

eureka:
  password: password
  client:
    serviceUrl:
      defaultZone: <http://user:${eureka.password}@localhost:8761/eureka/>
  instance:
    leaseRenewalIntervalInSeconds: 10
    metadataMap:
      instanceId: ${vcap.application.instance_id:${spring.application.name}:${spring.application.instance_id:${server.port}}}

运行

依次启动eureka server、service provider、service consumer。访问http://localhost:7211/

如果在service provider的hello方法里打上断点，就可以发现请求由从service consumer的hello方法进到了service provider的hello方法。

而且，这里并没有在service consumer里配置service provider的地址信息，只是在service consumer里调用了HelloClient接口里的hello方法，便发出了一个到service provider的http请求。

提出问题

  1. 服务消费者怎么调用服务提供者
  2. 服务消费者如何拿到服务提供者的注册信息
  3. 有多个服务提供者的情况下，服务消费者如何判断访问哪一个
  4. 什么时候往eureka server注册
  5. eureka server怎么判断服务是否可用
  6. 有新服务上线或者服务地址发生变化怎么办
  7. 网络超时怎么办

初步分析

service consumer的HttpClient接口很简单，只有两个注解和一个接口定义，没有任何Http相关的细节。

而访问HttpClient的方式是通过容器里的bean来实现的，自然而然可以想到这里一定用到了代理。而FeignClient注解大概率就是代理的Pointcut，代理内部就是网络访问的细节。

像这种开箱即用的组件，按之前文章的分析经验来看，Spring的套路基本都是通过XXXAutoConfiguration以及EnableXXX注解来实现的。

可以看到在service consumer的启动类上有EnableDiscoveryClient、EnableFeignClients两个注解。

然后搜一搜eurekaClientAutoConfiguration。

源码分析

Eureka

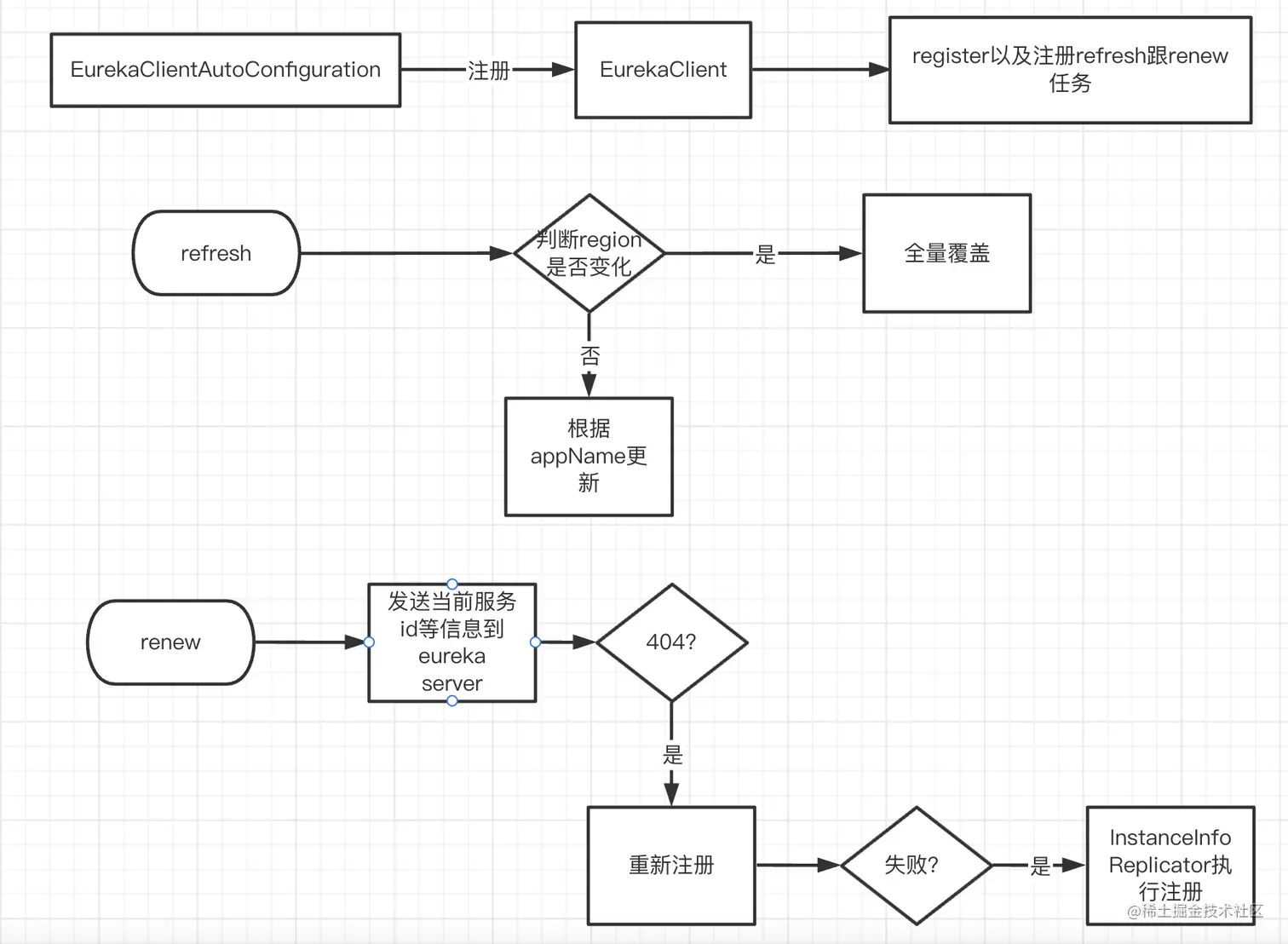

先看整体流程图


EurekaClient初始化

public class EurekaClientAutoConfiguration {

		//默认启用这个配置类，除非主动将eureka.client.refresh.enable设置为false
		protected static class RefreshableEurekaClientConfiguration {

			@Autowired
			private ApplicationContext context;

			@Autowired
			private AbstractDiscoveryClientOptionalArgs<?> optionalArgs;

			public EurekaClient eurekaClient(ApplicationInfoManager manager, EurekaClientConfig config,
					EurekaInstanceConfig instance, @Autowired(required = false) HealthCheckHandler healthCheckHandler) {

				//创建eurekaclient，注册register,renew,refresh任务到线程池
				CloudEurekaClient cloudEurekaClient = new CloudEurekaClient(appManager, config, this.optionalArgs,
						this.context);
				cloudEurekaClient.registerHealthCheck(healthCheckHandler);
				return cloudEurekaClient;
			}
	}
}

获取注册信息并注册定时任务

public class DiscoveryClient implements EurekaClient {
		DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
                    Provider<BackupRegistry> backupRegistryProvider, EndpointRandomizer endpointRandomizer) {
				//获取注册信息并保存
				boolean primaryFetchRegistryResult = fetchRegistry(false);

				if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
            try {
								//注册
                if (!register() ) {
                    throw new IllegalStateException("Registration error at startup. Invalid server response.");
                }
            } catch (Throwable th) {
                logger.error("Registration error at startup: {}", th.getMessage());
                throw new IllegalStateException(th);
            }
        }

				//初始化用于refresh跟renew的线程池
				//线程数为2，保证了refresh跟renew的单线程运行
				scheduler = Executors.newScheduledThreadPool(2,
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-%d")
                            .setDaemon(true)
                            .build());

				//注册定时任务
				initScheduledTasks();
		}
		private void initScheduledTasks() {
				//检查eureka.client.fetch-registry配置项的值，默认为true
        if (clientConfig.shouldFetchRegistry()) {
						//任务执行间隔，默认30s。配置项：eureka.client.registryFetchIntervalSeconds
            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
						//创建任务，内部会执行CacheRefreshThread#run
            cacheRefreshTask = new TimedSupervisorTask(
                    "cacheRefresh",
                    scheduler,
                    cacheRefreshExecutor,
                    registryFetchIntervalSeconds,
                    TimeUnit.SECONDS,
                    expBackOffBound,
                    new CacheRefreshThread()
            );
            // 注册refresh任务，负责刷新从eureka server获取的注册信息
            scheduler.schedule(
                    cacheRefreshTask,
                    registryFetchIntervalSeconds, TimeUnit.SECONDS);
        }

				//eureka.client.register-with-eurek 默认为true
        if (clientConfig.shouldRegisterWithEureka()) {
						//间隔，默认10s
            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            heartbeatTask = new TimedSupervisorTask(
                    "heartbeat",
                    scheduler,
                    heartbeatExecutor,
                    renewalIntervalInSecs,
                    TimeUnit.SECONDS,
                    expBackOffBound,
                    new HeartbeatThread()
            );
						//注册renew/heartbeatTask
            scheduler.schedule(
                    heartbeatTask,
                    renewalIntervalInSecs, TimeUnit.SECONDS);

            // 周期性检查当前服务的状态信息，比如hostname变化，或者改变InstanceStatus或者renew失败。
						// 一旦状态发生变化，会重新将自己注册到eureka server
            instanceInfoReplicator = new InstanceInfoReplicator(
                    this,
                    instanceInfo,
                    clientConfig.getInstanceInfoReplicationIntervalSeconds(),
                    2); // burstSize

            statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
                @Override
                public String getId() {
                    return "statusChangeListener";
                }

                @Override
                public void notify(StatusChangeEvent statusChangeEvent) {
                    logger.info("Saw local status change event {}", statusChangeEvent);
                    instanceInfoReplicator.onDemandUpdate();
                }
            };

						//注册状态监听器，好处是状态发生变更时可能比周期性更早的感知到变化
						//参考：ApplicationInfoManager#setInstanceStatus
            if (clientConfig.shouldOnDemandUpdateStatusChange()) {
                applicationInfoManager.registerStatusChangeListener(statusChangeListener);
            }

            instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
        }
    }
}

refresh任务: CacheRefreshThread

class CacheRefreshThread implements Runnable {
    void refreshRegistry() {
        try {
            boolean isFetchingRemoteRegionRegistries = isFetchingRemoteRegionRegistries();

            boolean remoteRegionsModified = false;
            // 判断region是否发生变化
						// 比如突然某个机房的服务出问题了，需要切到另一个机房。修改fetchRemoteRegionsRegistry配置项
            String latestRemoteRegions = clientConfig.fetchRegistryForRemoteRegions();
            if (null != latestRemoteRegions) {
                String currentRemoteRegions = remoteRegionsToFetch.get();
                if (!latestRemoteRegions.equals(currentRemoteRegions)) {

                    synchronized (instanceRegionChecker.getAzToRegionMapper()) {
                        if (remoteRegionsToFetch.compareAndSet(currentRemoteRegions, latestRemoteRegions)) {
														//更新region
                            String[] remoteRegions = latestRemoteRegions.split(",");
                            remoteRegionsRef.set(remoteRegions);
                            instanceRegionChecker.getAzToRegionMapper().setRegionsToFetch(remoteRegions);
														//保存region变化状态
                            remoteRegionsModified = true;
                        } else {
                            logger.info("Remote regions to fetch modified concurrently," +
                                    " ignoring change from {} to {}", currentRemoteRegions, latestRemoteRegions);
                        }
                    }
                }
            }
						//根据配置的url从eureka server拉取信息
						//如果region发生变化，则拉取注册信息后进行全量覆盖。否则根据applicationName更新
						//参考：DiscoveryClient#updateDelta -> applications.getRegisteredApplications(instance.getAppName()).addInstance(instance);
            boolean success = fetchRegistry(remoteRegionsModified);
        } catch (Throwable e) {
            logger.error("Cannot fetch registry from server", e);
        }
    }
}

renew

public class DiscoveryClient implements EurekaClient {

		boolean renew() {
        EurekaHttpResponse<InstanceInfo> httpResponse;
        try {
						//将当前实例的Id等信息发至eureka
            httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
            //如果status时404
            if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
								//将dirty设置为true
                long timestamp = instanceInfo.setIsDirtyWithTime();
                boolean success = register();
                if (success) {
										//如果成功，则将dirty设置为false。
										//如果失败，InstanceInfoReplicator在扫描到dirty为false后会重新注册
                    instanceInfo.unsetIsDirty(timestamp);
                }
                return success;
            }
            return httpResponse.getStatusCode() == Status.OK.getStatusCode();
        } catch (Throwable e) {
            logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
            return false;
        }
    }
}

Feign

核心组件关系概览

LoadBalancerAutoConfiguration 引入LoadBalancerAutoConfiguration

LoadBalancerAutoConfiguration引入LoadBalancerClientConfiguration

LoadBalancerClientConfiguration引入ServiceInstanceListSupplier

ServiceInstanceListSupplier从BeanFactory获取DiscoveryClient

DiscoveryClient持有注册到eureka server的服务的信息

LoadBalancerClientConfiguration引入RoundRobinLoadBalancer

RoundRobinLoadBalancer从BeanFactory获取ServiceInstanceListSupplier

DefaultFeignLoadBalancerConfiguration 引入FeignBlockingLoadBalancerClient

FeignBlockingLoadBalancerClient从容器中获取RoundRobinLoadBalancer

EnableFeignClients 引入FeignClientsRegistrar

FeignClientsRegistrar 为所有标注了FeignClient的类生成BeanDefinition

FeignClientsRegistrar 为生成的BeanDefinition注册callback用于生成代理对象

FeignClientsRegistrar注册的callback：创建SynchronousMethodHandler ，在其中注入FeignBlockingLoadBalancerClient，然后将SynchronousMethodHandler包装成InvocationHandler并注入代理对象

调用关系概览

访问代理对象->SynchronousMethodHandler->FeignBlockingLoadBalancerClient->RoundRobinLoadBalancer->DiscoveryClient获取服务提供者信息→RoundRobinLoadBalancer轮询选择服务提供者→调用目标服务

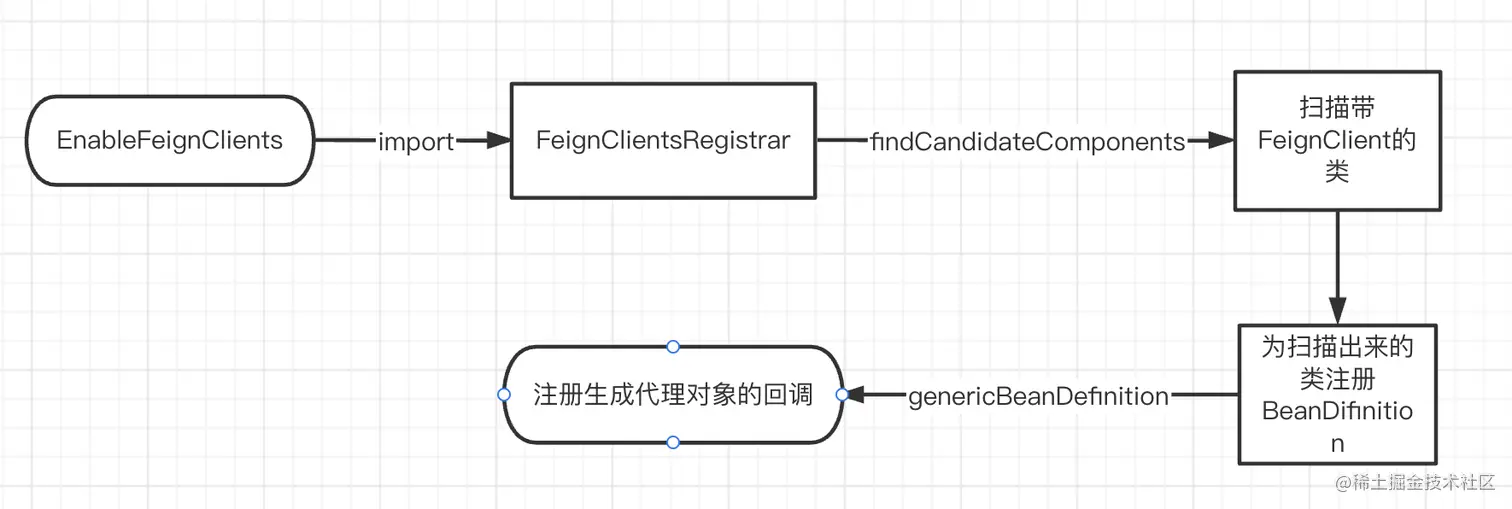

流程图

初始化



远程调用

Untitled (1).png

EnableFeignClients

点进EnableFeignClients. 可以看到它import了FeignClientsRegistrar

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(FeignClientsRegistrar.class)
public @interface EnableFeignClients {
	...
}

扫描FeignClient

FeignClientsRegistrar主要做了两件事

  1. 扫描basePackage下带FeignClient注解的类
  2. 注册工厂方法，用于为第一步扫描出来的类生成代理对象
public void registerFeignClients(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {

		LinkedHashSet<BeanDefinition> candidateComponents = new LinkedHashSet<>();

		//指定注解过滤器，过滤的注解为FeignClient
		scanner.addIncludeFilter(new AnnotationTypeFilter(FeignClient.class));
		Set<String> basePackages = getBasePackages(metadata);
		for (String basePackage : basePackages) {
			//扫描basePackage下带FeignClient注解的类并包装成beanDefinition
			candidateComponents.addAll(scanner.findCandidateComponents(basePackage));
		}

		for (BeanDefinition candidateComponent : candidateComponents) {
			if (candidateComponent instanceof AnnotatedBeanDefinition) {
				// verify annotated class is an interface
				AnnotatedBeanDefinition beanDefinition = (AnnotatedBeanDefinition) candidateComponent;
				AnnotationMetadata annotationMetadata = beanDefinition.getMetadata();

				Map<String, Object> attributes = annotationMetadata
						.getAnnotationAttributes(FeignClient.class.getCanonicalName());

				String name = getClientName(attributes);
				registerClientConfiguration(registry, name, attributes.get("configuration"));

				registerFeignClient(registry, annotationMetadata, attributes);
			}
		}
	}

注册beanDefinition以及callback

factoryBean.getObject(); 生成代理对象。通过将SynchronousMethodHandler包装成InvocationHandler植入目标对象来完成。而SynchronousMethodHandler里负责http调用的细节。

private void registerFeignClient(BeanDefinitionRegistry registry, AnnotationMetadata annotationMetadata,
			Map<String, Object> attributes) {
		String className = annotationMetadata.getClassName();
		Class clazz = ClassUtils.resolveClassName(className, null);

		FeignClientFactoryBean factoryBean = new FeignClientFactoryBean();
		factoryBean.setType(clazz);

		//注册一个回调来生成类型为clazz的bean
		//往beanDefinition里放入一个Supplier的实例，Spring会优先通过Supplier来创建目标bean
		BeanDefinitionBuilder definition = BeanDefinitionBuilder.genericBeanDefinition(clazz, () -> {
			//返回代理对象
			return factoryBean.getObject();
		});

		BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className, qualifiers);
		//注册beanDefinition
		BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);
	}

拦截器

创建SynchronousMethodHandler.Factory

public abstract class Feign {

	public <T> T target(Target<T> target) {
      return build().newInstance(target);
  }

	public <T> T target(Target<T> target) {
      return build().newInstance(target);
    }

  public Feign build() {

		//创建SynchronousMethodHandler的factory
    SynchronousMethodHandler.Factory synchronousMethodHandlerFactory =
        new SynchronousMethodHandler.Factory(client, retryer, requestInterceptors, logger,
            logLevel, decode404, closeAfterDecode, propagationPolicy, forceDecoding);
    ParseHandlersByName handlersByName =
        new ParseHandlersByName(contract, options, encoder, decoder, queryMapEncoder,
            errorDecoder, synchronousMethodHandlerFactory);
    return new ReflectiveFeign(handlersByName, invocationHandlerFactory, queryMapEncoder);
  }
}

生成代理对象

public class ReflectiveFeign extends Feign {
		public <T> T newInstance(Target<T> target) {
			//通过SynchronousMethodHandler.Factory的create方法创建SynchronousMethodHandler
		  Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target);
		  Map<Method, MethodHandler> methodToHandler = new LinkedHashMap<Method, MethodHandler>();

		  methodToHandler.put(method, nameToHandler.get(Feign.configKey(target.type(), method)));

			//通过SynchronousMethodHandler创建FeignInvocationHandler
		  InvocationHandler handler = factory.create(target, methodToHandler);

			//生成代理对象
		  T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(),
		      new Class<?>[] {target.type()}, handler);

		  return proxy;
		}
}

InvocationHandler

InvocationHandler的生成与执行

static class FeignInvocationHandler implements InvocationHandler {

    private final Target target;
    private final Map<Method, MethodHandler> dispatch;

    FeignInvocationHandler(Target target, Map<Method, MethodHandler> dispatch) {
			//SynchronousMethodHandler是MethodHandler的子类
			//method是目标方法
      this.target = checkNotNull(target, "target");
      this.dispatch = checkNotNull(dispatch, "dispatch for %s", target);
    }

		@Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
			//根据目标方法拿到MethodHandler并调用其invoke方法
      return dispatch.get(method).invoke(args);
    }
}

重试策略

SynchronousMethodHandler，http调用入口以及重试策略

final class SynchronousMethodHandler implements MethodHandler {
	@Override
  public Object invoke(Object[] argv) throws Throwable {
    RequestTemplate template = buildTemplateFromArgs.create(argv);
    Retryer retryer = this.retryer.clone();
    while (true) {
      try {
				//执行http request
        return executeAndDecode(template, options);
      } catch (RetryableException e) {
				//IO异常
				//服务提供者返回服务端错误（status>300&status!=404），并且response header里有Retry-After
        try {
					//检查是否重试，重试次数达到retryer.maxAttempts就会抛出RetryableException
					//重试间隔：如果是服务端错误，则使用Retry-After指定的值，但是不能超过maxPeriod
					//如果是IO异常，则每次的间隔延长1.5倍
					//如果符合重试要求，则不抛出异常
					//服务端异常参考：ErrorDecoder#decode
					//IO异常参考：SynchronousMethodHandler#executeAndDecode
          retryer.continueOrPropagate(e);
        } catch (RetryableException th) {
          Throwable cause = th.getCause();
          if (propagationPolicy == UNWRAP && cause != null) {
            throw cause;
          } else {
            throw th;
          }
        }
        continue;
      }
    }
  }

	Object executeAndDecode(RequestTemplate template, Options options) throws Throwable {
		...
    Request request = targetRequest(template);
		try {
		    response = client.execute(request, options);
		} catch (IOException e) {
      //抛出RetryableException
      throw errorExecuting(request, e);
    }

		...
  }

}

调用LoadBalancer

获取服务提供者信息并执行http请求

public class FeignBlockingLoadBalancerClient implements Client {
		@Override
		public Response execute(Request request, Request.Options options) throws IOException {
			//从eureka client中根据serviceId获取服务提供方的地址信息
			//serviceId是FeignClient注解的value
			//通过eurekaClient从eurekaServer获取服务提供方的地址信息
			ServiceInstance instance = loadBalancerClient.choose(serviceId, lbRequest);
			...

			//生成并执行http请求
			return executeWithLoadBalancerLifecycleProcessing(delegate, options, newRequest, lbRequest, lbResponse,
					supportedLifecycleProcessors);
		}
}

获取服务提供者信息

根据FeignClient里设置的value获取服务提供者信息

public class BlockingLoadBalancerClient implements LoadBalancerClient {
		public <T> ServiceInstance choose(String serviceId, Request<T> request) {
				//从容器中获取ReactorServiceInstanceLoadBalancer的实例
				//默认是RoundRobinLoadBalancer
				//参考LoadBalancerClientConfiguration
		   ReactiveLoadBalancer<ServiceInstance> loadBalancer = loadBalancerClientFactory.getInstance(serviceId);
		   if (loadBalancer == null) {
		      return null;
		   }
				//通过loadBanlancer获取地址信息
		   Response<ServiceInstance> loadBalancerResponse = Mono.from(loadBalancer.choose(request)).block();
		   if (loadBalancerResponse == null) {
		      return null;
		   }
		   return loadBalancerResponse.getServer();
		}
}

负载均衡处理

public class RoundRobinLoadBalancer implements ReactorServiceInstanceLoadBalancer {
	@Override
	public Mono<Response<ServiceInstance>> choose(Request request) {
		//拿到ServiceInstanceListSupplier，持有eurekaClient
		ServiceInstanceListSupplier supplier = serviceInstanceListSupplierProvider
				.getIfAvailable(NoopServiceInstanceListSupplier::new);

		//根据请求从eureka拿到所有的服务端实例后选出一个实例
		return supplier.get(request).next()
				.map(serviceInstances ->
						//从serviceInstances选择一个实例
						processInstanceResponse(supplier, serviceInstances)
				);
	}

	private Response<ServiceInstance> processInstanceResponse(ServiceInstanceListSupplier supplier,
			List<ServiceInstance> serviceInstances) {
		//轮询选出一个实例
		Response<ServiceInstance> serviceInstanceResponse = getInstanceResponse(serviceInstances);
		if (supplier instanceof SelectedInstanceCallback && serviceInstanceResponse.hasServer()) {
			((SelectedInstanceCallback) supplier).selectedServiceInstance(serviceInstanceResponse.getServer());
		}
		return serviceInstanceResponse;
	}

	private Response<ServiceInstance> getInstanceResponse(List<ServiceInstance> instances) {
		//每次获取+1
		int pos = Math.abs(this.position.incrementAndGet());
		//取余实现轮询
		ServiceInstance instance = instances.get(pos % instances.size());

		return new DefaultResponse(instance);
	}
}

解决问题

  1. 通过代理生成http进行远程调用
  2. 通过eureka client从eureka server根据appName（FeignClient注解的value）获取服务提供者信息，并通过refresh保证信息及时性
  3. 默认通过轮询的方式
  4. 启动时，并通过周期性任务以及状态监听器保证数据变更时能够及时通知到eureka server
  5. 通过定时（默认10s）向eureka server发送心跳消息(renew)
  6. 通过定时(默认30s)从eureka server获取服务信息，然后根据appName更新本地缓存（refresh）
  7. 如果没超过最大重试次数，则定时重试，间隔时间每次增加1.5倍，但不超过最大重试时间（默认5s）。如果服务端返回的header里设置了Retry-After，则根据该header指定的值来设置间隔时间，且不超过配置的最大间隔

参考

github.com/Netflix/eur…

avatar
文章
阅读
粉丝
